Xylem CHATTER Notification System User Manual

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

Your notes:

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

2

Table of contents

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

Introduction

................................................................................................................................... 6System overview

................................................................................................................................... 8System description

................................................................................................................................... 9Stormflow processing overview

................................................................................................................................... 11Stormflow - Float switch

................................................................................................................................... 12Stormflow - Pressure transmitter

................................................................................................................................... 14Functions overview

Detailed configuration

................................................................................................................................... 16Definition of rules

................................................................................................................................... 22Configuration of Chatter Notification Engine

................................................................................................................................... 26Configuration of the Rules Engine

................................................................................................................................... 29Configuration of the SCADA plug-in

................................................................................................................................... 37Configuration of the STORMFLOW plug-in

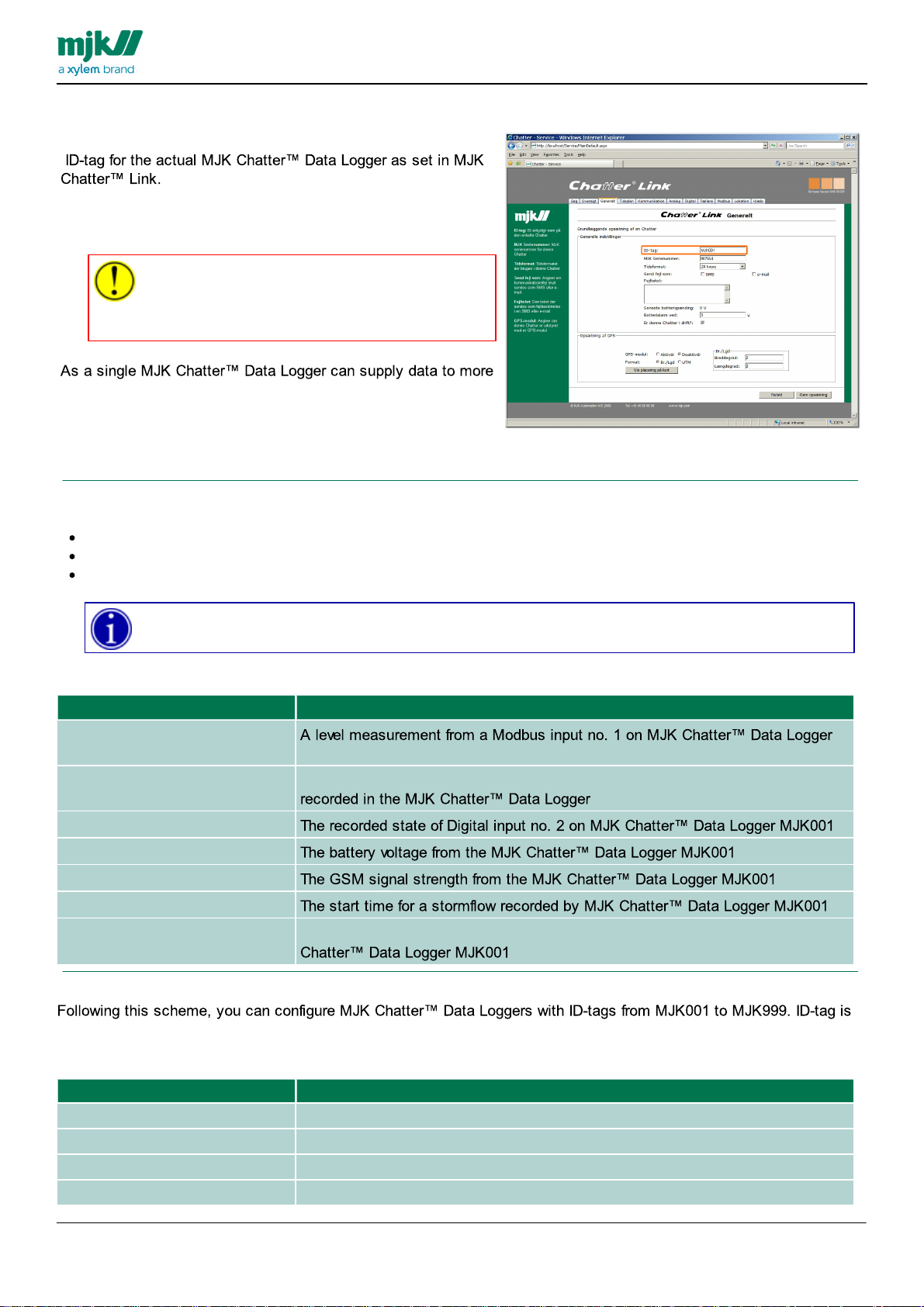

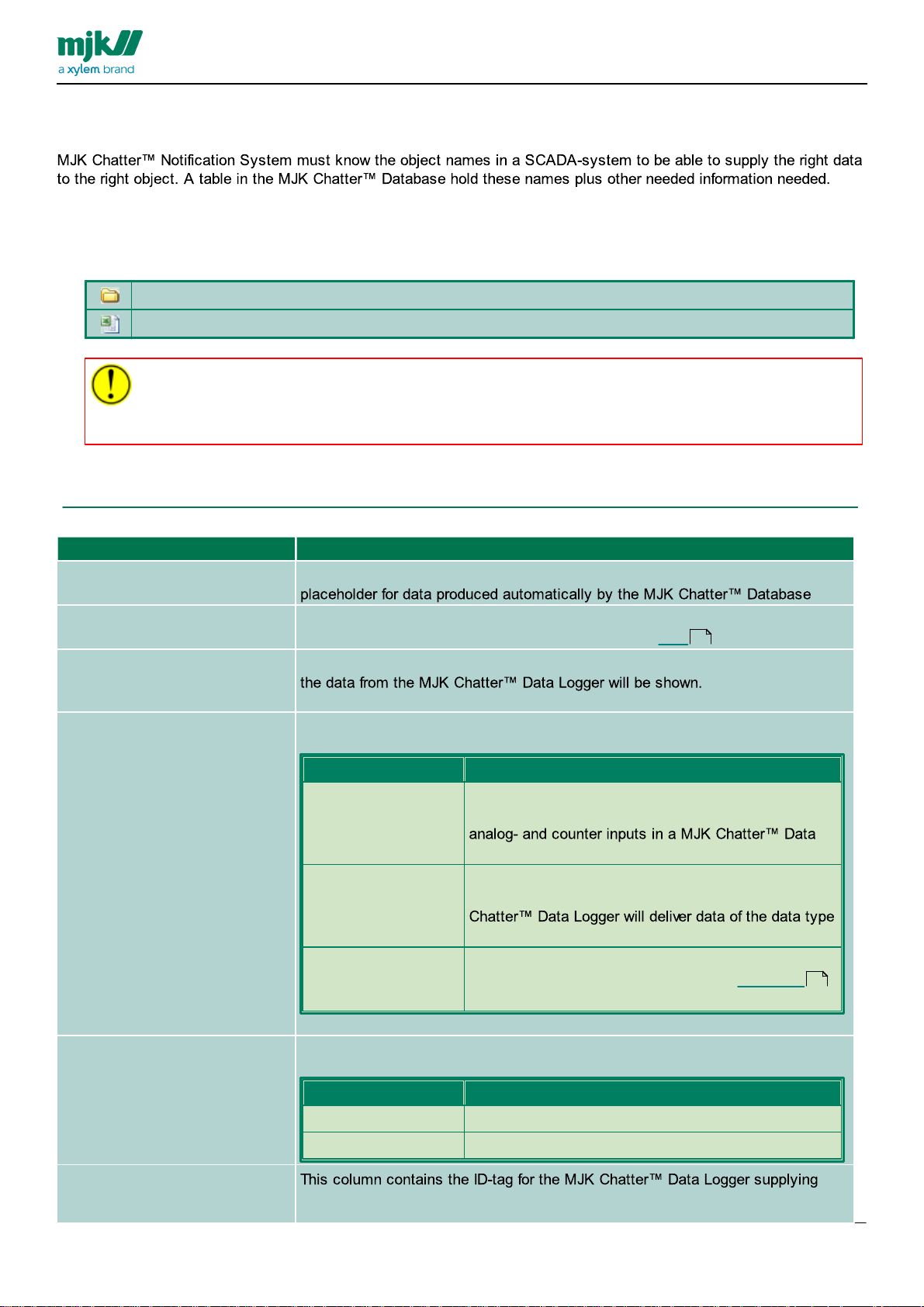

Naming objects in a SCADA system

................................................................................................................................... 48Spredsheet for object names

................................................................................................................................... 52Import-file for object names

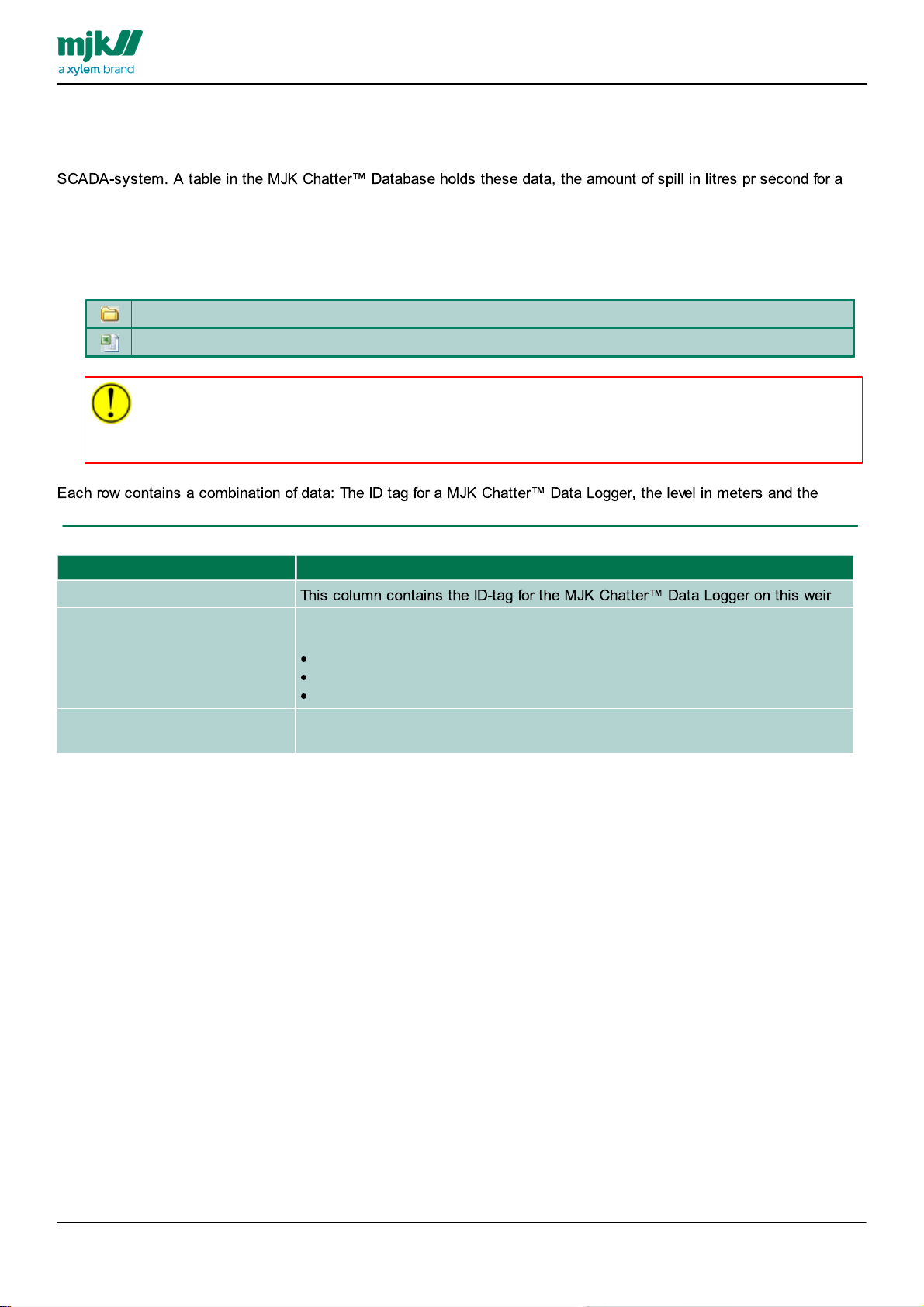

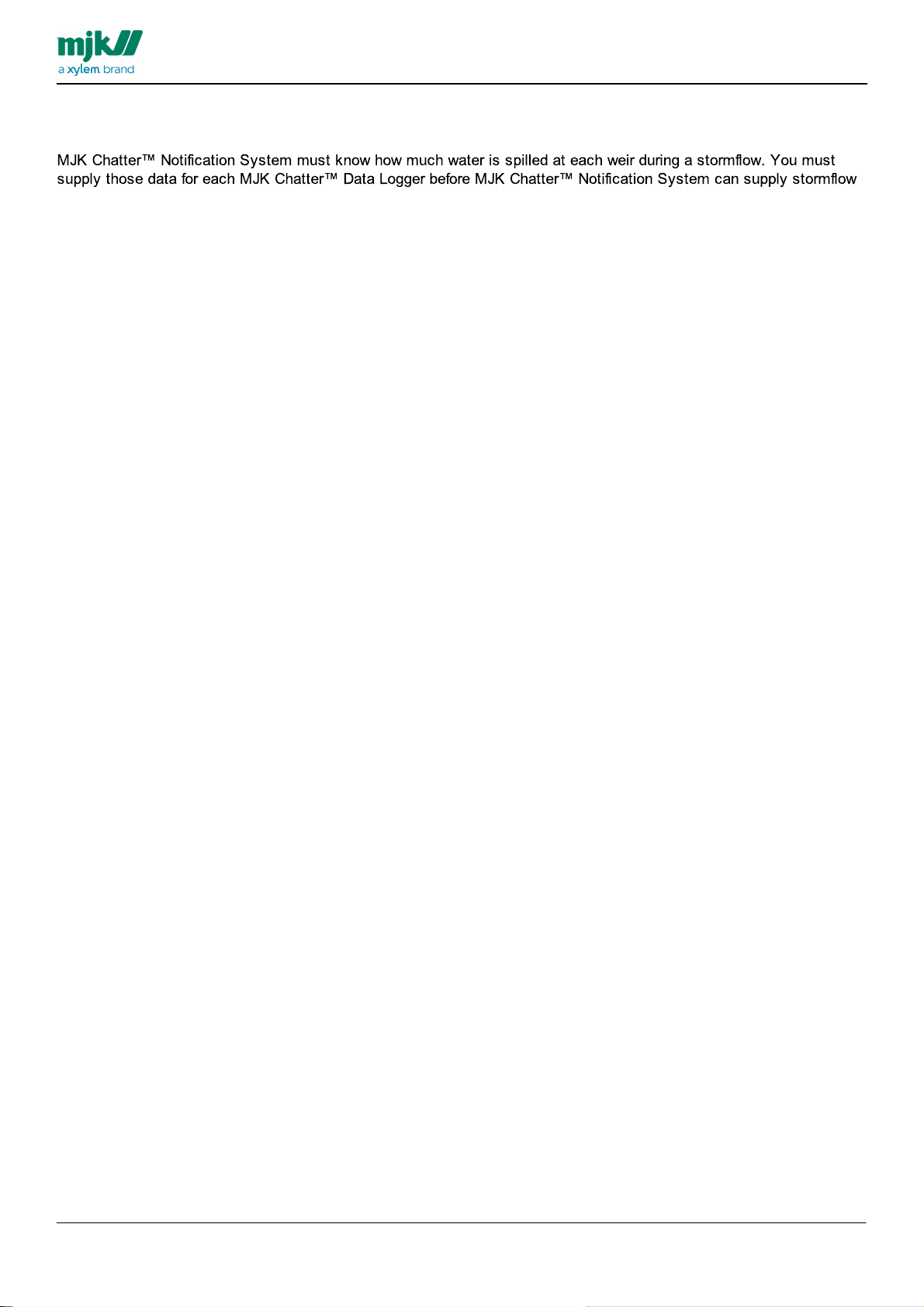

Creating Stormflow data

................................................................................................................................... 55Spreadsheet for stormflow data

................................................................................................................................... 56Import file for stormflow data

4

15

39

54

IGSS only information

................................................................................................................................... 59Creation of objects in IGSS 8

iFIX only information
BV2000 only information

58

................................................................................................................................................................... 60Analog objects

................................................................................................................................................................... 61Digital objects

................................................................................................................................................................... 62String type objects

63
64

3

GB CHATTER NOTIFICATION CONFIGURATION 1303

Area

Phone

e-mail

Europe

[phone]

[e-mail]

Denmark

[phone]

[e-mail]

Norway

[phone]

[e-mail]

Sweden

[phone]

[e-mail]

Netherlands

[phone]

[e-mail]

Ireland

[phone]

[e-mail]

USA

[phone]

[e-mail]

Australia

[phone]

[e-mail]

Item number

Description

840128-2008R2-001
2008 R2, release 001

Revision

Revisions

001

First release in this format

Introduction

system to meet your requirements.
To ensure the best result MJK recommends that the user reads this manual to become familiar with all features,

Configure the system as instructed by the manufacturer, MJK Automation ApS, to ensure reliable operation and
accurate measurements.

You can always get in touch with your supplier or with an MJK support hotline for advice and guidance:

MANUAL

Visit our website www.mjk.com to read more about MJK Automation ApS, our other products and the people behind.

system.

Ordering

Brief revision history

4

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

5

System overview

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

6

GB CHATTER NOTIFICATION CONFIGURATION 1303

Description

System. It treats the measurement or the alarm according to a set of rules . The rules tests the new measurement
or alarm, and decides - according to its origin - how to treat it.

A verbal description of a rule could be:

by the SCADA plug-in and the result forwarded to the SCADA-system.

Chatter Notification Engine - the component which receives the measurement or the alarm
Chater Rules Engine - the component which determines the further treatment of the measurement or alarm
SCADA plug-in - the component which treats data before forwarding them to the SCADA-system
STORMFLOW plug-in - the component which calculates numbers, durations and amount of spill during stormflows
based on a level measurement. The results is forwarded to a SCADA system.

MANUAL

16

7

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

System description

System. It treats the measurement or the alarm according to a set of rules. The rules tests the new measurement or
alarm, and decides - according to its origin - how to treat it.

A verbal description of a rule could be:

the SCADA plug-in and the result forwarded to the SCADA-system.

Chatter Notification Engine - the component which receives the measurement or the alarm
Chater Rules Engine - the component which determines the further treatment of the measurement or alarm
SCADA plug-in - the component which treats data before forwarding them to the SCADA-system
STORMFLOW plug-in - the component which calculates numbers, durations and amount of spill during stormflows
based on a level measurement. The results is forwarded to a SCADA system.

8

Stormflow processing overview

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

9

GB CHATTER NOTIFICATION CONFIGURATION 1303

Description

A stormflow starts when a water level has exceeded a preset maximum for a certain period of time.
A stormflow stops when the level has been below a preset level for a certain period of time.

MANUAL

10

Stormflow - Float switch

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

11

Stormflow - Pressure transmitter

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

12

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

13

GB CHATTER NOTIFICATION CONFIGURATION 1303

Not all available plug-in may be used in your installation

MANUAL

Functions overview

General

If new data is detected, they are treated by a Chater Rules Engine, which determines - according to a set of rules ­which plug-in will treat the data.

Plug-in's

received from Chater Rules Engine

SCADA plug-in

This plug.-in receives data from Chater Rules Engine and creates a file with comma-separated values from the data. This
file with comma-separated values contains measurement or alarm data which is delivered to various SCADA-systems.

The current version will supply data for:

7-Tedhnologies IGSS32 release 8 with DDHC Data FileDriver (Driver ID 66) installed.
7-Tedhnologies IGSS32 release 9 with DDHC Data FileDriver (Driver ID 66) installed.

System
BV Electronics System 2000

STORMFLOW plug-in

This plug-in receives data from Chater Rules Engine and creates a file with comma-separated values from the data. This
file with comma-separated values contains data on stormflows which is delivered to various SCADA-systems.

The current version will supply data for:

7-Tedhnologies IGSS32 release 8 with DDHC Data FileDriver (Driver ID 66) installed.
7-Tedhnologies IGSS32 release 9 with DDHC Data FileDriver (Driver ID 66) installed.

System
BV Electronics System 2000

14

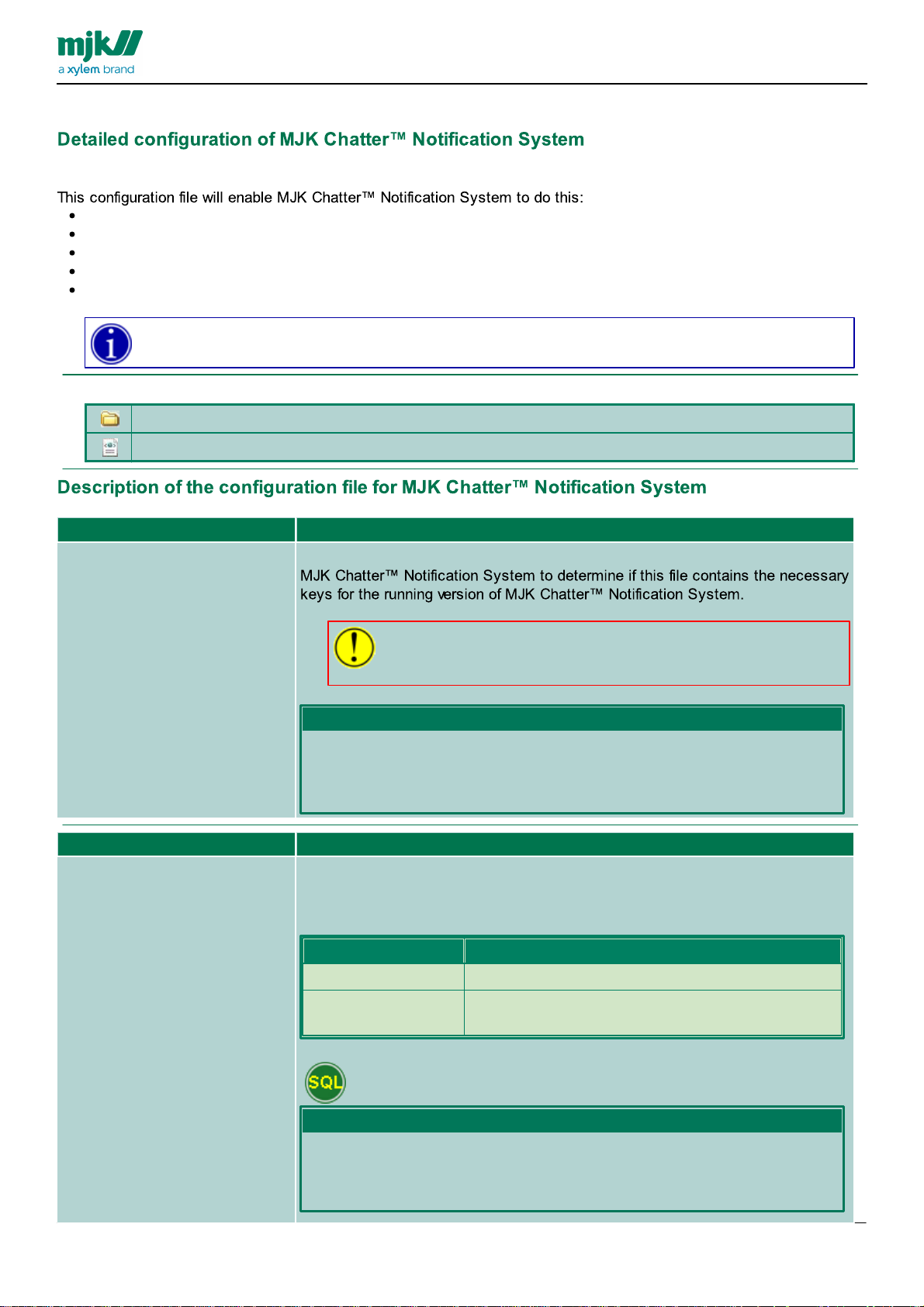

Detailed configuration

Step

Desription

1

Configure the Chatter Notification Engine to use the correct database.
Information about setting up the engine are found in this chapter .

2

Define at least one rule in the configuration file cnsRulesEngineGlobalConfig.xml.
Information about how to set up rules are in this chapter .

Step

Desription

1

Create at least one rule in the range 0 - 1999 the configuration file

cnsSCADAplugInGlobalConfig.xml.

Information about how to set up rules are in this chapter .

2

Create a corresponding entry in the cnsSCADAobjects table in the database
Information about how to create and name objects in the database are in this chapter

3

Configure the SCADA plug-in to deliver its output data in a place to suit your needs
Information about how to configure this are in this chapter

Step

Desription

1

Create at the 2;M;1;0;M; rule in the configuration file

cnsRulesEngineGlobalConfig.xml.

Information about how to set up rules are in this chapter .

2

Create the necessary entries in the cnsSCADAobjects table in the database
Information about how to create and name objects in the database are in this chapter

3

Configure the STORMFLOW plug-in settings to suit your needs.
Information about how to configure this are in this chapter

General

SCADA plug-in

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

22

16

16

39

29

STORMFLOW plug-in

16

39

37

15

Definition of rules

#

Description

1;

The first element of the rule is 1, thus the data will be processed by the SCADA plug-in

M;

The second element of the rule is M, thus data must come from a Modbus input on any MJK

1;

The third element of the rule is 1, thus data must come from Modbus input number 1 on any

0;

The fourth element of the rule is 0, thus the SCADA plug-in will output the measured value
M;

The fifth element of the rule is M, thus data must come from a measurement.

#

Description

1;

The first element of the rule is 1, thus the data will be processed by the SCADA plug-in

M;

The second element of the rule is M, thus data must come from a Modbus input on any MJK

1;

The third element of the rule is 1, thus data must come from Modbus input number 1 on any

1024;

The fourth element of the rule is 1024, thus the SCADA plug-in will output the GSM signal
M;

The fifth element of the rule is M, thus data must come from a measurement.

C:\Program Files (X86)\MJK Automation\Chatter - Notification Service

cnsRulesEngineGlobalConfig.xml

#1

Description

1;

Data will be treated by the SCADA plug-in

Rules definition

A rule
measurements or alarms - are processed.

system.

they will be processed by the rule, if not, they will be ignored.

System operate.

Example number one

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

Example number two

Definition of rules

Rules are kept in this file:

First element - process where?

The first element is a digit designating which plug-in will process the data coming from this rule:

16

2;

Data will be treated by the STORMFLOW plug-in

Second element - input type

#2

Description

D;

Data must come from a digital input

A;

Data must come from a analog input

C;

Data must come from a counter on a digital input

M;

Data must come from a Modbus input

I;

Data must come from an internal measurement

#3

Description

1;

Data must come from X-input number 1

2;

Data must come from X-input number 2

3;

Data must come from X-input number 3

4;

Data must come from X-input number 4

measurement or alarm which is processed by this rule.

#4

From

Description

0;

comma-separated values.

1000;

Chatter

Output the battery voltage in mV from the internal battery in the current MJK

1001;

Chatter

Output the GSM signal strength as a value between 1 and 31 as recorded for

Value

Description

1 - 14

The signal strength is marginal

15 - 19

The signal strength is is acceptable

20 - 24

The signal strength is is good

25 - 31

The signal strength is is excellent

1002;

Chatter

reset to the file with comma-separated values.

for this rule:

Third element - input number

data for this rule:

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

Fourth element - data output

The fourth element is a number designating which data, this rule will output to a recipient, typically a SCADA-system.
Data output is divided into three different groups;

marked with a Chatter in the table below.

Database in the table below.

Output of data from the STORMFLOW plug-in, marked with an Stormflow in the table below.

17

GB CHATTER NOTIFICATION CONFIGURATION 1303

1003;

Chatter

measurement or alarm to the file with comma-separated values.

1004;

Database

the file with comma-separated values.

1005;

Database

Logger to the file with comma-separated values.

1006;

Database

Logger is located to the file with comma-separated values. Used mostly at
waterworks.

1007;

Database

Data Logger to the file with comma-separated values.

1008;

Database

Output the name from the middle level in the location for the current MJK

1009:

Database

Output the name from the lowest level in the location for the current MJK

1010;

Database

with comma-separated values.

1011;

Database

Output the signal type which is the origin of the data to the file with comma­separated values.

1012;

Database

Output the signal number which is the origin of the data to the file with comma­separated values.

1013;

Database

with comma-separated values.

1014;

Database

file with comma-separated values.

1015;

Database

Logger to the file with comma-separated values.

1016;

Database

file with comma-separated values.

1017;

Database

the file with comma-separated values.

1018;

Database

the file with comma-separated values.

1019;

Database

Output the flag telling if Minimum Threshold is enabled in the current MJK

1020;

Database

Output the flag telling if Maximum Threshold is enabled in the current MJK

1021;

Database

with comma-separated values.

1022;

Database

comma-separated values.

1023:

Database

server to the file with comma-separated values.

1024;

Chatter

Data Logger converted from mV to V to the file with comma-separated values.

1025;

Chatter

Output the GSM signal strength converted to dBm as recorded for the current

MANUAL

18

GB CHATTER NOTIFICATION CONFIGURATION 1303

Value

Converted to dBm

0

-113 dBm

1

-111 dBm

2 - 30

-109 dBm til -53dBm in steps of -2 dBm

31

-51 dBm

1026;

Database

measurement or alarm, converted to seconds since midnight, January 1st, 1970
using the local time zone, to the file with comma-separated values

1027;

Database

measurement or alarm, converted to seconds since midnight, January 1st, 1970
using UTC, to the file with comma-separated values

1028;

Database

server, converted to seconds since midnight, January 1st, 1970 using the local
time zone, to the file with comma-separated values.

1029;

Database

server, converted to seconds since midnight, January 1st, 1970 using UTC, to the
file with comma-separated values.

Numbers above 2000 are usable only if the installation contains the
STORMFLOW plug-in

2000;

Stormflow

Output the start time for the first stormflow within the last 24 hours to the file with
comma-separated values.

2000 must always be in the cnsSCADAobjects table whether it is
used or not!

2001;

Stormflow

Output the end time for the last stormflow within the last 24 hours to the file with
comma-separated values.

2002;

Stormflow

Output the duration of all stormflows within the last 24 hours to the file with
comma-separated values.

2003;

Stormflow

Output the number of sub-stormflows within the last 24 hours to the file with
comma-separated values.

2004;

Stormflow

Outputs the number of stormflows within the last 24 hours to the file with comma­separated values.

2005;

Stormflow

Outputs the total number of stormflows since system start to the file with comma­separated values.

2006;

Stormflow

Outputs the total duration of stormflows since system start to the file with
comma-separated values.

2007;

Stormflow

Outputs the amount of spill in litres within the last 24 hours to the file with
comma-separated values.

2008;

Stormflow

Outputs the amount of spill in m3 within the last 24 hours to the file with comma­separated values.

2009;

Stormflow

Outputs the total amount of spill in litres since system start to the file with
comma-separated values.

2010;

Stormflow

Outputs the total amount of spill in m3 since system start to the file with comma­separated values.

2011;

Stormflow

Outputs the momentary flow at log-time in litres pr. second to the file with
comma-separated values.

2012;

Stormflow

Outputs the momentary flow at log-time in m3 pr. second to the file with comma­separated values.

MANUAL

19

GB CHATTER NOTIFICATION CONFIGURATION 1303

2013;

Stormflow

Outputs the momentary flow at log-time in m3 pr. minute to the file with comma­separated values.

2014;

Stormflow

Outputs the momentary flow at log-time in m3 pr. hour to the file with comma­separated values.

2015;

Stormflow

Output the start time for the latest, completed stormflow to the file with comma­separated values.

2016;

Stormflow

Output the end time for the latest, completed stormflow to the file with comma­separated values.

2017;

Stormflow

Output the duration for the latest, completed stormflow to the file with comma­separated values.

2018;

Stormflow

Output the number of sub-stormflows for the latest, completed stormflow to the
file with comma-separated values.

2019;

Stormflow

Outputs the amount of spill in litres for the latest, completed stormflow to the file
with comma-separated values.

2020;

Stormflow

Outputs the amount of spill in m3 for the latest, completed stormflow to the file
with comma-separated values.

2021;

Stormflow

Output the start time for the first stormflow within the last 24 hours, converted to
seconds since midnight, January 1st, 1970 using UTC, to the file with comma-
separated values.

2022;

Stormflow

Output the start time for the first stormflow within the last 24 hours, converted to
seconds since midnight, January 1st, 1970 using the local time zone, to the file
with comma-separated values.

2023;

Stormflow

Output the end time for the last stormflow within the last 24 hours, converted to
seconds since midnight, January 1st, 1970 using UTC, to the file with comma-
separated values.

2024;

Stormflow

Output the end time for the last stormflow within the last 24 hours, converted to
seconds since midnight, January 1st, 1970 using the local time zone, to the file
with comma-separated values.

2025;

Stormflow

Output the start time for the latest, completed stormflow , converted to seconds
since midnight, January 1st, 1970 using UTC, to the file with comma-separated
values.

2026;

Stormflow

Output the start time for the latest, completed stormflow, converted to seconds
since midnight, January 1st, 1970 using the local time zone, to the file with
comma-separated values.

2027;

Stormflow

Output the end time for the latest, completed stormflow , converted to seconds
since midnight, January 1st, 1970 using UTC, to the file with comma-separated
values.

2028;

Stormflow

Output the end time for the latest, completed stormflow , converted to seconds
since midnight, January 1st, 1970 using the local time zone, to the file with
comma-separated values.

Numbers 2029 to 2032 requires the Alarm interval in the MJK

2029;

Stormflow

Outputs the momentary flow at log-time in litres pr. second for the for the
current, ongoing stormflow to the file with comma-separated values.

2030;

Stormflow

Outputs the momentary flow at log-time in m3 for the for the current, ongoing
stormflow to the file with comma-separated values.

2031;

Stormflow

Outputs the summed amount of spill in litres for the for the current, ongoing
stormflow to the file with comma-separated values.

2032;

Stormflow

Outputs the summed amount of spill in m3 for the for the current, ongoing
stormflow to the file with comma-separated values.

MANUAL

20

Fifth element - alarm or measurement

#5

Description

A;

Data must come from an alarm

M;

Data must come from a measurement

of data for this rule:

The supplied configuration file

<cnsRulesConfig>
<cnsVersion>

003

</cnsVersion>

<cnsAvailablePlugins>

<!--1;SCADA;-->

<!--2;Stormflow;-->
</cnsAvailablePlugins>
<cnsTriggers>

<!--1;M;1;0;M;-->

<!--1;M;1;0;A;-->

<!--1;M;1;1024;M;-->

<!--1;M;1;1001;M;-->

<!--1;M;1;1026;M;-->

<!--1;M;1;1027;M;-->

<!--1;M;1;1028;M;-->

<!--1;M;1;1029;M;-->

<!--1;M;1;1003;M;-->

<!--1;M;2;0;M;-->

<!--1;C;1;0;M;-->

<!--1;A;1;0;M;-->

<!--2;M;1;0;M;-->
</cnsTriggers>

</cnsRulesConfig>

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

21

GB CHATTER NOTIFICATION CONFIGURATION 1303

If this configuration file is modified, the Chatter - Notification Service must be restarted

C:\Program Files\MJK Automation\Chatter - Notification Service

cnsNotificationEngineGlobalConfig.xml

Key

Description

cnsVersion

This key contains the version number of this configuration file. The key is used by

Do not change the values in this key without
consulting MJK Automation ApS!

Example:

<cnsVersion>

003

</cnsVersion>

Key

Description

cnsServiceDependencies

This key describes which services must be present and running before Chatter
Notification Engine can start.

The value is a list of service names:

Value

Service

MSSQLSERVER

Microsoft SQL server 2008 R2

MSSQL$SQLEXPRES
S

Microsoft SQL server 2008 R2 Express Edition

SQL Server

Example:

<cnsServiceDependencies>

MSSQLSERVER

</cnsServiceDependencies>

Configuration of Chatter Notification Engine

How Chatter Notification Engine is working is described in a configuration file. This file is a text file in XML format

It will expect that Microsoft SQL server 2008 R2 Express Edition is running
It will log on to the database using a valid connection string
It will check for new, untreated data every 30 seconds
It will update its 'alive' record every 10 minutes
It will maintain a log file with a specific name in a specific folder on the local hard disk

Filename and -location

MANUAL

22

GB CHATTER NOTIFICATION CONFIGURATION 1303

SQL Express

Example:

<cnsServiceDependencies>

MSSQL$SQLEXPRESS

</cnsServiceDependencies>

Key

Description

cnsDBconnectionString

This key describes the information needed by Chatter Notification Engine for it to

The key must contain:

Data Source = The name of the database engine
Initial Catalog = The name of the database
Integrated Security = Log-on security

SQL Server

Example:

<cnsDBconnectionString>

Data Source=.; Initial Catalog=ChatterDB; Integrated
Security=yes;

</cnsDBconnectionString>

SQL Express

Example:

<cnsDBconnectionString>

Data Source=.\SQLEXPRESS; Initial Catalog=ChatterDB;
Integrated Security=yes;

</cnsDBconnectionString>

Key

Description

cnsNEscanInterval

This key describes how often Chatter Notification Engine will check for new,
untreated data in certain tables in the database.

The value is a number of seconds, valid values are 0 to 86400:

Value

Description

0

Chatter Notification Engine never checks for new,
untreated data in the database.

1

Chatter Notification Engine checks for new, untreated
data in the database every second.

+++

84600

Chatter Notification Engine checks for new, untreated
data in the database every 24 hours.

MANUAL

23

GB CHATTER NOTIFICATION CONFIGURATION 1303

Example:

<cnsNEscanInterval>

10

</cnsNEscanInterval>

Text

Text

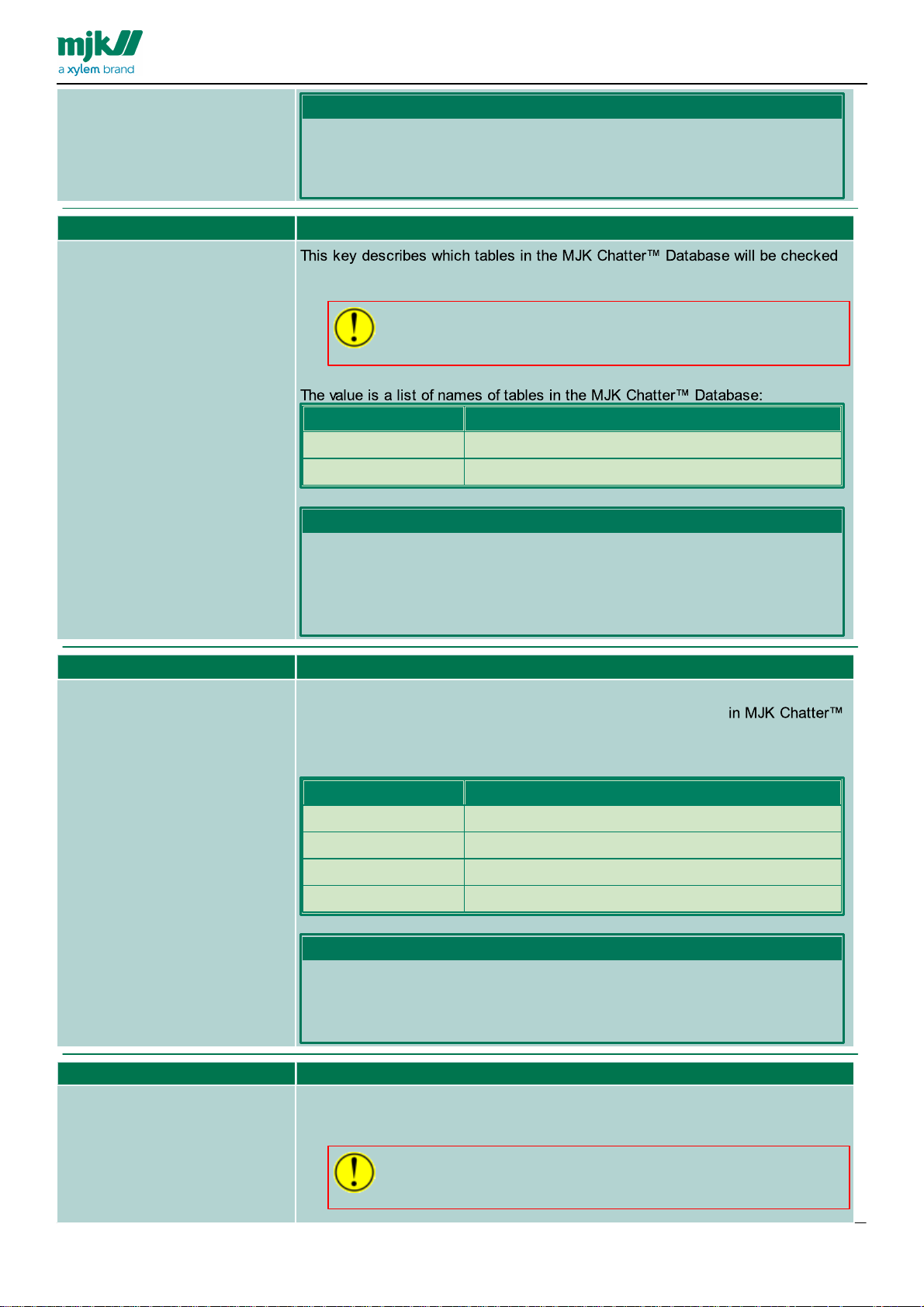

cnsScanDatabaseTables

by Chatter Notification Engine for new alarms or measurements.

Do not change the values in this key without
consulting MJK Automation ApS!

Name

Table

cnsAlarmLog

cnsAlarmLog

cnsMeasurementLog

cnsMeasurementLog

Example:

<cnsScanDatabaseTables>

cnsAlarmLog
cnsMeasurementLog

</cnsScanDatabaseTables>

Key

Description

cnsKeepAliveInterval

This key describes how often a software component - Chatter Notification Engine
or a plug-in - will update a record in the table cnsModuleStatus
Database to tell that it is still 'alive'

The value is a number of minutes, valid values are 0 to 1400:

Value

Description

0

A software component never tells if it is 'alive'

1

A software component tells if it 'alive' every minute

+++

1440

A software component tells if it 'alive' every 24 hours

Example:

<cnsKeepAliveInterval>

10

</cnsKeepAliveInterval>

Text

Text

cnsNotificationLogFile

This key describes the name of and the path to the Chatter Notification Engine log
file.

The folder must exist, it will NOT be created by
Chatter Notification Engine.

MANUAL

24

The value is a string representing a fully qualified file name:

Example, located on a local hard disk:

<cnsNotificationLofFile>

C:\Program Files\MJK Automation\Chatter - Notification
Service\cnsLogFiles\cnsLogFile.txt

</cnsNotificationLofFile>

Example, located on a network share:

<cnsNotificationLofFile>

\\Server1\Logfiles\cnsLogFile.txt

</cnsNotificationLofFile>

The supplied configuration file

<cnsConfig>

<cnsVersion>

003

</cnsVersion>
<cnsServiceDependencies>

<!--MSSQL$SQLEXPRESS-->
<!--MSSQLSERVER-->

</cnsServiceDependencies>
<cnsDBconnectionString>

<!--Data Source=.\SQLEXPRESS;Initial Catalog=ChatterDB;Integrated
Security=yes;-->
<!--Data Source=.;Initial Catalog=ChatterDB;Integrated Security=yes;-->

</cnsDBconnectionString>
<cnsNEscanInterval>

30

</cnsNEscanInterval>
<cnsNEscanDatabaseTables>

cnsAlarmLog;
cnsMeasurementLog

</cnsNEscanDatabaseTables>
<cnsKeepAliveInterval>

10

</cnsKeepAliveInterval>
<cnsLogFile>

C:\Program Files\MJK Automation\Chatter - Notification Service\cnsLogFiles
\cnsLogFile.txt

</cnsLogFile>

</cnsConfig>

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

25

GB CHATTER NOTIFICATION CONFIGURATION 1303

If this configuration file is modified, the Chatter - Notification Service must be restarted

C:\Program Files\MJK Automation\Chatter - Notification Service

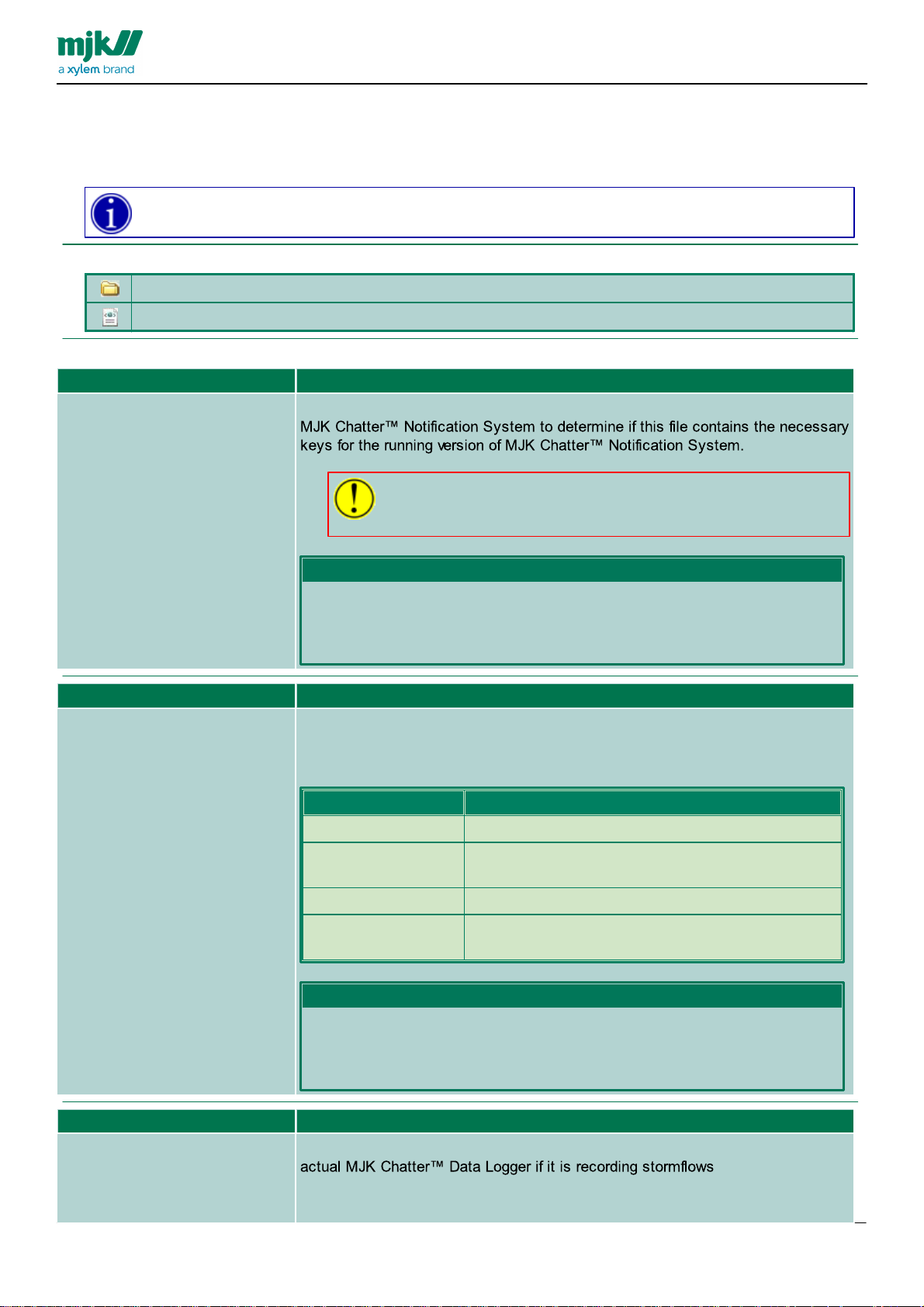

cnsRulesEngineGlobalConfig.xml

Key

Description

cnsVersion

This key contains the version number of this configuration file. The key is used by

Do not change the values in this key without
consulting MJK Automation ApS!

Example:

<cnsVersion>

003

</cnsVersion>

Key

Description

cnsAvailablePlugIns

This key describes which plug-in's are available for the Chater Rules Engine.
The value is a list of an identification number for plug-in and a name of a plug-in.

The identification number and the plug-in name is separated by a semicolon.

ID

Plug in name

0;

Not known

1;

SCADA plug-in

2;

STORMFLOW plug-in

If you specify a plug-in which is not installed, the
Chatter Notification Engine will not start, and you
will get an error like this in the logfile ;

Rules Engine: Plugin <PluIn name> failed to initialize - stopping
EventLog: Rules Engine: Plugin <PluIn name> failed to initialize ­stopping

MANUAL

Configuration of the Rules Engine

Detailed configuration of Chater Rules Engine

This configuration file describes how data received by Chatter Notification Engine will be treated. This file is a text file in
XML format

The rules shown in the sample configuration file below will treat data like this:

Measurement values from Modbus input number 1 is sent to a SCADA-system

The log time for the measurement is sent to a SCADA-system

Description of the configuration file for Chater Rules Engine
Table header

26

24

Terminating NEengine
Notification Engine: Stopping service

Key

Description

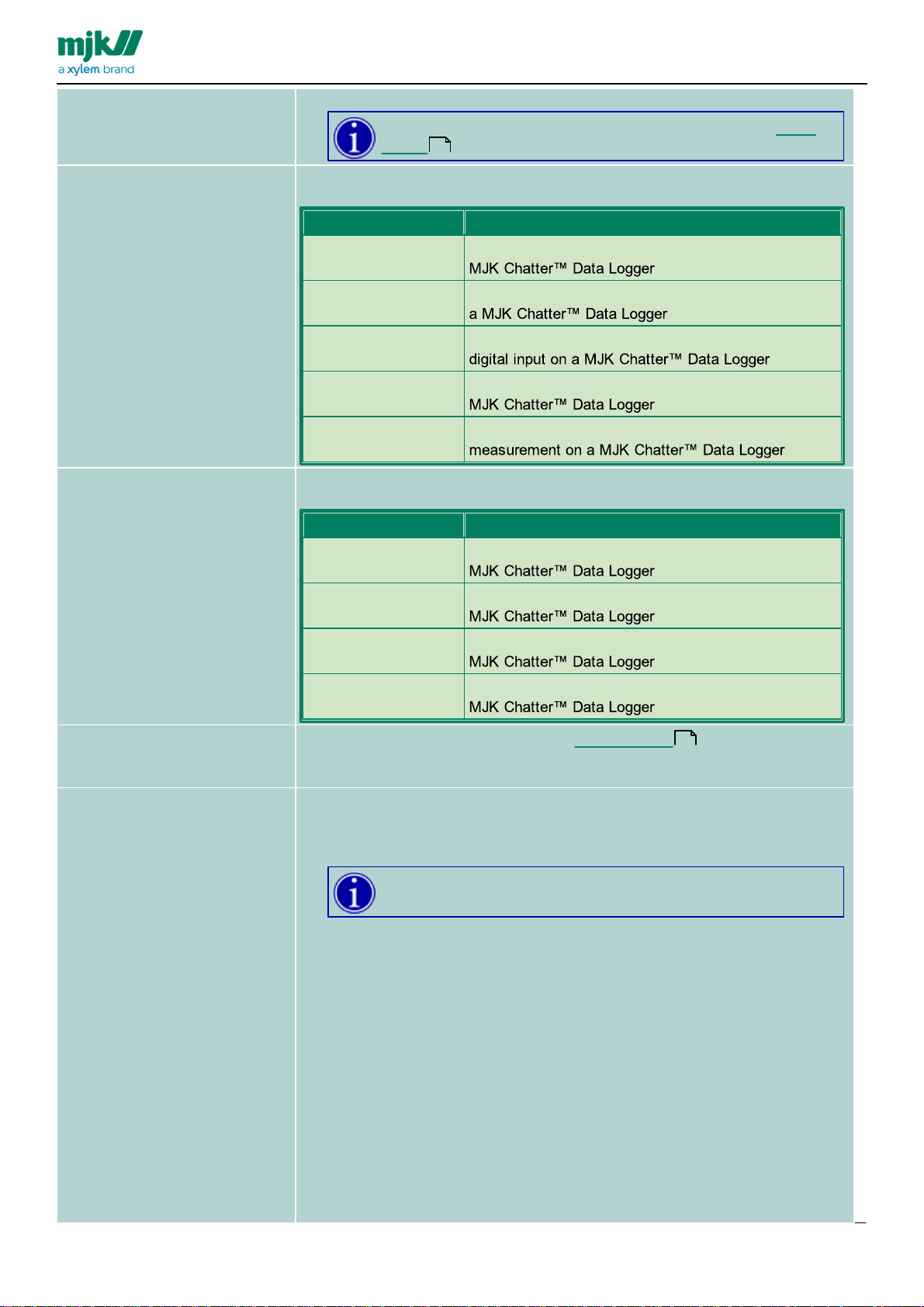

cnsTriggers

This key contains five values, separated by a semicolon

An identification number for the plug-in treating data from this rule.
data to this rule.
data to this rule.

A digit pointing at a supplementary data element
A letter describing the type of data, either a measurement or an alarm,
supplying data to this rule.

First element

The first element is a digit, the identification number for the plug-in treating data
from this rule:

#1

Description

0;

Data will not be treated by any plug-in

1;

Data will be treated by the SCADA plug-in

2;

Data will be treated by the STORMFLOW plug-in

Second element

Data Logger supplying data to this rule.:

#2

Description

D;

a digital input

A;

Data must come from an analog input

C;

Data must come from a counter on a digital input.

M;

Data must come from a Modbus input

I;

Data must come from an internal measurement

Third element

Logger supplying data to this rule.

#3

Description

1;

Data must come from X-input number 1

2;

Data must come from X-input number 2

3;

Data must come from X-input number 3

4;

Data must come from X-input number 4

Fourth element

The fourth element is a digit pointing at a supplementary data element

Fifth element

The fifth element is a letter describing the source of data, either an alarm or a
measurement:

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

17

27

17

#5

Description

A;

Data must come from an alarm

M;

Data must come from a measurement

The supplied configuration file

<cnsRulesConfig>

<cnsVersion>
003
</cnsVersion>
<cnsAvailablePlugins>

<!--1;SCADA;-->
<!--2;Stormflow;-->

</cnsAvailablePlugins>
<cnsTriggers>

<!--1;M;1;0;M;-->
<!--1;M;1;0;A;-->
<!--1;M;1;1024;M;-->
<!--1;M;1;1001;M;-->
<!--1;M;1;1003;M;-->
<!--1;M;2;0;M;-->
<!--1;C;1;0;M;-->
<!--1;A;1;0;M;-->
<!--2;M;1;0;M;-->

</cnsTriggers>

</cnsRulesConfig>

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

28

GB CHATTER NOTIFICATION CONFIGURATION 1303

If this configuration file is modified, the Chatter - Notification Service must be restarted

C:\Program Files\MJK Automation\Chatter - Notification Service

cnsSCADAplugInGlobalConfig.xml

Key

Description

cnsVersion

This key contains the version number of this configuration file. The key is used by

Do not change the values in this key without
consulting MJK Automation ApS!

Example:

<cnsVersion>

003

</cnsVersion>

Key

Description

cnsSCADAsystemName

This key describes which type of SCADA-system, the SCADA plug-in will supply
data for.

The value is a string representing the name of the SCADA-system.

Value

Description

IGSS

The output from SCADA plug-in wil be in a format
acceptable to IGSS32 release 8 or IGSS32 release 9

IFIX

The output from SCADA plug-in wil be in a format
acceptable to GE Proficy iFix version 5 Historian

BV2000

The output from SCADA plug-in wil be in a format
acceptable to BV Electronics System 2000

Example:

<cnsSCADAsystemName>

IGSS

</cnsSCADAsystemName>

Key

Description

cnsCSVifixTagFile

This key describes the name of and the path to a file with comma-separated
values with tag-names from the SCADA plug-in exported to the GE Proficy iFix
version 5 Historian SCADA-system.

Configuration of the SCADA plug-in

Detailed configuration of SCADA plug-in

How SCADA plug-in is working is described in a configuration file. This file is a text file in XML format

Filename and -location

Description of the configuration file for SCADA plug-in

MANUAL

29

GB CHATTER NOTIFICATION CONFIGURATION 1303

The folder must exist, it will NOT be created by
SCADA plug-in.

The value is a string representing a fully qualified file name:

Example, located on a local hard disk:

<cnsCSVifixTagFile>

c:\csv\tags.csv

</cnsCSVifixTagFile>

Key

Description

cnsCSVifixTagName

This key describes the character string used as section header in the file with
comma-separated values exporting tag-names to the GE Proficy iFix version 5
Historian SCADA-system.

The value is a string representing the name of the section header. The default
value is [Tags]

Example:

<cnsCSVifixTagName>

[Tags]

</cnsCSVifixTagName>

Key

Description

cnsCSVifixDataName

This key describes the character string used as section header in the file with
comma-separated values exporting data to the GE Proficy iFix version 5 Historian
SCADA-system.

The value is a string representing the name of the section header. The default
value is [Data]

Example:

<cnsCSVifixDataName>

[Data]

</cnsCSVifixDataName>

Key

Description

cnsCSVifixTagHeader

This key describes the character string used as a field header in the file with
comma-separated values exporting tag-names to the GE Proficy iFix version 5
Historian SCADA-system.

The value is a string representing the content of the field header.

Example:

<cnsCSVifixTagHeader>

Tagname,DataType,HiEngineeringUnits,LoEngineeringUnits,
StringLength

</cnsCSVifixTagHeader>

Key

Description

cnsCSVifixDataHeader

This key describes the character string used as a field header in the file with
comma-separated values exporting data to the GE Proficy iFix version 5 Historian
SCADA-system.

MANUAL

30

The value is a string representing the content of the field header.

Example:

<cnsCSVifixDataHeader>

Tagname,TimeStamp,Value

</cnsCSVifixDataHeader>

Key

Description

cnsCSVdateFormat

This key describes how dates are formatted in the file with comma-separated
values, delivered to the GE Proficy iFix version 5 Historian SCADA-system.

The value is a string representing the date format:

Value

Description

DMYY

Exports the date as

the day of the month as a number without a leading
zero (1-31)
the month as a number without a leading zero (1-12)
the year as a two-digit number (00-99).

DDMMYY

Exports the date as

the day of the month as a number with a leading
zero (01-31)
the month as a number with a leading zero (01-12)
the year as a two-digit number (00-99).

DDMMYYYY

Exports the date as

the day of the month as a number with a leading
zero (01-31)
Displays the month as a number without a leading
zero (1-12)
Displays the year as a four-digit number (0000-

9999).

+++

MDYY

Exports the date as

the month as a number without a leading zero (1-12)
the day of the month as a number without a leading
zero (1-31)
the year as a two-digit number (00-99).

MMDDYY

Exports the date as

the month as a number with a leading zero (01-12)
the day of the month as a number with a leading
zero (01-31)
the year as a two-digit number (00-99).

+++

YYMMDD

Exports the date as

the year as a two-digit number (00-99)
the month as a number with a leading zero (01-12)
the day of the month as a number with a leading
zero (01-31).

YYYYMMDD

Exports the date as

the year as a four-digit number (0000-9999)
the month as a number with a leading zero (01-12)
the day of the month as a number with a leading
zero (01-31).

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

31

GB CHATTER NOTIFICATION CONFIGURATION 1303

Example:

<cnsCSVdateFormat>

DDMMYY

</cnsCSVdateFormat>

Key

Description

cnsCSVdateDelimiter

This key describes which character is used between the various elements in the
date when it is exported to the GE Proficy iFix version 5 Historian SCADA-system

The value is a single character, the value depends on the type of SCADA-system,
you will supply data to.

Example:

<cnsCSVdateDelimiter>

/

</cnsCSVdateDelimiter>

Key

Description

cnsCSVtimeFormat

This key describes how time is formatted in the file with comma-separated values,
delivered to the GE Proficy iFix version 5 Historian SCADA-system

The value is a string representing the time format:

Value

Description

HM

Exports the time as

the hour without a leading zero (0-23)
the minute without a leading zero (0-59).

HHMM

Exports the time as

the hour with a leading zero (00-23)
the minute with a leading zero (00-59).

+++

HMS

Exports the time as

the hour without a leading zero (0-23)
the minute without a leading zero (0-59)
the second without a leading zero (0-59).

HHMMSS

Exports the time as

the hour with a leading zero (00-23)
the minute with a leading zero (00-59)
the second with a leading zero (00-59).

Example:

<cnsCSVtimeFormat>

HHMM

</cnsCSVtimeFormat>

Key

Description

cnsCSVtimeDelimiter

This key describes which character is used between the various elements in the
time when it is exported to the GE Proficy iFix version 5 Historian SCADA-system

The value is a single character, the value depends on the type of SCADA-system,
you will supply data to.

MANUAL

32

GB CHATTER NOTIFICATION CONFIGURATION 1303

Example:

<cnsCSVtimeDelimiter>

:

</cnsCSVtimeDelimiter>

Key

Description

cnsDeleteOldRecords

This key describes how long times processed records will remain in the database
before they are deleted by the SCADA plug-in

The value is a number of days, valid values are 0 to 365:

Value

Description

0

SCADA plug-in never deletes processed records

1

SCADA plug-in deletes processed records after one
day

+++

365

SCADA plug-in deletes processed records after one
year

Example:

<cnsDeleteOldRecords>

30

</cnsDeleteOldRecords>

Key

Description

cnsCSVfile

This key describes the name of and the path to the file with comma-separated
values with data from the SCADA plug-in to the SCADA-system

The folder must exist, it will NOT be created by
SCADA plug-in.

The value is a string representing a fully qualified file name:

Example, located on a local hard disk:

<cnsCSVfile>

c:\csv\data.txt

</cnsCSVfile>

Example, located on a network share:

<cnsCSVfile>

\\Server1\csv\scada.txt

</cnsCSVfile>

Key

Description

cnsTempCSVfile

This key describes the name of and the path to a temporary file with comma­separated values with data from the SCADA plug-in. Data is kept in this
temporary file until the SCADA-system is ready to receive new data.

MANUAL

33

GB CHATTER NOTIFICATION CONFIGURATION 1303

The folder must exist, it will NOT be created by
SCADA plug-in.

The value is a string representing a fully qualified file name:

Example, located on a local hard disk:

<cnsCSVtempFile>

c:\csv\tempdata.txt

</cnsCSVtempFile>

Example, located on a network share:

<cnsCSVtempFile>

\\Server1\csv\tempdata.txt

</cnsCSVtempFile>

Key

Description

cnsICSVcontent

This key describes to values used internally by SCADA plug-in, used to identify
the actual measurement.

Do not change the values in this key without
consulting MJK Automation ApS!

Example:

<cnsCSVcontent>

csvChatterIdentification = cnsIDTag
cnsMeasuredValue = cnsValue

</cnsCSVcontent>

Key

Description

cnsFieldDelimiter

This key describes which character is used to separate fields in the file with
comma-separated values, delivered to the SCADA-system

The value is a single character, the value depends on the type of SCADA-system,
you will supply data to.

Example:

<cnsCSVfieldDelimiter>

;

</cnsCSVfieldDelimiter>

Key

Description

cnsDecimalDelimiter

This key describes which character is used to separate the integer and the
fraction part of decimal values in the file with comma-separated values, delivered
to the SCADA-system

The value is a single character, the value depends on the type of SCADA-system,
you will supply data to.

MANUAL

34

Example:

<cnsCSVdecimalDelimiter>

.

</cnsCSVdecimalDelimiter>

Key

Description

cnsTextQualifier

This key describes which character is used before and after a text in the file with
comma-separated values, delivered to the SCADA-system

The value is a single character, the value depends on the type of SCADA-system,
you will supply data to.

Example:

<cnsCSVtextQualifier>

"

</cnsCSVtextQualifier>

The supplied configuration file

<cnsConfig>

<cnsVersion>

003

</cnsVersion>
<cnsSCADAsystemName>

<!--IGSS-->
<!--IFIX-->
<!--BV2000-->

</cnsSCADAsystemName>
<cnsCSVifixTagFile>

c:\csv\tags.csv

</cnsCSVifixTagFile>
<cnsCSVifixTagName>

[Tags]

</cnsCSVifixTagName>
<cnsCSVifixDataName>

[Data]

</cnsCSVifixDataName>
<cnsCSVifixTagHeader>

Tagname,DataType,HiEngineeringUnits,LoEngineeringUnits,StringLength

</cnsCSVifixTagHeader>
<cnsCSVifixDataHeader>

Tagname,TimeStamp,Value

</cnsCSVifixDataHeader>
<cnsCSVdateFormat>

<!--DDMMYYYY-->
YYYYMMDD

</cnsCSVdateFormat>
<cnsCSVdateDelimiter>

­<!--/-->

</cnsCSVdateDelimiter>
<cnsCSVtimeFormat>

HHMMSS

</cnsCSVtimeFormat>
<cnsCSVtimeDelimiter>

:

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

35

</cnsCSVtimeDelimiter>
<cnsDeleteOldRecords>

0

</cnsDeleteOldRecords>
<cnsCSVfile>

c:\csv\data.txt

</cnsCSVfile>
<cnsCSVtempFile>

c:\csv\tempdata.txt

</cnsCSVtempFile>
<cnsCSVcontent>

csvChatterIdentification = cnsIDTag
cnsMeasuredValue = cnsValue

</cnsCSVcontent>
<cnsCSVfieldDelimiter>

;

</cnsCSVfieldDelimiter>
<cnsCSVdecimalDelimiter>

.

</cnsCSVdecimalDelimiter>
<cnsCSVtextQualifier>

"

</cnsCSVtextQualifier>

</cnsConfig>

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

36

GB CHATTER NOTIFICATION CONFIGURATION 1303

If this configuration file is modified, the Chatter - Notification Service must be restarted

C:\Program Files\MJK Automation\Chatter - Notification Service

cnsSCADAplugInGlobalConfig.xml

Key

Description

cnsVersion

This key contains the version number of this configuration file. The key is used by

Do not change the values in this key without
consulting MJK Automation ApS!

Example:

<cnsVersion>

003

</cnsVersion>

Key

Description

cnsDeleteOldRecords

This key describes how long times processed records will remain in the database
before they are deleted by the STORMFLOW plug-in

The value is a number of days, valid values are 0 to 365:

Value

Description

0

STORMFLOW plug-in never deletes processed records

1

STORMFLOW plug-in deletes processed records after
one day

+++

365

STORMFLOW plug-in deletes processed records after
one year

Example:

<cnsDeleteOldRecords>

30

</cnsDeleteOldRecords>

Key

Description

cnsMaxEventLogInterval

This key contains the maximum allowed value for the EventLogInterval for the

The value is a number of seconds, the default value is 60

Configuration of the STORMFLOW plug-in

Detailed configuration of STORMFLOW plug-in

How STORMFLOW plug-in is working is described in a configuration file. This file is a text file in XML format

Filename and -location

Description of the configuration file for STORMFLOW plug-in

MANUAL

37

GB CHATTER NOTIFICATION CONFIGURATION 1303

Example:

<cnsMaxEventLogInterval>

60

</cnsMaxEventLogInterval>

Key

Description

cnsInitialHighTimeout

This key contains the minimum time the measured level from the actual MJK

above the threshold before it is considered a valid

stormflow
The value is a number of seconds, the default value is 300, equal to 5 minutes

Example:

<cnsInitialHighTimeout>

300

</cnsInitialHighTimeout>

Key

Description

cnsEndingLowTimeout

This key contains the minimum time the measured level from the actual MJK

below the threshold again before it is considered

a valid stormflow
The value is a number of seconds, the default value is 300, equal to 5 minutes

Example:

<cnsEndingLowTimeout>

300

</cnsEndingLowTimeout>

MANUAL

The supplied configuration file

<cnsConfig>

<cnsVersion>

003

</cnsVersion>
<cnsDeleteOldRecords>

0

</cnsDeleteOldRecords>
<cnsMaxEventLogInterval>

60

</cnsMaxEventLogInterval>
<cnsInitialHighTimeout>

60

</cnsInitialHighTimeout>
<cnsEndingLowTimeout>

60

</cnsEndingLowTimeout>

</cnsConfig>

38

Naming objects in a SCADA system

The starting point for naming objects in an SCADA-system is the

In this example, the ID-tag is MJK001

An ID-tag must only be used once. The
system will not work if duplicate ID-tags
are found!

than one object - or tag - in an SCADA-system, the object name

- or tag name - must be more than the ID-Tag.
MJK Automation ApS recommends that naming of objects in an
SCADA-system follows a set scheme. Such a scheme is
defined here.

Object names in someSCADA-systems cannot exceed a set number of characters!

Object name

Description

MJK001_M1-LEVEL

MJK001

MJK001_M1-LOGTIME

The time when a measurement from a Modbus input no. 1 on MJK001 was

MJK001_D2-STATE

MJK00_IN-BATT

MJK00_IN-SIGNAL

MJK001_ST-START

MJK001_ST-FLOW-M3S

The momentary flow in m3 pr. second during a stormflow recorded by MJK

Text

Signal origin

D1-

Digital input no. 1

D2-

Digital input no. 2

D3-

Digital input no. 3

D4-

Digital input no. 4

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

Naming of objects in a SCADA-system

The object name in an SCADA-system consists of three elements:

ID-tag
Information about the origin of the signal
Name of the signal supplying data to the object

A few examples

ID-Tag

followed by an 'underscore',

Names of origin which may be combined with every ID-tag

39

GB CHATTER NOTIFICATION CONFIGURATION 1303

C1-

The counter on digital input no. 1

C2-

The counter on digital input no. 2

C3-

The counter on digital input no. 3

C4-

The counter on digital input no. 4

A1-

Analog input no. 1

A2-

Analog input no. 2

A3-

Analog input no. 3

A4-

Analog input no. 4

M1-

Modbus input no. 1

M2-

Modbus input no. 2

M3-

Modbus input no. 3

M4-

Modbus input no. 4

IN-

Internal measurement or internal data

ST-

Data from STORMFLOW plug-in

Signal names and associated pointers are only valid for the SCADA-systems mentioned in the right hand
column in the table below.

Signal name

Pointer

SCADA-system notes

LEVEL
TEMP

0
0

7-Technologies IGSS32

Output value
type

VALUE
Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat
Formatted by

cnsDecimalDelimiter

BV Electronics System 2000

Output value
type

Integer
Formatted by

cnsDecimalDelimiter

MANUAL

Signal names which may be combined with M1 to M4

17
17

34

34

34

40

GB CHATTER NOTIFICATION CONFIGURATION 1303

LOGTIME

1003

7-Technologies IGSS32

Output value
type

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

GE Proficy iFix version 5 Historian

Output value
type

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

LOGTIME-S-UTC
LOGTIME-S-LOC

1026
1027

BV Electronics System 2000

Output value
type

Integer
Formatted by

cnsDecimalDelimiter

Signal names and associated pointers are only valid for the SCADA-systems mentioned in the right hand
column in the table below.

Signal name

Pointer

SCADA-system notes

LEVEL

0

7-Technologies IGSS32

Output value
type

VALUE
Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat
Formatted by

cnsDecimalDelimiter

BV Electronics System 2000

Output value
type

Integer
Formatted by

cnsDecimalDelimiter

MANUAL

18

35

31

32

32

32

35

31

32

32

32

19
19

Signal names which may be combined with A1 to A4

34

17

34

34

34

41

GB CHATTER NOTIFICATION CONFIGURATION 1303

LOGTIME

1003

7-Technologies IGSS32

Output value
type

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

GE Proficy iFix version 5 Historian

Output value
type

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

LOGTIME-S-UTC
LOGTIME-S-LOC

1026
1027

BV Electronics System 2000

Output value
type

Integer
Formatted by

cnsDecimalDelimiter

Signal names and associated pointers are only valid for the SCADA-systems mentioned in the right hand
column in the table below.

Signal name

Pointer

SCADA-system notes

STATE

0

The signal comes from a digital input

LOGTIME

1003

7-Technologies IGSS32

Output value
type

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

GE Proficy iFix version 5 Historian

Output value
type

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

MANUAL

18

35

31

32

32

32

35

31

32

32

32

19
19

Signal names which may be combined with D1 to D4

34

17

18

35

31

32

32

32

35

31

32

32

32

42

LOGTIME-S-UTC
LOGTIME-S-LOC

1026
1027

BV Electronics System 2000

Output value
type

Integer
Formatted by

cnsDecimalDelimiter

Signal names and associated pointers are only valid for the SCADA-systems mentioned in the right hand
column in the table below.

Signal name

Pointer

SCADA-system notes

BATT

1000
1024

7-Technologies IGSS32

Output value
type

VALUE

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat

BV Electronics System 2000

Output value
type

Integer

SIGNAL

1001
1025

7-Technologies IGSS32

Output value
type

VALUE

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat

BV Electronics System 2000

Output value
type

Integer

RESETCNT
CHATTERID

1002
1004

7-Technologies IGSS32

Output value
type

VALUE

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat

BV Electronics System 2000

Output value
type

Integer

19
19

Signal names which may be combined with IN

17
18

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

34

17
18

17
18

43

GB CHATTER NOTIFICATION CONFIGURATION 1303

IDTAG
DGUID
SITE
SUBSITE
LOCATION
GPS

1005
1006
1007
1008
1009
1010

7-Technologies IGSS32

Output value
type

STRING
Formatted by

cnsTextQualifier

GE Proficy iFix version 5 Historian

Output value
type

FixedString
Formatted by

cnsTextQualifier

SIGNALTP
SIGNALNR
LOGINTERVAL
EVTLOGINTERVAL
EVTENABLED
MEASUREDELAY
THRESHMIN
THRESHMAX
THRESHMINEN
THRESHMAXEN
CABLELENGTH
TOPDATUM

1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022

7-Technologies IGSS32

Output value
type

VALUE

GE Proficy iFix version 5 Historian

Output value
type

SingleFloat

BV Electronics System 2000

Output value
type

Integer

CONNECTION

1023

7-Technologies IGSS32

Output

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

GE Proficy iFix version 5 Historian

Output

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

CONNECTION-S-UTC
CONNECTION-S-LOC

1028
1029

BV Electronics System 2000

Output

Integer

Signal names and associated pointers are only valid for the SCADA-systems mentioned in the right hand
column in the table below.

Signal name

Pointer

SCADA-system notes

MANUAL

18
18
18
18
18
18

18
18
18
18
18
18
18
18
18
18
18
18

35

35

18

35

31

32

32

32

35

31

32

32

32

Signal names which may be combined with ST

19
19

44

GB CHATTER NOTIFICATION CONFIGURATION 1303

24START
24END

2000
2001

7-Technologies IGSS32

Output

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

GE Proficy iFix version 5 Historian

Output

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

24DURATION
24EVENTS
24NUMBER
TOTALNR
TOTALDUR

2002
2003
2004
2005
2006

7-Technologies IGSS32

Output

VALUE

GE Proficy iFix version 5 Historian

Output

SingleFloat

BV Electronics System 2000

Output

Integer

24QTY-L
24QTY-M3
TOTQTY-L
TOTQTY-M3
FLOW-LS
FLOW-M3S
FLOW-M3M
FLOW-M3H

2007
2008
2009
2010
2011
2012
2013
2014

7-Technologies IGSS32

Output

VALUE

Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output

SingleFloat

Formatted by

cnsDecimalDelimiter

BV Electronics System 2000

Output

Integer

Formatted by

cnsDecimalDelimiter

LASTSTART
LASTEND

2015
2016

7-Technologies IGSS32

Output

STRING

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

MANUAL

19
19

35

31

32

32

32

35

31

32

32

32

19
19
19
19
19

19
19
19
19
19
19
20
20

20
20

34

34

34

35

31

32

32

32

45

GB CHATTER NOTIFICATION CONFIGURATION 1303

GE Proficy iFix version 5 Historian

Output

FixedString

Formatted by

cnsTextQualifier
cnsCSVdateFormat
cnsCSVdateDelimiter
cnsCSVtimeFormat
cnsCSVtimeDelimiter

LASTDUR
LASTEVENTS

2017
2018

7-Technologies IGSS32

Output

VALUE

GE Proficy iFix version 5 Historian

Output

SingleFloat

BV Electronics System 2000

Output

Integer

LASTQTY-L
LASTQTY-M3

2019
2020

7-Technologies IGSS32

Output

VALUE

Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output

SingleFloat

Formatted by

cnsDecimalDelimiter

BV Electronics System 2000

Output

Integer

Formatted by

cnsDecimalDelimiter

24START-S-UTC
24START-S-LOC
24END-S-UTC
24END-S-LOC
LASTSTART-S-UTC
LASTSTART-S-LOC
LASTEND-S-UTC
LASTEND-S-LOC

2021
2022
2023
2024
2025
2026
2027
2028

BV Electronics System 2000

Output

Integer

THISFLOW-L
THISFLOW-M3

2029
2030

7-Technologies IGSS32

Output

VALUE

Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output

SingleFloat

Formatted by

cnsDecimalDelimiter

MANUAL

35

31

32

32

32

20
20

20
20

34

34

34

20
20
20
20
20
20
20
20

20
20

34

34

46

GB CHATTER NOTIFICATION CONFIGURATION 1303

BV Electronics System 2000

Output

Integer

Formatted by

cnsDecimalDelimiter

THISQTY-L
THISQTY-M3

2031
2032

7-Technologies IGSS32

Output

VALUE

Formatted by

cnsDecimalDelimiter

GE Proficy iFix version 5 Historian

Output

SingleFloat

Formatted by

cnsDecimalDelimiter

BV Electronics System 2000

Output

Integer

Formatted by

cnsDecimalDelimiter

MANUAL

34

20
20

34

34

34

47

GB CHATTER NOTIFICATION CONFIGURATION 1303

CNS\Server2008R2\ScadaObjects

cnsSCADAobjects.xls

The supplied spreadsheet contains sample data which are NOT intended for
practical use. Be sure to delete the content of rows 2 to 32 before exporting data
from the spreadsheet!

Column

Description

Column A

This column must exist but it also must also contain no data. It acts as a

Column B

This column contains the names of the objects or tags in a SCADA-system. A
guide to establishing a consistent naming scheme is here .

Column C - IGSS only

This column contains the name of the area in 7-Technologies IGSS32 on which
The column may be left blank if you don't use <%IGSS%

Column D - IGSS only

This column contains information about the data types supplied to the object in 7­Technologies IGSS32. Three different data types are available:

Value

Description

VALUE

Use this if the object in 7-Technologies IGSS32 will
receive a number, ie a measurement value. Modbus-,

Logger will deliver data of the data type VALUE

STATE

Use this if the object in 7-Technologies IGSS32 will
receive a digital value. Digital inputs in a MJK

STATE

STRING

Use this if the object in 7-Technologies IGSS32 will
receive a text string. Data elements as LOGTIME
will deliver data of the data type STRING

The column may be left blank if you don't use 7-Technologies IGSS32.

Column E

This column contains the ID for the plug-in which delivers data to this object Two
different plug-in's will deliver data to a SCADA-system:

Value

Description

1

Data will be coming from the SCADA plug-in

2

Data will be coming from the STORMFLOW plug-in

Column F

data to this object.

Spredsheet for object names

General

As it is rather difficult to type all this information directly into the table in the database by hand, the data can be
imported to the table. The data for this table starts as a Microsoft Excel spreadsheet. MJK Automation ApS supplies a
pre-formatted Microsoft Excel spreadsheet in Microsoft Excel 2003 format. You can find the spreadsheet here:

Each row contain the data needed for one object in an SCADA-system. The spreadsheet columns contains data as
described below.

MANUAL

Columns in the spreadsheet

39

48

39

GB CHATTER NOTIFICATION CONFIGURATION 1303

You cannot use the numbers designating the number for a signal

pointer in this column, you must use a 'real' ID-tag.

Column G

This column contains the signal type supplying data to this object.. These data
types exists:

Value

Description

D

Data for this object has comes from a digital input on a

A

Data for this object has comes from an analog input on

C

Data for this object has comes from a counter on a

M

Data for this object has comes from Modbus input on a

I

Data for this object has comes from an internal

Column H

This column contains the signal number supplying data to this object.. These data
types exists:

Value

Description

1

Data for this object has comes X-input number 1 on a

2

Data for this object has comes X-input number 2 on a

3

Data for this object has comes X-input number 3 on a

4

Data for this object has comes X-input number 4 on a

Column I

This column contains the number for the signal pointers supplying data to this
object. If the object just need to receive the 'standard' measurement the field must
contain a digit 0

Column J

This column contains information on any calculations which must be made before
data is delivered to an object in the SCADA-system. Calculations are done after
the SCADA plug-in has received the data but before it starts writing data to its file
with comma-separated values

If the field is empty - first character in the field is not a # - no
calculations are performed

MANUAL

17

17

49

GB CHATTER NOTIFICATION CONFIGURATION 1303

Value

Description

Also needs

#000

No calculations are done. Is included to make
it possible do temporarily disable a calculation
on a value just by changing this value.

#001

The value sent to this object is multiplied by
the value in parameter 2

Example:

If you need to scale a level measurement to
125%, enter the following in this field:

#001#1,25#

If you need to scale a level measurement to
75%, enter the following in this field:

#001#0,75#

#2

#002

The value in parameter 2 is added to the value
of this object before it is sent to the SCADA­system

Example:

If you need to add 0,5 meter to a level
measurement, enter the following in this
field: #002#0,5#
If you need to subtract 0,5 meter from a level
measurement, enter the following in this
field: #002#-0,5#

#2

#004

If the value of this object is a string, you can
truncate it to a desired length before it is set to
the SCADA-system

Example:

A standard timestamp looks like this: 2011-04­05 15:40, If you want to remove the time­information and retain the date-information,
enter the following in this field: #004#10#

#2

Column K - iFix only

This column contains information about the data types supplied to the object in
GE Proficy iFix version 5 Historian. Two different data types are available:

Value

Description

SingleFloat

Use this if the object in GE Proficy iFix version 5
Historian will receive a number, ie a measurement
value. Modbus-, analog- and counter inputs in a MJK

VALUE
You must specify a value in columns L, M and N.

FixedString

Use this if the object in GE Proficy iFix version 5
Historian will receive a text string. Data elements as

LOGTIME will supply data of the data type

STRING.
You must specify a value in columns L, M and N.

The column may be left blank if you don't use GE Proficy iFix version 5 Historian.

Column L

If you are exporting data to 7-Technologies IGSS32, this column must contain a
digit 0.
If you are exporting data to GE Proficy iFix version 5 Historian, this column must
contain the smallest numerical value you plan to supply to this tag.

Column M

If you are exporting data to 7-Technologies IGSS32, this column must contain a
digit 0.

MANUAL

50

39

GB CHATTER NOTIFICATION CONFIGURATION 1303

If you are exporting data to GE Proficy iFix version 5 Historian, this column must
contain the largest numerical value you plan to supply to this tag.

Column N

If you are exporting data to 7-Technologies IGSS32, this column must contain a
digit 0.
If you are exporting data to GE Proficy iFix version 5 Historian, this column must
contain the number of characters in the string, you plan to supply to this tag.

MANUAL

51

GB CHATTER NOTIFICATION CONFIGURATION 1303

When importing data to the table csnSCADAobects, remember to delete the existing content of the table
before importing new data. You can use this SQL-script to delete the existing content:

CNS\Server2008R2\ScadaObjects

cleanSCADAobjects.sql

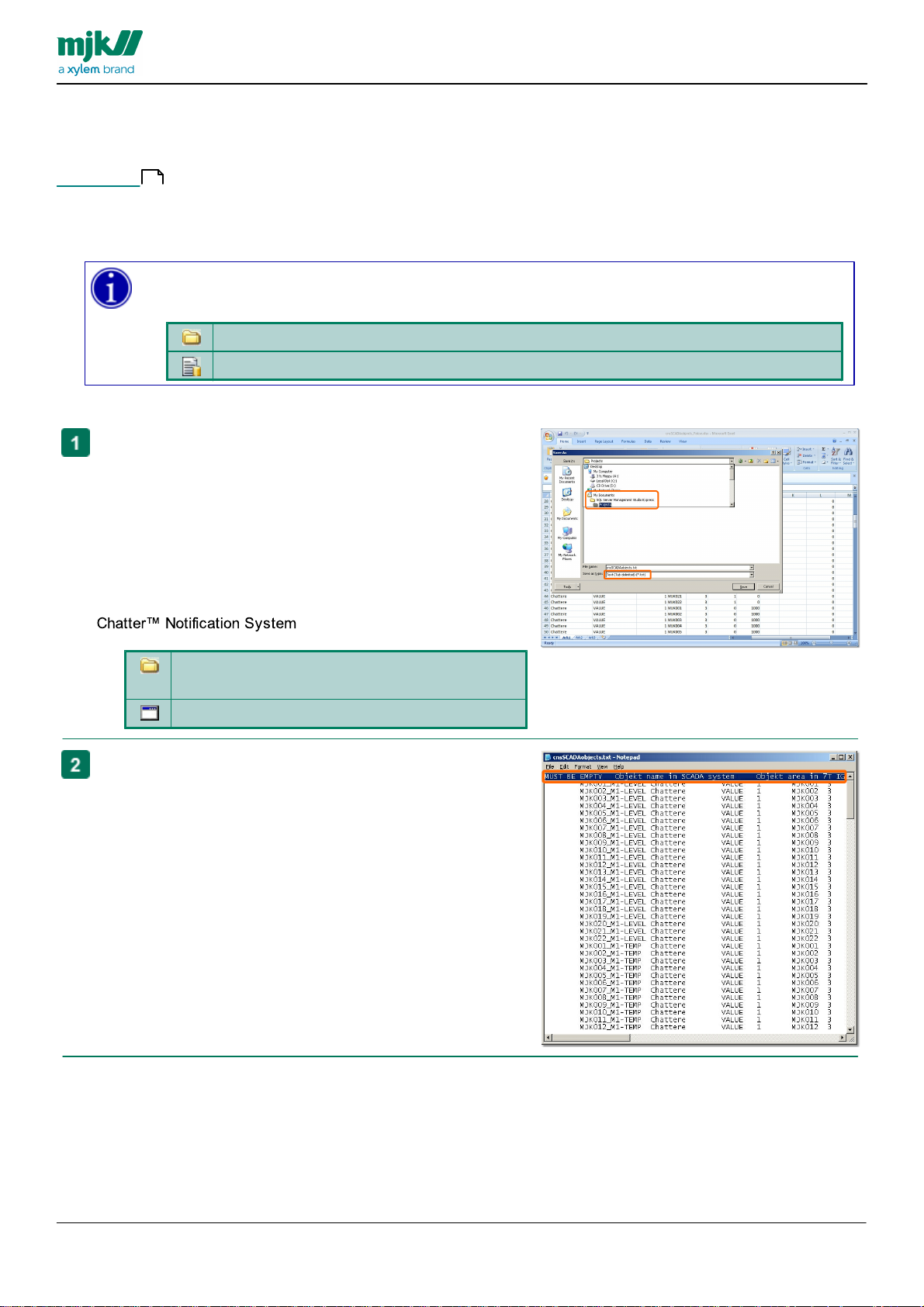

Select the menu Files in Microsoft Excel

select Save as...
Save the file in a place of your choosing.
Select the file type Text (Tab delimited) (*.txt)
Click the button Save
Copy the saved file to this location on the server running MJK

C:\Users\Administrator\Documents\SQL
Server Management Studio\Projects

cnsSCADAobjects.csv

Find the saved text file and open it with Notepad.
Delete the top-line in the file, see the marking in the picture to

the right.
Save the file again.

MANUAL

Import-file for object names

Create an import file for object names in a SCADA-system

If you need to add new objects to the table containing the SCADA object names, it is easiest to modify the supplied

spreadsheet and afterwards import those data to the table.

In order to be able to import these data into the database table, the spreadsheet must be saved as a tab-delimited text
file. After that, this file can be imported into the database.

Follow this procedure

48

52

GB CHATTER NOTIFICATION CONFIGURATION 1303

The SQL script needed for importing
the object names into the database is

System Software CD in this location:

CNS\Server2008R2
\ScadaObjects

cnsSCADAobjectsBul
kImport.sql

Double-click the file in the folder and
wait for this window to appear

Click the button Connect

MJK recommends
that a verified
backup of the
database exists
before this update
is done.

The SQL-script opens in Microsoft SQL Server
Management Studio.

Click the button Execute

When the script has
executed, Query

executed successfully

will be shown in the
lower left corner

This is for information
only.

Close all windows, return to the desktop

MANUAL

53

Creating Stormflow data

Stormflow data

data to a SCADA-system

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

54

GB CHATTER NOTIFICATION CONFIGURATION 1303

CNS\Server2008R2\StormflowData

cnsSTORMFLOWdata.xls

The supplied spreadsheet contains sample data which are NOT intended for
practical use. Be sure to delete the content of rows 2 to 105 before exporting data
from the spreadsheet!

Column

Description

Column A

Column B

This column contains a level in meters. The first row must always be 0 meters!
You will need a minimum of three different levels:

A level of 0 meters
A level somewhere between 0 meters and the maximum possible level
A level which is above the maximum possible level

Column C

This column contains the spill in litres per second for the level in column B.
The first row must always be 0 litres pr. second.

MANUAL

Spreadsheet for stormflow data

General

STORMFLOW plug-in must know the amount of water spilled over a weir before it can supply data for stormflows to a
specific level in meters.
As it is rather difficult to type all this information directly into the table in the database by hand, the data can be

imported to the table. The data for this table starts as a Microsoft Excel spreadsheet. MJK Automation ApS supplies a
pre-formatted Microsoft Excel spreadsheet in Microsoft Excel 2003 format. You can find the spreadsheet here:

resulting spill in litres pr. second

Columns in the spreadsheet

55

GB CHATTER NOTIFICATION CONFIGURATION 1303

When importing data to the table csnSCADAobects, remember to delete the existing content of the table
before importing new data. You can use this SQL-script to delete the existing content:

CNS\Server2008R2\StormflowData

cleanStormflowData.sql

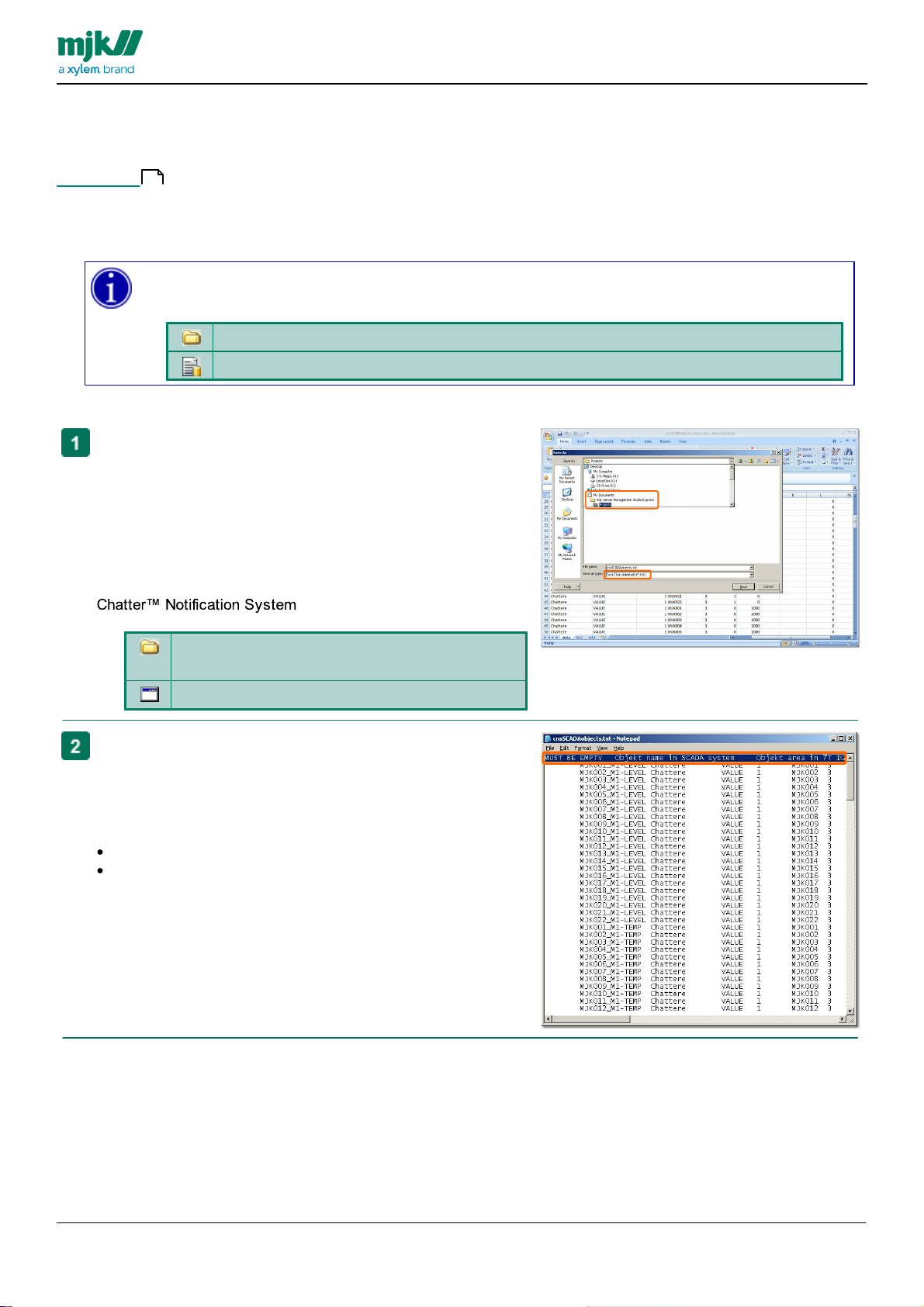

Select the menu Files Microsoft Excel

Select Save as...
Save the file in a place of your choosing.
Select the file type Text (Tab delimited) (*.txt)
Click the button Save

Copy the saved file to this location on the server running MJK

C:\Users\Administrator\Documents\SQL
Server Management Studio\Projects

cnsStormflowData.txt

Find the saved text file and open it with Notepad.
Delete the top-line in the file, see the marking in the picture to

the right.
Do a Search and Replace in the open document.

search for , (comma)
replace all with . (period)

Save the file again.

MANUAL

Import file for stormflow data

Create an import file for stormflow data in a SCADA-system

If you need to add new objects to the table containing the stormflow data, it is easiest to modify the supplied

spreadsheet and afterwards import those data to the table.

In order to be able to import these data into the database table, the spreadsheet must be saved as a tab-delimited text
file. After that, this file can be imported into the database.

Follow this procedure

55

56

GB CHATTER NOTIFICATION CONFIGURATION 1303

The SQL script needed for importing
the object names into the database is

System Software CD in this location:

CNS\Server2008R2
\ScadaObjects

cnsStormflowDataBu
lkImport.sql

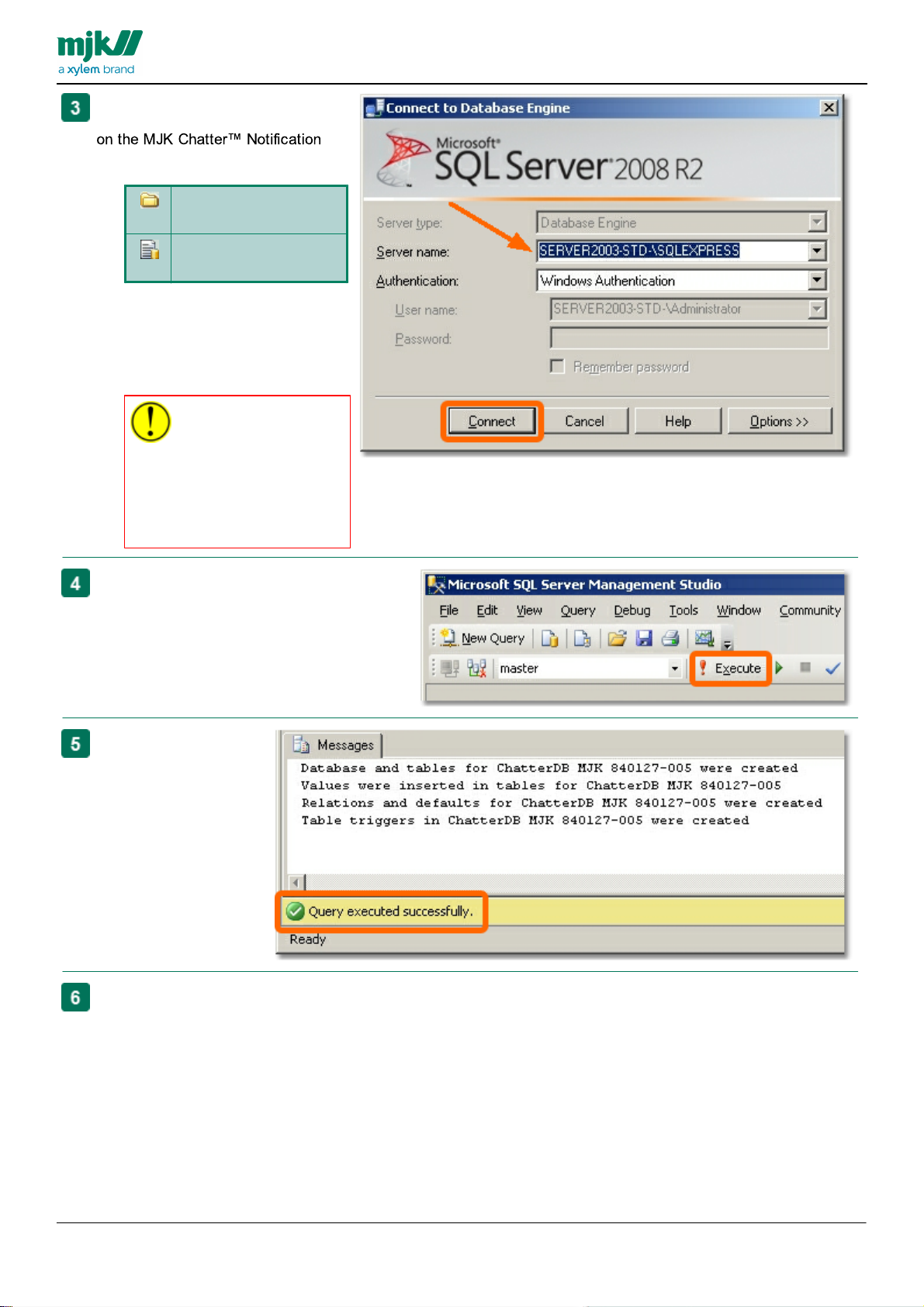

Double-click the file in the folder and
wait for this window to appear

Click the button Connect

MJK recommends
that a verified
backup of the
database exists
before this update
is done.

The SQL-script opens in Microsoft SQL Server
Management Studio.

Click the button Execute

When the script has
executed, Query

executed successfully

will be shown in the
lower left corner

This is for information
only.

Close all windows, return to the desktop

MANUAL

57

GB CHATTER NOTIFICATION CONFIGURATION 1303

IGSS only information

7-Technologies IGSS32

In 7-Technologies IGSS32, all objects must be created manually, they must exist before the can receive data.

exported to a file with comma-separated values. 7-Technologies IGSS32 will discard any data belonging to a non­existing object

MANUAL

58

Creation of objects in IGSS 8

You can check whether the driver is already installed in the 7­Technologies IGSS32 systems configuration.

The driver must have a build-number of 10250 or more.

In the 7-Technologies IGSS32 systems configuration under
Node Properties
System and 7-Technologies IGSS32will corporate.

Path to the CSV file must point to the file name and -location
set in the SCADA plug-in configuration file

Select IGSSTAG in the drop-down CSV Format.
Mark Delete file after read.

Three different object types

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

An analog object
A digital object
A string type object

60

61

62

This section contain a brief description of the most important settings for the three object types.

IGSS32 release 8 DDHC Data File Driver

Data File Driver, driver ID 66 - must be installed in 7-Technologies IGSS32.

33

59

Analog objects

The object name MUST match the name from column B in the

spreadsheet containing all the SCADA objects.

Scan-interval for the object must be Never

The driver for the object must be set to 7TDHFILE and the data
type must set to FLOAT

Creating an analog object in 7-Technologies IGSS32

48

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

60

Digital objects

Scan-interval for the object must be Never

The driver for the object must be set to 7TDHFILE and the data
type must set to FP16S

Creating a digital object in 7-Technologies IGSS32

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

61

String type objects

The object name MUST match the name from column B in the

spreadsheet containing all the SCADA objects.

Scan-interval for the object must be Never

The driver for the object must be set to 7TDHFILE and the data
type must set to STRING

Creating a string type object in 7-Technologies IGSS32

48

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

62

GB CHATTER NOTIFICATION CONFIGURATION 1303

MANUAL

iFIX only information

GE Proficy iFix version 5 Historian

is started. GE Proficy iFix version 5 Historian creates the necessary tags automatically and discards a tag if it already
exists.

Historian Data Collector

cnsCSVifixTagFile and cnsCSVfile keys in the configuration file cnsSCADAplugInGlobalConfig.xml

must be set to the Data Collectors input folder

29 33

63

GB CHATTER NOTIFICATION CONFIGURATION 1303

BV2000 only information

BV Electronics System 2000

Dates for BV Electronics System 2000 are exported as seconds since 1970.01.01

MANUAL

64

1) The tissue in plants that brings water upward from the roots;

2) a leading global water technology company.
We’re 12,000 people unified in a common purpose: creating innovative solutions

to meet our world’s water needs. Developing new technologies that will improve
the way water is used, conserved, and re-used in the future is central to our work.
We move, treat, analyze, and return water to the environment, and we help people
use water efficiently, in their homes, buildings, factories and farms. In more than
150 countries, we have strong, long-standing relationships with customers who
know us for our powerful combination of leading product brands and applications
expertise, backed by a legacy of innovation.

For more information on how Xylem can help you, go to www.xyleminc.com

MJK Automation A/S
Byageren 7
DK-2850 Nærum
Denmark
Tel [phone]
Fax [phone]
www.mjk.com

Connect, MµConnect, Chatter, MagFlux, Oxix, pHix compact, Shuttle and SuSix
are registrered trademarks of MJK Automation A/S.
© 2013 Xylem, Inc.
