Xpress DBALL User Manual

Download

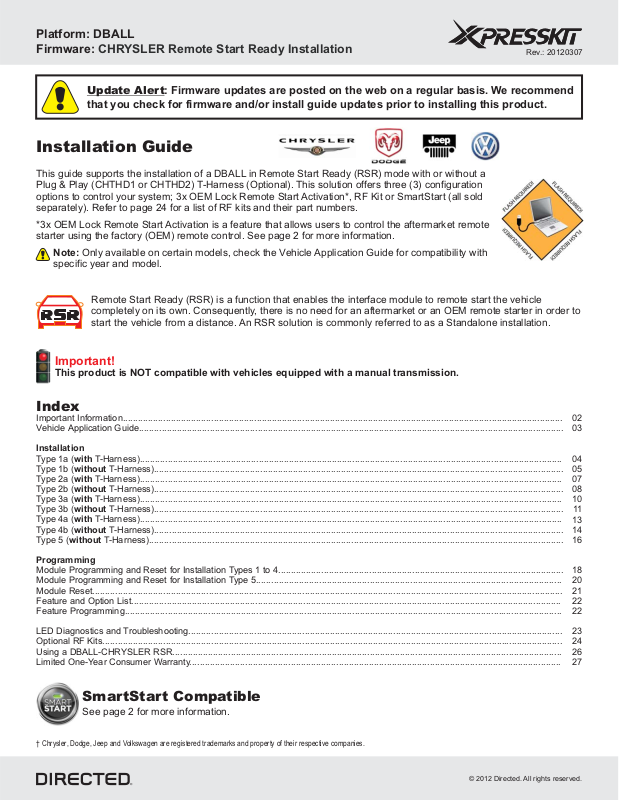

Page 1
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Update Alert: Firmware updates are posted on the web on a regular basis. We recommend that you check for firmware and/or install guide updates prior to installing this product.

Installation Guide

This guide supports the installation of a DBALL in Remote Start Ready (RSR) mode with or without a Plug & Play (CHTHD1 or CHTHD2) T-Harness (Optional). This solution offers three (3) configuration options to control your system; 3x OEM Lock Remote Start Activation*, RF Kit or SmartStart (all sold separately). Refer to page 24 for a list of RF kits and their part numbers.
*3x OEM Lock Remote Start Activation is a feature that allows users to control the aftermarket remote starter using the factory (OEM) remote control. See page 2 for more information.
Only available on certain models, check the Vehicle Application Guide for compatibility with
Note:
specific year and model.
Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely start the vehicle from a distance. An RSR solution is commonly referred to as a Standalone installation.
on its own. Consequently, there is no need for an aftermarket or an OEM remote starter in order to
Rev.: 20120307
Important!
This product is NOT compatible with vehicles equipped with a manual transmission.

Index

Important Information..............................................................................................................................................................................
Vehicle Application Guide
Installation
Type 1a ( T-Harness).......................................................................................................................................................................
Type 1b ( T-Harness)..................................................................................................................................................................
Type 2a ( T-Harness).......................................................................................................................................................................
Type 2b ( T-Harness)..................................................................................................................................................................
Type 3a ( T-Harness).......................................................................................................................................................................
Type 3b ( T-Harness)..................................................................................................................................................................
Type 4a ( T-Harness).......................................................................................................................................................................
Type 4b ( T-Harness)..................................................................................................................................................................
Type 5 ( T-Harness)....................................................................................................................................................................
Programming

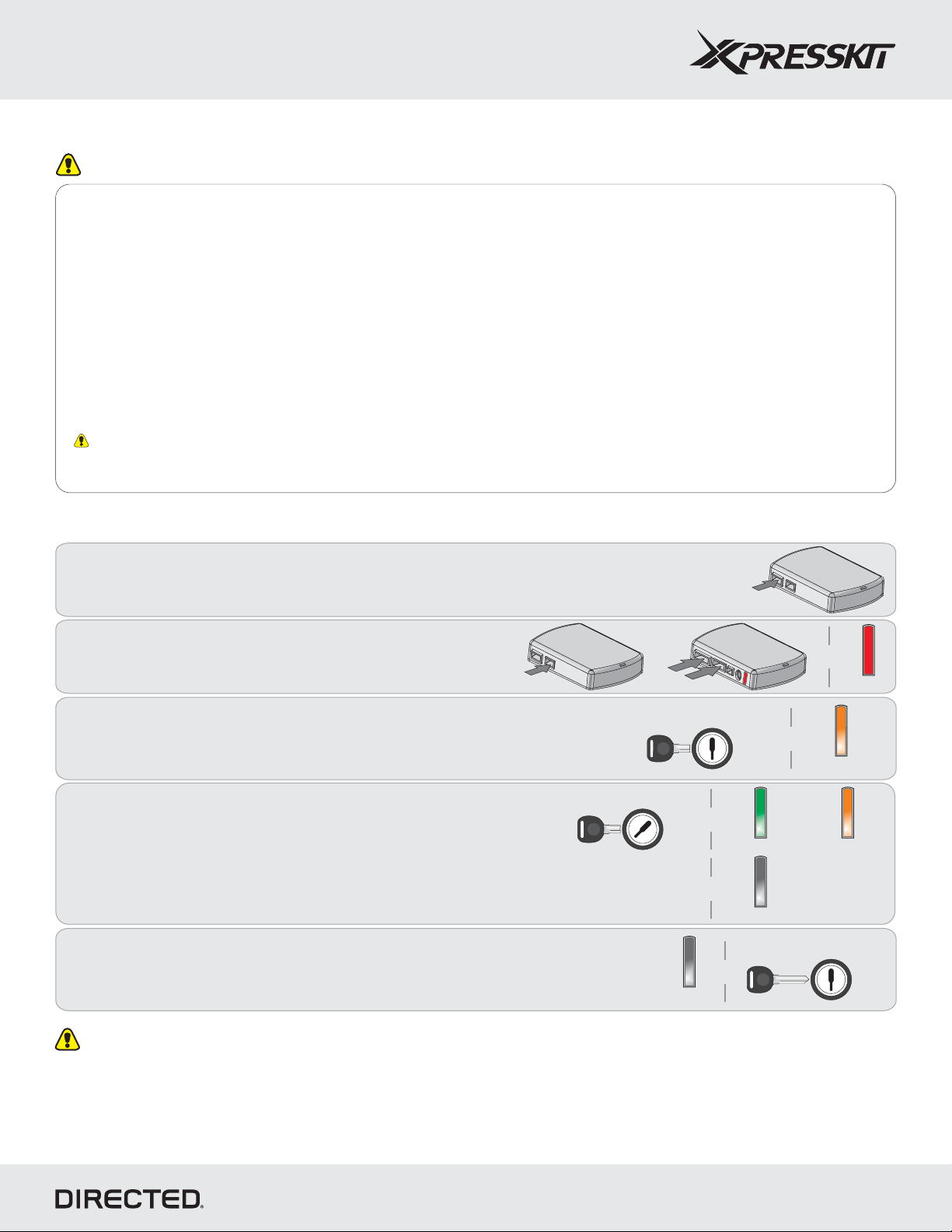

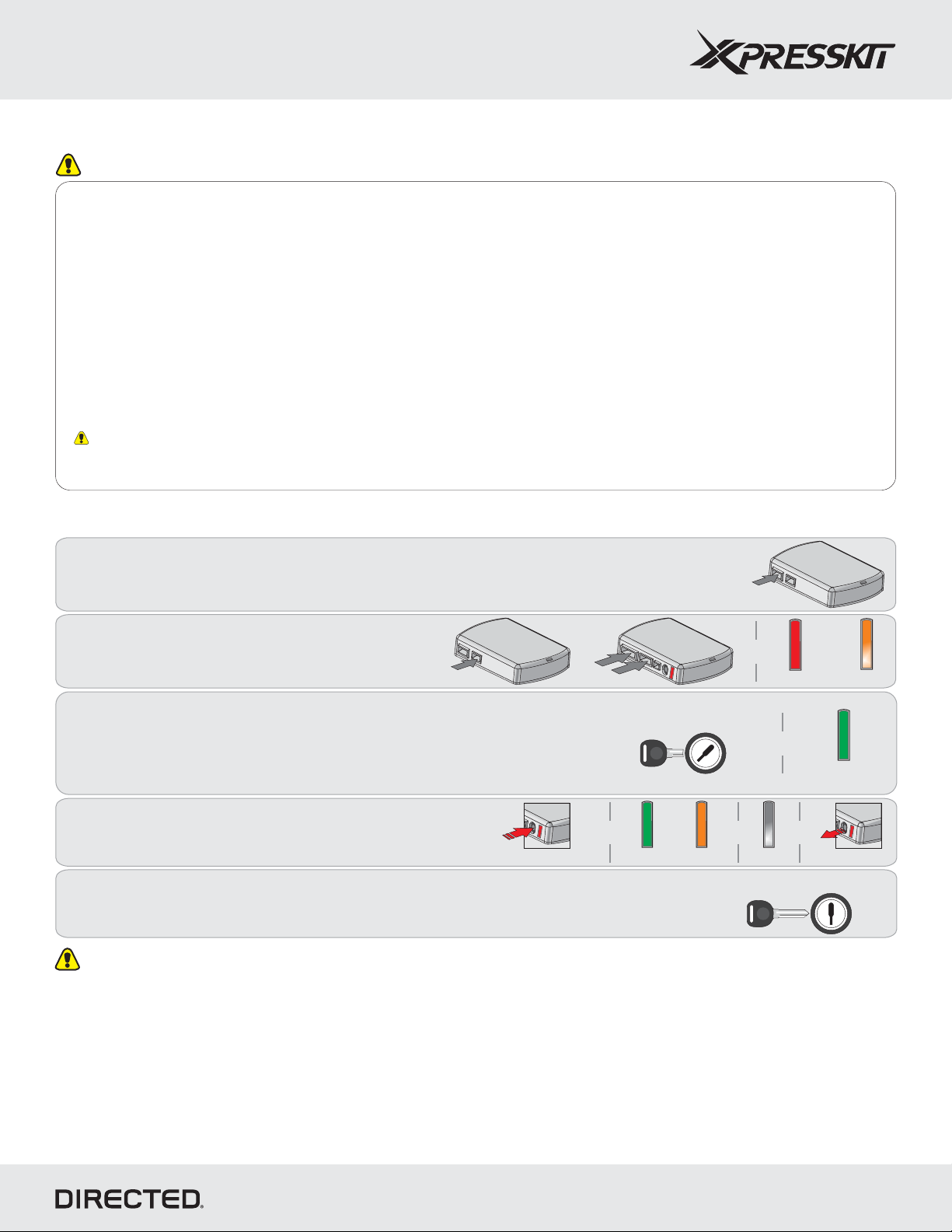

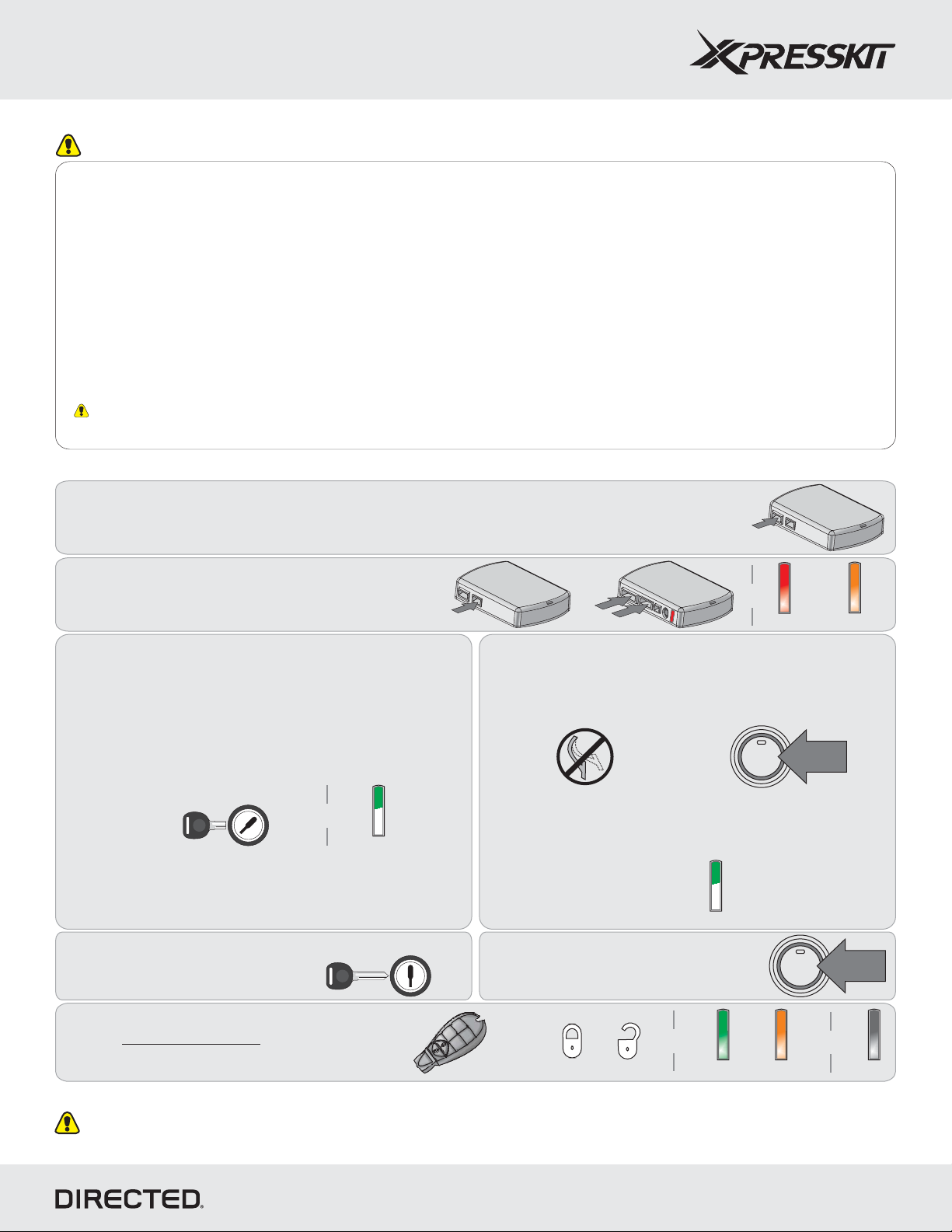

Module Programming and Reset for Installation Types 1 to 4..........
Module Programming and Reset for Installation Type 5.........................................................................................................................
Module Reset..........................................................................................................................................................................................
Feature Programming......................................................................................................................................................
LED Diagnostics and Troubleshooting.............................................................................................................................

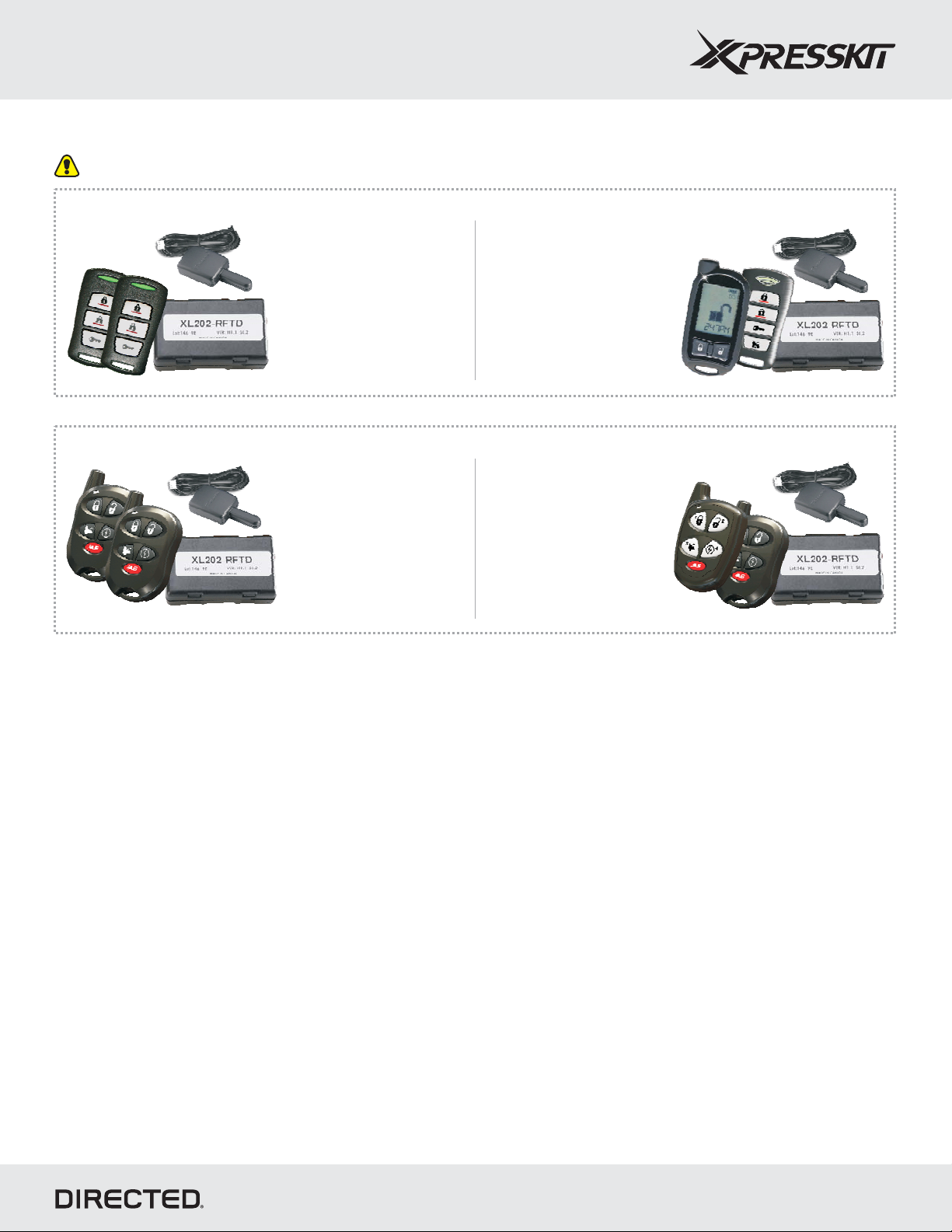

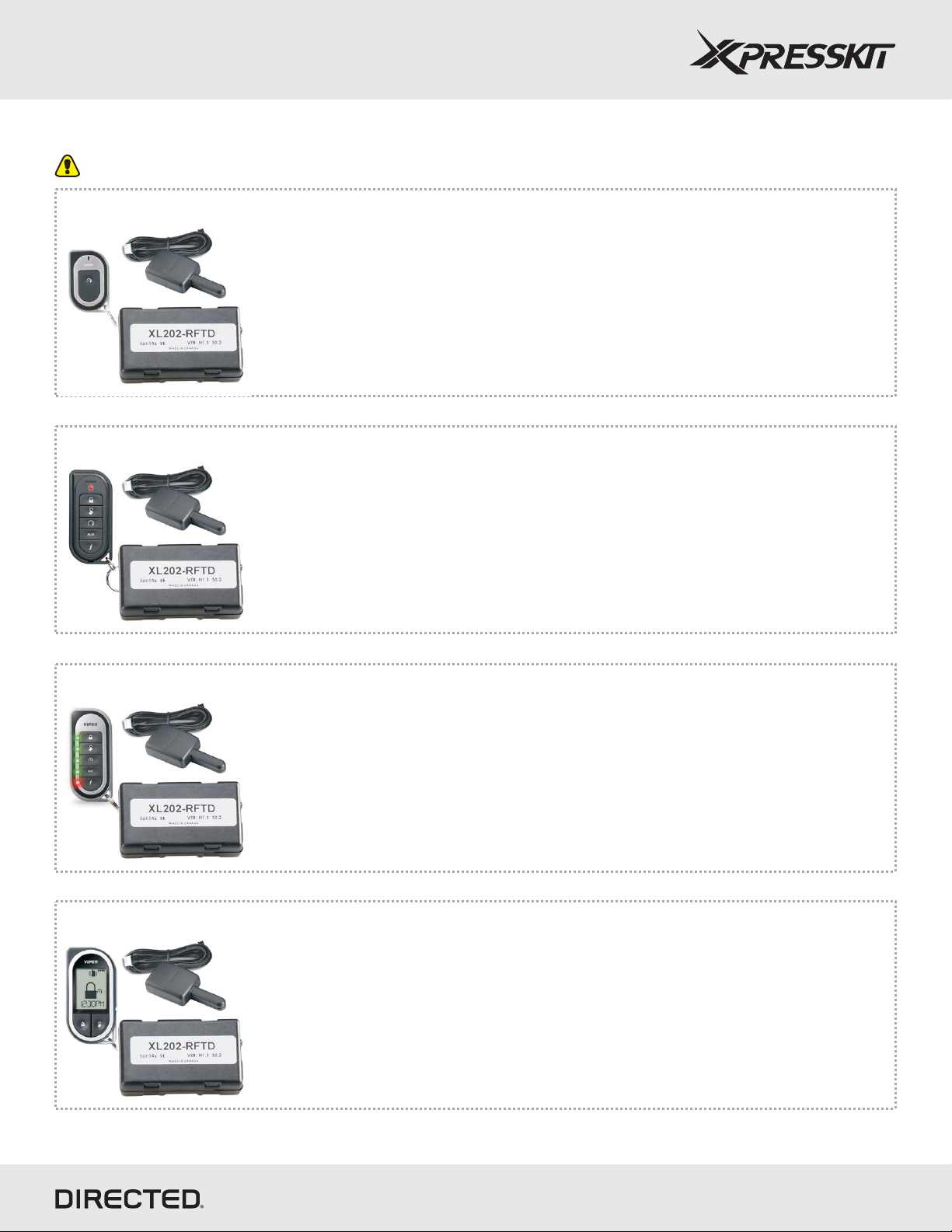

Optional RF Kits...............................................................................................................................................................
Using a DBALL-CHRYSLER RSR..........................................................................................................................................................
Limited One-Year Consumer Warranty............................................................................................................................
with without with without with without with without
without
........................................................................................................................................................................
................................................................................
.......................
.......................
.......................
.......................
.......................
02 03
04 05 07 08 10
11 13 14 16
18 20 21 22 22
23 24 26 27
SmartStart Compatible
See page 2 for more information.
† Chrysler, Dodge, Jeep and Volkswagen are registered trademarks and property of their respective companies.
© 2012 Directed. All rights reserved.
Page 2
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307
Important Information
3x OEM Lock Remote Start Activation
This feature enables you to start/stop the vehicle using the OEM remote.
Press the OEM remote LOCK button three (3) times within three (3) seconds to start the vehicle. To stop the vehicle, press the LOCK button three (3) more times.
The lock and unlock functions are inactive when the key is inserted into the ignition; therefore, theOEM remote 3x OEM Lock Remote Start Activation feature cannot be used for idle mode.

SmartStart Compatible

Important!
SmartStart 200/250 is equipped with D2D, which means it can be connected to an interface module and used in Remote Start Ready (RSR) mode without the use of a remote starter.
In order to use the SmartStart 200/250 with an interface, you must enable the D2D mode within SmartStart by grounding the loose gray wire coming out of the device, as well as connecting it to the web to complete its configuration.
Revision B
Revision B
Page 2
© 2012 Directed. All rights reserved.
Page 3
Platform: DBALL
Vehicles
2012
2011
2010
2009
2008
2007
2006
2005
2004
AV-Parking Lights Contr ol
DL-Arm Fac tory Security
DL-Disar m Factory Secur ity
DL-Door Loc k Control
DL-Door Unlock
DL-Driver Priority Unlock
DL-Sliding Door Control
Driver
DL-Sliding Door Control
Passenger
DL-Trunk / Hatch Release
FOB-Contr ol of aftermarket
alarm with OEM remote
KI-Chry sler MUXX Activation
KI-Key & Ignition.switch
Interface
PK-Im mobilizer Bypa ss- Data
No Key Req'd
RS 3x LOCK START ( Start
control using O EM Remote)
RS-RAP Shut Down
(Remote ACC Power)
RS-Remote Start Ready
RS-Remote Start Ready Std
Ign-RFTD
RS-Smart Start
RS-Tach / RPM O utput
SS-Entry Monitoring ALL
Door Pins
SS-Entry Monitoring Dr iver
Door Pin
SS-Entry Monitoring
Trunk/Hatch Pin
ST-Brake Status ( foot
brake)
ST-Hand Brak e Status
ST-Ignition Status
ST-Keys ense Status
Chrysle r
200 3 ••••• ••• •••••••••••••• 300/300c 222 •••••• •• ••••••••••••••• 300/300c 4 4 4 ••••• ••• •••••••••••••• Aspen 33 3 ••••• ••• •••••••••••••• Pacifica 5 5 5 55 ••••• ••• •• •••••••• •• PTCruiser 444 4 4 ••••• •• •••••••••••••• Sebring 333 3 ••••• ••• •••••••••••••• SebringConvertible 333 ••••• ••• •••••••••••••• SebringSedan 333 3 ••••• ••• •••••••••••••• Town&Country 11111 •••••••••• ••••••••••••••• Town&Country 5 5 55 •••••••••• •• •••••••• ••
Dodge 1211100908 07 06 0504
Avenger 3333 ••••• ••• •••••••••••••• Caliber 33333*or4*3*or4* ••••• •• •••••••••••••• Caravan 11111 •••••••••• ••••••••••••••• Caravan 5 5 55 •••••••••• •• •••••••• •• Challenger 1111 •••••• •• ••••••••••••••• Challenger
(Smart Key) 1111 •••••• •• •••••••••••••••
Charger 222 •••••• •• ••••••••••••••• Charger 4 4 ••••• ••• •••••••••••••• Dakota 3333 3 ••••• •• ••••••••• •••• Durango 1 •••••• • ••••••••••••••• Durango 33 3 ••••• •• •••••••••••••• GrandCaravan 11111 •••••••••• ••••••••••••••• GrandCaravan 5 5 55 •••••••••• •• •••••••• •• Journey 11 ••••• • ••••••••••••••• Magnum 2 •••••• • ••••••••••••••• Magnum 4 4 4 ••••• •• •••••••••••••• Nitro 3333 3 ••••• •• •••••••••••••• RAM 1111 •••••• • •••••••••• •••• RAM 3 33*or4* ••••• •• ••••••••• ••••
Jee p 12 11 10 09 08 07 06 05 04
Commander 222 ••••• •• ••••••••••••••• Commander 4 4 ••••• ••• •••••••••••••• Compass 3333 3 ••••• •• •••••••••••••• GrandCherokee 1 •••••• • ••••••••••••••• GrandCherokee 222 ••••• • ••••••••••••••• GrandCherokee 4 4 4 ••••• •• •••••••••••••• Grand Cherokee
(Smart Key) 1 •••••• • •••••••••••••••
Liberty 3333 ••••• •• •••••••••••••• Patriot 33333 3 ••••• •• •••••••••••••• Wrangler 33333 3 ••••• •• •••••••••••••• WranglerUnlimited 33333 3 ••••• •• ••••••••••••••
Mitsubishi 12 11 10 09 08 07 06 05 04
Raider 33 3 ••••• •• ••••••••• ••••
Ram 1211100908 07 06 0504
1500 1 •••••• • •••••••••• •••• 2500 1 •••••• • •••••••••• •••• 3500 1 •••••• • •••••••••• •••• C/V 1 •••••••••• •••••••••••••••
Volksw age n 12 11 10 09 08 07 06 05 04
Routan 1111 •••••••••• •••••••••••••••
Firmware: CHRYSLER Remote Start Ready Installation

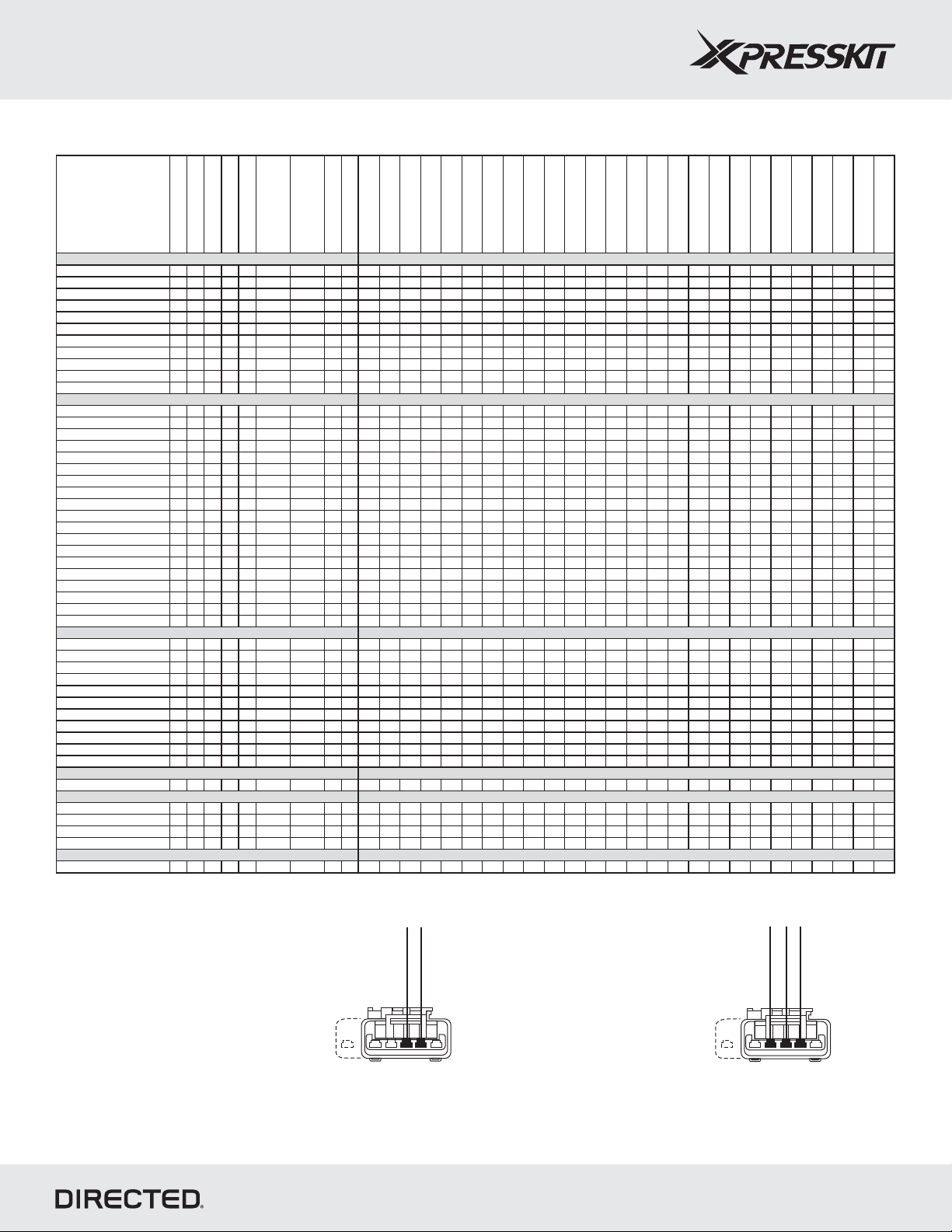

Vehicle Application Guide

Rev.: 20120307
Page 3
*To select the proper install type, locate the ignition switch connector and select your install type as illustrated below:
No Start wire
Installation Type 3 does not
have a Start wire
5or6
Connector side view
at ignition switch
1
Installation Type 4
has a Start wire
5or6
© 2012 Directed. All rights reserved.
(+) Start, Pin 4
Connector side view
at ignition switch
1
Page 4
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

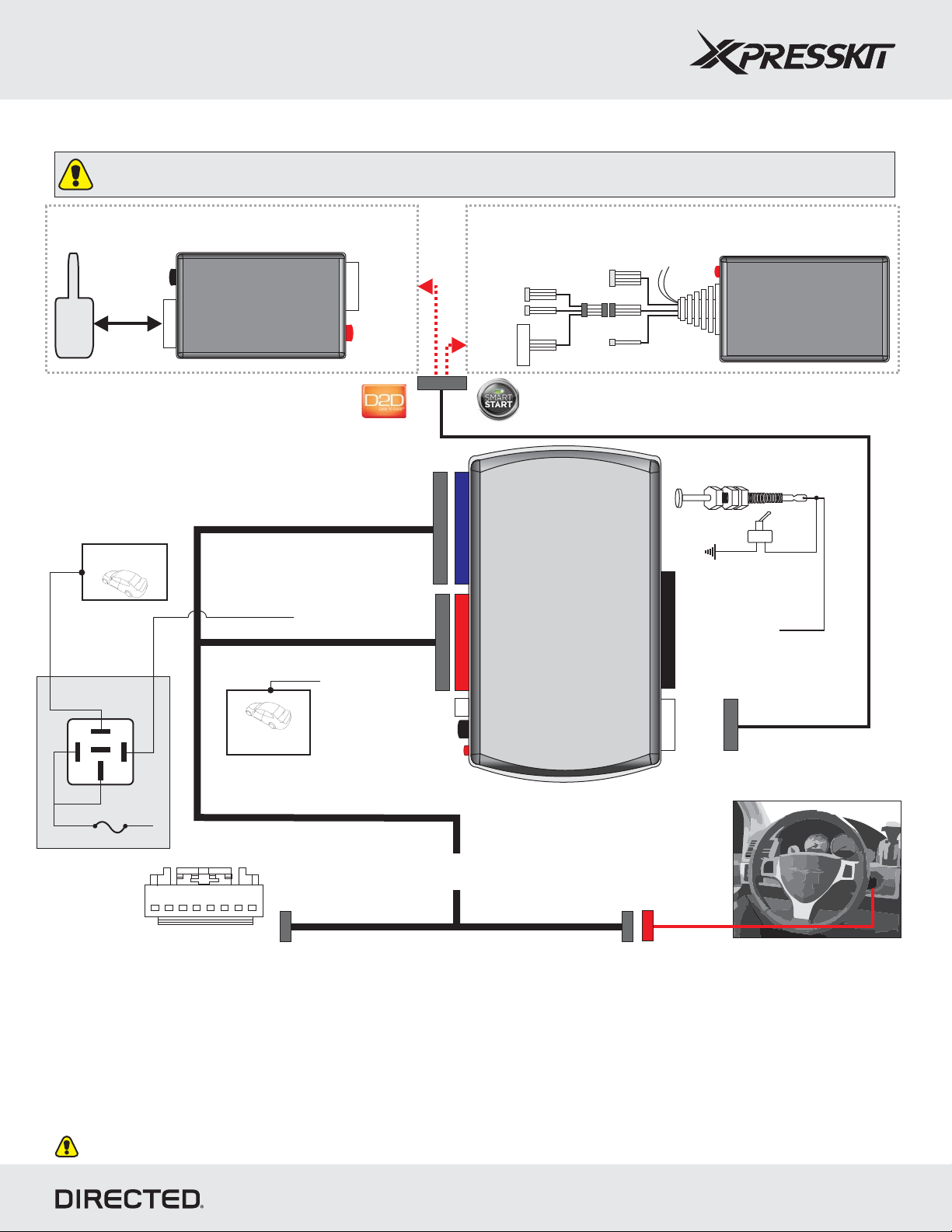

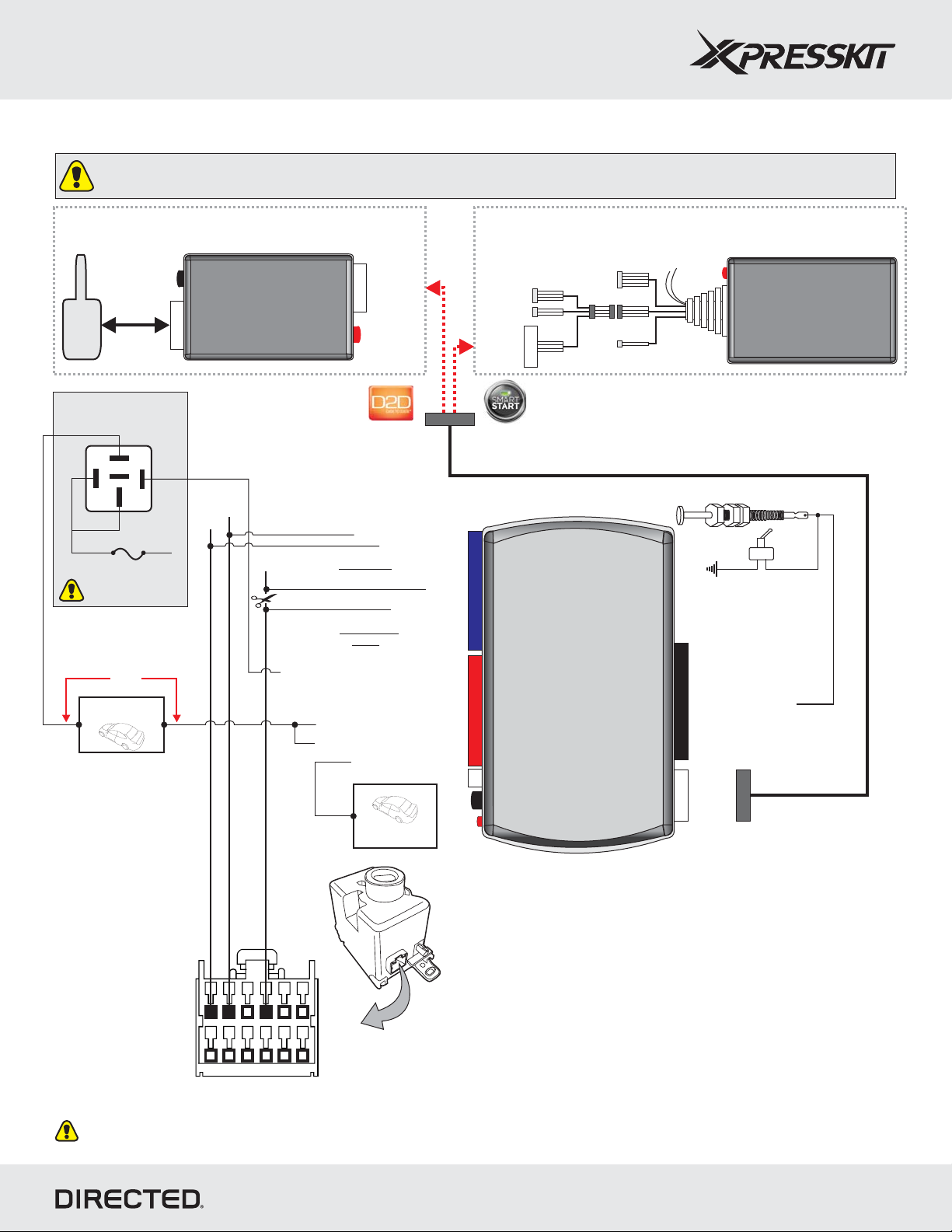

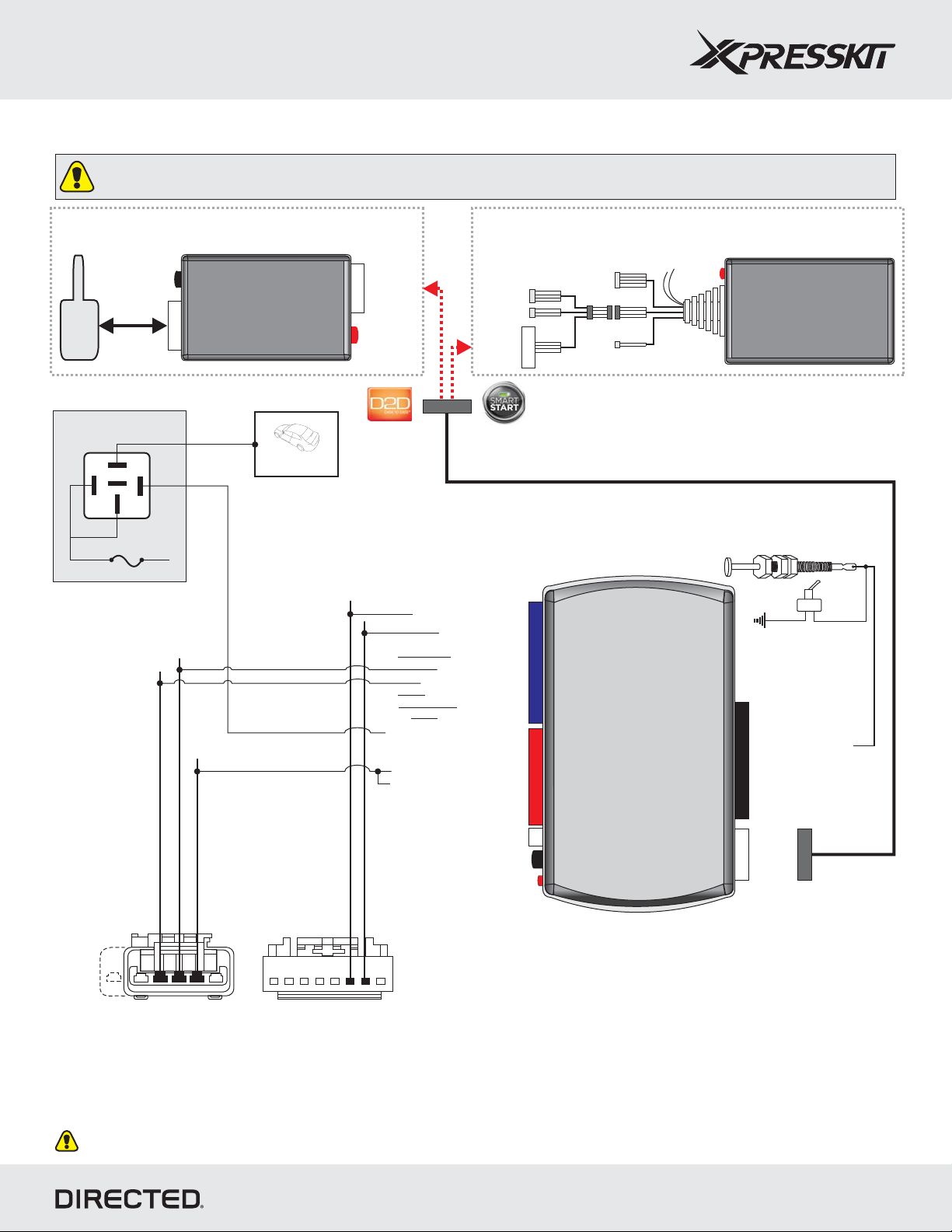

Installation Type 1a (with T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
To vehicle’s
(+) Parking Lights
White/Purple
85
86
87
87a
30
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
LED
SmartStart
2 pins
D2D (4 pins, white)
You can either connect to an XL202 module or to a SmartStart module.
Hood Pin
Rev.: 20120307
Page 4
+12v
Fuse 15A
ONLY connect for Dodge Journey.
OR*
See page 6 for
wiring information
Ignition Barrel
2: Green/Black: (-) Parking Lights via Relay*
8: Violet/Green: MUX*Parking Light
9: Violet/Brown: Parking Light MUX*
10: Yellow/Black: RAP OFF
(-) Driver door pin
Purple wire in
driver kick panel
14
12
2
RF
Programming button
LED
CHTHD1
(optional)
DBALL
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
Facing view
Behind Ignition Switch
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
*See Parking Lights wiring reference chart for the appropriate Parking Lights configuration.
© 2012 Directed. All rights reserved.
Page 5
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

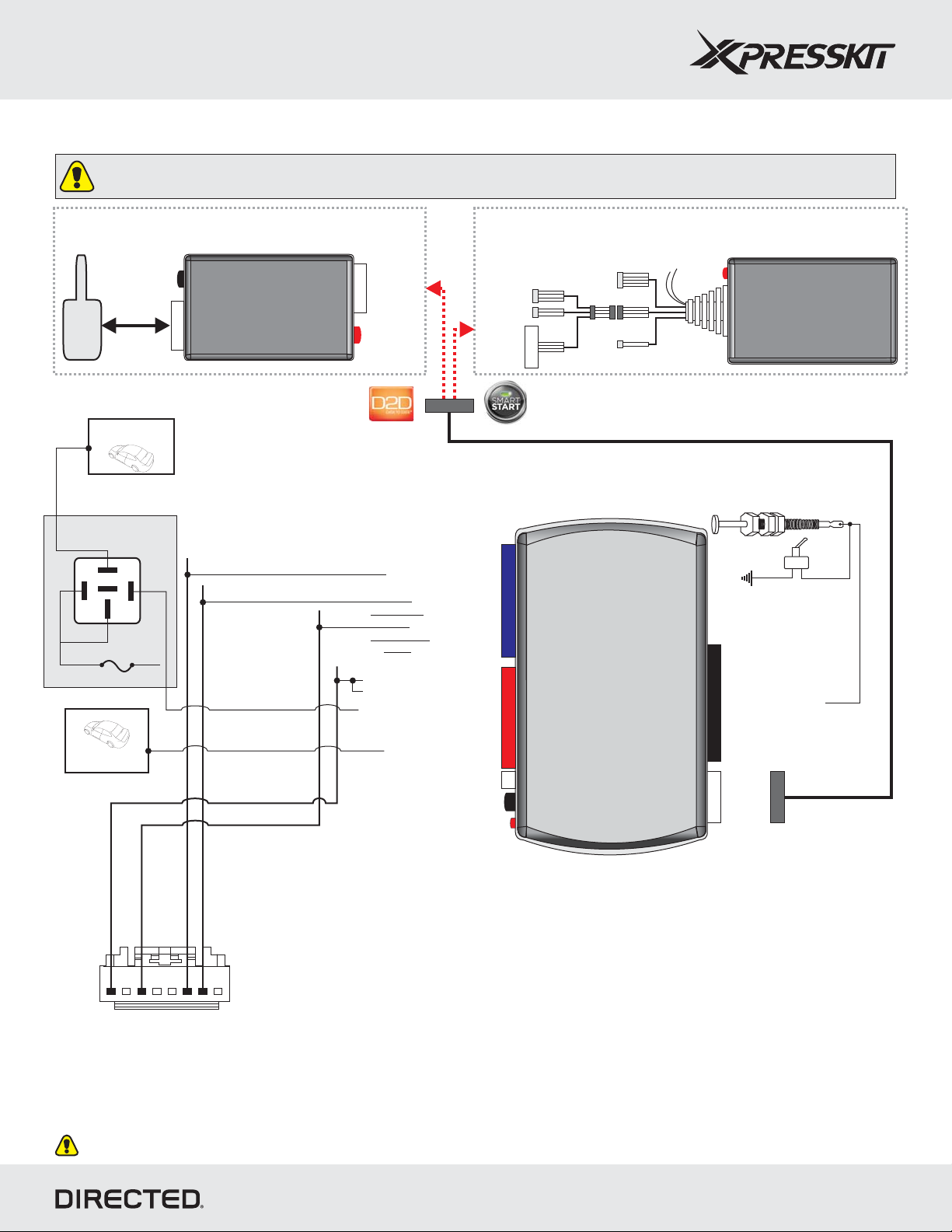

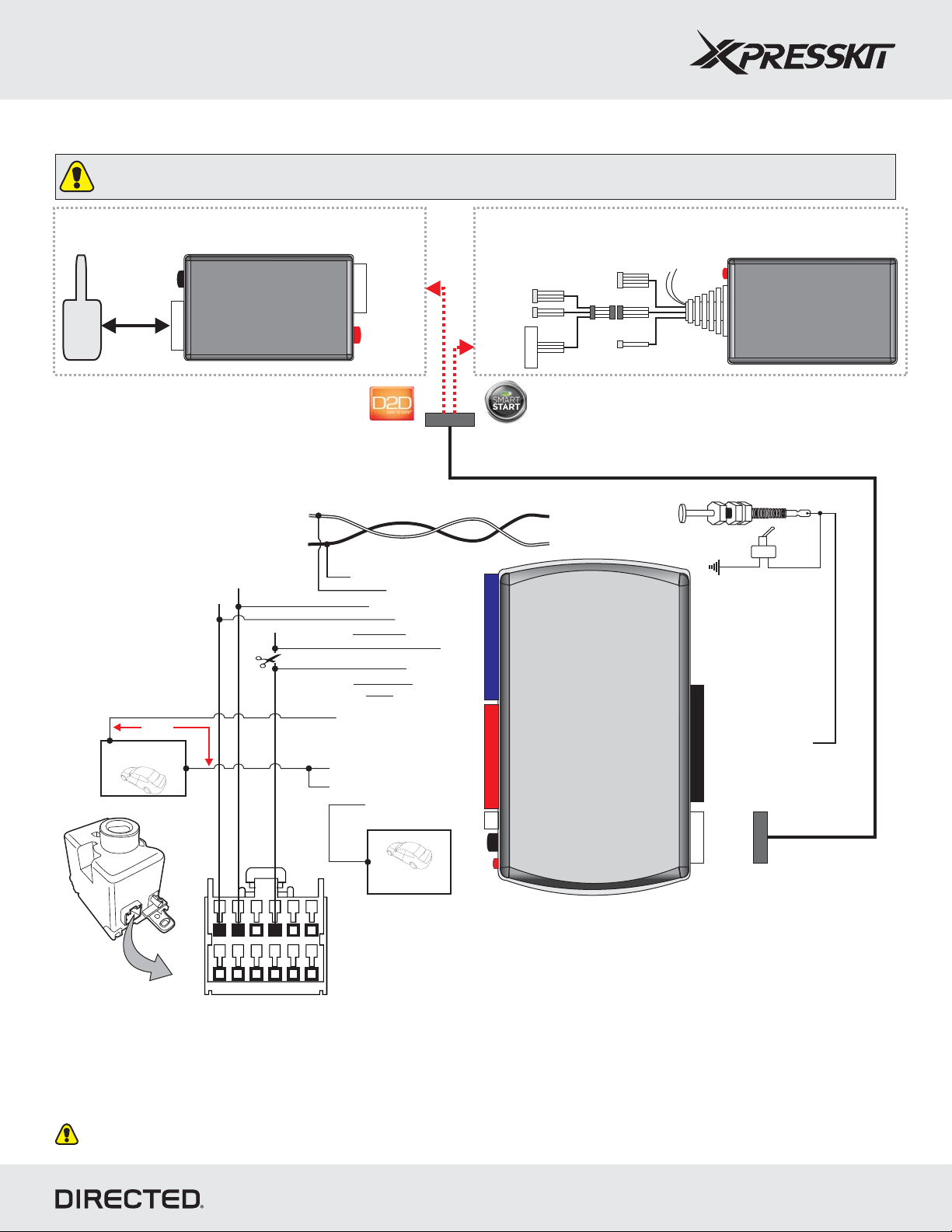

Installation Type 1b (without T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins
D2D (4 pins, white)
Rev.: 20120307
Page 5
LED
SmartStart
To vehicle’s
(+) Parking Lights
White/Purple
85
86
87
87a
30
+12v
Fuse 15A
ONLY connect for Dodge Journey.
OR*
See page 6 for
wiring information
XOVER
3: Tan/Black: HSCAN High
4: Tan: HSCAN Low
7: Brown: (+) 12v(+) 12v
8: Yellow
9: Orange/Yellow
13: Red: (+) 12v(+) 12v
14: Black: (-) Ground(-) Ground
2: Green/Black: (-) Parking Lights via Relay*
8: Violet/Green: MUX*Parking Light
9: Violet/Brown: Parking Light MUX*
10: Yellow/Black: RAP OFF
(-) Driver door pin
Purple wire in
driver kick panel
CABLE
14
12
2
RF
Programming button
LED
You can either connect to an XL202 module or to a SmartStart module.
Hood Pin
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
DBALL
(-) Ground
TX
CAN Low
CAN High
(+) Ignition
6
1
Ignition Barrel
Connector side view
at ignition switch
12
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
*See Parking Lights wiring reference chart for the appropriate Parking Lights configuration.
7
© 2012 Directed. All rights reserved.

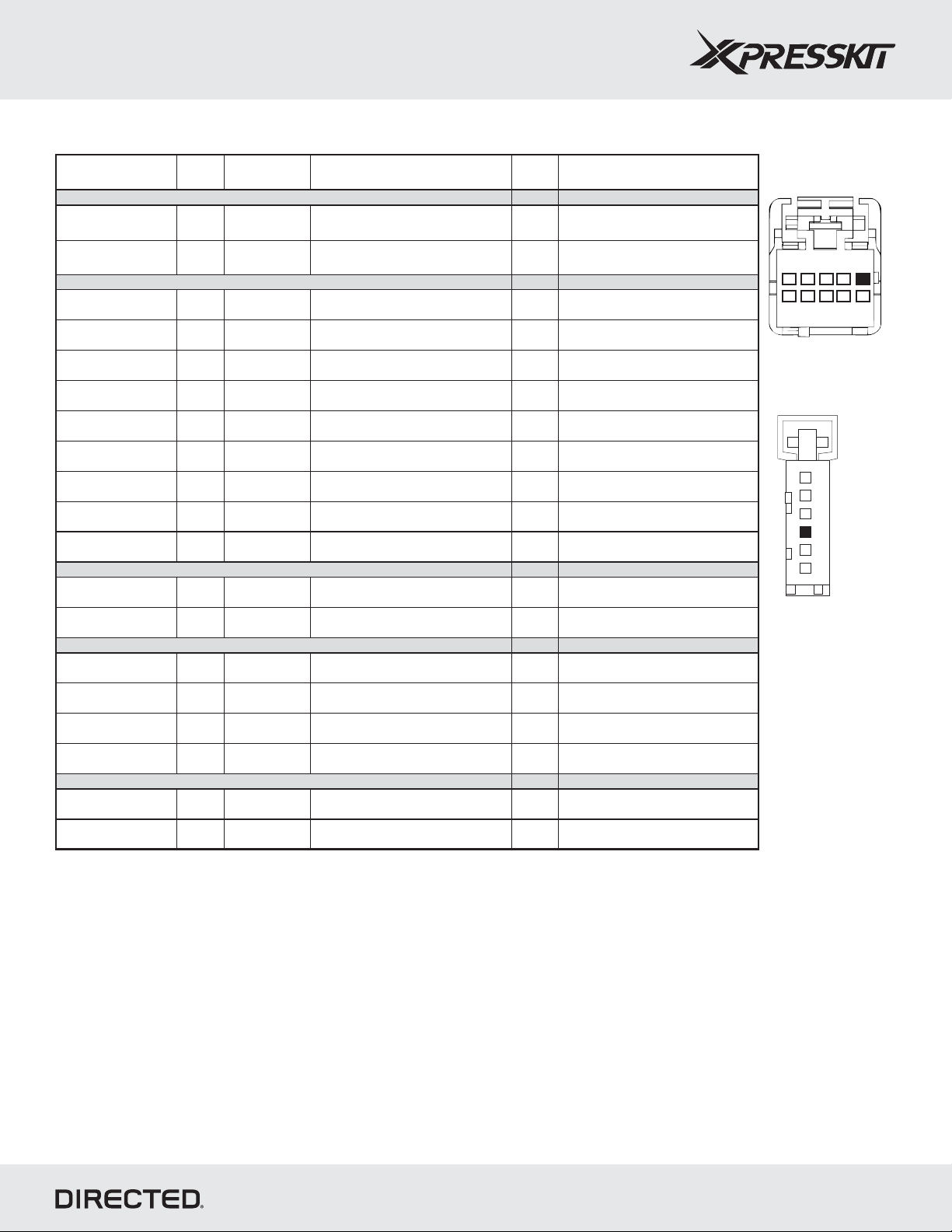

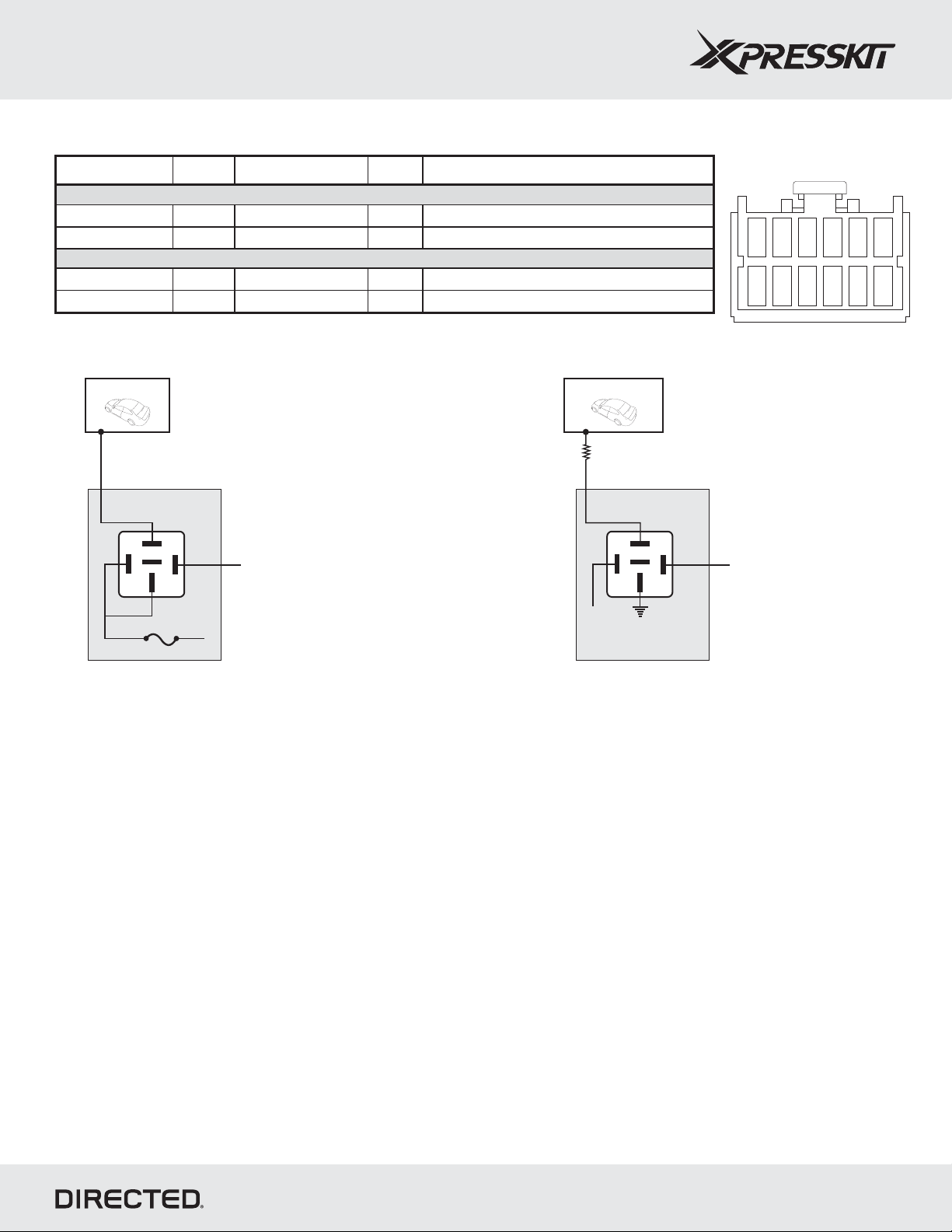

Page 6
Platform: DBALL

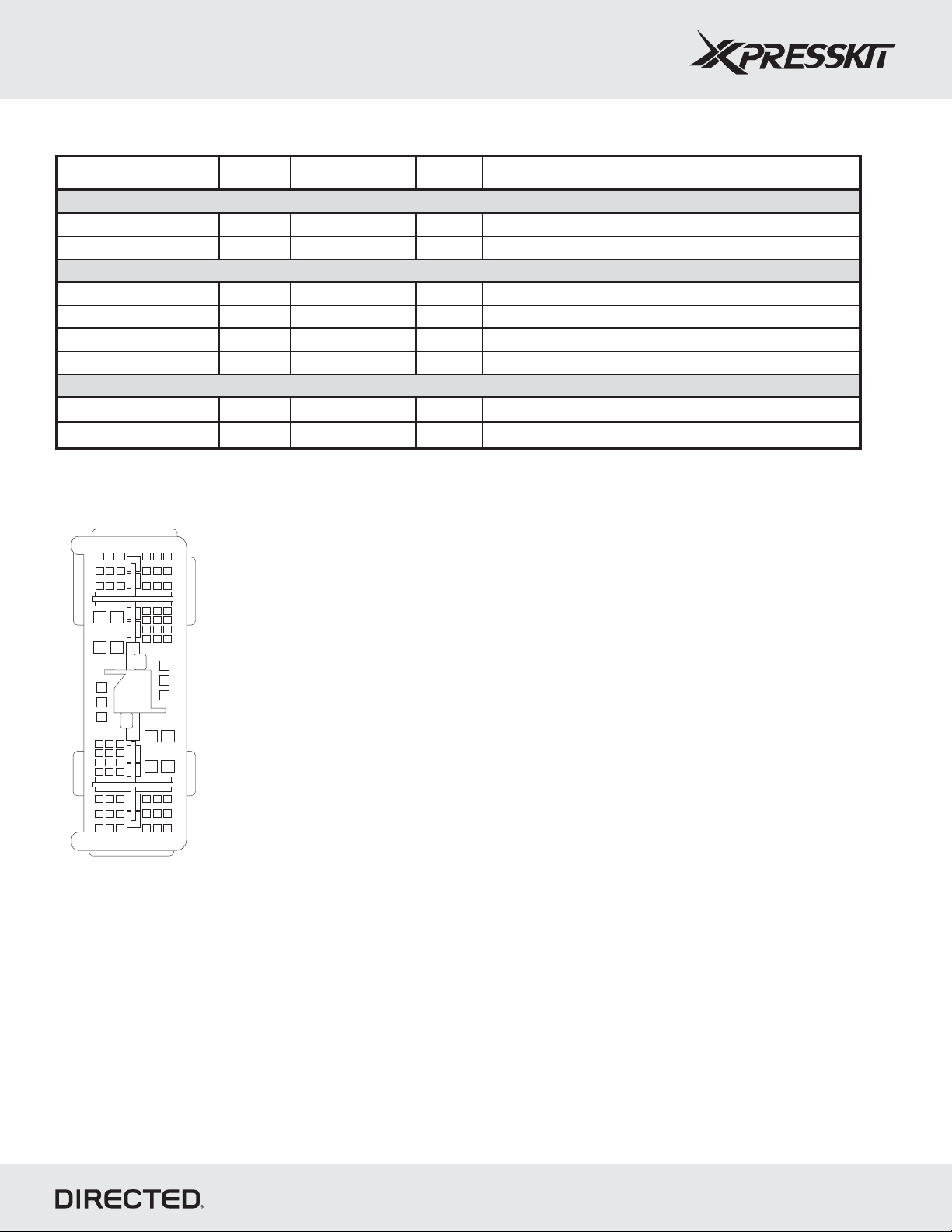

Vehicle Years Ve hicle Wire Location on vehicle (+) / (-)
DBALL Output fro m 12 Pin connector
Chrysle r
Town & Country 2011+ W hite/Green Blac k connector at light swit ch, pin 3 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Town & Country 2008-10 W hite/Brown Black c onnect or at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Dodge
Caravan 2011+ White/Green Blac k c onnector at light swit ch, pin 3 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Caravan 2008-10 White/Brown Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Challenger 2008-11 White/Brown Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Challenger
(Smart Key) 2008-11 White/Brown Black c onnector at light switc h, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Durango 2011+ W hite/Green Blac k connector at light swit ch, pin 3 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Grand Caravan 2011+ W hite/Green Blac k connector at light swit ch, pin 3 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Grand Caravan 2008-10 W hit e/B rown Black c onnector at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Journey 2009-10 W hite/Purple Passenger k ic k panel (+ )
2: Green/B lack: (-) Park ing Lights via Relay
RAM 2009-12 White Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Jeep
Grand Cherokee 2011+ W hite/Green Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Grand Cherokee
(Smart Key)
2011+ W hite/Green Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Ram
1500 2012 White Black c onnect or at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
2500 2012 White Black c onnect or at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
3500 2012 White Black c onnect or at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
C/V 2012 White Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Volkswagen
Routan 2011+ W hite/Green Black connector at light switch, pin 3 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Routan 2009-10 W hite/Brown Black c onnect or at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light MUX
Firmware: CHRYSLER Remote Start Ready Installation

Parking Light Vehicle Wiring Reference Chart (Type 1)

Rev.: 20120307
Page 6
Light switch, black 10-pin plug
5
3
4
987
10 6
1
2
Light switch, black 6-pin plug
6
5
4
3
2
1
© 2012 Directed. All rights reserved.
Page 7
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 2a (with T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
LED
SmartStart
2 pins
D2D (4 pins, white)
You can either connect to an XL202 module or to a SmartStart module.
Rev.: 20120307
Page 7
See page 9 for
wiring information
OR*
(-) Driver door pin
Purple wire in
driver kick panel
Twisted pair in the kick panel
5: White/Orange: FTCAN High
6: White: FTCAN Low
14
2: Green/Black: (-) Parking Lights*
12
8: Violet/Green: MUX*Parking Light
9: Violet/Brown: Parking Light MUX*
10: Yellow/Black: RAP OFF
2
White/Orange
White/Gray, White or White/Pink
RF
Programming button
LED
DBALL
Hood Pin
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
Ignition Barrel
CHTHD1
(optional)
Facing view
Behind Ignition Switch
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
*See Parking Lights wiring reference chart for the appropriate Parking Lights configuration.
© 2012 Directed. All rights reserved.
Page 8

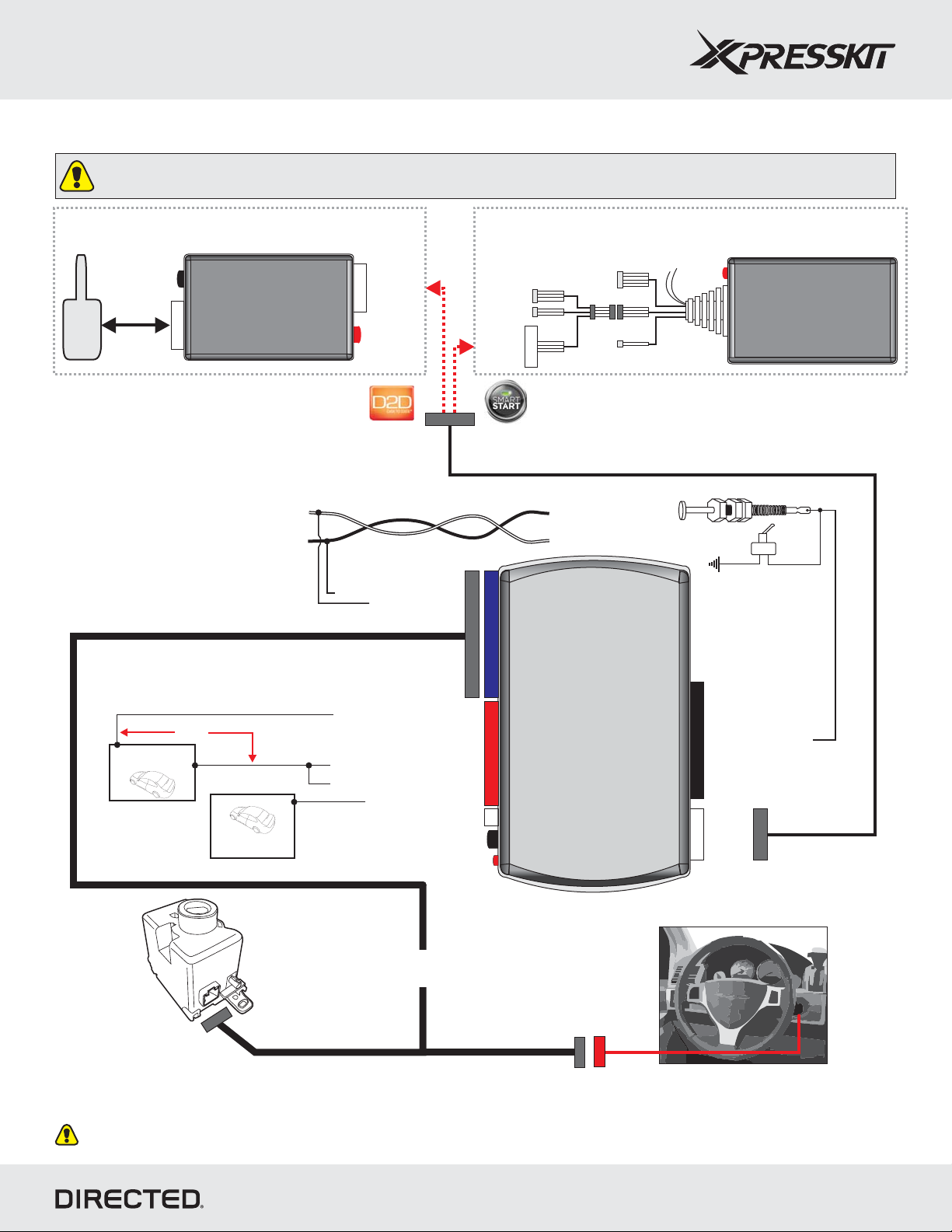

Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 2b (without T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
LED
SmartStart
2 pins
D2D (4 pins, white)
You can either connect to an XL202 module
or to a SmartStart module.
Rev.: 20120307
Page 8
wiring information
Ignition Barrel
OR*
See page 9 for
12
Twisted pair in the kick panel
White/Orange
White/Gray, White or White/Pink
5: White/Orange: FTCAN High
6: White: FTCAN Low
3: Tan/Black: HSCAN High
4: Tan: HSCAN Low
7: Brown: (+) 12v(+) 12v
9: Orange/Yellow
13: Red: (+) 12v(+) 12v
14: Black: (-) Ground(-) Ground
2: Green/Black: (-) Parking Lights*
14
8: Yellow
12
8: Violet/Green: MUX*Parking Light
9: Violet/Brown: Parking Light MUX*
10: Yellow/Black: RAP OFF
(-) Driver door pin
CAN Low
CAN High
(+) Ignition
Purple wire in
driver kick panel
6
1
2
RF
Programming button
LED
DBALL
Hood Pin
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
Connector side view at ignition switch
7
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
*See Parking Lights wiring reference chart for the appropriate Parking Lights configuration.
© 2012 Directed. All rights reserved.
Page 9
Platform: DBALL
Vehicle Yea rs Vehicle W ire Location on ve hicle (+) / (-)
DBALL Output fro m 12 Pin connector
Chrysle r
300/300c 2008-10 W hite/Brown Black connec tor at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light M UX
Dodge
Charger 2008-10 White/Brown B lack c onnector at light switch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light M UX
Magnum 2008 W hite/Brown Blac k connector at light swit ch, pin 1 MUX
8: Violet/ Green: P arking Light MUX 9: Violet/ Brown: Parking Light M UX
Jee p

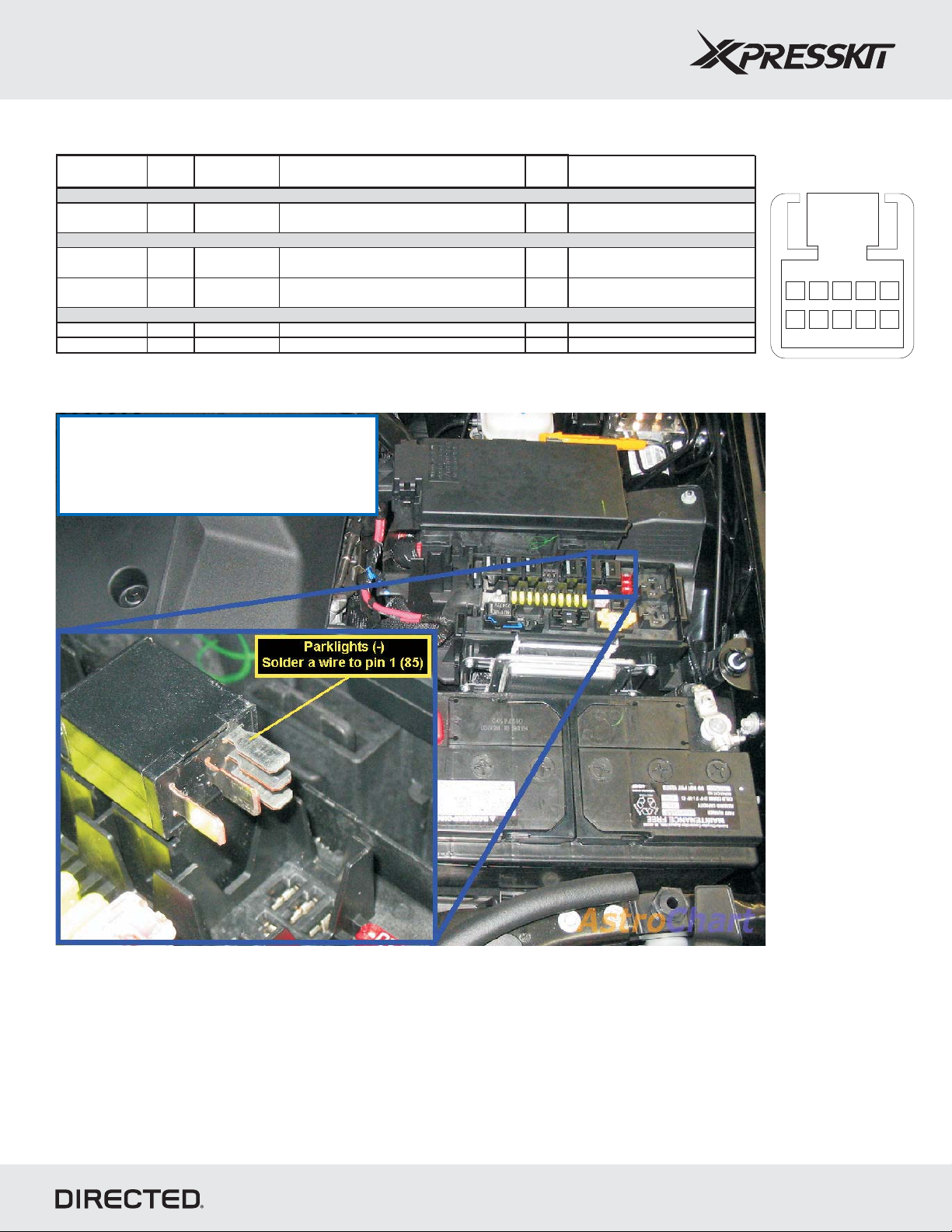

Commander 2008-10 White/ Dk. Blue Hazar light s witc h (-) 2: Green/Blac k: (-) Parking Lights Grand Cherokee 2008-10 W hite/Dk. Blue Hazar light switch (-) 2: Green/Black : (-) P arking Light s
Firmware: CHRYSLER Remote Start Ready Installation

Parking Light Vehicle Wiring Reference Chart (Type 2)

Jeep Commander & Jeep
Grand Cherokee
Optional parking light connection
Rev.: 20120307
Page 9
Light switch, black 10-pin plug
2
1
3
7
6
8
5
4
10
9
© 2012 Directed. All rights reserved.
Page 10

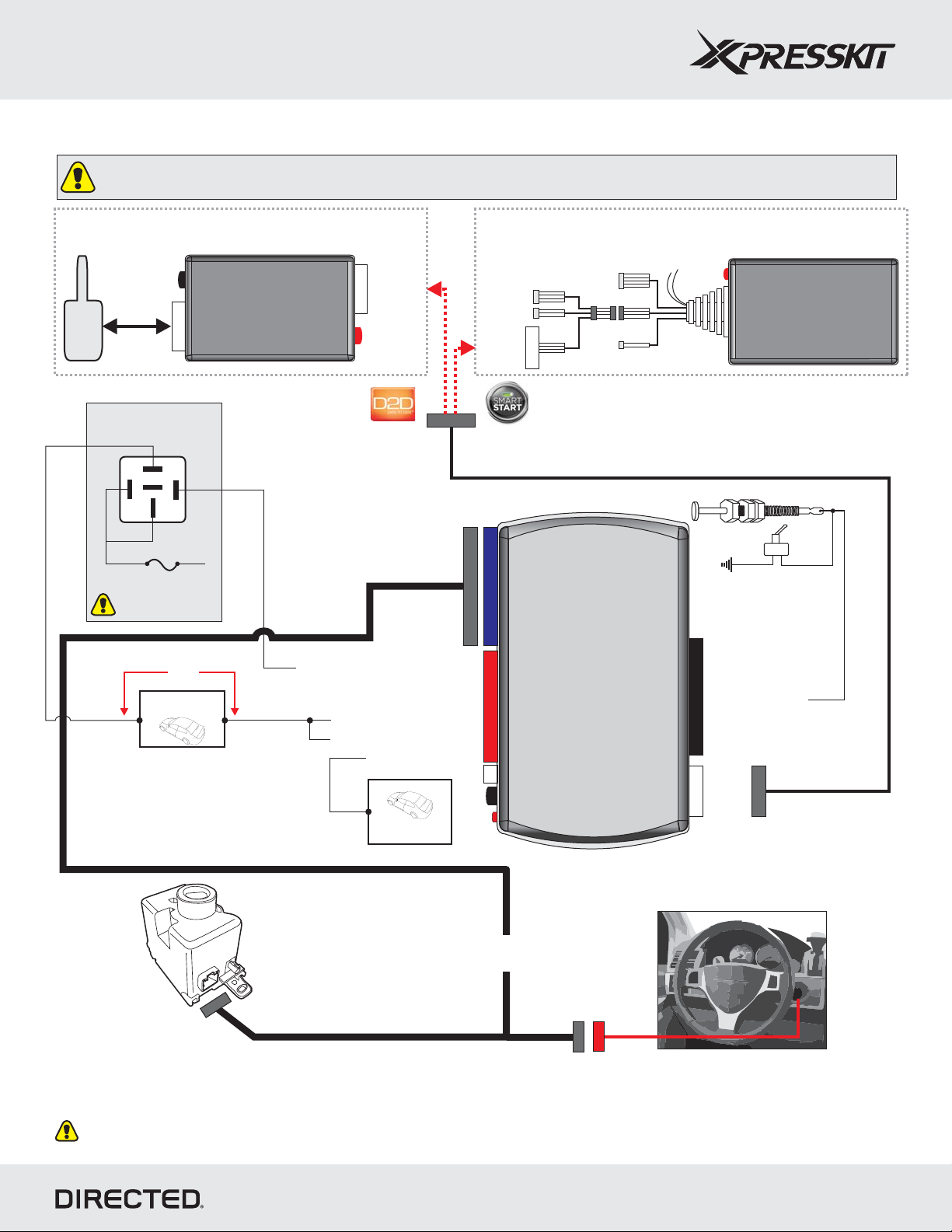

Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 3a (with T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins
D2D (4 pins, white)
LED
You can either connect to an XL202 module or to a SmartStart module.
Rev.: 20120307
Page 10
SmartStart
See page 12 for
wiring information
To vehicle’s
(+) Parking Lights
85
86
87
87a
30
+12v
Fuse 15A
(-) Driver door pin
Purple wire in
driver kick panel
XOVER
2: Green/Black: (-) Parking Lights
10: Yellow/Black: RAP OFF
CABLE
14
12
2
CHTHD2
(optional)
RF
Programming button
LED
DBALL
Hood Pin
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
18
Connector side view
at ignition switch
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
© 2012 Directed. All rights reserved.
Page 11

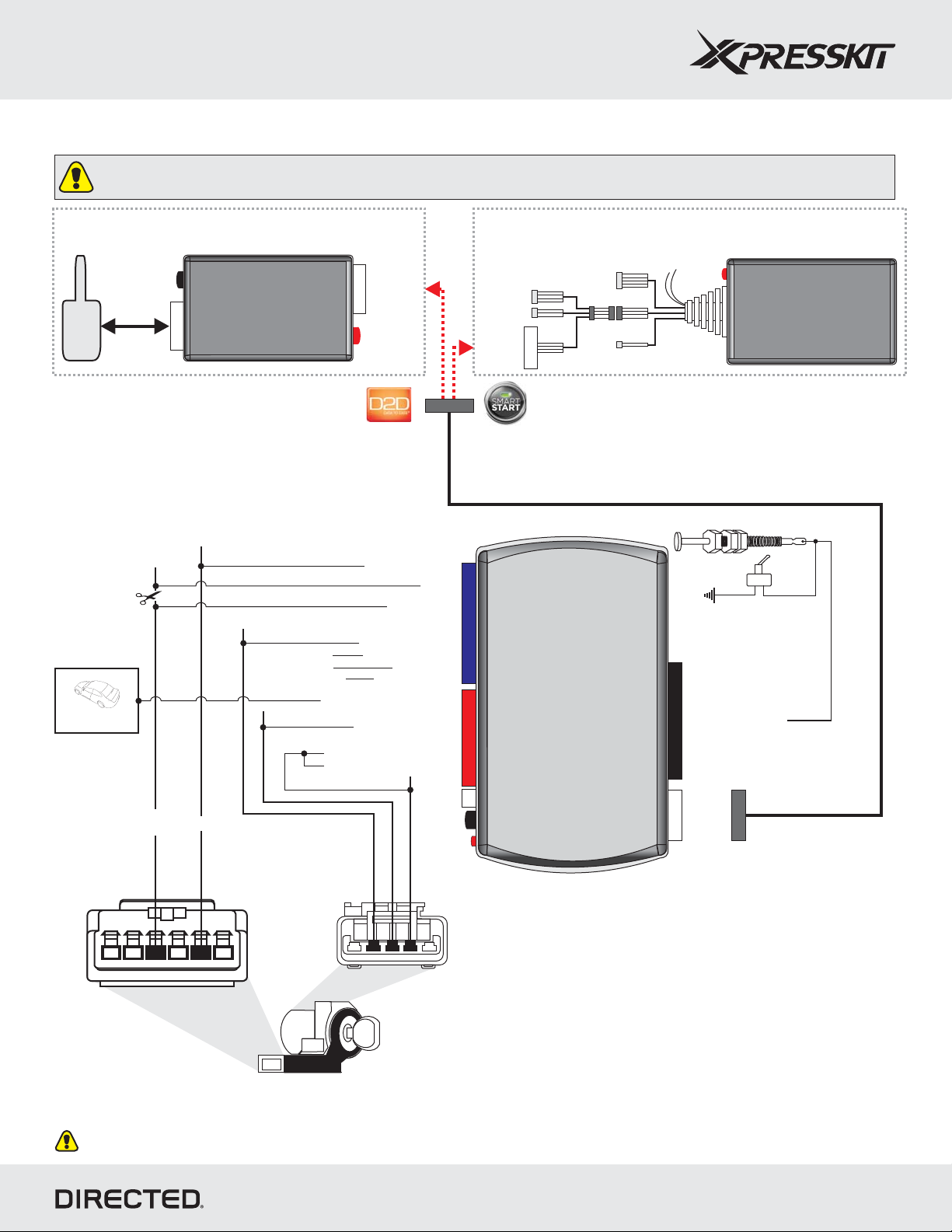

Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 3b (without T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
See page 12 for
wiring information
To vehicle’s
(+) Parking Lights
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins
D2D (4 pins, white)
LED
You can either connect to an XL202 module or to a SmartStart module.
Rev.: 20120307
Page 11
SmartStart
Hood Pin
85
86
87
87a
30
+12v
Fuse 15A
(-) Driver door pin
Purple wire in
driver kick panel
(+) Ignition, Pin 3
CAN High, Pin 6
CAN Low, Pin 7
MUX, Pin 1
18
Connector side view
at ignition switch
3: Tan/Black: HSCAN High
4: Tan: HSCAN Low
7: Brown: (+) 12v(+) 12v
8: Yellow: (+) Ignition
13: Red: (+) 12v(+) 12v
14: Black: (-) Ground(-) Ground
8: Violet/Green: Multiplex Output 9: Violet/Brown: Multiplex Output
2: Green/Black: (-) Parking Lights
10: Yellow/Black: RAP OFF
14
12
2
RF
Programming button
LED
DBALL
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
© 2012 Directed. All rights reserved.

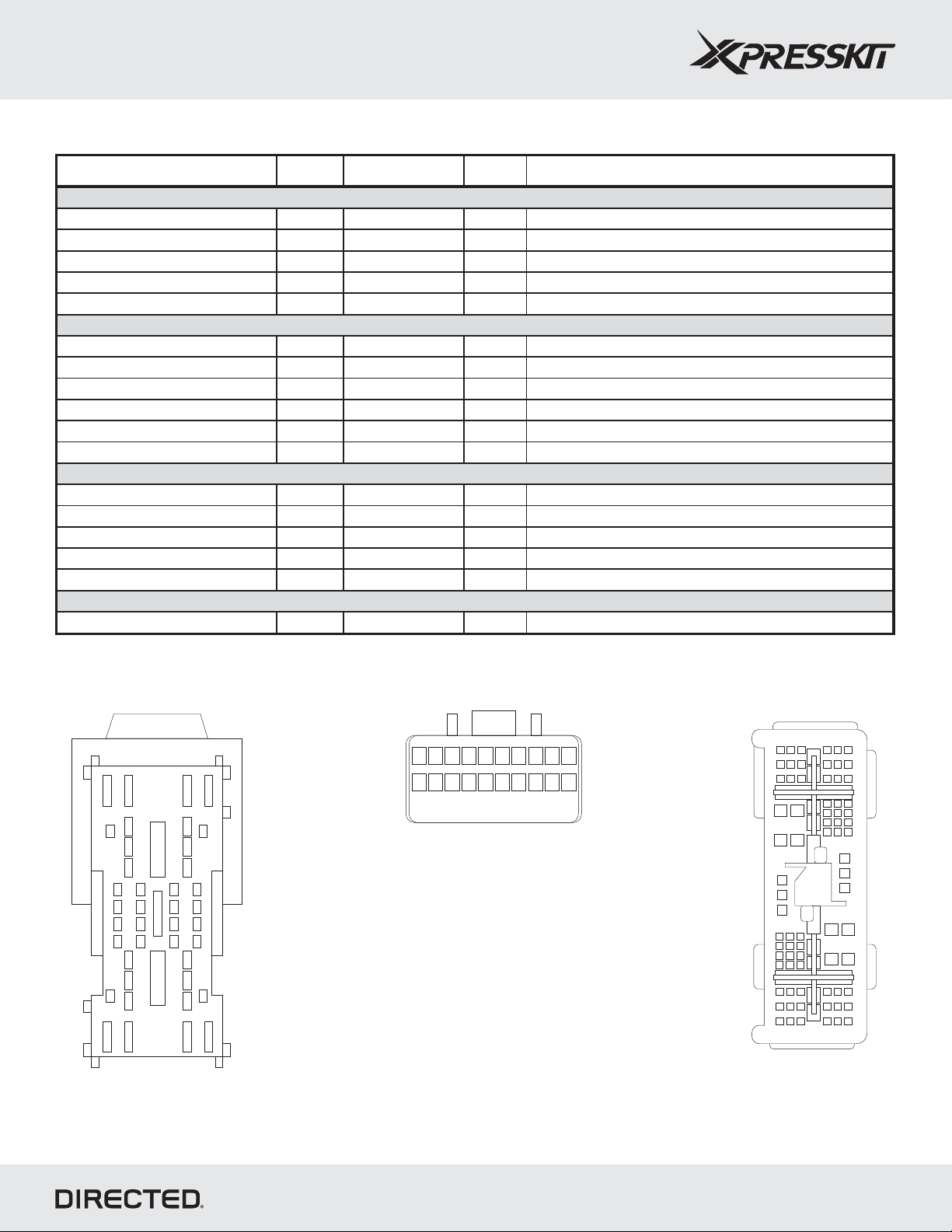

Page 12
Platform: DBALL
Vehicle Years Wire (+) / (-) Location
Chrysler
200 2011 White/Violet (+) Driver kick panel Aspen 2007-09 Pink/Red (+) Driver kick fuse box, black 40-pin plug, pin 6 Sebring 2007-10 White/Violet (+) Driver kick panel Sebring Convertible 2008-10 White/Violet (+) Driver kick panel Sebring Sedan 2007-10 White/Violet (+) Driver kick panel
Dodge
Avenger 2008-11 W hite/Violet (+) Driver kick panel Caliber 2007-11 White/Violet (+) Driver kick panel Dakota 2007-11 Pink/Red (+) Underhood fuse box, blac k 20-pin plug, pin 15 Durango 2007-09 Pink/Red (+) Driver kick fuse box, black 40-pin plug, pin 6 Nitro 2007-11 White/Violet (+) Driver kick panel RAM 2006-08 White/Gray (+) Above driver kick, gray 74-pin plug, pin 19
Jeep
Compass 2007-11 White/Violet (+) Driver kick panel Liberty 2008-10 White/Violet (+) Driver kick panel Patriot 2007-12 White/Violet (+) Driver kick panel Wrangler 2007-12 White/Violet (+) Passenger kick panel Wrangler Limited 2007-12 White/Violet (+) Passenger kick panel
Mitsubishi
Raider 2007-09 Pink/Red (+) Underhood fuse box, blac k 20-pin plug, pin 15
Firmware: CHRYSLER Remote Start Ready Installation

Parking Light Vehicle Wiring Reference Chart (Type 3)

Rev.: 20120307
Page 12
Driver kick fuse box, black 40-pin plug
Underhood fuse box, black 20-pin plug
10209198187176165154143132121
39
25
9
1
11
37 3
28
12
21
33
5
17
38 4
40 2
36 24
29
32
820
13
16
Above driver kick, gray 74-pin plug
1
3
10
11
14 15 16
17
20
29
31 37 68 74
© 2012 Directed. All rights reserved.
73844
46
55
58
59 60 61
64
65
72
Page 13

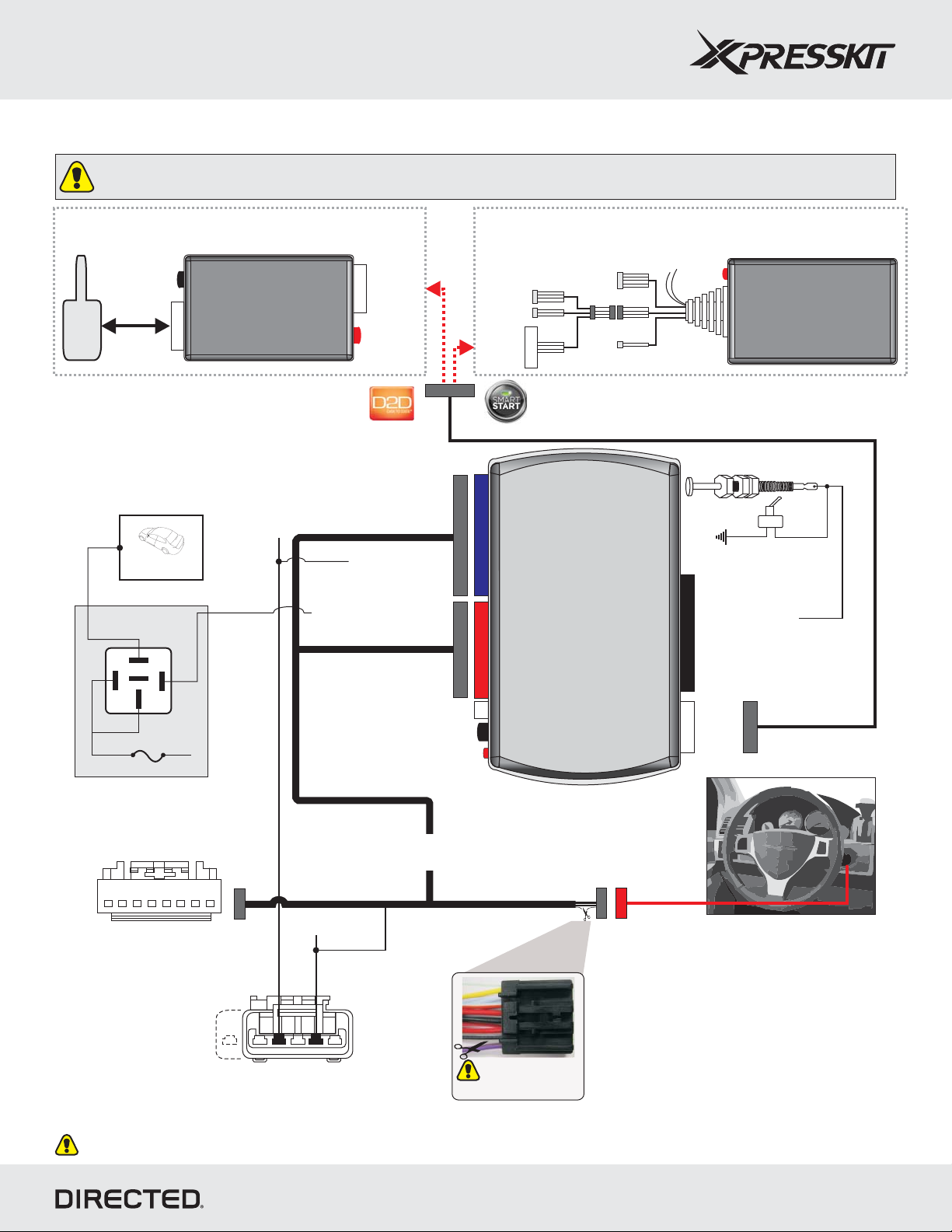

Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 4a (with T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins
D2D (4 pins, white)
LED
You can either connect to an XL202 module or to a SmartStart module.
Hood Pin
Rev.: 20120307
Page 13
SmartStart
(+) Parking Lights
See page 15 for
wiring information.
To vehicle’s
(+) Parking Lights
85
86
87
87a
30
+12v
Fuse 15A
18
2: Green/Black: (-) Parking Lights
(+) Start, Pin 4
Connector side view
at ignition switch
11: Yellow/Red: (+) Start
CHTHD2
(optional)
14
12
2
RF
Programming button
LED
DBALL
Neutral Safety Switch
6: White/Black: (-) Hood
10
(+) 12v
RX
4
(-) Ground
TX
Violet/Brown, Pin 2
5or6 1
Connector side view
at ignition switch
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
Cut Purple/Brown wire, Pin 8 (on female end)
© 2012 Directed. All rights reserved.
Page 14
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 4b (without T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
To vehicle’s
(+) Parking Lights
85
86
87
87a
30
(+)12v
TX
4
(-) Ground
4
XL202
(+) Parking Lights
See page 15 for
wiring information.
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins
D2D (4 pins, white)
LED
You can either connect to an XL202 module or to a SmartStart module.
Rev.: 20120307
Page 14
SmartStart
5or6
+12v
Fuse 15A
(+) Ignition, Pin 3
(+) Start, Pin 4
Connector side view
at ignition switch
Hood Pin
3: Tan/Black: HSCAN High
4: Tan: HSCAN Low
7: Brown: (+) 12v(+) 12v
8: Yellow: (+) Ignition
11: Yellow/Red: (+) Start
(+) 12v
Violet/Brown, Pin 2
CAN High, Pin 6
CAN Low, Pin 7
1
18
12: Brown/Red: (+) 12v
13: Red: (+) 12v(+) 12v
2: Green/Black: (-) Parking Lights
8: Violet/Green: Multiplex Output 9: Violet/Brown: Multiplex Output
14: Black: (-) Ground(-) Ground
14
12
2
RF
Programming button
LED
DBALL
Neutral Safety Switch
6: White/Black: (-) Hood
10
(+) 12v
RX
4
(-) Ground
TX
Connector side view
at ignition switch
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
© 2012 Directed. All rights reserved.
Page 15
Platform: DBALL
Vehicle Years Wire (+) / (-) Location
Chrysler
300/300c 2005-07 White/Violet (+) Passenger kick panel PT Cruiser 2006-10 White/Violet (+) Driver kick panel
Dodge
Caliber 2007-11 White/Violet (+) Driver kick panel Charger 2006-07 White/Violet (+) Passenger kick panel Magnum 2005-07 White/Violet (+) Passenger kick panel RAM 2006 White/Gray (+) Above driver kick, gray 74-pin plug, pin 19
Jeep
Commander 2006-07 White/Dk. Blue (-) Hazard light switch
Grand Cherokee 2005-07 W hite/Dk. Blue (-) Hazard light switch
Firmware: CHRYSLER Remote Start Ready Installation

Parking Light Vehicle Wiring Reference Chart (Type 4)

Above driver kick, gray 74-pin plug
1
73844
Rev.: 20120307
Page 15
3
10
11
14 15 16
17
20
29
31 37 68 74
46
55
58
59 60 61
64
65
72
© 2012 Directed. All rights reserved.
Page 16
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Installation Type 5 (without T-Harness)

Important!
The Hood Pin and Neutral Safety Switch are mandatory security devices, but are NOT supplied with the DBALL.
The XL202 and antenna are not included and MUST be
optional
purchased separately.
Programming
Button
Antenna
(+)12v
TX
4
(-) Ground
4
XL202
RX
LED
XOVER
SmartStart is not included. It MUST be purchased separately.
OR
RX
(-) Ground
TX
(+)12v
CABLE
optional and
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
LED
SmartStart
2 pins
D2D (4 pins, white)
You can either connect to an XL202 module or to a SmartStart module.
Rev.: 20120307
Page 16
Parking Lights
See page 17 for
wiring information
Module-Sentry Key
Sentry Key
(+) Ignition
J1850
Remote Entry
Hood Pin
2: Violet/Yellow: J1850
8: Yellow
9: Orange/Yellow
11: Yellow/Red: (+) Start
(+) 12v
16
12: Brown/Red: (+) 12v
13: Red: (+) 12v(+) 12v
14: Black: (-) Ground(-) Ground
2: Green/Black: (-) Parking Lights
7: Gray/Black: (+) Ignition
8: Violet/Green: Multiplex Output 9: Violet/Brown: Multiplex Output
Violet/Brown, Pin 2
(+) Ignition, Pin 3
(+) Start, Pin 4
14
12
2
1
RF
Programming button
LED
DBALL
Neutral Safety Switch
10
6: White/Black: (-) Hood
(+) 12v
RX
4
(-) Ground
TX
Connector
side view
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
© 2012 Directed. All rights reserved.
Page 17
Platform: DBALL
Vehicle Years Wire (+) / (-) Location
Chrysle r
Pacifica 2004-08 Brown/W hite (-1K) MUX Headlight switch, black 12-pin plug, pin 6
Town & Country 2004-07 W hite/Orange (+) Driver kick panel
Dodge
Caravan 2004-07 W hite/Orange (+) Driver kick panel
Grand Caravan 2004-07 W hite/Orange (+) Driver kick panel
Firmware: CHRYSLER Remote Start Ready Installation

Parking Light Vehicle Wiring Reference Chart (Type 5)

(+) Parking Lights (MUX) Parking Lights
1KΩ
Rev.: 20120307
Headlight switch, black 12-pin plug
4
3
2
1
10
9
8
7
Page 17
6
5
12
11
To vehicle’s
(+) Parking Lights
86
85
87
87a
30
Fuse 15A
+12v
Positive (+)
2: Green/Black: (-) Parking Lights
OR
To vehicle’s
(MUX) Parking Lights
85
86
87
87a
30
+12v
MUX
2: Green/Black: (-) Parking Lights
© 2012 Directed. All rights reserved.
Page 18
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307
Module Programming for Installation Types 1 to 4 (WITH Factory Keyless)
Refer to the LED Diagnostics section on page 23 for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to ensure everything is correct prior to moving onto the next step.
: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the
Note
communication protocol is
1. Going to www.xpresskit.com.
2. Selecting the make, model and year of the vehicle.
3. On the search result page, click on the button.
4. The flash page will then be displayed listing the D2D type settings. Make your selection and flash the module.
To use DBALL with an:
§
RF Kit and XL202, must be selected.
§
SmartStart (Revision B),
Warning against resetting the DBALL module before executing the programming sequence!
A reset will erase all the settings configured on the module using the web tool (see the above instructions). Therefore, if you reset before executing the programming sequence, you will HAVE to re-flash the module in order to re-configure the desired options.
enabled on DBALL using XpressVIP. This selection is done by:
Flash it
D2D (RFTD)
D2D (SmartStart)
must be selected.
DBALL Module Programming
1
Connect the SmartStart or XL202 unit into the D2D port of the prior to connecting the power.
DBALL
proper
D2D
10-pin
Page 18
2
Connect the 10-pin, 12-pin and 14-pin harnesses to DBALL, then wait until the LED turns ON solid red or flashes orange.
D2D
10-pin
st
1
rd
3
14-pin
12-pin
&
nd
2
Solid
or
Flashes
Key Ignition Push-to-Start (PTS) Ignition
33
4
Insert the key into the ignition barrel and turn it to the ON position.
It is important to wait for the LED to start flashing green. Refer to the LED Diagnostics section on page 23 for troubleshooting if the LED does not flash green within 15 seconds.
Key IN
Turn the key to the OFF position and remove it from the ignition barrel.
OFF
ON
START
&
Flashes
Key OUT
OFF
IGN
START
4
Important: Do NOT press the brake pedal.
Press the Push-to-Start (PTS) button twice to turn the ignition ON.
Do NOT press the brake pedal
2X
ENGINE
START
STOP
PUSH
It is important to wait for the LED to start flashing green. Refer to the LED Diagnostics section on page 23 for troubleshooting if the LED does not flash green within 15 seconds.
Flashes
Press the Push-to-Start (PTS) button once more to turn the ignition OFF.
1X
ENGINE
START
STOP
PUSH
Press LOCK or UNLOCK on the
5
factory transmitter
ON solid green OR orange for 3 seconds and then turns off.
. The LED turns
PANIC
or
&
or
Solid Solid
&
Off
Important! If connected to a SmartStart, please ensure that its Gray wire is connected to a ground source or the D2D communication between the two (2) modules will NOT work.
© 2012 Directed. All rights reserved.
Page 19
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307

Module Programming for Installation Types 1 to 4 (WITHOUT Factory Keyless)

Refer to the LED Diagnostics section on page 23 for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to ensure everything is correct prior to moving onto the next step.
: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the
Note
communication protocol is
1. Going to www.xpresskit.com.
2. Selecting the make, model and year of the vehicle.
3. On the search result page, click on the button.
4. The flash page will then be displayed listing the D2D type settings. Make your selection and flash the module.
To use DBALL with an:
§
RF Kit and XL202, must be selected.
§
SmartStart (Revision B),
Warning against resetting the DBALL module before executing the programming sequence!
A reset will erase all the settings configured on the module using the web tool (see the above instructions). Therefore, if you reset before executing the programming sequence, you will HAVE to re-flash the module in order to re-configure the desired options.
enabled on DBALL using XpressVIP. This selection is done by:
Flash it
D2D (RFTD)
D2D (SmartStart)
must be selected.
proper
Page 19
DBALL Module Programming
D2D
10-pin
or
Solid
&
Flashes
Off
Key OUT
1
2
Connect the SmartStart or XL202 unit into the D2D port of the prior to connecting the power.
Connect the 10-pin, 12-pin and 14-pin harnesses to DBALL, then wait until the LED turns ON solid red or flashes orange.
D2D
10-pin
st
1
DBALL
3
14-pin
12-pin
rd
nd
2
&
Insert the key into the ignition barrel and turn it to the ON position.
OFF
ON
START
3
It is important to wait for the LED to start flashing green.*
* Refer to the LED Diagnostics section on page 23 for troubleshooting
Key IN
if the LED does not flash green within 15 seconds.
Press and hold the Programming Button. The LED
4
5
turns ON solid green OR orange for 3 seconds and then turns OFF. Release the Programming button.
Press & Hold
Turn the key to the OFF position and remove it from the ignition barrel.
Solid
or
& &&
Solid
Important! If connected to a SmartStart, please ensure that its Gray wire is connected to a ground source or the D2D communication between the two (2) modules will NOT work.
Flashes
Release
OFF
IGN
START
© 2012 Directed. All rights reserved.
Page 20
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307

Module Programming for Installation Type 5

Refer to the LED Diagnostics section on page 23 for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to ensure everything is correct prior to moving onto the next step.
: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the
Note
communication protocol is
1. Going to www.xpresskit.com.
2. Selecting the make, model and year of the vehicle.
3. On the search result page, click on the button.
4. The flash page will then be displayed listing the D2D type settings. Make your selection and flash the module.
To use DBALL with an:
§
RF Kit and XL202, must be selected.
§
SmartStart (Revision B),
Warning against resetting the DBALL module before executing the programming sequence!
A reset will erase all the settings configured on the module using the web tool (see the above instructions). Therefore, if you reset before executing the programming sequence, you will HAVE to re-flash the module in order to re-configure the desired options.
enabled on DBALL using XpressVIP. This selection is done by:
Flash it
D2D (RFTD)
D2D (SmartStart)
must be selected.
proper
Page 20
DBALL Module Programming
Connect the SmartStart or XL202 unit into the D2D port of the prior to
1
2
3
4
5
connecting the power.
Connect the 10-pin, 12-pin and 14-pin harnesses to DBALL, then wait until the LED turns ON solid red.
Insert the key into the ignition barrel without turning it and wait for the LED to flash orange.
Insert the key into the ignition barrel and turn it to the ON position. The LED will continue to flash orange. It will then turn ON solid green OR orange for 3 seconds, before turning OFF.
Refer to the LED Diagnostics section on page 23 for troubleshooting if the LED does not turn ON solid green OR orange within 15 seconds.
When the green LED turns OFF, turn the key to the OFF position and remove it from the ignition barrel.
1
st
DBALL
D2D
10-pin
Key IN
3
Key IN
OFF
rd
2
ON
START
nd
Off
14-pin
12-pin
OFF
ON
START
&
Solid Solid
&
Off
Key OUT
&
D2D
&
10-pin
or
&
Solid
Flashes
OFF
IGN
START
Important! If connected to a SmartStart, please ensure that its Gray wire is connected to a ground source or the D2D
communication between the two (2) modules will NOT work.
© 2012 Directed. All rights reserved.
Page 21
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307
Page 21

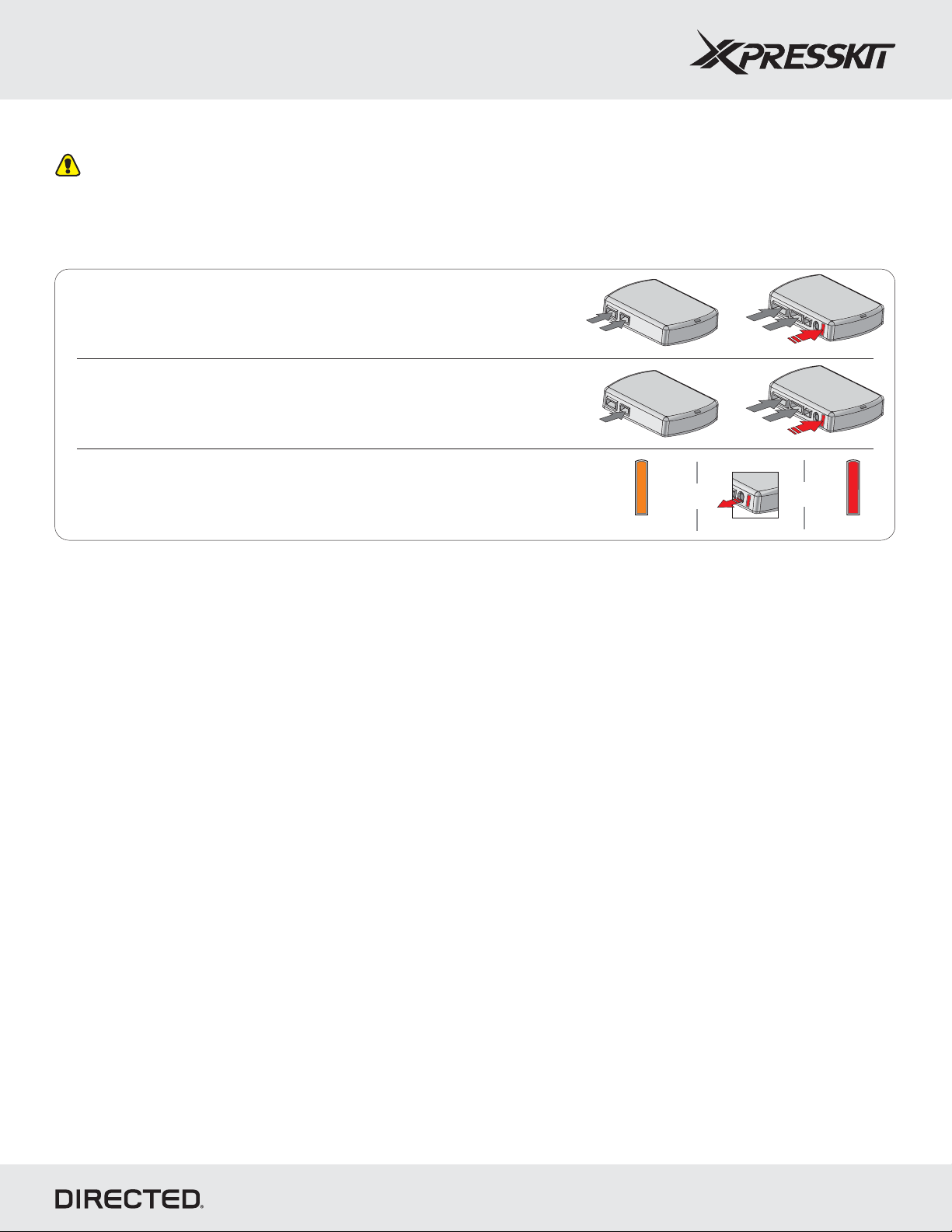

DBALL Module Reset
Refer to the LED Diagnostics section on page 23 for more information and for troubleshooting purposes.
Warning against resetting the DBALL module before executing the programming sequence!
A reset will erase all the settings configured on the module using the web tool (see the above instructions). Therefore, if you reset before executing the programming sequence, you will HAVE to re-flash the module in order to re-configure the desired options.
1a
1b
2
If using in D2D: Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press & hold the programming button, then connect the 4-pin D2D harness.
If using in W2W: Connect the 10-pin & 12-pin harnesses to the module. Press & hold the programming button, then connect the 14-pin harness to the module.
Wait until the LED turns ON orange then release the Programming button. The LED turns ON red.
D2D
th
5
st
1
D2D
st
1
Solid Orange
10-pin
10-pin
&
rd
3
nd
2
th
4
nd
2
Release
th
4
rd
3
14-pin
12-pin
14-pin
12-pin
&
Solid Red
© 2012 Directed. All rights reserved.
Page 22
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Feature and Option List

Rev.: 20120307
Page 22
It is recommended to configure all features and options listed below on the when the module is being flashed;
web
however, a manual configuration is possible using the information found on this page.
Features Operation Option
RF Output Type**
1
Activate this feature whenever an external RFTD module is used (i.e. Directed SmartStart
TM
, XL201 or XL202).
2Trunk
3Aux1
No RF Output*
RFTD Output
No Option
Trunk*
Right Sliding Door Left Sliding Door No Option Trunk
Passenger Sliding Door*
** Important
The RF Output Type function must be
RFTD Output
set to to enable the Remote Start Ready (RSR) mode.
It will automatically be configured on the web when flashed with the selected D2D_TYPE
D2D (RFTD) D2D (SmartStart).or
Any module reset will reset to default option.
Driver Sliding Door No Option
4Aux2
Trunk Passenger Sliding Door
Driver Sliding Door*
* Default option
Note: Features 2, 3 and 4 are programmable triggers.

Feature Programming

To enter feature programming routine
-
Turn the ignition ON, then OFF.
-
Within 5 seconds
Programming button.
-
The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (i.e. 1x green followed by 1x red indicates feature 1 is set to option 1). The flashing sequence will repeat until a new command is entered.
, press and HOLD the programming button until the LED turns ON orange (after 3 seconds). Release the
Programming
Button
Changing feature options
-
Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
-
The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature.
Accessing another feature
-
Press and release the programming button a number of times to advance from the current feature to the next desired .
-
The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly to indicate the current option of the current feature.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Once a feature is programmed
-
Other features can be programmed.
-
The feature programming can be exited.
Exiting feature programming
-
No activity for 30 seconds; after 30 seconds, the LED will turn ON for 2 seconds to confirm the end of the programming sequence. OR
-
Press and HOLD the programming button for 3 seconds. After 3 seconds, the LED will turn ON for 2 seconds to confirm end of the programming sequence
.
The flashing sequence will repeat until a new command is entered.
The flashing sequence will repeat until a new command is entered.
feature
orange
orange the
© 2012 Directed. All rights reserved.
Page 23
Platform: DBALL
LED Status
Description Troubleshooting
Module Programming
Off Module has no power. Check the power connections.
Solid red The bus type cannot be detected.
Make s ure the c onnections to the data bus are correct and insert the k ey in the ignition switch.
Flashes orange
The vehicle type c annot be detected.
Insert the key in the ignition switch and turn to the ON position. You may need to wait up to 10 seconds.
Waiting for keyless.
Remove the key from the ignition switch and press a keyles s button.
The Programming button was held while powering up.
A reset occured. Release the button. The LED should turn solid red.
Solid green for 3 seconds
Module was succ essfully programmed or is already programmed.
Normal operation.
Solid orange for 3 seconds
Types 1-5: Module was successfully programmed without diagnostics .
Normal operation.
Active Ground While Running
Off Ground While Running (status) off.
Make s ure the module was programmed, i.e. the D2D harness is properly connec ted or the Ground While Running (status) wire is connected.
Flashes green Ground While Running (status ) on. Normal operation.
Inactive Ground While Running
Flashes green once (1)
Lock function has been executed.
If it does not flash, the bypass module did not receive the signal. Verify the connections between the bypass and the remote starter module.
Flashes green twice (2)
Unlock function has been executed.
If it does not flash, the bypass module did not receive the signal. Verify the connections between the bypass and the remote starter module.
Flashes green three (3) times
Trunk release function has been executed.
If it does not flash, the bypass module did not receive the signal. Verify the connections between the bypass and the remote starter module.
Flashes green four (4) times
AUX1 or AUX2 function has been executed.
If it does not flash, the bypass module did not receive the signal. Verify the connections between the bypass and the remote starter module.
Flashes green
Firmware: CHRYSLER Remote Start Ready Installation

LED Diagnostics and Troubleshooting

Off
Solid
Rev.: 20120307
Page 23
Flashes
Flashes
Solid x3 secs
Solid x3 secs
Off
Flashes
Flashes 1x
Flashes 2x
Flashes 3x
Flashes 4x
© 2012 Directed. All rights reserved.
Page 24
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

Optional RF Kits

Note: RF kits are sold SEPARATELY. Request an order from Directed using the part numbers listed below.
9211VL
Viper 1-way Responder ONE - Plug & Play RF kit with XL202. UPC:
093207 08488 1
Also available as:
§
Python: 9211PL
§
Clifford: 9211XL
9153VL
Viper 1-way - Plug & Play RF kit with XL202. UPC:
093207 05660 4
Also available as:
§
Python: 9153PL
§
Clifford: 9153XL
Rev.: 20120307
Page 24
9251VL
9752VL
Viper 2-way Responder LE - Plug & Play RF kit with XL202. UPC:
093207 08489 8
Also available as:
§
Python: 9251PL
§
Clifford: 9251XL
Viper 2-way LC3 - Plug & Play RF kit with XL202. UPC:
093207 08490 4
Also available as:
§
Python: 9752PL
§
Clifford: 9752XL
© 2012 Directed. All rights reserved.
Page 25
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307
Optional RF Kits
Note: RF kits are sold SEPARATELY. Request an order from Directed using the part numbers listed below.
AF-RFK636 AF-RFK5225
Page 25
Astrostart 2-way LED Receiver kit with up to 1,500’ of range.
UPC: 093207 08752 3
Astrostart 2-way LCD
Receiver kit offering
TM
XRT technology with up
to 5,000’ of range.
UPC:
093207 08753 0
AS-RFK1700 AS-RFK2300
Autostart 1-way Receiver kit with up to 3,000’ of range.
UPC: 093207 08738 7
Autostart 2-way LED
Receiver kit offering
TM
HDR technology with up
to 3,000’ of range.
093207 08739 4
UPC:
© 2012 Directed. All rights reserved.
Page 26
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation

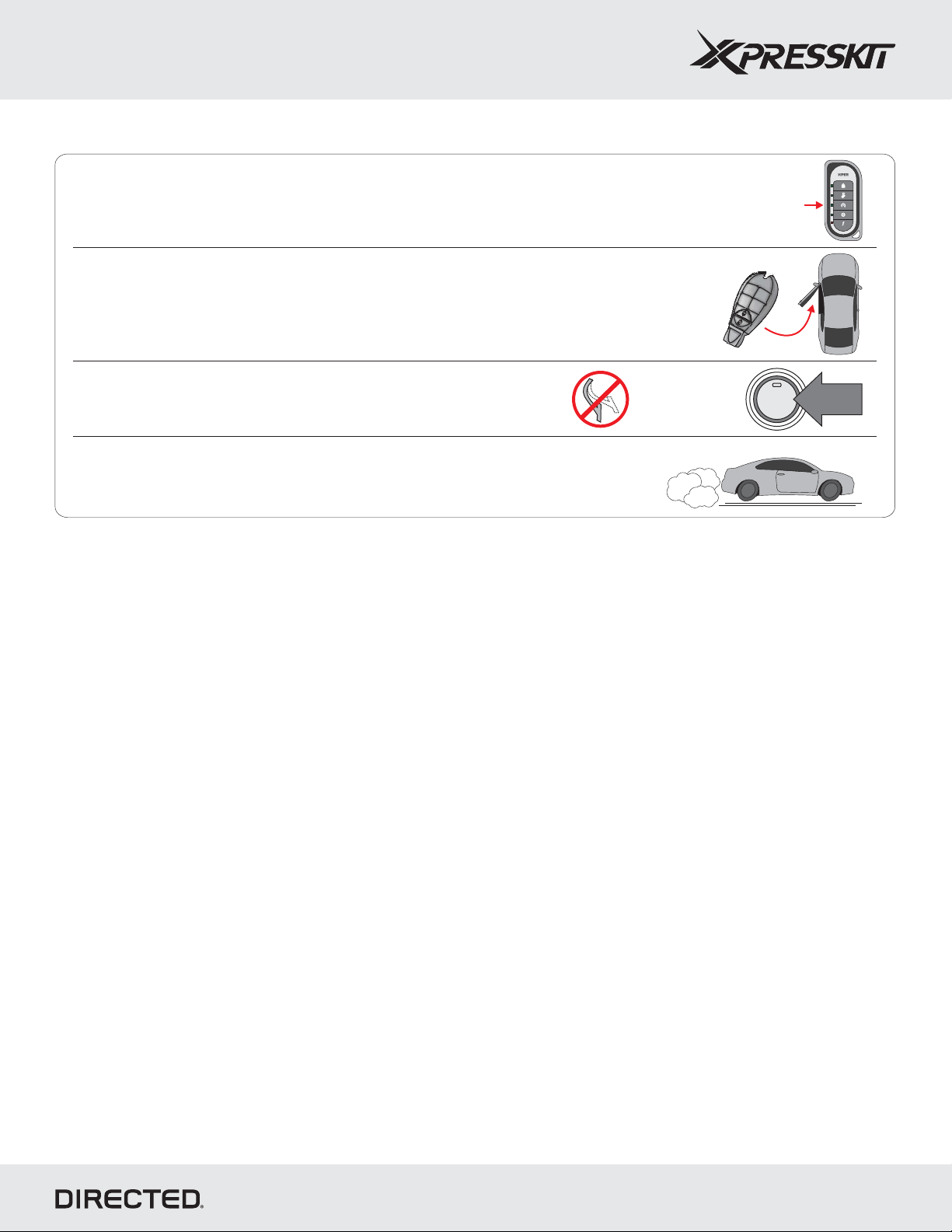

Using your DBALL-CHRYSLER RSR
Rev.: 20120307
Page 26
1
2
3
4
Press the button to remote start the vehicle.
* Your remote starter model may differ from the one shown in the illustration.
Enter the vehicle, while making sure the key is inside with you.
Important: Do NOT press the brake pedal.
Press the Push-to-Start (PTS) button twice to turn the ignition ON.
You can now put the car in gear and drive off.
Enter vehicle with the Smart Key in hand
Do NOT press the brake pedal
Ready to drive off
Press button to remote start*
PANIC
ENGINE
START
2X
STOP
PUSH
© 2012 Directed. All rights reserved.
Page 27
Platform: DBALL Firmware: CHRYSLER Remote Start Ready Installation
Rev.: 20120307
Page 27
Limited One Year Consumer Warranty
For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer; and the Part is returned to DIRECTED, postage prepaid, along with a clear, legible copy of the receipt or bill of sale bearing the following information: consumer’s name, address, telephone number, the authorized licensed dealer’s name and complete product and Part description.
This warranty is nontransferable and is automatically void if the Part has been modified or used in a manner contrary to its intended purpose or the Part has been damaged by accident, unreasonable use, neglect, improper service, installation or other causes not arising outof defect inmaterials or construction.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, EXCEPTAS STATEDABOVE, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NONINFRINGEMENT OF INTELLECTUALPROPERTY,ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING DEALERS OR INSTALLERS. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIASTATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE OF THE PART. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITYAND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFERA LIMITED WARRANTY TO REPLACE OR REPAIR AT DIRECTED’S OPTIONTHE PARTAS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with thisPart.
920-0007 2009-09
This Interface kit / Data Bus Interface part has been tested on the listed vehicles. Other vehicles will be added to the select vehicle list upon completion of compatibility testing. Visit website for latest vehicle application guide. DISCLAIMER: Under no circumstances shall the manufacturer or the distributors of the bypass kit / data bus interface part(s) be held liable for any consequential damages sustained in connection with the part(s) installation. The manufacturer and it’s distributors will not, nor will they authorize any representative or any other individual to assume obligation or liability in relation to the interface kit / data bus interface part(s) other than its replacement. N.B.: Under no circumstances shall the manufacturer and distributors of this product be liable for consequential damages sustained in connection with this product and neither assumes nor authorizes any representative or other personto assume forit any obligationor liability otherthan the replacementof this productonly.
Protected by U.S. Patents: 5,719,551; 6,011,460 B1 *; 6,243,004 B1; 6,249,216 B1; 6,275,147 B1; 6,297,731 B1; 6,346,876 B1; 6,392,534 B1; 6,529,124 B2; 6,696,927 B2; 6,756,885 B1; 6,756,886 B2; 6,771,167 B1; 6,812,829 B1; 6,924,750 B1; 7,010,402 B1; 7,015,830 B1; 7,031,826 B1; 7,046,126 B1; 7,061,137 B1; 7,068,153 B1; 7,205,679 B1; Cdn. Patent: 2,320,248; 2,414,991; 2,415,011; 2,415,023; 2,415,027; 2,415,038; 2,415,041; 2,420,947; 2,426,670; 2,454,089; European Patent: 1,053,128; Pat. Pending: 2,291,306.Made in Canada.
Additional information can be found at:
www.xpresskit.com www.directechs.com
© 2012 Directed. All rights reserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
