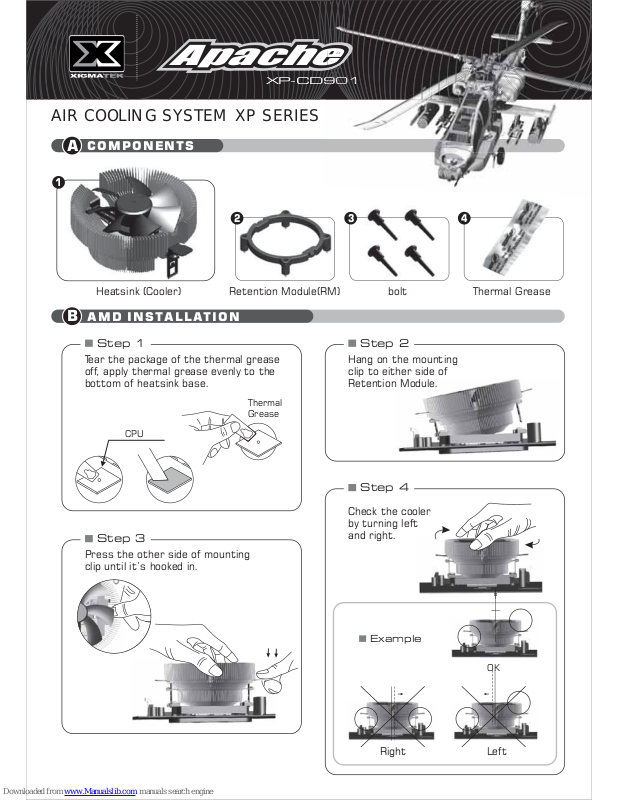

Xigmatek XP-CD901 Quick Manual
AMD INSTALLATION
B
COMPONENTS
A
Step 3
Press the other side of mounting
clip until it’s hooked in.
Step 4
Example
Check the cooler
by turning left
and right.
Step 2
Hang on the mounting
clip to either side of
Retention Module.
Step 1
Tear the package of the thermal grease
off, apply thermal grease evenly to the
bottom of heatsink base.
OK
1
2 3 4
Heatsink (Cooler) Retention Module(RM) bolt Thermal Grease
CPU
Thermal
Grease
Right Left
XP-CD901
ApacheApacheApache
AIR COOLING SYSTEM XP SERIES
INTEL INSTALLATION
C
PRECAUTIONS
D
Example
Step 1
Aim the LGA775 RM to
the 4 holes of MB. Plug
and press the 4 bolts
to the holes of RM.
Step 2
Tear the package of the thermal grease
off, apply thermal grease evenly to the
bottom of heatsink base.
Step 3
Hang on the mounting
clip to either side of
Retention Module.
Step 4
Press and hold the
top of cooler to
match the CPU
well.
Step 5
Press the other
side of mounting
clip until it’s
hooked in.
Step 6
Check the cooler by
turning left and right.
CPU
OK
Right Left
1.Keep and store the product away from the reach of children.
2.Check the component list and condition of the product before installation. If there is any
problem, contact the shop where you purchased to get a replacement or refund.
3.Xigmatek Co., Ltd. is not responsible for any damages due to external causes, including but not
limited to, improper use, problems with electrical power, accident, neglect, alteration, repair,
improper installation, and improper testing.
4.CPU and motherboard are subject to damage if the product is incorrectly installed
2008 © XIGMATEK Co., Ltd. All rights reserved. All trademarks are the property of their respective owners.
http://www.xigmatek.com
E-mail: support@xigmatek.com
•
