Wolf ICBSRT304, ICBSRT364G, ICBSRT364C, ICBSRT486C, ICBSRT486G Installation Instructions Manual
...

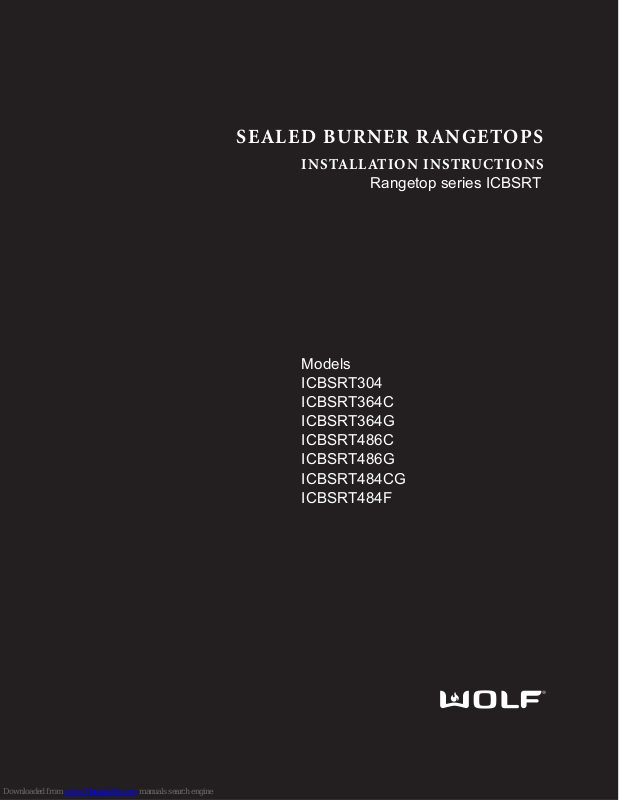

SEALED BURNER RANGETOPS
INSTALLATION INSTRUCTIONS
Rangetop series ICBSRT
Models
ICBSRT304
ICBSRT364C
ICBSRT364G
ICBSRT486C
ICBSRT486G
ICBSRT484CG
ICBSRT484F
E N GLISH 4
33
CONTACT
INFORMATION
Website:
wolfappliance.com
As you follow these instruc tions, you will
noticeWARNING and CAUTION symbols. This
blocked information is impor tant for the safe
and efficient installation of Wolf equipment.
There are two types of potential hazards that
may occur during installation.
WOLF®is a registered trademark of Wolf Appliance, Inc.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
Another footnote we would like to identify is
IMPORTANT NOTE: This highlights information that is especially relevant to a problemfree installation.
WOLF SEALED BURNER RANGETOP
INSTALLATION REQUIREMENTS
WHAT TO DO IF YOU SMELL GAS:
This appliance shall be installed
in accordance with the regulations in force and only used in a
well ventilated space. Read the
instructions before installing or
using this appliance.
IMPORTANT NOTE:
Installation and service must be
performed by an authorized person.
The appliance must not be modified.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is
well ventilated; keep natural ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood)
Prolonged intensive use of the appliance may for additional ventilation,
for example opening of a window,
or more effective ventilation, for
example increasing the level of
mechanical ventilation where
present.
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your
building.
Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
If you cannot reach your gas
supplier, call the fire department.
STATUTORY REQUIREMENTS
This appliance shall be installed
in accordance with the manufacturer’s
installation instructions, local gas
fitting regulations, municipal building
codes, electrical wiring regulations,
and AS/NZS 5601 the Australian
Standard for gas installations. Refer
also to AS/NZS 5601 for gas pipe
sizing tables.
Not suitable for use in marine craft,
caravan or mobile home. Unless each
burner is fitted with a flame safeguard.
A ventilation range hood must be installed
for use with the Wolf sealed burner rangetops.
5
WOLF SEALED BURNER RANGETOP
RATING PLATE
INFORMATION
Model Number
Serial Number
INSTALLATION REQUIREMENTS
IMPORTANT NOTE: This installation must
be completed by a qualified installer,
service agency or gas supplier.
IMPORTANT NOTE:
Save these Installation
Instructions for the local inspector’s use.
Please read the entire Installation Instructions prior to installation.
Installer:
please retain these instructions
for local inspector’s reference, then leave
them with the homeowner.
Homeowner:
please read and keep these
instructions for future reference and be sure
to read the entire Use & Care Information
prior to use.
IMPORTANT NOTE:
This appliance must be
installed in accordance with local codes. The
correct voltage, frequency and amperage must
be supplied to the appliance from a dedicated,
grounded circuit which is protected by a
properly sized circuit breaker or time delay
fuse. The proper voltage, frequency, and
amperage ratings are listed on the product
rating plate.
BEFORE YOU START
Proper installation is your responsibility.
Have a qualified technician install this
sealed rangetop. You must also assure that
electrical installation is adequate and in
compliance with all local codes and ordinances.
Prior to installation, ensure that the local
distribution conditions (nature of the gas
and gas pressure) and the adjustment of
the appliance are compatible.
Proper gas supply connection must be
available; refer to Gas Supply Requirements
on page 12. Electrical ground is required;
see Electrical Requirements on page 15.
The adjustment conditions for this appliance are stated on the label (or rating
plate). The data plate can be found on the
underside of the sealed rangetop.
Record the model and serial numbers before
installing the sealed rangetop. Both numbers
are listed on the rating plate, located on the
underside of the sealed rangetop. Refer to the
illustration below.
Location of rating plate
under control panel
Rating plate location
6
INSTALLATION INSTRUCTIONS
BEFORE YOU START
Check the location where the rangetop will
be installed. The location should be away
from strong draft areas, such as windows,
doors and strong heating vents or fans. Do
not obstruct the flow of air. The area in
which you are installing this appliance must
have an adequate supply of fresh air to
ensure proper combustion and ventilation.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in accordance with current installation regulations.
Particular attention shall be given to the
relevant requirements regarding ventilation.
All openings in the wall where the rangetop
is to be installed must be sealed.
INSTALLATION SPECIFICATIONS
Wolf sealed burner rangetops come in
762 mm, 914 mm and 1219 mm widths. Illustrations on pages 9–11 provide the overall
dimensions and installation specifications for
each width of sealed burner rangetop.
Each rangetop is designed to fit between
cabinets set at the distance specified by the
unit. For example, a 914 mm rangetop will fit a
914 mm opening.
IMPORTANT NOTE:
Cabinet opening dimensions shown in the Installation Specifications
illustrations must be used. These dimensions
provide for required clearances.
IMPORTANT NOTE:
Locate the electrical
supply within dimensions shown in the
Installation Specifications illustrations.
Refer to the Installation Specifications illustration for your model on pages 9–11 for the
exact rough opening dimensions and location
of the gas and electrical supply.
7
