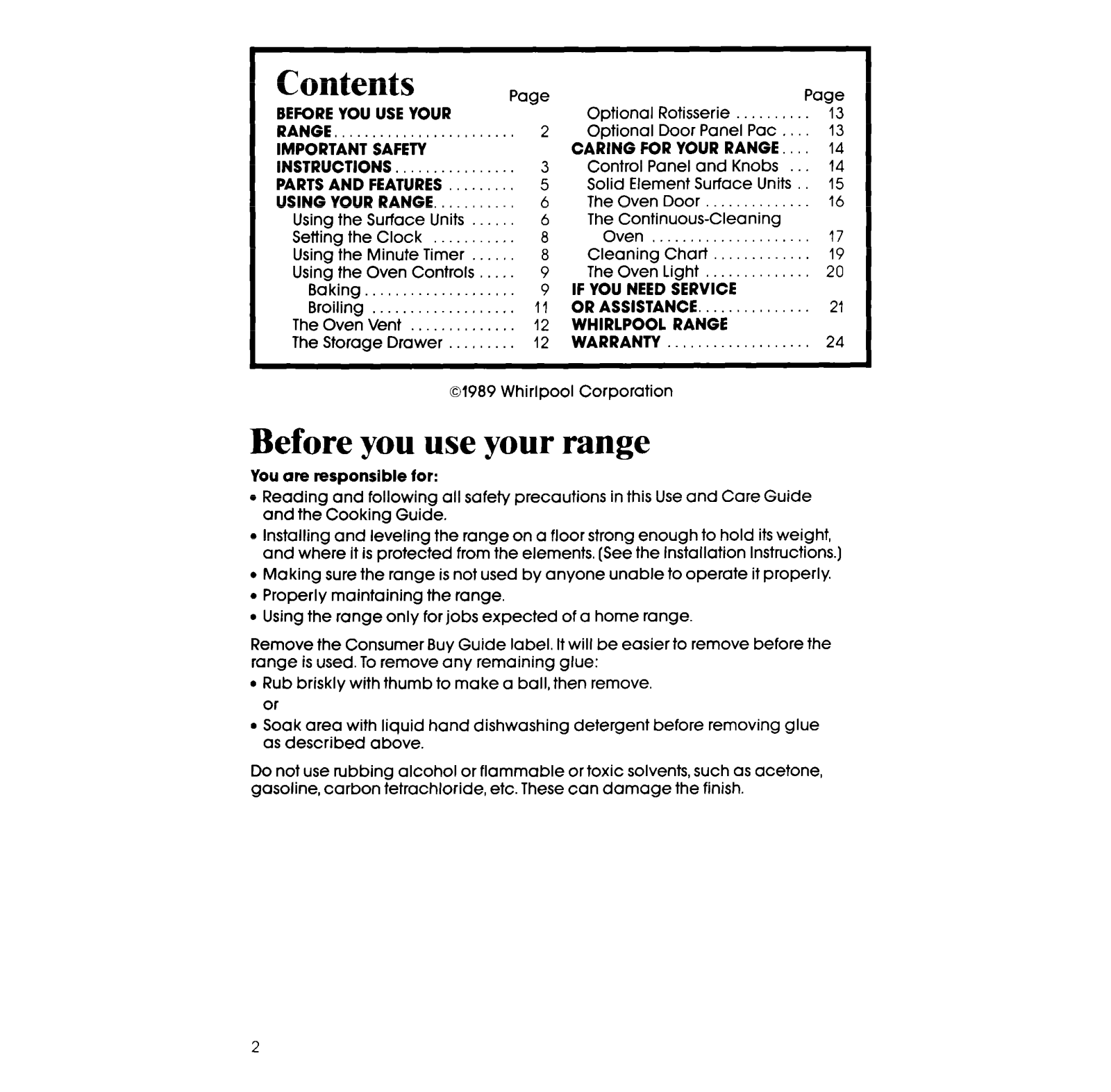

Contents
BEFORE YOU USE YOUR
RANGE. .
IMPORTANT SAFETY
INSTRUCTIONS .
PARTS AND FEATURES
USING YOUR RANGE..
Using the Surface Units
Setting the Clock
Using the Minute Timer
Using the Oven Controls
Baking. . .
Broiling . . ,

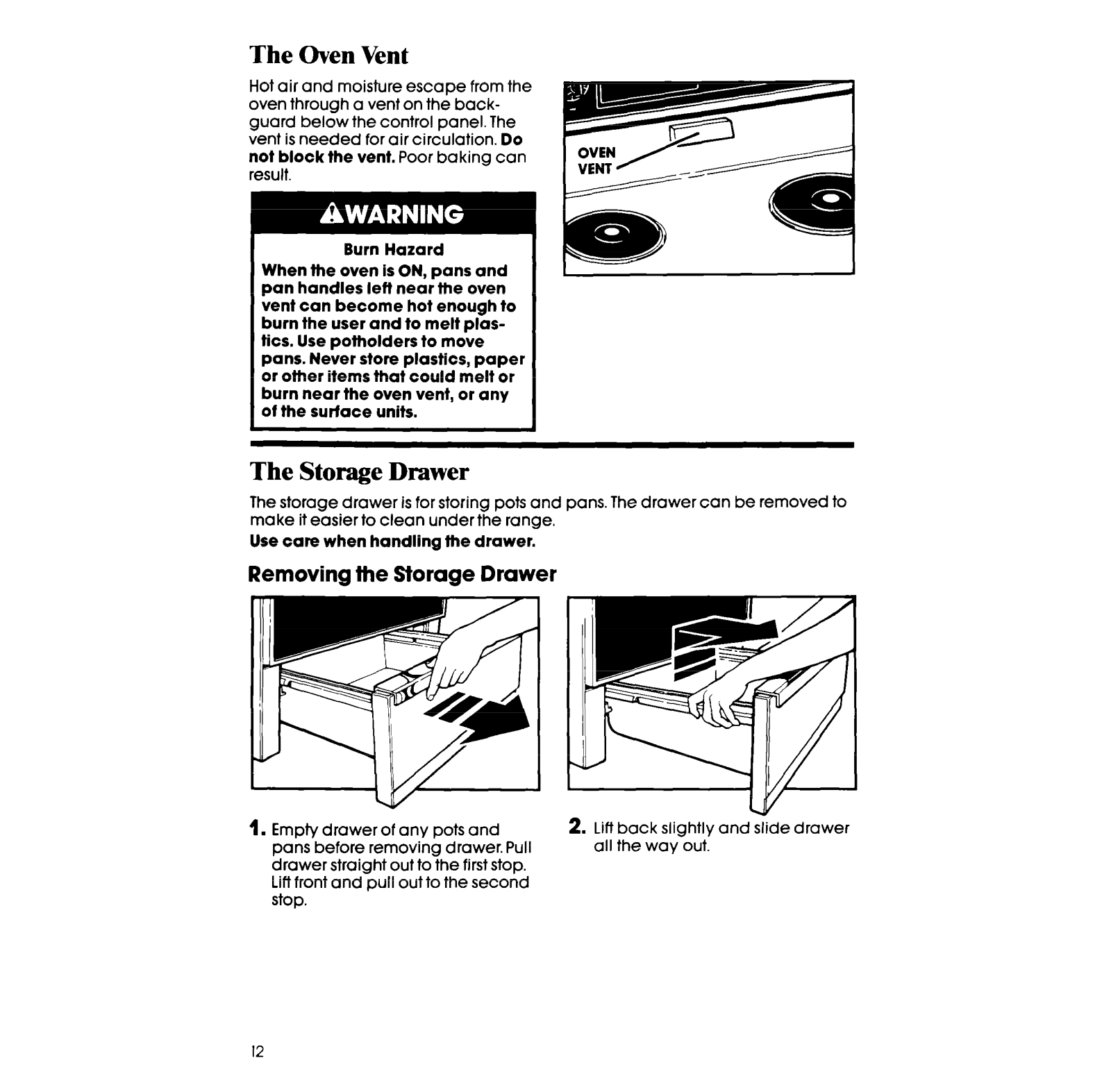

The Oven Vent . .
The Storage Drawer ,
Page
.
.
. 8
. 9
. 9
. . 11
. 12
. 12
01989 Whirlpool Corporation

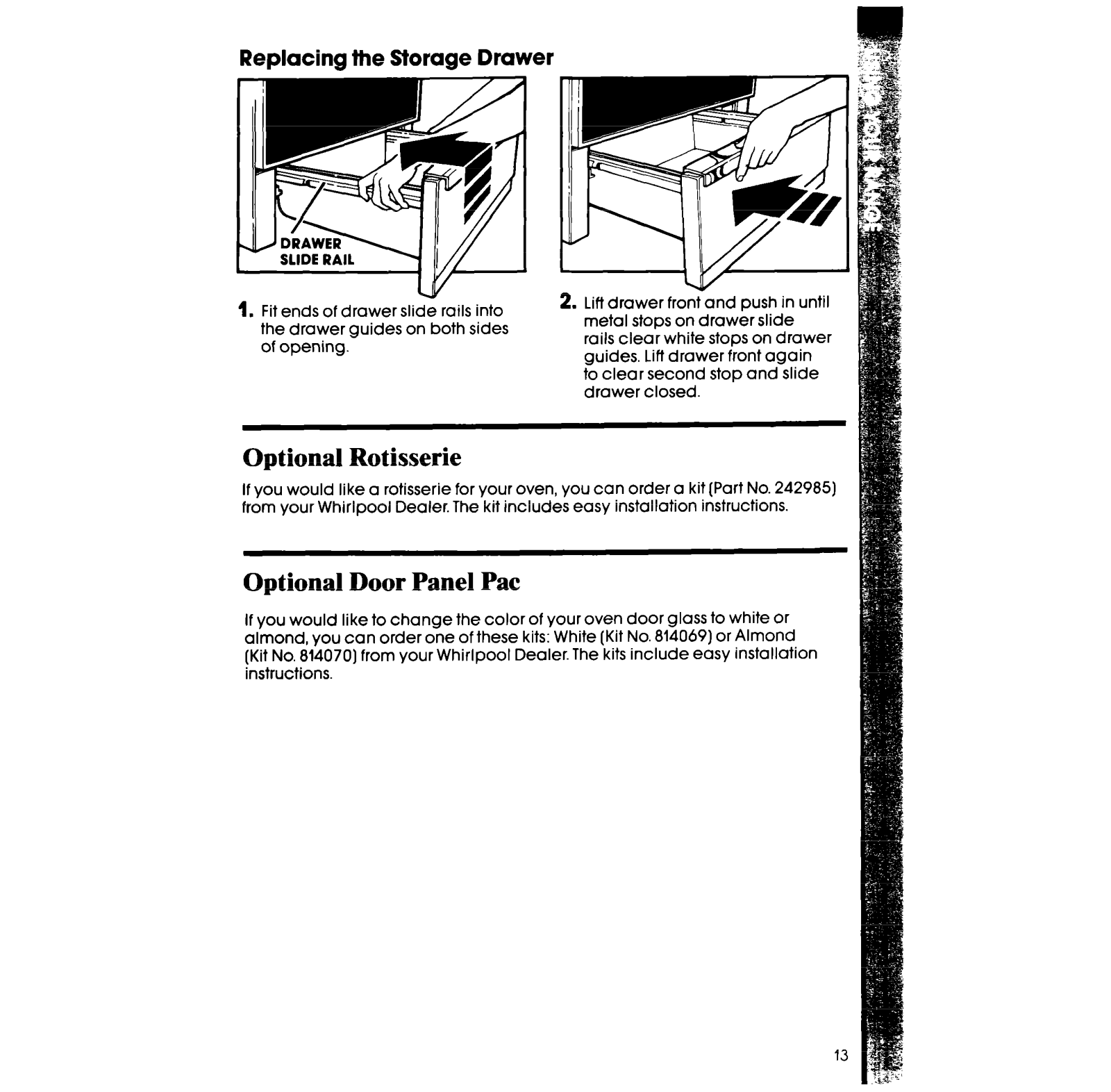

Optional Rotisserie . , 13
Optional Door Panel Pat . 13
2
CARING FOR YOUR RANGE. 14
Control Panel and Knobs 14
3
Solid Element Surface Units 15
5
The Oven Door 16
6
The Continuous-Cleaning
6
8
Oven . 17
Cleaning Chart . 19
The Oven Light 20

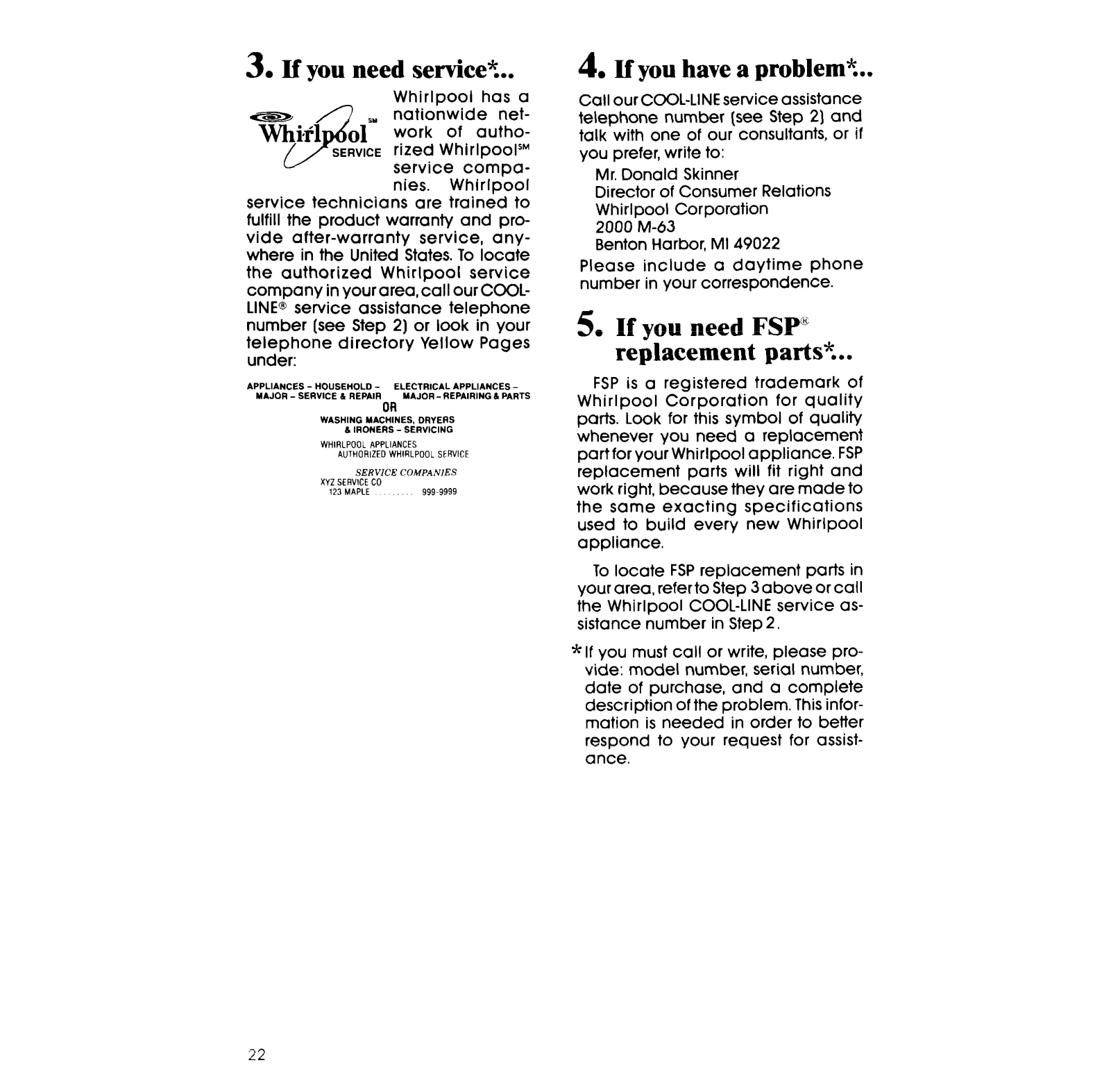

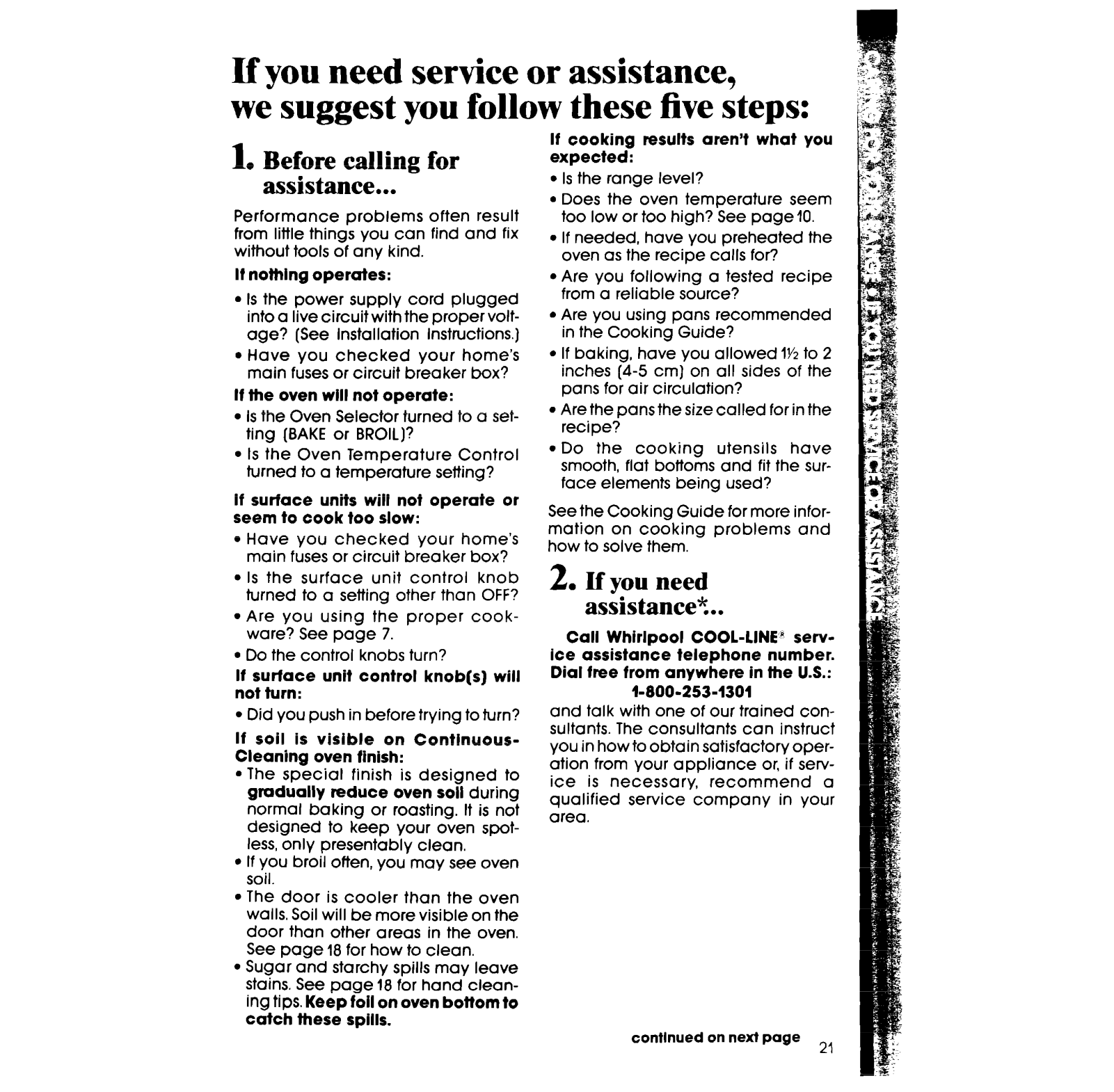

IF YOU NEED SERVICE
OR ASSISTANCE. 21
WHIRLPOOL RANGE
WARRANTY . 24
Page
Before you use your range
You are responsible for:
l
Reading and following all safety precautions in this Use and Care Guide
and the Cooking Guide.
l
Installing and leveling the range on a floor strong enough to hold its weight,
and where it is protected from the elements, (See the Installation Instructions.)
l
Making sure the range is not used by anyone unable to operate it properly.
l
Properly maintaining the range.
l
Using the range only for jobs expected of a home range.
Remove the Consumer Buy Guide label. It will be easier to remove before the
range is used. To remove any remaining glue:
l
Rub briskly with thumb to make a ball, then remove.
or
. Soak area with liquid hand dishwashing detergent before removing glue
as described above.
Do not use rubbing alcohol or flammable or toxic solvents, such as acetone,
gasoline, carbon fetrachloride, etc. These can damage the finish.
2

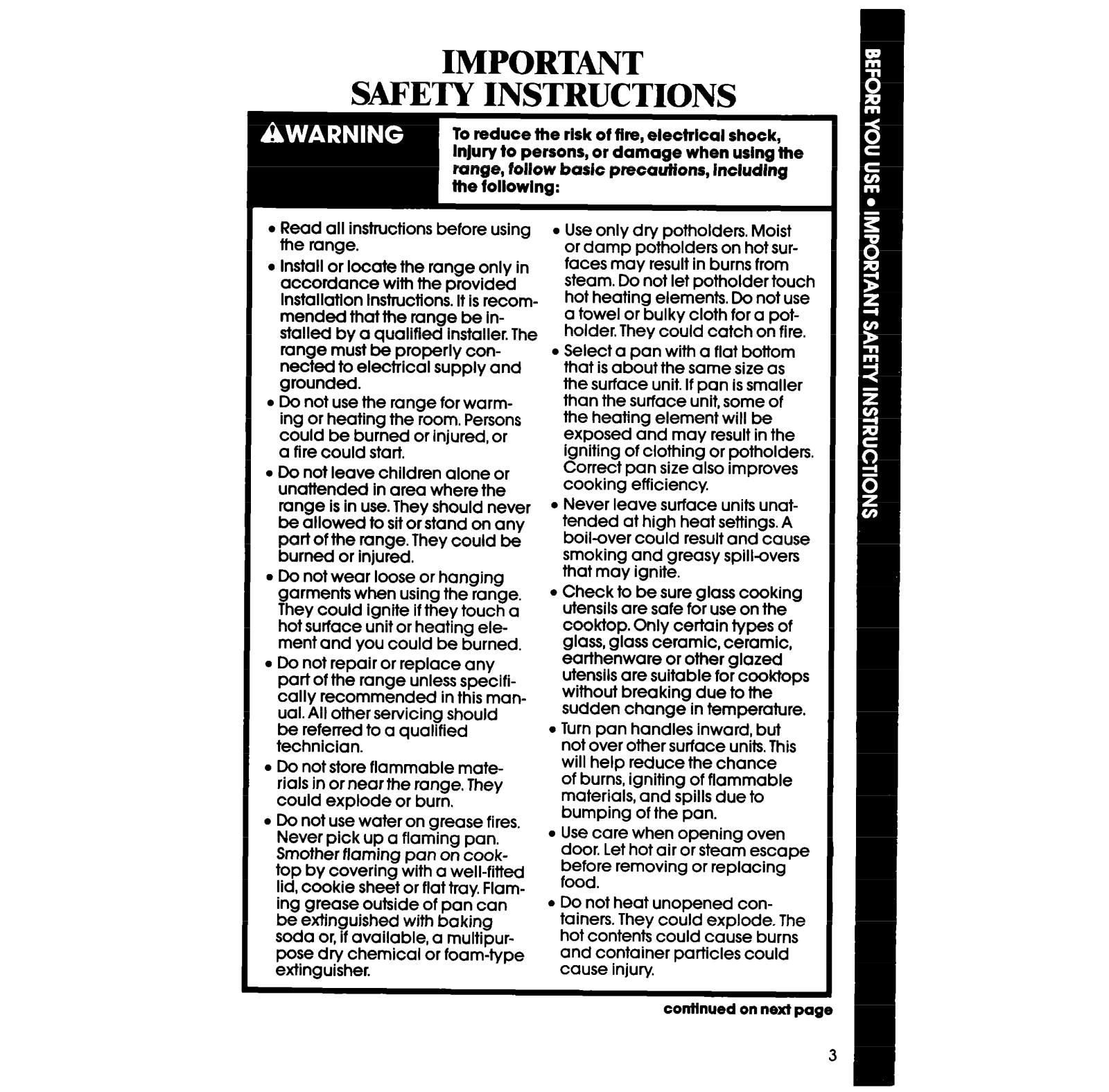

IMPORTANT
SAFETY INSTRUCTIONS
l Read all instructions before using
the range.
l Install or locate the range only in
accordance with the provided
lnstallatlon Instructions. It is recommended that the range be installed by a qualified installer. The
range must be properly connetted to electrical supply and
grounded.
0 Do not use the range for warm-
ing or heating the room. Persons
could be burned or injured, or
a fire could start.
l Do not leave children alone or
unattended in area where the
range is in use. They should never
be allowed to sit or stand on any
part of the range. They could be
burned or injured.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface unit or heating eiement and you could be burned.
0 Do not repair or replace any
part of the range unless specifi-
tally recommended in this man-
ual. All other servicing should
be referred to a qualified
technician.
l Do not store flammable mate-
rials in or near the range. They
could explode or burn,
0 Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on cook-
top by covering with a well-fitted
lid, cookie sheet or Rat tray. Flaming grease outside of pan can
be extinguished with baking
soda or, if available, a multipurpose dry chemical or foam-type
extinguisher.
l Use only dry potholders. Moist
or damp potholders on hot surfaces may result in burns from
steam. Do not let potholder touch
hot heating elements. Do not use
a towel or bulky cloth for a potholder. They could catch on fire.
l Select a pan with a flat bottom
that is about the same size as
the surface unit. If pan is smaller
than the surface unit, some of
the heating element will be
exposed and may result in the
igniting of clothing or potholders.
Correct pan size also improves
cooking efficiency,
l Never leave surface units unat-
tended at high heat settings. A
boil-over could result and cause
smoking and greasy spill-avers
that may ignite.
l Check to be sure glass cooking
utensils are safe for use on the
cooktop. Only certain types of
glass, glass ceramic, ceramic,
earthenware or other glazed
utensils are suitable for cooktops
without breaking due to the
sudden change in temperature.
l Turn pan handles inward, but
not over other surface units. This
will help reduce the chance
of burns, igniting of flammable
materials, and spills due to
bumping of the pan.
l Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
6 Do not heat unopened con-
tainers. They could explode. The
hot contents could cause burns
and container particles could
cause injury.
continued on next page
3

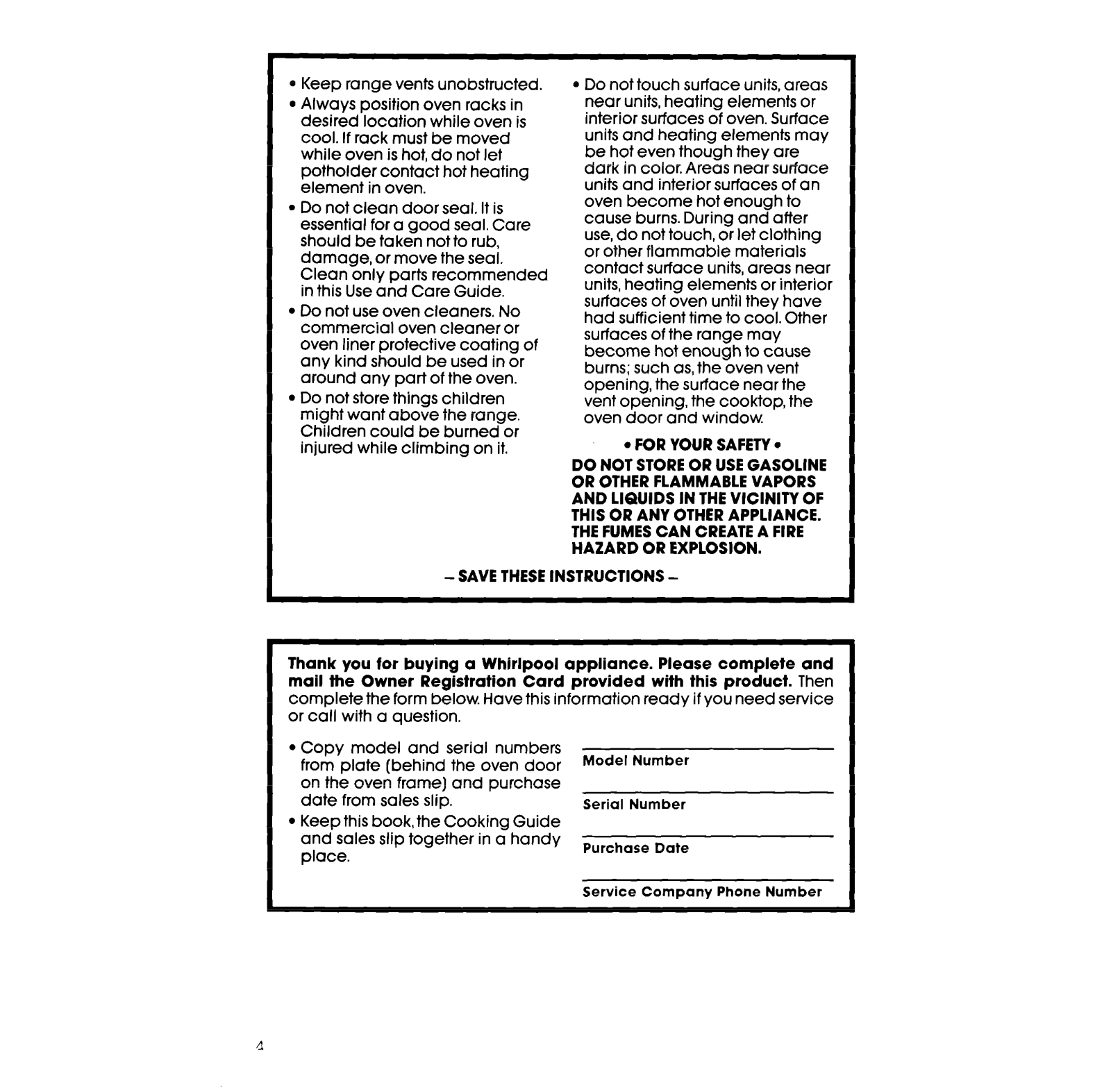

l
Keep range vents unobstructed.
l
Always position oven racks in
desired location while oven is
cool. If rack must be moved
while oven is hot, do not let
potholder contact hot heating
element in oven.
l
Do not clean door seal. It is
essential for a good seal. Care
should be taken not to rub,
damage, or move the seal.
Clean only parts recommended
in this Use and Care Guide.
l
Do not use oven cleaners. No
commercial oven cleaner or
oven liner protective coating of
any kind should be used in or
around any part of the oven.
l
Do not store things children
might want above the range.
Children could be burned or
injured while climbing on it.
- SAVE THESE INSTRUCTIONS -
l
Do not touch surface units, areas
near units, heating elements or
interior surfaces of oven. Surface
units and heating elements may
be hot even though they are
dark in color. Areas near surface
units and interior surfaces of an
oven become hot enough to
cause burns. During and after
use, do not touch, or let clothing
or other flammable materials
contact surface units, areas near
units, heating elements or interior
surfaces of oven until they have
had sufficient time to cool. Other
surfaces of the range may
become hot enough to cause
burns; such as, the oven vent
opening, the surface near the
vent opening, the cooktop, the
oven door and window.
l
FOR YOUR SAFETY
l
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
Thank you for buying a Whtrlpool appliance. Please complete and
mail the Owner Registration Card provided with this product. Then
complete the form below. Have this information ready if you need service
or call with a question.
l
Copy model and serial numbers
from plate (behind the oven door Modef Number
on the oven frame) and purchase
date from sales slip.
l
Keep this book, the Cooking Guide
and sales slip together in a handy
place.
Serial Number
Purchase Date
Service Company Phone Number

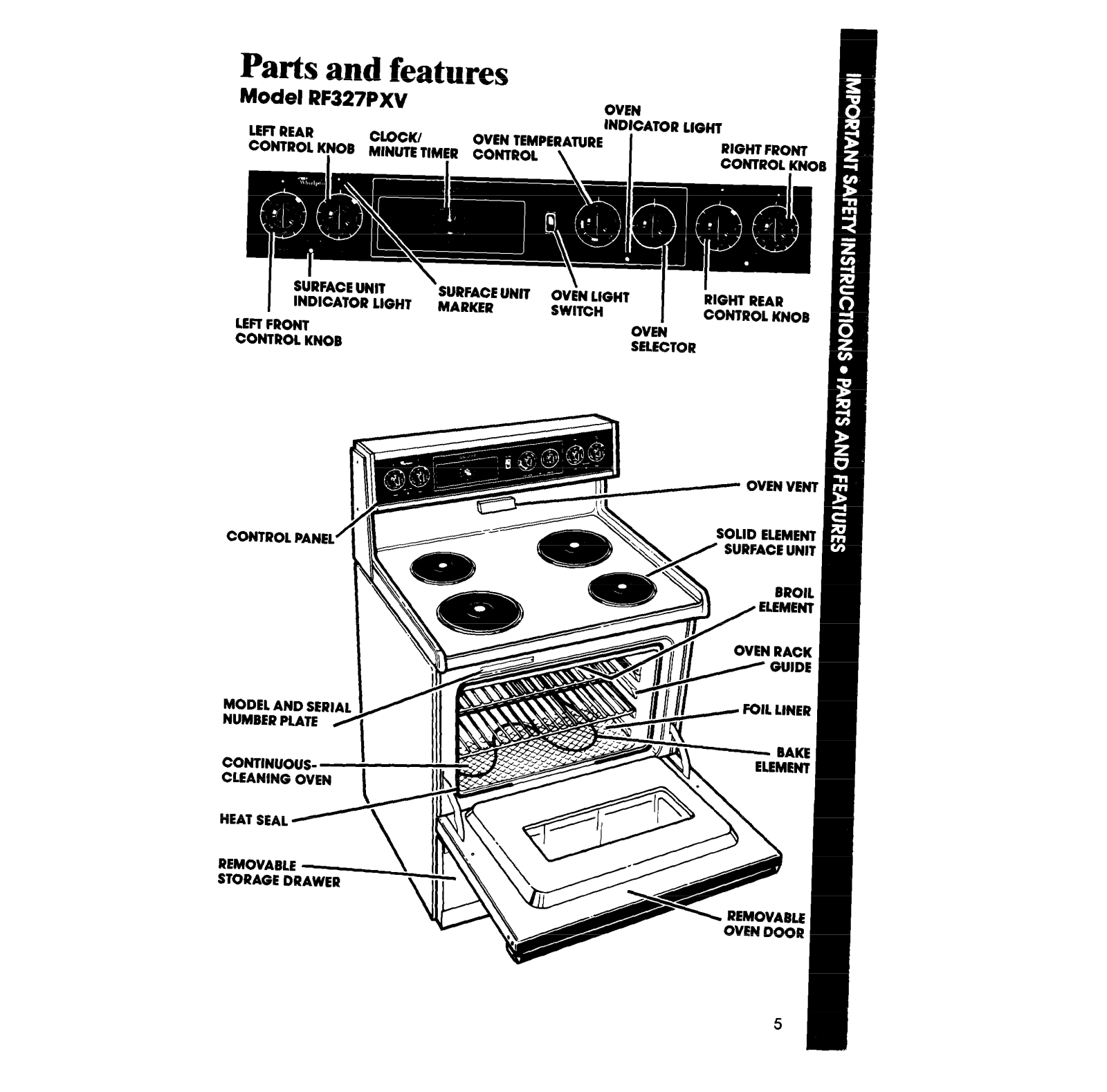

Parts and
features
Model RF327PXV
LEFl REAR
CONTROL
Kp- -
CLOCK/
06 MlNuTiTlMER 6i&~
----- --
dVLY
OVEN
TEMPERATURE 1
INDICATOR LIGHT
\
F
. ..YICiATOR
I
LEFT FRONT
CONTROL KNOB
ODE1 AND SERIAL
LIGHT
- --- ---
-.w,
SELECTOR
Using your range

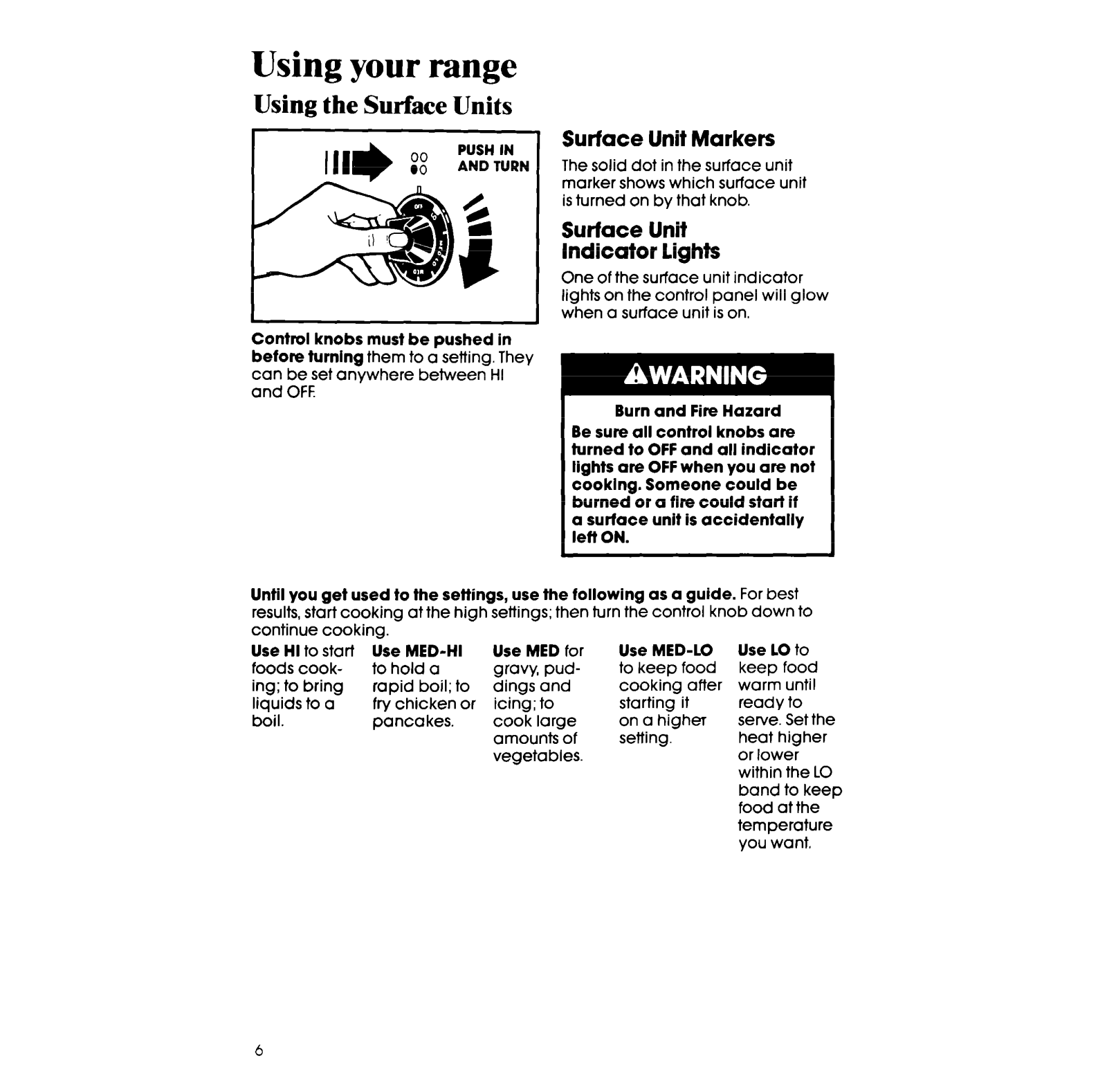

Using the Surface Units
PUSH IN
AND TURN
Surface Unit Markers
The solid dot in the surface unit
marker shows which surface unit
is turned on by that knob.
Surface Unit
Indicator lights
One of the surface unit indicator
lights on the control panel will glow
when a surface unit is on.
Control knobs must be pushed in
before turning them to a setting. They
can be set anywhere between HI
and OFF.
Burn and Fire Hazard
Be sure ail control knobs are
turned to OFF and ail indicator
lights are OFF when you are not
cooking. Someone could be
burned or a fire could start if
a surface unit is accidentally
left ON.
Until you get used to the settings, use the following as a guide. For best
results, start cooking at the high settings; then turn the control knob down to
continue cooking.
Use Hi to start
foods cook- to hold a gravy, puding; to bring rapid boil; to
liquids to a
boil. pancakes.
Use MED-Hi Use MED for
dings and
fry chicken or icing; to
cook large
amounts of
vegetables.
Use MED-LO
to keep food
cooking after warm until
starting it
on a higher
setting.
Use LO to
keep food
ready to
serve. Set the
heat higher
or lower
within the LO
band to keep
food at the
temperature
you want,
6
Solid elements stay hot for a long time. Do not use the Hi setting for long
periods of time or leave pans on hot elements when cooklng is done.
Burned food and damage to the cookware could result.
I

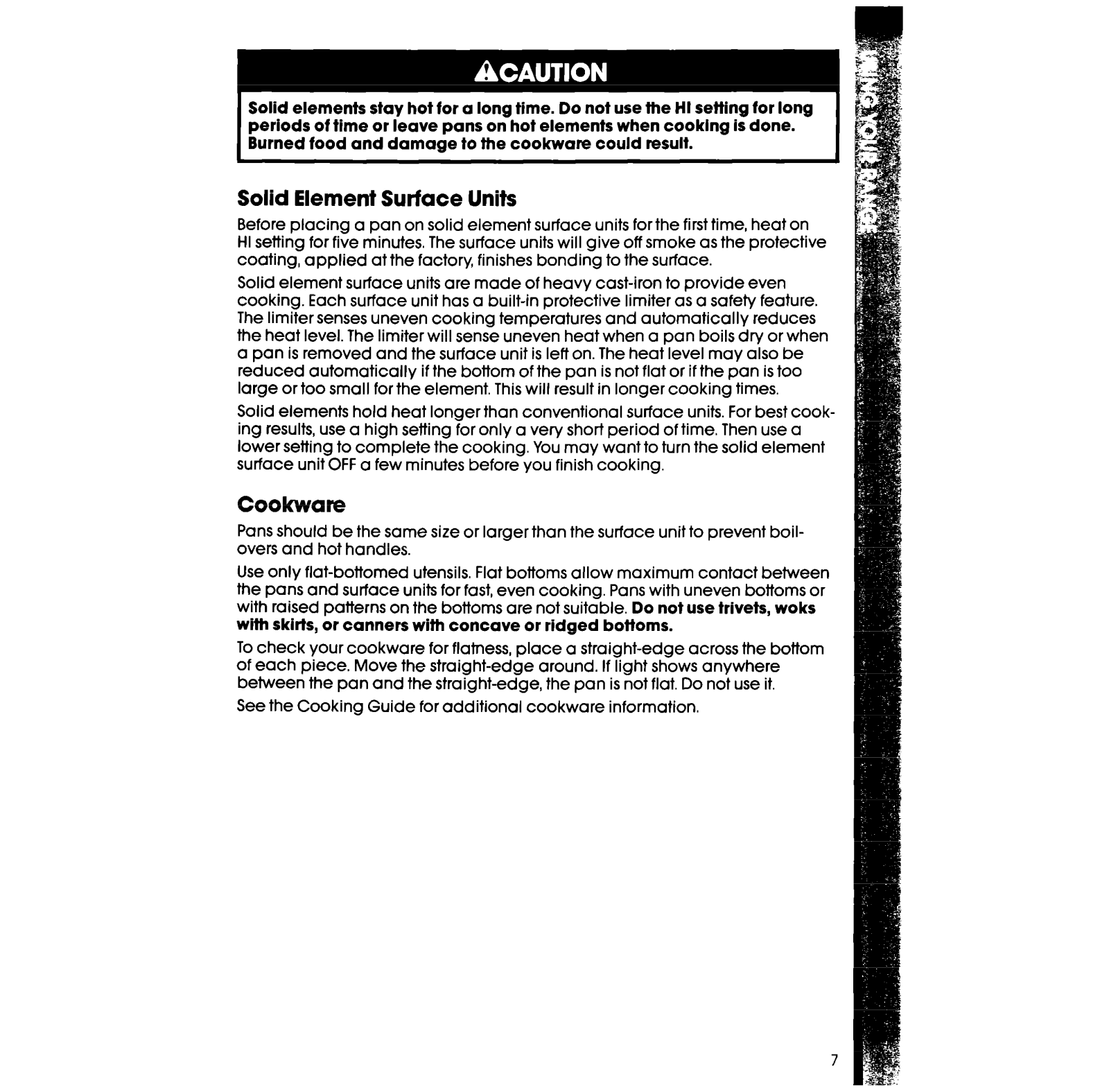

Solid Element Surface Units
Before placing a pan on solid element surface units for the first time, heat on
HI setting for five minutes. The surface units will give off smoke as the protective
coating, applied at the factory, finishes bonding to the surface.
Solid element surface units are made of heavy cast-iron to provide even
cooking. Each surface unit has a built-in protective limiter as a safety feature.
The limiter senses uneven cooking temperatures and automatically reduces
the heat level. The limiter will sense uneven heat when a pan boils dry or when
a pan is removed and the surface unit is left on. The heat level may also be
reduced automatically if the bottom of the pan is not flat or if the pan is too
large or too small for the element, This will result in longer cooking times.
Solid elements hold heat longer than conventional surface units. For best cook-
ing results, use a high setting for only a very short period of time. Then use a
lower setting to complete the cooking. You may want to turn the solid element
surface unit OFF a few minutes before you finish cooking.
Cookware
Pans should be the same size or larger than the surface unit to prevent boilovers and hot handles.
Use only flat-bottomed utensils, Flat bottoms allow maximum contact between
the pans and surface units for fast, even cooking. Pans with uneven bottoms or
with raised patterns on the bottoms are not suitable. Do not use trivets, woks
with skirts, or canners with concave or ridged bottoms.
To check your cookware for flatness, place a straight-edge across the bottom
of each piece. Move the straight-edge around. if light shows anywhere
between the pan and the straight-edge, the pan is not flat. Do not use it.
See the Cooking Guide for additional cookware information.
I

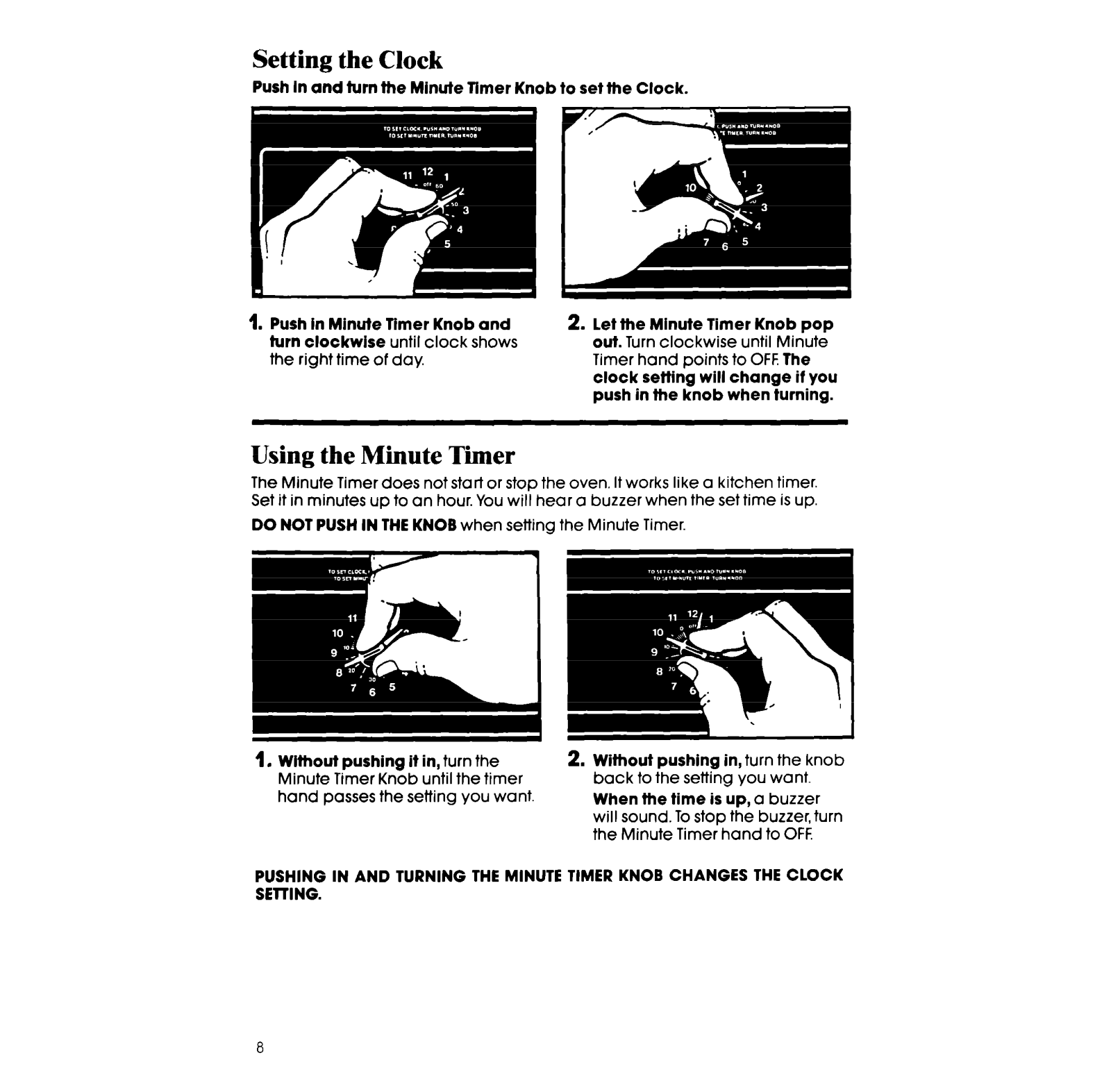

Setting the Clock
Push In and turn the Minute Timer Knob to set the Clock.
1. Push in Minute Timer Knob and
turn clockwise until clock shows
the right time of day.
2. let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF. The
clock setting will change if you
push in the knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven, It works like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.
DO NOT PUSH IN THE KNOB when setting the Minute Timer.
I. Without pushing it in, turn the
Minute Timer Knob until the timer
hand passes the setting you want.
2. Without pushing in, turn the knob
back to the setting you want.
When the time is up, a buzzer
will sound. To stop the buzzer, turn
the Minute Timer hand to OFF.
PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK
SETTING.
