Whirlpool PWF 2525, PAWF 1526, PAWF 2526 PROGRAM CHART

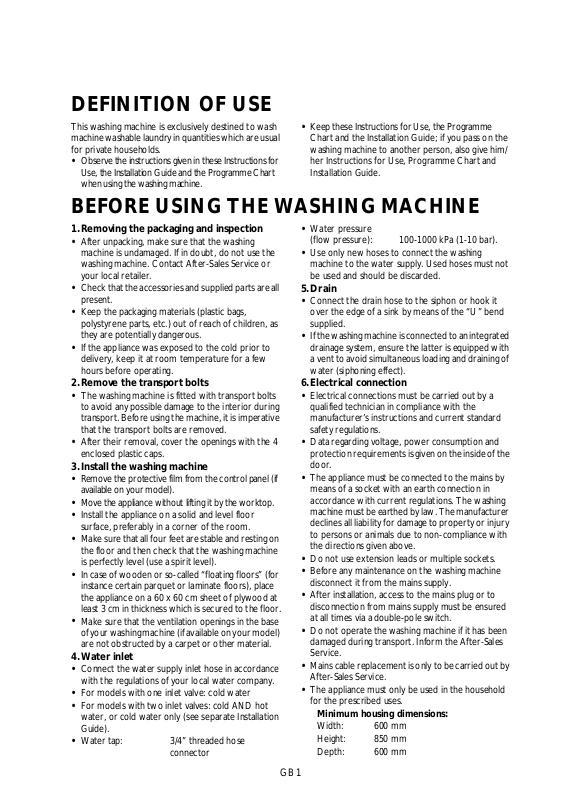

DEFINITION OF USE
This washing machine is exclusively destined to wash
machine washable laundry in quantities which are usual
for private households.
•
Observe the instructions given in these Instructions for
Use, the Installation Guide and the Programme Chart
when using the washing machine.
•
Keep these Instructions for Use, the Programme
Chart and the Installation Guide; if you pass on the
washing machine to another person, also give him/
her Instructions for Use, Programme Chart and
Installation Guide.
BEFORE USING THE WASHING MACHINE
•
1.Removing the packaging and inspection
•
After unpacking, make sure that the washing
machine is undamaged. If in doubt, do not use the
washing machine. Contact After-Sales Service or
your local retailer.
•
Check that the accessories and supplied parts are all
present.
•
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children, as
they are potentially dangerous.
•
If the appliance was exposed to the cold prior to
delivery, keep it at room temperature for a few
hours before operating.
2.Remove the transport bolts
•
The washing machine is fitted with transport bolts
to avoid any possible damage to the interior during
transport. Before using the machine, it is imperative
that the transport bolts are removed.
•
After their removal, cover the openings with the 4
enclosed plastic caps.
3.Install the washing machine
•
Remove the protective film from the control panel (if
available on your model).
•
Move the appliance without lifting it by the worktop.
•
Install the appliance on a solid and level floor
surface, preferably in a corner of the room.
•
Make sure that all four feet are stable and resting on
the floor and then check that the washing machine
is perfectly level (use a spirit level).
•
In case of wooden or so-called “floating floors” (for
instance certain parquet or laminate floors), place
the appliance on a 60 x 60 cm sheet of plywood at
least 3 cm in thickness which is secured to the floor.
•
Make sure that the ventilation openings in the base
of your washing machine (if available on your model)
are not obstructed by a carpet or other material.
4.Water inlet
•
Connect the water supply inlet hose in accordance
with the regulations of your local water company.
•
For models with one inlet valve: cold water
•
For models with two inlet valves: cold AND hot
water, or cold water only (see separate Installation
Guide).
•
Water tap: 3/4” threaded hose
connector
Water pressure
(flow pressure): 100-1000 kPa (1-10 bar).
•
Use only new hoses to connect the washing
machine to the water supply. Used hoses must not
be used and should be discarded.
5.Drain
•
Connect the drain hose to the siphon or hook it
over the edge of a sink by means of the “U” bend
supplied.
•
If the washing machine is connected to an integrated
drainage system, ensure the latter is equipped with
a vent to avoid simultaneous loading and draining of
water (siphoning effect).
6.Electrical connection
•
Electrical connections must be carried out by a
qualified technician in compliance with the
manufacturer’s instructions and current standard
safety regulations.
•
Data regarding voltage, power consumption and
protection requirements is given on the inside of the
door.
•
The appliance must be connected to the mains by
means of a socket with an earth connection in
accordance with current regulations. The washing
machine must be earthed by law. The manufacturer
declines all liability for damage to property or injury
to persons or animals due to non-compliance with
the directions given above.
•
Do not use extension leads or multiple sockets.
•
Before any maintenance on the washing machine
disconnect it from the mains supply.
•
After installation, access to the mains plug or to
disconnection from mains supply must be ensured
at all times via a double-pole switch.
•
Do not operate the washing machine if it has been
damaged during transport. Inform the After-Sales
Service.
•
Mains cable replacement is only to be carried out by
After-Sales Service.
•
The appliance must only be used in the household
for the prescribed uses.
Minimum housing dimensions:
Width: 600 mm
Height: 850 mm
Depth: 600 mm
GB 1
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1.Safety instructions
•
The washing machine is appropriate for indoor use only.
•
Do not store flammable fluids near the appliance.
•
Children must not be allowed to play with the
washing machine or to climb into the drum.
•
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
•
If you want to place a dryer on top of your washing
machine, first contact our After-Sales Service or
your specialist dealer to verify if this is possible.
Placing a dryer on your washing machine is only
admitted if the dryer is fixed on the washing
machine by using an appropriate stacking kit
available through our After-Sales Service or your
specialist dealer.
•
Do not leave the appliance plugged in when not in use.
•
Turn off the tap when not in use.
•
Before any cleaning and maintenance switch off the
machine or disconnect it from the mains.
•
Never open the door forcibly or use it as a step.
•
If necessary, the power cable may be replaced with
an identical one obtained from our After-Sales
Service. The power cable must only be replaced by
a qualified technician.
•
The Manufacturer is not liable for any damage to
laundry resulting from inadequate or incorrect
fabric care instructions which have been provided
with the garment or article.
2.Packaging
•
The packaging material is entirely recyclable, and
marked with the recycling symbol . Adhere to
current local regulations when disposing of
packaging material.
3.Disposing of packaging and scrapping old
washing machines
•
The washing machine is built from reusable
materials. It must be disposed of in compliance with
current local waste disposal regulations.
•
Before scrapping, remove all detergent residues and
cut off the power cable so that the washing machine
is made unusable.
•
This appliance is marked according to the European
directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please contact
your local city office, your household waste disposal
service or the shop where you purchased the product.
4.Saving tips
The water consumption of your washing machine is
optimized; in some programmes you therefore cannot
see the water through the door glass when the
machine is in operation.
•
Achieve the best use of energy, water, detergent and
time by using the recommended maximum load size.
•
Do not exceed the detergent dosages indicated in
the manufacturer’s instructions.
•
The Eco-Ball - a special system in the outlet - will
prevent detergent loss from the drum to avoid
detergent loss into the environment.
•
Use “Prewash” (if available on your model) for
heavily soiled laundry only! Save detergent, time,
water and energy consumption by not selecting
“Prewash” for slightly to normally soiled laundry.
•
Pretreat stains with stain remover or soak dried-in
stains in water before washing to reduce the
necessity of a hot wash programme.
•
Save energy by using a 60° C instead of a 95° C wash
programme or a 40° C instead of a 60° C wash
programme.
•
Save energy and time by selecting a high spin speed to
reduce the water content in laundry before using a
tumble dryer (for machines with adjustable spin speed).
5.EC Declaration of Conformity
•
The appliance conforms to the following European
Standards:
2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic Compatibility Directive
GB 2
DESCRIPTION OF THE WASHING MACHINE
1
2
3
4
5
6
7
Worktop
1.
Control panel
2.
Detergent dispenser
3.
Service plate (inside the door)
4.
Door
5.
Pump access behind plinth or cover (depending on the model)
6.
Adjustable feet
7.
DOOR
To open the door, hold the door handle, press the inside handle (if available on your model) and pull the
door. Close the door by pressing it without excessive force until it clicks shut.
BEFORE THE FIRST WASH CYCLE
To remove any residual water used in testing by the manufacturer, we recommend that you carry out a
short wash cycle without laundry.
Open the tap.
1.
Close the door.
2.
Add a small amount of detergent (maximum 1/3 of the quantity the detergent manufacturer
3.
recommends for lightly soiled laundry) to the main wash chamber of the detergent dispenser.
Select and start programme “Synthetics” at 60°C (see separate programme chart).
4.
GB 3
PREPARATION OF THE WASHING
1.Sort the laundry according to...
• Type of fabric / care label symbol
Cottons, mixed fibres, easy care/synthetics,
wool, handwash items.
• Colour
Separate coloured and white items. Wash new
coloured articles separately.
•Size
Wash items of different sizes in the same load to
improve washing efficiency and distribution in the
drum.
• Delicates
Wash small items (e.g. nylon stockings, belts etc.)
and items with hooks (e.g. bras) in a cloth bag or
pillow case with zip. Always remove curtain rings
or wash curtains with the rings inside a cotton bag.
2.Empty all pockets
Coins, safety pins etc. can damage your laundry
as well as the appliance drum and tub.
3.Fasteners
Close zips and fasten buttons or hooks; loose
belts or ribbons should be tied together.
Stain removal
Blood, milk, eggs etc. are generally removed by
•
the automatic enzyme phase of the programme.
To remove red wine, coffee, tea, grass and fruit
•
stains etc. add a stain remover to the main wash
chamber of the detergent dispenser.
Pre-treat heavily-soiled areas with stain remover
•
if necessary.
Dyeing and bleaching
Only use dyes and bleaches that are suitable for
•
washing machines.
Follow the Manufacturer’s instructions.
•
Plastic and rubber parts of the washing machine
•
can be stained by dyes or bleaches.
Loading the laundry
Open the door.
1.
Load the articles one at a time loosely into the
2.
drum, without overfilling. Observe the load sizes
given in the quick reference guide (overloading
the machine will result in unsatisfactory washing
results and creased laundry).
Close the door.
3.
DETERGENTS AND ADDITIVES
Do not use liquid detergent for the main wash
Keep detergents and additives in a safe,
dry place out of the reach of children!
The choice of detergent depends on:
Type of fabric (cottons, easy care/synthetics,
•
delicate items, wool).
Use only specific detergents for washing wool
and garments made of microfibres (like sports or
swimwear).
Colour.
•
The wash temperature.
•
Degree and type of soiling.
•
Remarks:
Any whitish residues on dark fabrics are caused
•
by insoluble compounds used in phosphate-free
powder detergents. If this occurs, shake or brush
out the fabric or use liquid detergents.
Use only detergents and additives specifically
•
produced for domestic washing machines.
When using descaling agents, dyes or bleaches for
•
the prewash (if available on your model), make sure
that they are suitable for use in domestic washing
machines. Descalers could contain products which
could damage your washing machine.
Do not use any solvents (e.g. turpentine,
•
benzine). Do not machine wash fabrics that have
been treated with solvents or flammable liquids.
•
when having activated the “prewash” option (if
available on your model).
Do not use liquid detergent when activating the
•
“Start Delay” function (if available on your
washing machine).
Dosage
Follow the dosage recommendations on the
detergent pack. They depend on:
degree and type of soiling
•
size of wash
•
full load: follow the detergent manufacturer’s
instructions;
half load: 3/4 the amount used for a full load;
Minimum load (about 1 kg):
1/2 the amount used for a full load
water hardness in your area (ask for information
•
from your water company). Soft water requires
less detergent than hard water (refer to the water
hardness table in the operating instructions).
Too much detergent can result in excess foam
formation, which reduces washing efficiency.
If the washing machine detects too much foam, it
may prevent spinning.
Insufficient detergent may result in grey laundry and also
calcifies the heating system, drum and hoses.
GB 4
Loading...
