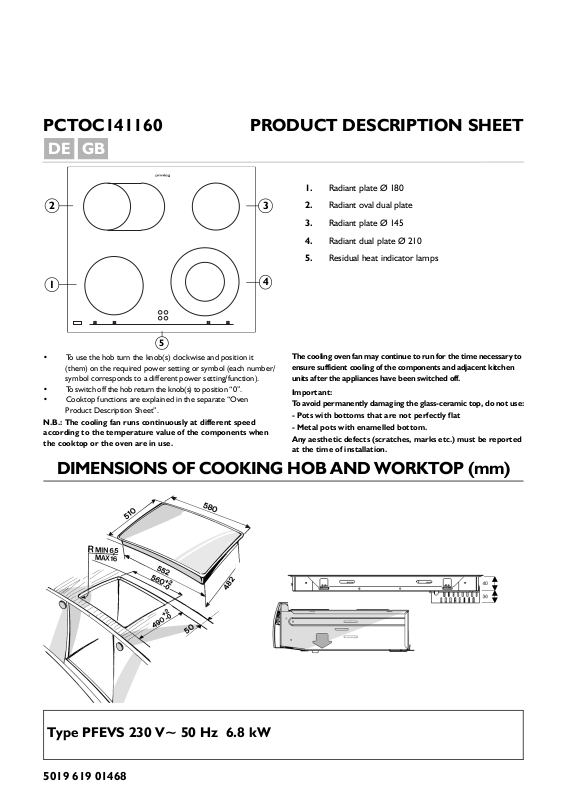

PCTOC141160 PRODUCT DESCRIPTION SHEET
DE GB
1. Radiant plate Ø 180
2
3
2. Radiant oval dual plate
3. Radiant plate Ø 145
4. Radiant dual plate Ø 210
5. Residual heat indicator lamps
1
5
• To use the hob turn the knob(s) clockwise and position it
(them) on the required power setting or symbol (each number/
symbol corresponds to a different power setting/function).
• To switch off the hob return the knob(s) to position “0”.
• Cooktop functions are explained in the separate “Oven
Product Description Sheet”.
N.B.: The cooling fan runs continuously at different speed
according to the temperature value of the components when
the cooktop or the oven are in use.
4
The cooling oven fan may continue to run for the time necessary to
ensure sufficient cooling of the components and adjacent kitchen
units after the appliances have been switched off.
Important:
To avoid permanently damaging the glass-ceramic top, do not use:
- Pots with bottoms that are not perfectly flat
- Metal pots with enamelled bottom.
Any aesthetic defects (scratches, marks etc.) must be reported
at the time of installation.
DIMENSIONS OF COOKING HOB AND WORKTOP (mm)
Type PFEVS 230 V~ 50 Hz 6.8 kW
5019 619 01468
