Whirlpool IRD6710, IRD6750 User Manual
UNDERCOUNTER
DISHWASHER
Use & Care Guide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301.
Table of Contents.............................................2
8576002
Models IRD6710, IRD6750
TABLE OF CONTENTS
DISHWASHER SAFETY .................................................................3
Before Using Your Dishwasher....................................................4
PARTS AND FEATURES................................................................5

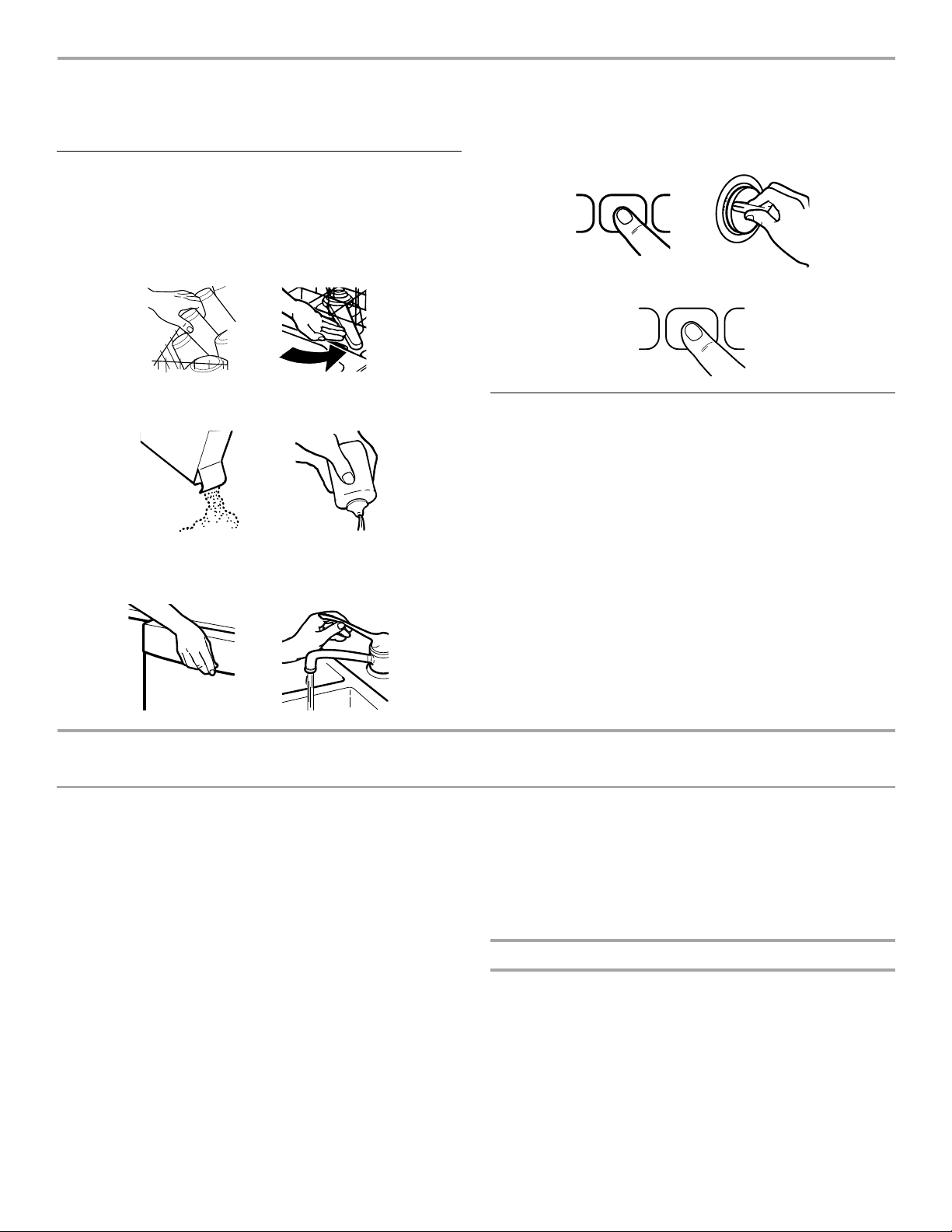

START-UP GUIDE ..........................................................................6
Using Your New Dishwasher .......................................................6
Stopping Your Dishwasher ..........................................................6

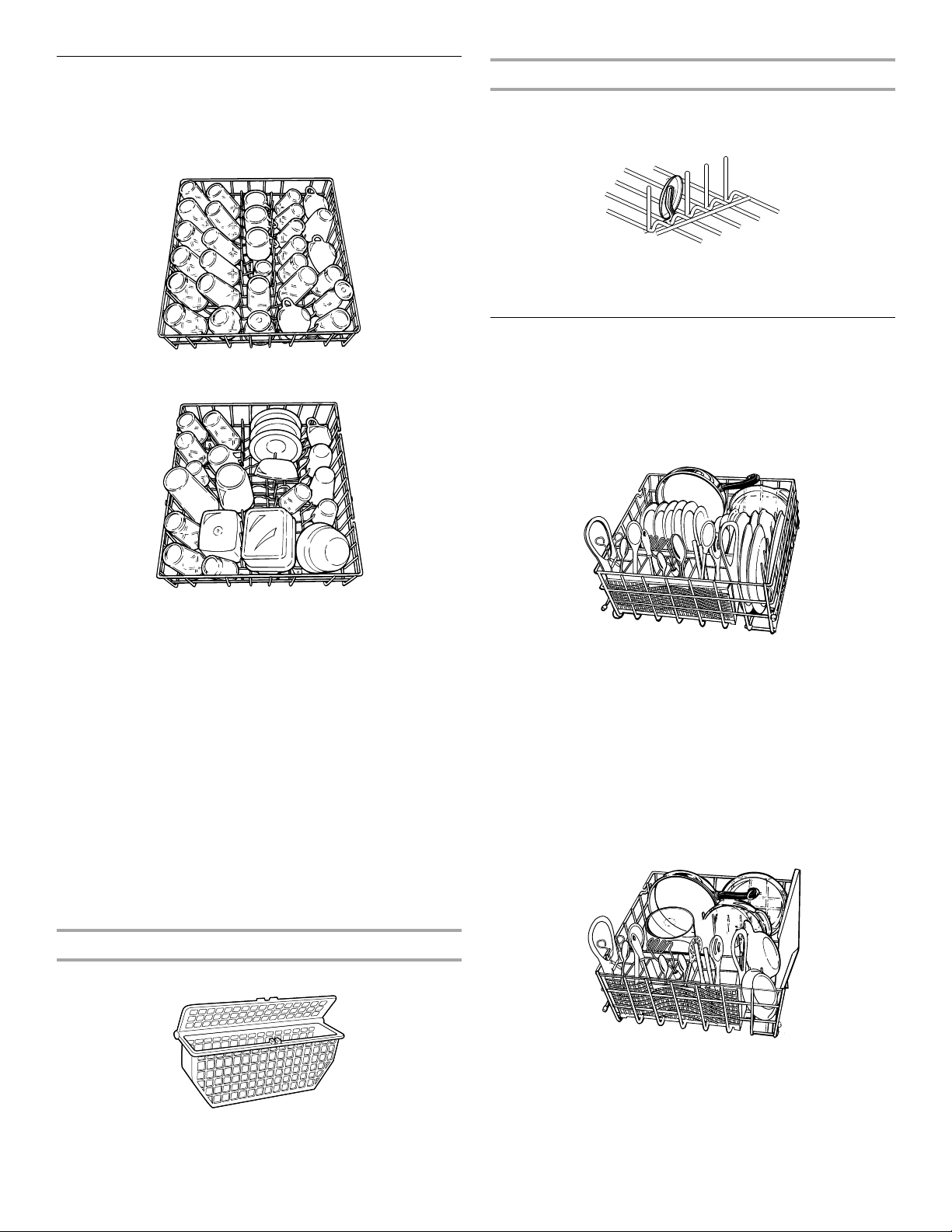

DISHWASHER LOADING.............................................................. 6
Loading Suggestions ...................................................................6
Loading Top Rack........................................................................7
Loading Bottom Rack ..................................................................7

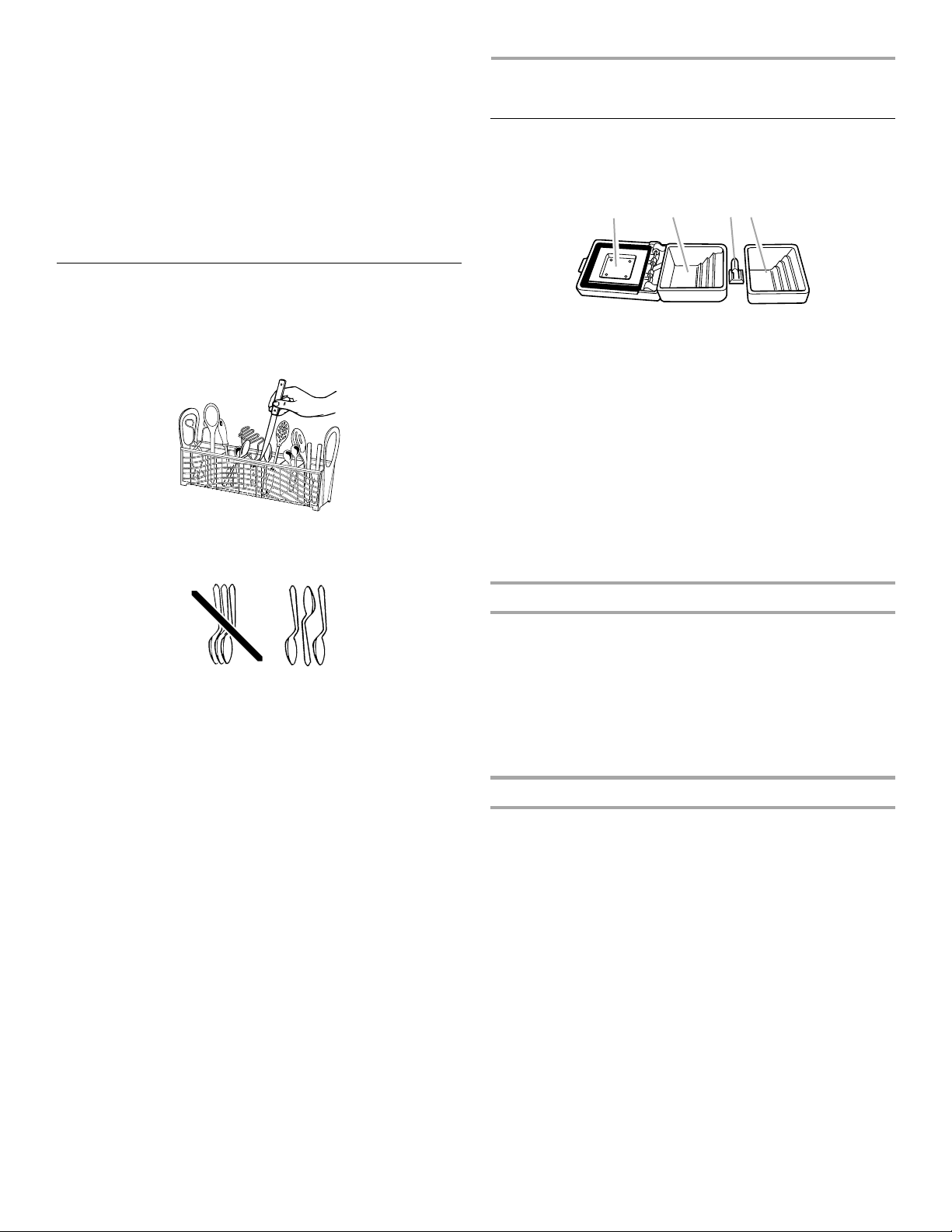

Loading Silverware Basket ..........................................................8
DISHWASHER USE........................................................................8

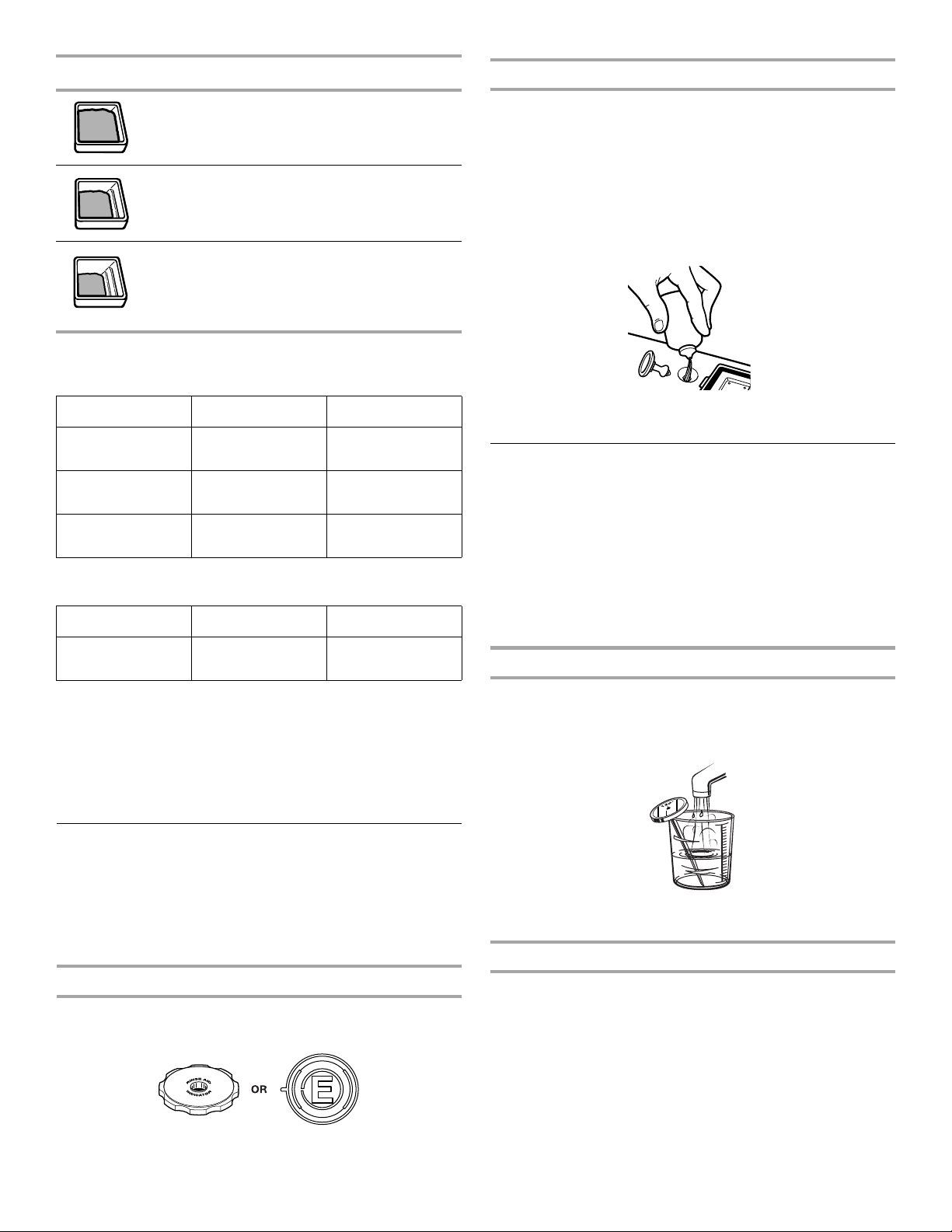

Detergent Dispenser ....................................................................8
Rinse Aid Dispenser.....................................................................9
Dishwasher Efficiency Tips ..........................................................9
Cycle Selection Charts...............................................................10
Canceling a Cycle.......................................................................10
Changing a Cycle or Setting ......................................................11
Adding Items During a Cycle .....................................................11
Option Selections.......................................................................11
Using Plate Warm.......................................................................11
Drying System ............................................................................11
Overfill Protection Float..............................................................11
WASHING SPECIAL ITEMS.........................................................12
DISHWASHER CARE ...................................................................13
Cleaning......................................................................................13

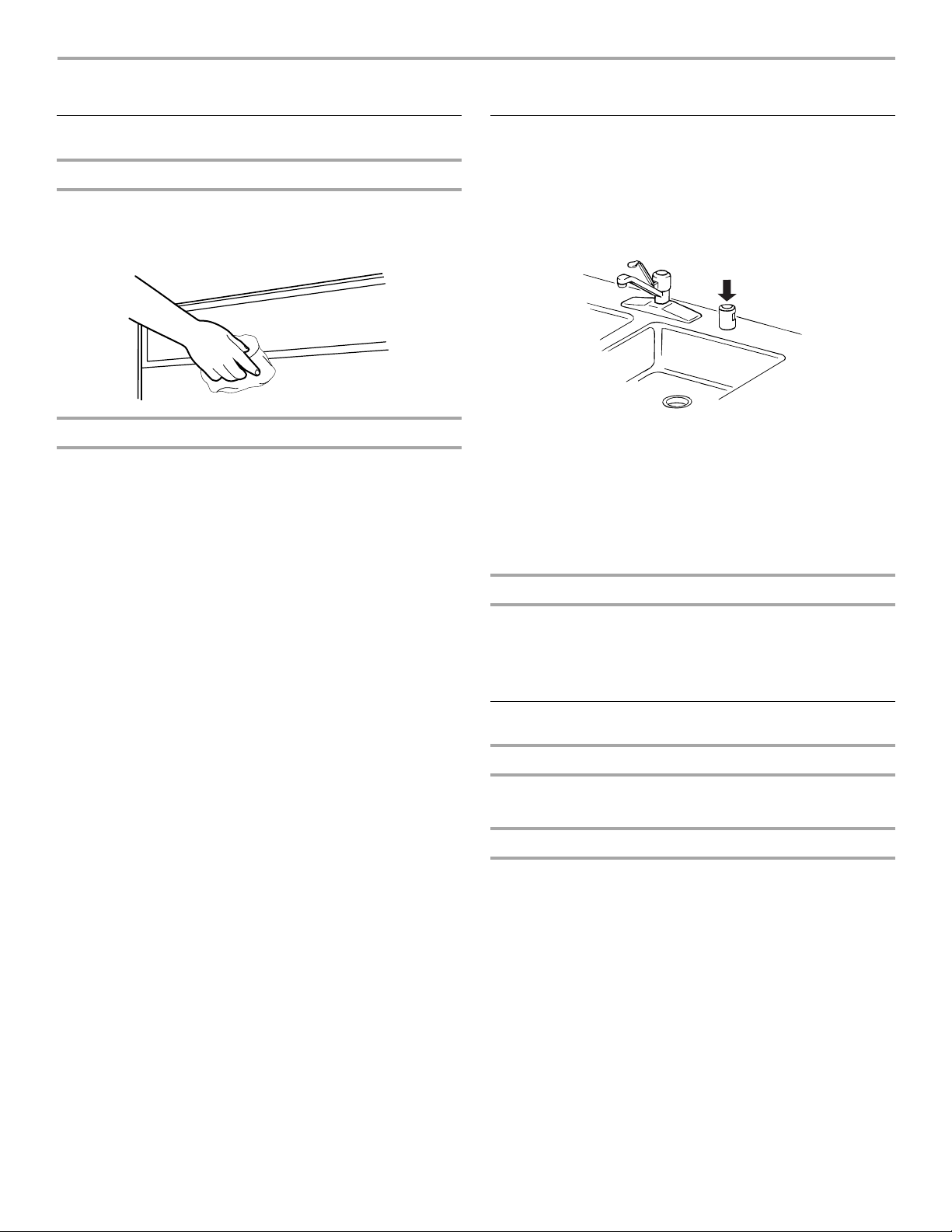

Drain Air Gap ..............................................................................13
Storing ........................................................................................13
TROUBLESHOOTING ..................................................................14
ASSISTANCE OR SERVICE.........................................................15
In the U.S.A. ...............................................................................15
WARRANTY ..................................................................................16
2
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
can be killed or seriously injured if you don't
You
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can
happen if the instructions are not followed.
3
Before Using Your Dishwasher
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
■ Install where dishwasher is protected from the elements.
Protect against freezing to avoid possible rupture of fill valve.
Such ruptures are not covered by the warranty. See “Storing”
in the “Dishwasher Care” section for winter storage
information.
■ Install and level dishwasher on a floor that will hold the
weight, and in an area suitable for its size and use.
■ Remove all shipping plugs from hoses and connectors (such
as the cap on the drain outlet) before installing. See
Installation Instructions for complete information.
4
PARTS AND FEATURES
M
A
F
G
B
H
I
J
C
K
D
L
E
A. Upper level wash
B. Water inlet opening (in tub wall)
C. Bottom rack
D. Rack bumper
E. Heating element
F. Top spray arm
Control Panel
G. Small items basket
H. Model and serial number label
I. Filter module
J. Lower spray arm
K. Silverware basket
N
L. Overfill protection float
M. Detergent dispenser
N. Rinse aid dispenser
Other features
Light item clips
5
