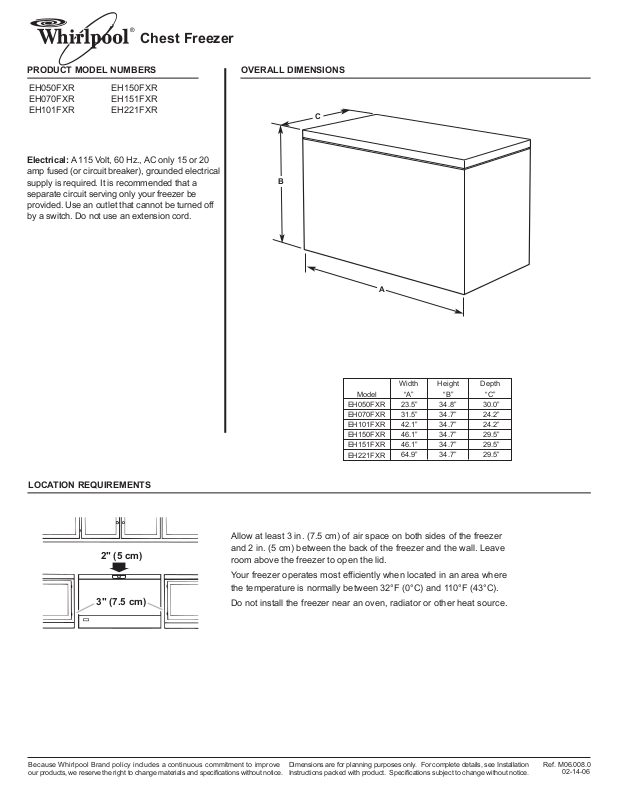

Whirlpool EH050FXR, EH070FXR, EH101FXR, EH150FXR, EH151FXR Dimension Guide
...
®
Chest Freezer
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
EH050FXR
EH070FXR
EH101FXR
EH150FXR
EH151FXR
EH221FXR
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
amp fused (or circuit breaker), grounded electrical
supply is required. It is recommended that a
separate circuit serving only your freezer be
provided. Use an outlet that cannot be turned off
by a switch. Do not use an extension cord.
C
B
A
LOCATION REQUIREMENTS
2" (5 cm)
3" (7.5 cm)
Width Height Depth
Model “A” “B” “C”
EH050FXR
EH070FXR
EH101FXR
EH150FXR
EH151FXR
EH221FXR
23.5”
31.5”
42.1”
46.1”
46.1”
64.9”
34.8”
34.7”
34.7”
34.7”
34.7”
34.7”
30.0”
24.2”
24.2”
29.5”
29.5”
29.5”
Allow at least 3 in. (7.5 cm) of air space on both sides of the freezer
and 2 in. (5 cm) between the back of the freezer and the wall. Leave
room above the freezer to open the lid.
Your freezer operates most efficiently when located in an area where
the temperature is normally between 32°F (0°C) and 110°F (43°C).
Do not install the freezer near an oven, radiator or other heat source.
Because Whirlpool Brand policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. M06.008.0
02-14-06
