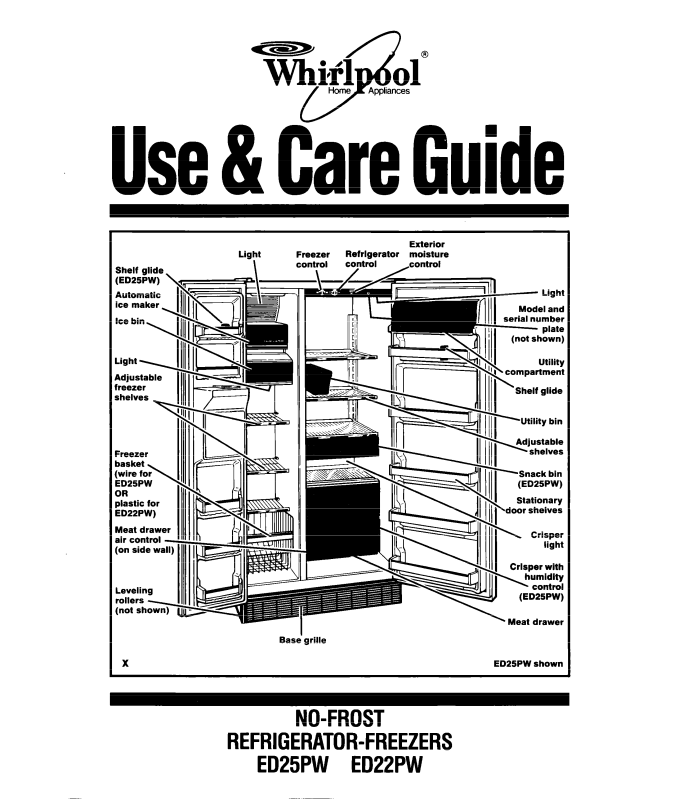

Whirlpool ED25PW User Manual
Shelf slide
Meat drawer
Light Freezer
Retrlgerator moisture
Exterior
Model and
serial number
Meat drawer
Base’grille
X
ED25PW shown
NO-FROST
REFRIGERATOR-FREEZERS
ED25PW ED22PW
Contents
Important Safety Instructions
Before Using Your Refrigerator
Using Your Refrigerator.
Setting the controls
...................
Changing the control settings
Exterior moisture control
Adjusting the refrigerator shelves
Removing and adjusting the freezer
shelves..
.........................
Removing the freezer door shelves
Removing the crisper, meat drawer
andcovers
........................
Adjusting the crisper humidity control
Adjusting the meat drawer temperature
Removing the snack bin
Adjusting the shelf glide
Removing the freezer basket
Removing the base grille
Changing the light bulbs
Cold water and ice dispenser
Automatic ice maker
..................
Removing ice maker storage bin
Common ice maker problems
Soundsyoumayhear
Energy saving tips
.................
....................
Cleaning Your Refrigerator
Food Storage Guide
Storing fresh food
Storing frozen food
..................
....................
...................
Caring For Your Refrigerator.
If You Need Service Or Assistance
Whirlpool Refrigerator Warranty
01991 Whirlpool Corporation
.........
..............
..........
..............
...............
...............
...........
..............
...............
..........
........
..........
...........
.........
.......
.......
.....
......
....
...
Page
-3
10
11
11
13
13
13
14
15
15
15
17
18
20
4
5
5
5
6
6
6
6
7
7
7
8
8
8
8
9
