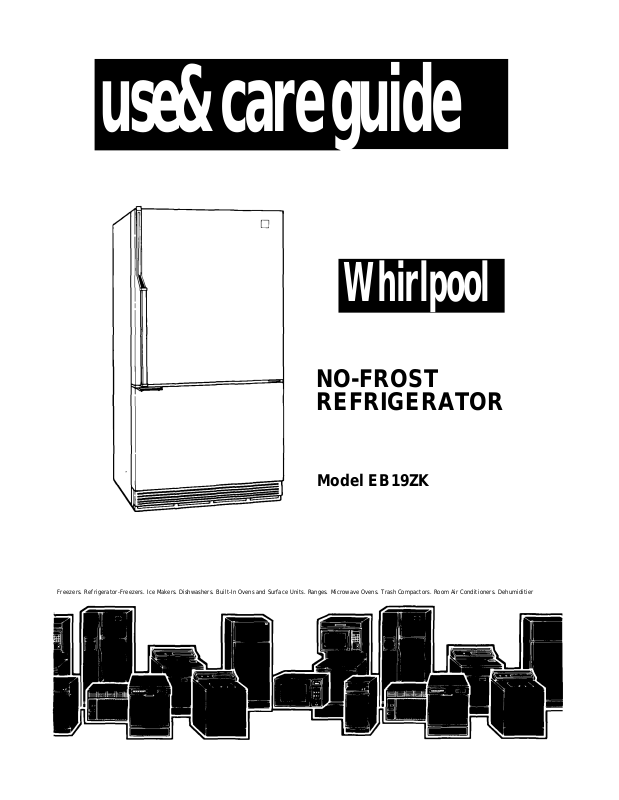

Whirlpool EB19ZK User Manual
use&care guide
Whirlpool
NO-FROST
REFRIGERATOR
Model EB19ZK
Freezers. Refrigerator-Freezers. Ice Makers. Dishwashers. Built-In Ovens and Surface Units. Ranges. Microwave Ovens. Trash Compactors. Room Air Conditioners. Dehumiditier
Please read this
Use and Care Guide
before you do anything else...
This booklet tells you how to start your refrig
erator, clean it, move shelves and adjust con
trols. It even tells you what new sounds to expect
from your refrigerator.
Treat your new refrigerator with care. Use it
oniy to do what home refrigerators are de
signed to do.
Parts and features
Power Saving
Control
Temperature
Control
Air Control
Light Shield
Adjustable
Shelves
Freezer Light
Ice Cube
Trays
Freezer Shelf
Slide-Out
Basket
Base Grille>
Model and
Serial Number
Label
Copy your Model and Serial Numbers here...
When you need service or call with a question
have this information ready:
1. Complete Model and Serial Numbers (from the
label located as shown).
Model Number
Serial Number
2. Purchase date from sales slip
Copy this information in these spaces. Keep this
book, your warranty and sales slip together in a
handy place.
Purchase Date
Service Company and Telephone Number
Butter
Compartment
Utility
Compartment
Utility Bin
Meat Pan
Crisper
Covers
Crispers
Contents
SAFETY FIRST
BEFORE YOU PLUG IT IN
Install Properly
Level Refrigerator-Freezer
Remove Sales labels
Clean It ...................................................... 4
Plug It In..................................................... 4
USING YOUR REFRIGERATOR
Setting the Controls.................................... 5
Changing the Control Settings................ 5
Power Saving Control
Adjusting the Refrigerator Shelves

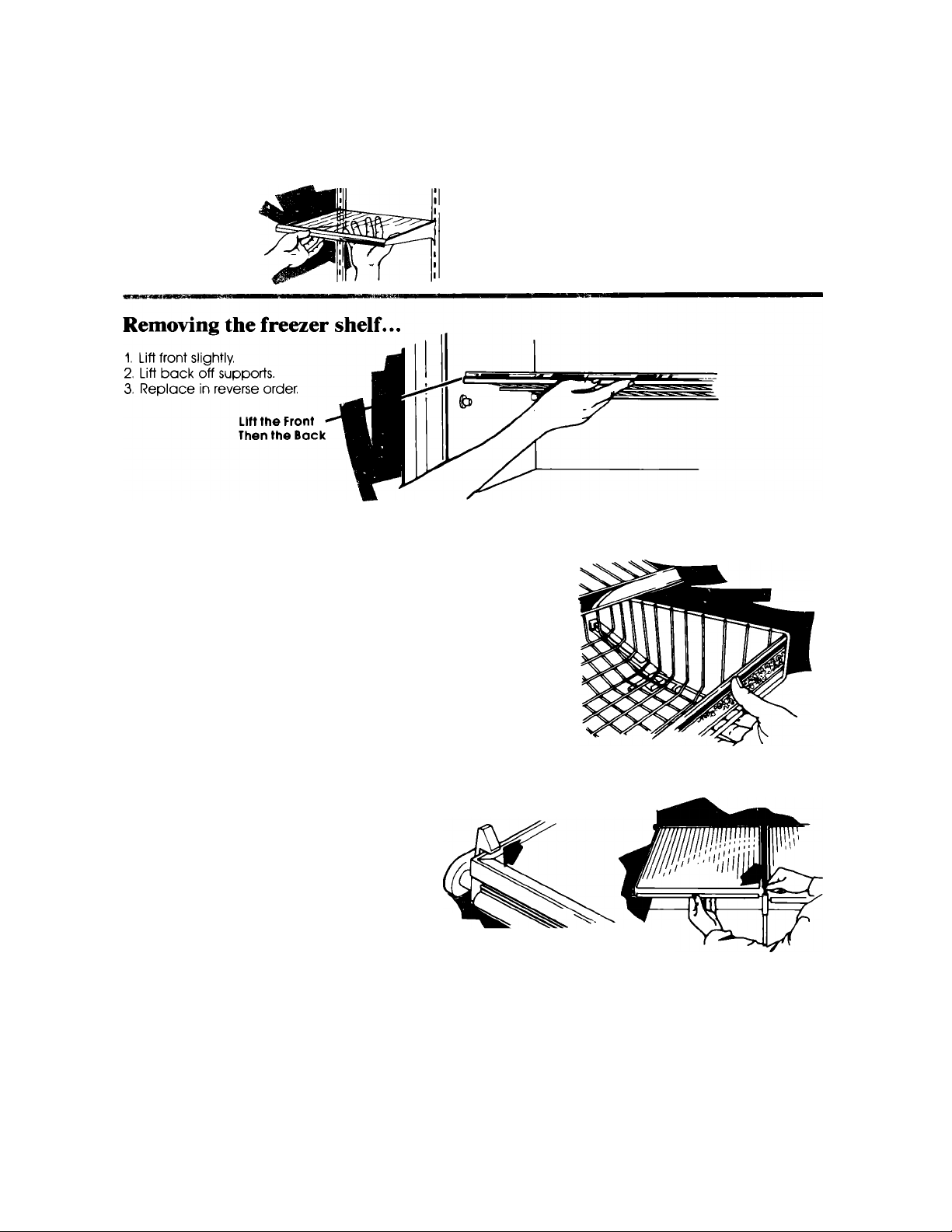

Removing the Freezer Shelf
Removing the Freezer Basket
Removing the Crispers and Covers .... 6
Moving the Meat Pan................................. 7
Changing the Light Bulb ............................ 7
.............................................
...........................
..........................................
.........................
................................
..................
...............................
.........
......................
...................
©1986 Whirlpool Corporation
3
3
4
4
4
5
5
6
6
6
Safety first
Child entrapment, and suffocation, are
not things of the past. Junked or abandoned
refrigerators are still dangerous ...even if
they will "just sit in the garage for a few
days.”
If you are getting rid of your old
refrigerator, do it safely. Please read the
enclosed safety booklet from the Associa
tion of Home Appliance Manufacturers.
Help prevent accidents.
Page

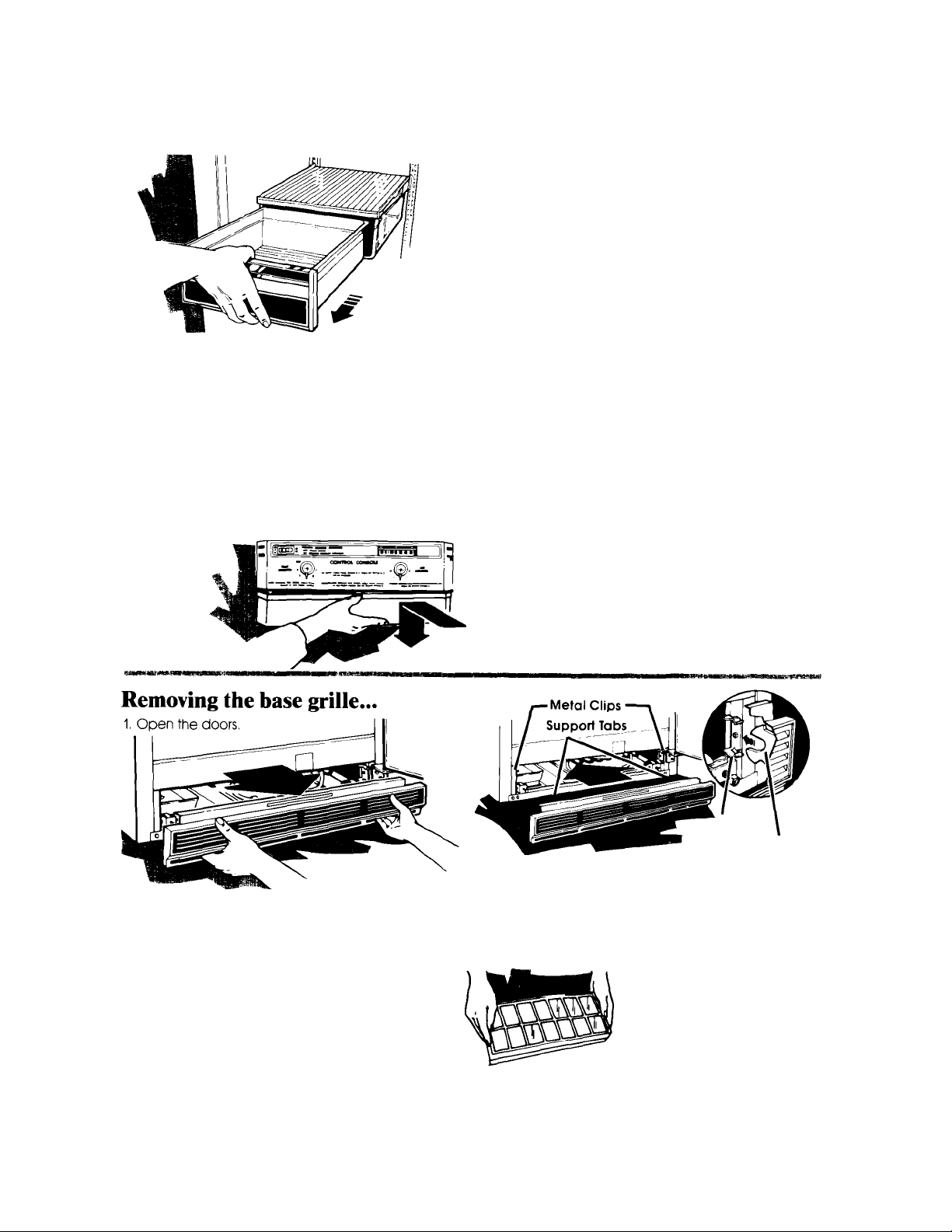

Removing the Base Grille
Ice Cube Trays
Optional Automatic Ice Maker
Sounds You May Flear
Energy Saving Tips.................................... 8
CLEANING YOUR REFRIGERATOR
Cleaning Chart
FOOD STORAGE GUIDE
Storing Fresh Food
Freezing and Storing Frozen Foods .... 11
VACATION AND MOVING CARE
IF YOU NEED SERVICE OR ASSISTANCE 15
1. Before Calling for Assistance
2. If You Need Assistance
3. If You Need Service .............................. 15
4. If You Flave a Problem
..........................................
..........................................
.........................
...................
..............................
.......
..........................
..................................
.............
.............
........................
......................
7
7
8
8
9
9
10
10
14
15
15
15
Before you plug it in
IMPORTANT
Before using your refrigerator, you are personally
responsible for making sure that it...
• is installed and leveled on a floor that will hold
the weight, and in an area suitable for its size
and use.
• is connected only to the right kind of outlet, with the
right electrical supply and grounding. (Refer to
your "Electrical Requirements and Grounding
Instructions."}
• is used only for jobs expected of home re
frigerators.
is not near an oven, radiator or other heat source,
is properly maintained,
is out of the weather
is used in an area where the room temperature will
not fall below 55° F (13° Cj.
is not used by those who may not understand how
it should be used.
is not loaded with food before it has time to get
properly cold.
Install properly...
1. Allow '/2 inch (1.25 cm] space on each side and at
the top of the refrigerator for ease of installation.
2. If the refrigerator is to be against a wall, you might
want to leave extra space so the door can be
opened wider.
3. The refrigerator back can be flush against the wall.
Remove sales labels...
Remove the Consumer Buy Guide label, tape and
any inside labels before using the refrigerator.
To remove any remaining glue:
1. Rub briskly with thumb to make a ball then remove.
OR
2. Soak area with dishwashing detergent solution (1
teaspoon detergent in 1 quart warm water) before
removing glue as described in step 1.
DO NOT USE rubbing alcohol or flammable or
toxic solvents, such as acetone, gasoline, car
bon tetrachloride, etc. These can damage the
material.
NOTE: DO NOT REMOVE ANY PERMANENT IN
STRUCTION LABELS INSIDE YOUR REFRIGERATOR.
Do not remove the Tech Sheet fastened under
the refrigerator at the front.
Clean it...
Clean your refrigerator
before using it.
See cleaning instructions
on page 9.
Plug it in...
Level refrigerator-freezer...
1. Remove base grille (see page 7].
2. To raise front, turn each screw to the right.
3. To lower front, turn each screw to the left,
4. Check with level.
3-prong grounding
type wall receptacle
3-prong
grounding plug
Refrigerator
Power Cord
RECOMMENDED GROUNDING METHOD
A 115 Volt, 60 Hz,, AC only 15 or 20 ampere fused
and properly grounded electrical supply is re
quired. It is recommended that a separate circuit
serving only this appliance be provided.
Do not use an extension cord. Use a recep
tacle which cannot be turned off with a switch
or pull chain. See individual electrical require
ments and grounding instruction sheet in your liter
ature package.
Using your refrigerator
Power Saving Control
Temperature Control
Setting the controls...
Controls for the refrigerator and freezer are in the
refrigerator. When the refrigerator is plugged in for
the first time,,.
1, Set the TEMPERA
TURE CONTROL to3.
2. Set the AIR CON
TROL to B.
Changing the control settings...
If you need to adjust temperatures in the refriger
ator or freezer, use the settings listed in the chart
below.
Air Outlet
Give the refrigerator time to cool down com
pletely before adding food. (This may take sev
eral hours.)
These settings should be about right for normal
household refrigerator usage.
The oontrols will be set about right when milk or
juice is as cold as you like and when ice cream
is firm.
Do not block the air outlet on the control panel.
Blocking it can slow the air movement needed to
keep temperatures at the level you set.
• Adjust the Temperature Control first.
• Wait at least 24 hours between adjustments.
• Then adjust the Air Control, if needed.
Air Control
CONDITION:
If Refrigerator
Section is
TOO WARM _
If Freezer
Section is
QUESTIONS? ___ _
COOL-LINE" Section is
service jqo OOLD
assistance
telephone
number
(page 15).
TOO WARM
If Refrigerator
If ICE isn't
MADE FAST ENOUGH
If BOTH SECTIONS
are TOO WARM
--«tB-t-E-iWWRiewài.'. 11
REASONS:
Door opened often
Large amount of food added
Room femperature too warm
Door opened pften
Large amaunt of food added
Very cold room femperature
(can't cycle often enough)
Controls not set correctly
for your conditions
Heavy ice usage
Very cold room temperature
(can't cycle often enough)
Door opened often
Large amount of food added
Very warm or very cold
room temperatures

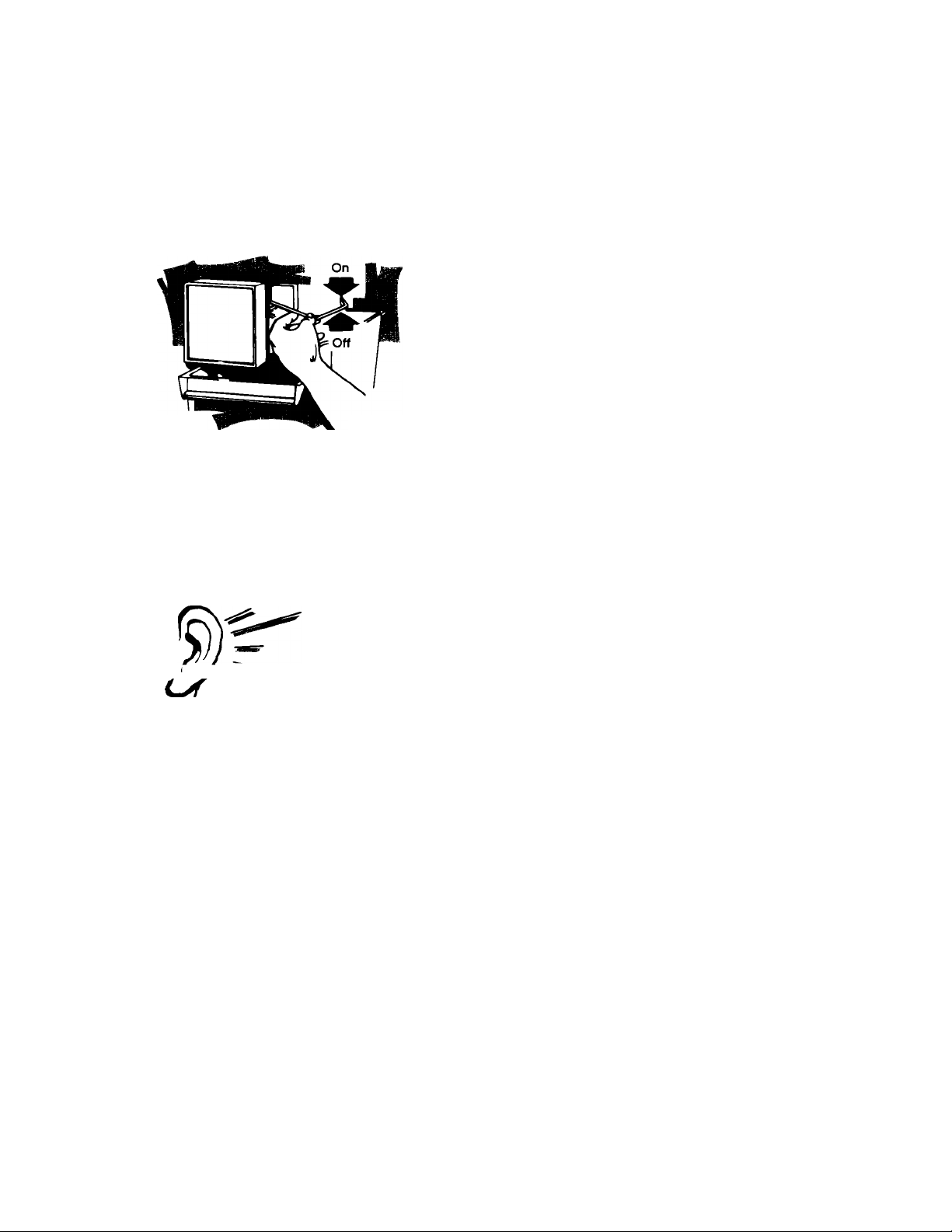

Power Saving Control...
The Power Saving Control on the Control Con
sole operates electric heater around the door open
ings. These heaters help keep moisture from forming
on the outside of the refrigerator.
1. Use the "OFF" set
ting when humidity
is low.
RECOMMENDED SETTINGS:
Temperature Control
Air Control
Temperature Control
Air Control
Temperature Control
Air Control
Temperature Control
Air Control
Temperature Control
Air Control
Use the "ON"setting
if moisture forms
on the outside of the
refrigerator.
4
C
4
A
2
B
3
A
4
B
