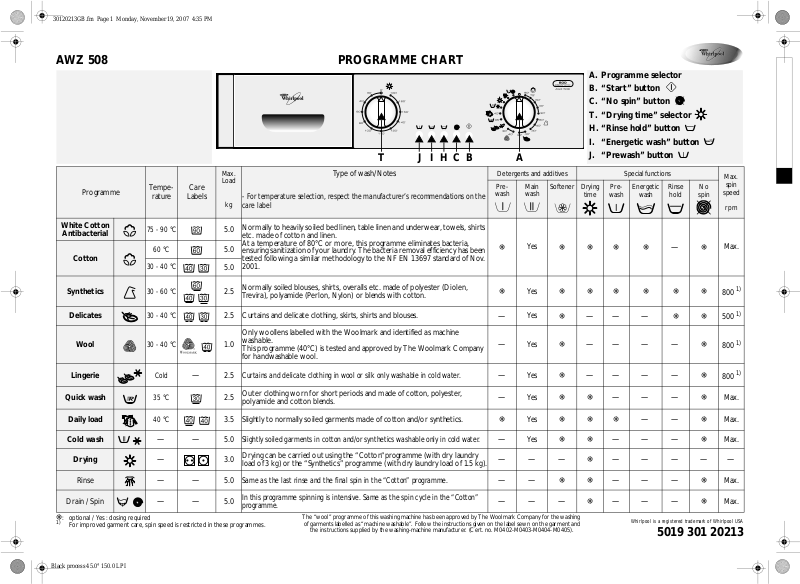

AWZ 508 PROGRAMME CHART

T BACHIJ

Programme

Tempe-

rature

Care

Labels

Max. Load

- For temperature selection, respect the manufacturer’s recommendations on the

care label

Type of wash/Notes

A. Programme selector B. “Start” button C. “No spin” button T. “Drying time” selector H. “Rinse hold” button I. “Energetic wash” button J. “Prewash” button

Detergents and additives Special functions

Pre-

wash

Main wash

Softener Drying

time

Pre-

wash

Energetic

wash

Rinse

holdNospin

Max.

spin

speed

rpm

White Cotton

Antibacterial

Cotton

Synthetics

Delicates

Wool

Lingerie

Quick wash

Daily load

Cold wash

Drying

75 - 90 °C

60 °C

30 - 40 °C

30 - 60 °C

30 - 40 °C

Cold

35 °C

40 °C

—

—— —

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts

5.0 etc. made of cotton and linen.

At a temperature of 80°C or more, this programme eliminates bacteria,

5.0

ensuring sanitization of your laundry . The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov .

2001.

5.0

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen,

2.5

Trevira), polyamide (Perlon, Nylon) or blends with cotton.

2.5 Curtains and delicate clothing, skirts, shirts and blouses. Only woollens labelled with the Woolmark and identified as machine

washable.

1.0

This programme (40°C) is tested and approved by The Woolmark Company for handwashable wool.

2.5

Curtains and delicate clothing in wool or silk only washable in cold water.

Outer clothing worn for short periods and made of cotton, polyester,

2.5

polyamide and cotton blends.

3.5 Slightly to normally soiled garments made of cotton and/or synthetics.

5.0

Slightly soiled garments in cotton and/or synthetics washable only in cold water.

Drying can be carried out using the “Cotton“programme (with dry laundry

3.0

load of 3 kg) or the “Synthetics” programme (with dry laundry load of 1.5 kg).

—

Yes

LLL L

LLL L LL

LLL

———

—

—— —

—— — —

———

—— ——— —————

Max.

800

500

800

Max.

Rinse

Drain / Spin

: optional / Yes : dosing required

For improved garment care, spin speed is restricted in these programmes.

Black process 45.0° 150.0 LPI

—— ——

5.0

Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Cotton”

5.0

programme.

The “wool” programme of this washing machine has been approved by The Woolmark Company for the washing

of garments labelled as “machine washable”. Follow the instructions given on the label sewn on the garment and

the instructions supplied by the washing-machine manufacturer. (Cert. no. M0402-M0403-M0404-M0405).

——

———

——— ———

Max.

5019 301 20213

Whirlpool is a registered trademark of Whirlpool USA

30120213GB.fm Page 2 Monday, November 19, 2007 4:35 PM

CONSUMPTION DATA

Programme

Temperature

(°C)

White Cotton / Antibacterial 90 5.0 52

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. programme duration

(hours : minutes)

1.70 2:10

Cotton 75 5.0 52 1.33 2:05 Cotton

***

60 5.0 49 0.95 2:15

Cotton 40 5.0 62 0.51 2:00

Synthetics 60 2.5 46

0.80 1:40

Synthetics 40 2.5 46 0.46 1:35 Daily load 40 3.5 52 0.30 1:25

Quick wash 35 2.5 30 0.40 0:40

Delicates 30 2.5 54 0.24 0:45

Wool 40 1.0 56 0.44 0:54

Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. In domestic use, consumption data may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The time indicated on the display (if present) can deviate from the values in the table, because it takes into account the household

conditions applicable at that time. To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

Reference programme for energy label.

***

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in the Instructions for Use.

1. Turn the

programme selector

to the desired

programme.

SELECT ANY DESIRED OPTION

Press the button(s) of any required option(s) - the respective indicator lights up. When the combination of programme and additional option(s) is not possible, the indicators switch off automatically. Unsuitable combinations of options are deselected automatically.

“Prewash” button

• Only for heavily soiled loads (e.g. sand, granular dirt). Increases the cycle time by approx. 15 minutes.

• Do not use liquid detergent for the main wash when activating the prewash option.

“Energetic wash” button

• This function increases the efficiency of the detergent and prolongs the wash time, leaving the set temperature unaltered.

“Rinse hold” button

• The laundry remains in the last rinse water without the final spin cycle, to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the “Synthetics”, “Daily load” or “Delicates” programmes.

• It is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

• If you select “Rinse hold”, do not leave the laundry to soak for too long.

The programme stops to “Rinse hold” at

Note:

the time the “Rinse Hold” light in the programme sequence indicator is on. The indicator next to the

“Start”

button flashes.

To terminate the “Rinse hold” option :

•Press the

“Start”

button ; the programme will terminate automatically with the final spin cycle for the preset wash programme.

“No spin” button

• Pressing this button excludes spinning at the end of the programme but the intermediate spin cycles remain. With this option selected, drying is automatically excluded.

DRYING TIME

Turn the knob to select the drying time, in automatic mode (at end of wash cycle) or in manual mode, selecting the “Drying” programme (with handwashed laundry). In the latter case it is necessary to spin at a speed of at least 800 rpm. With the knob turned to “0”, drying is not carried out..

PROGRAMME START

Open the tap and press the After a few seconds the

“Start”

button .

button lights up, indicating that the door is locked and the wash cycle has started.

“DOOR OPEN” INDICATOR

The

“Start”

button flashes when the wash cycle has completed indicating that the door can now be opened. As long as a wash programme is running, the door remains locked and must not be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

PROGRAMME END

•The

“Start”

button flashing indicates that the programme has finished and the door is unlocked.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGING PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Turn the programme selector to “Off/O”.

2. Select the new programme, any options and another spin speed if you want.

3. Press the

“Start”

button again. The new programme resumes the wash programme from where the previous one was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

• Reset by turning the programme selector to “Off/0” and select the “Drain Spin ” programme

to remove the water remaining in the

bowl before the door can be opened.
