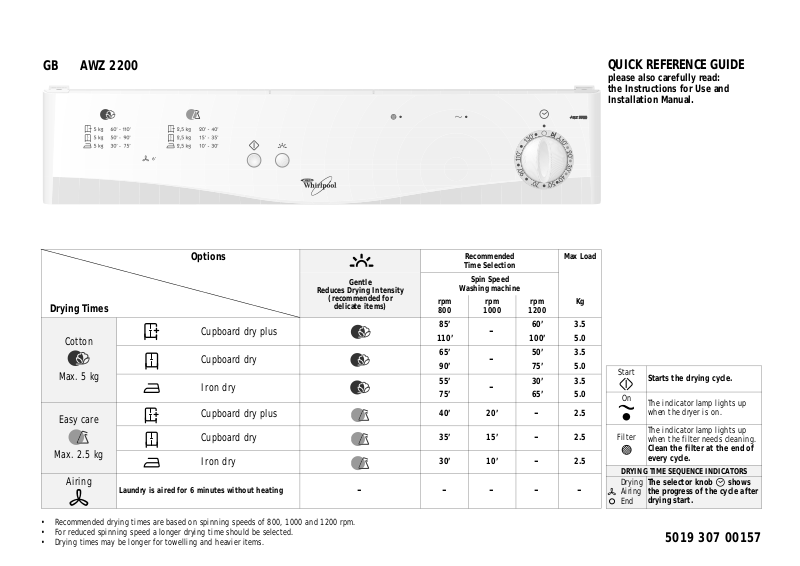

Whirlpool AWZ 2200 QUICK REFERENCE GUIDE

GB

AWZ 2200

QUICK REFERENCE GUIDE

please also carefully read:
the Instructions for Use and
Installation Manual.

Options

Reduces Drying Intensity

(recommended for

Drying Times

delicate items)

Cupboard dry plus

Cotton

Cupboard dry

Max. 5 kg

Iron dry

Easy care

Cupboard dry plus
Cupboard dry

Max. 2.5 kg

Iron dry

Airing

Laundry is aired for 6 minutes without heating

• Recommended drying times are based on spinning speeds of 800, 1000 and 1200 rpm.

• For reduced spinning speed a longer drying time should be selected.

• Drying times may be longer for towelling and heavier items.

Recommended
Time Selection

Gentle

rpm
800

85’

110’

65’
90’
55’
75’

40’ 20’

35’ 15’

30’ 10’

Spin Speed

Washing machine

rpm

1000

-

-

-

rpm

1200

60’

100’

50’
75’
30’
65’

-

-

-

-----

Max Load

Kg

3.5

5.0

3.5

5.0

3.5

5.0

2.5

2.5

2.5

Start

On

Filter

DRYING TIME SEQUENCE INDICATORS

Drying
Airing
End

Starts the drying cycle.

The indicator lamp lights up
when the dryer is on.

The indicator lamp lights up
when the filter needs cleaning.

Clean the filter at the end of
every cycle.

The selector knob shows
the progress of the cycle after
drying start.

5019 307 00157

PREPARING THE LAUNDRY SELECTING A DRYING TIME OR A PROGRAMME,

1. Check that all fastenings are closed and that
pockets are empty.

2. Turn the articles inside out.

3. Place laundry loosely in the drum to make
sure it doesn’t become tangled.

Sort laundry as follows:
A) By care symbols

(on the collar or inside seam):

Suitable for tumble drying
Tumble drying with reduced drying

intensity only
Do not tumble dry

B) By amount and thickness/weight

Whenever the load to be dried exceeds dryer
capacity, separate laundry according to
weight (e.g. towels from thin underwear).

C) By type of fabrics

Cotton/linen

table linen made of cotton or linen.

Synthetics/Easy Care

etc. made of polyester or polyamide, as well
as cotton/synthetic mixes.

D) By drying level

• Sort into: iron dry, cupboard dry, etc.

Do not tumble dry:

stockings, delicate embroidery, fabrics with
metallic decorations, bulky items such as
sleeping bags, etc.

Important: only use specific indicated d ry er­safe additives

treated with stain remover thoroughly in plenty
of water before drying.

indicated dryer-safe plastic items

dry

rubber or articles contaminated with

vegetable oil

: Towels, cotton jersey, bed and

: Blouses, shirts, overalls,

Woollens, silk, nylon

and rinse items that have been

Only use specific

and

never

in the dryer.

AND OPTIONS

Drying Time or Programme and Options:

• To select a drying time or a programme, turn
the time selector knob clockwise.

• To select an option (if available), press the
corresponding button.

• Press the button again to cancel the option.

STARTING AND COMPLETING A DRYING CYCLE

1. Having selected the desired drying time or
programme and options, press the Start
button.
If the laundry is not removed at the end of
the drying cycle, an automatic anti-crease
cycle will operate for maximum 12 min. The
drum rotates at regular intervals, preventing
the laundry from creasing.

2. On completion of the drying cycle, set the time
selector knob to position “0”.
The dryer indicator lamp “On” switches off .

INTERRUPTING A DRYING CYCLE

To interrupt the dryer during operation

1. Set the time selector knob to the programme
“Airing”.

2. Wait at least 5 minutes before opening the
door to allow the dryer to cool down.
For your safety the drying time stops
automatically if you open the door.

3. To restart, after door opening, close the
door and press the Start button again.

FILTER

Clean the lint filter at the end of every drying
cycle:

1. Open the door.

2. Pull the filter upwards.

3. Remove lint using a soft brush or your
fingertips.

4. Push the filter firmly back into place.

BUILT-IN INSTALLATION

To built in the dryer

1. It is recommended to not remove the work­top.

2. Connect the dryer to an external ventilation
system in order to prevent steam from
damaging your furniture during the years.

TROUBLESHOOTING GUIDE

If a fault occurs, before contacting our After­Sales Service, make the following checks to
try and remedy the problem:

Drying takes too long / laundry is not dry
enough:

• Was the correct drying time selected?

• Was the inserted laundry too wet (Washing
machine spin speed less than 800 rpm)?

• Is the lint filter dirty (filter indicator lamp
on)?

The dryer does not operate:

• Is the power plug properly inserted into the
mains electricity socket?

• Is there a power failure?

• Has the fuse blown?

• Is the door properly closed?

• Has the drying time been selected?

• Has the

Lint filter indicator lamp on:

• Is the lint filter clean?

• Is the vent hose blocked?

button been pressed?

Start

AFTER-SALES SERVICE

If, after carrying out the above checks the
malfunction persists or appears again, turn
the dryer off and call our After-Sales Service
(refer to guarantee).

Please specify:

• The nature of the fault.

• The dryer type and model.

• The service code (the number after the word
Service on the adhesive rating plate) on the
right-hand side when the door is open.

• Your full address and phone number.

5019 307 00157
