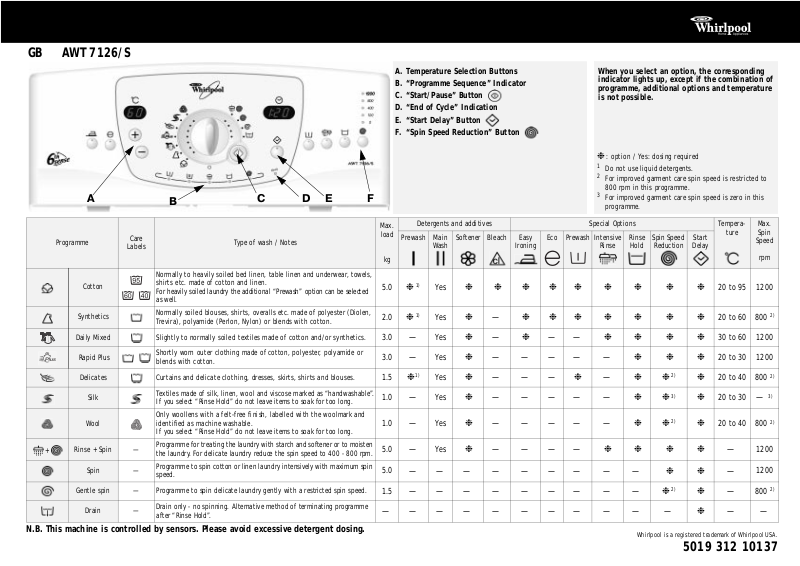

Whirlpool AWT 7126/S PROGRAM CHART

GB

AWT 7126/S

Programme

+

B

Care

Labels

Normally to heavily soiled bed linen, table lin en and un d erwear, towels ,

Cotton

Synthetics

Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetics.

Rapid Plus

Delicates Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Silk

Wool

Rinse + Spin —

Spin —

Gentle spin —

Drain —

shirts etc. made of cotton and linen.

For heavily soiled laundry the additional “Prewash” option can be selected
as well.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Shortly worn outer clothing made of cotton, polyester, polyamide or
blends with cotton.

Textiles m ade o f silk, linen, wool an d viscose m arked as “hand w ashable”.

If you select “Rinse Hold” do not leave items to soak for too long.

Only woollens with a felt-free finish, labelled with the woolmark and
identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.
Programme for treating the laundry with starch and softener or to moisten

the laundry. For delicate laundry reduce the spin speed to 400 - 800 rpm.
Programme to spin cotton or linen laundry intensively with maximum spin

speed.
Programme to spin delicate laundry gently with a restricted spin speed.
Drain only - no spinning. Alternative method of terminating programme

after “Rinse Hold”.

CFA

Type of wash / Notes

ED

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

A. Temperature Selection Buttons
B. “Programme Sequence” Indicator
C. “Start/Pause” Button

When you select an option, the corresponding
indicator lights up, except if the combination of
programme, additional options and temperature
is not possible.

D. “End of Cycle” Indication
E. “Start Delay” Button
F. “Spin Speed Reduction” Button

❉

: option / Yes: dosing required

1

Do not use liquid detergents.

2

For improved garment care spin speed is restricted to
800 rpm in this programme.

3

For improved garment care spin speed is zero in this
programme.

Max.
load

kg

5.0

2.0

3.0

3.0

1.5

1.0

1.0

5.0

5.0

1.5

Detergents and additives Special Options Tempera-

Prewash Main

1)

❉

1)

❉

—
—

1)

❉

—

—

—
——— ———— — —

——— ———— — —❉

Softener Bleach Easy

Wash

Yes

Yes
Yes
Yes
Yes
Yes

Yes

Yes

❉❉❉❉❉❉❉ ❉ ❉

❉
❉
❉
❉
❉

❉

❉

Ironing

—
—

Eco Prewash Intensive

Rinse

❉❉❉ ❉ ❉ ❉ ❉
❉

——

❉❉ ❉ ❉

—————
———

❉

—

—————

—————

————

❉❉ ❉ ❉

Rinse

Spin Speed

Hold

Reduction

❉❉❉
❉❉

2)

❉❉ 3)❉

❉❉

2)

❉❉

2)

———— — ——— — — —

Whirlpool is a registered trademark of Whirlpool USA.

Max.
Spin

Speed

rpm

Start

Delay

ture

20 to 95 1200

20 to 60

800

2)

30 to 60 1200
20 to 30 1200

❉

❉

❉
❉

20 to 40
20 to 30

20 to 40

—
—

—
——

800

—

800

1200

1200

800

2)

3)

2)

2)

5019 312 10137

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)*
Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05
Cotton 60 5.0 48 0.95 2:05

Daily Mixed 40 3.0 45 0.45 1:00

Synthetics 60/40 2.0 55/50 0.70/0.50 1:30/1:15
Rapid Plus 30 3.0 35 0.40 0:30

Delicates 40 1.5 50 0.50 0:45

Wool 40 1.0 50 0.50 0:45

Silk 30 1.0 35 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy
Label” refer to the programme “Cotton 60°C”.
* The remaining time indicator

household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE

1. Close the drum doors and check that they are
properly locked.

2. Add detergents and additives into the dispenser
to no more then the
follows:

• Programme with pre and main wash

• Main wash programm e with out prew ash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

desired programme.
The remaining time display shows the
duration of the chosen programme (in hours and
minutes) and the indicator light of the

Pause”

button flashes.
The programme sequence and the predefined
spin speed indication corresponding to the
selected programme lights up.

The preselected temperature can be altered by
pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by the
programme, the corresponding indicator lights up,
except if the combination of programme,
additional options and temperature is not possible.

can similarly deviate from the values in the table, because it takes into account the

“Easy Ironing” button

• Can be used together with “Cotton” , “Synthetic”
and “Daily Mixed” programmes to make

ironing easier.

“MAX”

level mark, as

• Increases the water quantity in rinsing and the

clothes are spun in a softer manner.

“Eco” button

• The dur ati on of th e w ash is exten ded an d th e m ax

temperature re d uced to save up to 40% of en ergy
compared to a normal w ash but m ain tainin g g ood
washing results.

“Prewash” button

to the

• Only for heavily soiled loads (for example sand,

granular dirt).

“Intensive Rinse” button

“Start/

• The amoun t of wa ter is increased to en sure a mor e

intensive rinse.

• This option is particularly suitable for areas with

very soft water, washing baby linen and people
with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water

without progressing to the final spin cycle to
avoid creasing and prevent colours from fading.

• This option is particularly recommended for the

“Synthetic” , “Delicate” and “Daily Mixed”

programmes.

• This function is particularly useful if you want to

postpone spinning to a later time, or if you want
to drain only.

Note:

The programme with “Rinse Hold” stops
when the “Rinse Hold” indicator light flashes on
the “Programme Sequence Indicator”.

Appliance in “Rinse Hold” :

• Press the “Rinse Hold” button again: the

programme will terminate automatically with
the selected spin cycle.

• If you do not wish to spin th e cloth es , turn th e

programme selector knob to the “Drain”
programme and press the “

Start/Pause

”

button again.

“Spin Speed Reduction” button

• Every programme has an automatically

allocated maximum spin speed.

• Press the button to set another spin speed.

If the spin speed “0” is selected, the final spin

•

is cancelled, but not the intermediate spins.
The programme ends with a drain cycle.

START DELAY

The “Start Delay” button allows the user to run
the machine at his convenience, for example at
night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button several

times to select the delay time by 1 to 19 hours;

•Press the “

indicator ligh t of the

Start/Pause

” button . The

“Start/Pause”

button
lights up and the lamp of the “Start Delay”
button flashes.

• The time delay indication disappears when the
programme starts and is replaced by the
remaining time .

• The number of hours preselected can be reduced
later by pressing the “Start Delay” button
again.

To cancel the “Start Delay” option

• Turn the prog ramm e selector to th e “ ” position.

• Reselect the desired programme and options
and press the “

Start/Pause

” button .

PROGRAMME START

Turn on the tap and press the “
button . The indicator light of the “

Pause

” button lights up. The indicator lamp

Start/Pause

Start/

”

shows the sequence reached by the programme. After
starting the programme, the programme sequence
indicator signals the Wash, Rinse and Spin phases.

Note

: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it was
interrupted.

LID LOCK

For safety reasons, the lid is locked during certain
phases of the cycle. At the end of the cycle or
during an interruption, the lid unlocks
automatically after about 1 minute.

END OF WASH CYCLE

• The remaining time is on “0: 00” and the

“End” lamp lights up.

1. Turn the programme selector to the “ ”

position.

2. Turn the tap off.

Open the lid and the drum doors and unload

3.

the machine.

CHANGE THE PROGRAMME OR OPTIONS DURING
THE CYCLE

1. Select the new programme using the

programme selector. If necessary, select the
additional options and the spin speed. The
luminous indicator of the

“Start/Pause”

button flashes.
Note: the “Start Delay” and “Prewash”
options cannot be selected after a programme
change.

2.

Press the

“Start/Pause

” button . The new
programme selected continues at the same
position where the previous programme was
interrupted.

Note:

Do not add detergent for this

programme.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:

1. Press the

“Start/Pause”

button .

The light flashes.

2. After the desired pause, press again on the

“Start/Pause”

button .

CANCEL PROGRAMME

1. Set the programme selector to “Drain” .

2. Press the

“Start/Pause”

button to start

the “Drain” programme .
