Whirlpool AWT 7108DF PROGRAM CHART
1) For improved garment care,
spin speed is restricted.
2) Programme duration
figures (guideline) are valid
for maximum temperature
wash with no special
functions.
GB
AWT 7108DF
Wool
Silk
Rinse Hold
Option

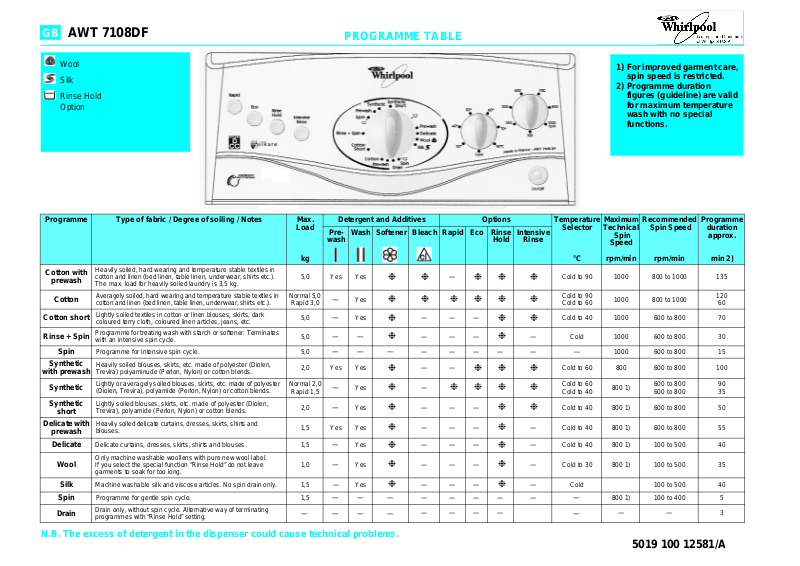

PROGRAMME TABLE
Programme Type of fabric / Degree of soiling / Notes Max.
Load
Cotton with
prewash
Cotton
Cotton short
Rinse + Spin
Spin
Synthetic
with prewash
Synthetic
Synthetic
short
Delicate with
prewash
Delicate
Wool
Silk
Spin
Drain
Heavily soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
The max. load for heavily soiled laundry is 3,5 kg.
Averagely soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
Lightly soiled textiles in cotton or linen blouses, skirts, dark
coloured terry cloth, coloured linen articles, jeans, etc.
Programme for treating wash with starch or softener. Terminates
with an intensive spin cycle.
Programme for Intensive spin cycle. 5,0
Heavily soiled blouses, skirts, etc. made of polyester (Diolen,
Trevira) polyaminude (Perlon, Nylon) or cotton blends.
Lightly or averagely soiled blouses, skirts, etc. made of polyester
(Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.
Lightly soiled blouses, skirts, etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.
Heavily soiled delicate curtains, dresses, skirts, shirts and
blouses.
Delicate curtains, dresses, skirts, shirts and blouses. 1,5
Only machine washable woollens with pure new wool label.
If you select the special function “Rinse Hold” do not leave
garments to soak for too long.
Machine washable silk and viscose articles. No spin drain only. 1,5
Programme for gentle spin cycle. 1,5
Drain only, without spin cycle. Alternative way of terminating
programmes with “Rinse Hold” setting.
Normal 5,0
Rapid 3,0
Normal 2,0
Rapid 1,5
Detergent and Additives Options Temperature
Pre-
Wash Softener Bleach Rapid Eco Rinse
wash
kg
5,0 Yes Yes
Yes
—
5,0
5,0
Yes
—
——
❉❉—❉❉ ❉
❉❉❉❉❉❉
❉
❉
—— —
2,0
2,0
1,5
1,0
Yes Yes
Yes
—
Yes
—
Yes Yes
Yes
—
Yes
—
Yes
—
❉
❉
❉
❉
❉
❉
❉
—— —
————
Selector
Hold
Intensive
Rinse
°C
Cold to 90 1000 800 to 1000 135
Cold to 90
Cold to 60
———
———
———— — —
——
—
❉❉❉ ❉
———
———
———
———
———
———— —
————
❉❉
❉
—
❉❉ ❉
❉❉
❉
❉
❉
❉
—
—
—
—
Cold to 40 1000 600 to 800 70
Cold 1000 600 to 800 30
Cold to 60 800 600 to 800 100
Cold to 60
Cold to 40
Cold to 40 800 1) 600 to 800 50
Cold to 40 800 1) 600 to 800 55
Cold to 40 800 1) 100 to 500 40
Cold to 30 800 1) 100 to 500 35
Cold 100 to 500 40
—
—
Maximum
Technical
Recommended
Spin Speed
Spin
Speed
rpm/min
1000 800 to 1000
1000 600 to 800 15
800 1)
800 1) 100 to 400 5
——
rpm/min
600 to 800
600 to 800
Programme
duration
approx.
min 2)
120
60
90
35
3
N.B. The excess of detergent in the dispenser could cause technical problems.
5019 100 12581/A
p
GB
CONSUMPTION DATA
Programme Temperature
selector
(°C)
Cotton + Intensive Rinse 90 5,0 71 1,9 120
Cotton + Eco 60 5,0 55 1,15 125
Cotton short 40 5,0 55 0,6 70
Synthetic 60 2,0 57 0,8 90
Synthetic short 40 2,0 49 0,4 50
Delicate 30 1,5 50 0,3 40
Wool 40 1,0 50 0,4 55
Silk 30 1,0 50 0,3 40
Prewash cycle increases programme duration by approx. 15 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values
in the table in relation to the water supply pressure and temperature, the load and the type of wash.
Load
(kg)
Water
(l)
Energy
(kWh)
Programme
Duration
(min)
ADDING DETERGENT AND ADDITIVES
Add the detergent and the additives into the dispenser as
follows:
• Programme with pre- and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (water hardness 4)
Important:
• Be careful not to fill more than the
“MAX”
level mark.
• For programme with prewash: do not use liquid detergents.
• For programmes without prewash from cold to 40°C, it is
recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the
2. Turn the
3. Turn the
programme selector knob
temperature knob
spin speed selector
to the required temperature.
to the required setting.
clockwise to the desired programme.
PRESS THE DESIRED SPECIAL OPTION BUTTON(S)
“Rapid” button
• For quick, economical washes.
• Ideal for minimum loads of lightly-soiled articles (reduce the detergent quantity).
If “Rapid” is selected, the option “Eco” is inhibited.
ortant:
Im
“Eco” button
• The wash time is extended and the water temperature is reduced.
• This function saves about 30% in energy without compromising the excellent results of
the wash.
“Rinse Hold” button
• The laundry remains in the last rinse water without progressing to the spin cycle to
avoid creasing and prevent colours from changing.
• This option is particularly recommended for the programmes “Synthetic” or “Delicate”.
• This function is particularly useful if you want to postpone spinning to a later time or
when you do not wish to spin the clothes.
Note:
The programme selector knob stops on the position “”.
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold / Start Delay” button again; the pro gramme will terminate
automatically with the spin cycle for the present wash programme.
• If you do not wish to spin the clothes, turn the drain programme and push on the
On/Off button again.
“Intensive Rinse” button
• For improved rinsing efficiency the rinse cycle time is extended and the water level
increases.
• This option is particulary suitable for areas with very soft water washing baby linen and
helps people with allergies.
PROGRAMME START
Open the tap and press the On/Off button. The pilot lamp lights up.
DOOR LOCK
During the running programme the door can be opened for adding further laundry.
The door locks automatically in all programmes. If the programme is stopped or the
electrical power supply is terminated, the door lock will open after approximately 1 minute.
Note:
If you open the door during the delicate or wool programme, there will be no spinning
at the end of the cycle but only draining. If you want to spin the laundry start the gentle spin
programme.
PROGRAMME END
• The programme selector knob is at “Stop”.
1. Press the On/Off button.
2. Cancel the special options by pressing the appropriate buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME
START
1. Press the On/Off button to switch off the appliance.
2. Select the new programme, temperature, spin speed and option.
3. Press the On/Off button to switch on the appliance.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Press the On/Off button to switch off the appliance.
2. Set the programme selector to “Drain”.
3. .Press the On/Off button to start the drain programme.
Only open the door when the programme selector is at “Stop” and the door is unlocked
(after approximately 1 minute).
5019 100 12581/A
