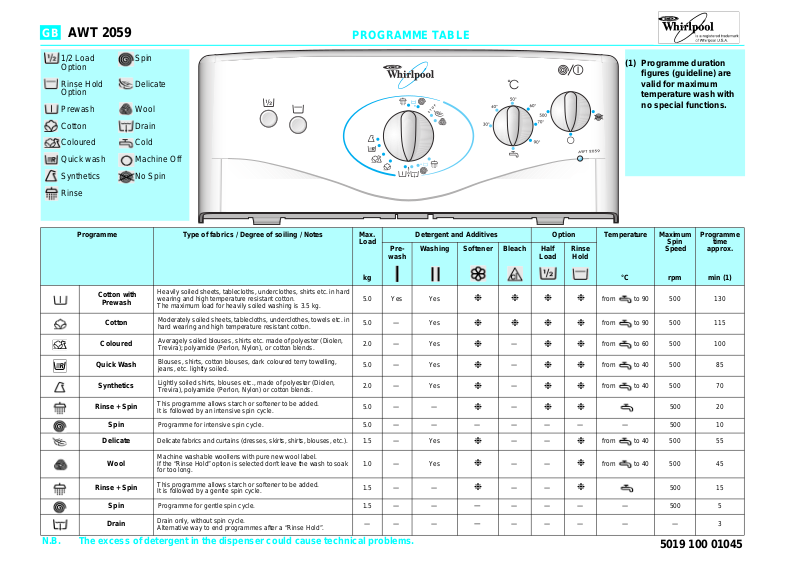

Whirlpool AWT 2059E PROGRAM CHART
(1) Programme duration
figures (guideline) are
valid for maximum
temperature wash with
no special functions.
GB
AWT 2059
PROGRAMME TABLE
1/2 Load
Spin
Option
Rinse Hold
Delicate
Option
Prewash Wool
Cotton Drain
Coloured Cold
Quick wash Machine Off
Synthetics No Spin
Rinse
Programme Type of fabrics / Degree of soiling / Notes Max.
Cotton with
Prewash
Cotton
Coloured
Quick Wash
Synthetics
Rinse + Spin
Spin
Delicate
Wool
Rinse + Spin
Spin
Drain
Heavily soiled sheets, tablec loths, undercl othes, shirts etc. in hard
wearing and high temperature resis tant cotton.
The maximum load for heavily soiled washing is 3.5 kg.
Moderately soiled sheets, tablecloths, underclothes, towels etc. in
hard wearing and high temperature resistant cotton.
Averagely soiled blouses, shirts etc. made of polyester (Diolen,
Trevira); polyamide (Perlon, Nylon), or cotton blends.
Blouses, shirts, cotton blouses, dark coloured terry towelling,
jeans, etc. lightly soiled.
Lightly soiled shirts, blouses etc., made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.
This programme allows starch or softener to be added.
It is followed by an intensive spin cycle.
Programme for intensive spin cycle. 5.0
Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.). 1.5
Machine washable woollens with pure new wool label.
If the “Rinse Hold” option is selected don't leave the wash to soak
for too long.
This programme allows starch or softener to be added.
It is followed by a gentle spin cycle.
Programme for gentle spin cycle. 1.5
Drain only, without spin cycle.
Alternative way to end programmes after a “Rinse Hold”.
Load
Pre-
wash
kg
5.0 Yes Yes
5.0
2.0
5.0
2.0
5.0
1.0
1.5
—— —
—
—
—
—
——
—— ———— —
—
—
——
——
N.B. The excess of detergent in the dispenser could cause technical problems.
Detergent and Additives Option Temperature
Washing Softener Bleach Half
Load
❉❉❉❉
Yes
Yes
Yes
Yes
❉❉❉❉
❉
❉
❉
❉
—
—
—
—
Rinse
Hold
from to 90 500 130
from to 90 500 115
❉❉
❉❉
❉❉
from to 60 500 100
from to 40 500 85
from to 40 500 70
❉❉
°C
500 20
Yes
Yes
❉
❉
❉
—
—
——
——
——
——— —
——— — —
from to 40 500 55
❉
from to 40 500 45
❉
❉
500 15
Maximum
Spin
Speed
rpm
500 10
500 5
Programme
time
approx.
min (1)
3
5019 100 01045
GB
ENERGY AND WATER CONSUMPTION DATA
Programme Temperature
(°C)
Cotton 90 5.0 72 1.80 115
Cotton 60 5.0 72 1.15 115
Coloured 60 2.0 66 0.80 100
Coloured 40 2.0 66 0.40 100
Quick Wash + 1/2 Load 40 2.5 57 0.55 85
Synthetics + 1/2 Load 30 1.0 55 0.30 70
Delicate 40 1.5 70 0.65 55
Wool 40 1.0 70 0.55 45
Programmes with prewash last about 15 minutes more than programmes without prewash. Water and energy
consumption values were measured in standard conditions in compliance with the Standard IEC 60 456. Individual
consumption may vary in comparison with the values specified in the table, because of differences in supply water
pressure and temperature, the load and the type of wash.
Load
(kg)
Water
(l)
Energy
(kWh)
Programme
time
(min)
ADDING DETERGENT AND ADDITIVES
Pour the detergent and additives into the respective
compartments as follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and starch
• Bleach
• Stain removers
• Anti-scale agents (water hardness 4)
Important Note:
• Do not fill beyond the
“MAX”
level mark.
• For programme with prewash: do not use liquid
detergent.
• For programmes without prewash from cold to 40° C, it is recommended to use a liquid
detergent to avoid whitish residues on the coloured laundry.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the
2. Turn the
programme selector knob
temperature knob
to the required temperature.
clockwise to the desired programme.
SELECT ANY DESIRED OPTION
“Half Load” button
• Reduces the water consumption in the “Cotton” and “Synthetics” programmes
especially during the rinse.
• Especially suitable for lightly soiled or small loads (reduces the quantity of detergent).
• Not suitable for high temperature programmes.
“Rinse Hold” button
• The laundry remains in the last rinse water, without progressing to the spin cycle to
avoid creasing and prevent colours from changing.
• This option is especially recommended for the “Synthetics” or “Delicate” programmes.
• This option is perfectly suitable if you wish to postpone the spin or you don’t wish to
spin the clothes.
Note:
the programme selector stops on “ ”.
Terminate the “Rinse Hold” option
• Press the “Rinse Hold” button again; the programme will terminate automatically with
the spin cycle corresponding to the previously selected wash programme.
• If you do not wish to spin the clothes, switch off the appliance by pressing the “On/Off”
button. The pilot light goes out. Turn the programme selector to the “Drain” position and
switch on the appliance.
“No Spin”
• It excludes the spin function from the programme.
PROGRAMME START
Open the water inlet tap and select the desidered spin speed, turning the
Off knob
to the desidered position (the indicated spin speed or “No Spin”).The pilot lamp
lights up.
spin speed and On/
DOOR LOCK
During the running programme, the door cannot be opened.
The door locks automatically in all programmes.
If the programme is stopped or if an electrical power failure occurs, the door unlocks
automatically after about 1 minute.
PROGRAMME END
• The programme selector knob is at “STOP”.
1. Turn the spin speed knob to the Off position “ ”. The pilot light goes out.
2. Cancel the options by pressing the appropriate buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER
PROGRAMME START
1. Turn the spin speed knob to the Off position “ ” to switch off the appliance.
The pilot light goes out.
2. Select the new programme, temperature and options.
3. Turn the spin speed knob to the desidered spin speed to switch on the appliance.
The pilot light lights.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Turn the spin speed knob to the Off position “ ” to switch off the appliance.
The pilot light goes out.
2. Set the programme selector on “Drain”.
3. Turn the spin speed knob to the desidered spin speed to start the “Drain” programme.
Only open the door when the programme selector is at “STOP” and
the door is unlocked (after approximately 1 minute).
5019 100 01045
