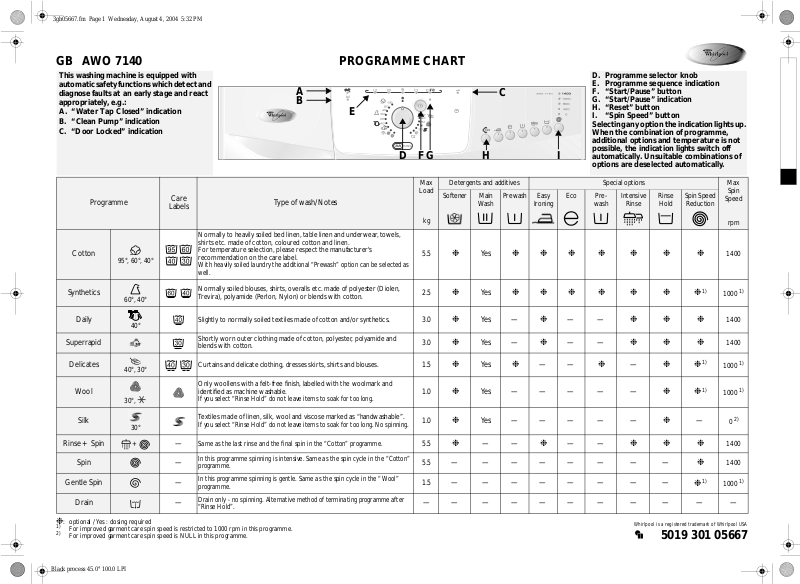

GB AWO 7140 PROGRAMME CHART
This washing machine is equipped with
automatic safety functions which detect and
diagnose faults at an early stage and react
appropriately, e.g.:
A. “Water Tap Closed” indication
B. “Clean Pump” indication
C. “Door Locked” indication
A
B
GEF
D. Programme selector knob
E. Programme sequence indication
C
F. “Start/Pause” button
G. “Start/Pause” indication
H. “Reset” button
I. “Spin Speed” button
Selecting any option the indication lights up.
When the combination of programme,
additional options and temperature is not
possible, the indication lights switch off
HID
automatically. Unsuitable combinations of
options are deselected automatically.
Programme
Cotton
Synthetics
Daily
Superrapid
Delicates
Wool
Silk
95°, 60°, 40°
60°, 40°
40°
40°, 30°
30°,
30°
Care
Labels
Type of wash/Notes
Normally to heavily soiled bed linen, table linen and underwear, towels,
shirts etc. made of cotton, coloured cotton and linen.
For temperature selection, please respect the manufacturer's
recommendation on the care label.
With heavily soiled laundry the additional “Prewash” option can be selected as
well.
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or blends with cotton.
Slightly to normally soiled textiles made of cotton and/or synthetics.
Shortly worn outer clothing made of cotton, polyester, polyamide and
blends with cotton.
Curtains and delicate clothing, dresses skirts, shirts and blouses.
Only woollens with a felt-free finish, labelled with the woolmark and
identified as machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.
Textiles made of linen, silk, wool and viscose marked as “handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long. No spinning.
Max
Load
kg
5.5
2.5
3.0
3.0
1.5
1.0
1.0
Detergents and additives Special options Max
Softener Main
❉
❉
❉
❉
❉
❉
❉
Prewash Easy
Wash
Yes
Yes
Yes —
Yes —
Yes
Ironing
❉❉❉❉ ❉ ❉ ❉
❉❉❉❉ ❉ ❉
❉
——
❉
❉
Eco Pre-
wash
——
——
❉
Intensive
Yes — — — — —
Yes — — — — —
Rinse
Rinse
Hold
Spin Speed
Reduction
1)
❉
❉❉❉
❉❉❉
—
❉
❉
❉
1)
❉
1)
❉
—
Spin
Speed
rpm
1400
1000
1400
1400
1000
1000
0
1)
1)
1)
2)
Rinse + Spin
+
Spin —
Gentle Spin —
Drain —
❉
: optional / Yes : dosing required
1)
For improved garment care spin speed is restricted to 1000 rpm in this programme.
2)
For improved garment care spin speed is NULL in this programme.
Black process 45.0° 100.0 LPI
Same as the last rinse and the final spin in the “Cotton” programme.
—
In this programme spinning is intensive. Same as the spin cycle in the “Cotton”
programme.
In this programme spinning is gentle. Same as the spin cycle in the “Wool”
programme.
Drain only - no spinning. Alternative method of terminating programme after
“Rinse Hold”.
5.5
5.5
1.5
❉
——
❉
——
❉❉❉
————————
————————
❉
❉
1400
1400
1)
1000
1)
—— ————— — — — —
Whirlpool is a registered trademark of Whirlpool USA
5019 301 05667
3gb05667.fm Page 2 Wednesday, August 4, 2004 5:32 PM
CONSUMPTION DATA
Temperature
Programme
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx.
Programme
Duration
(hours : minutes)
Cotton 95 5.5 54* 1.90 2:00
Cotton 60 5.5 49 1.04 2:20
Cotton 40 5.0 44 0.60 2:05
Synthetics 60 2.5 55 0.80 1:30
Synthetics 40 2.5 55 0.60 1:20
Daily 40 3.0 45 0.50 1:00
Superrapid 30 3.0 37 0.40 0:30
Delicates 30 1.5 60 0.50 0:45
Wool 30 1.0 60 0.30 0:40
Silk 30 1.0 45 0.30 0:40
Prewash cycle might increase programme duration. Consumption values were measured in no rmalized conditions in compliance
with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the
water supply pressure and temperature, the load and the type of wash.
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the
water out.
ADD DETERGENTS, CLOSE THE DOOR
AND SELECT THE PROGRAMME
Add the detergents as described in the programme
table or in the chapter “Detergents and Additives”
in the booklet.
1. Turn the
programme selector knob
to the
desired programme.
2. The indication of the
“Start/Pause”
button is
flashing.
3. The programme sequence and the predefined
spin speed indication corresponding to the
selected programme lights up.
SELECT ANY DESIRED OPTION
Selecting any option the indication lights up.
When the combination of programme, additional
options and temperature is not possible, the
indication lights switch off automatically. Unsuitable
combinations of options are deselected
automatically.
“Easy Ironing” button
• Can be used together with “Cotton”, “Synthetics”
and “Daily” programmes to make ironing easier.
• Increases the water quantity and the clothes are
spun very soft.
“Eco” button
• The duration of the wash is extended and the
temperature reduced to save up to 40% of
energy but maintaining good washing results.
“Prewash” button
• Only for heavily soiled loads (for example sand,
granular dirt) sensible. The cycle time increases
approximately 15 min.
“Intensive Rinse” button
• More water and a longer time in rinse cycle is added.
• This option is particularly suitable for areas with
very soft water, washing baby linen and helps
people with allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water
without progressing to the final spin cycle to
avoid creasing and prevent colours from
changing.
• This option is particularly recommended for the
programme “Synthetics”, “Daily” and
“Delicates”.
• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.
The programme stops to “Rinse Hold” at
Note:
the time the “Rinse Hold” light in the programme
sequence indication is on.
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold” button again; the
programme will terminate automatically with the
final spin cycle for the present wash programme.
• If you do not wish to spin the clothes, turn the
programme selector knob counterclockwise to
the “Drain” programme and press the
“Start/Pause”
button again when the indication
next to it is flashing.
“Spin Speed” button
• Every programme has an automatic predefined
maximum spin speed.
• Press the button to set another spin speed.
• If the spin speed “0” is selected, the final spinning is
cancelled but intermediate spin peaks remain
during rinse. The water is drained out only .
PROGRAMME START
Open the tap and press the
The indication next to the
“Start/Pause”
“Start/Pause”
button.
button
lights up.
The indications show the sequence reached in the
programme. After starting the programme, the
sequence indication runs from left to right through
Wash, Rinse, Spin.
When the sequence of the programme is finished
the corresponding indication goes out.
RED INDICATIONS
“Water Tap Closed”
The appliance has no or insufficient water supply.
Open the water tap; if the indication still lights up,
refer to the “Troubleshooting Guide” in the
Instructions for Use.
“Clean Pump”
Waste water is not pumped out. Check whether the
drain hose is kinked or the filter must be cleaned; in
the latter case refer to the Instructions for Use
(“Removing the Filter”).
“Door Locked”
As long as a washing programme is running, the
lamp lights up to show that the door cannot be
opened. When the indication goes off, the door can
be opened again.
PROGRAMME END
• All the lights of the programme sequence
indication are off.
1. Turn the programme selector to the
Off
“
/0”
position.
2. Close the water tap.
3. Open the door and unload the machine.
4. Leave the door ajar to allow the drum to dry out.
CHANGE THE PROGRAMME,
TEMPERATURE, OPTIONS AFTER
PROGRAMME START
1. Press the
“Start/Pause”
button to pause the
programme. The light flashes.
2. Select the new programme (with temperature),
any options and another spin speed if you want.
3. Press the
“Start/Pause”
button again. The new
programme continues at the same position where
the previous programme was interrupted. Do not
add detergent for this programme.
CANCEL (RESET) A RUNNING
PROGRAMME BEFORE THE END
The
“Reset”
button cancels a programme before
the end.
•Press the
“Reset”
button for at least 3 seconds.
Any existing water is drained out before the
door can be opened.
Whirlpool is a registered trademark of Whirlpool USA
5019 301 05667
Black process 45.0° 100.0 LPI
