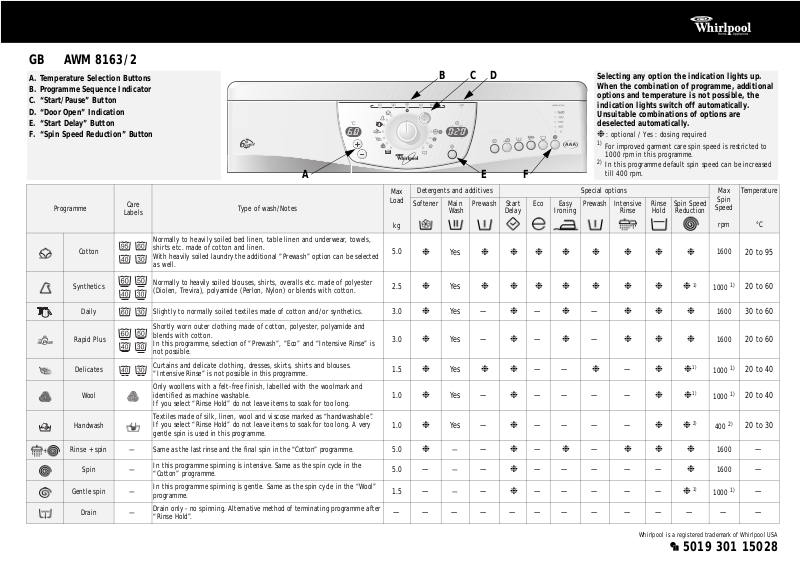

GB
AWM 8163/2
A. Temperature Selection Buttons
B. Programme Sequence Indicator
C. “Start/Pause” Button
D. “Door Open” Indication
E. “Start Delay” Button
F. “Spin Speed Reduction” Button
Programme
Synthetics
Rapid Plus
Handwash
Rinse + spin —
+
Gentle spin —
Cotton
Daily
Delicates
Wool
Spin —
Drain —
Care
Labels
AF
Type of wash/Notes
Normally to heavily soiled bed linen, table linen and underwear, towels,
shirts etc. made of cotton and linen.
With heavily soiled laundry the additional “Prewash” option can be selected
as well.
Normally to heavily soiled blouses, shirts, overalls etc. made of polyester
(Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.
Slightly to normally soiled textiles made of cotton and/or synthetics.
Shortly worn outer clothing made of cotton, polyester, polyamide and
blends with cotton.
In this programme, selection of “Prewash”, “Eco” and “Intensive Rinse” is
not possible.
Curtains and delicate clothing, dresses, skirts, shirts and blouses.
“Intensive Rinse” is not possible in this programme.
Only woollens with a felt-free finish, labelled with the woolmark and
identified as machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.
Textiles made of silk, linen, wool and viscose marked as “handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long. A very
gentle spin is used in this programme.
Same as the last rinse and the final spin i n t he “ Cotton” pr ogramme.
In this programme spinning is intensive. Same as the spin cycle in the
“Cotton” programme.
In this programme spinning is gentle. Same as the spin cycle in the “Wool”
programme.
Drain only - no spinning. Alternative method of terminating programme after
“Rinse Hold”.
D
CB
Selecting any option the indication lights up.
When the combination of programme, additional
options and temperature is not possible, the
indication lights switch off automatically.
Unsuitable combinations of options are
deselected automatically.
❉
: optional / Yes : dosing required
1)
For improved garment care spin speed is restricted to
1000 rpm in this programme.
2)
In this programme default spin speed can be increased
E
Detergents and additives Special options Max
Max
Load
kg
5.0
2.5
3.0
3.0
1.5
1.0
1.0
5.0
5.0
1.5
Softener Main
❉
❉
❉
❉
❉
❉
❉
❉
—
—
Prewash Start
Wash
Yes
Yes
Yes —
Yes —
Yes
Yes —
Yes —
—
—
—
Eco Easy
Delay
Ironing
❉❉❉❉❉ ❉ ❉ ❉
❉❉❉❉❉ ❉ ❉❉
—
❉
❉
❉❉
❉
❉
—
—
—
❉
❉
❉
❉
—
❉
——
—— — —
—— — —
—
❉
—— — — —
—— — — —
till 400 rpm.
Prewash Intensive
—
—
—
Rinse
❉❉❉
❉❉❉
❉
—
❉❉❉
Rinse
Spin Speed
Hold
Reduction
1)
❉❉
❉❉
❉❉
1)
1)
2)
❉
1)
❉
Spin
Speed
rpm
1600
1000
1600
1600
1000
1000
400
1600
1600
1000
Temperature
20 to 95
1)
20 to 60
30 to 60
20 to 60
1)
20 to 40
1)
20 to 40
2)
20 to 30
1)
°C
—
—
—
———————— — — — — —
Whirlpool is a registered trademark of Whirlpool USA
5019 301 15028
CONSUMPTION DATA
Programme
Temperature Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)*
Cotton 90 5.0 44** 1.60 1:55
Cotton 60 5.0 39 0.95 2:00
Cotton 40 5.0 39 0.55 2:00
Synthetics 60 2.5 55 0.70 1:30
Synthetics 40 2.5 50 0.50 1:15
Daily 40 3.0 45 0.50 1:00
Rapid Plus 30 3.0 35 0.40 0:30
Delicates 30 1.5 50 0.50 0:45
Wool 40 1.0 50 0.50 0:40
Handwash 30 1.0 35 0.40 0:35
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash.
* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the
household conditions applicable at that time.
**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE
PROGRAMME
Add the detergents as described in the programme
table or in the chapter “Detergents and Additives” in
the booklet.
1. Turn the
programme selector knob
to the
desired programme.
2. The remaining time display shows the duration of
the chosen programme (in hours and minutes)
and the pilot lamp of the
“Start/Pause”
button
is flashing.
3. The programme sequence and the predefined
spin speed indication corresponding to the
selected programme lights up.
The recommen d ed temper atur e (see th e in di cator)
can be altered by pressing “+” or “-” button.
SELECT ANY DESIRED OPTION
Selecting any option the indication lights up.
When the combination of programme, additional
options and temperature is not possible, the
indication lights switch off automatically.
Unsuitable combinations of options are
deselected automatically.
“Eco Wash” button
• The duration of the wash is extended and the
temperature re d uced to save up to 40% of energy
but maintaining good washing results.
“Easy Ironing” button
• Can be used together with Cotton, Synthetics an d
Daily programmes to make ironing easier.
• Increases the water quantity and the clothes are
spun very soft.
“Prewash” button
• Only for heavily soiled loads (for example sand,
granular dirt) sensible. The cycle time increases
approximately 15 min.
“Intensive Rinse” button
• A further rinse cycle is added.
• This option is particularly suitable for areas with
very soft water, washing baby linen and helps
people with allergies.
“Rinse Hold” button
• The laundry remains in the last rin se w ater with out
progressing to the fin al spin cycle to avoi d cr easin g
and prevent colours fr om changin g.
• This option is particularly recommended for the
programme “Synthetics”, “Daily” and “Delicates”.
• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.
Note:
The programme stops to “Rinse Hold” at the
time the “Rinse Hold” light in the programme flow
indication is on.
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold” button again; the
programme will terminate autom atically with th e
final spin cycle for the present w ash programm e .
• If you do not wish to spin the clothes, turn the
programme selector knob to the “Drain”
programme an d press th e
“Start/Pause”
button
again when flashing.
“Spin Speed Reduction” button
• Every programme has an automatic predefined
maximum spin speed.
• Press the button to set another spin speed.
• If the spin speed “0” is selected, the final
spinning is cancelled but intermediate spin
peak s remain during rinse. The water is drained
out only.
START DELAY
The “Start Delay” allows to run the machine at the
consumer’s convenience, for example at night
when electricity is cheaper.
• Select programme, temperature and options.
• Press the “Start Delay” button to select the
delay time by 1 to 19 hours;
•Press the
“Start/ Pause”
button. The “Start
Delay” light flashes until the programme starts.
• The time delay indication disappears when the
programme starts and it is replaced by the
remaining time.
• The number of hours preselected can later be
reduced pressing again the “Start Delay”
button.
To cancel the “Start Delay”.
• Turn the programme selector to the “ ”
position.
• Reselect the desired programme and options
and press the
“Start/Pause”
button.
PROGRAMME START
Open the tap and press the
The pilot lamp of the
“Start/Pause”
“Start/Pause”
button.
button lights up.
The indicator lamps show the sequence reached in
the programme. After starting the programme, the
sequence indication runs from left to right through
Wash, Rinse, Spin.
When the sequence of the programme is finished
the corresponding lamp goes out.
DOOR LOCK
During the first 15 minutes of the cotton and
synthetics programmes the door can be opened for
adding further laundry.
The door can be opened when the “Door Open”
indication is shining.
PROGRAMME END
• The remaining time is on “0:00” and all the
lights of the programme sequence indication
are off.
1. Turn the programme selector to the
“”
position.
2. Turn the water supply tap off.
3. Open the door and unload the machine.
4. Close the tap and leave the door ajar to allow
the drum to dry out.
CHANGE THE PROGRAMME, TEMPERATURE,
OPTIONS AFTER PROGRAMME START
1. Press the
“Start/Pause”
button to pause the
programme. The light flashes.
2. Select the new programme (with temperature),
any options and another spin speed if you
want.
3. Press the
“Start/Pause”
button again. The
new programme continues at the same position
where the previous programme was
interrupted. Do not add detergent for this
programme.
CANCEL A PROGRAMME BEFOR E THE END
1. Press the
“Start/Pause”
button to pause the
programme. The light flashes.
2. Set the programme selector to “Drain”. The
spin indicators show
“0”
and the remaining
time shows “0:02”.
3. Press the
“Start/Pause”
button to start the
drain programme.
