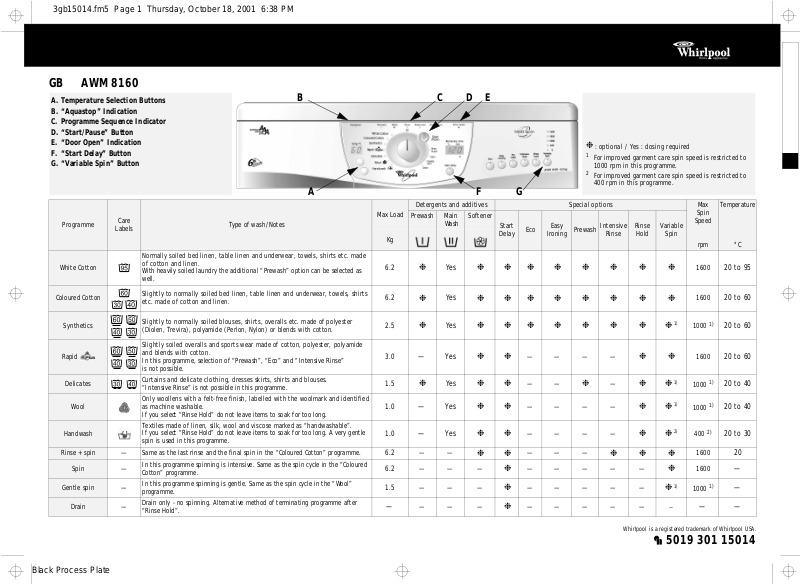

Whirlpool AWM 8160 PROGRAM CHART

Whirlpool is a registered trademark of Whirlpool USA.

3gb15014.fm5 Page 1 Thursday, October 18, 2001 6:38 PM

AWM 8160

A. Temperature Selection Buttons B. “Aquastop” Indication C. Programme Sequence Indicator D. “Start/Pause” Button E. “Door Open” Indication F. “Start Delay” Button G. “Variable Spin” Button

Programme

White Cotton

Coloured Cotton

Synthetics

Rapid

Delicates

Wool

Handwash

Rinse + spin —

Spin —

Gentle spin —

Drain —

Care

Labels

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

With heavily soiled laundry the additional “Prewash” option can be selected as well.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled blouses, shirts, overal ls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly soiled overalls and sports wear made of cotton, polyester, polyamide and blends with cotton.

In this programme, selection of “Prewash”, “Eco” and “Intensive Rinse” is not possible.

Curtains and delicate clothing, dresses skirts, shirts and blouses.

“Intensive Rinse” is not possible in this programme.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Same as the last rinse and the final spin in the “Coloured Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Coloured

Cotton” programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool”

programme. Drain only - no spinning. Alternative method of terminating programme after

“Rinse Hold”.

Type of wash/Notes

Wash

Yes

❉

: optional / Yes : dosing required

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Softener

Start

Delay

❉❉❉❉❉❉❉❉

❉❉

❉❉ ❉❉

❉ ❉ ❉

Easy

Eco

Ironing

—

——

————

—— — —————

—————

Prewash

—

Intensive

Rinse

——

❉

—

❉❉❉

Rinse

Hold

❉❉

Variable

Spin

❉

Speed

1000

400

❉

1000

—

B E

Detergents and additives Special options Max

Max Load

6.2

2.5

3.0

1.5

1.0

6.2

1.5

—

Prewash Main

❉

—Yes

❉

—Yes

—— ———

———

Temperature

Spin

°C

20 to 95

20 to 60

20 to 40

20 to 30

20 —

—

rpm

1600

1600 1600

——

Black Process Plate

5019 301 15014

Whirlpool is a registered trademark of Whirlpool USA.

3gb15014.fm5 Page 2 Thursday, October 18, 2001 6:38 PM

CONSUMPTION DATA

Temperature Selector

Programme

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes*)

Cotton 95 5.0 44** 1.60 1:55 Coloured Cotton 60 5.0 39 0.95 2:00 Coloured Cotton 40 5.0 39 0.55 2:00

Synthetics 60 2.5 55** 0.70 1:30 Synthetics 40 2.5 50 0.50 1:15 Rapid Plus 30 3.0 35 0.40 0:30

Delicates 30 1.5 50 0.50 0:45

Wool 40 1.0 50 0.50 0:40

Handwash 30 1.0 35 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains

the water out.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the chapter “Detergents and Additives” in the booklet.

1. Turn the

programme selector knob

to the

desired programme.

2. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp of the

“Start/Pause”

button

is flashing.

3. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up. The recommended temperature (see the indicator) can be altered by pressing “+” or “-” button.

SELECT ANY DESIDERED OPTION

Selecting any option the pilot lamp lights up. An audible tone sounds if the combination of programme, additional options and temperature

is not possible. Unsuitable combinations of options are deselected automatically.

“Eco Wash” button

• The duration of the wash is extended and the temperature reduced to save up to 40% of energy maintaining good washing results.

“Easy Ironing” button

• Can be used together with Cotton and Synthetics programmes to make ironing easier.

• Increases the water quantity and the clothes are spun very soft.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases approximately 15 min.

“Intensive Rinse” button

• A further rinse cycle is added.

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time.

Note:

The programme stops to “Rinse Hold” at the

time the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the

“Start/Pause”

button again.

“Variable Spin” button

• Every programme has an automatic predefined maximum spin speed.

• Press the button to set another spin speed.

• If the spin speed “0” is selected, the final spinning is cancelled. The water is drained out only.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Press the “Start Delay” button to select the delay time by 1 to 19 hours;

• Press the

“Start/Pause”

button. The “Start

Delay” light flashes until the programme starts.

• The time delay indication disappears when the programme starts and it’s replaced by the remaining time.

• The number of hours preselected can later be reduced pressing again the “Start Delay” button.

To cancel the “Start Delay”.

• Turn the programme selector to the “ ” position.

• Reselect the desired programme and options and press the

“Start/Pause”

button.

PROGRAMME START

Open the tap and press the The pilot lamp of the

“Start/Pause”

button.

button lights up.

The indicator lamps show the sequence reached in the programme. After starting the programme, the sequence indication runs from left to right through Wash, Rinse, Spin.

When the sequence of the programme is finished the corresponding lamp goes out.

DOOR LOCK

During the first 15 minutes of the cotton and synthetics programmes the door can be opened for adding further laundry.

The door can be opened when the “Door Open” indication is shining.

PROGRAMME END

• The remaining time is on “0:00” and all the lights of the programme sequence indication are off. A short audible tone sounds three times.

1. Turn the programme selector to the

“”

position.

2. Turn the water supply tap off.

3. Open the door and unload the machine.

CHANGE THE PROGRAMME, TEMPERATURE, OPTIONS AFTER PROGRAMME START

1. Press the

“Start/Pause”

button to pause the

programme. The light flashes.

2. Select the new programme (with te mperature),

any options and another spin speed if you want it.

3. Press the

“Start/Pause”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL A PROGRAMME BEFORE THE END

1. Press the

“Start/Pause”

button to pause the programme. The light flashes.

2. Set the programme selector to “Drain”. The spin indicators show

“0”

and the remaining

time shows “0:02”.

3. Press the

“Start/Pause”

button to start the

drain programme.

Black Process Plate

5019 301 15014
