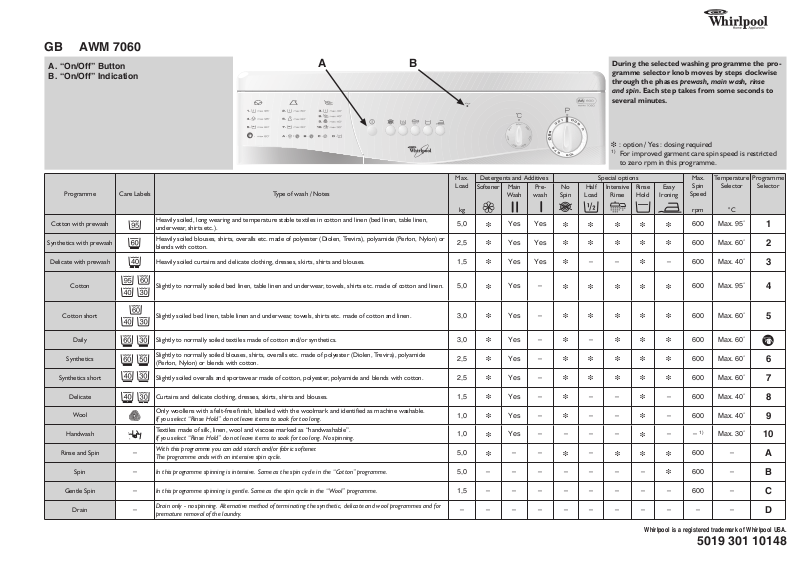

Whirlpool AWM 7060 INSTALLATION

GB AWM 7060

A. “On/Off” Button B. “On/Off” Indication

Programme Care Labels Type of wash / Notes

Cotton with prewash

Synthetics with prewash

Delicate with prewash Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

During the selected washing programme the programme selector knob moves by steps clockwise through the phases prewash, main wash, rinse and spin. Each step takes from some seconds to several minutes.

i : option / Yes : dosing required

For improved garment care spin speed is restricted

to zero rpm in this programme.

Max.

Detergents and Additives Special options Max.

Load

5,0

2,5

1,5

Softener Main

Pre-

Wash

wash

Yes Yes

Half

Spin

i i i i i

Intensive

Load

– –

Rinse

Rinse Hold

Temperature

Spin

Easy

Ironing

Speed

– 600 Max. 40°

Selector

rpm

600 Max. 95°

600 Max. 60°

Programme

Selector

°C

Cotton Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Cotton short Slightly soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Daily Slightly to normally soiled textiles made of cotton and/or synthetics.

Synthetics

Synthetics short Slightly soiled overalls and sportswear made of cotton, polyester, polyamide and blends with cotton.

Delicate Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Wool

Handwash

Rinse and Spin

Spin

Gentle Spin

Drain

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning.

With this programme you can add starch and/or fabric softener.

–

The programme ands with an intensive spin cycle.

In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

–

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

–

Drain only - no spinning. Alternative method of terminating the synthetic, delicate and wool programmes and for

–

premature removal of the laundry.

5,0

3,0

2,5

1,5

1,0

5,0

5,0 – – – – – – –

1,5 – – – – – – – – 600 –

– – – – – – – – – – –

Yes –

Yes – – – –

– –

i i i i i

–

– –

–

i i i

Whirlpool is a registered trademark of Whirlpool USA.

600 Max. 95°

600 Max. 60°

– 600 Max. 40°

– –

Max. 30°

600 –

5019 301 10148

CONSUMPTION DATA

Temperature

Programme

Cotton

Daily

Synthetics

Delicates

Wool

Handwash

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergents as described in the programme table or in the chapter “Detergents and Additives” in the booklet.

1. Open the tap.

2. Set the programme selector to the desired programme.

3. Turn the temperature selector to the desired temperature.

4. Special options can be selected.

5. Check that the door is well closed and turn on the washing machine by pressing the “On/Off” button. The indicator lights up, indicating that the washing machine is on.

Selector

(°C)

95 5,0 54* 1,70 2:00

60 5,0 49 0,95 2:20

40 5,0 49 0,60 2:05

40 3,0 45 0,48 1:00

60 2,0 55 0,80 1:30

40 2,0 55 0,60 1:20

30 1,5 60 0,50 0:45

30 1,0 60 0,30 0:40

30 1,0 60 0,30 0:50

Load

(kg)

Water

(l)

SELECT ANY DESIRED OPTION

“No Spin” button

• Excludes spinning from programme, press button.

Suitable for delicate laundry. Note: with the “Cotton” and “Synthetics” programmes a short spin cycle is provided in any case, even if the exclusion has been selected, in order to optimize rinsing results.

“Half Load” button

• Reduce water consumption, above all during rinsing.

• Suitable for lightly-soiled laundry and small loads

(max. 3 kg).

Note: Reduce the detergent quantity.

“Intensive Rinse” button

• The amount of wather is increased to ensure a more

intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with allergies.

Energy

(kWh)

Approx. Programme

(hours : minutes)

Duration

“Rinse Hold” button

• The laundry remains in the last rinse water without

progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” and “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the

programme will terminate automatically with the final spin cycle for the present wash programme. If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme.

“Easy Ironing” button

• Can be used together with Cotton and Synthetics

programmes to make ironing easier.

• Increases the water quantity and the clothes are spun very soft.

PROGRAMME CHANGE

To reselect a programme when a cycle has already begun:

1. Switch off the appliance by pressing the “On/Off” button.

2. Select the new programme.

3. Start the programme by pressing the “On/Off”

button.

END OF WASH CYCLE

1. At the end of the programme the programme selector moves to the stop position.

2. To unload the machine wait for the door to unlock (about 1 minute).

3. Switch off the appliance, open the door and take out the laundry.

4. Close the tap and leave the door ajar to allow the drum to dry out.

NOTES AND INDICATIONS FOR USE

• WATER LEVEL

It may not be visible as the cycle is optimised for a minimum water consumption without compromising washing results.

• SPIN SPEED CONTROL

Spin speed may be reduced automatically or may even be excluded in the case of small loads with highly absorbent garments (e.g. bathrobes, bathmat). This control avoids cloth and machine damage and excessive vibrations and consequent noise produced by the machine due to load unbalance.

• MOTOR NOISE

The running noises of the new, electronically controlled motor are not the same as the ones you are used to from your old appliance. Don't be surprised - modern technology has a modern sound.

• CLEANING THE FILTER

To ensure an impeccable function of the pump, check the filter regularly and clean it if necessary.

Whirlpool is a registered trademark of Whirlpool USA.

5019 301 10148
