Whirlpool AWM 5145/5 INSTALLATION

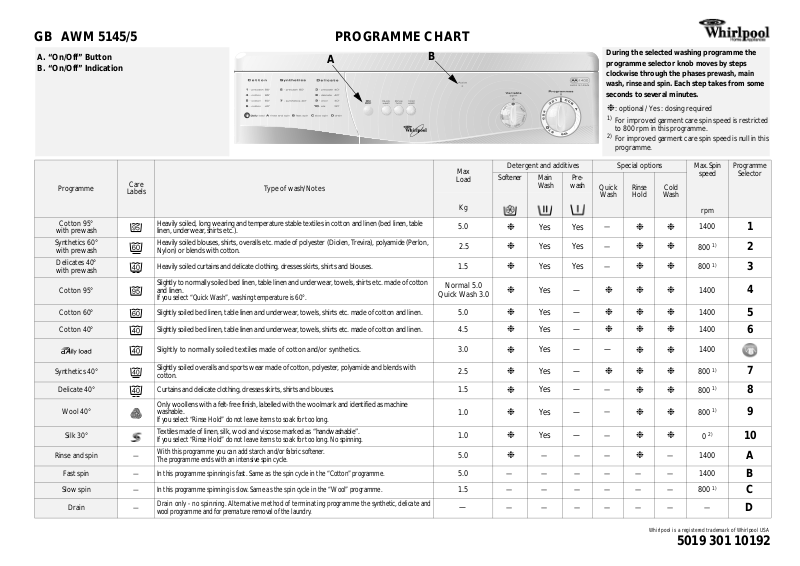

GB AWM 5145/5 PROGRAMME CHART

A. “On/Off” Button B. “On/Off” Indication

During the selected washing programme the programme selector knob moves by steps clockwise through the phases

wash, rinse and spin

seconds to several minutes.

❉

: optional / Yes : dosing required

For improved garment care spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is null in this programme.

. Each step takes from some

prewash, main

Programme

Cotton 95°

with prewash

Synthetics 60°

with prewash

Delicates 40°

with prewash

Cotton 95°

Cotton 60° Slightly soiled bed linen, table linen and underwear , towels, shirts etc. made of cotton and linen. Cotton 40° Slightly soiled bed linen, table linen and underwear , towels, shirts etc. made of cotton and linen.

Synthetics 40°

Delicate 40° Curtains and delicate clothing, dresses skirts, shirts and blouses.

Wool 40°

Silk 30°

Rinse and spin

Fast spin

Slow spin

Drain

Care

Labels

—

— —

—

Type of wash/Notes

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear , shirts etc.).

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate clothing, dresses skirts, shirts and blouses. Slightly to normally soiled bed linen, table linen and underwear , towels, shirts etc. made of cotton

and linen.

If you select “Quick W ash”, washing temperature is 60 °.

Slightly to normally soiled textiles made of cotton and/or synthetics. Slightly soiled overalls and sports wear made of cotton, polyester , polyamide and blends with

cotton.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning. With this programme you can add starch and/or fabric softener.

The programme ends with an intensive spin cycle. In this programme spinning is fast. Same as the sp in cycle in the “C otton” programme.

In this programme spinning is slow. Same as the spin cycle in the “Wool” programme. Drain only - no spinning. Alternative method of terminating programme the synthetic, delicate and

wool programme and for premature removal of the laundry.

Max

Load

5.0

2.5

1.5

Normal 5.0

Quick Wash 3.0

5.0

4.5

3.0

2.5

1.5

1.0

5.0

1.5

—

Detergent and additives Special options Max. Spin

Softener Main

❉ ❉ ❉

❉ ❉

❉

❉ ❉

—————— ——————

—————— —

Wash

Yes Yes Yes Yes Yes Yes

Yes —

Yes — Yes —

Yes — —

Yes — Yes —

Yes —

———

Pre-

wash

Quick

Wash

Rinse Hold

—

Cold

Wash

❉❉ ❉❉ ❉❉

❉❉❉ ❉❉❉

❉❉❉

❉❉

❉❉❉

—

❉❉ ❉❉

❉❉ ❉

—

speed

rpm

1400

800

1400

1400 1400

1400

800 800

800

1400 1400

800

Programme

Selector

1 2 3

4 5

7 8

A B

C D

Whirlpool is a registered trademark of Whirlpool USA

5019 301 10192

CONSUMPTION DATA

Load

Programme

(kg)

Water

(l)

Energy

(kWh)

Approx.

Programme

Duration

(hours:minutes) Cotton 95° 5.0 54 1.90 2:05 Cotton 60° 5.0 49 0.95 2:25 Cotton 40° 4.5 49 0.60 2:10

Daily 40° 3.0 45 0.50 1:00

Synthetics 40° 2.5 55 0.60 1:25

Delicate 40° 1.5 60 0.60 0:50

Wool40° 1.0 60 0.45 0:45

Silk 30° 1.0 45 0.30 0:45

Prewash might increase programmme duration. Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter “Detergents and Additives” in the booklet.

1. Open the tap.

2. Set the

programme selector

to the desired

programme.

3. Set the

spin selector

Special options

to the desired speed.

can be selected.

5. Check that the door is well closed and turn on the washing machine by pressing the

OFF”

button. The indicator lights up, indicating

“ON/

that the washing machine is on.

SELECT ANY DESIRED OPTION

“Quick Wash” button

• For quick, economical washes.

• Ideal for minimum loads of lightly-soiled articles.

Note:

reduce the detergents quantity.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob counterclockwise to the “Drain” programme.

“Cold Wash” button

• With this option water is heated only up to 20°C.

PROGRAMME CHANGE

To reselect a programme when a cycle has already begun:

1. Switch off the appliance by pressing the

ON/OFF

“

” button.

2. Select the new programme.

3. Start the programme by pressing the “

OFF

” button.

ON/

PROGRAMME END

1. At the end of the programme the programme selector moves to the stop position.

2. To unload the machine wait for the door to unlock (about 1 minute).

3. Switch off the appliance, open the door and take out the laundry.

4. Close the tap and leave the door ajar to allow the drum to dry out.

NOTES AND INDICATIONS FOR USE

WATER LEVEL

• It may not be visible as the cycle is optimised for a minimum water consumption without compromising washing results.

SPIN SPEED CONTROL

• Spin speed may be reduced automatically or may even be excluded in the case of small loads with highly absorbent garments (e.g. bathrobes, bathmat). This control avoids cloth and machine damage and excessive vibrations and consequent noise produced by the machine due to load unbalance: by selecting high spin speeds the noise level increases.

MOTOR NOISE

• The running noises of the new, electronicallycontrolled motor are not the same as the ones you are used to from your old appliance. Don’t be surprised - modern technology has a modern sound.

CLEANING THE FILTER

• To ensure an impeccable function of the pump, check the filter regular and clean it if necessary.
