Whirlpool AWM 161 INSTALLATION

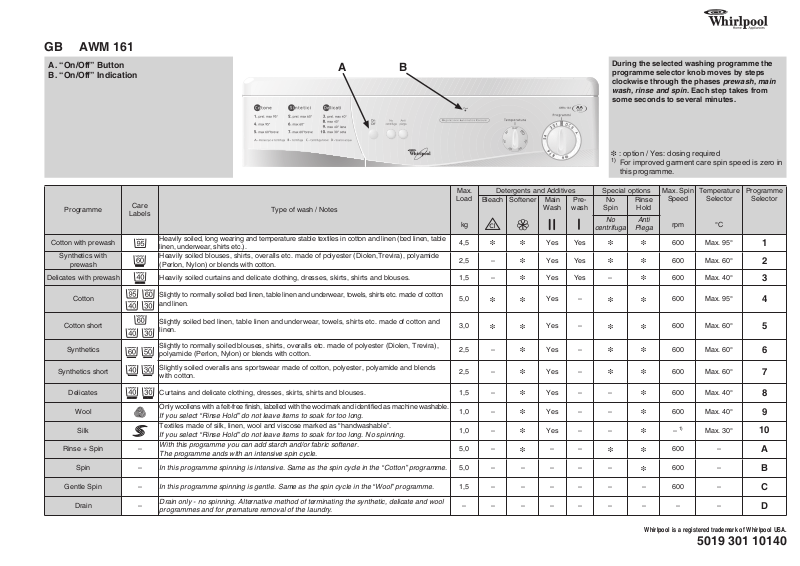

GB AWM 161

A. “On/Off” Button
B. “On/Off” Indication

A B

During the selected washing programme the
programme selector knob moves by steps
clockwise through the phases prewash, main
wash, rinse and spin. Each step takes from
some seconds to several minutes.

i : option / Yes: dosing required

1)

For improved garment care spin speed is zero in

this programme.

Max.
Load

Programme

Cotton with prewash

Synthetics with

prewash

Delicates with prewash Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 –

Cotton

Cotton short

Synthetics

Synthetics short

Delicates Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 –

Wool

Silk

Rinse + Spin –

Spin – In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. 5,0 – – – – –

Care

Labels

Type of wash / Notes

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table
linen, underwear, shirts etc.).
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen,Trevira), polyamide
(Perlon, Nylon) or blends with cotton.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton
and linen.

Slightly soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
linen.

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.

Slightly soiled overalls ans sportswear made of cotton, polyester, polyamide and blends
with cotton.

Only woollens with a felt-free nish, labelled with the woolmark and identied as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning.
With this programme you can add starch and/or fabric softener.

The programme ands with an intensive spin cycle.

Bleach Softener Main

kg

4,5

2,5 –

5,0

3,0

2,5 –

2,5 –

1,0 –

1,0 –

5,0 –

Detergents and Additives Special options Max. Spin

Wash

i i

i

i

i i

i i

i

i

i

i

i

i

Pre-

washNoSpin

centrifuga

Yes Yes

Yes Yes

Yes Yes –

Yes –

Yes –

Yes –

Yes –

Yes – –

Yes – –

Yes – –

– –

Rinse

No

Piega

i i

i i

i i

i i

i i

i i

i i

Hold

Anti

Speed

rpm

600 Max. 95°

600 Max. 60°

i

i

i

i

i

600 Max. 40°

600 Max. 95°

600 Max. 60°

600 Max. 60°

600 Max. 60°

600 Max. 40°

600 Max. 40°

–

600 –

600 –

1)

Temperature

Selector

°C

Max. 30°

Programme

Selector

1

2

3

4

5

6

7

8

9

10

A

B

Gentle Spin – In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. 1,5 – – – – – – 600 –

Drain –

Drain only - no spinning. Alternative method of terminating the synthetic, delicate and wool
programmes and for premature removal of the laundry.

– – – – – – – – –

Whirlpool is a registered trademark of Whirlpool USA.

5019 301 10140

C

D

CONSUMPTION DATA

Temperature

Programme

Cotton 95 4,5 49 1,70 2:05

Cotton 60 5,0 49 0,95 2:20

Cotton 40 4,5 44 0,60 2:05

Synthetics 60 2,0 55 0,80 1:30

Synthetics 40 2,0 55 0,60 1:20

Delicates 30 1,5 60 0,50 0:45

Wool 30 1,0 60 0,30 0:40

Silk 30 1,0 60 0,30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard EN 60456. Consumption data in the home may vary with respect to the values in the
table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

ADD DETERGENTS, CLOSE THE DOOR AND
SELECT THE PROGRAMME

Add the detergents as described in the programme
table or in the chapter “Detergents and Additives” in
the booklet.

1. Open the tap.

2. Set the programme selector to the desired
programme.

3. Turn the temperature selector to the desired
temperature.

4. Special options can be selected.

5. Check that the door is well closed and turn
on the washing machine by pressing the
“On/Off” button. The indicator lights up,
indicating that the washing machine is on.

Selector

(°C)

Load

(kg)

Water

(l)

SELECT ANY DESIRED OPTION

“No spin” button

• Excludes spinning from programme, press

button. Suitable for delicate laundry.
Note: with the “Cotton” and “Synthetics”
programmes a short spin cycle is provided in any
case, even if the exclusion has been selected, in
order to optimize rinsing results.

“Rinse Hold” button

• The laundry remains in the last rinse water

without progressing to the nal spin cycle to
avoid creasing and prevent colours from
changing.

• This option is particularly recommended for the
programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the

programme will terminate automatically with the
nal spin cycle for the present wash
programme.

Energy

(kWh)

Approx. Programme

(hours : minutes)

Duration

PROGRAMME CHANGE

To select a programme when a cycle has already
begun:

1. Switch off the appliance by pressing the
“On/Off” button.

2. Select the new programme.

3. Start the programme by pressing the “On/Off”

button.

END OF WASH CYCLE

1. At the end of the programme the programme
selector moves to the stop position.

2. To unload the machine wait for the door to
unlock (about 1 minute).

3. Switch off the appliance, open the door and
take out the laundry.

4. Close the tap and leave the door ajar to allow
the drum to dry out.

NOTES AND INDICATIONS FOR USE

• WATER LEVEL

It may not be visible as the cycle is optimised
for a minimum water consumption without
compromising washing results.

• SPIN SPEED CONTROL

Spin speed may be reduced automatically or
may even be excluded in the case of small
loads with highly absorbent garments (e.g.
bathrobes, bathmat).
This control avoids cloth and machine damage
and excessive vibrations and consequent noise
produced by the machine due to load
unbalance: by selecting high spin speeds the
noise level increases.

• MOTOR NOISE

The running noises of the new, electronically­ controlled motor are not the same as the ones
you are used to from your old appliance. Don't
be surprised - modern technology has a modern
sound.

• CLEANING THE FILTER

To ensure an impeccable function of the pump,
check the lter regular and clean it if necessary.
