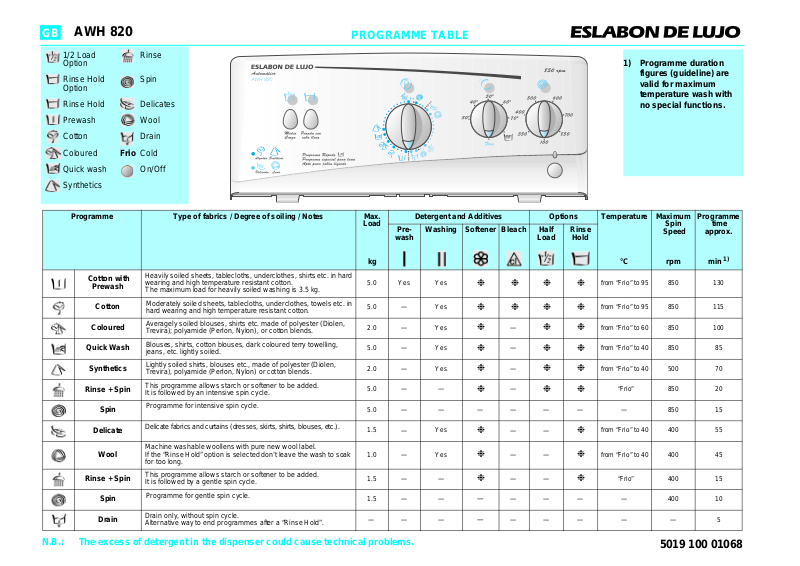

Whirlpool AWH 820 PROGRAM CHART

1) Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

AWH 820

PROGRAMME TABLE

1/2 Load

Rinse

Option Rinse Hold

Spin

Option Rinse Hold Delicates Prewash Wool Cotton Drain Coloured

Frio

Cold Quick wash On/Off Synthetics

Programme Type of fabrics / Degree of soiling / Notes Max.

Cotton with

Prewash

Cotton

Coloured

Quick Wash

Synthetics

Rinse + Spin

Spin

Delicate

Wool

Rinse + Spin

Spin

Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature resistant cotton. The maximum load for heavily soiled washing is 3.5 kg.

Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high temperature resistant cotton.

Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon), or cotton blends.

Blouses, shirts, cotton blouses, dark coloured terry towelling, jeans, etc. lightly soiled.

Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

This programme allows starch or softener to be add ed. It is followed by an intensive spin cycle.

Programme for intensive spin cycle.

Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).

Machine washable woollens with pure new wool label. If the “Rinse Hold” option is selected don’t leave the wash to soak for too long.

This programme allows starch or softener to be add ed. It is followed by a gentle spin cycle.

Programme for gentle spin cycle.

Load

5.0 Yes Yes

5.0

2.0

5.0

2.0

5.0

Detergent and Additives Options Temperature

Pre-

wash

Washing Softener Bleach Half

—

——

—— ———— —

1.5

1.0

1.5

—

——

❉❉❉❉

Yes

❉❉❉❉ ❉ ❉ ❉ ❉

❉

—

——

—— — —

Load

Rinse

Hold

❉❉ ❉❉ ❉❉ ❉❉

❉

Maximum

Spin

Speed

°C

from “Frio” to 95 850 130

from “Frio” to 95 850 115

from “Frio” to 60 850 100

from “Frio” to 40 850 85

from “Frio” to 40 500 70

“Frio” 850 20

from “Frio” to 40 400 55

from “Frio” to 40 400 45

“Frio” 400 15

rpm

850 15

400 10

Programme

time

approx.

min

Drain

Drain only, without spin cycle. Alternative way to end programmes after a “Rinse Hold”.

—— —

N.B.: The excess of detergent in the dispenser could cause technical problems.

—

—— — — —

5019 100 01068

ENERGY AND WATER CONSUMPTION DATA

Programme Temperature

(°C)

Cotton 90 5.0 72 1.80 115

Cotton 60 5.0 72 1.15 115 Coloured 60 2.0 66 0.80 100 Coloured 40 2.0 66 0.40 100

Quick Wash + 1/2 Load 40 2.5 54 0.50 85

Synthetics + 1/2 Load 30 1.0 54 0.30 70

Delicate 40 1.5 70 0.65 55

Wool 40 1.0 70 0.55 45

Programmes with prewash last about 15 minutes more than programmes without prewash. Water and energy consumption values were measured in standard conditions in compliance with the Standard IEC 60 456. Individual consumption may vary in comparison with the values specified in the table, because of differences in supply water pressure and temperature, the load and the type of wash.

Load

(kg)

Water

(l)

Energy

(kWh)

Programme

time

(min)

ADDING DETERGENT AND ADDITIVES

Pour the detergent and additives into the respective compartments as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and starch

• Bleach

• Stain removers

• Anti-scale agents (water hardness 4)

Important Note:

• Do not fill beyond the

“MAX”

level mark.

• For programme with prewash: do not use liquid detergent.

• For programmes without prewash from cold to 40° C, it is recommended to use a liquid

detergent to avoid whitish residues on the coloured laundry.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1. Turn the

2. Turn the

3. Turn the

programme selector knob temperature knob

to the required temperature.

spin speed selector knob

clockwise to the desired programme.

to the desired spin speed.

SELECT ANY DESIRED OPTION

“Half Load” button

• Reduces the water consumption in the “Cotton” and “Synthetics” programmes especially during the rinse.

• Especially suitable for lightly soiled or small loads (reduces the quantity of detergent).

• Not suitable for high temperature programmes.

“Rinse Hold” button

• The laundry remains in the last rinse water, without progressing to the spin cycle to avoid creasing and prevent colours from changing.

• This option is especially recommended for the “Synthetics” or “Delicate” programmes.

• This option is perfectly suitable if you wish to postpone the spin or you don’t wish to

spin the clothes.

Note:

the programme selector stops on “”.

Terminate the “Rinse Hold” option

• Press the “Rinse Hold” button again; the programme will terminate automatically with the spin cycle corresponding to the previously selected wash programme.

• If you do not wish to spin the clothes, switch off the appliance by pressing the “On/Off” button. The pilot light goes out. Turn th e prog ramme se lecto r to the “Drai n” position and switch on the appliance.

PROGRAMME START

Open the water inlet tap and press the On/Off button “”.The pilot lamp lights up.

DOOR LOCK

During the running programme, the door cannot be opened. The door locks automatically in all programmes.

If the programme is stopped or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

• The programme selector knob is at “STOP”.

1. Press the On/Off button “”. The pilot light goes out.

2. Cancel the options by pressing the appropriate buttons.

3. Turn the water supply tap off.

4. Wait for the door to unlock (about 1 minute).

5. Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the On/Off button “” to switch off the appliance. The pilot light goes out.

2. Select the new programme, temperature, spin speed and options.

3. Press the On/Off button “” to switch on the appliance. The pilot light lights.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the On/Off button “” to switch off the appliance. The pilot light goes out.

2. Set the programme selector on “Drain”.

3. Press the On/Off button “” to start the “Drain” programme. Only open the door when the programme selector is at “STOP” and the door is unlocked (after approximately 1 minute).
