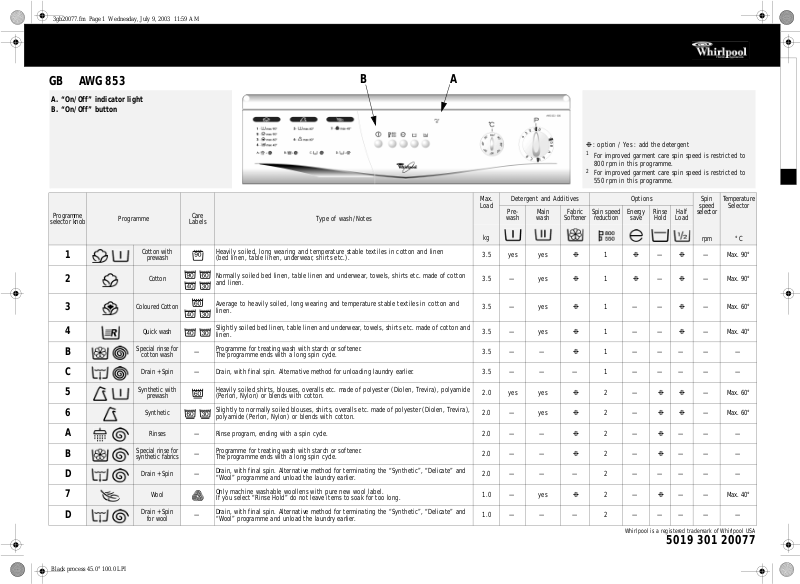

Whirlpool AWG 853/1 PROGRAM CHART

3gb20077.fm Page 1 Wednesday, July 9, 2003 11:59 AM

AWG 853

A. “On/Off” indicator light B. “On/Off” button

Programme

selector knob

Programme

1 2

3 4

Cotton with

prewash

Cotton

Coloured Cotton

Quick wash

Special rinse for

cotton wash

Care

Labels

—

Type of wash/Notes

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Average to heavily soiled, long wearing and temperature stable textiles in cotton and linen.

Slightly soiled bed linen, table linen and underwear , towels, shirts etc. mad e of cotton and linen.

Programme for treating wash with starch or softener. The programme ends with a long spin cycle.

Max. Load

3.5 yes yes

3.5 — yes

3.5 — —

Detergent and Additives Options Spin

Pre-

wash

Main wash

Fabric

Softener

❉

: option / Yes : add the detergent

For improved garment care spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is restricted to 550 rpm in this programme.

Temperature

Spin speed

reduction

Energy

Rinse

save

Hold

1——❉— Max. 60°

1——❉— Max. 40°

1—————

❉

—

❉

—

Half

Load

❉

speed

selector

rpm

— Max. 90°

Selector

°C

C 5 6 A B D 7 D

Black process 45.0° 100.0 LPI

Drain + Spin —

Synthetic with

prewash

Synthetic

Rinses —

Special rinse for synthetic fabrics

Drain + Spin —

Wool

Drain + Spin

for wool

Drain, with final spin. Alternative method for unloading laundry earlier.

Heavily soiled shirts, blouses, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled blouses, shirts, over alls etc. mad e of polyester (Diolen, T revir a), polyamide (Perlon, Nylon) or blends with cotton.

Rinse program, ending with a spin cycle. Programme for treating wash with starch or softener.

—

The programme ends with a long spin cycle. Drain, with final spin. Alternative method for terminating the “Synthetic”, “Delicate” and

“Wool” programme and unload the laundry earlier.

Only machine washable woollens with pure new wool label.

If you select “Rinse Hold” do not leave items to soak for too long. Drain, with final spin. Alternative method for terminating the “Synthetic”, “Delicate” and

—

“Wool” programme and unload the laundry earlier.

3.5 — — — 1 — — — — —

2.0 yes yes

2.0 — yes

2.0 — —

2.0 — — — 2 — — — — —

1.0 — yes

1.0 — — — 2 — — — — —

❉

2—

2—❉—— —

2—❉— — Max. 40°

Whirlpool is a registered trademark of Whirlpool USA

❉❉

— Max. 60°

5019 301 20077

3gb20077.fm Page 2 Wednesday, July 9, 2003 11:59 AM

CONSUMPTION DATA

Programme

Temperature

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx.

Programme

Duration

(hours:minutes) 2 - Cotton 90° 3.5 46 1.28 2:05 3 - Cotton 60° 3.5 42 0.65 1:50 3 - Cotton 40° 3.5 47.2 1.00 1:02

6 - Synthetics 60° 2.0 46 0.68 1:12 6 - Synthetics 40° 2.0 46 0.34 1:03

7 - Wool 40° 1.0 45 0.25 0:46

Prewash cycle increases programme duration by approx. 15 minutes. Consumption data were measured in normalized conditions in compliance with Standard IEC 60 456. The data on the “Energy Label” refer to programme “Coloured Cotton 60° C”. Consumption data in th e home may vary with respect to th e values in the table in relation to the wa ter suppl y pressure and temperature, the load and the type of w ash.

ADD DETERGENT, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter “Detergent and Additives” in the booklet.

1. Make sure that the

“Stop”

Programme selector

is set to

2. Open the tap.

3. Set the

programme selector

to the desired

programme.

4. Set the

thermostat knob

to the desired

temperature.

5. Set the

spin selector knob

Special options

to the desired speed.

can be selected, if required.

7. Check that the door is well closed and turn on the washing machine by pressing the

“ON/OFF”

button. The indicator lights up, indicating that the washing machine is on.

SELECT ANY DESIRED OPTION

“Spin speed reduction” button

• Reduces the predetermined automatic maximum

“Eco Wash” button (depending on model)

• Reduces the temperature to 60° when the thermostat is set to a higher temperature.

“Rinse Hold” button (depending on model)

in synthetic and wool programmes only

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time or when you do not wish to spin the clothes.

To terminate the “Rinse Hold” option (depending on model)

in synthetic and wool programmes only

• Press the Rinse hold button again; the load will be spun according to the selected programme.

If you do not wish to spin the clothes, turn the programme selector knob to the drain programme, after pressing the “No Spin“ button.

(eco)

spin speed. In some programmes the maximum final spin speed is limited to go easy on your laundry items. Selection of a higher spin speed is not possible.

“Half Load” button (depending on model)

• Reduces water consumption above all during rinsing.

• Suitable for lightly soiled laundry and small loads (max 2.5 kg).

Note:

reduce the detergent quantity.

DOOR LOCK

The door locks automatically after the programme start until the end of the programme. If the programme selector is moved to the “Stop” position or if the electricity supply is interrupted, then after approximately two minutes the door is released. In this case do not open the door, because hot water could come out of the door.

PROGRAMME RESELECTION

To change a programme when a cycle has already begun:

1. Switch off the appliance by pressing the

ON/OFF

“

” button.

2. Select the new programme.

3. Start the programme by pressing the

ON/OFF

“

” button.

TO INTERRUPT THE RUNNING PROGRAMME

To interrupt the running programme and continue it at a later time:

1. Press the

“ON/OFF”

button.

2. After the desired interval has passed, press the

“ON/OFF”

button again.

END OF WASH CYCLE

1. At the end of the programme the programme selector moves to the “Stop” position.

2. To unload the machine wait for the door to unlock (approx. 2 minutes).

3. Switch off the appliance, open the door and unload the washing.

4. Close the tap and leave the door ajar to allow the drum to dry out.

NOTES AND INDICAT IONS FOR USE

• SPIN SPEED CONTROL

Spin speed may be reduced automatically or may even be excluded in case of small loads containing highly absorbing garments (e.g. bath robes, towels, etc). This reduces damage to fabric and to the machine and prevents excessive vibration and noise in the machine due to an unbalanced load: by selecting high spin speeds the noise level increases.

• CLEANING THE FILTER

To ensure an impeccable function of the pump, check the filter regular and clean it if necessary.

• THERMOSTAT KNOB

This is set by turning the knob until it reaches the desired temperature.

Black process 45.0° 100.0 LPI

Whirlpool is a registered trademark of Whirlpool USA

5019 301 20077
