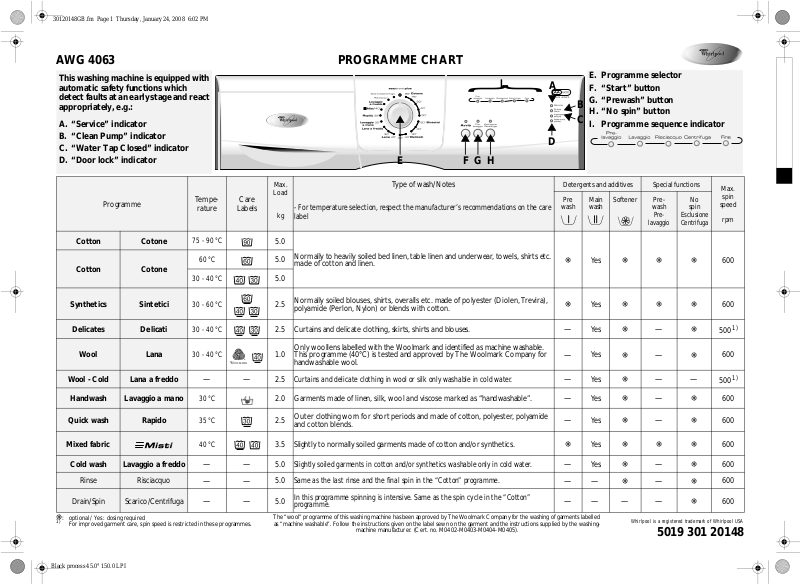

Whirlpool AWG 4063 PROGRAM CHART
Whirlpool is a registered trademark of Whirlpool USA
30120148GB.fm Page 1 Thursday, January 24, 2008 6:02 PM
AWG 4063 PROGRAMME CHART
This washing machine is equipped with
automatic safety functions which
detect faults at an early stage and react
appropriately, e.g.:
A. “Service” indicator
B. “Clean Pump” indicator
C. “Water Tap Closed” indicator
D. “Door lock” indicator
E GF
H
I
}
A
F. “Start” button
G. “Prewash” button
B
H. “No spin” button
C
I. Programme sequence indicator
D
E. Programme selector
Programme
Cotton Cotone
Cotton Cotone
Synthetics Sintetici
Delicates Delicati
W ool Lana
Wool - Cold Lana a freddo
Handwash Lavaggio a mano
Quick wash Rapido
Tempe-
rature
75 - 90 °C
60 °C
30 - 40 °C
30 - 60 °C
30 - 40 °C
30 - 40 °C
Care
Labels
——
30 °C
35 °C
Max.
Load
- For temperature selection, respect the manufacturer’s recommendations on the care
kg
label
5.0
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc.
5.0
made of cotton and linen.
5.0
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),
2.5
polyamide (Perlon, Nylon) or blends with cotton.
2.5 Curtains and delicate clothing, skirts, shirts and blouses.
Only woollens labelled with the Woolmark and identified as machine washable.
1.0
This programme (40°C) is tested and approved by The Woolmark Company for
handwashable wool.
2.5
Curtains and delicate clothing in wool or silk only washable in cold water.
2.0 Garments made of linen, silk, wool and viscose marked as “handwashable”.
Outer clothing worn for short periods and made of cotton, polyester, polyamide
2.5
and cotton blends.
Type of wash/Notes
Detergents and additives Special functions
Pre
Main
wash
L
L
—
—
—
—
—
wash
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Softener Pre-
wash
Pre-
lavaggio
spin
Esclusione
Centrifuga
LL L
LL L
L
L
L
L
L
—
—
——
—
—
No
L
L
L
L
Max.
spin
speed
rpm
600
600
500
600
500
600
600
1)
1)
Mixed fabric
Cold wash Lavaggio a freddo
Rinse Risciacquo
Drain/Spin Scarico/Centrifuga
optional / Yes : dosing required
:
L
1)
For improved garment care, spin speed is restricted in these programmes.
Black process 45.0° 150.0 LPI
40 °C
——
——
——
3.5 Slightly to normally soiled garments made of cotton and/or synthetics.
5.0
Slightly soiled garments in cotton and/or synthetics washable only in cold water.
5.0
Same as the last rinse and the final spin in the “Cotton” programme.
In this programme spinning is intensive. Same as the spin cycle in the “Cotton”
5.0
programme.
The “wool” programme of this washing machine has been approved by The Woolmark Company for the washing of garments labelled
as “machine washable”. Follow the instructions given on the label sewn on the garment and the instructions supplied by the washing-
machine manufacturer. (Cert. no. M0402-M0403-M0404-M0405).
—
——
——— —
Yes
L
Yes
LL L
L
L
—
—
L
L
L
5019 301 20148
600
600
600
600
Whirlpool is a registered trademark of Whirlpool USA
30120148GB.fm Page 2 Thursday, January 24, 2008 6:02 PM
CONSUMPTION DATA
Programme
Temperat u r e
(°C)
Cotton 90 5.0 52
Load
(kg)
Water
(l)
**
Energy
(kWh)
Approx. programme duration
(hours : minutes)
1.70 2:10
*
Cotton 75 5.0 52 1.33 2:05
Cotton
***
60 5.0 49 0.95 2:15
Cotton 40 5.0 62 0.51 2:00
Synthetics 60 2.5 46
0.80 1:40
**
Synthetics 40 2.5 46 0.46 1:35
Delicates 30 2.5 54 0.24 0:45
Wool 40 1.0 56 0.44 0:54
Handwash 30 2.0 65 0.24 0:57
Quick wash 35 2.5 30 0.40 0:40
Mixed fabric 40 3.5 52 0.30 1:25
Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. In domestic use, consumption data
may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.
The time indicated on the display (if present) can deviate from the values in the table, because it takes into account the household
*
conditions applicable at that time.
To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
**
Reference programme for energy label.
***
ADD DETERGENTS, CLOSE THE DOOR
AND SELECT THE PROGRAMME
Add detergent as indicated on the front page and as
described in the chapter “Detergent and Additives”
in the Instructions for Use.
1. Turn the
programme selector
to the desired
programme.
SELECT ANY DESIRED OPTION
Press the button(s) of any required option(s) - the
respective indicator lights up.
When the combination of programme and
additional option(s) is not possible, the indicators
switch off automatically. Unsuitable combinations of
options are deselected automatically.
“Prewash” button
• Only for heavily soiled loads (e.g. sand, granular dirt).
Increases the cycle time by approx. 15 minutes.
• Do not use liquid detergent for the main wash
when activating the prewash option.
“No spin” button
• Pressing this button excludes spinning at the end
of the programme, but the intermediate spin
cycles remain. With this option selected, drying
is automatically excluded.
with the “Cotton” and “Synthetics”
Note:
programmes a short spin cycle is provided in any
case, even if the exclusion has been selected, in
order to optimize rinsing results.
PROGRAMME START
Open the tap and press the
next to the
“Start”
button lights up. The
“Start”
. The indicator
programme sequence indicator shows the current
programme stage, running from left to right through
Prewash, Wash, Rinse, Drain/Spin, End.
“DOOR OPEN” INDICATOR
At the end of a programme, the
“End”
indicator
lights up signalling that the door can be opened. As
long as a wash programme is running, the door
remains locked and must not be forced open. In
case you have an urgent need to open it during a
running programme, refer to “Cancel (Reset) a
running programme before the end”.
RED INDICATORS
“Service” indicator
Lighting up of the “Service” indicator can be caused by
a fault in an electrical component. Refer to the
“Troubleshooting Guide” in the Instructions for Use; If
the fault persists, contact our After-Sales Service.
“Clean pump” indicator
The water is not pumped out. Check whether the
drain hose is kinked or the filter must be cleaned; in
the latter case refer to the Instructions for Use
(“Removing the filter”).
“Water tap closed” indicator
Machine water supply insufficient or lacking. Open
the water tap; Turn the programme selector to
“Off/0” and reset the programme. If the indicator
remains on, refer to the “Troubleshooting Guide” in
the Instructions for Use.
“Door lock” indicator
Lighting up of the indicator could be caused by the
door not being properly closed. Try closing it again.
Turn the programme selector to “Off/0” and reset the
programme. If the indicator remains on, refer to the
“Troubleshooting Guide” in the Instructions for Use.
PROGRAMME END
• Lighting up of the lamp on the wash sequence
indicator means that the programme has ended
and the door is unlocked.
1. Turn the programme selector to the “Off/O”
position.
2. Close the water tap.
3. Open the door and unload the machine.
4. Leave the door ajar to allow the drum to dry.
CHANGING PROGRAMME AND/OR
OPTIONS AFTER PROGRAMME START
1. Turn the programme selector to “Off/O”.
2. Select the new programme, any options and
another spin speed if you want.
3. Press the
“Start”
button again. The new
programme resumes the wash programme from
where the previous one was interrupted. Do not
add detergent for this programme.
CANCEL (RESET) A RUNNING
PROGRAMME BEFORE THE END
• Reset by turning the programme selector to
“Off/0” and select the “Drain/Spin ” programme
to remove the water remaining in the bowl
before the door can be opened.
Black process 45.0° 150.0 LPI
5019 301 20148
