Whirlpool AWF 591 INSTALLATION

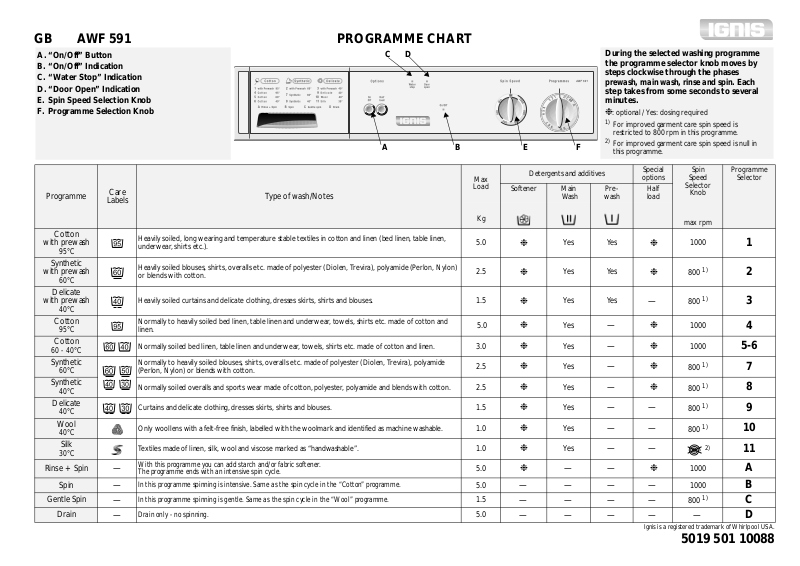

GB AWF 591 PROGRAMME CHART
A. “On/Off” Button
B. “On/Off” Indication
C. “Water Stop” Indication
D. “Door Open” Indication
E. Spin Speed Selection Knob
F. Programme Selection Knob
C D
A
B
E F
During the selected washing programme
the programme selector knob moves by
steps clockwise through the phases
prewash, main wash, rinse and spin
. Each
step takes from some seconds to several
minutes.
❉
: optional / Yes: dosing required
1)
For improved garment care spin speed is
restricted to 800 rpm in this programme.
2)
For improved garment care spin speed is null in
this programme.
Programme
Cotton
with prewash
95°C
Synthetic
with prewash
60°C
Delicate
with prewash
40°C
Cotton
95°C
Cotton
60 - 40°C
Synthetic
60°C
Synthetic
40°C
Delicate
40°C
Wool
40°C
Silk
30°C
Rinse + Spin
Spin
Gentle Spin
Drain
Care
Labels
—
—
—
—
Type of wash/Notes
Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen,
underwear, shirts etc.).
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon)
or blends with cotton.
Heavily soiled curtains and delicate clothing, dresses skirts, shirts and blouses.
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
linen.
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.
Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide
(Perlon, Nylon) or blends with cotton.
Normally soiled overalls and sports wear made of cotton, polyester, polyamide and blends with cotton.
Curtains and delicate clothing, dresses skirts, shirts and blouses.
Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.
Textiles made of linen, silk, wool and viscose marked as “handwashable”.
With this programme you can add starch and/or fabric softener.
The programme ends with an intensive spin cycle.
In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.
In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.
Drain only - no spinning.
Max
Load
Kg
5.0
2.5
1.5
5.0
3.0
2.5
2.5
1.5
1.0
1.0
5.0
5.0
1.5
5.0
Detergents and additives
Softener Main
❉
❉
❉
❉
❉
❉
❉
❉
❉
❉
❉
Wash
Yes Yes
Yes Yes
Yes Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
——
Pre-
wash
—
—
—
—
——
——
——
Special
options
Half
load
❉
❉
—
❉
❉
❉
❉
❉
————
————
Spin
Speed
Selector
Knob
max rpm
1000
1)
800
1)
800
1000
1000
1)
800
1)
800
1)
800
1)
800
1000
1000
1)
800
2)
—————
Ignis is a registered trademark of Whirlpool USA.
5019 501 10088
Programme
Selector
1
2
3
4
5-6
7
8
9
10
11
A
B
C
D
CONSUMPTION DATA
Programme
Temperature
Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx.
Programme
Duration
(hours:minutes)
Cotton 95 5.0 62 1.70 2:00
Cotton 60 5.0 57 1.14 2:00
Cotton 40 5.0 57 0.60 2:05
Synthetic 60 2.5 55 0.80 1:30
Synthetic 40 2.5 55 0.60 1:20
Delicate 40 1.5 60 0.60 0:45
Wool 40 1.0 60 0.45 0:40
Silk 30 1.0 60 0.30 0:40
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the
values in the table in relation to the water supply pressure and temperature, the load and the type of wash.
ADD DETERGENTS, CLOSE THE DOOR
AND SELECT THE PROGRAMME
Add the detergents as described in the programme
table or in the chapter “Detergents and Additives” in
the booklet.
1. Open the tap.
2. Set the
programme selector
to the desired
SELECT ANY DESIRED OPTION
“Half load” button
• Reduces water consumption, above all during
rinsing.
• Suitable for lightly-soiled laundry and small loads
(max 3 kg).
Reduce the detergent quantity.
Note:
programme.
3. Set the
4.
Special options
spin selector
to the desired speed.
can be selected.
5. Check that the door is well closed and turn on
the washing machine by pressing the
button. The indicator lights up, indicating
OFF”
“ON/
that the washing machine is on.
PROGRAMME CHANGE
To reselect a programme when a cycle has already
begun:
1. Switch off the appliance by pressing the
“
ON/OFF
” button.
2. Select the new programme.
3. Start the programme by pressing the “
” button.
OFF
ON/
PROGRAMME END
1. At the end of the programme the programme
selector moves to the stop position.
2. To unload the machine wait for the door to
unlock (about 1 minute).
3. Switch off the appliance, open the door and
take out the laundry.
4. Close the tap and leave the door ajar to allow
the drum to dry out.
NOTES AND INDICATIONS FOR USE
•
WATER LEVEL
It may not be visible as the cycle is optimized
for a minimum water consumption without
compromising washing results.
•
SPIN SPEED CONTROL
Spin speed may be reduced automatically or
may even be excluded in the case of small
loads with highly absorbent garments (e.g.
bathrobes, bathmat).
This control avoids cloth and machine
damage and excessive vibrations and
consequent noise produced by the machine
due to load unbalance: by selecting high spin
speeds the noise level increases.
•
MOTOR NOISE
The running noises of the new,
electronically-controlled motor are not the
same as the ones you are used to from your
old appliance. Don’t be surprised - modern
technology has a modern sound.
•
CLEANING THE FILTER
To ensure an impeccable function of the
pump, check the filter regular and clean it if
necessary.
Ignis is a registered trademark of Whirlpool USA.
5019 501 10088
