Whirlpool AWA 1036, AWA 936 PROGRAM CHART

1) Programme duration
figures (guideline) are
valid for maximum
temperature wash with no
special functions.

GB

AWA 936/1036

Wool
Rinse Hold

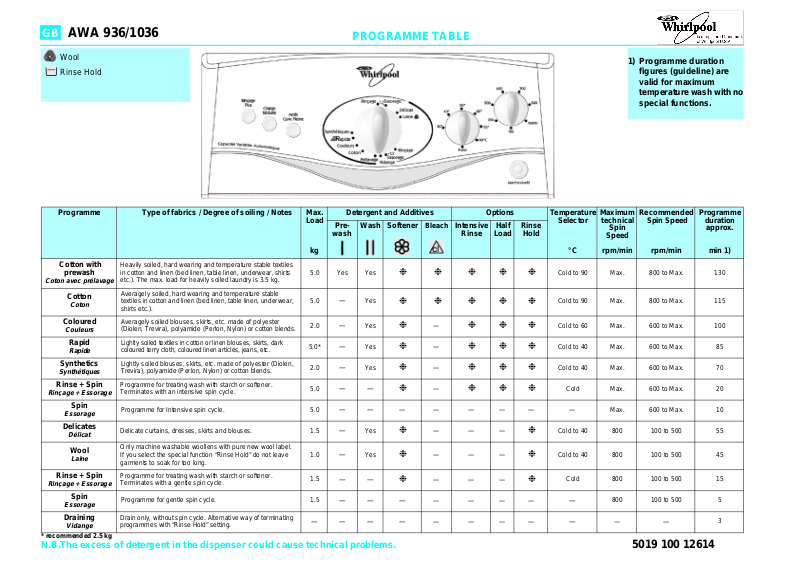

PROGRAMME TABLE

Programme Type of fabrics / Degree of soiling / Notes Max.

Load

Detergent and Additives Options Temperature

Pre-

Wash Softener

wash

kg

Cotton with

prewash

Coton avec prélavage

Cotton

Coton

Coloured

Couleurs

Rapid

Rapide

Synthetics

Synthétiques

Rinse + Spin

Rinçage + Essorage

Spin

Essorage

Delicates

Délicat

Wool

Laine

Rinse + Spin

Rinçage + Essorage

Spin

Essorage

Draining

Vidange

* recommended 2.5 kg

Heavily soiled, hard wearing and temperature stable textiles
in cotton and linen (bed linen, table linen, underwear, shirts
etc.). The max. load for heavily soiled laundry is 3.5 kg.

Averagely soiled, hard wearing and temperature stable
textiles in cotton and linen (bed linen, table linen, underwear,
shirts etc.).

Averagely soiled blouses, skirts, etc. made of polyester
(Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Lightly soiled textiles in cotton or linen blouses, skirts, dark
coloured terry cloth, coloured linen articles, jeans, etc.

Lightly soiled blouses, skirts, etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.

Programme for treating wash with starch or softener.
Terminates with an intensive spin cycle.

Programme for Intensive spin cycle. 5.0

Delicate curtains, dresses, skirts and blouses. 1.5

Only machine washable woollens with pure new wool label.
If you select the special function “Rinse Hold” do not leave
garments to soak for too long.

Programme for treating wash with starch or softener.
Terminates with a gentle spin cycle.

Programme for gentle spin cycle. 1.5

Drain only, without spin cycle. Alternative way of terminating
programmes with “Rinse Hold” setting.

5.0 Yes Yes

5.0

2.0

5.0*

2.0

5.0

1.0

1.5

——— —

Yes

—

Yes

—

Yes

—

Yes

—

——

——

Yes

—

Yes

—

——

—— —

N.B.The excess of detergent in the dispenser could cause technical problems.

Bleach

Intensive

Rinse

Half

Load

Rinse

Hold

Selector

°C

❉❉❉❉❉

❉❉❉❉❉

❉
❉
❉
❉

————— —

❉

—

—

—

—

❉❉❉
❉❉❉
❉❉❉
❉❉❉

———

❉

Cold to 90 Max. 800 to Max. 130

Cold to 90 Max. 800 to Max. 115

Cold to 60 Max. 600 to Max. 100

Cold to 40 Max. 600 to Max. 85

Cold to 40 Max. 600 to Max. 70

Cold Max. 600 to Max. 20

Cold to 40 800 100 to 500 55

❉

———

❉

Cold to 40 800 100 to 500 45

❉

———

————

————

❉

Cold 800 100 to 500 15

—

—

Maximum
technical

Recommended

Spin Speed

Spin

Speed

rpm/min

Max. 600 to Max. 10

800 100 to 500 5

——

rpm/min

5019 100 12614

Programme

duration

approx.

min 1)

3

GB

CONSUMPTION DATA

Programme Temperature

selector (°C)

Cotton + Int. Rinse 90 5.0 72 1.80 115

Cotton 60 5.0 59 1.15 115

Coloured + Int. Rinse 60 2.0 66 0.80 100

Coloured 40 2.0 54 0.40 100

Rapid + Half Load 40 2.5 49 0.50 85

Synthetics + Half Load 30 1.5 45 0.30 70

Delicates 40 1.5 70 0.65 55

Wool 40 1.0 70 0.55 45

Pre-wash cycle increases programme duration by approx. 15 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values
in the table in relation to the water supply pressure and temperature, the load and the type of wash.

Load

(kg)

Water

(l)

Energy

(kWh)

Programme

duration (min)

ADDING DETERGENT AND ADDITIVES

Add the detergent and the additives into the dispenser as
follows:

• Programme with pre and main wash

• Main wash programme without pre-wash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important:

• Be careful not to fill more than the

“MAX”

level mark.

• For programme with pre-wash: do not use liquid detergents.

• For programmes without prewash from cold to 40° C, it is

recommended to use a liquid detergent to avoid whitish
residues on the coloured laundry.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1 Turn the
2 Turn the
3 Turn the

programme selector knob
temperature knob
spin speed selector

to the required temperature.

on the required setting.

clockwise to the desired programme.

PRESS THE DESIRED SPECIAL OPTION BUTTON

“Intensive Rinse” button

• The water level increases for improved rinsing efficiency.

• For improved garment care it is advised to use this option for the “Cotton” 90° C and
the “Synthetics” 60° C programmes.

• This option is particularly suitable for areas with very soft water washing baby linen

and helps people with allergies.

“Half Load” button

• Reduces water consumption in the cotton and synthetics programme, above all during
pre-wash and rinse.

• Especially suitable for lightly soiled or small loads (reduce the detergent quantity).

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the spin cycle to
avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time or

when you do not wish to spin the clothes.

Note:

The programme selector knob stops on the position “”.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with
the spin cycle for the present wash programme.

• If you do not wish to spin the clothes, switch off the appliance, turn the programme
knob to the corresponding drain programme and switch on the appliance again.

PROGRAMME START

Open the tap and press the “On/Off” button. The pilot lamp lights up.

DOOR LOCK

During the running programme the door cannot be opened.
The door locks automatically in all programmes. If the programme is stopped or the

electrical power supply is terminated, the door lock will open after approximately 1 minute.

PROGRAMME END

• The programme selector knob is at “Stop”.

1 Press the “On/Off” button.
2 Cancel the special options by pressing the appropriate buttons.
3 Turn the water supply tap off.
4 Wait for the door to unlock (about 1 minute).
5 Open the door and the drum flaps and unload the machine.

PROGRAMME RESELECTION AFTER PROGRAMME START

1 Press the “On/Off” button to switch off the appliance.
2 Select the new programme, temperature, spin speed and option.
3 Press the “On/Off” button to switch on the appliance.

TO STOP A PROGRAMME BEFORE THE END AND DRAIN

1 Press the “On/Off” button to switch off the appliance.
2 Set the programme selector to “Drain”.
3 Press the “On/Off” button to start the drain programme.

Only open the door when the programme selector is at “Stop” and the door is unlocked
(after approximately 1 minute).
