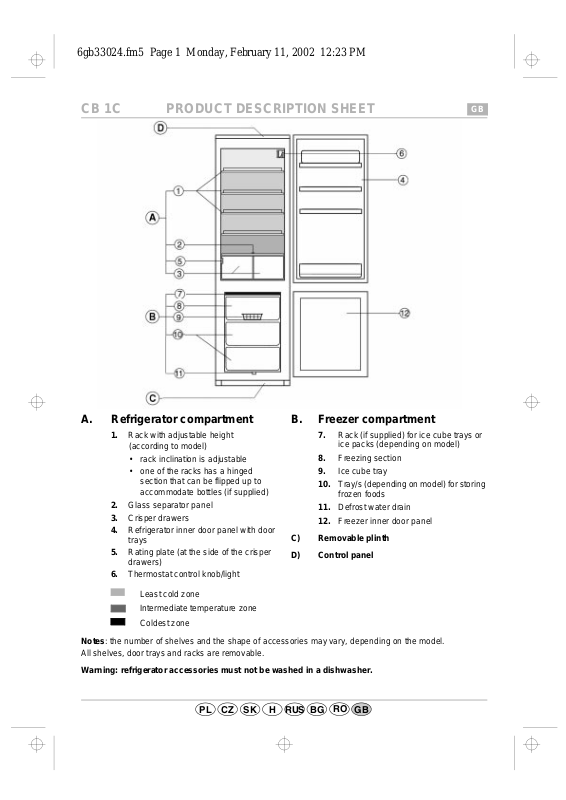

CB 1C PRODUCT DESCRIPTION SHEET
GB
A. Refrigerator compartment
Rack with adjustable height
1.
(according to model)
• rack inclination is adjustable
• one of the racks has a hinged
section that can be flipped up to
accommodate bottles (if supplied)
Glass separator panel
2.
Crisper drawers
3.
Refrigerator inner door panel with door
4.
trays
Rating plate (at the side of the crisper
5.
drawers)
Thermostat control knob/light
6.
Least cold zone
Intermediate temperature zone
Coldest zone
: the number of shelves and the shape of accessories may vary, depending on the model.
Notes
All shelves, door trays and racks are removable.
Warning: refrigerator accessories must not be washed in a dishwasher.
B. Freezer compartment
Rack (if supplied) for ice cube trays or
7.
ice packs (depending on model)
Freezing section
8.
Ice cube tray
9.
Tray/s (depending on model) for storing
10.
frozen foods
Defrost water drain
11.
Freezer inner door panel
12.
C) Removable plinth
D) Control panel
CZ
PL SK H RUS
BG
RO
GB
6gb33024.fm5 Page 2 Monday, February 11, 2002 12:23 PM
CB 1C
CB 1C
CONTROL PANEL
Controls may be located internally or externally, depending on the model. For all models,
temperature is adjusted by an interior knob.
Version with external controls
Main ON/OFF button
1.
Power ON green indicator LED
2.
Fast freeze yellow indicator LED
3.
Fast freeze button
4.
Internal light switch
6.
Version with internal controls
Yellow indicator led (freezing)
4.
Principal thermostat control knob
5.
Internal light switch
6.
Lamp (max 15W)
7.
Thermostat control reference
8.
Thermostat set to z: no refrigeration, no light
Thermostat set to1:
Thermostat set to5:
The average recommended thermostat setting is 2-3.
the ambient air temperature, the frequency of opening the door and the position of the appliance can
Note:
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
least cold
coldest
5019 637 33024
internal temperature
internal temperature
PL SK H RUS
To remove the bulb, unscrew in an anti-clockwise
direction as illustrated
RO
BGCZ
GB
Printed in Italy 02/02
