Whirlpool AKP 514 IX PROGRAM CHART

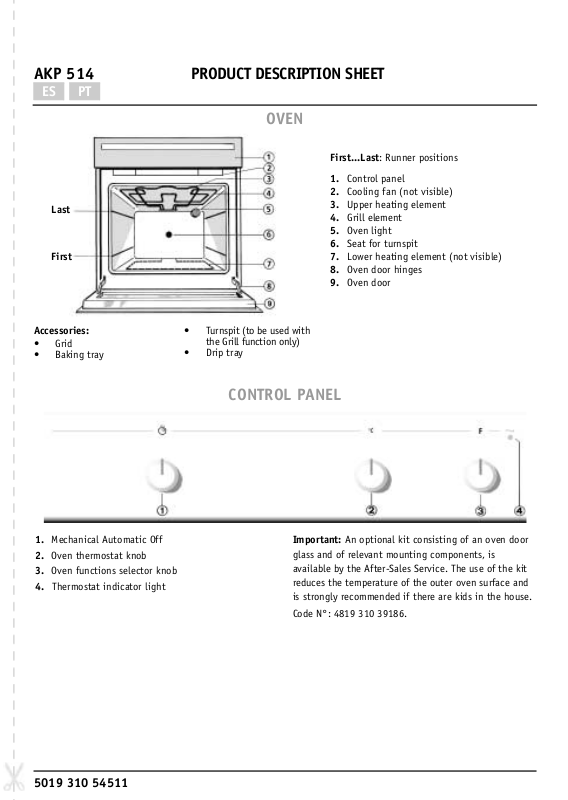

AKP 514 PRODUCT DESCRIPTION SHEET

ES PT

OVEN

Last

First

Accessories:

•Grid

•Baking tray

• Turnspit (to be used with the Grill function only)

•Drip tray

CONTROL PANEL

First...Last

: Runner positions

Control panel Cooling fan (not visible) Upper heating element Grill element Oven light Seat for turnspit Lower heating element (not visible) Oven door hinges Oven door

Mechanical Automatic Off

Oven thermostat knob

Oven functions selector knob

Thermostat indicator light

5019 310 54511

Important:

glass and of relevant mounting components, is available by the After-Sales Service. The use of the kit reduces the temperature of the outer oven surface and is strongly recommended if there are kids in the house.

Code N°: 4819 310 39186.

An optional kit consisting of an oven door

OVEN FUNCTIONS

Off

Oven light

BOTTOM HEATING FUNCTION

Use:

To finish baking fruitcakes or cheesecakes.

To thicken sauces.

Use the lower heating function for the last 10 or 15 minutes of cooking time

STATIC FUNCTION

Use when all the food is on the same runner level.

Pre-heat the oven to the required cooking

temperature and place the food inside as soon as the red thermostat indicator light switches off.

Ideally, the shelf should be on the second runner level

when using the static function.

GRILL FUNCTION

Use the grill function to cook small pieces of meat (steaks, sausages) and for making toasts.

The oven door must be closed during the cooking cycle.

Pre-heat the grill for about 5 minutes.

SWITCHING THE OVEN ON

Turn the selector knob to the required symbol.

The oven light switches on.

• Turn the thermostat knob clockwise to the required temperature.

Arrange the meat on the grid with the drip tray

underneath. Pour water in the drip tray to cover the bottom to reduce smoke and fat spatters.

Turn over the meat about half-way through cooking

time.

GRILL + TURNSPIT FUNCTION

This function is ideally suited to prepare roasts, chickens, etc.

HOW TO OPERATE Note: During cooking the door must remain closed.

Slide the food on the turnspit spindle and secure with

the two forks. Place the support grid inside the oven on the second

runner. Position the spindle on the support grid and insert it

in the aperture provided in the oven back panel. Remove the spindle handle.

Position the baking tray under the grid. We suggest

you pour some water into the baking tray to reduce smoke and grease spatters.

The red thermostat indicator light switches on

• When the required temperature is reached, the red thermostat indicator light switches off.

End of cooking cycle:

• Return the knobs to the OFF position (0 - •).

USING THE COOKTOP CONNECTED TO THE OVEN

Turn the knob fully anti-clockwise.

Return the knob to the required cooking time.

When the preset cooking time has elapsed, the oven

switches off.

To use the oven without programming the cooking

time, set the knob to .

Warning

switch on: to switch on the oven, either set the programmer knob to or set the required cooking time.

5019 310 54511

: If the programmer is on “0” the oven will not
