Whirlpool AKM 305/AV, AKM 305/WH, AKM 305/IX PROGRAM CHART

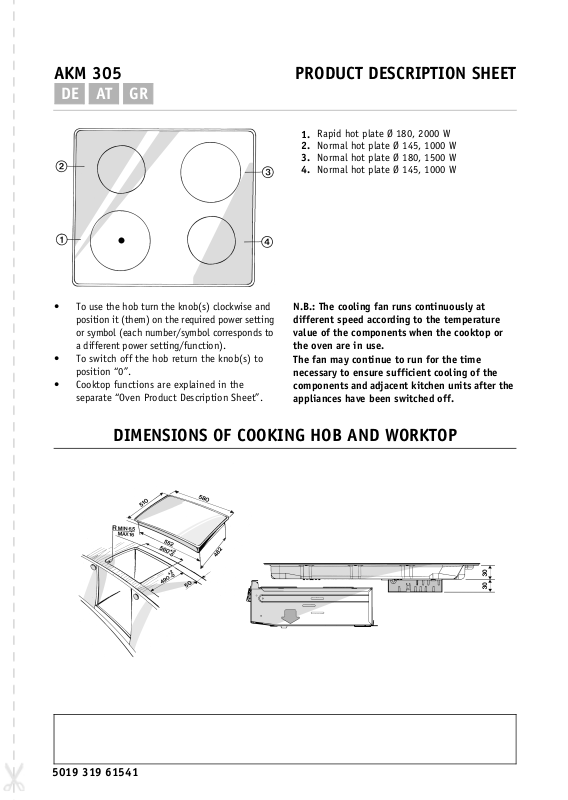

AKM 305 PRODUCT DESCRIPTION SHEET

DE AT GR

Rapid hot plate Ø 180, 2000 W

1.

Normal hot plate Ø 145, 1000 W

2.

Normal hot plate Ø 180, 1500 W

3.

Normal hot plate Ø 145, 1000 W

4.

• To use the hob turn the knob(s) clockwise and
position it (them) on the required power setting
or symbol (each number/symbol corresponds to
a different power setting/function).

• To switch off the hob return the knob(s) to
position “0”.

• Cooktop functions are explained in the
separate “Oven Product Description Sheet”.

DIMENSIONS OF COOKING HOB AND WORKTOP

N.B.: The cooling fan runs continuously at
different speed according to the temperature
value of the components when the cooktop or
the oven are in use.

The fan may continue to run for the time
necessary to ensure sufficient cooling of the
components and adjacent kitchen units after the
appliances have been switched off.

5019 319 61541
