Whirlpool ADP 8540 Quick Reference Manual

Whirlpool is a registered trademark of Whirlpool USA

5019 396 91250

GB

ADP 8540

Quick Reference Guide

Before using the dishwasher, read the user instructions!

WH/I/K/GB

(We reserve the right to make technical modifications)

1) Reference programme for energy label in compliance with
EN 50242 regulations;

2) Refer to “User instructions“;

3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C -
as well as water hardness and power supply voltage, etc.

Program selector knob

Mains

On / Off

Start button

Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.

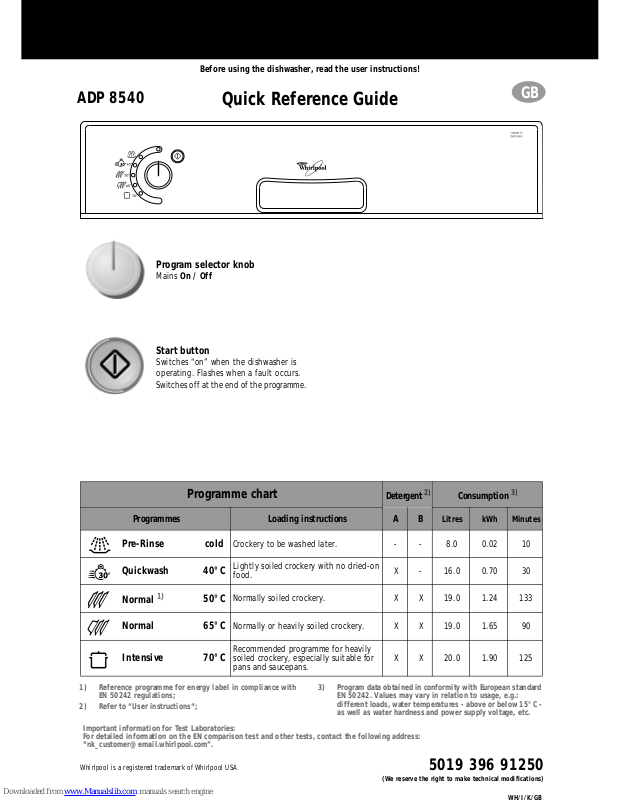

Programme chart

Detergent

2)

Consumption

3)

Programmes Loading instructions A B

Litres kWh Minutes

Pre-Rinse cold

Crockery to be washed later. - - 8.0 0.02 10

Quickwash 40°C

Lightly soiled crockery with no dried-on
food.

X - 16.0 0.70 30

Normal

1)

50°C

Normally soiled crockery. X X 19.0 1.24 133

Normal 65°C

Normally or heavily soiled crockery. X X 19.0 1.65 90

Intensive 70°C

Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.

X X 20.0 1.90 125

Important information for Test Laboratories:
For detailed information on the EN comparison te st an d other tests, contact the following address:
“[e-mail]”.

WH/II/K/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).

Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.

Mechanical indicator C.
Electric indicator on control panel (if provided).

On models with water softener
system only.

Mechanical indicator D. Electric
indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

Select the desired programme.
The corresponding indicator lamp comes on.

If necessary (and if provided) the corresponding indicator lamp lights up.

The selected programme is
then memorised (even in the
event of power failure).

- Only open the dishwasher if necessary
(Warning: beware of hot steam).

- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.

Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Switch on the appliance

How to fill the detergent

AB

C

Check the rinse aid level

Check the regeneration

salt level

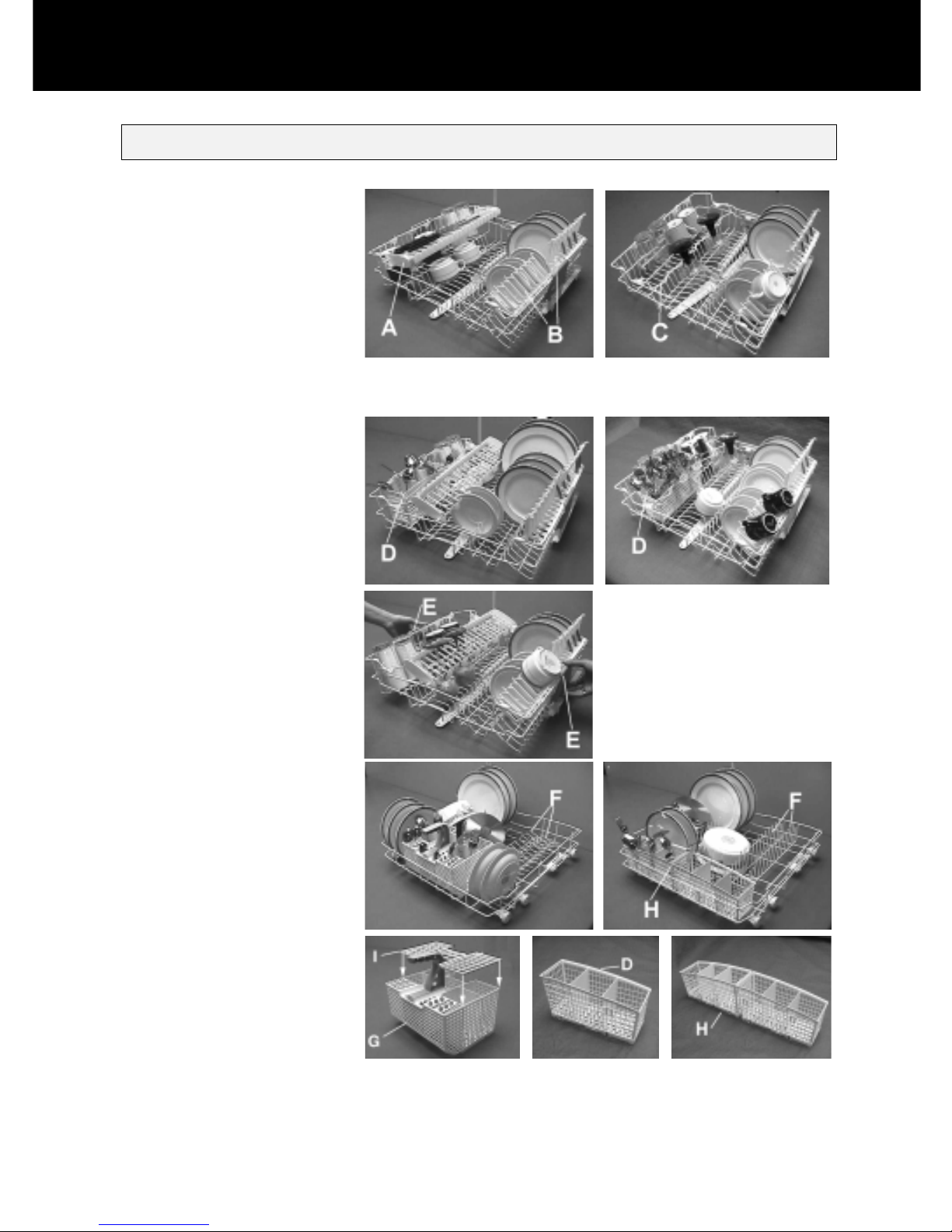

Load the racks

Close the dishwasher door,

turn on the water tap

Select a programme

Select options

Press the Start button

“Change programme”

Press the START button for 2 sec. until
the Start indicator lamp switches off;

Select another programme and
press the START button again.

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks
