Whirlpool ADP 8454 PROGRAM CHART
GB
ADP 8454
Further indications are given in the pages to follow and in the user instructions.
Programme selector
Start button
Indicator lamp lit while the dishwasher is operatin g.
Flashes when a fault occurs.
Switches off at the end of the programme.

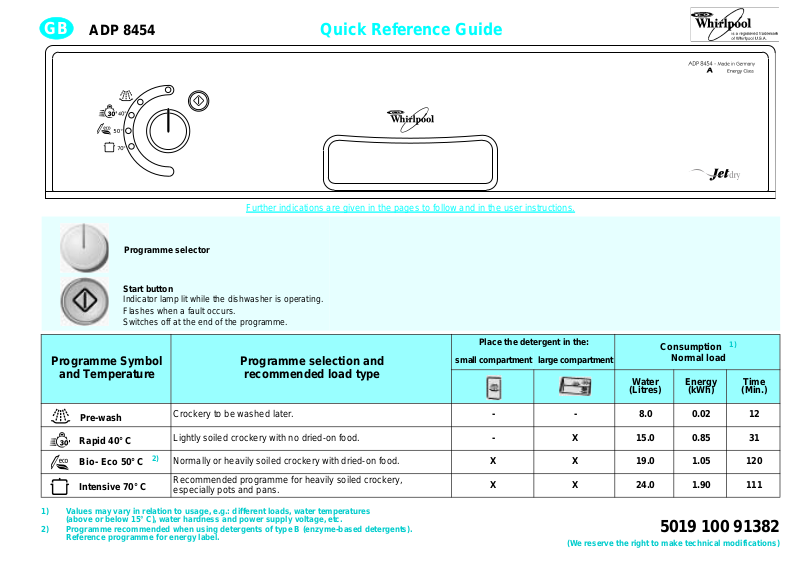

Quick Reference Guide
Programme Symbol
and Temperature
Pre-wash
Rapid 40° C
Bio- Eco 50° C
Intensive 70° C
1) Values may vary in relation to usage, e.g.: different loads, water temperatures
(above or below 15° C), water hardness and power supply voltage, etc.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
Recommended programme for heavily soiled crockery,
especially pots and pans.
Programme selection and
recommended load type
Place the detergent in the:
small compartment large compartment
- - 8.0 0.02 12
- X 15.0 0.85 31
X X 19.0 1.05 120
X X 24.0 1.90 111
Water
(Litres)
Consumption
Normal load
5019 100 91382
(We reserve the right to make technical modifications)
Energy
(kWh)
1)
Time
(Min.)
C
D
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the
programme selector knob is turned.
One of the programme indicator
lamps will switch on.
3. Turn the selector knob to select the
desired programme.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected wash programme.
indicator lamp will light up.
the programmed data cannot be
altered by turning the programme
selector knob.
once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the programme
selected, press the Start button for
about 5 seconds. The Start
indicator lamp will switch off. Select
a new programme and press the
Start button.
if the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
The corresponding
If required,
The Start
Once set,
.
6. Once the Start indicator lamp has
switched off, turn the programme
selector knob to the initial position to
switch off the dishwasher.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the

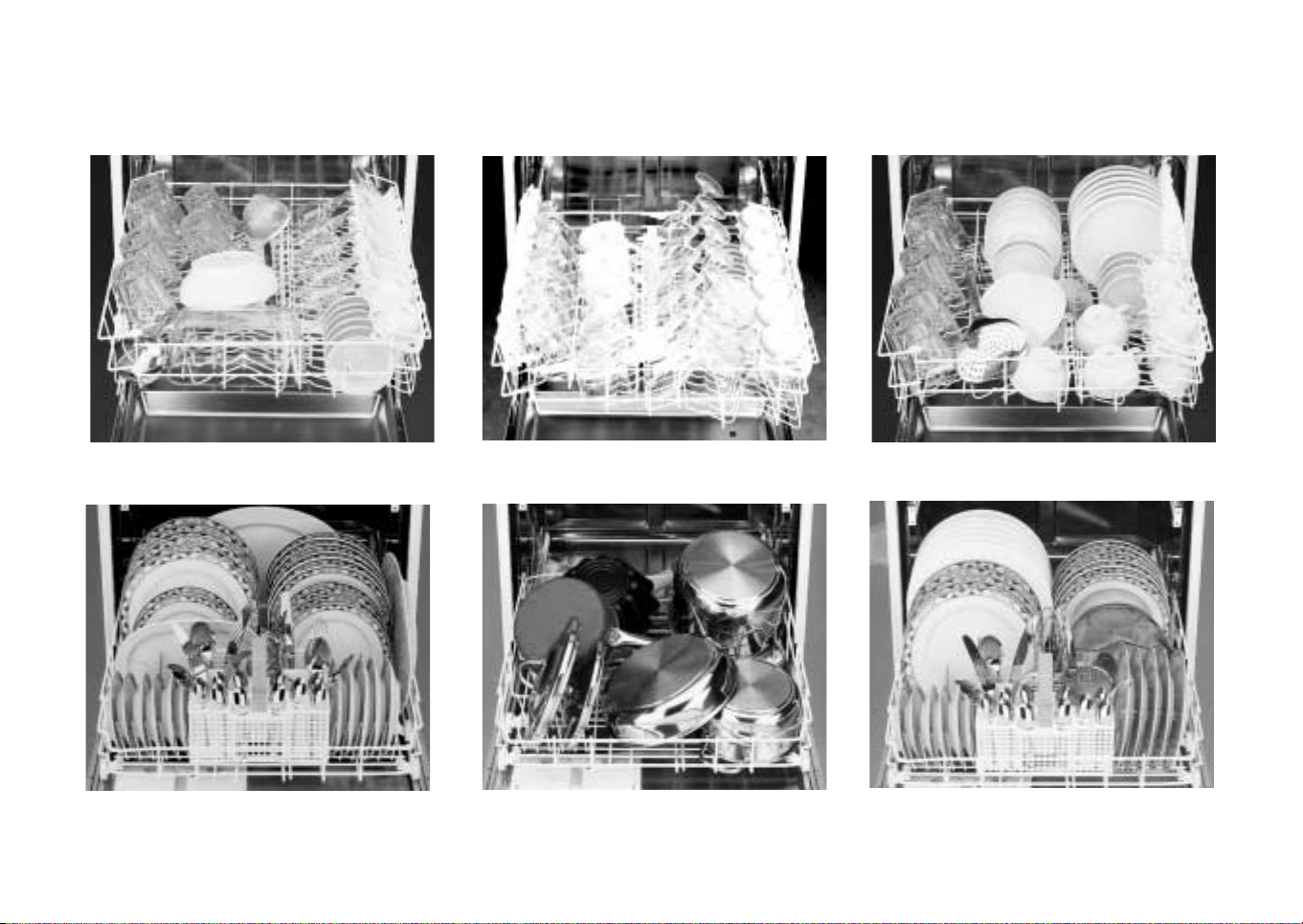

Upper rack
Crockery Holders
• Down: cups and long-stemmed
glasses.
•
Up: plates.
Upper and lower rack
Glass holder
• can be moved sideways.
• Below: small glasses.
• Above: long-stemmed glasses.
Glass holder
Lower rack
A
A
C
Plate holders
•(A) May be lowered to increase
available space.
Cutlery basket
• The cutlery basket (C) can be
removed to increase available space.
• Some models are provided with a
grid (D) that can be fitted onto the
cutlery basket.
Please read the user instructions carefully.
