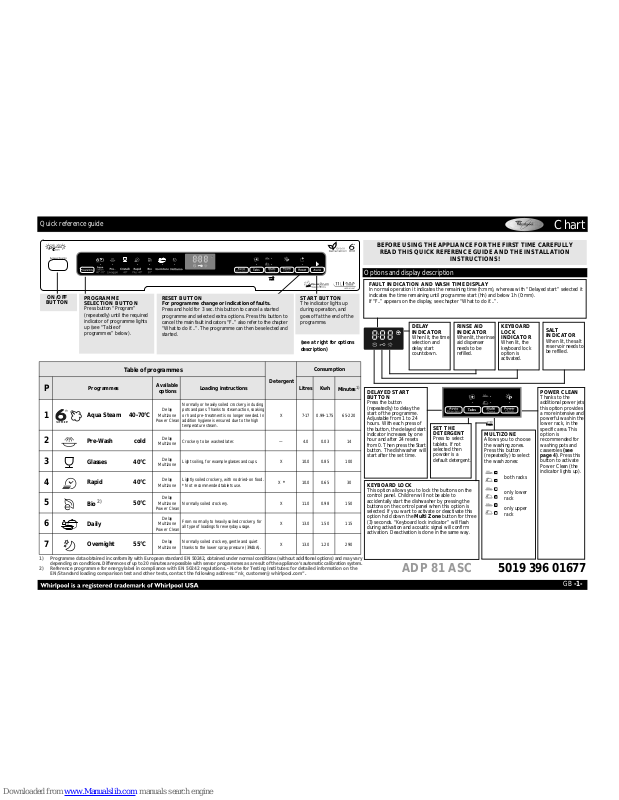

Whirlpool ADP 81 ASC Quick Reference Manual
GB
-1-
Chart
(see at right for options
description)
ON/OFF
BUTTON
PROGRAMME
SELECTION BUTTON
Press button “Program”
(repeatedly) until the required
indicator of programme lights
up (see “Table of
programmes” below).
START BUTTON
The indicator lights up
during operation, and
goes off at the end of the
programme.
RESET BUTTON
For programme change or indication of faults.
Press and hold for 3 sec. this button to cancel a started
programme and selected extra options. Press this button to
cancel the main fault indicators “F..” also refer to the chapter
“What to do if...”. The programme can then be selected and
started.
1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary
depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system
.
2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the
EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Table of programmes
Detergent
Consumption
P
Programmes
Available
options
Loading instructions Litres Kwh
Minutes
1)
1
Aqua Steam 40-70°C
Delay
Multizone
Power Clean
Normally or heavily soiled crockery, including
pots and pans. Thanks to steam action, soaking
or hand pre-treatment is no longer needed. In
addition hygiene is ensured due to the high
temperature steam.
X 7-17 0.99-1.75 65-220
2
Pre-Wash cold
Delay
Multizone
Crockery to be washed later. — 4.0 0.03 14
3
Glasses 40°C
Delay
Multizone
Light soiling, for example glasses and cups. X 10.0 0.85 100
4
Rapid 40°C
Delay
Multizone
Lightly soiled crockery, with no dried-on food.
* Not recommended tablets use.
X*10.0 0.65 30
5
Bio
2)
50°C
Delay
Multizone
Power Clean
Normally soiled crockery. X 11.0 0.98 150
6
Daily
Delay
Multizone
Power Clean
From normally to heavily soiled crockery, for
all type of loadings for everyday usage.
X 13.0 1.50 115
7
Overnight 55°C
Delay
Multizone
Normally soiled crockery, gentle and quiet
thanks to the lower spray pressure (39dbA).
X 13.0 1.20 290
Options and display description
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY
READ THIS QUICK REFERENCE GUIDE AND THE INSTALLATION
INSTRUCTIONS!
FAULT INDICATION AND WASH TIME DISPLAY
In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it
indicates the time remaining until programme start (hh) and below 1h (0:mm).
If “F..” appears on the display, see chapter “What to do if...”.
KEYBOARD LOCK
This option allows you to lock the buttons on the
control panel. Children will not be able to
accidentally start the dishwasher by pressing the
buttons on the control panel when this option is
selected. If you want to activate or deactivate this
option hold down the
Multi Zone
button for three
(3) seconds. “Keyboard lock indicator” will flash
during activation and acoustic signal will confirm
activation. Deactivation is done in the same way.
MULTIZONE
Allows you to choose
the washing zones.
Press this button
(repeatedly) to select
the wash zones:
both racks
only lower
rack
only upper
rack
POWER CLEAN
Thanks to the
additional power jets
this option provides
a more intensive and
powerful wash in the
lower rack, in the
specific area.This
option is
recommended for
washing pots and
casseroles
(see
page 4)
. Press this
button to activate
Power Clean (the
indicator lights up).
RINSE AID
INDICATOR
When lit, the rinse
aid dispenser
needs to be
refilled.
SALT
INDICATOR
When lit, the salt
reservoir needs to
be refilled.
DELAY
INDICATOR
When lit, the time
selection and
delay start
countdown.
DELAYED START
BUTTON
Press the button
(repeatedly) to delay the
start of the programme.
Adjustable from 1 to 24
hours. With each press of
the button, the delayed start
indicator increases by one
hour and after 24 resets
from 0. Then press the Start
button. The dishwasher will
start after the set time.
KEYBOARD
LOCK
INDICATOR
When lit, the
keyboard lock
option is
activated.
SET THE
DETERGENT
Press to select
tablets. If not
selected then
powder is a
default detergent.
5019 396 01677ADP 81 ASC
Quick reference guide
GB
-2-
First time use
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
1.
Ask your water supply company what the
water hardness
is...2....enter this value
on your
dishwasher
Suggestions for detergent use
German
degrees °dH
French
degrees °fH
English
degrees °eH
Water
hardness
Insert value is shown
in the display
Gel or Powder
(rinse aid and salt)
Tablets
0 - 5 0 - 9 0 - 6.3 Soft 1
go to step 1
(see “Daily check”)
if extra salt is
needed go to
step 1
(see “Daily check”)
6 - 10 10 - 18 7 - 12.6 Medium 2
11 - 15 19 - 27 13.3 - 18.9 Average 3
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4
22 - 28 38 - 50 26.6 - 35 Hard 5
29 - 35 51 - 63 35.7 - 44.1 Very hard 6
36 - 60 64 - 107 44.8 - 74.9 Extremely hard 7
*
only
before the first wash
or if the
water hardness has been changed
Switch on the appliance
- Select the 2nd programme “P2” - consult the table in the Programme Chart.
- Press the START button for at least 5 seconds until the START indicator lamp flashes.
- The water hardness setting is shown on the display (if present) or the START button flashes.
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.
- The appliance must be switched off to memorise the new setting.
Even if you use tablets which include salt,
you must still add salt since such detergents
are not effective enough at softening hard
water.
Water hardness level is factory set for
medium hard water (a number “4” is
shown on the display).
1
Visual indicator
(depending
on model).
Fill the salt reservoir
with water before the
first wash only.
Add salt
(never add detergent!).
min. 1.5 kg
max. 2 kg
Visual indicator
(depending on
model). Screw
on the cap. Salt
residues around
cap need to be
removed.
The salt level indicator lamp may remain lit for the
duration of several wash cycles. If the water
hardness level falls within category (soft), no salt is
required.
Salt indicator (depending on the model)
orange: OK.
clear: NEEDS TO
BE ADDED
The indicator lamp on the control panel lights up
when SALT NEEDS TO BE ADDED.
Daily check
Filling the salt reservoir -
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
How to set water hardness in order to always assure the best cleaning results
GB
-3-
Daily check
2
3
Rinse aid indicator (depending on model)
The indicator lamp on the control panel lights up when RINSE AID NEEDS
TO BE ADDED.
dark: OK. clear: NEEDS TO BE ADDED
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the
appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty
drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary , use powder detergent). Detergents
with rinse aid incorporated tend to form excess suds.
If required, open
the cover
(press lever).
Open the cover A
(press lever).
Only fill the
detergent dispenser
prior to starting a
wash programme.
Use one tablet per one cycle, only placed in
detergent dispenser.
All types of tablets can be used, but for 2 in 1
type adding of salt is mandatory.
Tablet / gel / powder
Add rinse aid
to max.
line ~100 ml
The rinse aid dosage can be adjusted to the
detergent used. The lower the setting, the less
rinse aid is dispensed (factory setting: position 4).
Press the lever to open the cover. Using a coin or
similar object, turn the arrow to the desired
setting. After adjusting the rinse aid setting, shut
the cover again.
Visual
indicator B
Daily use
Adding detergent -
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations.
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
