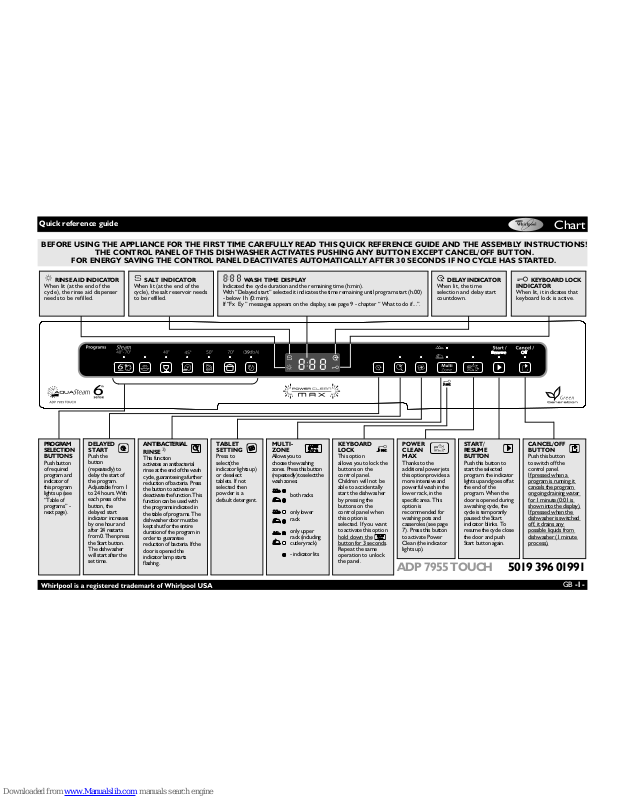

Whirlpool ADP 7955 TOUCH Quick Reference Manual
GB
-1-
Chart
PROGRAM
SELECTION
BUTTONS
Push button
of required
program and
indicator of
this program
lights up (see
“Table of
programs” next page).
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.
MULTIZONE
Allows you to
choose the washing
zones. Press this button
(repeatedly) to select the
wash zones:
both racks
only lower
rack
only upper
rack (including
cutlery rack)
- indicator lits
DELAYED
START
Push the
button
(repeatedly) to
delay the start of
the program.
Adjustable from 1
to 24 hours. With
each press of the
button, the
delayed start
indicator increases
by one hour and
after 24 restarts
from 0. Then press
the Start button.
The dishwasher
will start after the
set time.
START/
RESUME
BUTTON
Push this button to
start the selected
program: the indicator
lights up and goes off at
the end of the
program. When the
door is opened during
a washing cycle, the
cycle is temporarily
paused: the Start
indicator blinks. To
resume the cycle close
the door and push
Start button again.
CANCEL/OFF
BUTTON
Push this button
to switch off the
control panel.
If pressed when a
program is running it
cancels the program
ongoing draining water
for 1 minute (0:01 is
shown into the display).
If pressed when the
dishwasher is switched
off, it drains any
possible liquids from
dishwasher (1 minute
process).
RINSE AID INDICATOR
When lit (at the end of the
cycle), the rinse aid dispenser
needs to be refilled.

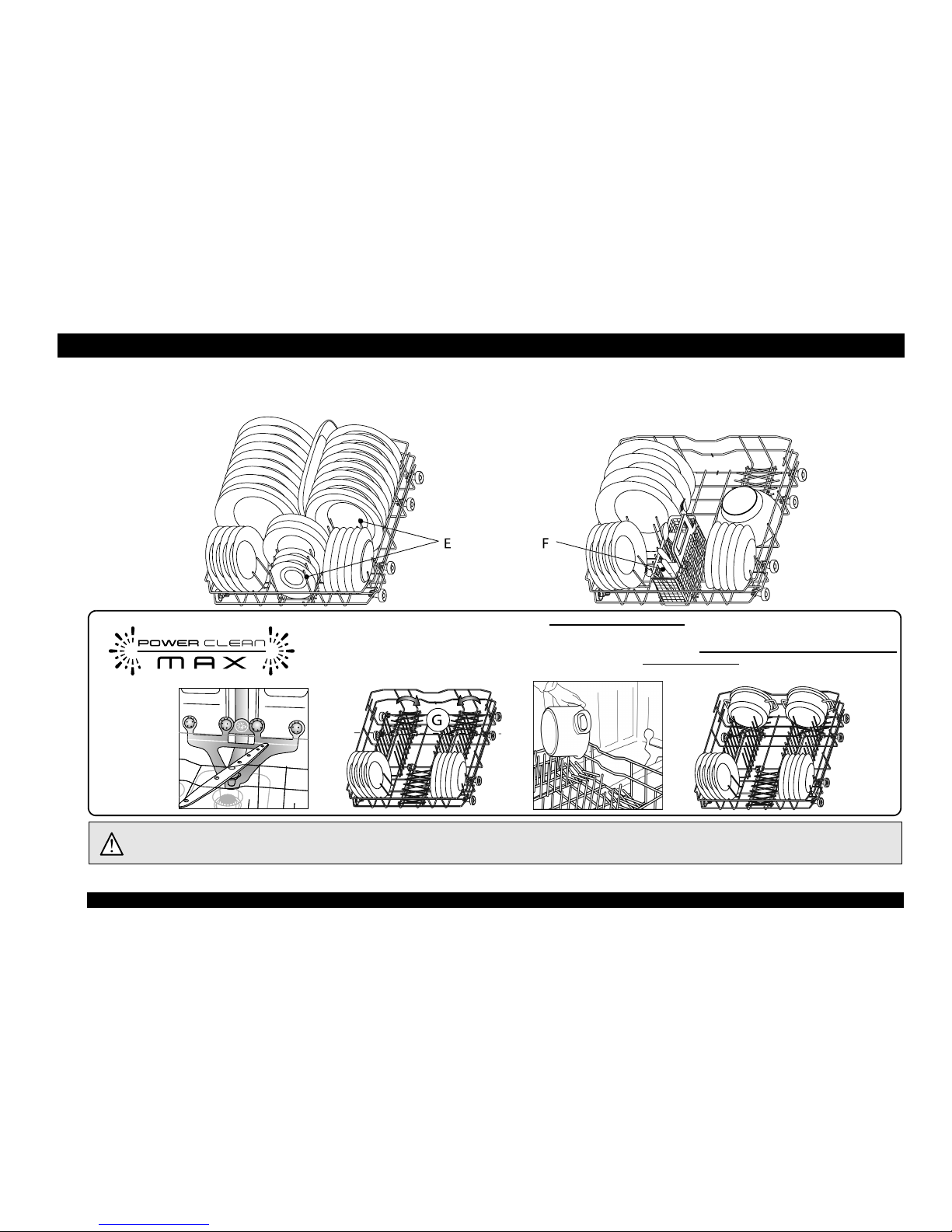

POWER
CLEAN
MAX
Thanks to the
additional power jets
this option provides a
more intensive and
powerful wash in the
lower rack, in the
specific area. This
option is
recommended for
washing pots and
casseroles (see page
7). Press this button
to activate Power
Clean (the indicator
lights up).
TAB LET
SETTING
Press to
select(the
indicator lights up)
or deselect
tablets. If not
selected then
powder is a
default detergent.
SALT INDICATOR
When lit (at the end of the
cycle), the salt reservoir needs
to be refilled.
WASH TIME DISPLAY
Indicated the cycle duration and the remaining time (h:min).
With “Delayed start” selected it indicates the time remaining until program start (h.00)
- below 1h (0:mim).
If “Fx Ey ” messages appears on the display, see page 9 - chapter “ What to do if...”.
5019 396 01991ADP 7955 TOUCH
DELAY INDICATOR
When lit, the time
selection and delay start
countdown.
KEYBOARD LOCK
INDICATOR
When lit, it indicates that
keyboard lock is active.
ANTIBACTERIAL
RINSE
3)
This function
activates an antibacterial
rinse at the end of the wash
cycle, guaranteeing a further
reduction of bacteria. Press
the button to activate or
deactivate the function. This
function can be used with
the programs indicated in
the table of programs. The
dishwasher door must be
kept shut for the entire
duration of the program in
order to guarantee
reduction of bacteria. If the
door is opened the
indicator lamp starts
flashing.
KEYBOARD
LOCK
This option
allows you to lock the
buttons on the
control panel.
Children will not be
able to accidentally
start the dishwasher
by pressing the
buttons on the
control panel when
this option is
selected. If you want
to activate this option
hold down the
button for 3 seconds
.
Repeat the same
operation to unlock
the panel.
Quick reference guide
GB
-2-
Chart
1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary
depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.
2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard
loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.
Ta b l e o f programs
Deter-
gent
Consumption
P
Programs
Available
options
Loading instructions Litres kWh
Minutes
1)
1 Aqua Steam 40-70°C
Delay
Multizone
Antibacterial rinse
Power Clean
Soaking or hand pre-treatment is no longer needed on
any kind of items. Steam is used to soften soil and its
action is particularly effective on coffee, tea and lipstick
stain on glasses and cups. Furthermore, thanks to the
combination with 6th Sense, optimization of time,
energy and water is guaranteed because it adapts the
washing cycle to the level of soil.
X 7-14 0.99-1.80 70-185
2 Pre-Wash cold
Delay
Multizone
Crockery to be washed later.
— 4.0 0.03 14
3 Glasses 40°C
Delay
Multizone
Light soiling, for example glasses and cups.
X 10.0 0.85 100
4 Quickwash 45°C
Delay
Multizone
Lightly soiled crockery, with no dried-on food.
X 11.0 0.80 30
5
Eco
2)
50°C
Delay
Multizone
Antibacterial rinse
Power Clean
Normally soiled crockery.
X 11.0 0.98 150
6 Intensive 70°C
Delay
Multizone
Antibacterial rinse
Power Clean
Recommended program for heavily soiled
crockery, especially suitable for pans and
saucepans.
X 14.0 1.55 155
7 Overnight 55°C
Delay
Multizone
Normally soiled crockery, gentle and quiet thanks
to the lower spray pressure (39dbA).
X 13.0 1.20 290
Quick reference guide
GB
-3-
First time use
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
Water hardness should be set
only before the first wash or if
water hardness has been
changed
1
Visual indicator
(depending
on the model).
Unscrew cap.
Fill the salt reservoir with water
before the first wash only.
(depending on the model)
The salt level indicator lamp may remain lit
at the end of several wash cycles. If the
water hardness level falls within category
(soft), no salt is required.
Salt indicator on the control panel Salt indicator on the salt reservoir cap
The indicator lamp lights up when SALT
NEEDS TO BE ADDED.
green: OK.
clear: NEEDS TO
BE ADDED
Daily check
Filling the salt reservoir -
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Screw on the cap.
Salt residual
around the cap
need to be
removed. Some
salt reservoir have
a level indicator
integrated in the
cap (see below
how to check).
At first time use, the salt reservoir has to be filled independently from water hardness level
(see description below in step 1 “Daily check”).
-Press and hold together Eco Program and CANCEL/Off buttons for minimum 3 seconds.
- The current water hardness setting will be visible on the display.
-Press the Eco Program button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press
of the start button will set the level back to 1).
- Wait 30 seconds (control panel switches off) or press Start/Resume button to save setting.
1.
Ask your water supply company what the water hardness is...2....enter this value
on your dishwasher
Suggestions for detergent use
German
degrees °dH
French
degrees °fH
English
degrees °eH
Wate r hardness
level
Insert value is shown
in the display
Gel or Powder
(rinse aid and salt)
Tab l et s
0 - 5 0 - 9 0 - 6.3 Soft 1
go to step 1
(see “Daily
check”)
6 - 10 10 - 18 7 - 12.6 Medium 2
11 - 15 19 - 27 13.3 - 18.9 Av erage 3
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 if water is
HARD extra salt
needs to be
added
(go to step 1,
“Daily check”)
22 - 28 38 - 50 26.6 - 35 Hard 5
29 - 35 51 - 63 35.7 - 44.1 Very hard 6
36 - 50 64 - 90 44.8 - 62.4 Extremely hard 7
Add salt (never add detergent!)
min. 0.8 kg/max. 1 kg
Water hardness level is
factory set for medium-hard
water (level 4).
Even if you use tablets
which include salt
functionality, you must still
add regeneration salt since
such detergents are not
effective enough at
softening hard water.
How to set water hardness in order to always assure the best cleaning results
GB
-4-
Daily check
3
Daily use
Adding detergent -
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Open the cover A
(press the dedicated button).
Only fill the
detergent
dispenser prior to
starting a wash
program.
Shut the cover
by pressing dedicated ribs.
Insert detergent:
Tablet / powder / liquid
into the big chamber.
Use only one tablet per one cycle,
only placed in detergent
dispenser.
All types of tablets can be used,
but for 2 in 1 type adding of salt is
mandatory.
If required,
open the
cover B
(press the
dedicated
button).
Add
rinse
aid
to the
max. line
~150 ml
The rinse aid dosage can be
adjusted to the detergent
used. The lower the setting,
the less rinse aid is dispensed
(factory setting: position 4).
Press the button to open the
cover B. Using a coin or
similar object, turn the arrow
to the desired setting. After
adjusting the rinse aid setting,
shut the cover again.
Visual
indicator
2
Check the rinse aid indicator to check the
level into the dispenser.
(depending on the model)
Rinse aid indicator on the control panel Rinse aid indicator on the dispenser
The indicator lamp lights up when
RINSE AID NEEDS TO BE ADDED.
dark: OK. clear: NEEDS TO BE ADDED
Only use rinse aids recommended for use in domestic dishwashers.
Immediately
wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause
a fault function of the appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6).
Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder
detergent). Detergents with rinse aid incorporated tend to form excess suds.
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
