Whirlpool ADP 2315 WH, ADP 2315 BL, ADP 2315 SL Quick Reference Manual

GB

-1-

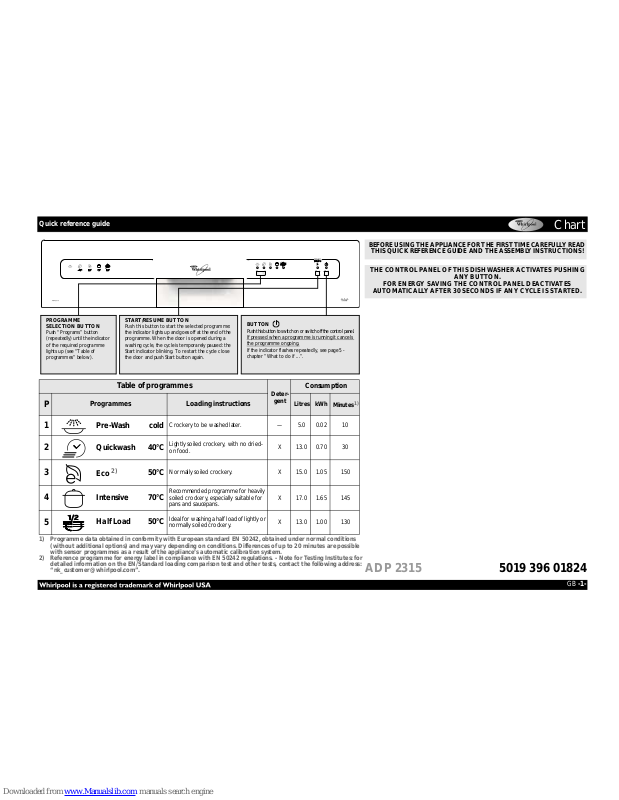

Chart

PROGRAMME
SELECTION BUTTON

Push “Programs” button
(repeatedly) until the indicator
of the required programme
lights up (see “Table of
programmes” below).

START/RESUME BUTTON

Push this button to start the selected programme:
the indicator lights up and goes off at the end of the
programme. When the door is opened during a
washing cycle, the cycle is temporarely paused: the
Start indicator blinking. To restart the cycle close
the door and push Start button again.

BUTTON

Push this button to switch on or switch off the control panel.
If pressed when a programme is running it cancels
the programme ongoing.
If the indicator flashes repeatedly, see page 5 ­chapter ”What to do if ...”.

1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions
(without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible
with sensor programmes as a result of the appliance’s automatic calibration system.

2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“[e-mail]”.

Table of programmes

Deter-

gent

Consumption

P

Programmes Loading instructions

Litres kWh

Minutes

1)

1

Pre-Wash cold

Crockery to be washed later. — 5.0 0.02 10

2

Quickwash 40°C

Lightly soiled crockery, with no dried­on food.

X 13.0 0.70 30

3

Eco

2)

50°C

Normally soiled crockery. X 15.0 1.05 150

4

Intensive 70°C

Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.

X 17.0 1.65 145

5

Half Load 50°C

Ideal for washing a half load of lightly or
normally soiled crockery.

X 13.0 1.00 130

5019 396 01824ADP 2315

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY RE AD

THIS QUICK REFERENCE GUIDE AND THE ASSEMBL Y INSTRUCTIONS!

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING

ANY BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES

AUTOMATICALLY AFTER 30 SECONDS IF ANY CYCLE IS STARTED.

Quick reference guide

GB

-2-

First time use

1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms

1.

Ask your water supply company what the

water hardness

is...

2.

...enter this value on
your dishwasher

Suggestions for detergent use

German

degrees °dH

French

degrees °fH

English

degrees °eH

Water hardness

level

3 first PROGRAM LEDs

lit on the panel

(see table of programmes)

P1 P2 P3

Gel or Powder

(rinse aid and

salt)

Tab lets

0 - 5 0 - 9 0 - 6.3 Soft 1

go to step 1

(see “Daily

check”)

6 - 10 10 - 18 7 - 12.6 Medium 2
11 - 15 19 - 27 13.3 - 18.9 Average 3
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4

if water is

HARD extra salt

needs to be

added

(go to step 1,

“Daily check”)

22 - 28 38 - 50 26.6 - 35 Hard 5
29 - 35 51 - 63 35.7 - 44.1 Very hard 6
36 - 60 64 - 107 44.8 - 74.9 Extremely hard 7

Water hardness should be set only

before the first wash or if water

hardness has been changed

1

Visual indicator
(depending
on the model).
Unscrew cap.

Fill the salt reservoir with water

before the first wash only.

(depending on the model)

The salt level indicator lamp may remain lit
at the end of several wash cycles. If the
water hardness level falls within category
(soft), no salt is required.

Salt indicator on the control panel Salt indicator on the salt reservoir cap

The indicator lamp lights up when SALT
NEEDS TO BE ADDED.

orange:
OK.

clear: NEEDS TO

BE ADDED

Daily check

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

- Press and hold together Programs and buttons for minimum 3 seconds.

- Programmes LEDs will indicate the water hardness setting.

- Press the Programs button to increase setting (when the level reaches 7, the next key press will set the level back to 1.

- Wait 30 seconds (control panel switches off) or press START/Resume button to save setting.

Add salt (never add detergent!)

min. 1.5 kg / max. 2 kg

Water hardness level is
factory set for medium-hard
water (level 4).

Even if you use tablets which
include salt, you must still add
regeneration salt since such
detergents are not effective
enough at softening hard
water.

Screw on the cap.
Salt residual
around the cap
need to be
removed. Some
salt reservoir have
a level indicator
integrated in the
cap (see below
how to check).

At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).

How to set water hardness in order to always assure the best cleaning results

GB

-3-

Daily check

3

Check the rinse aid indicator to check the level
into the dispenser.

(depending on the model)

Rinse aid indicator on the control panel Rinse aid indicator on the dispenser

The indicator lamp lights up when RINSE AID NEEDS
TO BE ADDED.

dark: OK. clear: NEEDS TO BE ADDED

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the
appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty
drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary , use powder detergent). Detergents
with rinse aid incorporated tend to form excess suds.

Daily use

Adding detergent -

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Open the cover A

(press the dedicated button).

Only fill the
detergent dispenser
prior to starting a
wash programme.

Shut the cover

by pressing dedicated ribs.

Insert detergent: Tablet / powder / liquid into the big chamber

Use only one tablet per one cycle, only
placed in detergent dispenser.

All types of tablets can be used, but for
2 in 1 type adding of salt is mandatory.

If required,
open the
cover B
(press the
dedicated
button).

Add rinse aid
to the max.
line ~150 ml

The rinse aid dosage can be
adjusted to the detergent used.
The lower the setting, the less
rinse aid is dispensed (factory
setting: position 4).
Press the button to open the
cover B. Using a coin or similar
object, turn the arrow to the
desired setting. After adjusting
the rinse aid setting, shut the
cover again.

Visual
indicator

2

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
