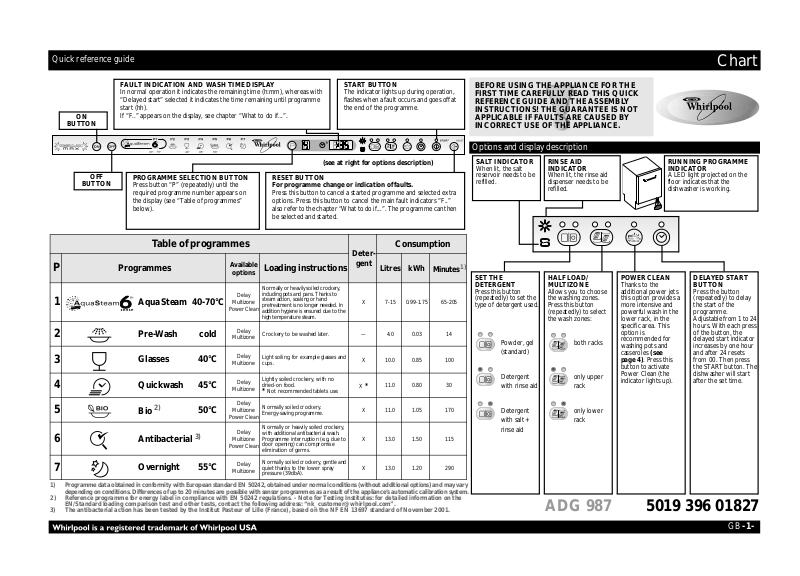

Whirlpool ADG 987/3 FD PROGRAM CHART
Quick reference guide
Chart
START BUTTON
The indicator lights up during operation,
flashes when a fault occurs and goes off at
the end of the programme.
(see at right for options description)
Consumption
ON
BUTTON
BUTTON
FAULT INDICATION AND WASH TIME DISPLAY
In normal operation it indicates the remaining time (h:mm), whereas with
“Delayed start” selected it indicates the time remaining until programme
start (hh).
If “F..” appears on the display, see chapter “What to do if...”.
OFF
PROGRAMME SELECTION BUTTON
Press button “P” (repeatedly) until the
required programme number appears on
the display (see “Table of programmes”
below).
Table of programmes
RESET BUTTON
For programme change or indication of faults.
Press this button to cancel a started programme and selected extra
options. Press this button to cancel the main fault indicators “F..”
also refer to the chapter “What to do if...”. The programme can then
be selected and started.
Deter-
gent
Litres kWh
X 7-15 0.99-1.75 65-205
X 10.0 0.85 100
11.0 0.80 30
*
X
X 11.0 1.05 170
X 13.0 1.50 115
X 13.0 1.20 290
Minutes
50°C
Available
Power Clean
Power Clean
Power Clean
Loading instructions
options
Normally or heavily soiled crockery,
including pots and pans. Tha nks t o
Delay
steam action, soaking or hand
Multizone
pretreatment is no longer needed. In
addition hygiene is ensured due to the
high temperature steam.
Delay
Crockery to be washed later. — 4.0 0.03 14
Multizone
Delay
Light soiling, for example glasses and
cups.
Multizone
Lightly soiled crockery, with no
Delay
dried-on food.
Multizone
*
Not recommended tablets use.
Delay
Normally soiled crockery.
Multizone
Energy-saving programme.
Normally or heavily soiled crockery,
Delay
with additional antibacterial wash.
Programme interruption (e.g. due to
Multizone
door opening) can compromise
elimination of germs.
Normally soiled crockery, gentle and
Delay
quiet thanks to the lower spray
Multizone
pressure (39dbA).
P
1
2
3
4
5
6
7
1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary
depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.
2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the
EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.
Programmes
Aqua Steam 40-70°C
Pre-Wash cold
Glasses 40°C
Quickwash 45°C
2)
Bio
Antibacterial
Overnight 55°C
3)
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME CAREFULLY READ THIS QUICK
REFERENCE GUIDE AND THE ASSEMBLY
INSTRUCTIONS! THE GUARANTEE IS NOT
APPLICABLE IF FAULTS ARE CAUSED BY
INCORRECT USE OF THE APPLIANCE.
Options and display description
SALT INDICATOR
When lit, the salt
reservoir needs to be
refilled.
1)
SET THE
DETERGENT
Press this button
(repeatedly) to set the
type of detergent used.
Powder, gel
(standard)
Detergent
with rinse aid
Detergent
with salt +
rinse aid
RINSE AID
INDICATOR
When lit, the rinse aid
dispenser needs to be
refilled.
HALF LOAD/
MULTIZONE
Allows you to choose
the washing zones.
Press this button
(repeatedly) to select
the wash zones:
both racks
only upper
rack
only lower
rack
RUNNING PROGRAMME
INDICATOR
A LED light projected on the
floor indicates that the
dishwasher is working.
POWER CLEAN
Thanks to the
additional power jets
this option provides a
more intensive and
powerful wash in the
lower rack, in the
specific area. This
option is
recommended for
washing pots and
(see
casseroles
page 4)
. Press this
button to activate
Power Clean (the
indicator lights up).
5019 396 01827ADG 987
DELAYED START
BUTTON
Press the button
(repeatedly) to delay
the start of the
programme.
Adjustable from 1 to 24
hours. With each press
of the button, the
delayed start indicator
increases by one hour
and after 24 resets
from 00. Then press
the START button. The
dishwasher will start
after the set time.
GB
-1-
How to set water hardness in order to always assure the best cleaning results
* only before the first wash or if the water hardness has been changed
Switch on the appliance
- Select the 2nd programme “P2” - consult the table of programmes.
- Press the START button for at least 5 seconds until the START indicator lamp flashes.
- The water hardness setting is shown on the display (if present) or the START button flashes.
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.
- The appliance must be switched off to memorise the new setting.
First time use
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
1.
Ask your water supply company
water hardness
what the
French
degrees °fH
0 - 9 Soft 1 1x
10 - 18 Medium 2 2x
19 - 27 Average 3 3x
28 - 37 Medium-hard 4 4x
38 - 50 Hard 5 5x
51 - 63 Very hard 6 6x
64 - 107 Extremely hard 7 7x
Water
hardness
Filling the salt reservoir -
1
The salt level indicator lamp may remain lit for the
duration of several wash cycles. If the water
hardness level falls within category (soft), no salt is
required.
2.
is...
...enter this value on your dishwasher Suggestions for detergent use
Dishwasher with
display: insert
value in the display
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Visual indicator
(depending
on model).
Unscrew cap.
Dishwasher
without display:
count START
button led flashes
Fill the salt reservoir
with water before the
first wash only .
Salt indicator (depending on the model)
Gel or Powder
(rinse aid and salt)
go to step 1
(see “Daily
check”)
Add salt
(never add detergent!).
min. 1.5 kg
max. 2 kg
The indicator lamp on the control panel lights up
when SALT NEEDS TO BE ADDED.
Tablets
if extra salt is
needed go to
step 1
(see “Daily
check”)
Water hardness level is factory set for
medium hard water (a number “4” is
shown on the display or the START
indicator lamp flashes 4 times).
Even if you use tablets which include salt,
you must still add salt since such detergents
are not effective enough at softening hard
water.
Daily check
Visual indicator
(depending on
model). Screw
on the cap. Salt
residues around
cap need to be
removed.
orange: OK.
clear: NEEDS TO
BE ADDED
GB
-2-
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
Daily check
2
Rinse aid indicator (depending on model)
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the
appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty
drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents
with rinse aid incorporated tend to form excess suds.
Adding detergent -
3
Visual
indicator
If required,
open the cover
B (press right
button).
The indicator lamp on the control panel lights up when RINSE AID NEEDS
TO BE ADDED.
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Open the cover A
(press left button).
Only fill the
detergent dispenser
prior to starting a
wash programme.
Add rinse aid
to the max.
line ~150 ml
Tablet / gel / powder
Use only one tablet per one
cycle, only placed in detergent
dispenser.
All types of tablets can be
used, but for 2 in 1 type
adding of salt is mandatory.
The rinse aid dosage can be adjusted to the
detergent used. The lower the setting,
the less rinse aid is dispensed
(factory setting: position 4).
Press the button to open the cover B. Using a
coin or similar object, turn the arrow to the
desired setting. After adjusting the rinse aid
setting, shut the cover again.
dark: OK. clear: NEEDS TO BE ADDED
Daily use
By pressing
dedicated ribs shut
the cover.
GB
-3-
