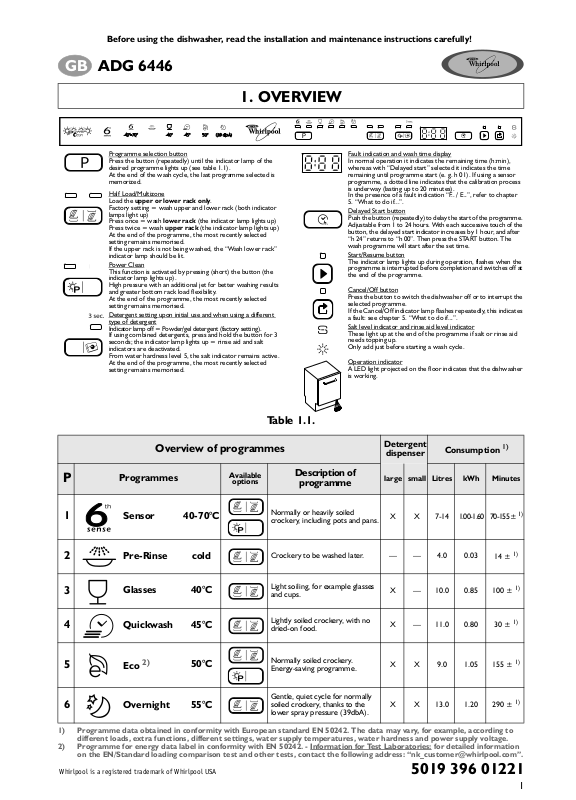

Whirlpool ADG 6446 OVERVIEW
GB
Before using the dishwasher, read the installation and maintenance instructions carefully!
ADG 6446
1. OVERVIEW
Programme selection button
Press the button (repeatedly) until the indicator lamp of the
desired programme lights up (see table 1.1).
At the end of the wash cycle, the last programme selected is
memorized.
Half Load/Multizone
Load the upper or lower rack only.
Factory setting = wash upper and lower rack (both indicator
lamps light up)
Press once = wash lower rack (the indicator lamp lights up)
Press twice = wash upper rack (the indicator lamp lights up)
At the end of the programme, the most recently selected
setting remains memorised.
If the upper rack is not being washed, the “Wash lower rack”
indicator lamp should be lit.
Power Clean
This function is activated by pressing (short) the button (the
indicator lamp lights up).
High pressure with an additional jet for better washing results
and greater bottom rack load flexibility.
At the end of the programme, the most recently selected
setting remains memorised.
Detergent setting upon initial use and when using a different
type of detergent
Indicator lamp off = Powder/gel detergent (factory setting).
If using combined detergents, press and hold the button for 3
seconds; the indicator lamp lights up = rinse aid and salt
indicators are deactivated.
From water hardness level 5, the salt indicator remains active.
At the end of the programme, the most recently selected
setting remains memorised.
Fault indication and wash time display
In normal operation it indicates the remaining time (h:min),
whereas with “Delayed start” selected it indicates the time
remaining until programme start (e. g. h 01). If using a sensor
programme, a dotted line indicates that the calibration process
is underway (lasting up to 20 minutes).
In the presence of a fault indication “F.. / E..”, refer to chapter
5. “What to do if...”.
Delayed Start button
Push the button (repeatedly) to delay the start of the programme.
Adjustable from 1 to 24 hours. With each successive touch of the
button, the delayed start indicator increases by 1 hour, and after
“h 24” returns to “h 00”. Then press the START button. The
wash programme will start after the set time.
Start/Resume button
The indicator lamp lights up during operation, flashes when the
programme is interrupted before completion and switches off at
the end of the programme.
Cancel/Off button
Press the button to switch the dishwasher off or to interrupt the
selected programme.
If the Cancel/Off indicator lamp flashes repeatedly, this indicates
a fault: see chapter 5. “What to do if...”.
Salt level indicator and rinse aid level indicator
These light up at the end of the programme if salt or rinse aid
needs topping up.
Only add just before starting a wash cycle.
Operation indicator
A LED light projected on the floor indicates that the dishwasher
is working.
Table 1.1.
Overview of programmes
P
Programmes
Available
options
Description of
programme
Detergent
dispenser
large small Litres kWh Minutes
Consumption
1)
1
2
3
4
5
6
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to
different loads, extra functions, different settings, water supply temperatures, water hardness and power supply voltage.
2) Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories:
on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA
Sensor 40-70°C
Pre-Rinse cold
Glasses 40°C
Quickwash 45°C
Eco
2)
50°C
Overnight 55°C
Normally or heavily soiled
crockery, including pots and pans.
Crockery to be washed later. — — 4.0 0.03
Light soiling, for example glasses
and cups.
Lightly soiled crockery, with no
dried-on food.
Normally soiled crockery.
Energy-saving programme.
Gentle, quiet cycle for normally
soiled crockery, thanks to the
lower spray pressure (39dbA).
X X 7-14 1.00-1.60 70-155 ±
14 ±
X — 10.0 0.85 100 ±
X — 11.0 0.80 30 ±
X X 9.0 1.05 155 ±
X X 13.0 1.20 290 ±
for detailed information
5019 396 01221
1)
1)
1)
1)
1)
1)
1
