Instruction Manual
Manual de Instrucciones
Manuel d'lnstructions
PE550
®
WARNING:
Read and follow all Safety Rules and Operating InstnJctionsbefore
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas tas advertencias e
instrucciones de seguddad. El no hacedo puede resultar en le-
siones graves.
AVERTISSEMENT:
Life le manuel d'instructions et bien respecter tousles avertisse-
ments et toutes les instructions de s6curit6. Tout d6faut de le
faire pourrait entrainer des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
[] From the EtectroluxGroup. The world's No.l choice.
Copyright/o2002 Electrolux Home Products, Inc. 530163408 12/4/02
I_ITCHF_,CLE,_N/NGAN_)OUTDOOR,_ppIJAN_ESCOM_NEIJ
,t=
imWARNING: When using gardening
appliances, basic safety precaL_ions must al-
ways be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following instructions and
warnings on unit and in manual. Read entire
instruction manual before using unit! Be thor-
oughly familiar with the controls and the prop-
er use of the unit. Restrict the use of this unit
to persons who have read, understand and
will follow the instructions and warnings on
the unit and in the manual. Never allow chil-
dren to operate this unit. Close attention is
necessary when used near children.
INSTRUCTION SAFETY INFORMATION
MANUAL ON THE UNIT
OPERATOR SAFETY
• Dress properly. Always wear safety
glasses or similar eye protection when op-
erating, or performing maintenance on your
unit (safety glasses are available). Eye
protection should be marked Z87.
• Always wear face or dust mask if operation
is dusty.
• Always wear heavy, long pants, long
sleeves, boots, and gloves. Do not go bare-
foot or wear sandals.
• Secure hair above shoulder length Se-
cure or remove loose clothing or clothing
with loosely hanging ties, straps, tassels,
etc. They can be caught in moving parts.
• Being fully covered also helps protect you
from debris and pieces of toxic plants
thrown by spinning blade.
• Stay alert. Do not operate when you are
tired, ill, upset, or under the influence of al-
cohol, drugs, or medication. Watch what
you are doing; use common sense.
• Wear hearing protection.
• Never start or run inside a closed room,
building or other unventilated area. Breath-
ing exhaust fumes can kill.
• Keep handles free of oil and fuel.
• Always use the handle.
• Keep hands and feet away from cutting
area.
• Do not attempt to remove cut material nor
hold material to be cut when engine is run-
ning or when cutting member is moving.
• Make sure spark plug is disconnected
when cleaning jammed material from cut-
ting member.
• Never direct discharge of material toward
bystanders nor allow anyone near the area
of operation. Use care in directing dis-
charge to avoid glass enclosures, automo-
biles, and the like.
• Don't overreach or stand on unstable sup-
port. Keep good footing and balance at all
times.
UNIT SAFETY
• Inspect entire unit before each use. Re-
place damaged parts. Check for fuel leaks.
Make sure aUfasteners are in place and se-
curely fastened.
• Maintain the unit according to recom-
mended procedures.
• Throw away blades that are bent, warped,
cracked, broken, or damaged in any other
way. Replace parts that are cracked,
chipped, or damaged before using the unit.
• Use only recommended Weed Eater@
parts and accessories. Never use wire,
wire rope, string, flailing devices, etc.
• Disconnect the spark plug before performing
maintenance except carburetor adjustments.
• Be sure the blade stops turning when the
engine idles (see CARBURETOR AD-
JUSTMENTS).
• Remove the blade before making carbure-
toradjustments. Hold the unit byhaod. Do
not make carburetor adjustments from the
blade side of the unit.
• Keep others away when making carburetor
adjustments.
• Never start the unit with the gearbox re-
moved. Theclutch can flyoffand causese-
rious injury.
• Have all maintenance and service not ex-
plained in this manual performed by an au-
thorized authorized service dealer.
EDGING SAFETY
_WARNING: Inspect the area to be
edged before each use. Remove objects
(rocks, broken glass, nails, wire, string, etc.)
which can be thrown by the blade or can wrap
around the shaft.
• Keep others including children, animals,
bystanders, and helpers at least 50 feet (15
meters) away. Stop the unit immediately if
you are approached.
• Hold the unit firmly with both hands.
• Keepfirmfooting and balance. Donotover-
reach or stand on unstable support.
• Do not attempt to remove cut material nor
hold material to be cut when the engine is
running or when cutting member is moving.
• Always keep the wheels and skid in contact
with the ground.
• Keep all parts of your body away from the
blade and muffler.
• Always push the unit slowly over the
ground. Stay alert for uneven sidewalks,
holes in the terrain, large roots, etc.
• Use only for jobs explained in this manual.
2
WARNING:
Blade con throw objects violently.
• You can be blinded or injured.
• Wears safety glasses or similar eye
protection.
Hazard zone for thrown objects.
• Blade can throw objects violently.
• Others can be blinded or injured.
• Keep people and animals 50 feet (15 meters)
away.
,_ WARNING:
Blade rotates Allow blade to stop
momentarily before removing _1_
trigger is released.
afferthe /TTro,mThecur._itfrom the cut. Blade rotates momentarily after the trigger is
released. • The blade can seriously cut you or others.
-J]_,_. J Allow blade to before it from
_ _ WARNING:
Instruction Manual els injury.
FUEL SAFETY
Mix and pour fuel outdoors and where there
are not sparks or flames.
Always store gasoline in a container ap-
proved for flammable liquids.
Do not smoke or allow smoking near fuel or
the unit; do not smoke while using the unit.
Make sure the unit is properly assembled
and in good operating condition.
Avoid spilling fuel or oil. Wipe up all fuel
spills before starting unit.
Move at least 10 feet (3 meters) away from
fueling site before starting engine.
Stop engine and allow to cool before re-
moving fuel cap.
Do not store the unit with fuel in the fuel
tank; use up fuel left in the carburetor and
fuel line by starting the unit and letting it run
until it stops.
• Store unit and fuel in an area where fuel va-
pors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.
TRANSPORTING AND STORAGE
• Do not grasp or hold exposed blade.
• Stop unit before leaving work area.
• Allow unit to cool, run fuel out of the fuel
tank, and secure the unit before storing or
transporting it in a vehicle.
• Before storing, use up fuel left in the carbu-
retor by starting the unit and letting it run un-
til it stops. Always allow the unit to cool be-
fore storage.
• Store unit and fuel in area where fuel vapors
cannot reach sparks or open flames from
WARNING:
the cut.
Read instruction manual.
• Follow all warnings and instructions.
• Failure to do so can result in serious
water heaters, electric motors or switches,
furnaces, etc.
• Store unit so blade cannot accidentally
cause injury.
• Store unit out of reach of children.
If situations occur which are not covered in this
manual, use care and good judgment. If you
need assistance, coil 1-800-554-6723.
SPECIAL NOTICE: This unit is not
equipped with a temperature limiting muffler
and spark arresting screen which meets the
requirements of California Codes 4442 and
4443. All U.S. forest land and the states of
California, Idaho, Maine, Minnesota, New
Jersey, Oregon, and Washington require by
law that many internal combustion engines be
equipped with a spark arrestor screen, if you
operate ina locale where such regulations ex-
ist, you are legally responsible for installing
and maintaining the operating condition of
these parts. Failure to do so is a violation of
the law. if a spark arresting screen is re-
quired in your area, contact your authorized
service dealer for the correct kit.
SPECIAL NOTICE: Exposure to vibra-
tions through prolonged use of gasoline pow-
ered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel dam-
age in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
stop removing
3
discontinue the use of this tool and seek med-
ical attention. An anti-vibration system does
not guarantee the avoidance of these prob-
lems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition andthe condi-
tion of this tool.
SAVE THESE INSTRUCTIONS
DWARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
This instruction manual has been developed
to help you assemble the unit and to provide
its safe operation. It is important that you read
the entire manual to become familiar with the
unit before you begin assembly.
Read your instruction manual.
Tools you will need:
• Adjustable wrench
• Hex wrench (provided)
TUBE ASSEMBLY
NOTE: When performing the following step,
be sure the handle is aligned as follows: label
on top, throttle trigger to the operator's right
hand side. The starter rope and the throttle
cable must not wrap around the tube.
Throttle tr
1. Assemble handle tube to the lower tube (it
will be necessary to pull some of the start-
er rope out of the housing).
2. Align the screw holes; insert the screws
through the aligned holes.
3. Thread one Iocknut onto each screw and
tighten securely.
Handle tube
Screws "_
\
Lower
Tube
NOTE: When performing the following step,
be sure the starter rope is not caught under
the cable clamp. The starter rope must hang
freely to operate properly.
4. Align the cable clamp between the tube
screws. Install the cable clamp around the
tube and throttle cable.
Starter Rope
Locknuts
Cable Clamp
4
KNOW YOUR EDGER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the vari-
ous controls and adjustments. Save this manual for future reference.
ON/OFF
Switch =uel/O Mix CaD
Depth
t _ Control
Lever
Spark Plug
Throttle Trigger
\
• _, Air Filter
Primer Bulb Muffler and
ONIOFF SWITCH
The ON/OFF switch is used to select the ON
or OFF position.

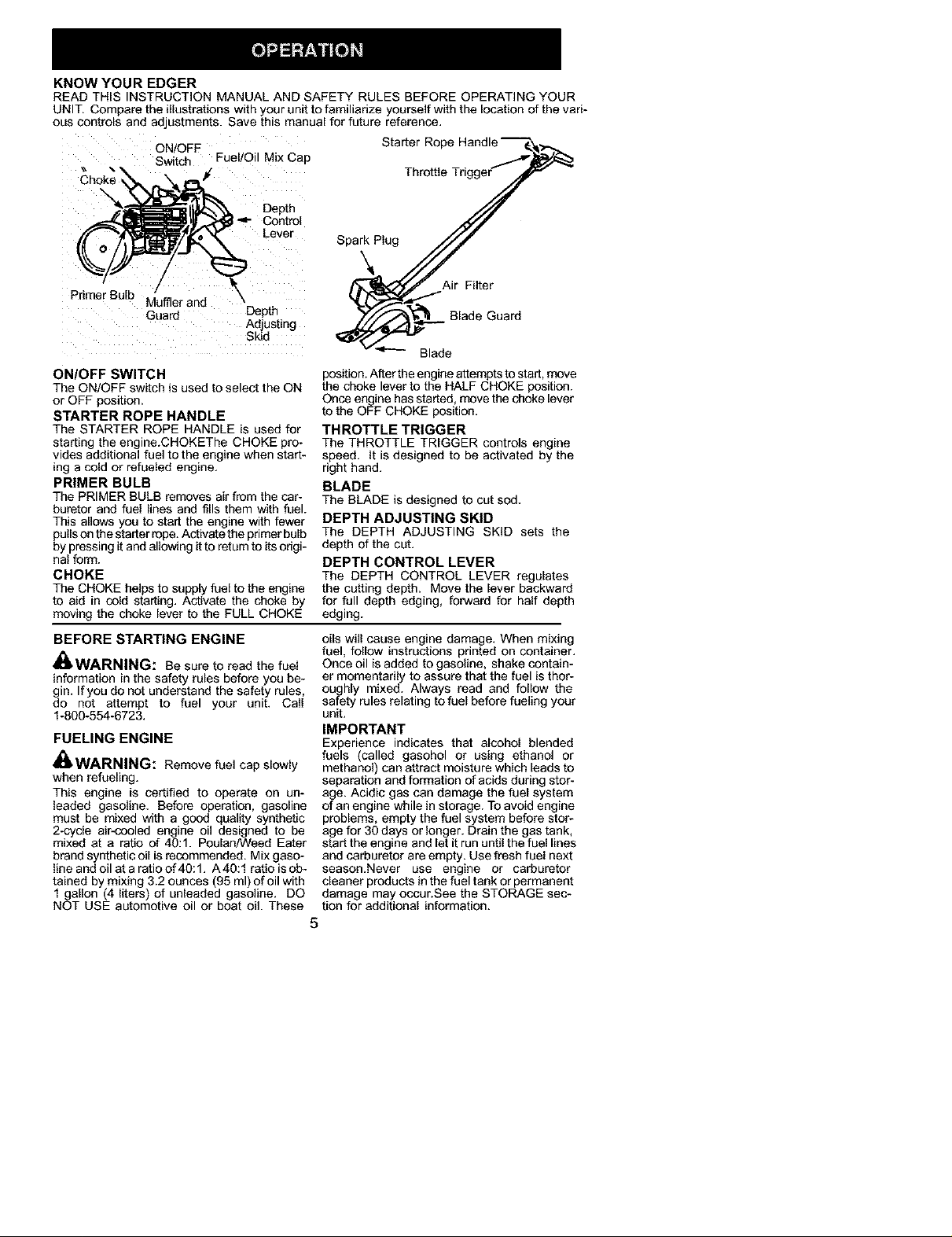

STARTER ROPE HANDLE
The STARTER ROPE HANDLE is used for
starting the engine.CHOKEThe CHOKE pro-
vides additional fuel to the engine when start-
ing a cold or refueled engine.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer bulb
by pressing it and allowing it to return to its origi-
nal form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
BEFORE STARTING ENGINE
Guard Deoth Blade Guard
_WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
_,WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on un-
leaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-eycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. PoulardWeed Eater
brand synthetic oil is recommended. Mix gaso-
line and oil at a ratio of 40:1. A40:1 ratio is ob-
tained by mixing 3.2 ounces (95 ml)of oil with
1gallon (4 liters) of unleaded gasoline. DO
NOT USE automotive oil or boat oil. These
\
Adjusting
SkJd
Blade
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
THROTTLE TRIGGER
The THROTTLE TRIGGER controls engine
speed. It is designed to be activated by the
right hand.
BLADE
The BLADE is designed to cut sod.
DEPTH ADJUSTING SKID
The DEPTH ADJUSTING SKID sets the
depth of the cut.
DEPTH CONTROL LEVER
The DEPTH CONTROL LEVER regulates
the cutting depth. Move the lever backward
for full depth edging, forward for half depth
edging.
oils will cause engine damage. When mixing
fuel, follow instructions printed on container.
Once oil is added to gasoline, shake contain-
er momentarily to assure that the fuel is thor-
oughly mixed. Always read and follow the
safety rules relating to fuel before fueling your
unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during stor-
age. Acidic gas can damage the fuel system
of an engine while in storage. To avoid engine
problems, empty the fuel system before stor-
age for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season.Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur.See the STORAGE sec-
tion for additional information.
5
STOPPING YOUR ENGINE
• To stop a running engine, move the switch
to the OFF position.
• If engine does not stop, move choke lever
to FULL CHOKE position.
STARTING YOUR ENGINE
(for location of controls, refer to the KNOW
YOUR EDGER section)
• Fuel the engine; then move 10 feet (3 me-
ters) away from the fueling site.
_, DANGER: The cutting blade will
turn when the engine starts.
_WARNING: Avoid any contact with
the muffler. A hot muffler can cause serious
burns.
• Rest the unit on the ground. Support the
unit so the blade is off of the ground and
away from trees, bushes, onlookers, etc.
STARTING
POSITION
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
1. Move the ON/OFF switch to the ON posi-
tion.
2. Slowly press the primer bulb 6 times.
3. Move choke lever to the FULL CHOKE
position.
Choke Lever
FULL
OFF
4. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.
5. Pull starter rope handle sharply until en-
gine sounds as if it is trying to start, but do
not pull rope more than 6 times.
6. As soon as engine sounds as if it istrying
to start, move choke lever to the HALF
CHOKE position.
7. Pull starter rope sharply until engine runs,
bL_ no more than 6 pulis. If the engine
doesn't start after 6 pulls (at the HALF
CHOKE position), move the choke lever to
the FULL CHOKE position and press the
primer bulb 6 times. Squeeze and hold the
threttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKE position and pull the starter
rope until the engine runs, bL_ no more than
6 pulls. NOTE: If engine still doesn't start, it
is probably flooded. Proceed to STARTING
A FLOODED ENGINE.
8. Once the engine starts, allow it to run 10
seconds, then move the choke lever to
OFF CHOKE. Allow the unit to run for 30
more seconds at OFF CHOKE before re-
leasing the throttle trigger. NOTE: If en-
gine dies with the choke lever in the OFF
CHOKE position, move the choke lever to
the HALF CHOKE position and pull the
rope until engine runs, but no more than 6
pulls.
STARTING A WARM ENGINE
1. Move the ON/OFF switch to the ON posi-
tion.
2. Move the choke lever to the HALF
CHOKE position.
3. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.
4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
5. Allow engine to run 10 seconds, then
move the choke lever to the OFF CHOKE
position. Release the throttle trigger.
NOTE: If engine has not started, pull starter
rope 5 more pulls. If engine still does not run, it
is probably flooded. Proceed to STARTING A
FLOODED ENGINE.
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of ex-
cess fuel. This could require pulling the starter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn't start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.

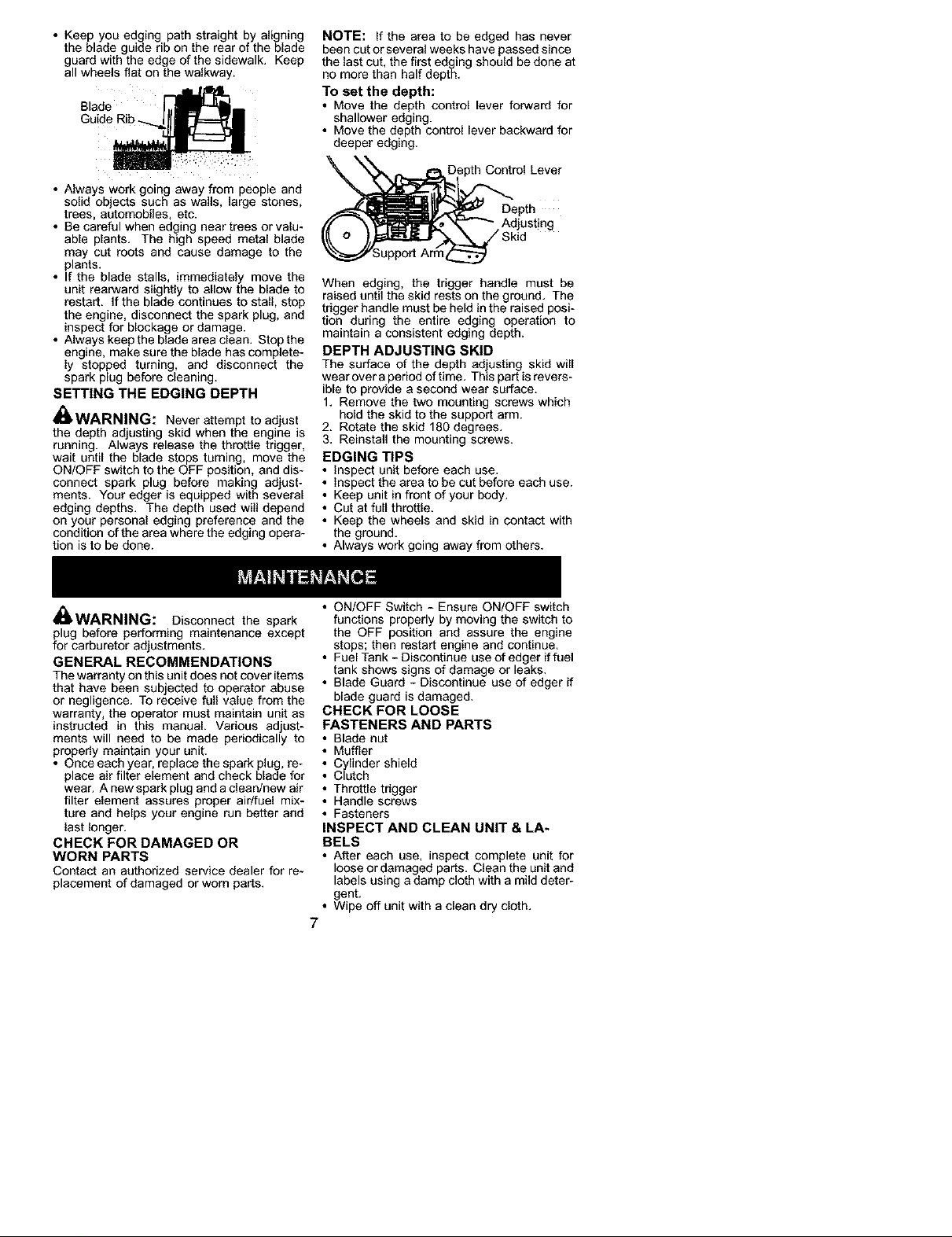

OPERATING INSTRUCTIONS
EDGING
As you become familiar with your edger, you
will be able to determine your own operating
pace. Conditions such as depth of cut and
material being cut will regulate the speed and
time required for your edging job.
• Allow the engine to warm up for one minute
before you begin edging.
• Increase the engine speed before placing
the blade in the cut. For best operation, run
the engine at full throttle while cutting.
6
• Keepyouedgingpathstraightbyaligning
thebladeguideribontherearoftheblade
guardwiththeedgeofthesidewalk.Keep
allwheelsflatonthewalkway.
• Alwaysworkgoingawayfrompeopleand
solidobjectssuchaswalls,largestones,
trees,automobiles,etc.
• Becarefulwhenedgingneartreesorvalu-
ableplants.Thehighspeedmetalblade
maycutrootsandcausedamagetothe
plants.
• Ifthebladestalls,immediatelymovethe
unitrearwardslightlytoallowthebladeto
restart.Ifthebladecontinuestostall,stop
theengine,disconnectthesparkplug,and
inspectforblockageordamage.
• Alwayskeepthebladeareaclean.Stopthe
engine,makesurethebladehascomplete-
lystoppedturning,anddisconnectthe
sparkplugbeforecleaning.
SETTING THE EDGING DEPTH
_,WARNING: Never attempt to adjust
the depth adjusting skid when the engine is
running. Always release the throttle trigger,
wait until the blade stops turning, move the
ON/OFF switch to the OFF position, and dis-
connect spark plug before making adjust-
ments. Your edger is equipped with several
edging depths. The depth used will depend
on your personal edging preference and the
condition of the area where the edging opera-
tion is to be done.
NOTE: If the area to be edged has never
been cut or several weeks have passed since
the last cut, the first edging should be done at
no more than half depth.
To set the depth:
• Move the depth control lever forward for
shallower edging.
• Move the depth control lever backward for
deeper edging.
Control Lever
Depth
Adjusting
When edging, the trigger handle must be
raised until the skid rests on the ground, The
trigger handle must be held in the raised posi-
tion during the entire edging operation to
maintain a consistent edging depth.
DEPTH ADJUSTING SKID
The surface of the depth adjusting skid will
wear over a period of time, This part is revers-
ible to provide a second wear surface.
1, Remove the two mounting screws which
hold the skid to the support arm.
2. Rotate the skid 180 degrees.
3, Reinstall the mounting screws.
EDGING TIPS
• Inspect unit before each use,
• Inspect the area to be cut before each use.
• Keep unit in front of your body.
• Cut at full throttle.
• Keep the wheels and skid in contact with
the ground.
• Always work going away from others.
,t=
DWARNING: Disconnect the spark
plug before performing maintenance except
for carburetor adjustments.
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover items
that have been subjected to operator abuse
or negligence. To receive full value from the
warranty, the operator must maintain unit as
instructed in this manual. Various adjust-
ments will need to be made periodically to
properly maintain your unit.
• Once each year, replace the spark plug, re-
place air filter element and check blade for
wear. A new spark plug and a clean/new air
filter element assures proper air/fuel mix-
ture and helps your engine run better and
last longer.
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for re-
placement of damaged or worn parts.
• ON/OFF Switch - Ensure ON/OFF switch
functions properly by moving the switch to
the OFF position and assure the engine
stops; then restart engine and continue,
• Fuel Tank - Discontinue use of edger if fuel
tank shows signs of damage or leaks.
• Blade Guard - Discontinue use of edger if
blade guard is damaged.
CHECK FOR LOOSE
FASTENERS AND PARTS
Blade nut
Muffler
Cylinder shield
Clutch
Throttle trigger
Handle screws
Fasteners
INSPECT AND CLEAN UNIT & LA-
BELS
• After each use, inspect complete unit for
loose ordamaged parts. Clean the unit and
labels using a damp cloth with a mild deter-
gent.
• Wipe oft unit with a clean dry cloth.
7

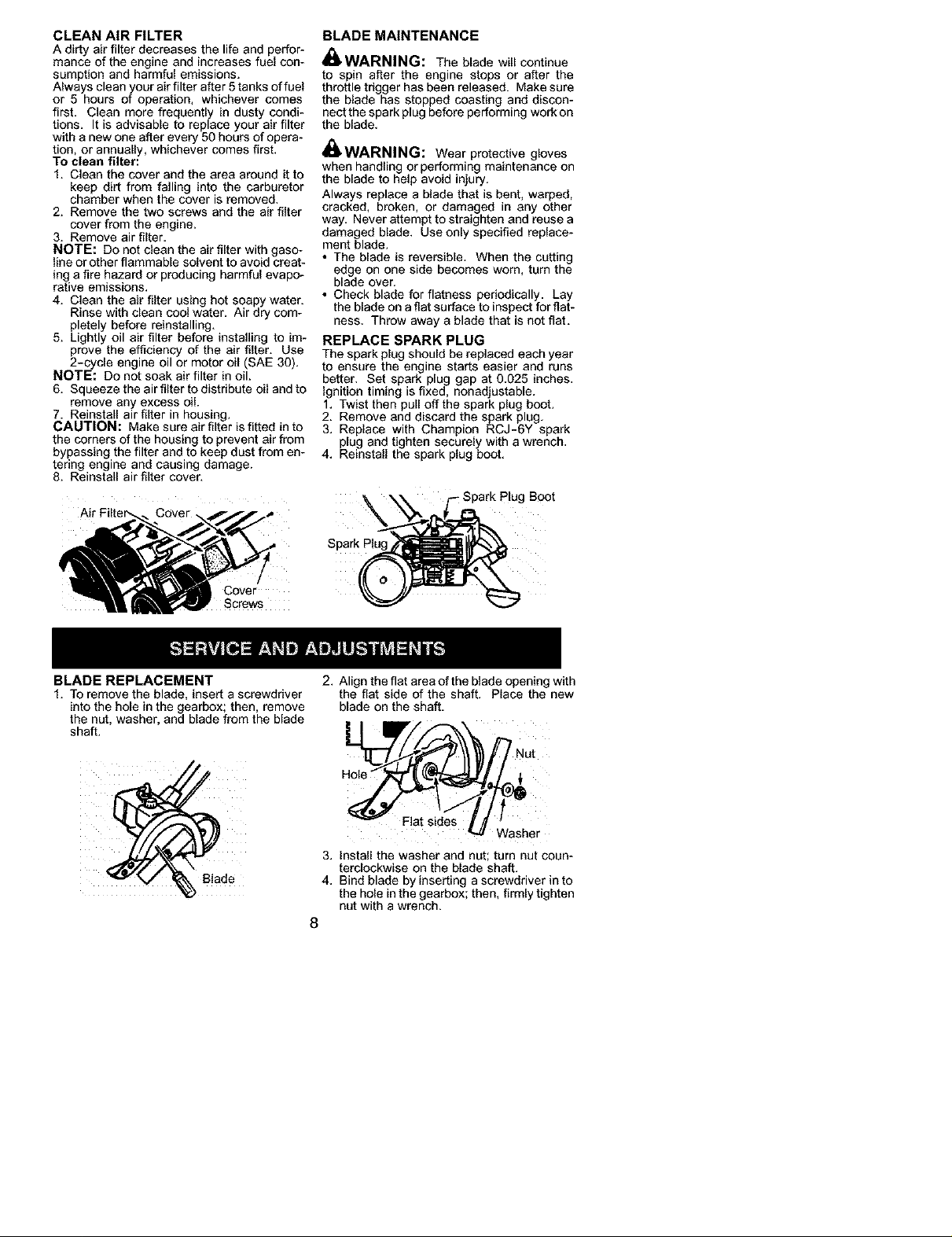

CLEAN AIR FILTER
A dirty air filter decreases the life end perfor-
mance of the engine and increases fuel con-
sumption and harmful emissions.
Always clean your air filter after 5 tanks of fuel
or 5 hours of operation, whichever comes
first. Clean more frequently in dusty condi-
tions. It is advisable to replace your air filter
with e new one after every 50 hours of opera-
tion, or annually, whichever comes first.
To clean filter:
1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed,
2. Remove the two screws and the air filter
cover from the engine.
3. Remove air filter,
NOTE: Do not clean the air filter with gaso-
line or other flammable solvent to avoid creat-
ing e fire hazard or producing harmful evapo-
rative emissions,
4. Clean the air filter using hot soapy water.
Rinse with clean cool water. Air dry com-
pletely before reinstalling,
5. Lightly oil air filter before installing to im-
prove the efficiency of the air filter. Use
2-cycle engine oil or motor oil (SAE 30).
NOTE: Do not soak air filter in oil.
6. Squeeze the air filter to distribute oil and to
remove any excess oil
7. Reinstall air filter in housing.
CAUTION: Make sure air filter is fitted in to
the corners of the housing to prevent air from
bypassing the filter and to keep dust from en-
tering engine and causing damage.
8. Reinstall air filter cover,
BLADE MAINTENANCE
_ WARNING: The blade will continue
to spin after the engine stops or after the
throttle trigger has been released. Make sure
the blade has stopped coasting and discon-
nect the spark plug before performing workon
the blade.
DWARNING: Wear protective gloves
when handling or performing maintenance on
the blade to help avoid injury.
Always replace a blade that is bent, warped,
cracked, broken, or damaged in any other
way. Never attempt to straighten end reuse a
damaged blade. Use only specified replace-
ment blade.
• The blade is reversible. When the cutting
edge on one side becomes worn, turn the
blade over.
• Check blade for flatness periodically. Lay
the blade on a flat surface to inspect for flat-
ness. Throw away e blade that is not flat,
REPLACE SPARK PLUG
The spark plug should be replaced each year
to ensure the engine starts easier and runs
better. Set spark plug gap at 0.025 inches.
ignition timing is fixed, nonadjustable.
1. Twist then pull offthe spark plug boot.
2. Remove and discard the spark plug,
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a wrench.
4. Reinstall the spark plug boot,
BLADE REPLACEMENT
1. To remove the blade, insert a screwdriver
into the hole in the gearbox; then, remove
the nut, washer, end blade from the blade
shaft.
Blade
Boot
Spark P!ug
2. Align the flat area of the blade opening with
the flat side of the shaft. Place the new
blade on the shaft.
Nut
Flat sides
3. install the washer and nut turn nut coun-
terclockw=se on the blade shaft.
4. Bind blade oy msereng a screwdriver into
the hole in the gearbox: then, firmly tighten
nut _ tha wrench
8
Washer
CARBURETOR ADJUSTMENT
I_WARNING: Keepothers awaywhen
making idle speed adjustments. The blade
shaft will be spinning during most of this pro-
cedure. Wear your protective equipment and
observe all safety precautions. After making
adjustments, the blade shaft must not spin at
idle speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if you
notice any of the following conditions:
• Engine will not idle when the throttle is re-
leased.
• The blade spins at idle.
Keep others away when making idle speed
adjustments, Remove the blade before mak-
ing carburetor idle speed adjustments, Do not
make adjustments from the blade side of the
unit. Recheck the idle speed after each ad-
justment. The blade must not spin at idle
speed to avoid serious injury to the operator
or others. Make adjustments with the unit
supported so the blade is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making ad-
justments. Keep all parts of your body away
from the blade end muffler.
Idle Speed Adjustment
Allow engine to idle. Adjust speed until engine
runs without the blade shaft spinning (idle too
fast) or engine stalling (idle speed too slow),
• Turn idle speed screw clockwise to in-
crease engine speed if engine stalls or dies,
• Turn idle speed screw counterclockwise to
decrease engine speed if the blade shaft
spins at idle speed.
_WARNING: Recheck the idle speed
after each adjustment. The blade shaft must
not spin at idle speed to avoid serious injury to
the operator or others.
die Speed
Adjustment
Screw
Ifyou require further assistance orare unsure
about performing this procedure, contact an
authorized service dealer or call
1-800-554-6723.
aWARNINL_: Perform the following
steps after each use:
• Allow engine to cool before storing or trans-
porting.
• Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
• Store unit with all guards in place. Position
unit so that any sharp object cannot acci-
dentally cause injury.
• Store unit and fuel well out of the reach of
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
• Clean the entire unit before lengthy stor-
age.
• Store in a clean dry area.
• Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERA-
TION section of this manual, see message la-
beled IMPORTANT regarding the use of ga-
sohol in your engine.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Fol-
low the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
ENGINE
• Remove spark plug and pour 1teaspoon of
40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
• Replace spark plug with new one of recom-
mended type and heat range.
• Clean air filter.
• Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
• At the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
• Do not store gasoline from one season to
another.
• Replace your gasoline can if it starts to rust.
9

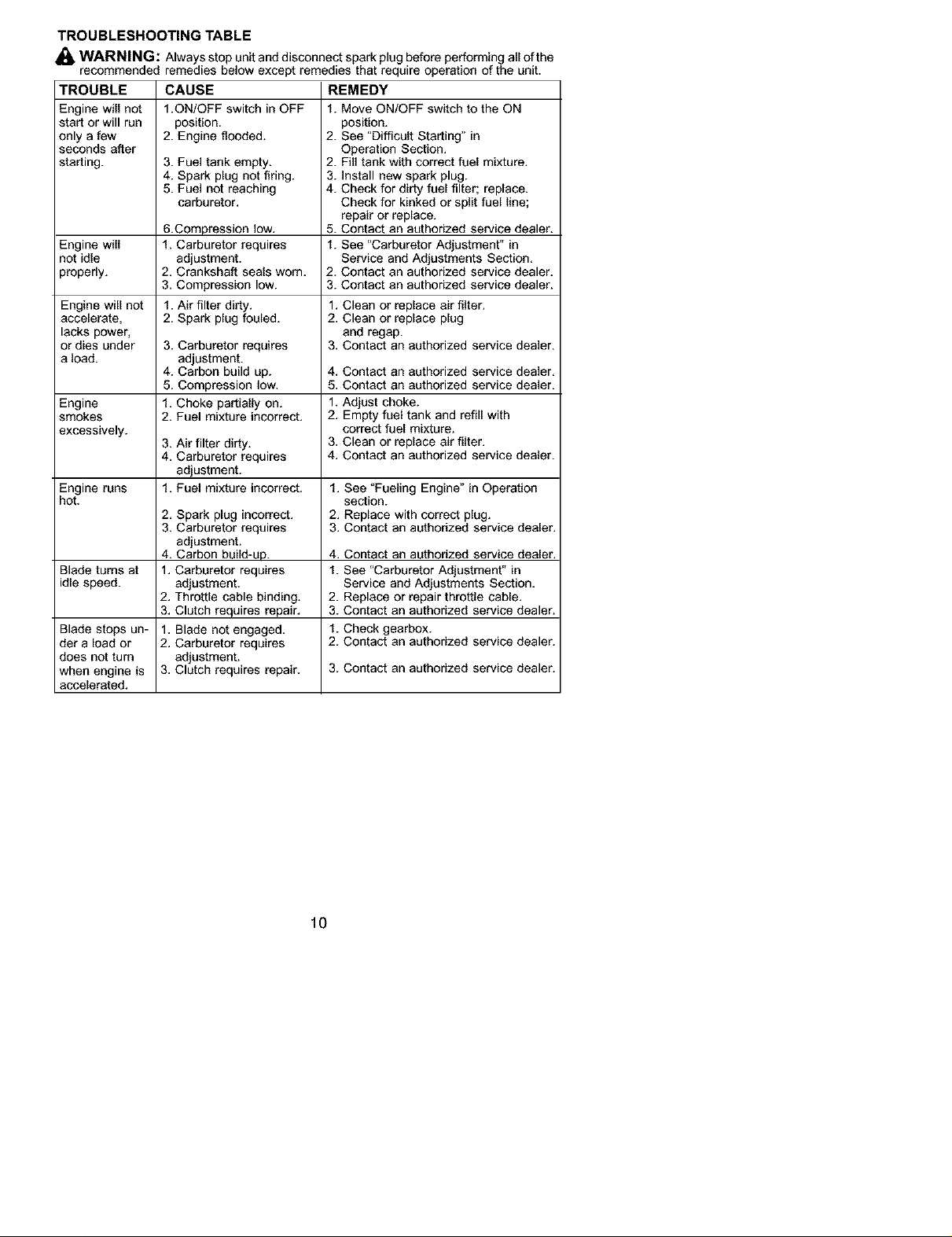

TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before performing all of the
recommended remedies below except remedies that require operation of the unit.
TROUBLE REMEDY
Engine wi[[ not
start or will run
only a few
seconds after
starting.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Engine runs
hot,
Blade turns at
idle speed.
Blade stops un-
der a load or
does not turn
when engine is
accelerated,
CAUSE
1.ON/OFF switch in OFF
position,
2. Engine flooded,
3. Fuel tank empty.
4. Spark plug not firing.
5. Fuel not reaching
carburetor.
6.Compression low,
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build up.
5. Compression low,
1. Choke partially on.
2, Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up.
1, Carburetor requires
adjustment,
2, Throttle cable binding.
3, Clutch requires repair,
1, Blade not engaged.
2, Carburetor requires
adjustment.
3, Clutch requires repair,
1. Move ON/OFF switch to the ON
position.
2. See "Difficult Starting" in
Operation Section.
2. Fill tank with correct fuel mixture,
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
1. See "Carburetor Adjustment" in
Service and Adjustments Section,
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1, Clean or replace air filter.
2, Clean or replace plug
and regap.
3, Contact an authorized service dealer.
4, Contact an authorized service dealer,
5, Contact an authorized service dealer.
1, Adjust choke.
2, Empty fuel tank and refill with
correct fuel mixture.
3, Clean or replace air filter.
4, Contact an authorized service dealer.
1. See "Fueling Engine" in Operation
section.
2. Replace with correct plug.
3. Contact an authorized service dealer,
4. Contact an authorized service dealer.
f. See "Carburetor Adjustment" in
Service and Adjustments Section,
2. Replace or repair throttle cable.
3. Contact an authorized service dealer.
1. Check gearbox.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
10

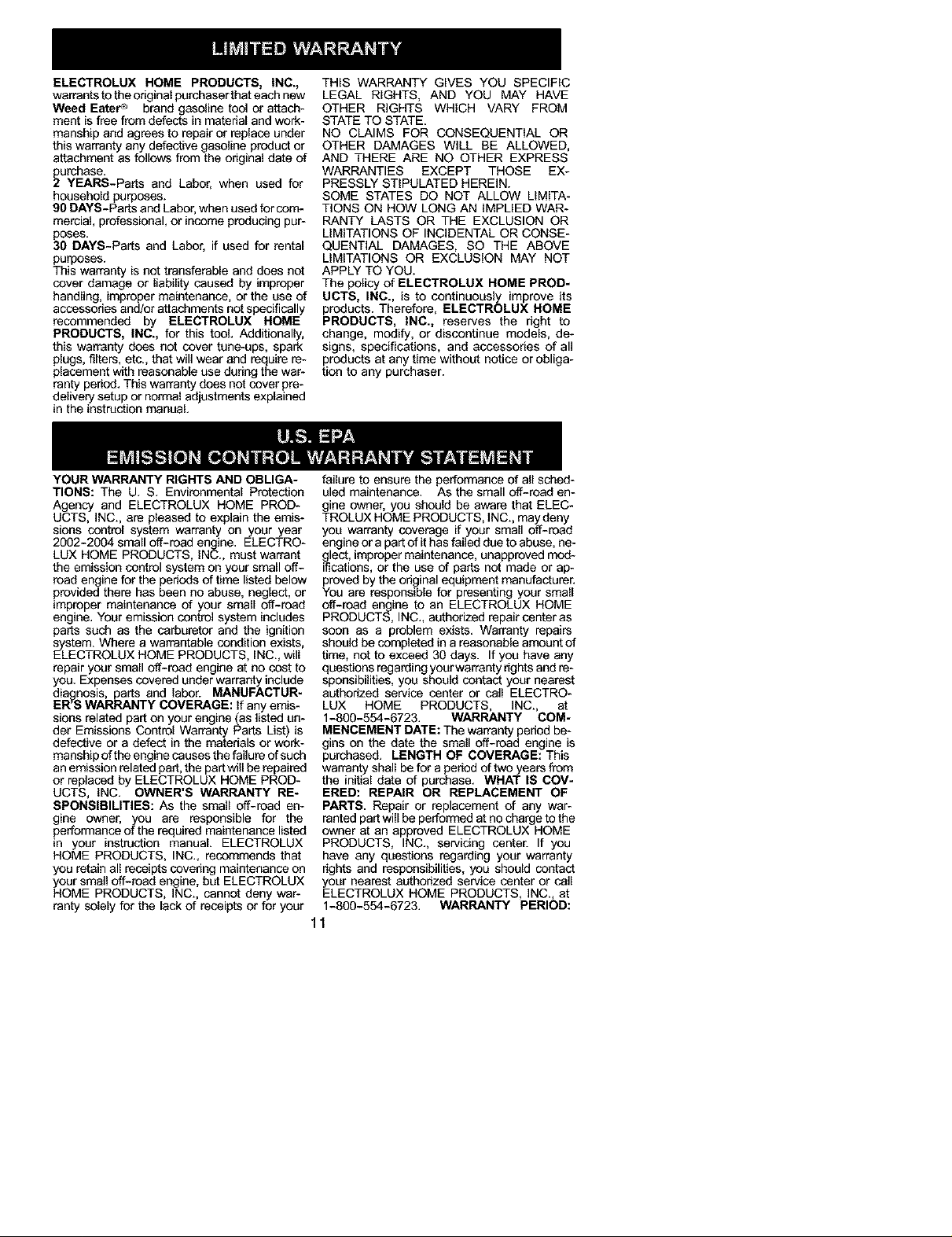

ELECTROLUX HOME PRODUCTS, INC.,
warrants to the odginal purchaser that each new
Weed Eater _ brand gasoline tool or attach-
ment is free from defects in matedal and work-
manship and agrees to repair or replace under
this warranty any defective gasoline product or
attachment as follows from the odginal date of
Purchase.
YEARS-Parts and Labor, when used for
household purposes.
90 DAYS-Pads and Labor, when used for cem-
mercial, professional, or income producing pur-
poses.
30 DAYS-Pads and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use of
accessedes and/or attachments not specifically
recommended by ELECTROLUX HOME
PRODUCTS, INC., for this tool. Additionally,
this warranty does not cover tune-ups, spark
plugs, filters, etc., that will wear and require re-
placement with reasonable use during the war-
ranty period. This warranty does not cover pre-
delivery setup or normal adjustments explained
in the instruction manceL
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EX-
PRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WAR-
PANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
The policy of ELECTROLUX HOME PROD-
UCTS, INC., is to continuously improve its
products. Therefore, ELECTROLUX HOME
PRODUCTS, INC., reserves the right to
change, modify, or discontinue models, de-
signs, specifications, and accessories of all
products at any time without notice or obliga-
tion to any purchaser.
YOUR WARRANTY RIGHTS AND OBLIGA-
TIONS: The U. S. Environmental Protection
Agency and ELECTROLUX HOME PROD-
UCTS, INC., are pleased to explain the emis-
sions control system warranty on your year
2002-2004 small off-road engine. ELECTRO-
LUX HOME PRODUCTS, INC., must warrant
the emission control system on your small off-
road engine for the periods of time listed below
provided there has been no abuse, neglect, or
improper maintenance of your small off-road
engine. Your emission control system includes
parts such as the carburetor and the ignition
system. Where a warrantable condition exists,
ELECTROLUX HOME PRODUCTS, INC., will
repair your small off-road engine at no cost to
you. Expenses covered under warranty include
diagnosis, parts and labor. MANUFACTUR-
ER S WARRANTY COVERAGE: If any emis-
sions related part on your engine (as listed un-
der Emissions Control Warranty Pads List) is
defective or a defect in the materials or work-
manship of the engine causes the failure of such
an emission related part,the pad will be repaired
or replaced by ELECTROLUX HOME PROD-
UCTS, INC. OWNER'S WARRANTY RE-
SPONSIBILITIES: As the small off-read en-
gine owner, you are responsible for the
performance of the required maintenance listed
in your instruction manual. ELECTROLUX
HOME PRODUCTS, INC., recommends that
you retain all receipts covering maintenance on
your small off-road engine, but ELECTROLUX
HOME PRODUCTS, INC., cannot deny war-
ranty solely for the lack of receipts or for your
failure to ensure the performance of all sched-
uled maintenance. As the small off-road en-
gine owner, you should be aware that ELEC-
TROLUX HOME PRODUCTS, INC., may deny
you warranty coverage if your small off-road
engine or a pad of ithas failed due to abuse, ne-
glect, improper maintenance, unapproved med-
ificetions, or the use of parts not made or ap-
proved by the original equipment manufacturer.
You are responsible for presenting your small
off-roed engine to an ELECTROLUX HOME
PRODUCTS, INC., authorized repair center as
soon as a problem exists. Warranty repairs
should be completed in a reasonable amount of
time, not to exceed 30 days. If you have any
questions regarding your warranty rights and re-
sponsibilities, you should contact your nearest
aL_horized service center or call ELECTRO-
LUX HOME PRODUCTS, INC., at
1-800-554-6723. WARRANTY COM-
MENCEMENT DATE: The warranty period be-
gins on the date the small off-reed engine is
purchased. LENGTH OF COVERAGE: This
warranty shall be for a period of two years from
the initial date of purchase. WHAT IS COV-
ERED: REPAIR OR REPLACEMENT OF
PARTS. Repair or replacement of any war-
ranted pad will be performed at no charge to the
owner at an approved ELECTROLUX HOME
PRODUCTS, INC., servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest aL_hedzed service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1-800-554-6723. WARRANTY PERIOD:
11
Any warranted pad which is not scheduled for
replacement as required maintenance, or which
isscheduled only for regular inspection to the ef-
fect of"repair or replace as necessary" shall be
warranted for 2 years. Any warranted pad which
is scheduled for replacement as required main-
tenance shall be warranted for the period of time
up to the first scheduled replacement point for
that part. DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to the
determination that a warranted pad isdefective
if the diagnostic work is performed at an ap-
proved ELECTROLUX HOME PRODUCTS,
INC., servicing center. CONSEQUENTIAL
DAMAGES: ELECTROLUX HOME PROD-
UCTS, INC., may be liable fordamages to other
engine components caused by the failure of a
warranted part still under warranty. WHAT IS
NOT COVERED: All failures caused by abuse,
neglect, or improper maintenance are not cov-
ered. ADD-ON OR MODIFIED PARTS: The
use of add -on or modified parts can begrounds
for disallowing a warranty claim. ELECTRO-
LUX HOME PRODUCTS, INC., is not liable to
cover failures of warranted pads caused by the
This engine is certified to be emissions compliant for the following use:
[] Moderate (50 hours)
[] Intermediate (125 hours)
[] Extended (300 hours)
use of add -on or modified parts. HOW TO FILE
A CLAIM: If you have any questions regarding
your warranty fights and responsibilities, you
should contact your nearest aL_hedzed service
center or call ELECTROLUX HOME PROD-
UCTS, INC., at 1-800-554-6723. WHERE TO
GET WARRANTY SERVICE: Warranty ser-
vices or repairs shall be provided at all ELEC-
TROLUX HOME PRODUCTS, INC., service
centers. Call 1-800-554-6723. MAINTE-
NANCE, REPLACEMENT AND REPAIR OF
EMISSION RELATED PARTS: Any ELEC-
TROLUX HOME PRODUCTS, INC., approved
replacement part used in the performance of
any warranty maintenance or repair on emis-
sion related parts will be provided withoL_
charge tothe owner ifthe part is under warranty.
EMISSION CONTROL WARRANTY PARTS
LIST: Carburetor, Ignition System: Spark Plug
(covered up to maintenance schedule), Ignition
Module. MAINTENANCE STATEMENT: The
owner is responsible for the performance of all
required maintenance as defined in the in-
struction manual.
12
Loading...
