Operator’s Manual

Manual del Operador

Manuel de L ’utilisateur

BV1650 / BV1800 BV1850 / BV2000

LE Series

ENGLISH

ESPAÑOL

IMPORTANT MANUAL -- Do not throw away MANUAL IMPORTANTE -- No lo descarte MANUEL IMPORTANT -- À Conserver

WARNING:

Read and follow all Safety Rules and Operating Instructions before using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

Lea el manual del operador y siga todas las advertencias e instrucciones de seguridad. El no hacerlo puede resultar en lesiones graves.

A VERTISSEMENT:

Veuillez lire le manuel de l’utilisateur et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves.

Electrolux Home Products North America Div. of WCI Outdoor Products, Inc. Augusta, GA 30907

CopyrightE2001 WCI Outdoor Products, Inc.

530088944

3/26/01

FRANÇAIS

SAFETY RULES

WARNING:

Safety Rules and Precautions can result in serious injury.

KNOW YOUR UNIT

ReadyourOperator’s Manual carefully until you completely understand and can follow all warnings and safety rules before operating the unit.

Restrict unit to users who understand and will follow all warnings and safety rules in this manual.

WARNING:

ing unit. Remove all debris and hard objects such as rocks, glass, wir e, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

Use your unit as a blower for:

Sweeping debris or grass clippings from driveways, sidewalks, patios, etc.

Blowing grass clippings, straw, or leaves into piles, around joints, or between bricks.

Use your unit as a vacuum for:

Pickingupdry materialsuchas leaves,grass, small twigs, and bits of paper.

For best results during vacuum use, operate your unit at high speed.

Move slowly backandforthoverthe material as you vacuum. Avoid forcing the unit into a pile of debris asthis canclog the unit.

Keep the vacuum tube about an inch above the ground for best results.

PLAN AHEAD

Always wear eye protection when operating, servicing, or performing maintenance on unit. Wearing eye protection will help to prevent rocks or debris frombeing blown or ricocheting into eyes and face which can result in blindness and/or serious injury. Eye protection should be marked Z87.

Always wear foot protection. Do not go barefoot or wear sandals.

Always wear respirator orface mask when working with unit in dusty environments.

Secure hair above shoulder length. Secure or remove jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc. They can be caught in moving parts.

Do not operateunit whenyou are tired, ill, upset, or if you are under the influence of alcohol, drugs, or medication.

Keep children, bystanders, and animals away from work area a minimum of 30 feet (10 meters) when starting or operating unit. Do not point the blower nozzle in the direction of people or pets.

HANDLE FUEL WITH CAUTION, ITIS HIGHLY FLAMMABLE

Eliminate all sources of sparks orflame (including smoking, open flames, or workthat

Failure to follow all

Inspect area before start-

-- 2 --

cancausesparks)inthe areas wherefuelis mixed, poured, or stored.

Mix and pour fuel in an outdoor area; store fuel in a cool, dry, well ventilated place; use an approved, marked container for all fuel purposes.

Do not smoke while handling fuel or while operating the unit.

Make sure the unit is properly assembled and in good operating condition.

Do not fill fuel tank while engine is hot or running.

Avoid spilling fuel or oil. Wipe up fuel spills before starting engine.

Move at least 10 feet (3 meters) away from fuel and fueling site before starting engine.

Always store gasoline in a container approved for flammable liquids.

OPERATE YOUR UNIT SAFELY

WARNING:

opening the vacuum inlet door. The engine must be stopped and the impeller blades no longer turning to avoid serious injury from the rotating blades.

Inspect unit before each use for worn, loose, missing, or damaged parts. Do not use until unit is in proper working order.

Keep outside surfaces free of oil and fuel.

Never start or run engine inside a closed room, building or other unventilated area. Breathing exhaust fumes can kill.

To avoid static electricity shock, do not wear rubber gloves or any other insulated gloves while operating unit.

Do not set unit on any surface except a clean, hard area while engine is running. Debris such as gravel, sand, dust, grass, etc. could be picked up bytheairintake and thrown out through discharge opening, damaging unit, property,orcausing serious injury to bystanders or operator.

Avoid dangerous environments. Do notuse in unventilated areas or where explosive vapors or carbon monoxide build up could be present.

Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes, rooftops, etc. Keep firmfooting andbalance at all times.

Never place objects inside the blower tubes; always direct the blowing debris awayfrompeople, animals, glass, and solid objects such as trees, automobiles, walls, etc.Theforce ofaircancauserocks,dirt,or sticks to be thrown ortoricochet which can hurt people or animals, break glass, or cause other damage.

Never run unit without the proper equipment attached. When using your unit as a blower, always install blower tubes. When using your unit as avacuum, always install vacuum tubes and vacuum bag assembly. Make sure vacuum bag assembly is completely zipped.

Check air intake opening, blower tubes, vacuum tubes, and elbow tube frequently, always with engine stopped and spark plug

Stop the engine before

disconnected. Keep vents and discharge tubes free of debris which can accumulate and restrict proper air flow.

Neverplace anyobject in theairintakeopening as this could restrict proper air flow and cause damage to the unit.

Never use for spreading chemicals, fertilizers,orother substances which maycontain toxic materials.

Toavoid spreading fire, do not use near leaf or brush fires, fireplaces, barbecue pits, ashtrays, etc.

Use only for jobs explained in this manual.

MAINTAIN YOUR UNIT PROPERLY

Have all maintenance other than the recommended procedures described in the Operator’s Manual performed by an authorized service dealer.

Disconnect spark plug before performing maintenance except for carburetor adjustments.

Use only recommended Weed Eater!replacement parts; use of any other parts may voidyourwarrantyand cause damage to your unit.

Empty fuel tank before storing the unit. Use upfuelleft incarburetorbystartingengineand letting it run until it stops.

Do not use any accessory or attachment other than those recommendedby manufacturer for use with your unit.

Do not store the unit orfuel in a closed area where fuel vapors can reach sparks or an open flame from hot water heaters, electric motors or switches, furnaces, etc.

Store in a dry area out of reach of children.

SPECIAL NOTICE:

Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swelling. Prolonged use in cold weather hasbeenlinked toblood vesseldamage in otherwise healthy people. Ifsymptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An antivibration system does not guarantee the avoidance of these problems. Userswho operate power tools on a continual and regular basis must monitor closely their physical condition and the condition of this tool.

SPECIAL NOTICE:

This unit is equipped with a temperature limiting muffler and spark arresting screen which meets the requirements of California Codes 4442 and 4443. All U.S. forest land and the states of California, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion engines be equipped with asparkarresting screen. If you operate inalocale where such regulations exist, you arelegally responsible formaintaining the operating condition of these parts. Failure to do so is a violation of the law. Refer to the

-- 3 --

MAINTENANCE section for information on maintenance of the muffler and spark arresting screen.

ASSEMBLY

WARNING:

the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or blower tubes. The rotating blades can cause serious injury. Always disconnect the spark plug before performing maintenance or accessing movable parts.

WARNING:

assembled, check each step to insure your unit is properly assembled and all fasteners are secure. Follow all safety information in the manual and on the unit.

A standard screwdriver is required for assembly.

BLOWER TUBE ASSEMBLY

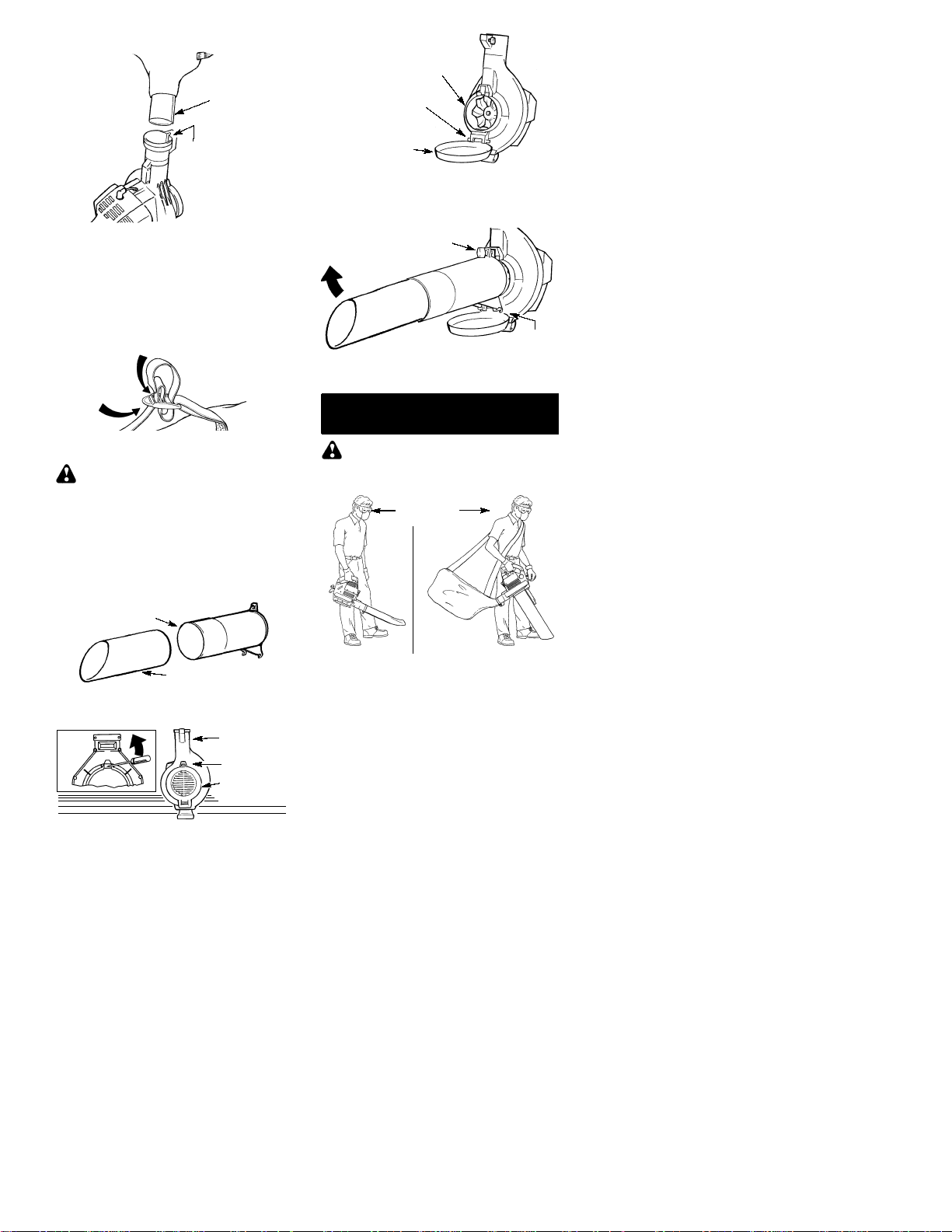

Align the rib on the blower tube with the groove in the blower outlet; slide the tube into place.

Tubeclampmust beloose enough to

NOTE:

allow blower tube to beinserted in blower outlet. Loosen tube clamp by turning knob counterclockwise.

Groove

Tighten the tube clamp by turning the knob clockwise.

To remove the tube, turn the knob counterclockwise to loosen clamp; remove tube.

VACUUM BAG ASSEMBLY

Open the zipper on the vacuum bag andinsert the elbow tube.

Push the small end of the elbow tube through the small opening in the bag.

Elbow Tube

Zipper Opening

Make sureedgeofthe small opening

NOTE:

is flush against the flared area of the elbow tube, and the rib on the elbow tube is on the bottom.

Close the zipper onthe bag. Make sure the zipper is closed completely.

Remove blower tube from engine.

Stop engine and be sure

If you receive your unit

Blower Outlet

Blower Tube

Rib

Small Opening

Rib

Vacuum Inlet

Rib

Groove

Insert the elbow tube into the blower outlet. Make sureelbowtube ribisaligned with the blower outlet groove.

Turn clamp knob clockwise to tighten.

Secure the ends of the shoulder strap by routing the strap through the buckle as shown.

VACUUM TUBE ASSEMBLY

WARNING:

the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or blower tubes. The rotating blades can cause serious injury.

Align the lower vacuum tube as shown. Push lower vacuum tube into upper vacuum tube.

Stop engine and be sure

Retaining Post

Vacuum

Inlet

Cover

Place the hooks on the vacuum tube on the retaining posts; pivot tube into position. Secure vacuum tube by turning the knob clockwise until tight.

Knob

Hooks

When converting back to the blower feature, make sure latch on the vacuum inlet cover is securely fastened.

USING YOUR UNIT

WARNING:

the tubes are secure before using the unit.

OPERATING POSITION

You MUST make sure

Eye Protection

Upper Vacuum Tube

Lower Vacuum Tube

Insert a screwdriver into the latch area on the vacuum inlet cover.

Latch

Area

Blower Outlet

Latch Area

Vacuum Inlet Cover

Gently tilt the handle of the screwdriver towardthebackofthe unit while pulling upon the vacuum inlet cover with your other hand.

Hold the vacuum inlet cover open until upper vacuum tube is installed.

Blower

Vacuum

OPERATING TIPS

To reduce the risk of hearing loss associated with sound level(s), hearing protection is required.

To reduce the risk of injury associated with contacting rotating parts, stop the engine before installing or removing attachments. Do not operate without guard(s) in place.

Operate powerequipmentonly at reasonable hours--not early in the morning orlate at night whenpeoplemight be disturbed. Complywith times listed in local ordinances. Usualrecommendations are 9:00 a.m. to 5:00 p.m., Monday though Saturday.

To reduce noise levels, limit the number of pieces of equipment used at any one time.

To reduce noise levels, operate power blowers at the lowest possible throttle speed to do the job.

-- 4 --

Use rakes and brooms to loosen debris before blowing.

In dusty conditions, slightly dampen surfaces or use a mister attachment whenwater is available.

Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areassuch as gutters, screens, patios, grills, porches, and gardens.

Watchoutforchildren, pets, open windows, or freshly washed cars. Blow debris away safely.

Use the full blower nozzle extension so the air stream can work close to the ground.

After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles.

FUELING

WARNING:

when refueling. This engine is certified to operate on unleaded gasoline. Gasoline must be mixed with a good quality synthetic 2--cycle air--cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. (A40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline). When mixing fuel follow the instructions printed on the container. Always read and follow the safety rules under HANDLE FUEL WITH CAUTION.

IMPORTANT

Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel systemofan engine while instorage. Toavoid engine problems, empty the fuel system before storage for 30daysor longer. Drainthe gastank,starttheengine and let it rununtilthe fuel lines and carburetor are empty. Usefresh fuel next season.

Remove fuel cap slowly

STARTING

TO STOP THE ENGINE

To stop the engine, move the throttle lever to the STOP position.

BEFORE STARTING THE ENGINE

You MUST make sure the tubes are secure before using the unit.

Fuel engine. Move at least 10 feet (3 meters) away from the fueling site.

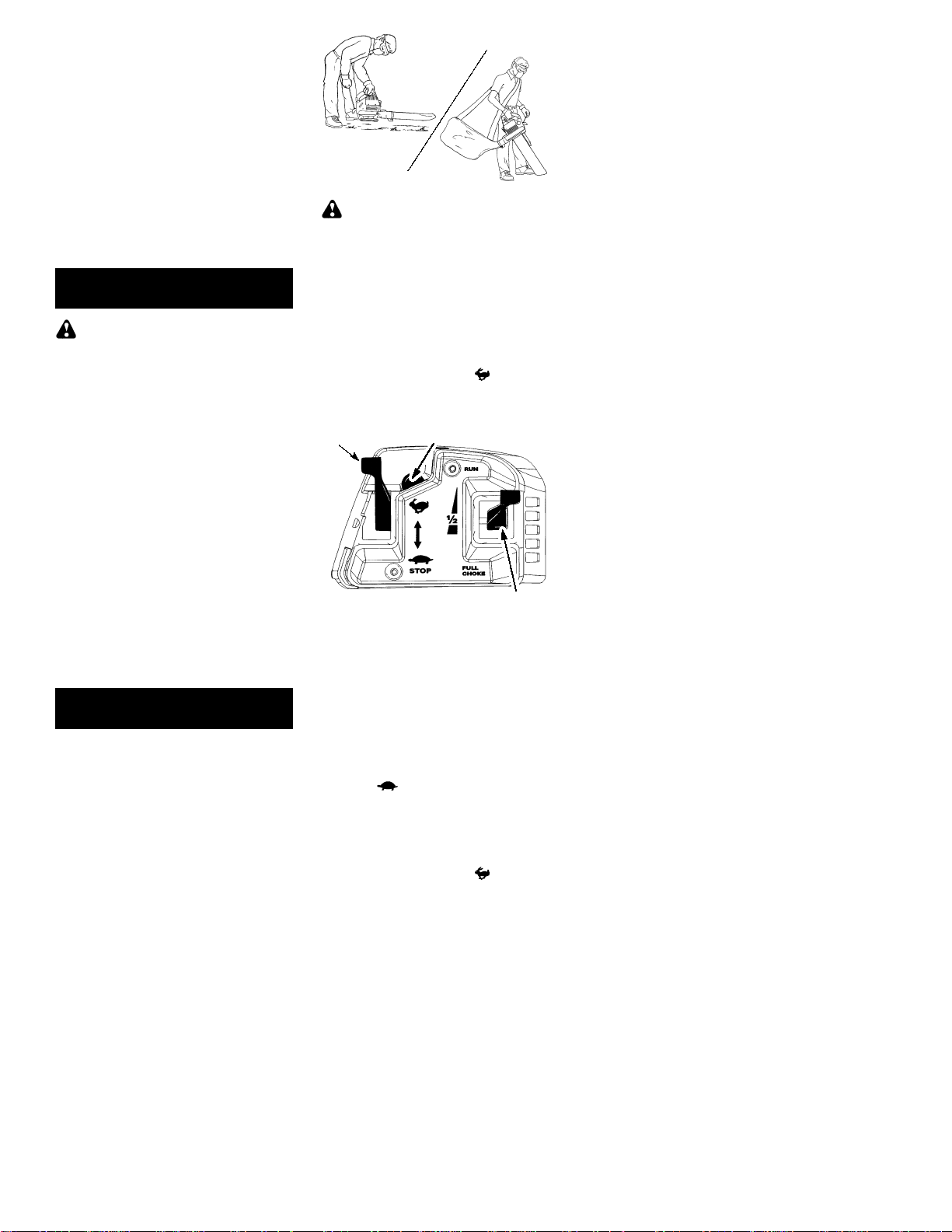

Hold the unit in the starting position as shown. Make sure the blower end is directed away from people, animals, glass, and solid objects.

-- 5 --

STARTING POSITION

WARNING:

holdtheunit asillustrated.Donot setunit onany surfaceexcept aclean,hardarea when starting engine or while engine is running. Debris such as gravel, sand, dust, grass, etc. could be picked up by the air intake and thrown out through the discharge opening, damaging the unit or property, or causing serious injury to bystanders or the operator.

When starting engine,

ST ARTING A COLD ENGINE (or a warm engine after running out of fuel)

Move throttle lever to the

Move choke lever to the FULL CHOKE position.

Slowly press the primer button 8 times.

Throttle Lever

Pull starter rope sharply until engine attempts to run, but no more than 5 pulls (below 30_F, 8 pulls).

If engine attempts to start before the

NOTE:

pull, go to next step immediately.

Move the choke lever to the HALF CHOKE position.

Pull the starter rope sharply until the engine runs, but no more than 5 pulls (below 30_F, 10 pulls). Run engine for 5 seconds, then move choke lever to the RUN position.

Allow the unit to run for 30moreseconds at the RUNposition before moving the throttle

lever to

If engine has not started after 5 pulls (at HALF CHOKE),repeat STARTINGA COLDENGINE procedure. If engine still does not start, proceed to STARTING A FLOODED ENGINE.

Primer Button

position.

Choke Lever

STARTING A WARM ENGINE

Move throttle lever to the

Pull starter rope sharply until engine runs, but no more than 5 pulls.

position.

If engine has not started, pull starter

NOTE

rope 5 more pulls. If engine still does not run, it is probably flooded.

STARTING A FLOODED ENGINE

Move the choke lever to the RUN position.

Move throttle lever to the

Pull rope to clear engine of excess fuel. This could require pulling the starter rope many times.

If unit still doesn’t start, call 1-800-554-6723

position.

MAINTENANCE

CLEAN AIR FILTER

Air Filter Cover

WARNING:

unless engine and muffler are cold. A hot muffler can cause serious burns.

WARNING:

Avoid touching muffler

Stop engine and be sure

GENERAL RECOMMENDATIONS

Thewarrantyonthis unit does not coveritems that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain unit as instruct-ed in this manual. Various adjustments will need to be made periodically to properly maintain your unit.

CHECK FOR LOOSE FASTENERS AND PARTS

Spark Plug Boot

Air Filter

Housing Screws

Muffler

CHECK FOR DAMAGED OR WORN PARTS

Contact an authorized service dealer for replacement of damaged or worn parts.

Fuel Tank -- Do not useunit iffueltankshows signs of damage or leaks.

Vacuum Bag -- Do not use vacuum bag if it is torn or damaged.

INSPECT AND CLEAN UNIT AND DECALS

After each use, inspect complete unit for loose ordamaged parts. Clean the unit and decals using a damp cloth with amilddetergent.

Wipe off unit with a clean dry cloth.

Cleaning the air filter:

A dirty air filter decreases engine performance and increases fuel consumption and harmful emissions. Always clean or replace air filter after every 5 hours of operation or yearly, whichever comes first.

NOTE:

flammable solvent. Doing so can create a fire hazard or produce harmful evaporative emissions.

S S S

Air Filter

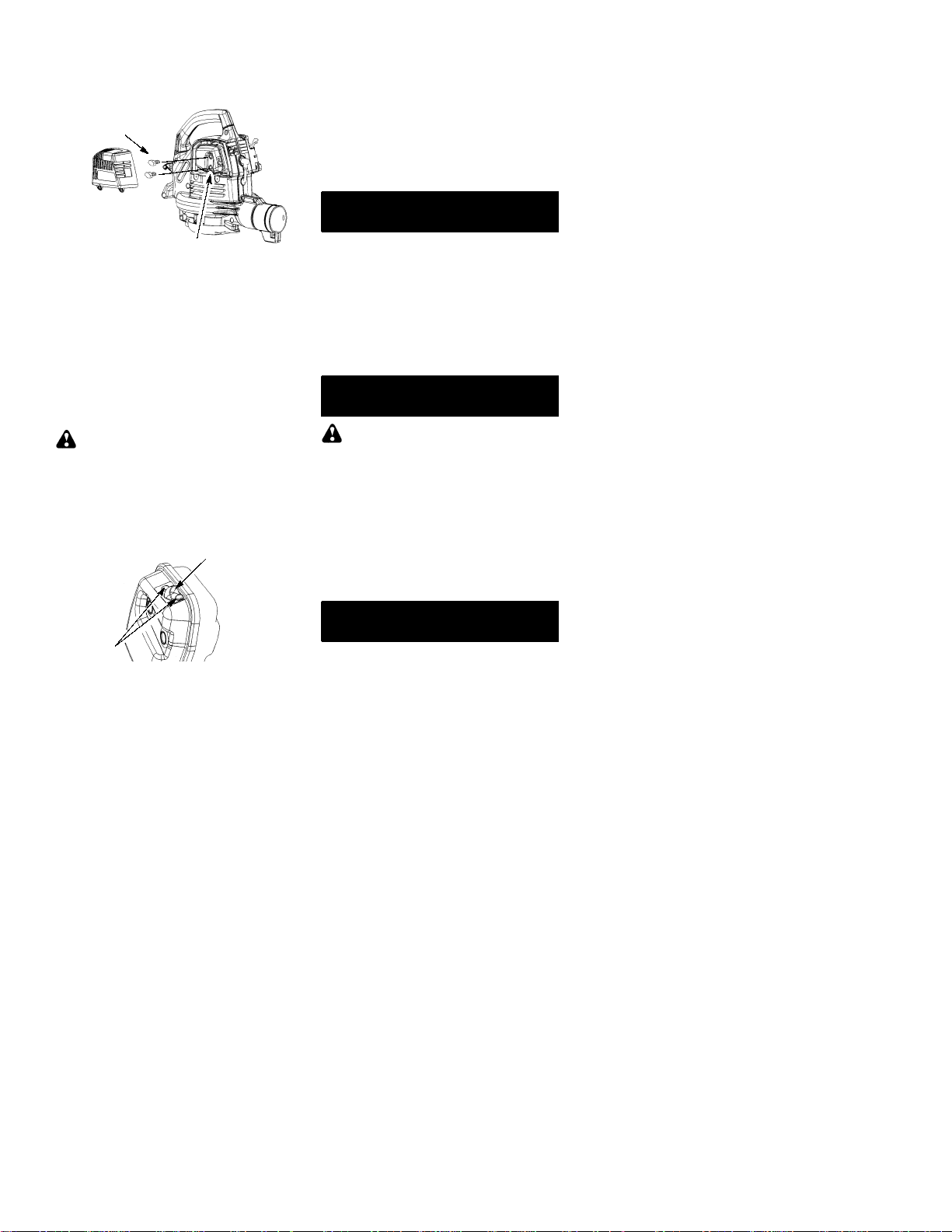

Clean the cover and the area around it to keep debris from falling into the carburetor chamber when the cover is removed. Remove parts as illustrated.

Donot clean filter in gasoline or other

Wash the filter in soap and water. Allow filter to dry. Apply a fewdrops of oil tothefilter; squeeze filter to distribute oil. Replace parts.

Screws

REPLACE SPARK PLUG

Replace spark plug each year to ensure the engine starts easier and runs better. Set spark plug gap at 0.025 inch. Ignition timing is fixed, nonadjustable.

Twist, then pull off spark plug boot.

Remove spark plug from cylinder and discard.

Replace with Champion RCJ-8Y spark plug and tighten with a 3/4 in. socket wrench (15 - 20 ft/lbs).

Reinstall the spark plug boot.

REPLACE FUEL FILTER

Toreplacefuelfilter, drainunit byrunning itdry of fuel, then remove fuel cap/retainer assembly from tank. Pull filter from tank and remove it fromthefuel line. Install new fuel filter on fuel line; reinstall parts.

-- 6 --

Fuel Line

Fuel Filter

CHECK MUFFLER MOUNTING SCREWS

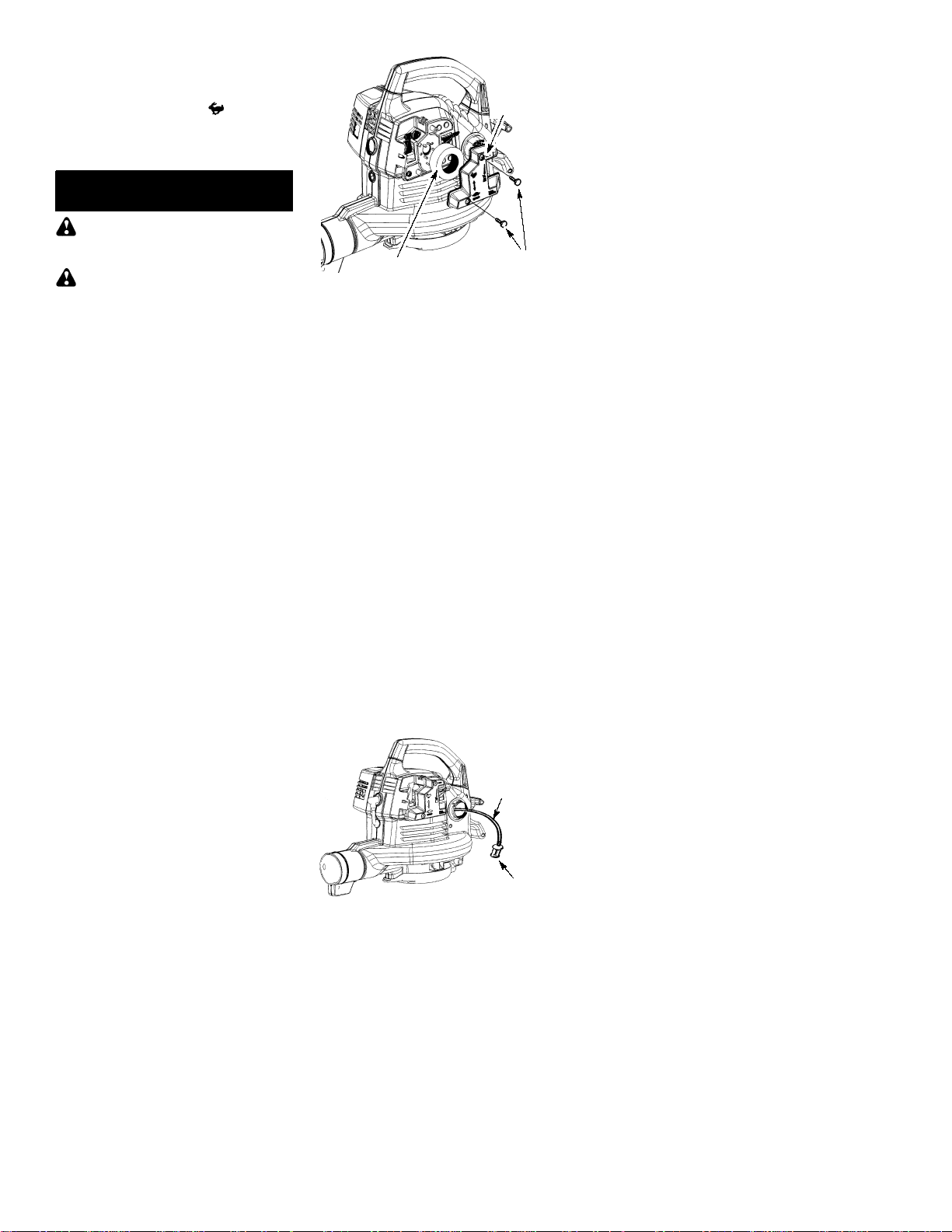

Once each year, ensure muffler mounting screws are secure and tightened properly to prevent damage.

Cap Screws

Muffler Cover

Mounting Screw Holes

NOTE:

cated behind the cap screws. The cap screws must be removed to access the mounting screws.

S S

The muffler mounting screws are lo-

Remove muffler cover. Loosen and remove the 2 cap screws from the muffler mounting screw holes. Tighten the 2mounting screws (100 in/lbs). Reinstall and tighten the 2capscrews(100 in/lbs). Reinstall muffler cover.

INSPECT MUFFLER AND SPARK ARRESTING SCREEN

WARNING:

uct contains chemicals known to the State of California to cause cancer. As the unit is used, carbon deposits build up on the muffler and spark arresting screen, and must be removed to avoid creating a fire hazard or affecting engine performance.

TOP VIEW OF MUFFLER

The muffler on this prod-

Exhaust Diverter

Remove muffler cover.

Loosen and remove both screws from the exhaust diverter.

Remove the exhaust diverter and spark arresting screen.

Install new spark arresting screen.

Reinstall exhaust diverter and both screws. Tighten screws securely.

Reinstall muffler cover.

NOTE:

broken or damaged, we recommend that the muffler be replaced.

If any part of the muffler is cracked,

SERVICE

We recommend all service and adjustments not listed in this manual be performed by an authorized service dealer.

CARBURETOR ADJUSTMENTS

Yourcarburetor is equipped with limiter caps. Adjusting the carburetor is a complicated task. We recommend that you take your unit to an an authorized service dealer. Damage will occur if you turn the needles beyond the limiter stops.

STORAGE

WARNING:

steps after each use:

Allow engine to cool, and secure the unit before storing or transporting.

Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.

Store unit with all guards in place. Position unit so that any sharp object cannot accidentally cause injury.

Store unit and fuel well out of the reach of children.

Perform the following

Screws

Replace the spark arresting screen every 50 hours of operation or if any damage or breaks in the screen are noted.

-- 7 --

NEED ASSISTANCE?

Call: 1-800-554-6723.

NEED A SERVICE PART?

Contact your dealer.

TROUBLESHOOTING TABLE

WARNING:

recommended remedies below other than remedies that require operation of the unit.

Always stop unit and disconnect spark plug before performing any of th

TROUBLE CAUSE REMEDY

Engine will not start.

Engine will not idle properly.

Engine will not accelerate, lacks power, or dies under a load.

Engine smokes excessively.

Engine runs hot.

Engine flooded.

Fuel tank empty.

Spark plug not firing.

Fuel not reaching carburetor.

Compression low.

Carburetor requires adjustment.

Crankshaft seals worn.

Compression low.

Air filter dirty.

Spark plug fouled.

Carburetor requires adjustment.

Carbon build up.

Compression low.

Choke partially on.

Fuel mixture incorrect.

Air filter dirty.

Carburetor requires adjustment.

Fuel mixture incorrect.

Spark plug incorrect.

Carburetor requires adjustment.

Carbon build up.

LIMITED WARRANTY

ELECTROLUX HOME PRODUCTS NORTH AMERICA, Division of WCI Outdoor Products, Inc.,

that each new or attachment is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase

2 YEARS- -

household purposes.

90 DAYS --

commercial, professional, or income producing purposes.

30 DAYS --

purposes. This warr anty is not transferable and does not

cover damage or liability caused by improper handling, improper maintenance, or the use of accessories and/or attachments not specifically recommended by

PRODUCTS NORTH AMERICA

Additionally, this warranty does not cover tuneups, spark plugs, filters, starter ropes, starter springs, cutting line, or rotating head parts that will wear and require replacement with reasonable use during the warr anty period. This warranty does not cover predelivery setup or normal adjustments explained in the operator’s manual.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MA Y HAVE

warrants to the original purchaser

Weed Eater

Parts and Labor, when used for Parts and Labor, when used for

Parts and Labor, if used for rental

brand gasoline tool

ELECTROLU X HOME

for this tool.

See “Starting Instructions.”

Fill tank with correct fuel mixture.

Install new spark plug.

Check for dirty fuel filter; replace. Check for kinked or split fuel line; repair or replace.

Contact authorized service dealer.

See “Carburetor Adjustments.”

Contact authorized service dealer.

Clean or replace air filter.

Clean or replace spark plug; re-gap

See “Carburetor Adjustments.”

Contact authorized service dealer.

Adjust choke.

Empty fuel tank and refill with correct fuel mixture.

Clean or replace air filter.

See “Carburetor Adjustments.”

See “Fueling Your Unit.”

Replace with correct spark plug.

See “Carburetor Adjustments.”

Contact authorized service dealer.

OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

NO CLAIMS FOR CONSEQUENTIAL OR OTHER DAM AGES WILL BE ALLOWED, AND THER E AR E N O OTHER EXPRESS WARR ANTIES EXCEPT THOSE EXPRESSL Y STIPULATED HEREIN.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR TH E EXC L USION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.

ELECTROLUX HOME PRODUCTS NORTH AMERICA’S

its products. Therefore,

PRODUCTS NORTH AMERICA

right to change, modify, or discontinue models, designs, specifications, and accessories of all products at any time without notice orobligation to any purchaser .

policy is to continuously improve

ELECTROLU XHOME

U.S. EPA/CALIFORNIA

EMISSION CONTROL

WARRANTY STA TEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS:

Protection Agency/California Air Resources Board and POULAN/WEED EATER, DIVISION OF WCI OUTDOOR PRODUCTS are pleased to explain the emissions control system warranty on your year 2000--2003 small off--road engine. In California, all new small off--road engines mustbedesigned, built, and

The U.S. Environmental

-- 8 --

reserves the

equipped to meet the State’s stringent anti-smog standards. POULAN/WEED EATER must warrant the emission control system on your small off--road engine for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of yoursmalloff--road engine engine. Youremission control system includes parts such as thecarburetor andtheignition system.Where a warrantable condition exists, POULAN/ WEED EATER will repair your small off--road engine engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor.

RANTY COVERAGE:

lated part on your engine (as listed under Emissions Control Warranty Parts List) is defective or a defect in the materials or workmanship of the engine causes the failure of such an emission related part, the part will be repaired or replaced by POULAN/WEED EATER.

SIBILITIES:

gine owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual. POULAN/WEED EATER recommends that you retain all receipts covering maintenance on your small off--road engine, but POULAN/WEED EATERcannotdenywarrantysolely forthe lackof receipts or for your failure to ensure the performance of all scheduled maintenance. As the small off--road engine engine owner, you should be aware that POULAN/WEED EATER may deny you warranty coverage if your small off--road engine engine orapart of ithas failed duetoabuse,neglect, improper maintenance, unapproved modifications, or the use of parts not made or approved by the original equipment manufacturer. You are responsible for presenting your small off--road engine to a POULAN/WEED EATER authorized repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicecenterorcall POULAN/WEED EATERat 1--800--554--6723.

MENCEMENT DATE:

begins on the date the small off--road engine is purchased. This warranty shall be for a period of two yearsfromthe initial date ofpurchase.

IS COVERED: REPAIR OR REPLACEMENT OF PARTS.

any warranted part will be performed at no

MANUFACTURER’S WAR-

If any emissions re-

OWNER’S WARRANTYRESPON-

As the small off--road engine en-

WARRANTY COM-

The warranty period

LENGTH OF COVERAGE:

WHAT

Repair or replacement of

charge to the owner at an approved POULAN/WEED EATER servicing center. If you have any questions regarding your warranty rights andresponsibilities, youshould contact your nearest authorized service center orcall POULAN/WEED EATER at 1--800--554--6723 Any warranted part which isnotscheduled for replacement as required maintenance, or which isscheduled only for regular inspection to the effect of “repair or replace as necessary” shall bewarranted for 2years. Any warranted part which is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part.

DIAGNOSIS:

charged for diagnostic labor which leads to the determination that a warranted part is defective if the diagnostic work is performed at an approved POULAN/WEED EATER servicing center.

AGES:

POULAN/WEED EATER may be liable for damages to other engine components caused by the failure of a warranted partstill underwarranty.

ERED

: All failures caused by abuse, neglect,

or improper maintenance are not covered.

ADD--ON OR MODIFIED PARTS:

of add--on or modified parts can be grounds for disallowing a warranty claim. POULAN/ WEED EATERisnot liable tocoverfailuresof warranted parts caused by the use ofadd--on ormodified parts. you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center or call POULAN/WEED EATER at 1--800--554--6723.

RANTY SERVICE:

pairs shall be provided at all POULAN/WEED EATER service centers. call: 1--800--554--6723

PLACEMENT AND REPAIR OF EMISSION RELATED PARTS

EATER approved replacement part used in the performance of any warranty maintenance or repair on emission related parts will be provided without charge to the owner if the part is under warranty.

TROL WARRANTY PARTS LIST:

tor, Ignition System: Spark Plug (covered up to maintenance schedule), Ignition Module, Muffler including catalyst.

STATEMENT:

the performance of all required maintenance as defined in the owner’s manual.

WARRANTY PERIOD:

The owner shall not be

CONSEQUENTIAL DAM-

WHATIS NOTCOV-

The use

HOWTOFILE A CLAIM:

WHERE TO GET WAR-

Warranty services or re-

MAINTENANCE, RE-

: Any POULAN/WEED

EMISSION CON-

The owner is responsible for

Carbure-

MAINTENANCE

This engine is certified to be emissions compliant for the following use:

Moderate (50 hours) Intermediate (125 hours) Extended (300 hours)

-- 9 --

Weed Eater LE Series, 530088944 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
