GENESIS® GOLD–B
Gas Grill
Owners Guide
DANGER
If you smell gas:
1.Shut off gas to the appliance.
2.Extinguish any open flames.
3.Open lid
4.If odor continues, keep away from the
appliance and immediately call your gas supplier or your fire department.
Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.
WARNING
Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8m) of this appliance.
Natural Gas
|
W |
|
E |
E |
B |
|
|
W |
|
E |
E |
B |
WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.
NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
WARNING: Do not try to light this appliance without reading the “Lighting” Instructions section of this manual
YOU MUST READ THIS OWNERS GUIDE BEFORE OPERATING YOUR GAS GRILL
A128.a |
|
|
B018.a |
® |
|
C017.a |
||
|
||
D001.c |
GAS Association |
|
|
55060 0100
DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNINGS
Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual.
After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before use. See instructions in this manual for correct procedures.
Do not operate the Weber gas barbecue if there is a gas leak present.
Do not use a flame to check for gas leaks.
Combustible materials should never be within 24 inches of the top, bottom, back or sides of your Weber gas barbecue.
Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.
Your Weber Gas Barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young children away while it is in use.
You should exercise reasonable care when operating your Weber gas barbecue. It will be hot during cooking or cleaning and should never be left unattended, or moved while in operation.
Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber gas barbecue.
Never lean over open grill or place hands or fingers on the front edge of the cooking box.
Should a grease fire occur, turn off all burners and leave lid closed until fire is out.
Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
The Weber Gas Barbecue should be thoroughly cleaned on a regular basis.
Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane gas in a natural gas unit is dangerous and will void your warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
LIQUID PROPANE GAS UNITS ONLY:
Use the regulator that is supplied with your Weber Gas Barbecue.
Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.
A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not use a liquid propane cylinder with a damaged valve.
Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be transported and stored accordingly.
If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:
1.Move away from liquid propane cylinder.
2.Do not attempt to correct the problem yourself.
3.Call your fire department.
A-2
Warranty
Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Grill that it will be free of defects in material and workmanship from the date of purchase as follows:
Aluminum Castings, lifetime, 1 year paint
Porcelain Hood Section, 25 years
Porcelain Side Table, 25 years
Burners, 10 years
Igniter, 3 years
Cooking Grates, 7 years no rust through
Flavorizer Bars, 5 years no rust through
Thermoplastic Parts, 10 years
All Remaining Parts, 5 years,
when assembled and operated in accordance with the printed instructions accompanying it.
Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE.
This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer service representative in your region using the contact information sheet provided with your manual. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual.
Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.
There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.
Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber.
This Warranty applies only to products sold at retail.
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
USA
A-3
Contents |
|
Danger & Warnings ....................................................................... |
A-2 |
Warranty ........................................................................................ |
A-3 |
General Instructions ...................................................................... |
A-5 |
Exploded View ............................................................................... |
A-6 |
Parts List ....................................................................................... |
A-10 |

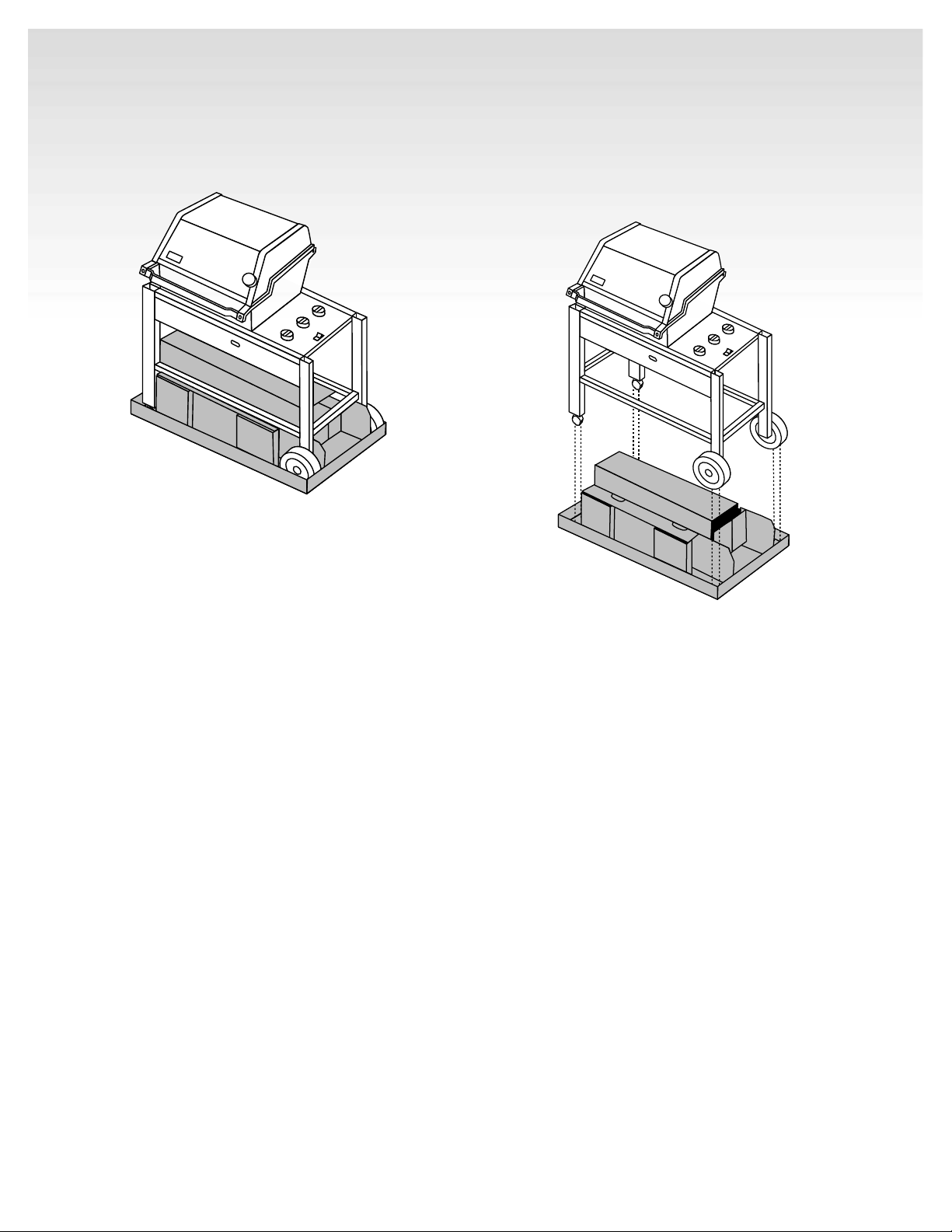

Assembly Instructions ................................................................... |
B-1 |
Installing Work Surfaces & Gas Connection Guidelines ............... |
C-1 |
Operating ...................................................................................... |
D-1 |
Lighting .......................................................................................... |
D-1 |
Manual Lighting ............................................................................. |
D-2 |
Cooking ......................................................................................... |
D-3 |
Storage and/or Nouse ................................................................... |
D-3 |
Cleaning ........................................................................................ |
D-3 |
Annual Maintenance ..................................................................... |
D-4 |
General Maintenance .................................................................... |
D-5 |
Replacing Main Burners ................................................................ |
D-6 |
Crossover Ignition System Operations .......................................... |
D-7 |
Troubleshooting ............................................................................. |
D-8 |
A-4
General Instructions
Your Weber Gas Barbecue is a portable outdoor cooking appliance. With the Weber Gas Barbecue you can grill, barbecue, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid and Flavorizer® Bars produce that “outdoor” flavor in the food.
The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if you move.
The natural gas supply is easy to use and gives you more cooking control than charcoal fuel.
•These instructions will give you the minimum requirements for assembling your Weber Gas Barbecue. Please read the instructions carefully before using your Weber Gas Barbecue. Improper assembly can be dangerous.
•Not for use by children.
•If there are local codes that apply to portable gas grills, you will have to conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1.
•This Weber Gas Barbecue is designed for natural (piped in city) gas only. Do not use liquid propane (LP) bottled gas. The valves, orifices and hose are for natural gas only.
•Do not use with charcoal fuel.
•Check that the area under the control panel and the bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.
For Installation in Canada
These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standards CAN/ CGA-B149.1 (Installation Code for Natural Gas Burning Appliances and Equipment).
Storage
•The gas must be turned OFF at the natural gas supply when the Weber Gas Barbecue is not in use.
•When the Weber Gas Barbecue is stored indoors, the gas supply must be disconnected.
Operating
WARNING: Only use this barbecue outdoors in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.
WARNING: Never use your Weber Gas Barbecue under an unprotected combustible roof or overhang.
WARNING: Your Weber Gas Barbecue is not intended to be installed in or on recreational vehicles and/or boats.
WARNING: Do not use combustible materials within 24 inches of the top, bottom, back or sides of the grill.
WARNING: The entire cooking box gets hot when in use. Do not leave unattended.
WARNING: Keep any electrical supply cord and the fuel supply hose away from any heated surface.
WARNING: Keep the cooking area clear of flammable vapors and liquids, such as gasoline, alcohol, etc., and combustible materials.
Gas Supply Testing
•Disconnect your Weber Gas Barbecue when the gas supply is being tested at high pressures. This appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
•Turn OFF your Weber Gas Barbecue when the gas supply is being tested at low pressures. This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at the pressure equal to or less than 1/2 psig (3.5 kPa).
A-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
26
30
31
32
33
Genesis Gold-B NG
34
35
36
37
38
39
40
41
42
43
44
45
46
39
47
48
17
16
19
18
49
50
51
52
53
54
55
A-6
1. |
Hair Pin Cotter |
34. |
Thermometer |
2. |
Hinge Pin |
35. |
Right Endcap |
3. |
Left Endcap |
36. |
Burner Control Knobs |
4. |
Shroud |
37. |
Control Panel |
5. |
1/4-20 x 1 1/4 inch bolt |
38. |
Igniter Button |
6. |
Handle lock |
39. |
Control Panel Hardware |
7. |
Handle |
40. |
Crossover Tube |
8. |
Warm-Up™ Basket |
41. |
Front and Back Burners |
9. |
Warming Rack |
42. |
Center Burner |
10. |
Cooking Grates |
43. |
Manifold Hardware |
11. |
Flavorizer® Bars |
44. |
Manifold Support Bracket |
12. |
Cooking Box |
45. |
Igniter |
13. |
1/4-20 keps nut |
46. |
Igniter Bracket |
14. |
Slide Out Bottom Tray |
47. |
Manifold, Hose and regulator (assembled) |
15. |
Catch Pan Holder |
48. |
Spider Stopper Guards |
16. |
Work Surface Trim |
49. |
Back Panel |
17. |
Work Surface |
50. |
Plastic buttons |
18. |
Side Frame (Right front/Left rear) |
51. |
Rear Frame |
19. |
Side Frame (Left front/Right rear) |
52. |
Frame Connector |
20. |
Tool holders |
53. |
Hose |
21.Nylon Retaining Washer
22.#8 - 16 x 7/8 inch screw
23.Catch Pan
24.Drip Pans
25.1/4 - 20 x 2 inch Bolt
26.Frame Connector
27.Front Panel
28.Condiment Basket
29.Front Frame
30.Casters
31.Wheels
32.Hubcaps
33.Bottom Shelf
A-7
© 2000 W eber-Stephen Products Co., Weber, the
® silhouette, and the kettle configuration are registered trademarks of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL, 60067-6266, U.S.A. This product is covered by one or more United States patents and patents in other nations globally. Printed in the U.S.A.
