Page 1

Managed Storage Switch

InSpeed Model 335

INSTALLATION&CONFIGURATION

guide

™

Page 2

Part Number 00041363-001 Rev. A i

Copyright © 2003 Vixel Corporation. All rights reserved worldwide. No part of this document may be reproduced by any means nor translated to any electronic medium without the written consent of Vixel Corporation.

Information furnished by Vixel Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Vixel Corporation for its use; or for any infringements of patents of other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Vixel Corporation.

Vixel and InSpeed™ are registered trademarks of Vixel Corporation. All other brand or product names referenced herein are trademarks or registered trademarks of their respective companies or organizations.

Vixel Corporation provides this manual “as is,” without any warranty of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability or fitness for a particular purpose. Vixel Corporation may make improvements and changes to the product described in this manual at any time and without any notice. Vixel Corporation assumes no responsibility for its use, nor for any infringements of patents or other rights of third parties that may result. Periodic changes are made to information contained herein; although these changes will be incorporated into new editions of this manual, Vixel Corporation disclaims any undertaking to give notice of such changes.

Vixel Corporation, 11911 North Creek Parkway South, Bothell, WA 98011

Page 3

Table of Contents

1 Introduction................................................................... 1

2 Installation..................................................................... 3

3 Management................................................................ 11

4 Technical Reference...................................................... 54

Appendixes ............................................... 57

A Specifications .............................................................. 58

B CLI Console Commands............................................. 60

C Event Messages........................................................... 63

D Loop ID—AL_PA Cross References ............................ 67

E Glossary...................................................................... 68

Index .................................................................................. 70

Page 4

CHAPTER 1 Introduction

About This Guide

This guide is designed to provide the user with the necessary information to install the Vixel Model 335 Switch and associated Small Form-Factor Pluggable Transceivers (SFPs) for use in Fibre Channel applications in typical Storage Area Networks (SANs).

Overview

The twelve-port switch provide 1 or 2 Gigabit per second (Gb/s) Fibre Channel support and the flexibility of SFP-based design in a 1U full-rack size. The switch is designed as a twelve-port central interconnect for Fibre Channel applications and supports the ANSI FC-AL standard.

Note: Nodes include host computers, servers, and storage arrays.

Devices are connected to the switch through Small Form-factor Pluggables (SFPs) transceivers and cables. Each attached node has 1 or 2 Gigabit-per-second (Gb/s) of available bandwidth; however, all ports must be set to the same speed. Ports with no inserted SFPs or with inoperative nodes are bypassed. The switch’s LED indicators provide status information to service personnel to indicate whether the port is active or bypassed.

Features

The switch incorporates the following features:

• InSpeed™ Techn olog y

• Operating speeds of either 1.0625 or 2.125 Gb/s.

• Standard 1U size for easy installation into standard rack or placement on a tabletop.

• Twelve SFP ports for total cabling flexibility and scalability.

• Management through the switch’s integrated web server or command line interface (CLI).

• 10BaseT Ethernet and RS-232 Serial ports on the switch.

• Switching and non-switching operating modes.

• System and port status LED indicators

• Auto-sensing, universal power supply supporting 100 to 250 VAC and 50 or 60 Hz.

About This Guide 1

Overview 1

Features 1

Fibre Channel-Arbitrated Loop 2

InSpeed™ Technology 2

Important safety, electromagnetic compatibility, and regulatory information is contained in the guide titled Safety & Regulatory Guide. The installation and use of this product must be in accordance with the information given in that guide.

Page 5

Vixel Model 335 Installation & Configuration Guide CHAPTER 1 Introduction

Fibre Channel-Arbitrated Loop

The Fibre Channel-Arbitrated Loop (FC-AL) is an ANSI standard (X3T11) designed to provide shared bandwidth over low-cost media. Early adopters primarily use the SCSI protocol transported over Fibre Channel for distributed server and storage cluster applications. The switch is a central point of interconnect designed to maintain a faulttolerant physical loop topology.

InSpeed™ Technology

Vixel’s InSpeed™ technology enables the switch’s router to properly utilize the switch core in sending data from one port to another. This process allows for multiple, simultaneous conversations between ports — effectively multiplying bandwidth. Using an advanced switching architecture that couples a non-blocking crossbar switch with unique port logic and per-port SERDES', the InSpeed™ technology creates the industry’s highest-density Fibre Channel switch.

This technology provides the same performance as switches that support FC-SW2, while solving the latency problems associated with large FC-AL loops. During initialization, InSpeed™ connects all devices together in a standard FC-AL2 loop. Upon completion of the initialization process, InSpeed™ transitions to switching mode. When arbitration is attempted, InSpeed™ analyzes connections and routes traffic directly to the destination port.

The InSpeed™ switch is bufferless and operates on only the lower seven bits of the full Fabric address field. Aside from the time it takes to complete a LIP sequence, the switch operates at full switching bandwidth that reaches wire speeds of 200 MB/s.

Page 6

CHAPTER 2 Installation

Unpacking the Switch

To unpack the switch:

1. Inspect the outer shipping container for any damage that may have occurred in shipping and report any sign of damage to the appropriate shipping agency.

2. Remove the switch from the shipping container; save the shipping container, foam, and anti-static bags—returning the switch in any other container or packing material may void its warranty.

3. Inspect the switch thoroughly. (If any signs of damage are seen, notify your sales representative and/or the shipping agency.)

Installing the Switch

You can install the switch into an equipment rack or place it on a desktop.

Note: For information on environmental requirements, see “Operating Conditions” on page 59.

To mount the switch in a rack, consult the installation documentation that shipped with the rack-mounting kit (ordered separately).

To place the switch on a desktop:

1. Turn the switch upside down so the case bottom is facing up.

2. Install a self-adhesive pad on each corner of the switch (prevents surface damage) at the corner marks on the switch underside.

3. Turn the switch right side up so the case bottom is facing down.

Note: The plug on the power cord is intended to serve as the disconnect device. To cycle power to the switch, remove and reconnect the switch’s power cord.

4. Attach one end of the switch’s power cord to the switch’s power inlet socket and the other end to a properly earthed receptacle (outlet).

5. Insert the power cord firmly into the power inlet socket. The switch is now powered on. The switch automatically executes a Power-On Self

Test (POST) and its LEDs display the test results (for a description of the POST sequence, see “Performing a Power On Systems Test” on page 4).

Unpacking the Switch 3

Installing the Switch 3

Using Small Form-Factor Pluggable (SFP) Transceivers 4

Performing a Power On Systems Test 4

Setting Up the Switch 5

Attaching Devices 5

Understanding the Switch’s LEDs 6

Cascading Switches 9

Page 7

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

Using Small Form-Factor Pluggable (SFP) Transceivers

The switch supports any SFP module that complies with the SFP specification as produced by MSA consortium.

The SFPs are “hot-pluggable” into the switch which allows host computers, servers and storage modules to be added dynamically without requiring power removal from the switch or any connected devices.

Small Form-Factor Pluggable (SFP) Installation

An SFP plugged into the switch will be automatically inserted when it is ready to begin initialization.

To insert an SFP, slide the SFP into the port, ensuring the correct orientation, until the latch clicks into place.

Small Form-Factor Pluggable (SFP) Removal

Removal of SFPs from a switch port causes the automatic bypass of that port. The remaining switch ports continue to operate normally with no degradation of system performance.

To extract an SFP, determine first what kind of extraction mechanism the SFP has.

Note: Most SFPs require you to remove the cable prior to removing the SFP from the port.

If the SFP has a removal tag, pull the removal tag to extract the SFP from the port.

If the SFP has a small plastic slider on the bottom side under the optical connector,

simultaneously push in the slider and pull out the SFP. If the SFP has a bale (small metal clasp), unlatch the bale and pull on it to extract

the SFP from the port.

Performing a Power On Systems Test

When the switch is powered on, the switch runs through Power-On Self Test (POST) diagnostics to verify the fundamental integrity of the switch box.

1. All switch LEDs turn on (LEDs illuminate) for approximately two seconds during power on, then all LEDs—except for the Power LED—turn off (LEDs extinguish).

2. If the port bypass LEDs are blinking at a constant rate and the Switch Fault LED is on, the switch has detected a hardware fault—contact an authorized service person.

Page 8

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

Setting Up the Switch

Before the switch can establish communication with your network, its IP Address needs to be changed from its default value.

To set the IP Address:

1. Attach one end of an RS-232 null modem cable to the serial port on the workstation; attach the other end to the RS-232 port on the switch.

2. For Unix workstations, type the following command at a Unix prompt (where SerialPortDevicePath is the filepath to the serial port used for connection):

cu -s 19200 -b 8 -1 SerialPortDevicePath

For Windows® platforms, open a terminal session through a terminal emulation program (such as HyperTerminal) with the appropriate serial port (for example, COM1) and the following serial port parameters:

• Bits per second: 19200

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control: Xon/Xoff You are now connected to the CLI.

3. To log onto the CLI, type li at the prompt, then type the password (the default password is password).

4. To change the switch’s IP parameters, type co and then type 1 to change the switch’s IP address.

5. If you want to change the switch’s netmask and default gateway, type 2 and 3, respectively.

6. Type 5 to save changes and reset the management agent. (The management agent must be reset for the change to take affect.)

7. To log off the CLI, type lo at the prompt.

For more information on configuring the switch through the CLI, see “Using the Command Line Interface (CLI)” on page 36.

Attaching Devices

To attach devices to the switch:

1. Insert an active (that is, Ethernet hub- or Ethernet switch-attached) Ethernet RJ-45 twisted pair cable into the switch’s 10BaseT management port and ensure that the Enet Act (Green) LED is on (LED illuminates).

Note: You can attach cables to SFPs before or after SFP insertion (the switch bypasses ports that do not have attached cables).

2. Remove dust covers or plugs from the SFPs, if provided.

3. For each device: a. Attach a cable to the device.

CAUTION: Forcing an SFP into a port may damage the SFP and/or port.

b. Attach the other end of the cable to a SFP and insert the SFP into a switch port,

using minimal pressure and fitting the SFP housing’s integral guide key into the port until the SFP’s tabs click into place.

Page 9

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

Note: FC-AL compatible nodes must perform initialization procedures upon power-up in order to function properly. It is the responsibility of the Fibre Channel driver software on FC-AL nodes to perform the initialization or reinitialization (depending on its prior state of operation).

4. Make sure the switch and any other connected switches or hubs are powered on.

5. Power on the storage devices (such as JBODs and RAIDs), then power on the hosts. The network initializes.

6. Check all port LEDs. For more information on Port LED status, See “Port LEDs” on page 7.

7. Check the green Switch Op (Switch Operational) LED. If the Switch Op LED is lit, all zones with inserted devices are operational. If the Switch Op LED is blinking in a multiple zone configuration, one or more zones are operational while others are not. If the Switch Op LED is off, no operational zones exist or no devices are attached.

Note: Improper initialization could be the result of a defective or inoperative host bus adapter card or device. Consult the vendor’s documentation for adapter diagnostic procedures.

Understanding the Switch’s LEDs

You can check the system and port status through the Light-Emitting Diodes (LEDs) on the switch.

The switch utilizes two sets of LEDs to indicate switch and port status:

1. System LEDs – Six separate LEDs that indicate the status of the switch separate from the Port LEDs.

2. Port LEDs – Two LEDs per switch port that indicate status of that specific port

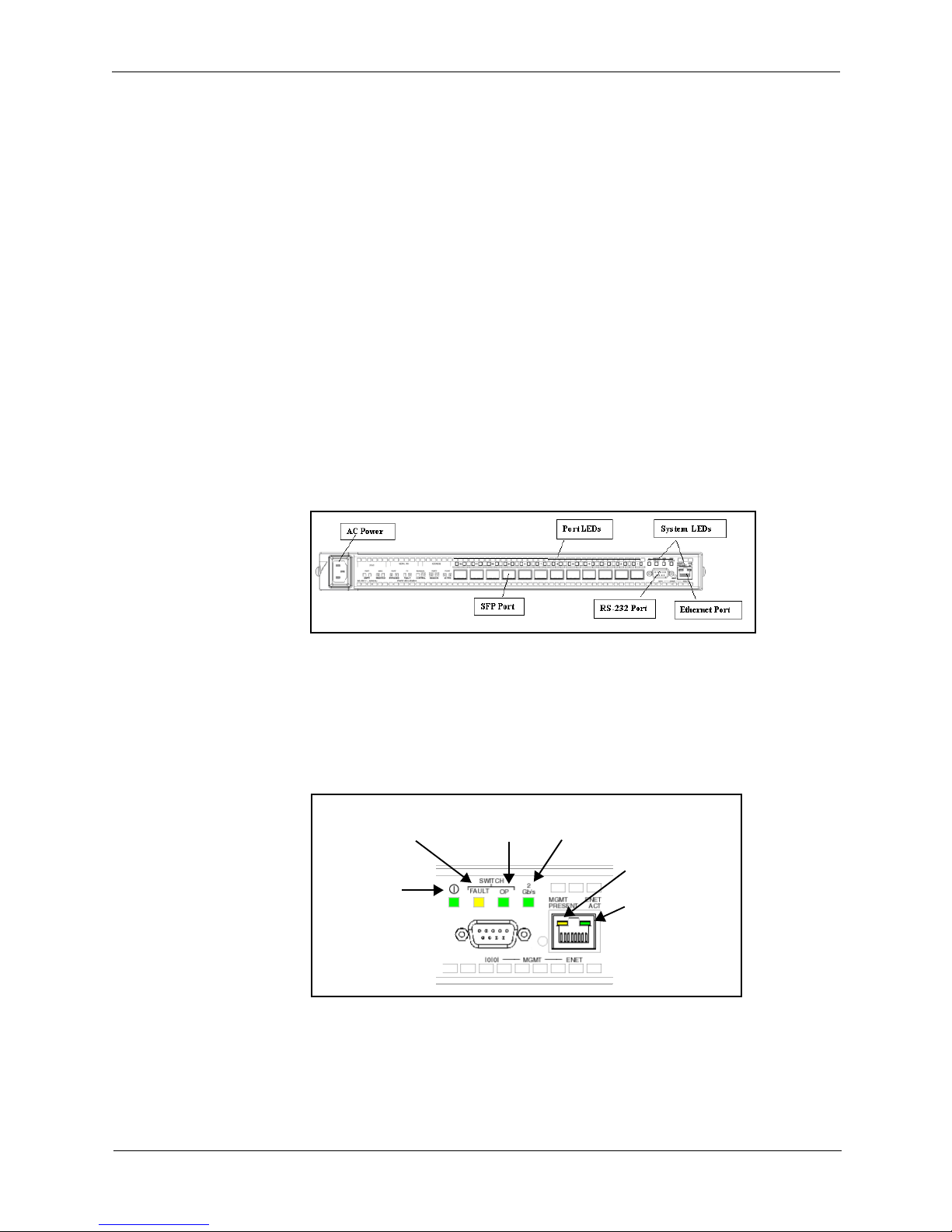

Figure 2-1. Switch features diagram

Power On

When powering on the switch, all LEDs turn on for two seconds and then off for two seconds except for the Power LED, which remains lit while the switch is powered.

System LEDs

There are six LEDs that indicate the status of the switch, independent of the port LEDs:

Figure 2-2. System LEDs

Switch Fault

Switch Operational

Switch Speed

Ethernet Active

Management Present

Power

Page 10

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

Port LEDs

Port LEDs indicate the current status of the particular port.The switch uses two port LEDs: SFP Status and Port Bypassed/Port Activity. The Port Bypassed and Port Activity LEDs share the same yellow/green LED.

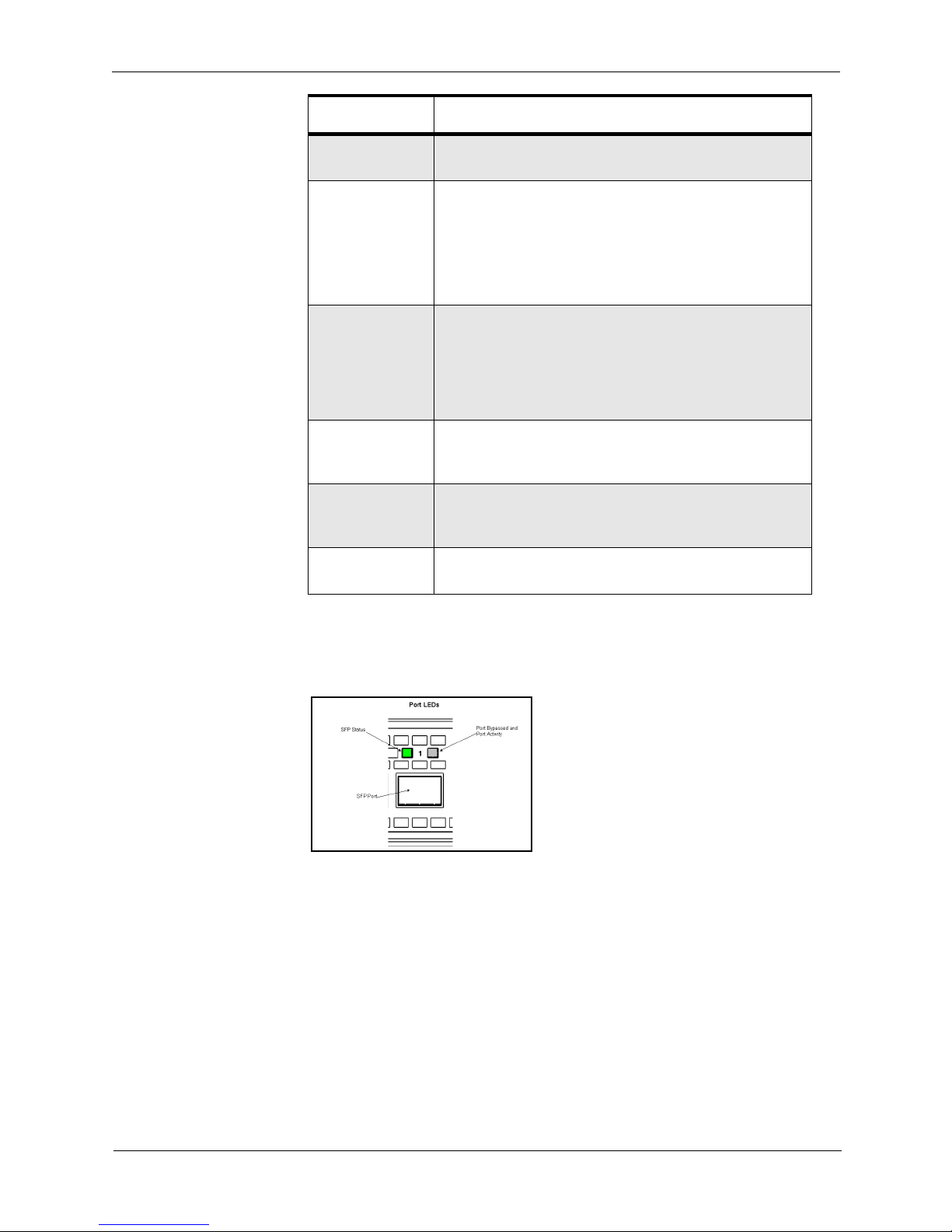

Figure 2-3. Port LEDs

System LEDs Indication

Power

(green LED)

When lit, the switch is plugged in and the internal power supply is functional.

Switch Fault

(yellow LED)

Indicates that the internal hardware self-test failed. When lit, the switch will not function. -or-

Indicates that a fan has stopped operating or the ambient temperature has exceeded 45°C. When lit, the switch is still functional but requires immediate attention. The LED will turn off when the detected condition is corrected.

Switch Op

(green LED)

Indicates whether the zones are initialized and operational. If the Switch Op LED is lit, all zones with inserted devices are operational. If the Switch Op LED is blinking in a multiple zone configuration, one or more zones are operational while others are not. If the Switch Op LED is off, no operational zones exist or no devices are attached.

2 Gb/s

(green LED)

Indicates the current operational speed of the switch. When lit, the switch is operating at 2 Gb/s. If unlit, the switch is operating at 1 Gb/s.

Mgmt Present

(yellow LED)

Indicates that switch management is functioning. If flashing, indicates that management functionality has failed and is not communicating with the switch.

Enet Active

(green LED)

Indicates Ethernet activity on the switch and is controlled through the Ethernet transceiver.

Page 11

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

An explanation of the Port LED indicators is listed below:

SFP

Status

LED

Port

Bypassed/

Activity

LED

Indication

Off Off Normal status of operation for ports in which SFPs

are not installed. The port will be in the bypass state, which precludes the port from participating in the network.

On Off Normal operation. Port and device are operational.

On On

(Yellow)

Bypass. The port is non-operational due to loss of signal, poor signal integrity, or the attached node is sending LIP(F8,xx). This is the normal status condition when the SFP is present but not attached to a FC-AL node, or if it is only attached to a cable assembly with nothing attached at the opposite end. Replacing such a port (or replugging the same port twice) is considered to be a configuration change, which should initiate the Loop Initialization Procedure by the attached device.

Off On

(Yellow)

Tx Fault. The port is non-operational due to an SFP transmitter fault or improperly-seated SFP.

Off Blinking

(Yellow)

The port is being manually controlled by a management entity.

Blinking Blinking

(Yellow)

A management entity is forcing a port beacon to locate a particular port on the switch.

On On

(Green)

A connection has been made with the port. Note: This LED is only applicable when the port is operating in switching mode. If the port is in switching mode and the LED is off, the port is not currently involved in a transaction.

Page 12

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

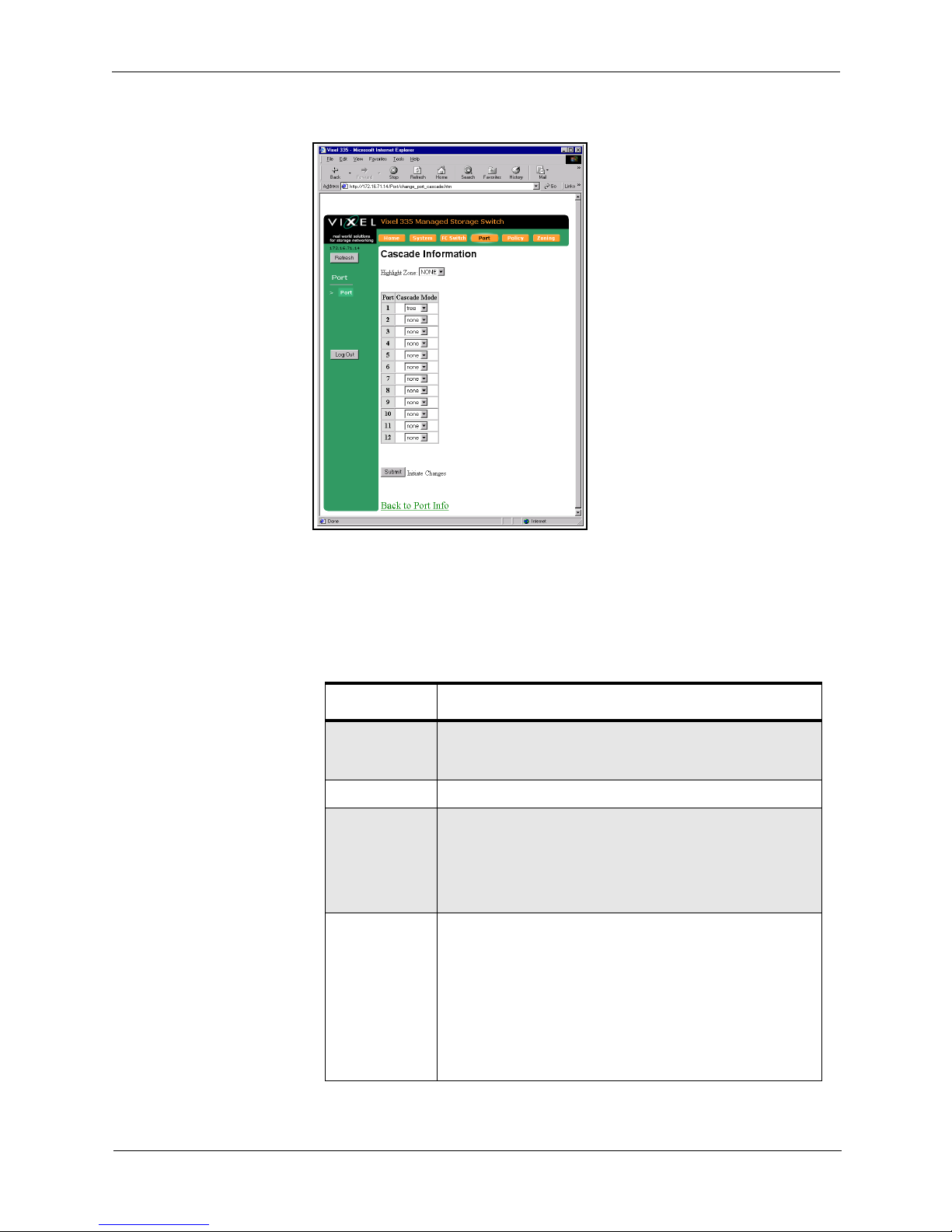

Cascading Switches

Cascading allows you to connect two or more switches together to increase the number of ports and available devices. The switch allows you to link up to 12 switches. Multiple cascades between switches provide link and communication redundancy. You may have up to three cascades between a pair of switches.

Note: The primary switch disables the transceivers on all redundant connections, so only the primary cascade is enabled. If the primary cascade goes down, another cascade is then enabled.

The primary cascade is determined by the order of discovery in the primary switch (the switch with the lower Serial Number). If the primary cascade fails in either switch, an automatic failover occurs on one of the other cascades.

Figure 2-4. Cascading Switches in Overlapping Zones

Cascading with Non-Overlapping Zones

There are certain cascade restrictions when using non-overlapping zones. The following examples outline these restrictions.

1. You may only have multiple cascades between switches in Zone 1.

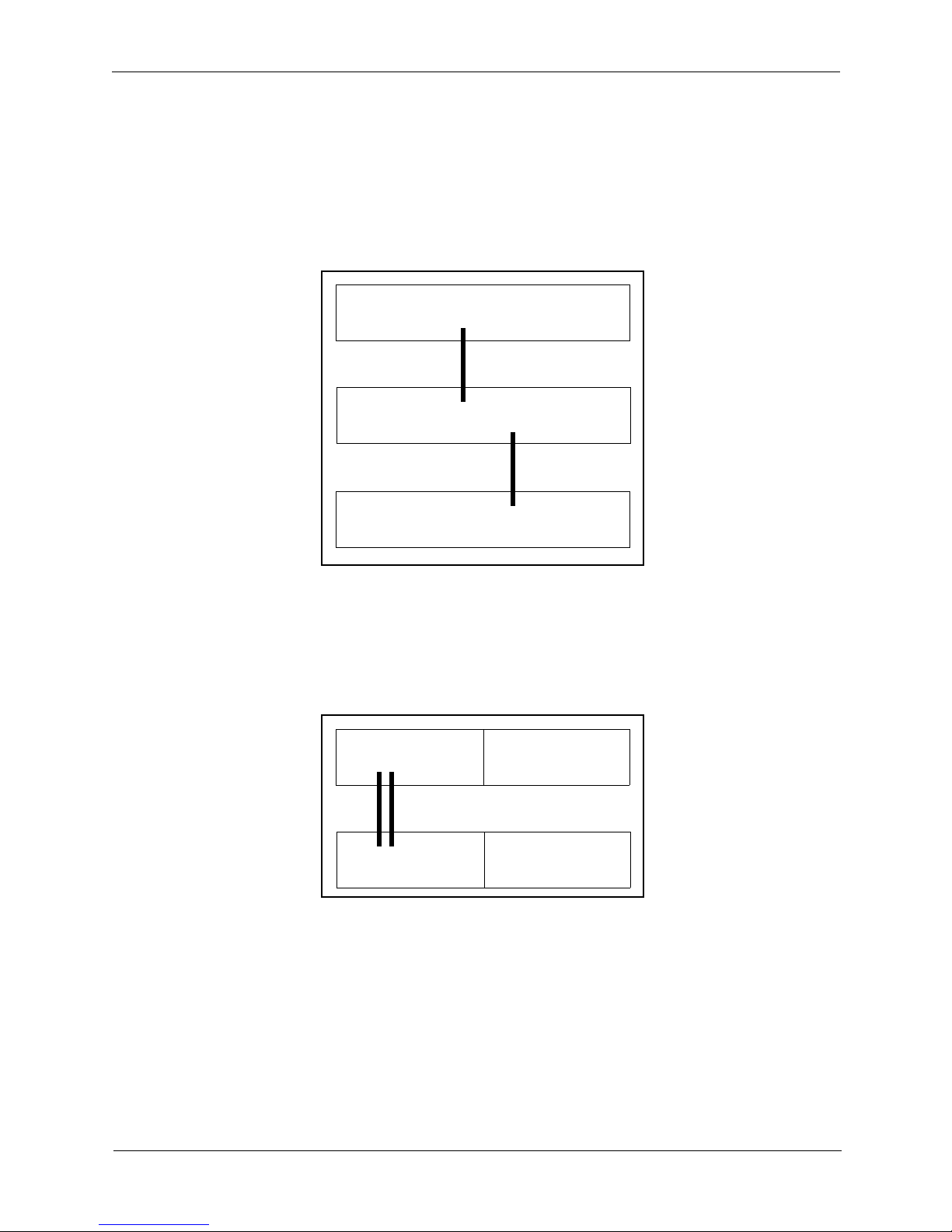

Figure 2-5. ACCEPTABLE: Multiple Cascades in Zone 1

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Page 13

Vixel Model 335 Installation & Configuration Guide CHAPTER 2 Installation

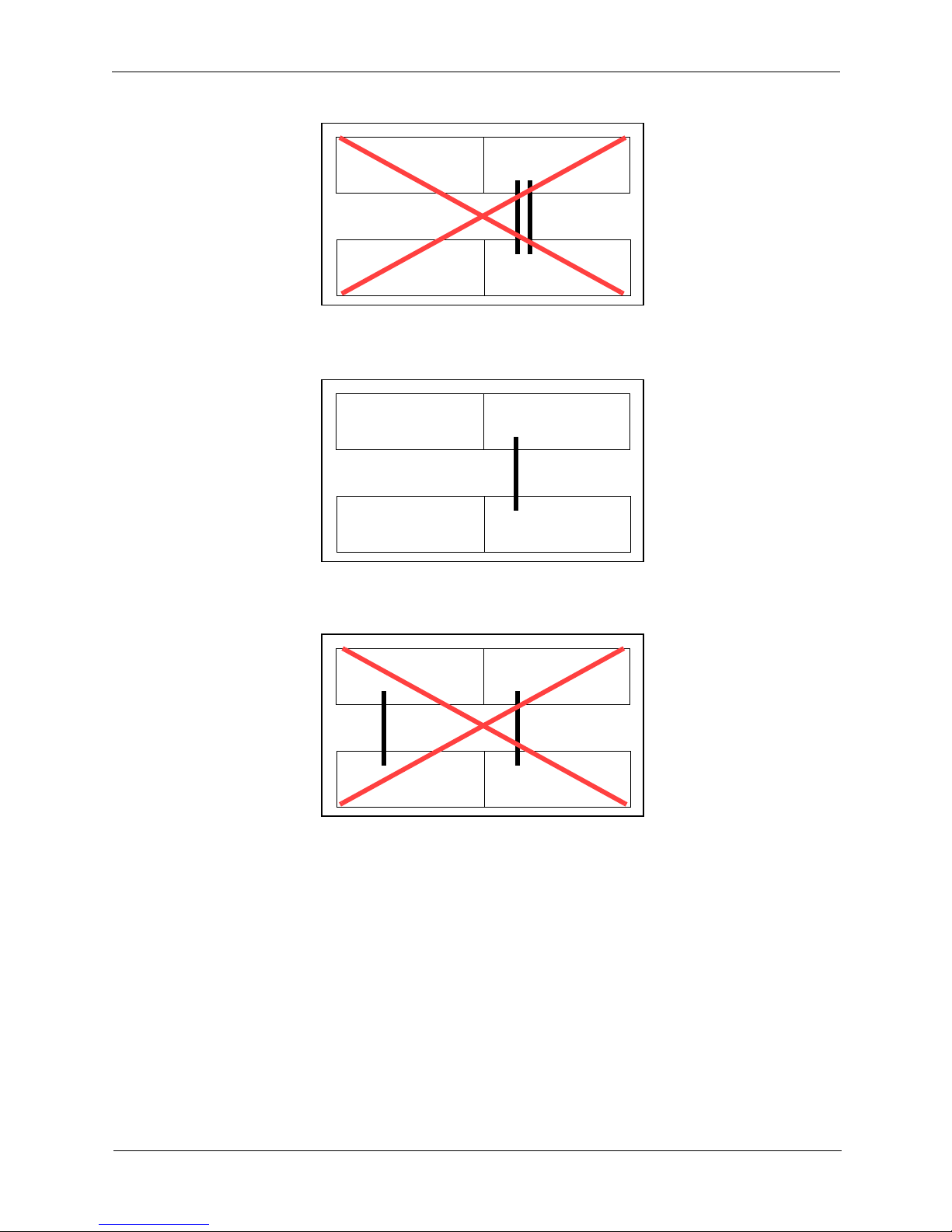

2. You may not have multiple cascades in Zones 2-12.

Figure 2-6. NOT ACCEPTABLE: Multiple cascades in Zones 2-12

3. You may have a single cascade in Zones 2-12 only.

Figure 2-7. ACCEPTABLE: Single Cascade in Zones 2-12 Only

4. You may not create a cascade in Zone 1 and another cascade in Zones 2-12.

Figure 2-8. NOT ACCEPTABLE: Cascades in Zone 1 and Zones 2-12

For more information on zoning, see “Zone Settings” on page 31.

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Zone 1

Zones 2-12

Page 14

CHAPTER 3 Management

Overview

The switch utilizes both a Web Manager interface and a Command Line Interface (CLI) to manage the switch. You can change the switch’s device identification, upgrade firmware, configure switch settings and policies, define severity levels for event messages, and configure zoning.

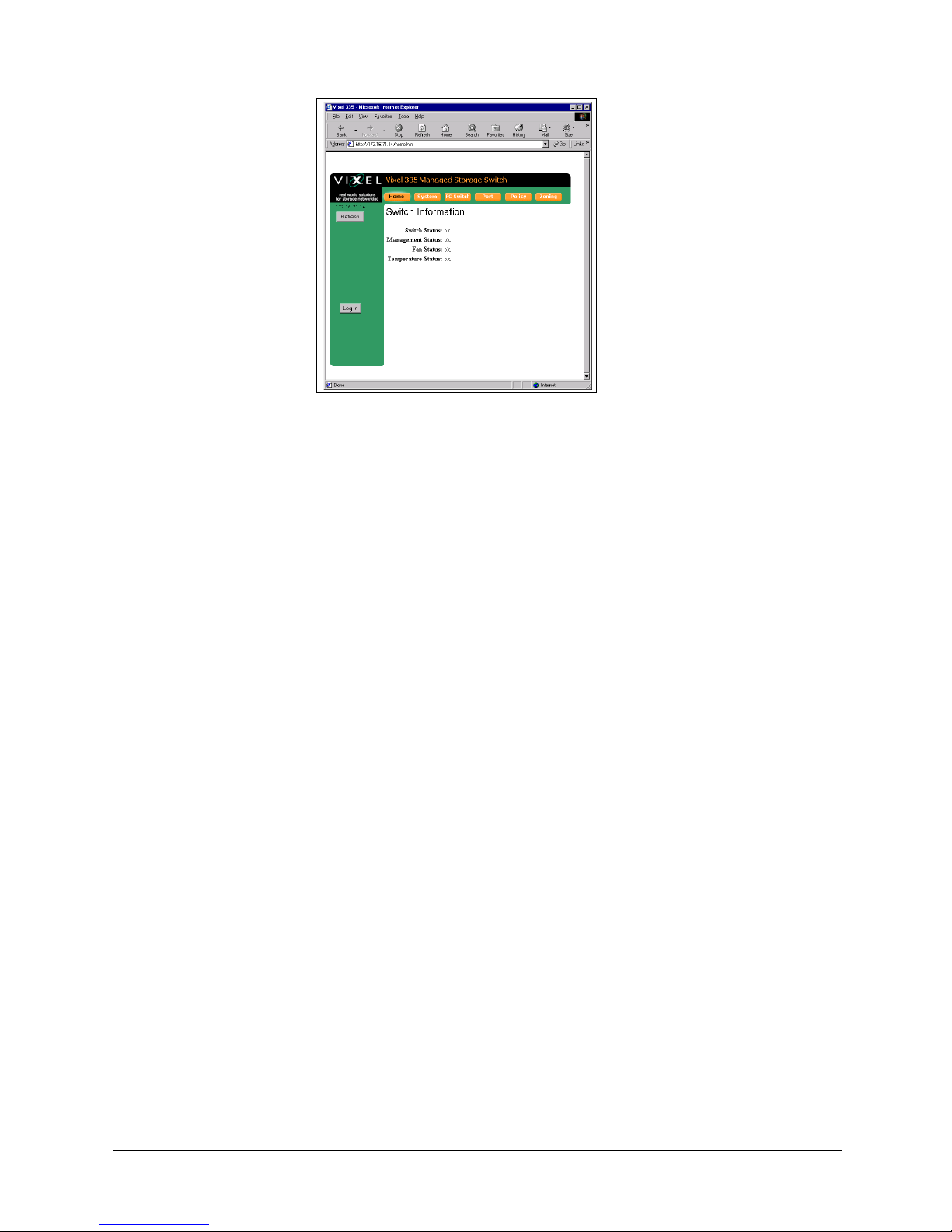

Using the Web Manager

The Web Manager enables you to manage and monitor a switch from any networkconnected computer. (Supported browsers are Netscape Navigator 4.7 or higher and Microsoft Internet Explorer 5.0 or higher. The browser needs to be Javascript-enabled.) With the Web Manager, you have the added benefits of easy navigation, simultaneous configuration of multiple ports, and named—rather than enumerated values within complex tables.

Connecting to the Web Manager

For a workstation to connect to the Web Manager, it must have access to the network on which the switch is connected.

If you need to verify the switch’s IP address, log into the switch’s command line interface through a serial link (see “Connecting to the CLI” on page 36).

To connect to the Web Manager:

1. Make sure the switch is connected to your network.

2. On a network-connected computer, open a web browser (such as Netscape Navigator or Microsoft Internet Explorer); in the URL text box, enter the switch’s address (DNS name or IP Address).

Overview 11

Using the Web Manager 11

Using the Command Line Interface (CLI) 36

Page 15

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Figure 3-1. Web Manager Home Page

The Web Manager for the selected switch appears, and monitoring is available. Configuration links and elements are visible only when you are logged in, as noted in “Using the Command Line Interface (CLI)” on page 36.

Note: The web browser’s appearance and information depends on the switch’s active firmware version and may change without notice in subsequent firmware versions.

To display updated information while using the Web Manager, click the Refresh button on the page.

Navigation

To ensure that refreshed information is displayed, use the navigation links and buttons (such as “Back”) that are on the Web Manager web pages. (The browser’s “Back” and “Next” buttons usually display cached copies, which do not reflect the current information on the switch.)

The highlighted button at the top of the page indicates your current location.

Logging On and Off

Note: For security, passwords (for accessing the Web Manager & CLI) can only be changed through a serial connection to the switch.

The Web Manager does not require log-on unless you want to modify the switch’s parameters or configuration (such as zone or policy configurations).

To log on to the Web Manager, click Log In, type the correct password (the default is password), and click Log On.

To log out of the Web Manager, click Log Out or close the browser window. Note: One password is used to access both the Web Manager and the Command Line

Interface. You can change the password through the Command Line Interface (CLI) only. Make sure you change the password after you log on the first time (for instructions, see “Changing the CLI/Web Password” on page 43).

Page 16

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Configuring the Switch

A quick list of frequent configuration tasks and their locations is shown here. More detailed information on each configuration task follows the table. Once you reach the location, you may need to click Change Settings and/or other links or buttons before configuration parameters are available for changing.

Note: To configure switch settings, you must be logged into the Web Manager.

General switch status is shown on the Home page (click Home). You can click the options at the top of the page to view additional information and configure the switch. These options are discussed in more detail on the following pages.

Resetting the Switch

Changes to certain switch settings require you to reset the switch for those changes to occur. You must be logged into the Web Manager to reset the switch.

To reset the switch, click Reset Switch on the Home page.

Configuration Task Location in Web Manager

Change the switch speed

(See “Switch Speed” on page 16.)

System > Change Settings

Change device identification, contact, and location

(See “Switch Identification” on page 16.)

System > Change Settings

Upgrade firmware

(See “Firmware Settings” on page 18.)

System > Firmware (click Load New Firmware Image)

Change the network settings (IP Address, Gateway, and Netmask)

(See “Network Settings” on page 15.)

System > Change Settings

Change the time settings

(See “Time Settings” on page 17.)

System > Time > Change Time Settings

Configure zoning

(See “Zone Settings” on page 31.)

Zoning

View & download event log

(See “Event Log Messages” on page 19.)

System > Event Log

Reset switch

(See “Resetting the Switch” on page 13.)

Home (click Reset Switch)

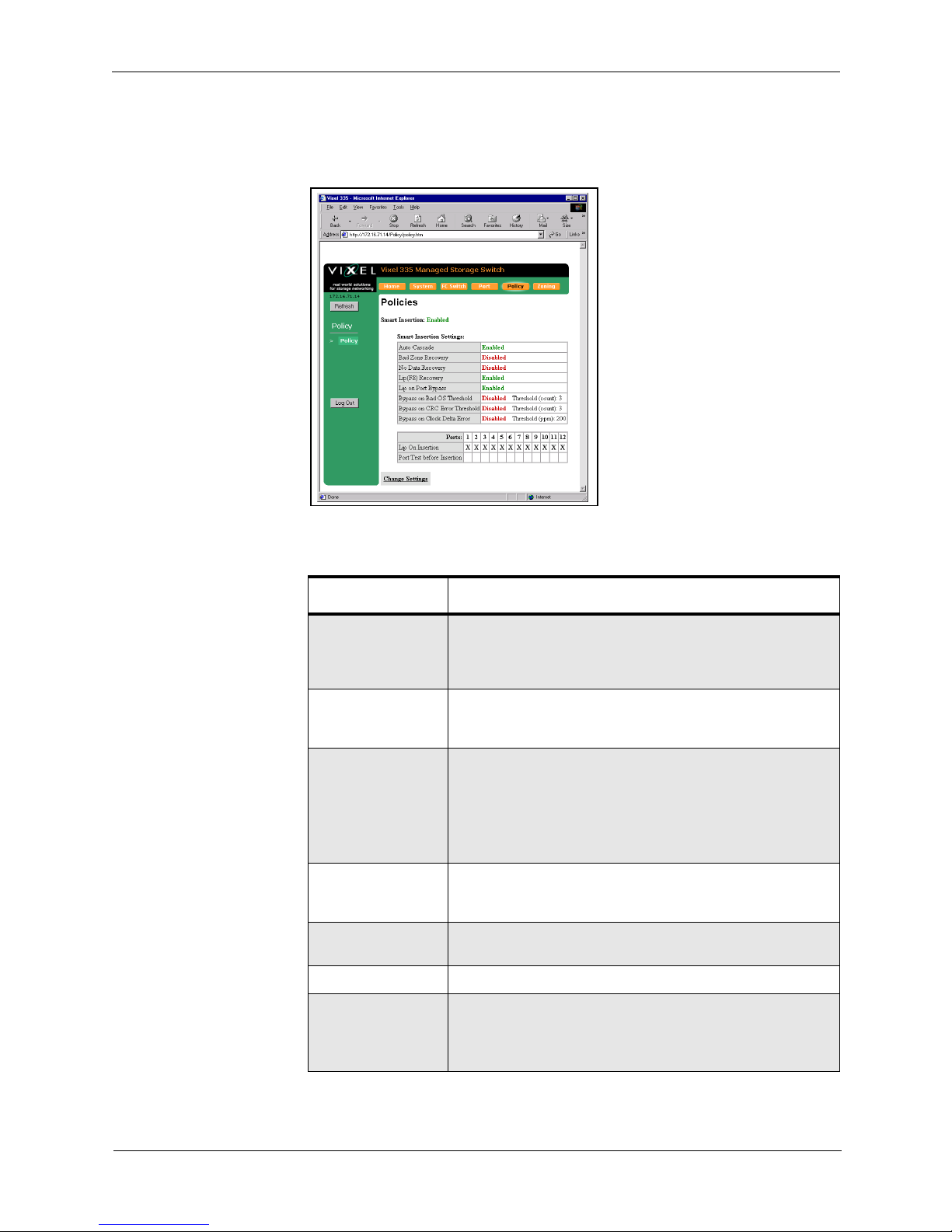

View & update policies

(See “Policy Settings” on page 29.)

Policy

Page 17

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

System Information Settings

The System Informations page displays the switch’s parameters and general configuration settings.

To view the system settings, click System. The System Information page appears.

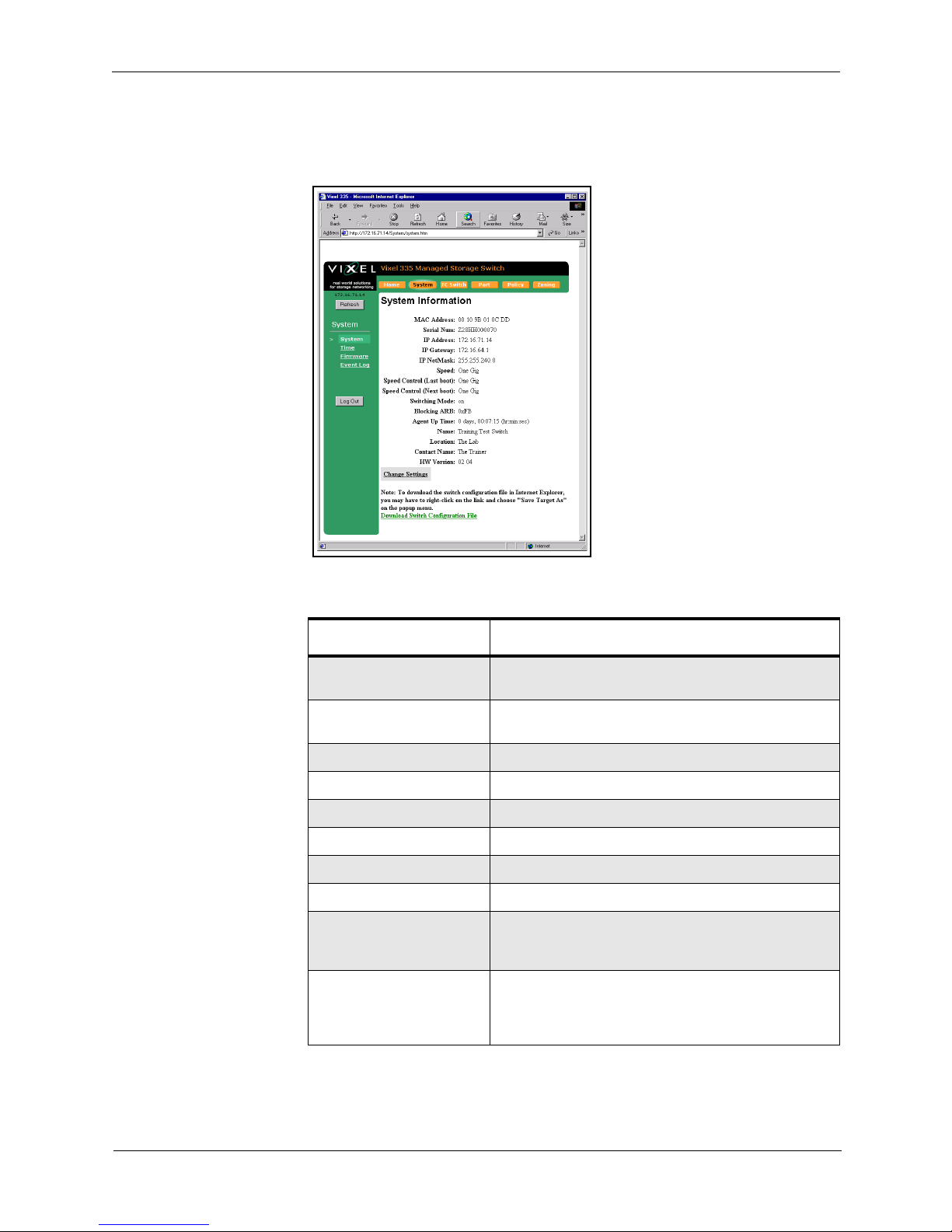

Figure 3-2. System Information Page

The displayed settings are listed below:

Setting Description

MAC Address A unique device address assigned to each switch at the

factory. Cannot be configured or modified.

Serial Num(ber) A unique identification number assigned to each switch at the

factory. Cannot be configured or modified.

IP Address The current IP Address for the switch.

IP Gateway The current Gateway address for the switch.

IP Netmask The current IP Netmask address for the switch.

Speed The current speed setting for the switch.

Speed Control (Last boot) The speed setting selected during the last switch power-up.

Speed Control (Next boot) The speed setting selected for the next switch power-up.

Switching Mode When "on", allows data to be sent directly to a specified port.

If "off", the data is sent to every port. Disabling Switching Mode may be necessary when passing data to legacy devices.

Blocking ARB When two ports start a communication session, the Blocking

ARB is sent to all other ports trying to communicate with those ports until the connection is terminated. Blocking ARB is only active when the switching mode is on.

Page 18

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To modify the current settings, click Change Settings. The System Information page appears with the fields available for modification.

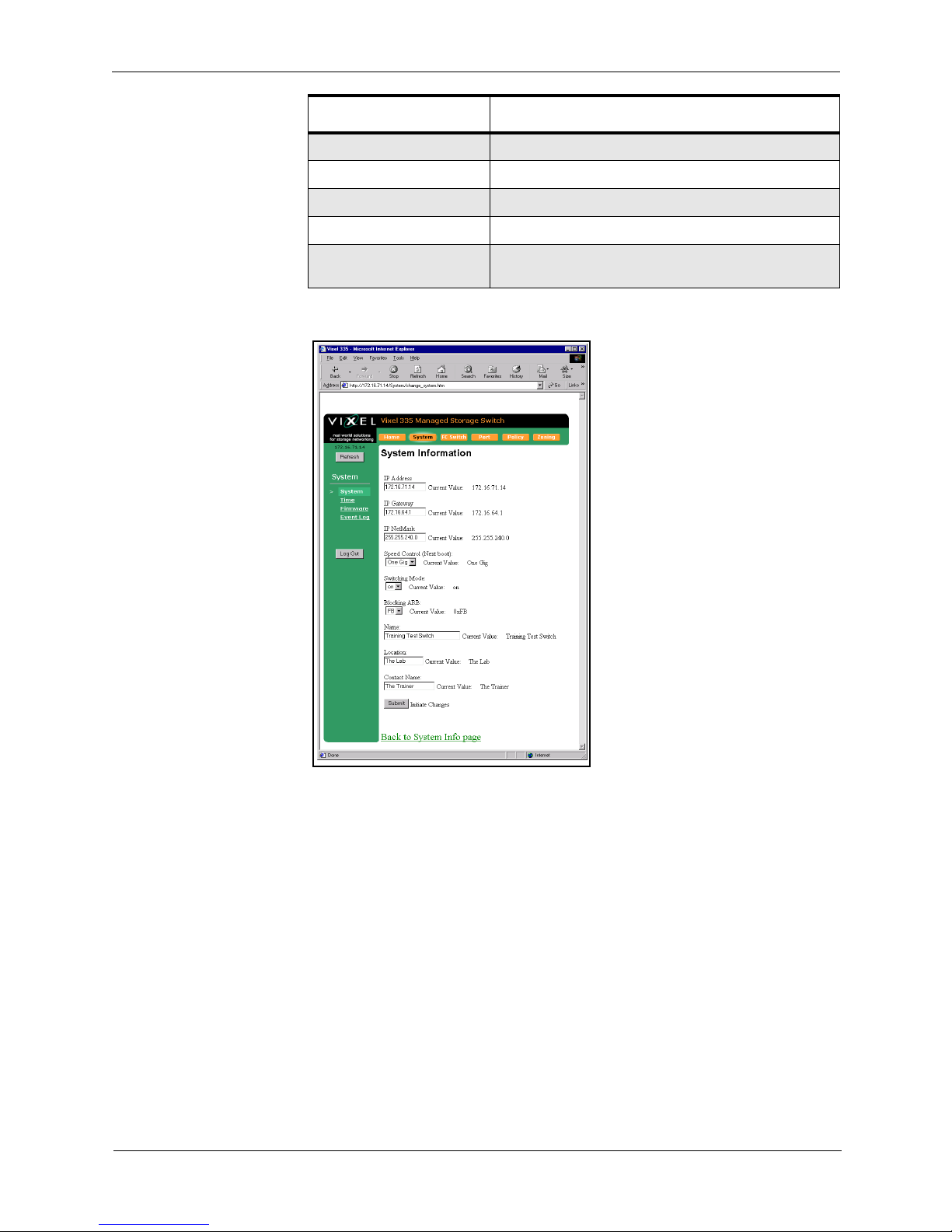

Figure 3-3. System Information (Change Settings) Page

Network Settings

You can change the switch’s network settings (IP Address, Gateway, and Netmask) through the Web Manager once the switch has established communications with the network.

Note: To change the network settings of a switch that is not yet communicating with your network, connect through a null modem serial cable and change the IP Address through the CLI. For further information, See “Using the Command Line Interface (CLI)” on page 36.

To view the current network settings, click System. To change the switch’s network settings:

1. Click Change Settings.

2. Type the new setting (IP Address, Gateway, or Netmask) in the appropriate text box.

3. When finished, click Submit.

Agent Up Time The duration of time the switch has been operational.

Name The name of the switch.

Location The location where the switch resides.

Contact Name The person’s name to contact for switch issues.

HW Version The hardware version of the switch. Cannot be configured or

modified.

Setting Description

Page 19

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

4. You must reset the switch for the new network settings to become active. To reset the

switch in the Web Manager, click Home and then click Reset Switch. You may also reset the switch through the CLI. See “Resetting the Switch” on page 51.

Switch Speed

The switch is set to 2.125 Gb/s as the factory default switch speed. To view the current switch speed, click System. To change the switch speed:

1. Click Change Settings.

2. From the Speed Control (Next boot) drop-down box, select the desired speed.

3. Click Submit. The next time you reset the switch the new switch speed will be

applied.

Switching Mode

When enabled, switching mode allows data to be sent directly to a specified port. If switching mode is disabled, the switch sends data to every port. Disabling Switching Mode may be necessary when passing data to legacy devices.

To view the current mode, click System. To change the switching mode:

1. Click Change Settings.

2. Select either "on" or "off" from the Switching Mode drop-down box.

3. Click Submit.

Blocking ARB

Note: This setting should not be modified unless directed to do so by Vixel Customer Service.

When two ports start a communication session, the Blocking ARB is sent to any other ports trying to communicate with those specific ports until their connection is terminated.

To view the current Blocking ARB value, click System.

Switch Identification

You may modify the switch’s name, location, or contact name. To view the current information, click System.

To change the switch identification:

1. Click Change Settings.

2. Enter the new value in the appropriate text box.

3. When finished, click Submit.

Setting Description

One Gig Set switch speed to 1.0625 Gb/s.

Two Gig Set switch speed to 2.125 Gb/s.

Page 20

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Downloading the Switch Configuration

You can download the current switch configuration to the Web Manager. The configuration file displays in text format.

To download the switch configuration, click Download Switch Configuration File. A text file appears displaying the current switch configuration. You can save or print the information.

Time Settings

To view the current time settings, click System and then click Time. The Time Information page appears.

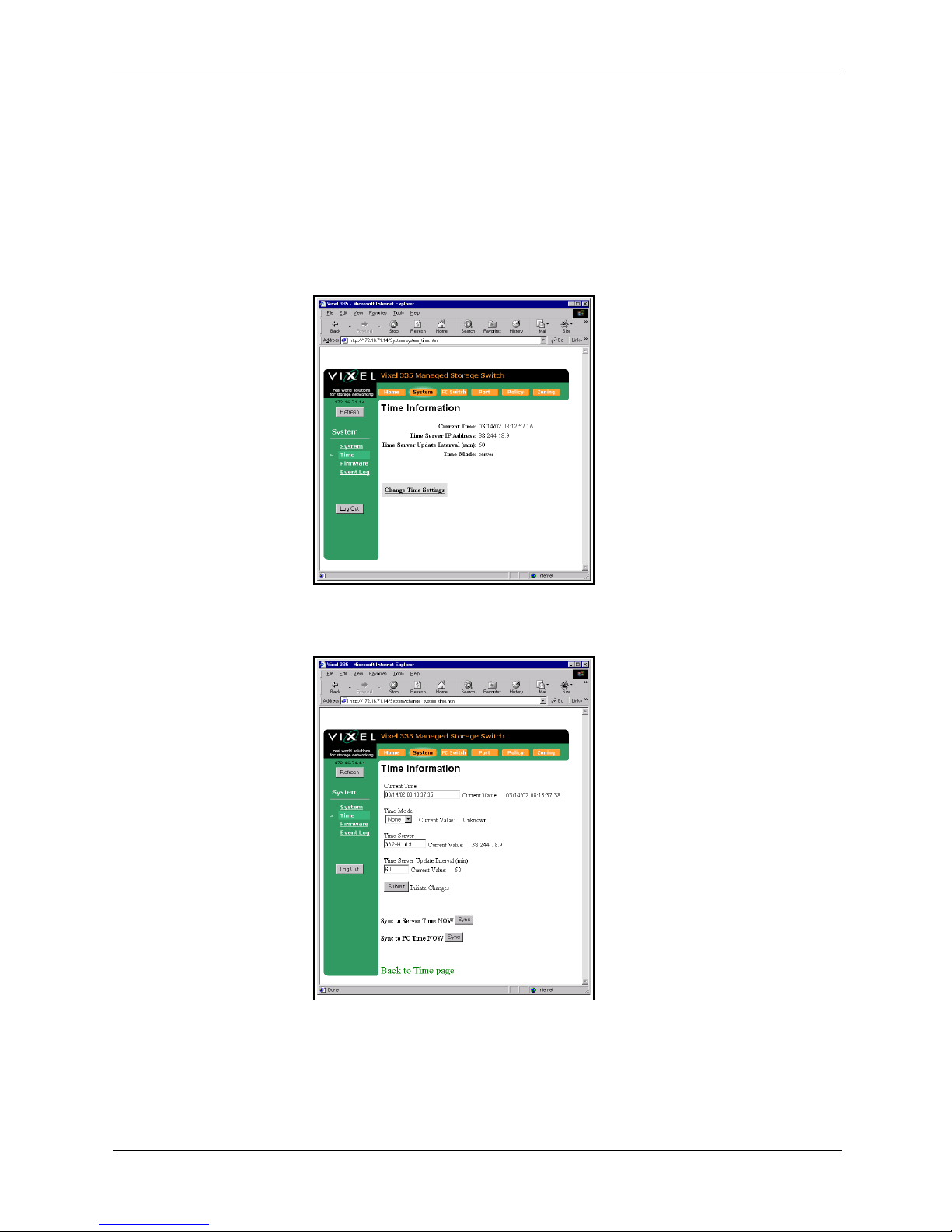

Figure 3-4. Time Information Page

To change the time settings, click Change Time Settings. The Time Information page appears with the fields available for modification.

Figure 3-5. Time Information (Change Settings) Page

Page 21

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To change the Time Mode:

1. From the Time Mode drop-down box, select the desired time setting.

2. Click Submit. To use a time server:

1. Select Server in the Time Mode drop-down box.

2. Enter the IP Address for the time server in the Time Server text box.

3. Enter the desired update interval in minutes in the Time Server Update Interval (min) text box.

4. Click Sync to Server Time to immediately synchronize the server time to the time server at the designated IP Address.

5. Click Submit.

To set the time setting to the computer connected to the switch, click the Sync to PC Time Now Sync button and then click Submit.

Note: Clicking Back on the browser tool bar may not update settings due to web browser caching pages in memory.

To view the new time settings, click Back to Time page.

Firmware Settings

The Firmware page displays information on the current firmware version, the alternate firmware version, and the version of the software that loads the firmware image on boot up.

To view the current firmware settings:

1. Click System. The System Information page appears.

2. Click Firmware. The Firmware Information page appears.

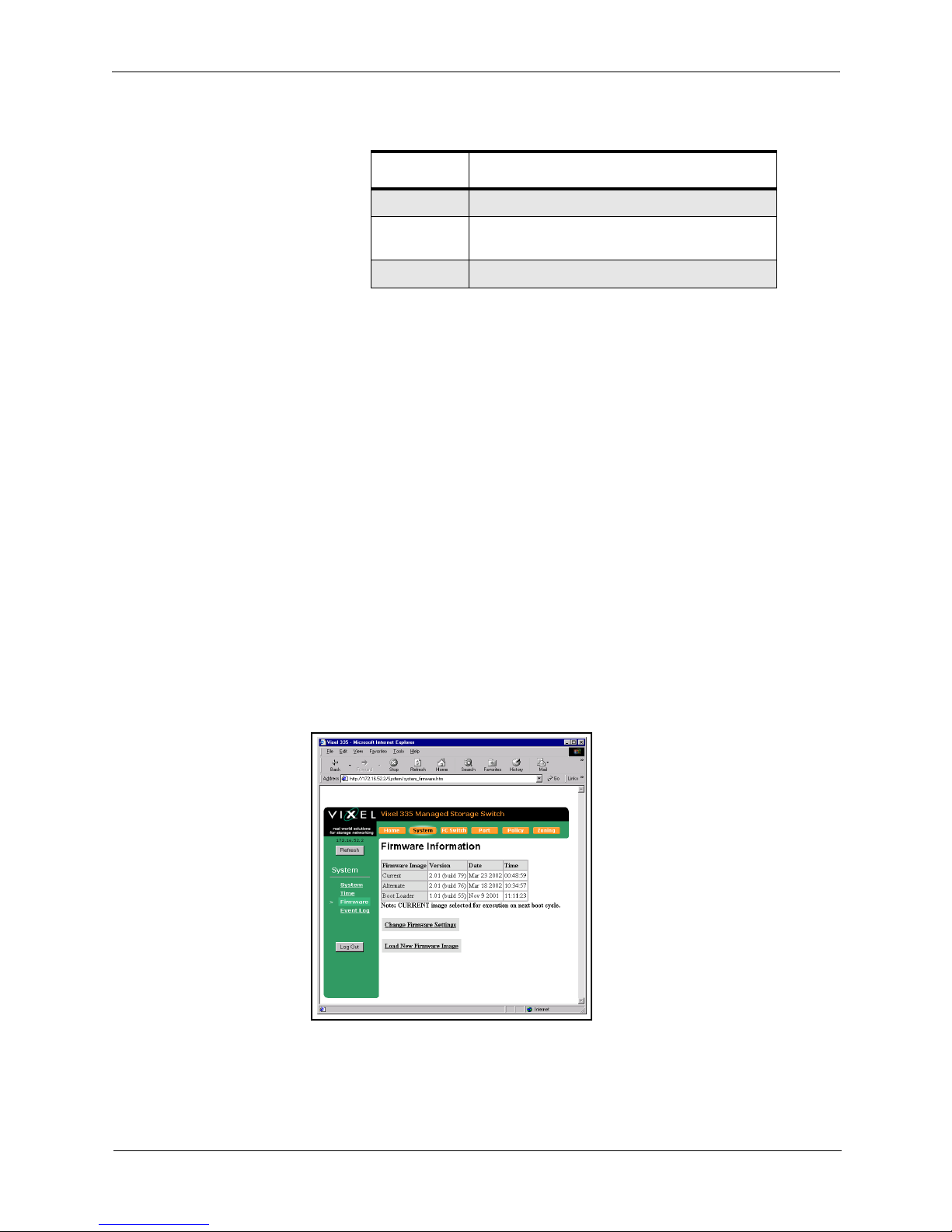

Figure 3-6. Firmware Information Page

Setting Description

none The switch does not set the time.

Server The switch receives the time from a time server via

Ethernet.

User The user manually sets the time for the switch.

Page 22

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To change the firmware settings:

1. Click Change Firmware Settings.

2. Click Switch Image for execution on next boot to swap the current firmware image and the alternate firmware image. The page informs you of which firmware image will be loaded on the next boot cycle.

3. Click Back to Firmware page to return to the Firmware page.

4. Review the Firmware Information display to ensure that the proper firmware image will be loaded on the next boot cycle.

To up gr a de t he firm wa re:

1. Click Load New Firmware Image.

2. Enter the directory path to the specific file in the text box, or click Browse to navigate to the appropriate file.

3. Click Load Image to download the firmware image.

4. Once the new image is downloaded, click Back to Firmware page to return to the Firmware page.

5. Review the Firmware Information display to ensure that the proper firmware image will be loaded on the next boot cycle.

Event Log Messages

The Event Log Messages page displays a list of event log messages generated by the switch. The event log holds approximately 500 messages at a time. For a complete list of event messages, see EVENT MESSAGES (APPENDIX C) on page 63.

To view the event log:

1. Click System. The System Information page appears.

2. Click Event Log. The Event Log Messages page appears.

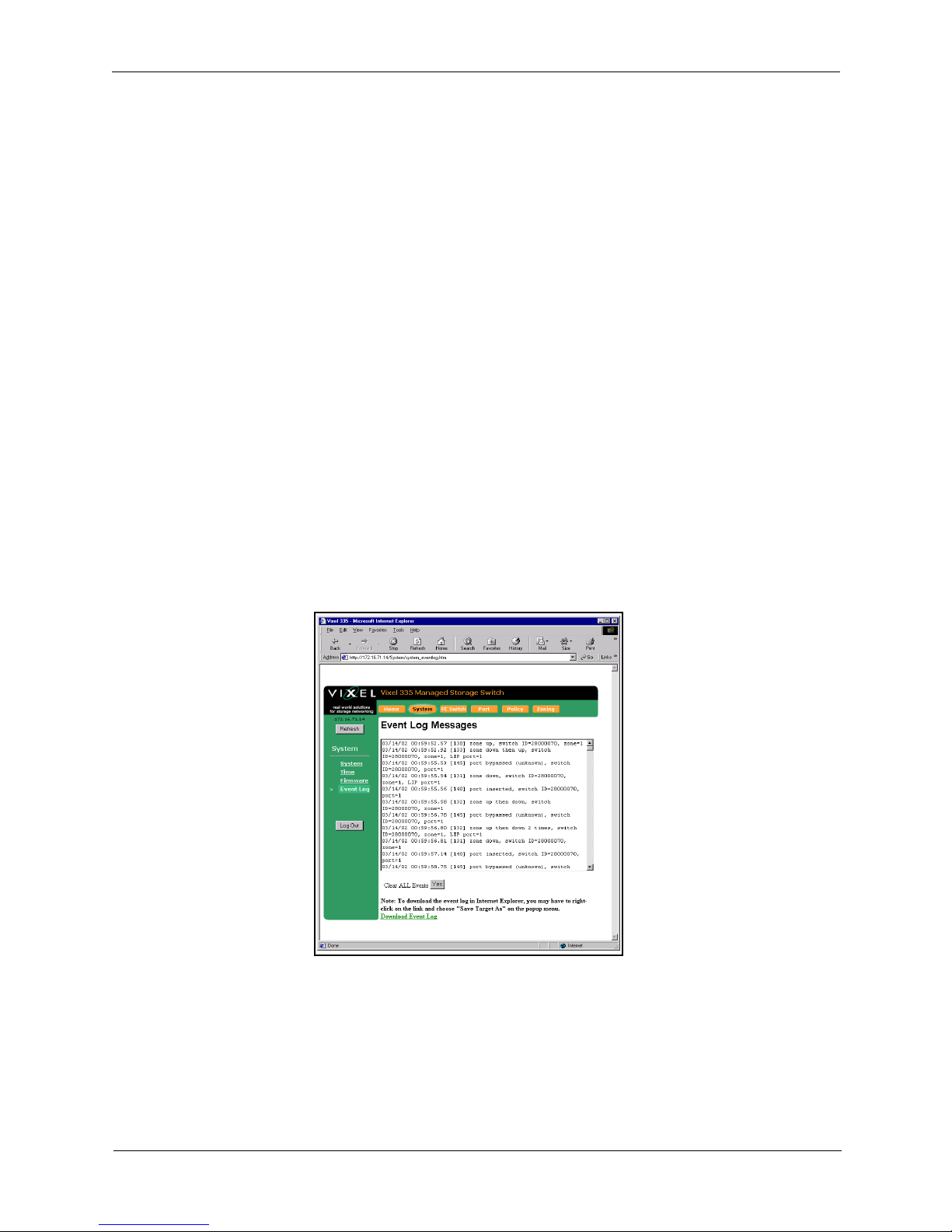

Figure 3-7. Event Log Messages Page

To save the event log messages:

1. Click Download Event Log.

2. Click OK to save the file to the disk.

3. Select the appropriate directory to save the event log messages and click Save.

To clear the current list of event log messages, click the Ye s button next to Clear ALL Events.

Page 23

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

FC Switch Information

The FC Switch Information page displays the switch view by ports. Each port displays the zone, utilization percentage, and associated ALPA(s). You can identify all ports in a specific zone by highlighting that zone.

To view the switch settings, click FC Switch. The FC Switch Information page appears.

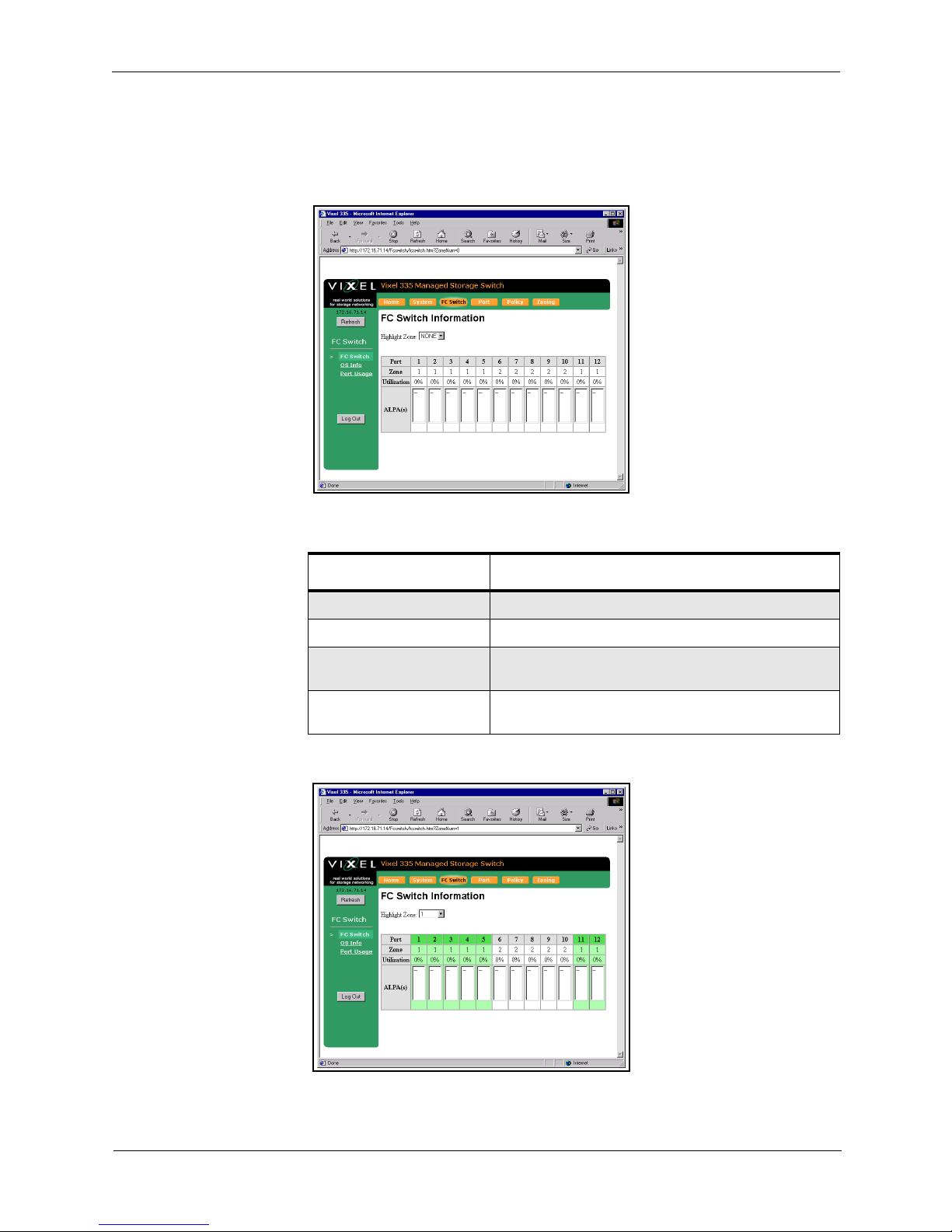

Figure 3-8. FC Switch Information Page

The displayed settings are listed below:

To highlight a specific zone, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

Figure 3-9. FC Switch Information Page with Highlighted Zones

You can also view Ordered Set and Port Usage information.

Setting Description

Port number The port number on the switch.

Zone number The zone number to which the port is assigned.

Utilization percentage Measures the amount of traffic that is flowing through the

port.

ALPA(s) The Arbitrated Loop Physical Address for each device

connected to the port.

Page 24

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

OS Information

The Ordered Sets Information page displays the Ordered Sets that are being transmitted on the switch by their associated port number.

To view the Ordered Sets Information page:

1. Click FC Switch. The FC Switch Information page appears.

2. Click OS Info. The Ordered Set Information page.

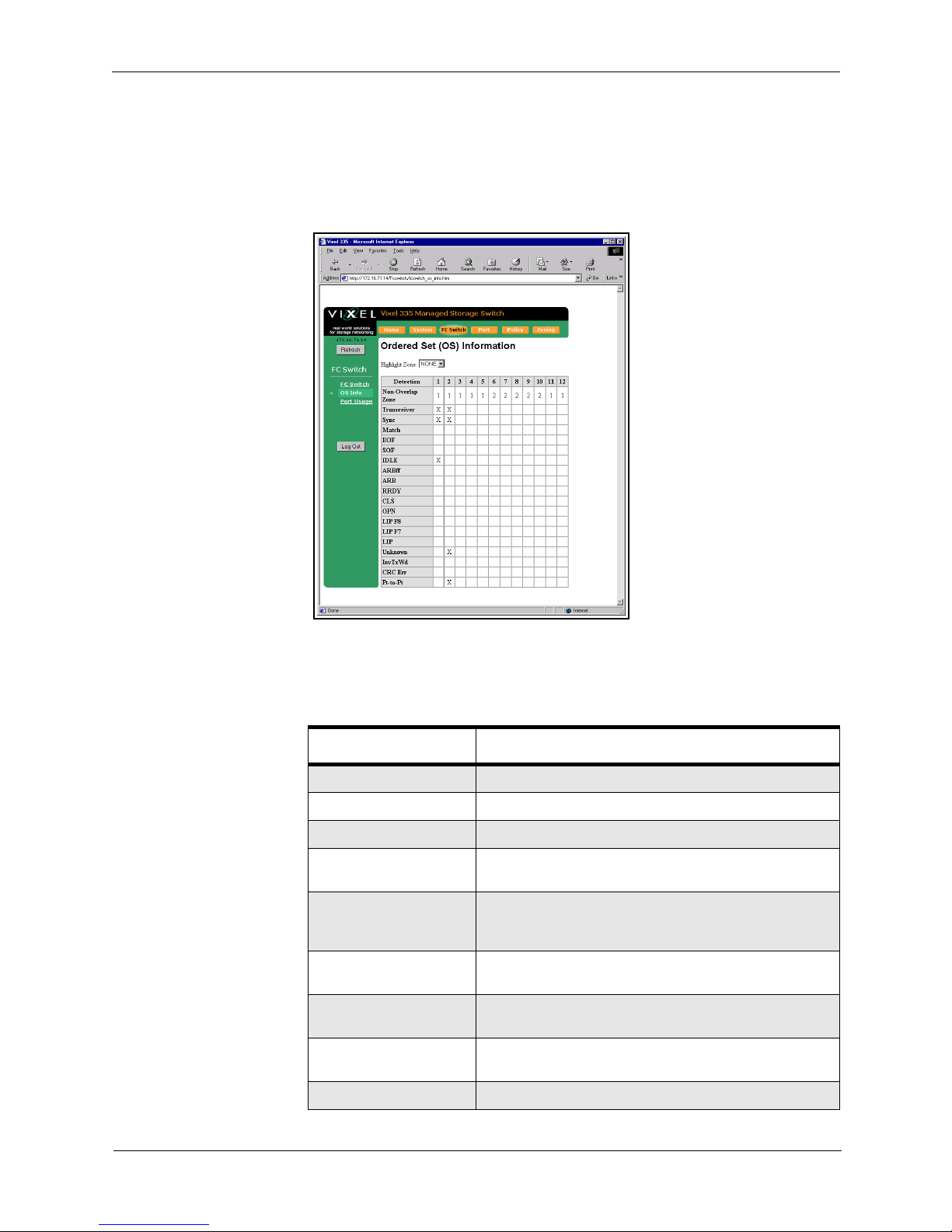

Figure 3-10. Ordered Set Information Page

If there is a connection, then the Ordered Set transmission information for that connection is depicted by an "X".

A list of the Ordered Sets and their indications follows:

Detection Indication

Non-Overlap Zone Displays the zone for which the port is configured.

Transceiver Displays the status of the inserted transceiver in the port.

Sync A stable signal has been detected and IDLEs transmitted.

Match The ordered set or pattern selected under the Match area has

been detected.

EOF An End-of-Frame (EOF) delimiter has been detected; frames are

present on the loop. (An EOF immediately follows the CRC of a frame and signals the frame’s end.)

SOF A Start-of-Frame (SOF) delimiter has been detected; frames are

present on the loop.

IDLE Sequences of IDLEs are being transmitted to maintain link

activity; no other data is being transmitted.

ARBff ARB(FF)s are being transmitted to maintain link activity; no

other data is being transmitted.

ARB A port is arbitrating for loop access to perform a task.

Page 25

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

RRDY The receiving node on this port has sent an R_RDY signal,

indicating that it is ready for a frame to be transmitted over the link.

CLS The port is attempting to begin the process of closing the current

loop circuit.

OPN The port is attempting to open communications with another

port on the loop. Note: As is the case with some ordered sets, an OPN may not go all the way around the loop, instead stopping at its destination.

LIP F8 A non-switching port has detected a loop failure on its receive

input, is notifying other ports, and is determining whether the loop is still operational. Some events that could cause the port to detect loop failure follow:

• A device in the loop has failed.

• A device in the loop has been powered off.

• The physical connection between the transmitter and receiver is broken.

• Activating the port bypass circuit does not typically result in a loop failure.

LIP F7 A loop port is in the non-participating mode and is attempting

to win arbitration and begin initialization, possibly because the port was reset or is powering up. Sometimes the port is sending this sequence to another, hot-cascaded switch like a new initiator being inserted in the loop.

LIP A Loop Initialization Primitive (LIP) sequence has been detected

and action has been taken.

Unknown The switch can not determine what is being transmitted.

InvTxWd An invalid transmit word has been detected.

CRC Err A Frame CRC error has been detected.

Pt-to-Pt A point-to-point connection has been detected.

Page 26

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To highlight a specific zone, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

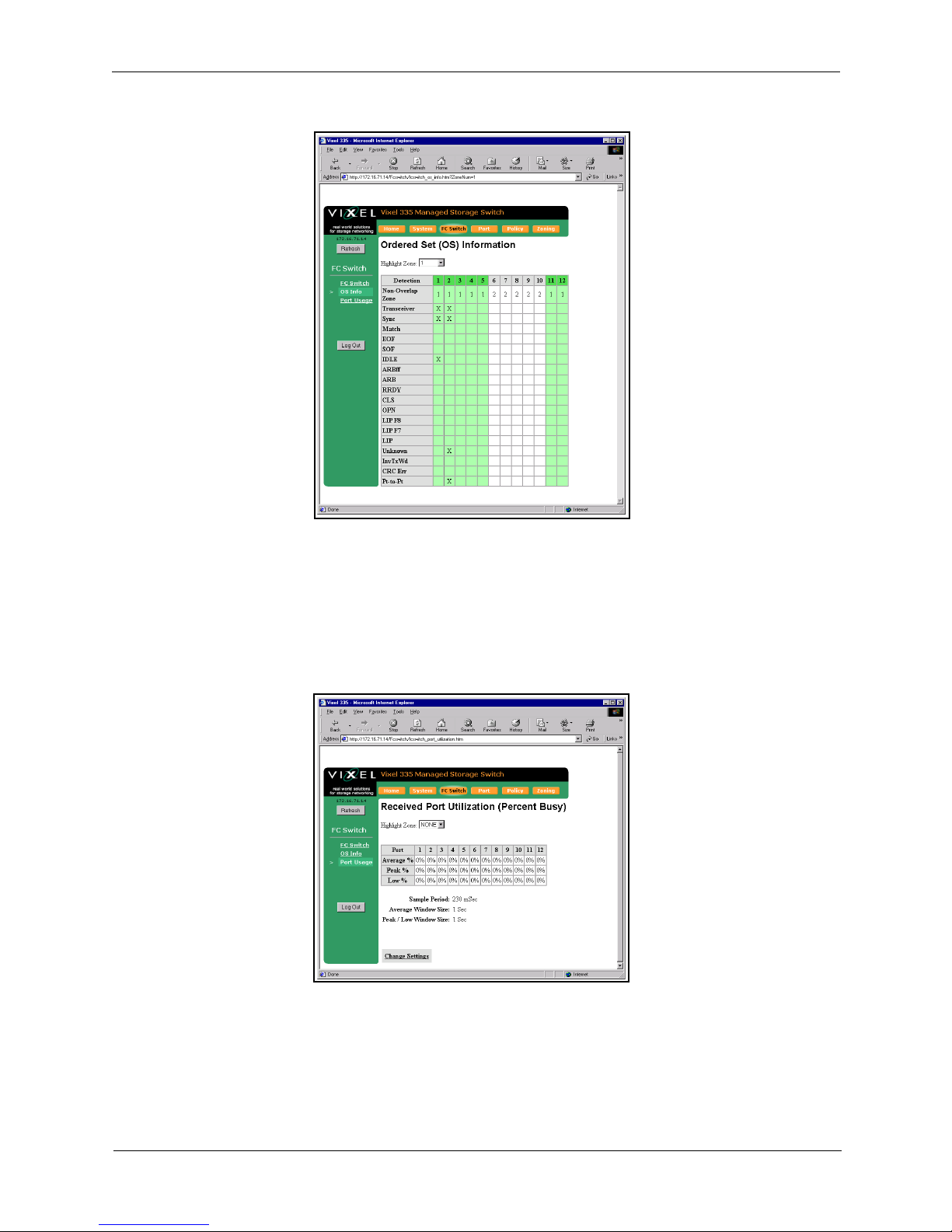

Figure 3-11. Ordered Set Information Page with Highlighted Zones

Port Usage Information

The Received Port Utilization page displays the ports and enables you to view the utilization percentages to determine which ports are busy.

To view the Received Port Utilization page:

1. Click FC Switch. The FC Switch Information page appears.

2. Click Port Usage. The Received Port Utilization page appears.

Figure 3-12. Received Port Utilization Page

Page 27

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

The Utilization Percentages values are:

The sample period, average windows size, and peak/low window size values are also displayed.

To highlight a specific zone to view traffic patterns, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

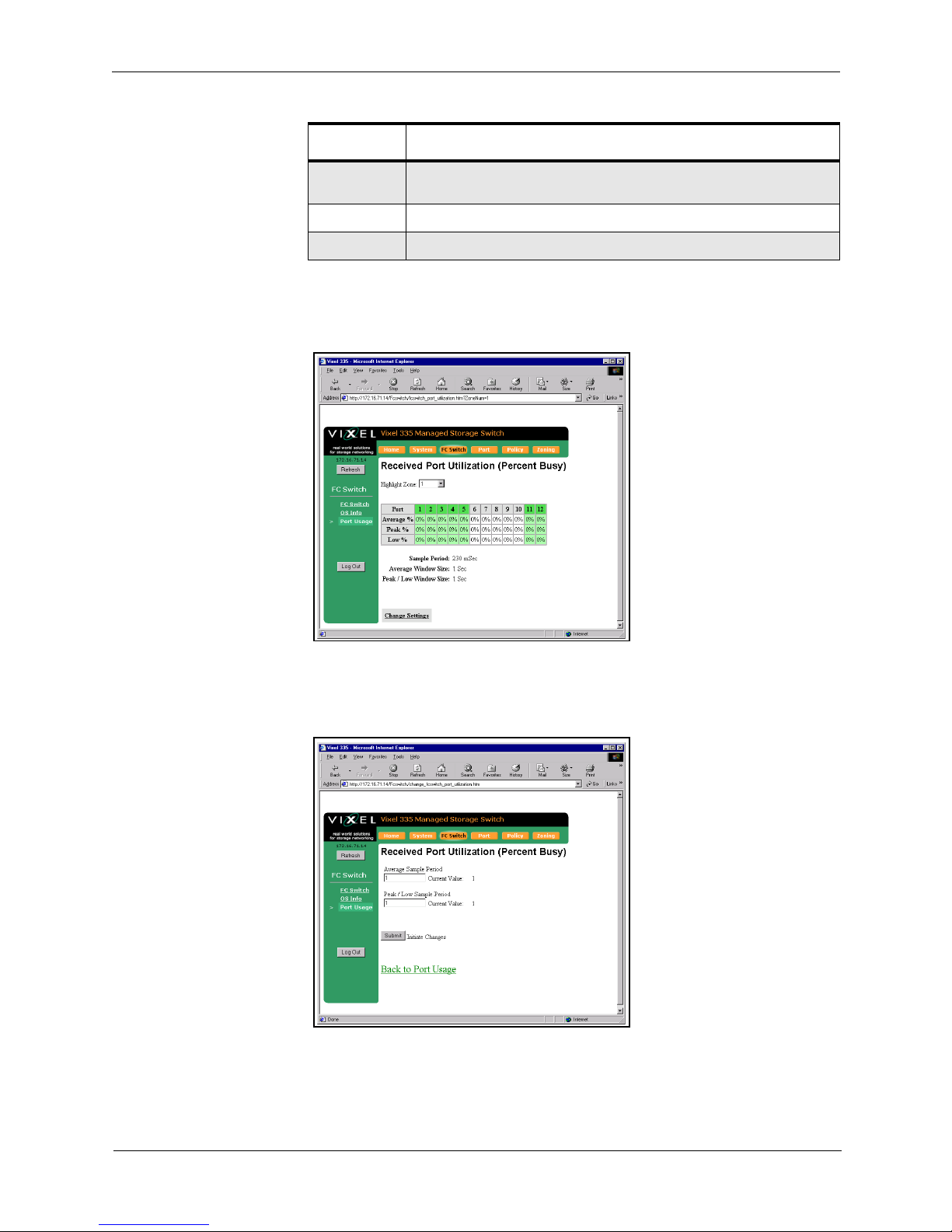

Figure 3-13. Received Port Utilization Page with Highlighted Zones

To change the Port Usage settings:

1. Click Change Settings. The Received Port Utilization page appears with fields

available for modification.

Figure 3-14. Received Port Utilization (Change Settings) Page

2. You may change the Average Sample Period and Peak/Low Sample Period values (in seconds) by entering new values in the appropriate text boxes. The Sample Period value cannot be modified.

Value Description

Average % The average percentage data for the port in the zone over a period of Average

Window Size seconds.

Peak % The Peak data communication rate usage for the port

Low % The Low data communication rate usage for the port.

Page 28

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

3. Click Submit to accept the changes.

4. Click Back to Port Usage to view the new settings.

Port Settings

The Port Information page displays the port status for each port on the switch. To view the port settings, click Port. The Port Information page appears.

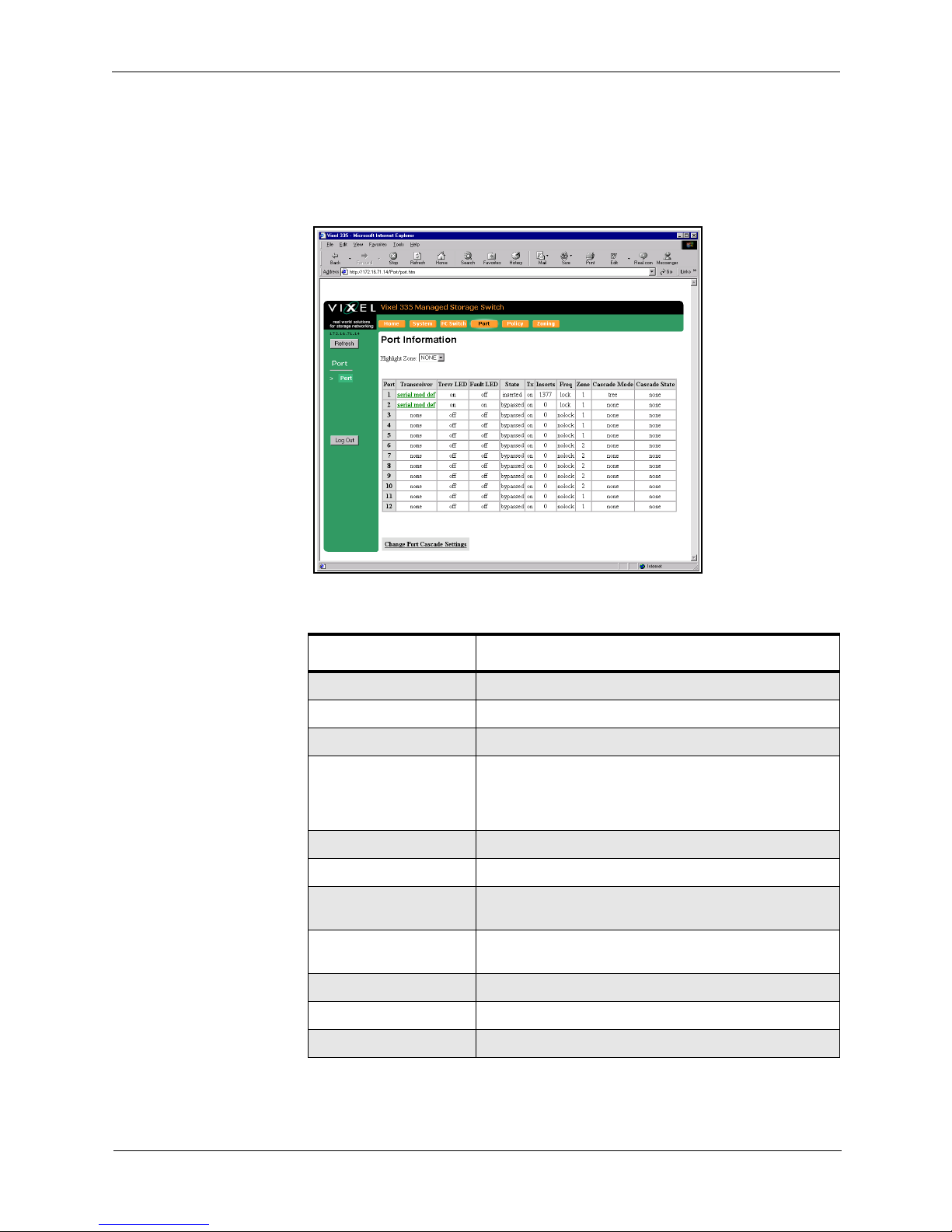

Figure 3-15. Port Information Page

The displayed settings are listed below:

Setting Description

Port The actual port on the switch.

Transceiver The type of transceiver inserted in the port.

Trcvr LED If a transceiver is inserted properly, the LED is on.

Fault LED The port is bypassed due to a problem detected by either the

transceiver’s transmit logic or the SFP transceiver itself. Transceiver problems include unconnected fiber, remote node not transmitting, LIP(F8), or a faulty transceiver.

State The current state of the selected port.

TX The state of the transmitter on the selected port.

Inserts The number of times a transceiver has been inserted into the

port since the last switch reset.

Freq The port locked in on the communicating frequency for which

the switch is configured.

Zone The zone in which the port is located.

Cascade Mode Displays the cascade mode for the specified port.

Cascade State Displays the cascade state for the specified port.

Page 29

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To highlight a specific zone, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

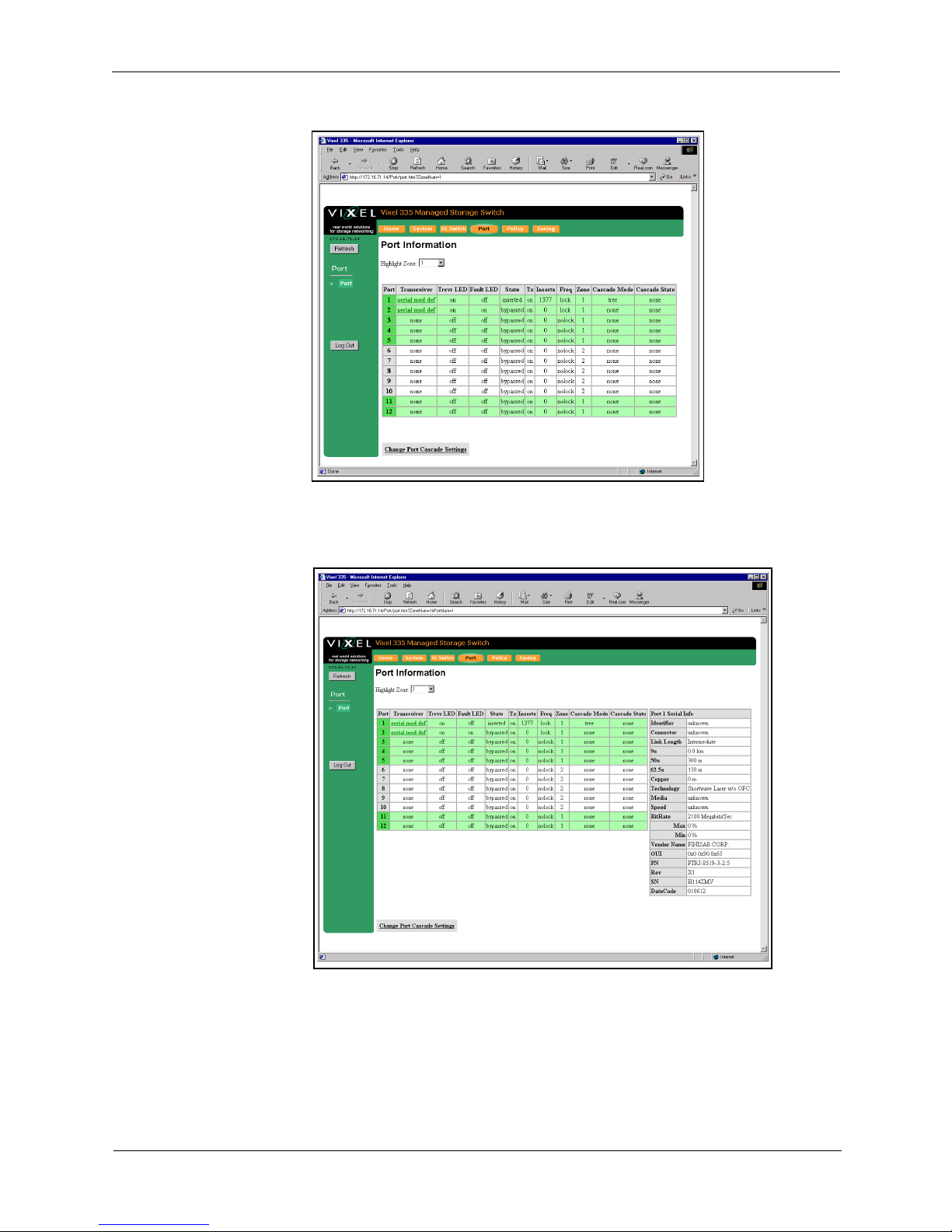

Figure 3-16. Port Information Page with Highlighted Zones

To view information on a transceiver connected to a port, click serial mod def in the transceiver column. The specific transceiver’s information displays to the right of the current switch information.

Figure 3-17. Port Information Page with Transceiver Information

Page 30

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To modify the port cascade settings:

1. Click Change Port Cascade Settings. The Cascade Information page appears.

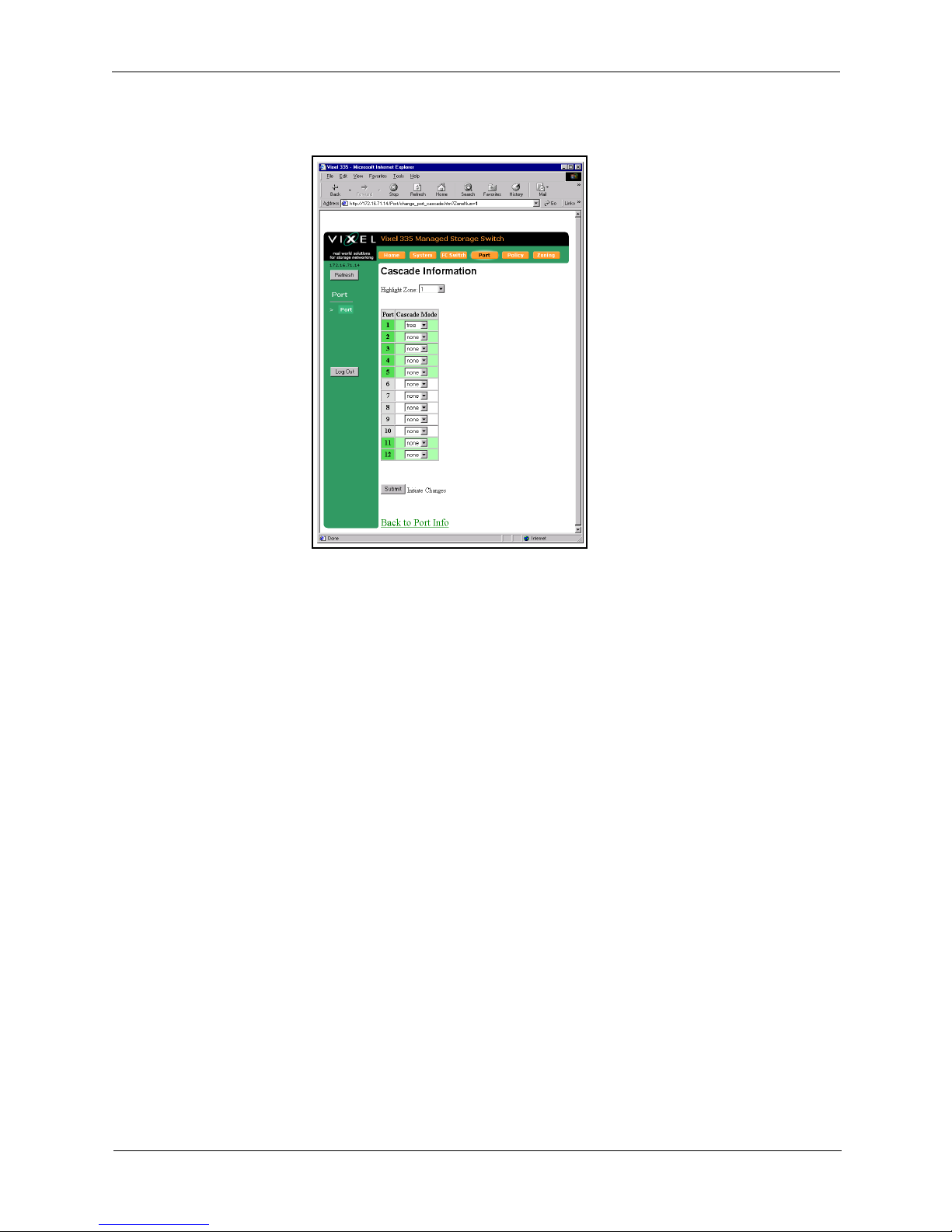

Figure 3-18. Cascade Information Page

2. On this page, you can view the port settings, highlight a specific zone, or change the port cascade mode.

3. Select the port to modify by clicking the Cascade Mode drop-down box for the specific port.

4. Select the port cascade mode, which configures the port’s operation in the switch. The different port cascade modes are:

Each Port can operate independently of the other ports except in String mode.

Mode Description

auto This setting automatically configures the connection type based on

information sent by other InSpeed switches. The default setting is Auto for InSpeed-based managed switches.

none The port is disabled.

tree A port that allows arbitration fairness to other cascaded InSpeed-

based switches or ports connected to end devices. If the port is a tree port then the ARB (Arbitrate) is sent down the port and, when the ARB is received back at the ASIC, a connection is made between the source and destination ports. All ports are viewed as 100% FC_AL compliant.

string A specially pre-allocated port designed to maintain fairness when

two or more InSpeed-based storage switches are serially cascaded. When the destination port is a string and an OPN is received on the ASIC, an ARB is transmitted throughout the total string cascade loop to alert all devices to enforce the Loop fairness rules. Therefore, if two devices try to ARB for the loop at the same time, the higher Priority AL_PA will win the cascade first, the lower priority one will follow. Note: There must be two string ports on a zone. The port is configured for a pair of string ports to other switches.

Page 31

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

5. After making changes, click Submit to accept the changes.

To highlight a specific zone, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

Figure 3-19. Cascade Information Page with Highlighted Zones

Page 32

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Policy Settings

Policies define switch operation and determine how the switch handles error recovery. The Policies page displays the switch policies that are enabled or disabled.

To view the policy settings, click Policy. The Policies page appears.

Figure 3-20. Policies Page

The displayed settings are listed below:

Switch Policy Description

Smart Insertion When this policy is enabled, the switch LIPs on the insert of a new

port and waits for LIP(f7)s to return prior to insertion. Also ensures that data meets the requirements of Fibre Channel Arbitrated Loop (FC-AL) and allows sub-policies to be enabled.

Auto Cascade* When a port is connected to another Vixel Model 335 switch, the

switch will automatically configure the port to the connected device type.

Bad Zone recovery* The switch reinitializes the zone and will bypass zone ports that are

down. The switch will bypass all ports when:

• Zone 1 has a least one transceiver with a signal and the port is in auto mode.

• No ports in the zone are in forced insert mode (Port Control).

• The zone state is down.

No Data Recovery* The switch will bypass a port if no K characters (Ordered Sets) are

detected for 100 usecs. The switch will try to reinsert the port upon detection of valid K characters.

LIP(F8) Recovery* The switch will bypass a port if a LIP(F8) is received. The switch will

try to reinsert the port when no more LIP (F8)s are received.

LIP on Port Bypass* When a port is bypassed, it issues LIP(F7)s to other zone members.

Bypass on Bad OS Threshold*

When a port exceeds the threshold of Ordered Set errors within ten seconds, the switch bypasses the port. Note: The threshold can be

adjusted. (2

– 1, the maximum expected error rate is one error

within 15 minutes.)

Page 33

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To update the switch’s policies:

1. Click Change Settings on the Policy page. The Policies page appears with fields

available for modification.

Figure 3-21. Policies (Change Settings) Page

2. You can select whether to enable or disable a specific policy, set thresholds on certain policies, and select specific ports for the LIP on Insertion and Port Test Before Insertion policies.

3. Once you have made your changes, click Update Policies to accept the changes.

4. Click Back to Policy Page to review the new settings.

Bypass on CRC Error Threshold*

When a port exceeds the threshold of frame CRC errors within ten seconds in Zone 1 and in switching mode, the switch bypasses the port. Note: The threshold can be adjusted.

Bypass on Clock Delta Error

When this policy is enabled, the switch compares the detected line clock through the frame and the number of fill words inserted or deleted versus the switch’s internal clock. If the derived clock delta is too high, the port is bypassed.

LIP on Insertion* When a port inserts into a zone, it issues LIP(F7)s to other zone

members.

Port Test Before Insertion*

Before allowing a port to insert into a zone, the port is monitored for proper Loop Port State Machine (LPSM) protocols. (At least one of the devices on the port must be a Loop Initialization Master (LIM) to follow these protocols.)

* To set this policy, ensure that Smart Insertion is enabled.

Page 34

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Zone Settings

The switch uses two types of port zoning: Overlapping and Non-Overlapping Zones.

With overlapping zoning, devices on one port are not allowed to see devices on another port, yet those same devices can both see a device on a third port.

Figure 3-22. Overlapping Zones

In Figure 3-22, Zone 1 includes ports 1, 3, and 4, while zone 2 includes ports 2, 4 and 5. Port 4 overlaps both zones. Devices on ports 1, 3, and 4 can see each other and devices on ports 2, 4, and 5 can see each other, but devices 1 and 3 cannot see devices 2 and 5. Devices on port 4 can see all the devices on ports 1, 2, 3, and 5.

Non-overlapping zoning enables the switch to be divided into separate environments, where each environment sustains a complete 127-device AL_PA space.

Figure 3-23. Non-overlapping Zones

In Figure 3-23, Zone 1 devices operate independently of devices in Zone 2. Nonoverlapping zoning allows for true LIP isolation. If a LIP occurs in one non-overlapping zone, it will not affect the operation or traffic occurring in a different zone.

To view the zoning information, click Zoning. The Zone Information page appears.

Figure 3-24. Zone Information Page

Page 35

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

The Zone Information page displays the current zoning configuration, the ports in each zone, the zone state, the init count, and the time duration ("up time") for the zone. The displayed settings are listed below:

Overlapping Zones

Overlapping zoning can only be implemented in Zone 1 and the switch must be operating in switching mode. To participate in overlapping zoning, each port must have their cascade mode configured to "auto".

If the switch is operating using non-overlapping zoning, you can still configure overlapping zoning within the default zone. If a LIP occurs on any port in the default zone, it will affect every port in the default zone, regardless of any overlapping zone configurations. Overlapping zones do not support LIP isolation.

To view the overlapping zoning, click Overlapping. The Overlapping Zone 1 Information page appears.

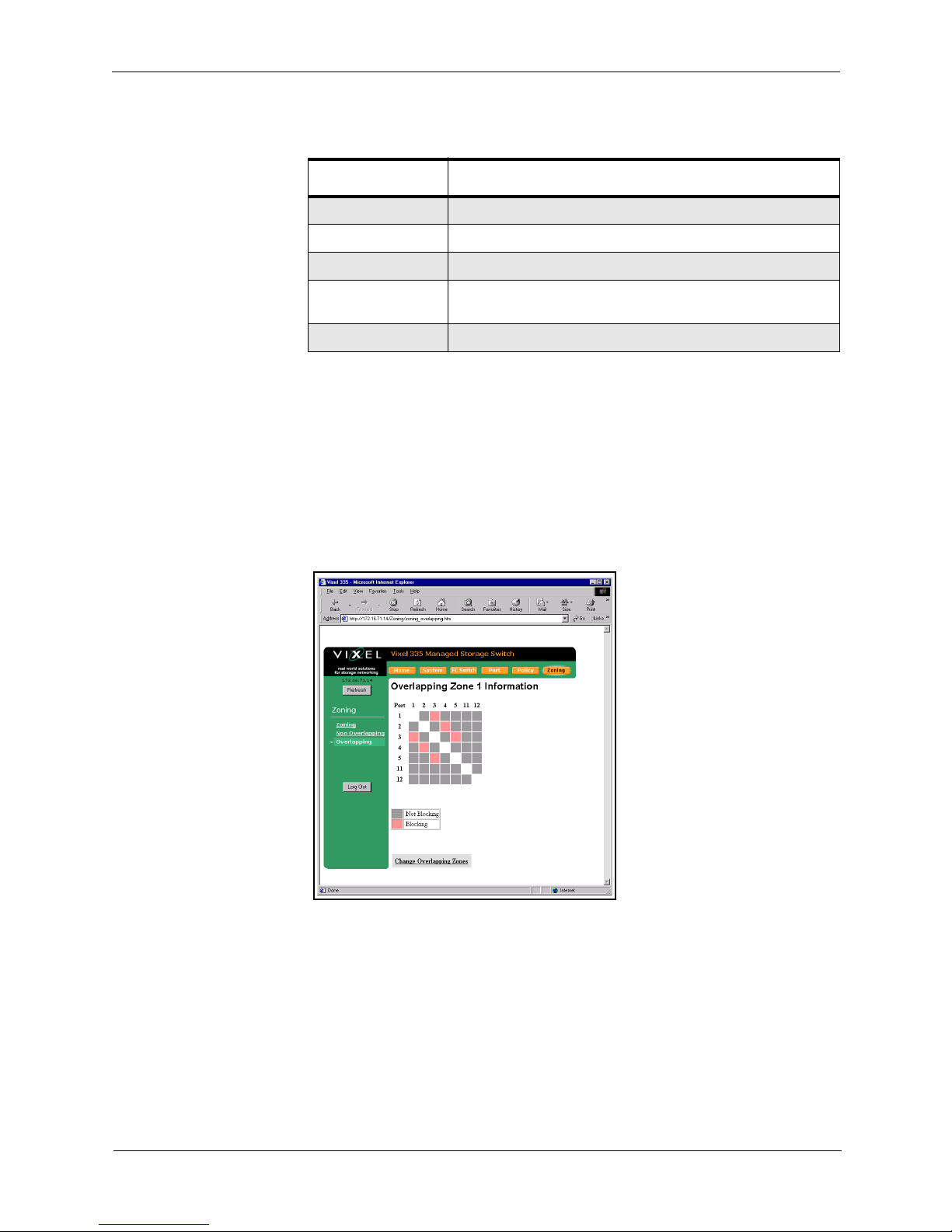

Figure 3-25. Overlapping Zone 1 Information Page

Setting Description

Zone number The zone number on the switch (1-12).

Port number(s) The port numbers that are assigned to the specified zone.

Zone state The current state of the zone; either "up" or "down".

Init Count The number of times a zone has transitioned from an "down" state to

an "up" state.

Up Time The amount of time that the zone has been operational.

Page 36

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To configure the overlapping ports:

1. Click Change Overlapping Zones. The Overlapping Zone 1 Information page appears with the ports available for modification.

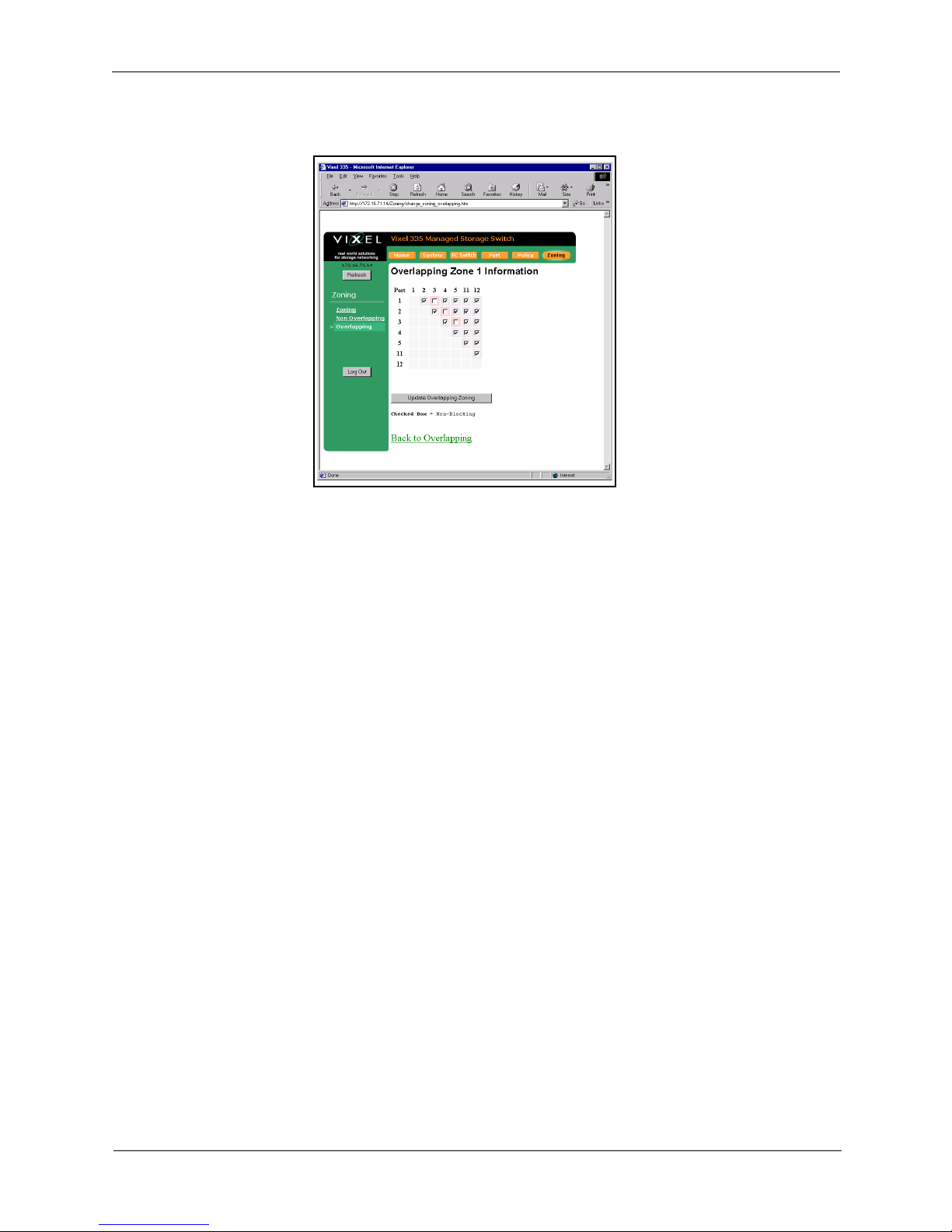

Figure 3-26. Overlapping Zone 1 Information (Configuration) Page

2. Click the appropriate check box for the two ports. If the check box is selected (checked), the two ports can communicate with one another. If the check box is empty (not checked), the two ports are blocked from communicating with one another.

3. Once you have configured the overlapping ports, click Update Overlapping Zoning to accept the changes.

To view the your changes, click Back to Overlapping. Blocked ports are displayed in red, while non-blocked ports are displayed in gray.

Non-Overlapping Zones

Note: Ports 11 and 12 can only be in Zone 1.

The non-overlapping zones feature enables you to assign each port on the switch to one of 12 available zones. Each zone is unique which allows for 6 separate zones to function on the same switch. With non-overlapping zoning enabled, each zone is totally independent and LIPs on one zone do not affect the other zones.

The default zone for the switch is Zone 1. Ports 11 and 12 are always included in Zone

The switch provides LIP isolation through the LIP confinement properties of nonoverlapping zoning. A LIP occurring in one zone will never affect the traffic or operations in another zone. Each zone operates completely independent of other nonoverlapping zones.

Page 37

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Note: You can have simultaneous overlapping and non-overlapping zoning. Overlapping zoning operates in Zone 1 and non-overlapping zoning operates in Zones 2-12.

To view the non-overlapping zoning, click Non Overlapping. The Non Overlapping Zone Information page appears.

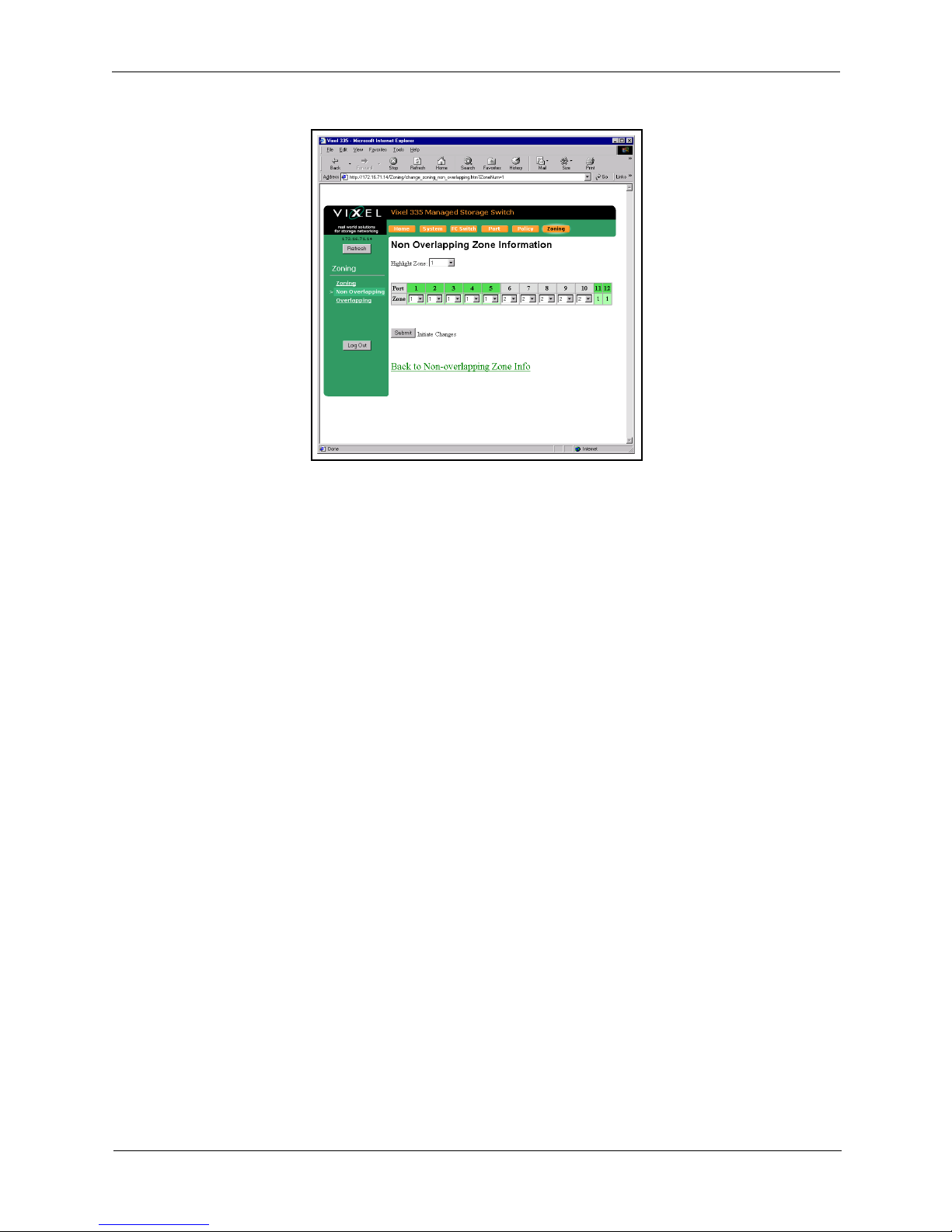

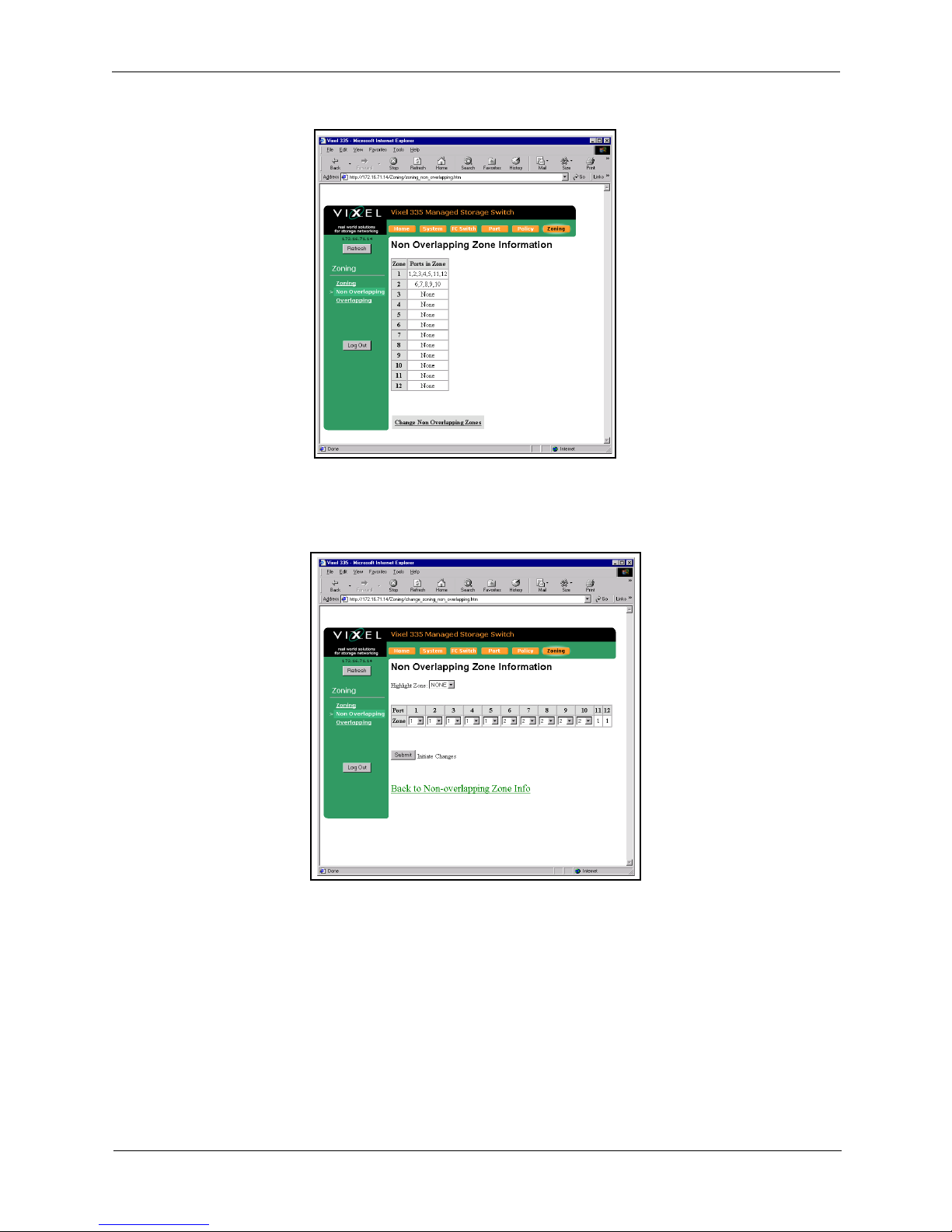

Figure 3-27. Non-Overlapping Zone Information Page

To modify the port configurations in the various zones:

1. Click Change Non Overlapping Zones. The Non Overlapping Zones Information page appears with the ports available for modification.

Figure 3-28. Non-Overlapping Zones Information (Configuration) Page

Note: Ports 11 and 12 are always in Zone 1.

2. Click the Zone drop-down box for the specific port and select the zone for which you want the port to be a member. The port can be in one of twelve zones.

3. Click Submit to accept the changes.

4. Click Back to Non-overlapping Zone Info to view the changes.

Page 38

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To highlight a specific zone, click the Highlight Zone drop-down box and select the desired zone. The highlighted zone displays in color.

Figure 3-29. Non-Overlapping Zones Information (Configuration) Page with Highlighted Zones

Page 39

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Using the Command Line Interface (CLI)

The Command Line Interface (CLI) allows you to complete several switch management tasks over Ethernet through a telnet session or through a direct serial link. While both the CLI and Web Manager interfaces allow you to view switch information and configure switch settings, the CLI also allows you to enable or disable DHCP requests, change the CLI/Web Manager password, manage traps, and complete several other switch management functions.

Connecting to the CLI

Note: You may have up to 10 concurrent telnet sessions accessing the switch.

You can connect to the CLI over the telnet interface or the serial link interface. To connect over Ethernet through telnet interface:

1. Make sure the Vixel Managed Switch is connected to an Ethernet network via the switch’s Ethernet connection and that the monitoring workstation can access this Ethernet network.

2. Make sure that you know the switch’s IP address before connecting to the CLI. (the default IP Address is 0.0.0.0)

3. At a command line prompt, type telnet IP (where IP is the switch’s IP address).

You are now connected to the CLI and ready to log on.

To connect through a serial link:

1. Attach one end of an RS-232 null modem cable to the serial port on the workstation; attach the other end to the RS-232 port on the switch.

2. For Unix workstations, type the following command at a Unix prompt (where SerialPortDevicePath is the filepath to the serial port used for connection):

cu -s 19200 -b 8 -1 SerialPortDevicePath

3. For Windows® platforms, open a terminal session through a terminal emulation program (such as HyperTerminal) with the appropriate serial port (for example, COM1) and the following serial port parameters:

• Bits per second: 19200

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control: Xon/Xoff

You are now connected to the CLI and ready to log on.

Logging On and Off

To log onto the CLI (once connected as shown above), type li at the prompt, then type the password (the default password is password).

To log off the CLI, type lo at the prompt.

Make sure you change the password after you log on the first time.

Page 40

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Configuring the Switch

The CLI enables you to configure the switch settings, policies, and zoning.

A list of frequent switch configuration tasks and their commands is shown here. Refer to the provided page number for more detailed information on each configuration task.

To view the complete list of available switch commands while using the CLI, type ? or h at the prompt. For a complete listing of all CLI commands, see CLI C

ONSOLE

OMMANDS (APPENDIX B) on page 60.

Configuration Task CLI Command

Change the IP parameters

(See “Changing the Switch’s IP Parameters” on page 38.)

Change switch identification, contact, location, etc.

(See “Configuring Switch Information” on page 38.)

Upgrade firmware

(See “Managing the Firmware” on page 39.)

Add or delete a trap destination (through the Configuration menu)

(See “Configuring the Trap Destination Table” on page 41.)

Changing the password

View switch management, policies, error thresholds, and other switch settings.

(See “Viewing Management, Policy, and Threshold Settings” on page 43.)

Change the switching mode

(See “Changing the Switching Mode” on page 47.)

Configure zoning

(See “Viewing and Understanding Zoning Information” on page 52.)

(for overlapping zoning)

noz

(for non-overlapping zoning)

Reset switch

(See “Resetting the Switch” on page 13.)

Reset switch to factory default settings

(See “Resetting the Switch to Factory Default Settings” on page 51.)

View & modify port settings

(See “Displaying Ports” on page 49.)

Change the switch speed

(See “Changing the Switch’s Operating Speed” on page 52.)

lsp

View the event log

(See “Viewing the Event Log” on page 51.)

Page 41

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Changing the Switch’s IP Parameters

To view the current switch configuration, type co at the prompt. The Configuration Menu appears:

Before the switch can establish communication with your network, its IP address needs to be changed from its default value.

To change the switch’s IP parameters:

1. Type the option number (1-4) of the desired setting.

2. Enter a new value for that setting.

3. Type 5 to save changes and reset the switch. (The switch must be reset for the change to take affect.)

Enabling or Disabling DHCP Requests

When DHCP is enabled, the switch sends a DHCP request for its correct IP parameters (address, subnet mask, and default gateway) during power on. If a DHCP server responds, the switch automatically changes its IP settings.

Note: The default setting for the DHCP option is "disabled".

If you want to enable DHCP, ensure that there is a DHCP server connected to the same subnet as the switch. (For instructions on setting the switch’s IP parameters through a DHCP server, see the server documentation.)

If DHCP is enabled and a DHCP server is not found, the DHCP request will fail and the switch’s IP parameters will be incorrect. You will then have to connect through the serial port using the CLI, disable the DHCP mode, and manually configure the switch parameters.

To enable automatic DHCP requests from the switch:

1. Type co, then type 4.

The DHCP status is toggled to either enable or disable and the current setting is displayed.

2. Type 5 to save changes and reset the switch. (The switch must be reset for the change to take affect.)

Configuring Switch Information

To change the switch name, location, or contact name, type si at the prompt. The System Information Menu appears:

To change the information:

1. Type the option number (1-3) of the desired setting.

2. Enter a new value for that setting.

3. Type 4 to exit the menu.

CONFIGURATION MENU ACTIVE VALUE SAVED VALUE NEW VALUE

1. IP Address 172.16.52.2 172.16.52.2

2. Netmask 255.255.240.0 255.255.240.0

3. Default Gateway 172.16.48.1 172.16.48.1

4. DHCP Disabled

5. Save changes and reset switch

6. Save changes and exit menu

7. Discard changes and exit menu

SYSTEM INFORMATION MENU

1. Switch Name: demo

2. Location: lab

3. Contact Name: John Smith

4. Exit menu

Page 42

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Managing the Firmware

To view the current firmware settings and a complete list of commands, type fw at the prompt. The Internal Firmware Versions list and Firmware Menu appear:

The Internal Firmware Versions list displays the current and alternate firmware loaded on the switch. The Boot firmware is installed during the manufacturing process and manages the loading of the current firmware on the switch during power-up. The Boot firmware cannot be configured or modified.

To select the alternate firmware version, type 2 at the prompt. A message appears informing you that the Alternate firmware version has been selected and will load on the next switch boot.

Downloading New Firmware

You can use either of the following available download methods for Windows; for Unix workstations, use the Ethernet (TFTP) method.

To download firmware from a binary file, type fw and choose the desired downloading method.

Ethernet (TFTP) Method (Menu Option 3)

Use the Ethernet (TFTP) method for Unix workstations (this method can also be used on Windows NT workstations).

Note: The “Destination:” message varies according to the active firmware image and the platform you are using. See Step 2.

1. Type: 3 at the prompt.

The following message appears.

2. For Windows:

• Use a command line to move to the directory containing the new firmware and

type the following (where IPaddress is the switch’s IP address and filename is the name of the binary firmware file) and press Enter.

tftp -i IPaddress PUT filename ramdisk

Within a few seconds, the “Transfer successful” message appears. (If the message does not appear, verify that the file is good and repeat the transfer.)

3. For Unix workstations: a. At a Unix prompt, type the following (where IPaddress is the switch’s IP

address) and press Enter.

tftp IPaddress

b. Type the following and press Enter.

binary

c. Type the following (where filename is the name of the binary firmware file) and

press Enter.

put filename /ram

A message appears confirming that the file was sent.

Internal Firmware Versions:

-----------------------------------------------------CURRENT: V2.01 (build 79) Mar 23 2002 00:48:59 ALTERNATE: V2.00 (build 69) Feb 27 2002 17:30:42 BOOT: V1.01 (build 55) Nov 9 2001 11:11:23

FIRMWARE MENU

1. Show versions

2. Select alternate version

3. Load new firmware via Ethernet

4. Load new firmware via serial

5. Reboot

6. Exit menu

Ready for TFTP file transfer IP address: IPaddressForYourCard Destination: ramdisk

Page 43

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

d. Type the following and press Enter.

quit

4. In the terminal session window, type 1 to verify and store the new firmware.

The following message appears.

Type fw, then type 1. The active and alternate firmware versions are displayed.

5. If the “alternate version” is anything other than the firmware you just downloaded, verify that the file is good and repeat the download.

6. If you want to activate the alternate version (the newly downloaded firmware): a. Type 2 to select the alternate version for execution on the next boot cycle.

b. Type 1 to verify that the following message is displayed under the firmware

versions: “Note: ALTERNATE selected for execution on next boot cycle.” (If this message is not displayed, repeat steps a and b to toggle back.)

c. Type 5 to reboot.

The management agent disconnects, reboots, and activates the downloaded firmware. The “Disconnecting and Rebooting” message appears.

The firmware is downloaded.

Serial Method (Menu Option 4)

The Serial method for downloading firmware is available for Windows only.

1. Ensure that the switch and workstation are connected through a serial null modem cable.

2. Type 4.

Note: To cancel out of the file transfer facility, press CTRL+X several times.

The file transfer facility appears.

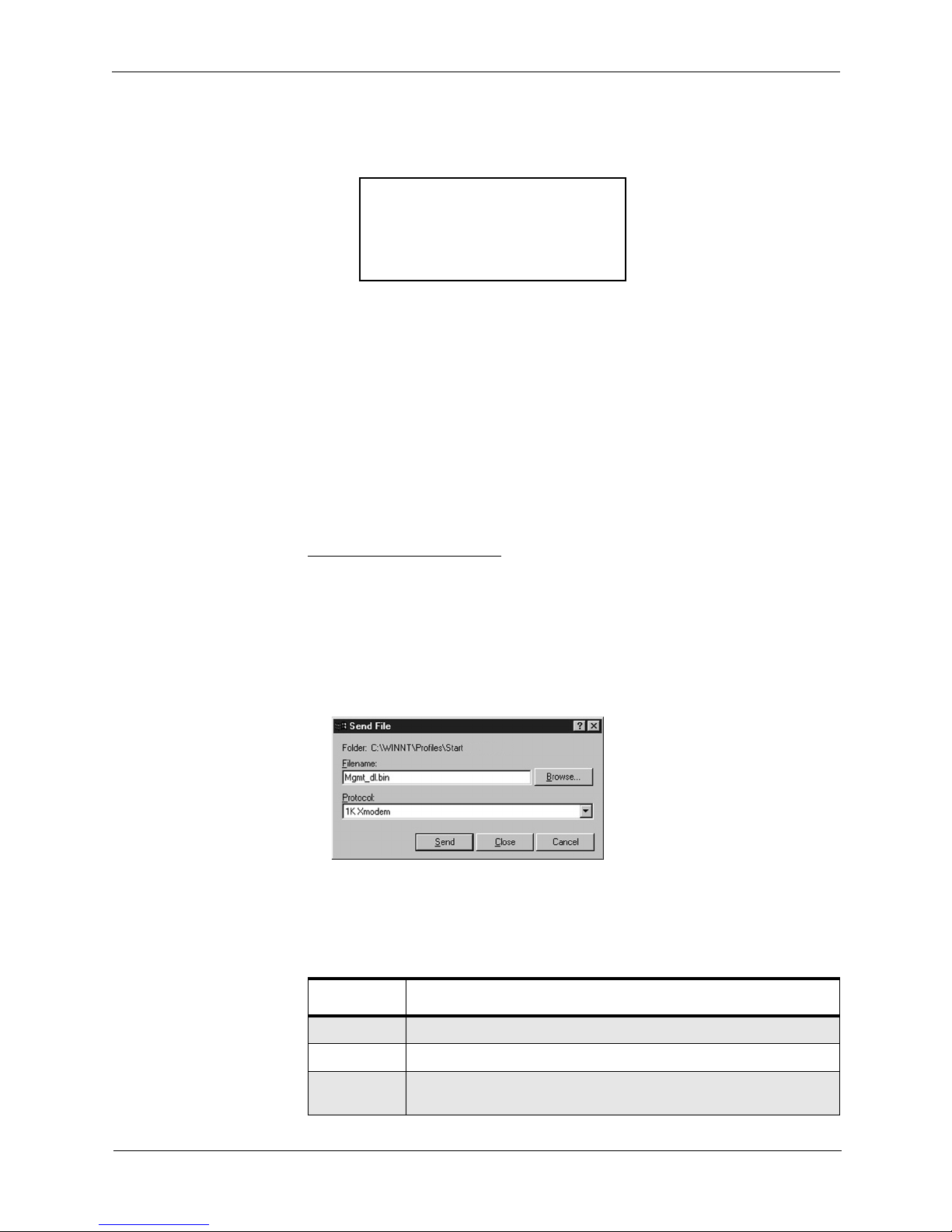

3. Choose Send File from the Transfer pull-down menu in HyperTerminal.

The Send File dialog box appears.

4. Type (or browse for) the filename, select “1K Xmodem” from the Protocol dropdown list, and click Send.

A status message appears.

5. If the status message says anything other than “File transfer completed,” perform the action recommended for the appropriate message shown below.

Clearing backup host filename.. Clearing backup host IP address.. Verifying file integrity.. Erasing flash memory.. Programming flash memory.. Verifying.. *PROGRAM LOAD SUCCESSFUL*

Message Action

CRC Error Try another file. The file you are attempting to download may be corrupted.

Time out error Cycle power to the switch and retry the download procedure.

Access denied Close and reestablish the connection. Cycle power to the switch and retry the

download procedure.

Page 44

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

6. Type fw, then type 1.

The active and alternate firmware versions are displayed.

7. If the “alternate version” is anything other than the firmware you just downloaded, verify that the file is good and repeat the download.

8. If you want to activate the alternate version (the newly downloaded firmware): a. Type 2 to select the alternate version for execution on the next boot cycle.

b. Type 1 to verify that the following message is displayed under the firmware

versions: “Note: ALTERNATE selected for execution on next boot cycle.” (If this message is not displayed, repeat steps a and b to toggle back.)

c. Type 5 to reboot.

The management agent disconnects, reboots, and activates the downloaded firmware. The “Disconnecting and Rebooting” message appears.

The firmware is downloaded.

Configuring the Trap Destination Table

Simple Network Management Protocol (SNMP) uses traps to transmit information to other IP Addressable devices on the network.

To view the current Trap Destination settings and a complete list of commands, type: ct at the prompt. The Trap Destination Table Menu appears:

To create a trap destination:

1. Type 1 to create the new TRAP destination.

2. At the resulting IP address prompt, type the address of the workstation you would like the trap sent to.

3. At the resulting UDP Port prompt, type the number of the listening port (usually “162”).

The Edit Trap Destination Menu appears.

TRAP DESTINATION TABLE MENU IP ADDRESS PORT SEVERITY COMMUNITY STATE Event traps: <none> FcMgmt traps: <none>

1. Create new TRAP destination

2. Delete TRAP destination

3. Exit menu

EDIT TRAP DESTINATION MENU ACTIVE VALUE NEW VALUE IP Address 172.16.52.2 172.16.52.2 Port 162 162

1. Community 'public' 'public'

2. Severity Warning Warning

3. State Inactive Inactive

4. Mode Event Event

5. Save changes and exit menu

6. Discard changes and exit menu

Page 45

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

4. If you want to edit any of the listed options, type the number corresponding to the desired option (community [password], severity, state, or mode) and follow the prompts.

5. Type 5 to save changes and exit.

The Trap Destination Table menu appears and displays your saved changes.

To edit a trap destination:

1. Enter the row number for the TRAP destination that you want to edit.

The Edit Trap Destination Menu appears.

2. Type the number corresponding to the option (community [password], severity, state, or mode) you want to change and follow the prompts.

3. Type 5 to save changes and exit.

The Trap Destination Table menu appears and displays your saved changes.

To delete a trap destination:

1. Type 3 to select the Delete TRAP destination option.

2. Enter the row number that you want to delete.

The trap destination is deleted.

Option Description

Community Sets the community string to public or private. An SNMP server has a

"community string" which is like a password to get or set information. Most devices have a "public" community string, which enables read-only access to MIBs, as well as a "private" community string that enables you to read and set certain parameters via SNMP. The community strings are case-sensitive. Options: public private

Severity Select the severity level at which the traps become operational. The default

severity level is Warning. Options: 0-Emergency 1-Alert 2-Critical 3-Error 4-Warning 5-Notice 6-Info 7-Debug 8-Mark

State The state menu choice enables the trap to become active or inactive.

Options: 1-Destroy – the trap will be deleted from the table once changes are saved. 2-Inactive – the trap is not operational. 3-Active – the trap sends messages to the host identified in the IP Address selection.

Mode Determines whether the traps are accessed through the Event interface, the

Fibre Alliance interface, or both. Options: 1-Event 3-FcMgmt 4-Both

Page 46

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Changing the CLI/Web Password

Note: If you do not remember your password, call your customer service representative.

One password is used to access both the Web Manager and the Command Line Interface. You can change the password through the Command Line Interface (CLI) only. The password must be between 6 and 25 characters in length.

To change the password:

1. Type pw at the prompt.

2. Enter the current password (the default password is password).

3. Enter the new password.

4. Confirm the new password by re-entering it.

A message appears confirming that the password was saved and activated.

Viewing Management, Policy, and Threshold Settings

The Management Agent menu displays the current settings for the switch parameters, switch policies, and thresholding. To view the current Management Agent settings and a complete list of commands, type mc at the prompt. The Management Agent Menu appears.

>pw enter current password: ******** enter new password : ****** re-enter new password : ****** The new password is saved and activated.

MANAGEMENT AGENT 00-10-9b-01-0c-dd Product : Vixel 335 Managed Storage Switch Firmware : 2.01 (build 79) Hardware : 3 IP address : 172.16.71.14 Netmask : 255.255.240.0 Default gateway : 172.16.64.1 DHCP : disabled Management URL : http://172.16.71.14 POLICIES: (1) Smart insertion : enabled (2) Bad zone recovery : disabled (3) No data recovery : disabled (4) LIP F8 recovery : enabled (5) LIP on port bypass : enabled (6) Auto cascade : enabled (7) Bypass at max OS err : disabled (8) Bypass at max CRC err : disabled (9) Bypass on clock delta err : disabled (10) Bypass on switch stall : disabled (11) Clear conn on sw stall : disabled HW I/F: ASIC build number : 0x0001 (12) OS error threshold : 3 (0x3) (13) CRC error threshold : 3 (0x3) (14) Switch stall threshold : 65535 (0xFFFF) (15) Clk error thresh (ppm) : 200 (0xC8) (16) Clk error prescale (1-16) : 6 (17) Err count thresh (CSecs) : 1000 (18) Bad zone thresh (CSecs) : 500 (19) Bad zone bypass (CSecs) : 10 ACTIONS: (20) Reset switch (21) Reset HW (22) Reset counters (23) Event log (24) Fibre Alliance event log (25) Fibre Alliance event sev : Info

Page 47

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Policies

Note: The mc command must be entered prior to issuing one of the submenu commands.

You can view the current global policy settings and configure the switch to use the policies you select.

Note: Before you type a command for port policies, select the desired port by typing po # (where # is the desired port number).

An explanation of the available policies follows:

Policy Description

Smart insertion

Ensures that data meets the requirements of Fibre Channel Arbitrated Loop (FC-AL) and allows sub-policies to be enabled.

Bad zone recovery

Reacts to bad zone indications by putting all ports through the normal insertion process and allowing only those ports sending ordered sets to insert.

No data recovery

The switch will automatically bypass a port if no K characters (Ordered Sets) are detected within a certain timeframe. The switch will try to reinsert the port upon detection of valid K characters.

LIP F8 recovery

Reacts to LIP(F8)s (indicating non-functional zones) by putting all ports through the normal insertion process and allowing only those ports not sending LIP(F8)s to insert.

LIP on port bypass

Requires bypassed ports to send LIP(F7)s to other zone members.

Auto cascade

When this policy is enabled, the switch will automatically configure itself and any other detected Vixel Inspeed devices in a cascade configuration.

Note: This policy must be set to enabled if auto cascading on a port is enabled.

Bypass at max OS err

When this policy is enabled, the switch bypasses a port when that port exceeds the threshold of Ordered Set errors within a certain timeframe. (This policy applies to Zone 1 only.) The default timeframe is 10 seconds (see the Error Count Threshold setting).

Bypass at max CRC err

When this policy is enabled, the switch bypasses ports that exceed the set threshold of frame CRC errors. Compares the CRC transmitted with a frame to the CRC calculated in the switch. (This policy applies to Zone 1 only.)

Bypass on clock delta err

Bypass on switch stall

When this policy is enabled and switching mode is on, the switch bypasses a stalled port if the connection is not terminated within a certain timeframe (see the Switch Stall Threshold setting).

Clear conn on sw stall

When this policy is enabled, the switch clears the port connection on a switch stall after a certain timeframe (see the Switch Stall Threshold setting).

Page 48

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

To enable or disable a policy:

1. Enter the number for the desired policy.

2. Enter 2 to enable the policy or 3 to disable the policy.

To view your changes, type mc and an updated list appears.

Threshold Information

Note: The Threshold settings should not be modified unless directed to do so by Vixel Customer Support.

An explanation of the threshold settings follows:

To set thresholds:

1. Enter the number for the desired threshold.

2. Enter a value for the threshold.

To view your changes, type mc and an updated list appears.

Settings Description

ASIC build number

Assigned number to the internal switch processor. Cannot be modified or configured.

OS error threshold

Sets the number of Ordered Set errors that the switch will see on a connection within the Error Count Threshold timeframe.

CRC error threshold

Sets the number of CRC errors the switch sees in frames within the Error Count Threshold timeframe.

Switch stall threshold

Sets the number of microseconds until a stall is triggered.

Clk error thresh (ppm)

Sets the variance between the line-derived clock of fill words and the switch internal clock.

Clk error prescale (1-

16)

Note: This setting should not be modified unless directed to do so by Vixel Customer Support.

Err count thresh (cSecs)

Sets the amount of time between error counter reads when threshold errors occur.

Bad zone thresh (cSecs)

Sets the amount of time that the zone can be down when the switch thinks the zone should be operational.

Bad zone bypass (cSecs)

Sets the amount of time the ports remain bypassed before reinsertion.

Page 49

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Actions

Additional actions are available from the Management Agent Menu. An explanation of the actions follows:

To perform an action, enter the specific number for the action and follow the prompts.

Action Description

Reset switch

Resets the switch.

Reset hardware

Resets the ASIC (control circuitry) inside the switch but not the switch itself.

Reset counters

Resets all or specific counters to zero. Options: 6–reset all port counters in switch 7–reset all RX frame counters in switch 8–reset all conn attempt counters in switch 9–reset all conn stall counters in switch 10–reset all CRC error counters in switch 11–reset all bad OS error counters in switch

Event log

Displays the event log for the switch.

Fibre Alliance event log

Displays the event log for the switch by the assigned severity level.

Fibre Alliance event sev

Sets the severity level for the events displayed in the Fibre Alliance event log. Options: 2–Emergency, 3–Alert, 4–Critical, 5–Error, 6–Warning, 7–Notice, 8–Info, 9–Debug, 10–Mark

Page 50

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Changing the Switching Mode

The Switch Menu allows you to configure the switch, view specific switch information, and turn on/off the switching mode.

To activate the switch control command, type sw at the prompt. The Switch Menu appears.

Additional information on the available options follows:

Command Description

Switching Mode

When "on", allows data to be sent directly to a specified port. If "off", the data is sent to every port. Disabling Switching Mode may be necessary when passing data to legacy devices.

To change the switching mode, type

1 and then enter 2 ("on") or 3 ("off")

for the desired setting.

Link Speed

Displays the current switch speed.

To change the switch speed, type

2 and then enter 1 to set the link speed

for the next boot. Select

2 (1 Gbps) or 3 (Gbps) for the desired speed

setting.

Blocking ARB

When two ports start a communication session, the Blocking ARB is sent to any other ports trying to communicate with those specific ports until their connection is terminated. Blocking Arb is only active when the switching mode is on.

Note: This setting should not be modified unless directed to do so by Vixel Customer Service.

Connect user data

Non-functional feature designated for future use.

Hardware

Displays the switch hardware information. Also allows you to configure thresholds and error count time period.

Note: These settings should not be modified unless directed to do so by Vixel Customer Service.

To view the switch hardware, type

5 at the prompt.

Enclosure

Displays information on fan status, temperature, controller status, and management status.

To view the switch enclosure, type

6 at the prompt.

SWITCH MENU (switch ID=14000147) (1) Switching Mode : on (2) Link speed : 2 GBPS (3) Blocking ARB : 255 (0xFF) (4) Connect user data : 0 (5) Hardware (6) Enclosure (7) Ports (8) Zones (9) Sweep (10) Diagnostics (11) Reset counters

Page 51

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Ports

Displays all information concerning a specific port. When a port number (e.g., 2) is entered, the default port number (1) is changed to the new port number. You can also change the port policies.

To view port information, type

7 at the prompt. To see additional

information for a port, enter the desired port number.

Zone

Displays information for the default switch's zone (e.g., 1, 2, etc.), including general and port-specific information. A menu selection is available for each zone.

To view zone information, type

8 at the prompt.

When the user chooses to view a zone, all information for that zone is displayed along with a port menu listing the ports in that zone.

Sweep

Displays ordered sets and error detectors for each port on the switch.

To perform a switch sweep, type

9 at the prompt.

Diagnostics

Displays diagnostic registers for the default port including the detector, match, control, capture, and tx registers.

Note: These settings should not be modified unless directed to do so by Vixel Customer Service.

To run diagnostics, type

10 at the prompt.

Reset counters

To reset counters, type

11 at the prompt. Type the number for the desired

option.

Command Description

Page 52

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Displaying Ports

The Show Port command displays all information concerning a specific port and allows you to change the port policies. To configure the currently selected port, type po at the prompt.To activate the show port command for a specific port, type po x (where x is the port number) at the prompt.

port 1 (switch ID=28000070) module : none state : bypassed zone : 1 PLL : nolock transceiver LED : off fault LED : off cascade state : none connect type : none insert count : 0 clk delta ppm : 0 rx frame count : 2 connect attempts : 0 connects busy : 0 CRC errors : 2 bad OS errors : 0 port util avg : 0 port util high : 0 port util low : 0 port util last : 0 (1) Control : auto (2) Beacon : off (3) Transmitter : on (4) Cascade mode : tree (5) LIP on insert : enabled (6) Test before insert : disabled (7) Overlapping zones : 0x004 (8) Util period avg : 100 (9) Util period stats : 100 (10) Reset counters

Page 53

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Setting Description

Control

Enables you to configure control of the port. Select from: (2) auto – the default setting. The switch controls the port and prevents the insertion of incompatible ports which may cause disruption. (3) bypass – removes a port from the zone. Use this mode to troubleshoot ports. (4) extl-loopback – removes a port from the zone and routes the port's receive signal back through the port's transmitter. Use this mode to isolate a specific zone for troubleshooting or test a transceiver’s circuitry and attached media from the node end. (5) force insert – allows ports whose transceivers cannot derive a valid clock or "K" character (Ordered Set) to join the zone. Use this mode cautiously – devices without valid characters may put bad data into the zone, causing the zone to go down. (6) diagnostic-tx – allows you to transmit specific Ordered Sets for testing purposes.

Beacon

When enabled, it forces both port LEDs to flash on and off continuously on the selected port. You can use the beacon feature to remotely alert a technician to take action on a specific port as identified by a system administrator. The blinking overrides the state information display until the beaconing is turned off.

Transmitter

Turns the transceiver connected to the port on or off.

Cascade mode

The current cascade mode (auto, none, tree, string) selected for the port. Options: auto – This setting automatically configures the connection type based on information sent by other InSpeed switches. This is the default setting for InSpeed-based managed switches.

none – The port is disabled.

tree – A port that allows arbitration fairness to other cascaded InSpeedbased switches or ports connected to end devices. If the port is a tree port then the ARB (Arbitrate) is sent down the port and, when the ARB is received back at the ASIC, a connection is made between the source and destination ports. All ports are viewed as 100% FC_AL compliant.

string – A specially pre-allocated port designed to maintain fairness when two or more InSpeed-based storage switches are serially cascaded. When the destination port is a string and an OPN is received on the ASIC, an ARB is transmitted throughout the total string cascade loop to alert all devices to enforce the Loop fairness rules. Therefore, if two devices try to ARB for the loop at the same time, the higher Priority AL_PA will win the cascade first, the lower priority one will follow. Note: There must be two string ports on a zone. The port is configured for a pair of string ports to other switches.

LIP on insert

If enabled, when a port inserts into a zone, it issues LIP(F7)s to other zone members.

Page 54

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Viewing the Event Log

The event log command enables you to view the event log. To activate the event log command, type: ev at the prompt.

The switch event log is very good for troubleshooting, as it shows the events on the switch including bypass events, LIP F8, clock delta, etc.

For a complete list of event messages, see EVENT MESSAGES (APPENDIX C) on page 63.

Resetting the Switch

You can reset the switch to implement changes in the CLI.

To reset the switch, type rs at the prompt. A message stating the switch is resetting appears.

Resetting the Hardware

This feature resets the ASIC in the switch.

To reset the ASIC, type rh at the prompt. A message stating the control circuitry is resetting appears.

Resetting the Switch to Factory Default Settings

If you want to reset the current switch configuration to the factory default settings, type rc at the prompt.

A message appears asking you to confirm the reset. Type Y at the prompt to proceed with the reset.

Test before insert

Overlapping zones

Note: This setting should not be modified unless directed to do so by Vixel Customer Support.

Util period avg

Note: This setting should not be modified unless directed to do so by Vixel Customer Support.

Util period stats

Note: This setting should not be modified unless directed to do so by Vixel Customer Support.

Reset counters

Resets all or specific counters to zero. Options: 2: reset all port counters 3: reset port RX frame counter 4: reset port conn attempts counter 5: reset port conn busy counter 6: reset port CRC errors counter 7: reset port bad OS errors counter

To reset counters, type 10 at the prompt. Type the number for the desired option.

Setting Description

1: 02/27/02 18:38:12.62 [1] agent up 2: 02/27/02 18:38:12.72 [160] management active 3: 02/27/02 18:38:12.72 [3] switch added, switch ID=14000147 4: 02/27/02 18:38:12.81 [270] Daytime server up, ip=38.244.18.9

Page 55

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Changing the Switch’s Operating Speed

The link speed command enables you to change the switch’s operating speed.

To activate the link speed control, type lsp at the prompt.

Enter either a "2" for 1 Gbps or a "3" for 2 Gbps. You must reset the switch before the speed change becomes effective.

Viewing and Understanding Zoning Information

The switch’s command line interface displays the two zone configurations: overlapping zoning and non-overlapping zoning.

For a description of overlapping and non-overlapping zoning, see “Zone Settings” on page 31.

Overlapping Zoning Configuration

The overlapping zoning configuration displays the ports in Zone 1 and also displays which ports are blocked from seeing each other.

To view the overlapping zone configuration, type oz. The current overlapping zoning configuration, by port, is displayed.

To block ports from seeing each other:

1. Type oz to view the current overlapping zone configuration.

2. At the prompt, type oz a:p1-p2 a:p1-p2 r:p1-p2 .. (where a=add port block pair, r=remove port block pair, p1=1st port, and p2=2nd port

The "-" is optional.

Example: oz a:2-4 A device on port 2 is blocked from viewing devices on port 4. The opposite holds

trues as well (devices on port 4 cannot see devices on port 2).

To remove all port blocks, type oz r at the prompt.

SWITCH LINK SPEED (switch ID=14000147) Link speed current : 2 GBPS Link speed control : 2 GBPS (1) Link speed next : 2 GBPS

Overlapping Zone Configuration (Switch ID=28000070, Switching Mode=on)

1 2 3 4 5 11 12

Port 1 . X . . . .

Port 2 . . X . . . Port 3 X . . X . .

Port 4 . X . . . .

Port 5 . . X . . .

Port 11 . . . . . .

Port 12 . . . . . .

Page 56

Vixel Model 335 Installation & Configuration Guide CHAPTER 3 Management

Non-Overlapping Zoning Configuration

Note: Ports 11 and 12 can only be in Zone 1.

You can have simultaneous overlapping and non-overlapping zoning. Overlapping zoning operates in Zone 1 and non-overlapping zoning operates in Zones 2-12.

The non-overlapping zoning configuration shows the zone status, the port state for each zone, the number of active ports in each zone, and the port numbers that are in each zone.

To view zone configuration by zone, type noz.

The current non-overlapping zoning configuration, by zone, is displayed.

Zone number: Possible values are 1–12. Port State: Possible values are "B" (Bypassed), "I" (Inserted), "D" (Diagnostic

Transmit), "E" (External Loopback), "U" (Unknown), and "?" (Access Error).

Zone State: Possible values are "U" (Up) and "D" (Down).

Note: Each port may only

be in one non-overlapping zone.

To place ports into non-overlapping zones:

1. Type noz to view the current non-overlapping zones configuration.

2. At the prompt, type noz z:p,p,p.. z:p p.. z.. (where z=zone number 1–12 and p=port number 1–12)

Ports on a zone may be separated by a comma or spaces.

Note: Unspecified ports are automatically placed into Zone 1.

Example: noz 2:5,6,7,8 3:9,10 Ports 5-8 are placed in Zone 2, ports 9-10 are placed in Zone 3, and ports 1-4 and

11-12 are placed into Zone 1.

Non Overlapping Zone Configuration By Port Port Number: 1 2 3 4 5 6 7 8 9 10 11 12 Zone Number: 1 1 1 1 1 2 2 2 2 2 1 1 Port State: B B B B B I U B B B B B Zone State: D D D D D U U U U U D D

Page 57

CHAPTER 4 Technical

Reference

Technical Support

Before contacting Customer Support, check for solutions in this guide. Contact information for Technical Support is provided in the Welcome Letter that came with your switch.

Technical Support 54

Troubleshooting 55

Small Form-Factor Pluggable (SFP) Issues 56

Fibre Channel References 56

Page 58

Vixel Model 335 Installation & Configuration Guide CHAPTER 4 Technical Reference

Troubleshooting

Some common troubleshooting situations are listed below with suggested courses of action.

Situation* Recommended Action

No LEDs are on.

Make sure that the switch is plugged into an adequate AC power source (shown in “Operating Conditions” on page 59).

The switch’s Fault LED is on.

Cycle power to the switch. One or more enclosure fans may have failed, or an over-temperature

condition may exist. Contact an authorized service person. If the switch’s Fault LED remains lit, the switch requires repair.

Contact an authorized service person.

The Mgmt Present LED is off.

Contact an authorized service person.

The Mgmt Present LED is blinking continuously.

Power cycle the switch to see if the condition clears. If the Mgmt Present LED continues to blink (and POST has already

completed), firmware may be corrupt or hardware may have failed. Contact an authorized service person.

The Enet Active LED is off during an ethernet connection.

Check the following items:

• Ethernet RJ-45 connection to the Vixel 335 Managed Storage Switch.

• Ethernet connection to the Ethernet switch.

• Power status of the Ethernet switch.

• Power status of the Vixel 335 Managed Storage Switch.

The Switch Op LED is off or flashing.

Check the following items:

• Ports (LEDs and SFPs).

• Cabling.

• Bad / misbehaving HBA / FC controller at the node end.

Note: The switch automatically recovers all zones for the most common failure conditions.

* LEDs that are on are illuminated; LEDs that are off are extinguished.

Page 59

Vixel Model 335 Installation & Configuration Guide CHAPTER 4 Technical Reference

Small Form-Factor Pluggable (SFP) Issues

Items to check for common SFP-related symptoms are listed below.

Fibre Channel References

The following books give useful information about Fibre Channel.

• Alan F. Benner, Fibre Channel. McGraw-Hill, 1996. ISBN 0-07-005669-2.

•Tom Clark, Designing Storage Area Networks. Addison Wesley Longman, 1999, ISBN 0-201-61584-3.

• Jan Dedek, Fibre Channel - The Basics. ANCOT Corporation, 1997. ISBN 0-9637439-3-7.

• Robert Kembel, Arbitrated Loop. Connectivity Solutions, 1996. ISBN 0-931836-82-4.

• Robert Kembel, A Comprehensive Introduction. Connectivity Solutions, 1998. ISBN 0-931836-84-0.

Problem Recommended Action

SFP installed in one or more ports but no LEDs lit

Verify power cord is firmly seated into switch and is connected to a properly earthed receptacle (outlet).

Check the Power LED to ensure switch is turned on.

SFP installed but only yellow LED is lit

Re-seat the SFP. If the same condition occurs, the SFP is probably faulty and should be replaced.

SFP installed with both green and yellow LEDs lit

The switch is not receiving a valid Fibre Channel signal from the end node (HBA or disk array) or is receiving LIP(F8).

1) Ensure that the device is powered on and operating properly.

2) Unplug the fiber cable from the node and verify that an optical signal is present on the cable receiver lead.

3) Examine the connectors on the HBA or disk controller for correct and proper connection. If optical power meter is available, verify the device is transmitting a signal.

If there is no signal present, the device may require rebooting, device drivers may need to be reinstalled, or the HBA or disk controller hardware may require servicing.

If a signal is present on both the cable lead and the end node, the HBA or disk controller may require service.

SFP installed with only green LED lit, but devices are not communicating

The switch is receiving a valid Fibre Channel signal from the end device (HBA or disk), but no upper level protocols are active.

1) Verify that the proper HBA device drivers are loaded for the appropriate operating system and that the host has been configured to recognize attached disk devices.

2) Check the Switch Op LED. If the Switch Op LED is on, the devices have completed initialization. If the Switch Op LED is off, the devices were not initialized. Remove all the devices and add one device at a time to isolate the device responsible for the failure.

3) Improper initialization could result from a defective or inoperative adapter card or device. Run adapter diagnostics with a loopback connector to see if the adapter is working properly.

4) Unplug the fiber cable from the end node and verify that an optical signal is present on the cable receiver lead. If no signal is present, the receiver lead of the cable may be bad and the device may be streaming LIP(F8). Ensure that all cascaded ports are correctly configured.

Page 60

Appendixes

Page 61

APPENDIX A Specifications

Specifications

The switch’s specifications are listed below:

Specifications 58

Operating Conditions 59

Number of Ports 12

Operating Rate 1.0625 or 2.125 Gbps

Port Media Type SFP

Enclosure 1U full-rack form factor

Management Interface RS-232 or 10BaseT Ethernet

Operating Mode Switching or Non-switching modes

Configurability Management interface configurable

Power On Self Test (POST) Yes

Dimensions Approximately 17.2" x 1.72" x 14.54" (W x H x D)

AC Power Input 50 or 60 Hz / 100 – 250 VAC / 0.6 – 0.4 A

AC Power Connector IEC connector

Weight Approximately 11 lbs

Page 62

Vixel Model 335 Installation & Configuration Guide APPENDIX A Specifications

Operating Conditions

The switch must be operated in a clean, dry environment with unrestricted airflow. Air flows in through the cosmetic end and out through the business end (sometimes called the transceiver end or “back-of-box”).

To avoid overheating, maintain a minimum clearance of two inches (50.8 millimeters) on each end of the switch (the cosmetic end and the business end). Allow an adequate amount of space on the top and sides of the switch for proper air ventilation. Do not

place the switch on heat-generating surfaces. Operating conditions are listed below.

Vixel Model 335 Operating Conditions

Requirement Value

Operating Temperature 0°C to 40°C normal operation (ambient air temperature)

Storage -40°C to 80°C non-condensing

Power 50 or 60 Hz / 100 – 250 VAC / 0.6 – 0.4 A

Page 63

APPENDIX B CLI Console

Commands

Console Commands

All of the commands below are ordered generally by category. The format of the commands is given in the list, however, the “help” command at the command line may give even more detail.

General Commands 60

Browse Commands 60

Action Commands 61

Command Syntax Action

General Commands

Configure co Displays information on the switch’s IP

parameters: IP Address, default gateway, and netmask. You can also enable/disable DHCP.

System Information si Displays switch information such as switch name,

location, and contact.

Manage Firmware fw Displays the current firmware image and the

alternate image. You can also select to use the alternate image or download new firmware.

Configure TRAP Destination Table

ct Displays the current trap destination table and

allows you to create/delete trap destinations.

Log Out lo Exits the CLI session.

Set Password pw Sets new console password

Ping ping

ping <x.x.x.x>

Sends packets to specified device to confirm communication between devices.

Help ?

? <cmd> h h <cmd> help help <cmd>

Displays all or specific help.

Browse Commands

Show Management Menu

mc Displays overall status of the switch and its

policies. Allows configuration of policies and thresholds.

Show Switch Menu sw Displays the current switching mode, blocking

AL_PA, and menu of switch informational commands.

Page 64

Vixel Model 335 Installation & Configuration Guide APPENDIX B CLI Console Commands

Show Hardware Menu

sh Displays hardware information and versions.

Show Enclosure Menu

se Displays information on fan status, temperature,

controller status, and management status.

Show Diagnostics Menu

sd Displays diagnostic registers for the default port.

This includes the detector, match, control, capture and tx registers.

Show Zone zo

zo <ZoneID>

Displays information for the default switch’ s zone, including general and port-specific information. Provides a menu selection for each zone.

Show Port po

po <port ID>

Displays all information concerning a specific port. When a port number is entered, the default port number (1) will be changed to the new port number. This command also allows changing port policies.

Show Port Serial Transceiver Data

sid Displays the serial ID information of the

transceiver in the default port.

Show Port Clock Delta Register

pcdr pcdr <port ID>

Reads the port Clock Delta register. Enter a specific port number for the portID.

Show Zone Table sz Displays general status of all zones on the switch.

Provides a menu selection for each zone.

Show Port Table sp Displays general status of all ports for the default

zone. Provides a menu selection for each port.

Show Revision Table

rev Displays the revision levels of the installed

firmware.

Show Sensor Table sen Displays Fan/PS/Temperature sensor status.

Show Switch Sweep ss

sweep

Displays the results of a single switch diagnostic sweep.

Show MIB Event Log

ev ev <eventID> ev cl<ear> ev re<set>

Displays all event log entries, or all event log entries after <eventID>. The Clear option clears events up to the current time – after which a return will display new events only. The reset starts at the beginning of the event buffer. Up to 512 events are stored in the buffer.

Show Fibre Alliance Event Log

faev Displays event log entries based upon the selected

severity level.

Show Operating System Stacks

stack Displays commands in the operating system stacks.

Action Commands

Reset Switch rs Resets the switch and ASIC.

Reset Switch Hardware

rh Resets the ASIC.

Reset Switch Configuration

rc Resets the switch to factory default settings.

Link Speed lsp Sets the switch speed at 1 Gb/s or 2 Gb/s.

Command Syntax Action

Page 65

Vixel Model 335 Installation & Configuration Guide APPENDIX B CLI Console Commands

Configure Nonoverlapping Zones

noz

noz z:p,p,p.. z:p p.. z..

Configures ports for non-overlapping zones. Value s: z = zone number 1 to 12 p = port number 1 to 12

Note:

Unspecified ports are placed into zone 1. Each port must be in one non-overlapping zone only. Ports on a zone may be separated by a comma or spaces.

Configure Overlapping Zones (Port blocks in switching mode)

oz a:p1-p2 a:p1p2 r:p1-p2 ..

oz r

Configures ports for overlapping zones. Value s: a = add port block pair r = remove port block pair p1 = 1st port (must be in non overlapping zone 1) p2 = 2nd port (must be in non overlapping zone 1) “-” is optional

r = remove all port blocks

Set Management URL

url= url=<value>

Sets the Fibre Alliance URL value. Use "-" to reset to default.

Set Daytime Server IP Address

ipt Sets the IP Address for the daytime server.

Set Daytime Server Update Period

dlyt Sets the interval for validating switch time with the

daytime server.

Set Time Mode time Sets the switch time manually.

Command Syntax Action

Page 66

APPENDIX C Event Messages

The event messages are listed by reference number. Also included are the event descriptions, recommended actions, reference numbers, and the message’s applicable severity level, which are each defined below:

• Emergency—immediate action required; system failing

• Alert—unrecoverable condition reported; major event in progress

• Critical—event failed with possible loss of integrity

• Error—condition failed; action required

• Warning—failed event occurred; no action required

• Notice—configuration error or abnormal event occurred; no action required

• Info—event occurred; no action required

• Debug—internal message for development (excluded in this list)

• Mark—message marker (excluded in this list) These severity levels can be used to designate which events trigger trap messages. For

Vixel Switches, you can also designate the minimum severity level of events to be logged in the Event Log and at which to illuminate the switch’s Fault LED.

Ref

Event

Message

Meaning Action Severity

1 Agent up The switch’s management agent

was up. (This message begins the event log at each session.)

--- Info

3 Switch added The switch was added. --- Info 5 Switch reset The switch was reset. --- Info

10 Switch loopback

failure

ASIC failed its power on self test (internal test).

Contact an authorized service representative.

Alert

20 Smart insertion

mode on

The Smart Insertion policy is enabled.

--- Notice

21 Smart insertion

mode off

The Smart Insertion policy is disabled.

--- Notice

22 Switch in switching

mode

The switch is running in switching mode.

--- Notice

23 Switch in normal

mode (switching off)

The switch is running in normal mode (switching is disabled).

--- Notice

100 Fan okay The state of a switch fan

changed to “okay.”

--- Info

101 Fan fault The state of a switch fan

changed to “fault.”

Replace the fan. Alert

110 Temperature okay The switch temperature

changed to “okay.”

--- Info

111 Temperature warm The switch temperature

changed to “warm.”

--- Warning

112 Temperature hot The switch temperature

changed to “hot.” A fan may have failed or the temperature of the location may be exceeding the switch’s environmental requirements.

Power off the switch and contact an authorized service representative.

Alert

120 Power okay The state of the switch power

supply changed to “okay.”

--- Info

121 Power fault The state of the switch power

supply changed to “fault.”

--- Alert

Page 67

Vixel Model 335 Installation & Configuration Guide APPENDIX C Event Messages

132 Zone up then down The zone state has cycled

through the “up” and “down” states several times. Current zone state (at the time of this message) is down.

--- Warning

133 Zone down then up The zone state has cycled

through the “up” and “down” states several times. Current zone state (at the time of this message) is up.

--- Wa rn in g

140 Port inserted A port was inserted onto the

zone (after being bypassed).

--- Info

141 Port bypassed

(LIPF8)

A port was bypassed (could not insert) because a LIP(F8) was received at port input. (A LIP(F8) indicates a loop failure.)

Check all connections for the specified port.

Info

142 Port bypassed (tx

fault)

A port was bypassed because the switch detected a transmitter fault on the port’s transceiver.

Contact an authorized service representative. The transceiver may need replacing.

Info

143 Port bypassed

(timeout)

A port was bypassed (could not insert) because no LIP(F7)s were received after continuous transmission of LIP(F7)s for 112 milliseconds.

--- Info

145 Port bypassed A port was bypassed for a rea-

son other than transceiver transmitter fault, invalid response, or manual bypass.

--- Info

146 Port bypassed then

inserted

A port was bypassed, then inserted.

--- Info

147 Port inserted then

bypassed

A port was inserted, then bypassed.

--- Info

150 Transceiver inserted A transceiver was inserted. --- Notice 151 Transceiver removed A transceiver was removed. --- Notice 160 Management active Agent is operational. --- Info 165 Agent task asserted

on prev exec cycle

During normal operations, an attempt to execute a command was aborted due to an internal error in the firmware. The switch automatically resets after the occurrence.

Contact an authorized service representative.

Critical

166 Agent machine

exception on prev exec cycle

A task attempted to execute an unknown command. The switch automatically resets after the occurrence.

Contact an authorized service representative.

Critical

170 Diagnostic function

aborted

A diagnostic setting is misconfigured and required a firmware override.

Check diagnostic settings for incompatibilities.

War ni ng

200 CRC error detected CRC errors were detected in a

frame received on a port.

No action required. You can modify the CRC Error threshold through the Web Manager or CLI interface.

Info

201 CRC error threshold

exceeded

During the past ten seconds, the number of CRC errors in frames received by the specified port exceeded the current threshold value.

No action required. You can modify the Error Count threshold thro ugh the Web Manager or CLI interface.

Info

202 OS Error threshold

exceeded

During the past ten seconds, the number of OS errors (invalid transmit words, or 8b/10b encoding errors) in frames received by the specified port exceeded the current threshold value.

No action required. You can modify the Error Count threshold thro ugh the Web Manager or CLI interface.

Info

Ref

Event

Message

Meaning Action Severity

Page 68

Vixel Model 335 Installation & Configuration Guide APPENDIX C Event Messages

203 Port switch connect

overflow

A number of stalls have occurred in a specific amount of time.

--- Info

204 Port switch stall An instance occurred where

two devices could not disconnect communications with one another.

--- Info

205 Port switch bad

open

A device is trying to send an OPN but it cannot be delivered.

--- Info

206 Port clock delta freq

error

The switch clock or a device clock are not synchronized. If the switch clock has failed, the error should display on multiple ports. If only one port is logging this error, it is most likely a problem with that device.

--- Info

207 Port clock delta freq okThe switch clock and a device

are synchronized.

--- Info

208 Bad zone detected Refers to the zone health. --- Info 209 Cascade user mode

overridden

A user setting for cascades has been overridden by the firmware.

--- Info

210 Console password

changed

The command line interface password was changed. Note: The password cannot be changed without supplying the current password, even if logged on.

--- Notice

241 Port bypassed

(external loopback)

A port was bypassed manually, through either the command line interface or a management entity.

--- Info

242 Port bypassed

(diagnostic TX)

A port was bypassed manually, through either the command line interface or a management entity.

--- Info

243 Port bypassed (Loss

of RX signal)

Although a transceiver is present, the port is bypassed because there is no signal coming into the port.

--- Info

244 Port bypassed (Loss

of Sync)

Although a transceiver is present, the port is bypassed because the port lost sync with the fibre channel signal (no command characters were received).

--- Info

250 Port transmitter

enabled

A port transmitter was turned on, through either the command line interface or a management entity.

--- Notice

251 Port transmitter

disabled

A port transmitter was turned off, through either the command line interface or a management entity.

--- Notice

260 Key feature enabled A purchased license key for an

optional feature was entered, through either the command line interface or a management entity.

--- Info

261 Key feature disabled An optional feature was dis-

abled, through either the command line interface or a management entity.

--- Notice

270 Daytime server up The daytime server is running. --- Info 271 Daytime server

down

The daytime server is not running.

--- Notice

Ref

Event

Message

Meaning Action Severity

Page 69

Vixel Model 335 Installation & Configuration Guide APPENDIX C Event Messages

272 Daytime mode

changed

The current daytime mode (none, user, server) has changed.

--- Info

273 Daytime server IP

Address changed

The IP Address for the daytime server has changed.

--- Info

274 Daytime server

update period changed

The amount of time the daytime servers waits between updates has changed.

--- Info

275 MIB Eventlog Reset The event log has been cleared

out through the Web Manager interface.

--- Info

Ref

Event

Message

Meaning Action Severity

Page 70

APPENDIX D Loop ID—AL_PA

Cross References

Arbitrated Loop Physical Addresses

AL_PA Loop ID AL_PA Loop ID AL_PA Loop ID

(hex) (hex) (decimal) (hex) (hex) (decimal) (hex) (hex) (decimal)

EF 00 0 A3 2B 43 4D 56 86 E8 01 1 9F 2C 44 4C 57 87 E4 02 2 9E 2D 45 4B 58 88 E2 03 3 9D 2E 46 4A 59 89 E1 04 4 9B 2F 47 49 5A 90

E0 05 5 98 30 48 47 5B 91 DC 06 6 97 31 49 46 5C 92 DA 07 7 90 32 50 45 5D 93

D9 08 8 8F 33 51 43 5E 94

D6 09 9 88 34 52 3C 5F 95

D5 0A 10 84 35 53 3A 60 96

D4 0B 11 82 36 54 39 61 97

D3 0C 12 81 37 55 36 62 98

D2 0D 13 80 38 56 35 63 99

D1 0E 14 7C 39 57 34 64 100

CE 0F 15 7A 3A 58 33 65 101 CD 10 16 79 3B 59 32 66 102 CC 11 17 76 3C 60 31 67 103

CB 12 18 75 3D 61 2E 68 104 CA 13 19 74 3E 62 2D 69 105

C9 14 20 73 3F 63 2C 6A 106

C7 15 21 72 40 64 2B 6B 107

C6 16 22 71 41 65 2A 6C 108

C5 17 23 6E 42 66 29 6D 109

C3 18 24 6D 43 67 27 6E 110

BC 19 25 6C 44 68 26 6F 111

BA 1A 26 6B 45 69 25 70 112

B9 1B 27 6A 46 70 23 71 113

B6 1C 28 69 47 71 1F 72 114

B5 1D 29 67 48 72 1E 73 115

B4 1E 30 66 49 73 1D 74 116

B3 1F 31 65 4A 74 1B 75 117

B2 20 32 63 4B 75 18 76 118

B1 21 33 5C 4C 76 17 77 119

AE 22 34 5A 4D 77 10 78 120 AD 23 35 59 4E 78 0F 79 121 AC 24 36 56 4F 79 08 7A 122

AB 25 37 55 50 80 04 7B 123 AA 26 38 54 51 81 02 7C 124

A9 27 39 53 52 82 01 7D 125

A7 28 40 52 53 83 00 7E 126

A6 29 41 51 54 84 --- 7F 127

A5 2A 42 4E 55 85 --- --- ---

Page 71

APPENDIX E Glossary

AL_PA or Arbitrated Loop Physical Address

A one-byte value used to identify a port in an Arbitrated Loop topology. The value of the AL_PA corresponds to bits 7:0 of the 24-bit Native Address Identifier.

Arbitrated Loop A Fibre Channel topology structured as a loop and requiring a

port to successfully arbitrate prior to establishing a circuit to send and/or receive frames.

Arbitration The process of selecting one respondent from a group requesting

service at the same time.

Close (CLS) An Arbitrated Loop protocol used to terminate a loop circuit.

Current Fill Wor d

The fill word that the Loop Port State Machine uses when a fill word is to be transmitted.

DHCP Dynamic Host Control Protocol. An Internet-based protocol

enabling nodes to dynamically acquire network addresses for periods of time.

Duplex Cable Two fibers in one cable suitable for duplex transmission.

Fiber Optics Light transmission through optical fibers for communication or

signaling

Fibre Channel Fibre Channel is a data transfer interface technology that maps

several common transport protocols including IP and SCSI, allowing it to merge high-speed I/O and networking functionality in a single connectivity technology. Fibre channel is an open standard as defined by ANSI and OSI standards and operates over copper and fiber optic cabling at distances of up to 10 Kilometers. It is unique in its support of multiple interoperable topologies including point-to-point, arbitrated-loop and switching and it offers several qualities of service for network optimization. With its large packet sizes, Fibre Channel is ideal for storage, video, graphic and mass data transfer applications.

LED Light-Emitting Diode. A status indicator on a switch.

LIP/LIP sequence Loop Initialization Primitive. A sequence used to accomplish

one or more of the following objectives:

• Initiate a procedure that results in unique addressing for all nodes.

• Indicate a switch failure.

• Reset a specific node.

Mb/s Megabits per second, 1,024,000 bits per second.

MB/s Megabytes per second, 8,192,000 bits per second.

One byte = 8 bits

Node An entity with one or more N_Ports or NL_Ports.

Page 72

Vixel Model 335 Installation & Configuration Guide APPENDIX E Glossary

Non-overlapping Zones

Enables the switch to be divided into separate environments, where each environment sustains a complete 127-device AL_PA space.

Open An Arbitrated Loop protocol used to establish a switch circuit.

Overlapping Zones

Devices on one port are not allowed to see devices on another port, yet those same devices can both see a device on a third port.

Protocol A data transmission convention which may include timing,

control, formatting, error detection with correction and data representation.

SCSI Small Computer System Interface. Standard interface for storage

modules.

SFP Small Form-Factor Pluggable transceiver. These transceivers are

fully compliant with the FC-PI and MSA standards and occupy less than half the board space of the existing GBIC products.

SNMP Simple Network Management Protocol. A protocol for

managing systems and devices in a network. Supports the retrieving data, writing data, and setting traps indicating events.

Top ol og y The logical and/or physical arrangement of stations on a

network. Fibre Channel topologies include point-to-point, Arbitrated Loop, and switched fabric.

Tra ns ce iv er A device that converts one form of signaling to another for both

transmission and reception. SFPs and GBICs are transceivers.

Zoning Dividing a network into separate areas to group devices and

isolate traffic.

Page 73

Index

AL_PA-Loop ID Cross References.... 67

attaching devices................................5

cascading switches .............................9

Command Line Interface (CLI)........ 36

configuring switch ....................37

configuring switch information. 38

configuring traps ......................41

connecting to............................36

DHCP requests.........................38

downloading firmware ............. 39

event log...................................51

event log commands .................46

hardware reset..........................51

logging on and off ....................36

management settings.................43

managing firmware...................39

non-overlapping zones.............. 53

overlapping zones.....................52

password ..................................43

policy settings...........................43

port settings..............................49

reset commands........................ 46

reset factory default settings .....51

switch IP parameters.................38

switch reset...............................51

switch speed ............................. 52

switching mode.........................47

threshold settings...................... 43

zoning.......................................52

configuring the network.....................3

customer support.............................54

desktop installation............................ 3

DHCP.............................................. 38

event log ..........................................19

CLI display...............................51

event log messages ...........................63

Fibre Channel

references..................................56

Fibre Channel-Arbitrated Loop..........2

firmware

downloading.......................19

, 39

managing............................18

, 39

glossary............................................ 68

InSpeed Technology ........................... 2

installation.........................................3

introduction.......................................1

LEDs.................................................. 6

port ........................................6

, 7

system......................................... 6

logging on and off......................12

, 36

Loop ID-AL_PA Cross References ...67

managing the switch ..................11, 36

network configuration .......................3

non-overlapping zones ...............33

, 53

operating conditions........................ 59

overlapping zones......................32

, 52

password ...................................12, 36

changing...................................43

policies.......................................29

, 44

port LEDs..........................................6

Power On Systems Test (POST) ......... 4

references

Fibre Channel...........................56

Page 74

Vixel Model 335 Installation & Configuration Guide Index

setup..................................................5

SFPs...................................................4

shipped contents ..............................11

specifications ...................................58

switch ................................................ 5

attaching devices......................... 5

cascading....................................9

changing the password ............. 43

CLI...........................................36

configuration......................13

, 37

configuring traps ......................41

desktop installation ....................3

DHCP requests.........................38

downloading firmware ............. 39

event log messages....................63

features....................................... 1

installation..................................3

LEDs ..........................................6

management .............................11

operating conditions.................59

overview.....................................1

policy settings.....................29

, 44

port LEDs...................................7

port settings........................25, 49

reset hardware .......................... 51

resetting..............................13, 51

resetting to factory defaults ......51

shipped contents.......................11

specifications ............................58

system LEDs...............................6

unpacking...................................3

web manager ............................11

zone settings .............................31

switching mode..........................16

, 47

technical support .............................54

terms

see glossary...............................68

transceivers........................................4

traps ................................................41

troubleshooting................................54

SFP issues .................................56

unpacking the switch .........................3

web manager ...................................11

configuring the switch .............. 13

connecting to............................11

downloading configuration.......17

downloading firmware ............. 19

event log...................................19

FC switch information.............. 20

firmware settings ......................18

logging on and off ....................12

navigation................................. 12

network settings ....................... 15

non-overlapping zones.............. 33

OS information.........................21

overlapping zones.....................32

policy settings...........................29

port settings..............................25

port usage information .............23

switch identification ................. 16

switch reset............................... 13

switch speed ............................. 16

switching mode.........................16

system information settings ...... 14

time settings..............................17

zone settings .............................31

zoning

non-overlapping zones........33

, 53

overlapping zones...............32

, 52

settings in CLI .......................... 52

settings in web manager............31

Vixel InSpeed 335 Installation & Configuration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
