DUAL SCREEN MOBILE DVD

PVS7980



NEED MORE HELP?



DO NOT RETURN THIS



PRODUCT TO THE STORE

OWNER’S MANUAL

Please visit online help at





http://www.venturer.com

Safety Precautions

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICINGTO QUALIFIED

SERVICE PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.

CAUTION:

Use of controls, adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.

DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

INVISIBLE LASER RADIATION WHEN

OPEN.

AVOID EXPOSURE TO BEAM.

This product contains a low power laser device.

CLASS 1 LASER PRODUCT

Placement INFORMATION

Do not use this unit in places that are extremely hot, cold, dusty, or humid.

Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, or by placing it on bedding or carpeting.

Safety INFORMATION

When connecting or disconnecting the Car power adapter, grip the power and not the cord itself. Pulling the cord may damage it and create a hazard.

E - 1

811-798191W012.indd 1

4/1/2008 5:00:56 PM

When you are not going to use the unit for a long period of time, disconnect the Car power adapter.

Condensation INFORMATION

When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1-2 hours before turning the power on or gradually heat the room and allow the unit to dry before use.

FCC Information

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment, when used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an AC power outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

WARNING: Should any problems occur, disconnect the Car power adapter and refer servicing to a qualified technician.

IMPORTANT SAFETY PRECAUTIONS

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with a dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type power. A polarized power has two blades with one wider than the other. A grounding type power has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.When the provided power cord does not fit into yourAC power outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the AC power cord from being

E - 2

walked on or pinched particularly at the power, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories s p e c i f i e d b y t h e manufacturer.

12.Use only with the cart, stand, tripod, bracket, or

tablespecifiedbythemanufacturer,or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplugthisapparatusduringlightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the AC power cord is damaged, liquid has spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

811-798191W012.indd 2

4/1/2008 5:00:57 PM

TABLE OF CONTENTS

SAFETY PRECAUTIONS ..............

1 - 2

IMPORTANT SAFETY INSTRUCTIONS .

..........................................................

2

TABLE OF CONTENTS ......................

3

DISC FORMATS ................................

4

MAINTENANCE ...............................

5

ACCESSORIES ..................................

5

GETTING STARTED ..........................

5

REMOTE CONTROL REFERENCE GUIDE

..........................................................

6

UNIT AND MONITOR REFERENCE

GUIDE ..............................................

7

power supply ...............................

8

CONNECTIONS ........................

9 - 11

Watching a DVD on the Main Unit

and the Monitor ...........................

9

Watching a TV on Main Unit ........

9

Listening to a Stereo Receiver or an

Amplifier on the Main Unit ........

10

Playing Game System/Video

Equipment on the Monitor .........

10

Using the Monitor with Other

Equipment while Playing DVDs on the

Main Unit ................................

11

Using Headphones/Earphones

.... 11

PLACEMENT ..............................

12-13

Mounting in the Vehicle .............

12

Using the Stand ..........................

13

SOUND SYSTEM ............................

13

CD/DVD OPERATION ...................

14

Playing a Disc ............................

14

Playing a Picture File Disc ..........

14

Angle Selection (DVD) ...............

14

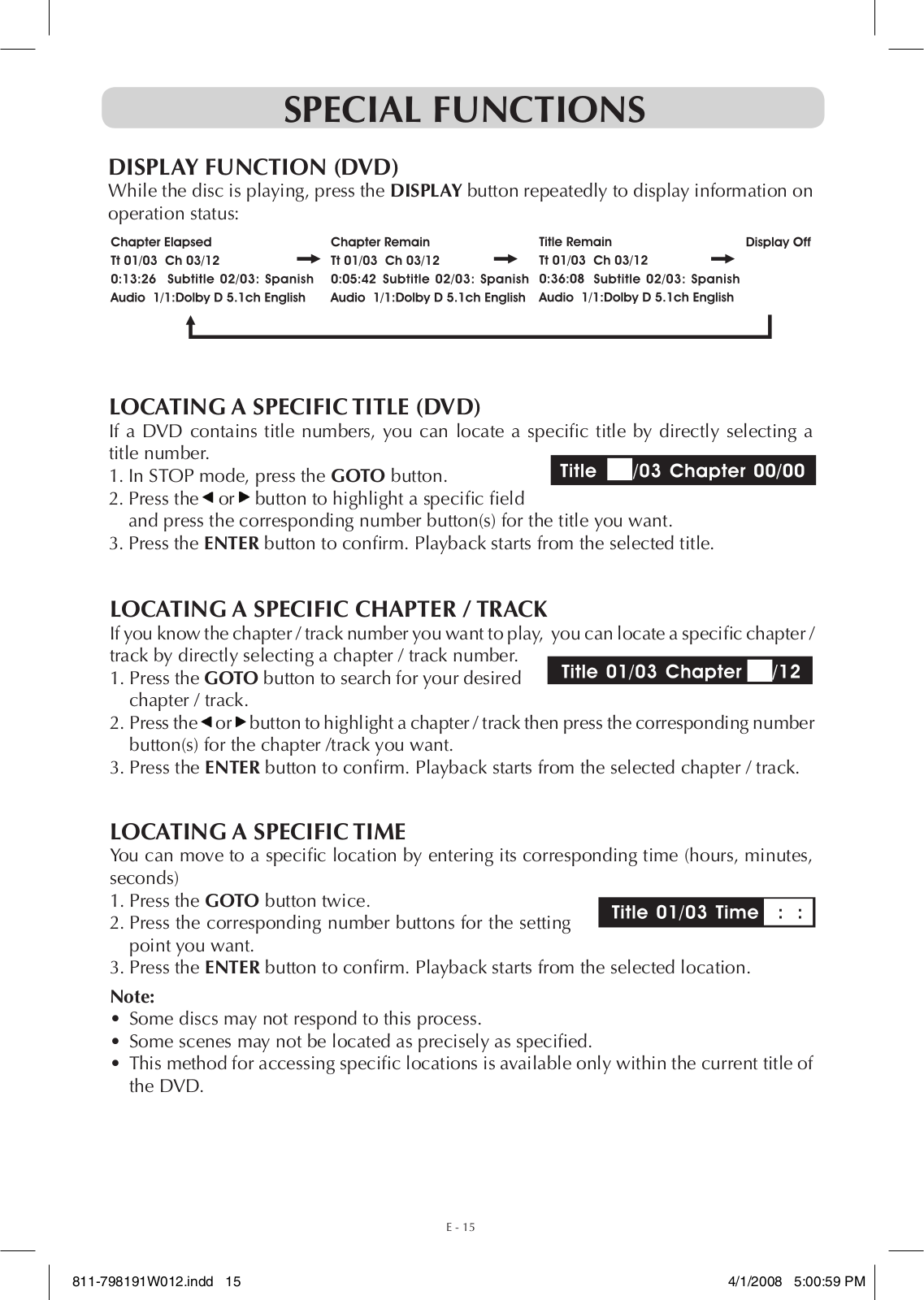

SPECIAL FUNCTIONS ....................

15

Display Function (DVD) .............

15

Locating a Specific Title (DVD) ... 15

Locating.

a Specific Chapter/Track ......

...................................................





15

Locating a Specific Time .............

15

REPEAT PLAYBACK .........................

16

Repeating a Chapter/Title (DVD) ........

...................................................





16

Repeating a Single Track/an Entire

Disc (CD)

...................................

16

Repeating.

a Specific Section (DVD/

CD) ............................................





16

DVD PROGRAMMABLE PLAYBACK ......

........................................................





17

Programmable Memory ..............

17

Title/Chapter Programmed Playback

(DVD)

.....................................



17

CUSTOMIZING THE DVD FUNCTION

SETTINGS .................................





17-18

Language ..........................Setup

17

Video Setup ...............................

18

System Setup ..............................

18

TROUBLE SHOOTING ......GUIDE

19

LIMITED WARRANTY ...............

BACK

E - 3

811-798191W012.indd 3

4/1/2008 5:00:57 PM

DISC FORMATS

This unit can playback:









DVDs



audio cds



CD-R/CD-RW









[8cm/12cm disc]



[8cm/12cm disc]



Compatible





Region Management Information

Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

The region number of this unit is .

Disc Function or Operation that is Not Available

When the symbol appears on the screen, it indicates that the function or operation attempted is not available at that time. This occurs because the DVD manufacturer determines the specific functions. Certain functions may not be available on some discs. Be sure to read the documentation provided with the DVD.

Icons Used on DVDs

Sample lcons

Note:

• WhenplayingbackaCD-G(Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not be shown.

TitleS, ChapterS and Tracks

DVDs are divided into “titles” and “chapters”. If the DVD has more than one movie on it, each movie would be a separate “title”. “Chapters” are sections of “titles”.

Audio CDs are divided into “tracks”. A “track” is usually one song on an Audio CD.

Note:

Numbersidentifyeachtitle,chapter,andtrackon a disc. Most discs have these numbers recorded on them, but some do not.

Language selections for audio

Language selections for subtitles Screen aspect ratio

Multiple camera angles

Region code indicator

Notes on Unauthorized Discs:

You may not be able to play some DVDs on this unit if they were purchased from outside your geographical area or made for business purposes.

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission.

Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936 licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

E - 4

811-798191W012.indd 4

4/1/2008 5:00:57 PM

MAINTENANCE

Cleaning THE Disc

A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges.

Do NOT touch the surface of the unlabeled side of the disc.

Do NOT stick paper or tape on the surface.

Do NOT expose the disc to direct sunlight or excessive heat.

Clean the disc before

playback. Wipe the disc from the center outward with a cleaning cloth.

NEVER use solvents such as benzine or alcohol to clean the disc.

Do NOT use irregular shaped discs (example:

heart shaped, octagonal, etc.). They may cause malfunctions.

Cleaning the unit

Be sure to turn the unit off and disconnect the AC power cord before maintaining the unit.

Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak soap-and-water solution and wrung out thoroughly. Then wipe with a dry cloth.

Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. Do NOT use compressed air to remove dust.

Important Note

Before transporting the unit, remove the disc from the disc compartment.

Accessories

Please LOCATE the INCLUDED accessories.

To order replacement units, visit http://www.venturer.com

Remote Control (with battery) .........

x 1

DC-AV Cable ....................................

x 1

Car Power Adapter ..........................

x 1

Straps ................................................

x 2

GETTING STARTED

Using the Remote Control

Point the remote control at the REMOTE

SENSOR located on the unit.

Whenusingthisunitinbrightlight,theinfrared

REMOTE CONTROL SENSOR may not work properly.

The recommended effective distance for using the remote control is about 16 feet.

TO CHANGE REMOTE BATTERY

1. Open the battery door.

2. Insert one

CR2025 (3V) size battery.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Remove the PVC sheet before operating the Remote Control.

BATTERY REPLACEMENT

When the battery becomes weak, the operating distance of the remote control will be greatly reduced and you will need to replace the battery.

Note:

If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.

When discarding battery, environmental problems must be considered and local rules of laws governing the disposal of this battery must be followed strictly.

WARNING:

Do not dispose of batteries in a fire. They may leak and/or explode.

The battery should not be exposed to excessive heat such as sunshine, fire or the like.

E - 5

811-798191W012.indd 5

4/1/2008 5:00:57 PM

remote CONTROL REFERENCE GUIDE

1)VIDEO MODE Button

Press to adjust Brightness, Panel Display or Contrast.

2) PREV Button

Press to move back through titles, chapters or tracks on a disc.

3) / SEARCH Buttons

SEARCH: Fast reverse playback.

SEARCH: Fast forward playback.

4)GOTO Button

Press to skip directly to a location on a DVD.

5)Cursor (, , , ) Buttons

Press to highlights selections on a menu screen and adjust certain settings.

ENTER Button

Press to confirm selections on a menu screen.

6)MEMORY Button

In DVD play mode, enter the number of a selected titles or chapters.

7)Number (0 - 9) Buttons

Press to creat programs and locate a title/ chapter/track or specific time.

8)REPEAT A-B Button

Press to perform point-to-point repeat playback on a DVD or CD.

REPEAT DISC button

Press to repeat a DVD chapter or title. Press to repeat a CD track or the entire disc.

SETUP Button

In STOP mode, press to enter the unit’s SETUP menu.

9)SUBTITLE Button

Press to select one of the subtitle languages programmed on a DVD (if available).

RETURN Button

Press to return to normal operation after using the SETUP menu of a DVD.

10)AUDIO Button

Press to select audio soundtracks of a DVD or change output mode of a CD.

11)ANGLE Button

Press to switch the camera angle of the video presentation when scenes with multiple camera angles are recorded on a DVD.

12)DISPLAY Button

Press to show status information on the screen.

13) STOP Button

Press to stop playing a disc.

PLAY Button

Press to start or resume playback of a disc.

PAUSE Button

Press to pause playback and frame advance.

14) NEXT Button

Press to move forward through titles, chapters or tracks on a disc.

15)MENU Button

Press to enter and exit the main DVD menu.

E - 6

811-798191W012.indd 6

4/1/2008 5:00:57 PM
