UTRON UT51C164MC-60, UT51C164MC-50, UT51C164MC-40, UT51C164MC-35, UT51C164JC-60 Datasheet

UTRON	UT51C164
Rev 1.4	256K X 16 BIT EDO DRAM
FEATURES

RAS access time: 35, 40, 50, 60

2 CAS Byte/Word Read/Write operation CAS - before – RAS refresh capability RAS only and Hidden refresh capability

Early write or output enable controlled write Extended Data Out operation

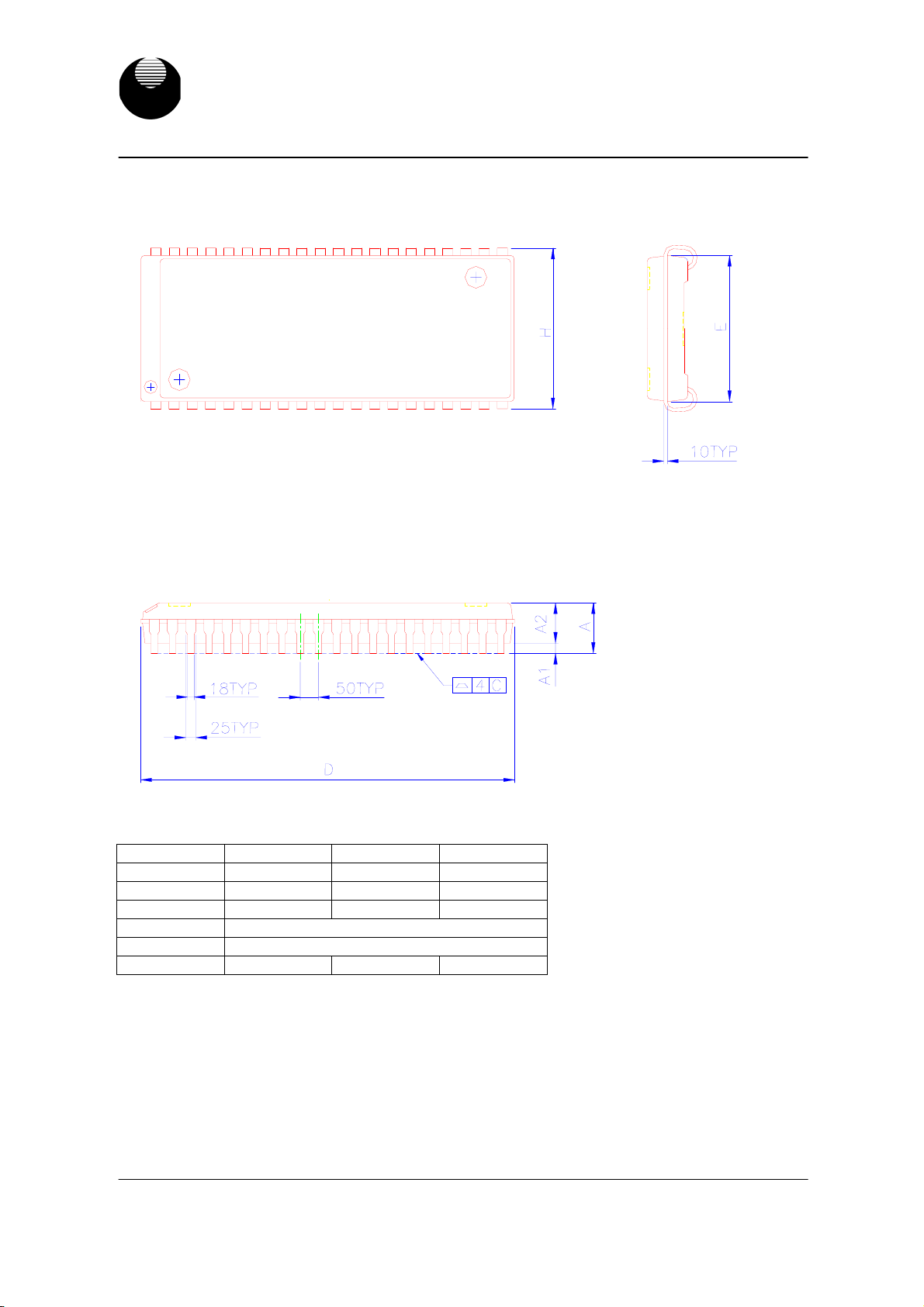

Package : 40 pin 400mil SOJ

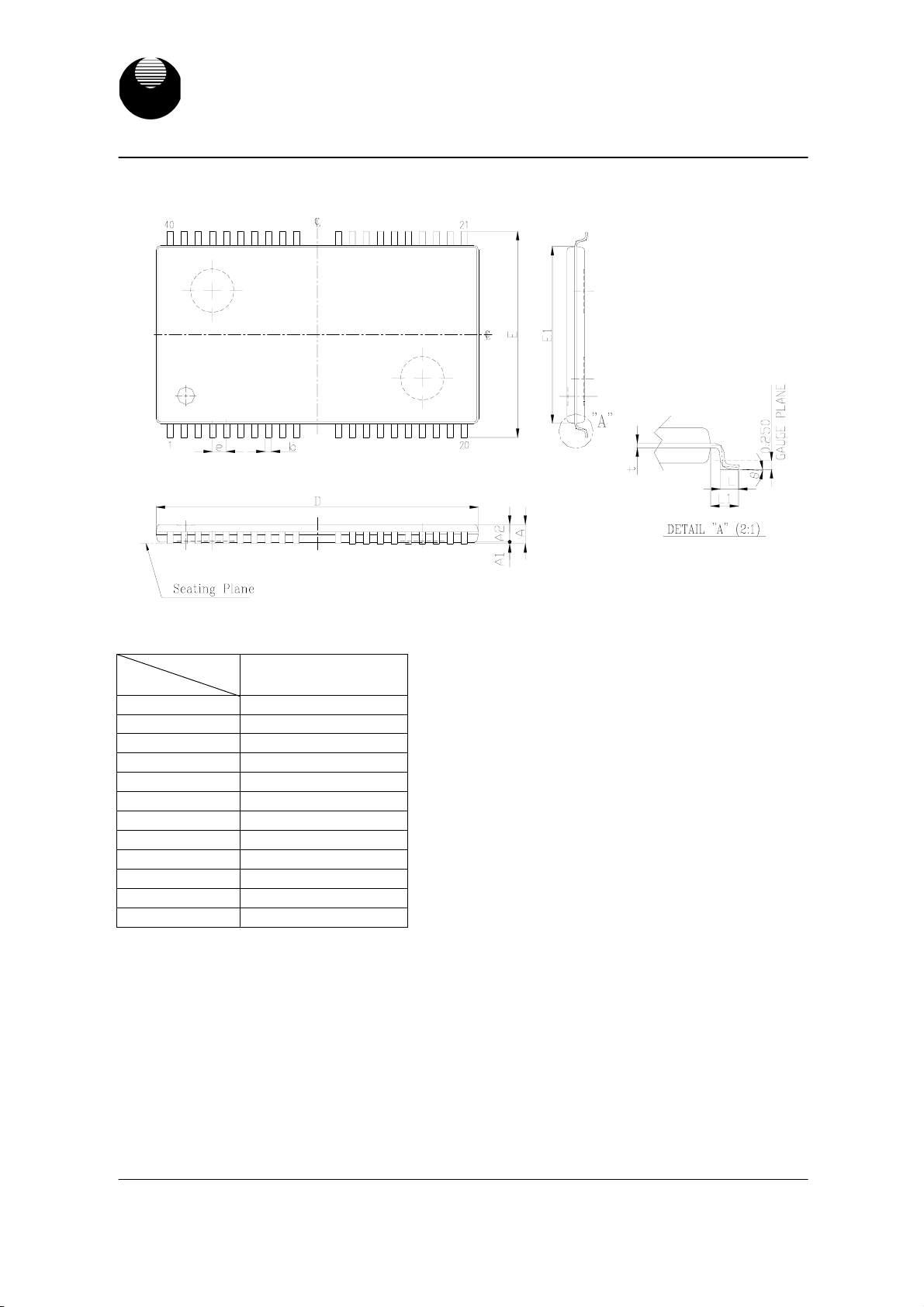

40 / 44 pin 400mil TSOPSingle +5V+10% power supply

TTL compatible inputs and outputs 512 refresh cycles /8ms

Speed	-35	-40	-50	-60
tRAC	35ns	40ns	50ns	60ns
tCAA	18ns	20ns	24ns	30ns
tPC	14ns	15ns	19ns	27ns
tCAC	11ns	12ns	14ns	15ns
tRC	70ns	75ns	90ns	110ns

GENERAL DESCRIPTION

The UT51C164 is high speed 5V EDO DRAMs organized as 256K bit X 16 I/O and fabricated with the CMOS process. The UT51C164 offers a combination of unique features including : EDO Page Mode operation for higher bandwidth with Page Mode cycle time as short as 14ns. All inputs are TTL compatible. Input and output capacitance is significantly lowered to increase performance and minimize loading. These features make the UT51C164 suited for wide variety of high performance computer systems and peripheral applications

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

1

							UTRON				UT51C164
Rev 1.4										256K X 16 BIT EDO DRAM
PIN DESCRIPTION
SYMBOL									DESCRIPTION
A0-A8									Address Inputs
									Row Address Strobe
	RAS
									Column Address Strobe / Upper Byte Control
	UCAS
									Column Address Strobe / Lower Byte Control
	LCAS
									Write enable
		WE
									Output enable
		OE
DQ0-DQ15									Data Inputs, Data Outputs
VDD									+5V Supply
Vss									0V Supply
NC									No Connect
PIN CONFIGURATIONS
								UT51C164		UT51C164
								40pin SOJ		40pin TSOP -

VDD				1	40
DQ0				2	39
DQ1				3	38
DQ2			4		37
DQ3					36
			5
VDD				6	35
DQ4			7		34
DQ5					33
				8
DQ6			9		32
DQ7					31
				10
NC			11		30
NC					29
			12
WE			13		28
RAS				14	27
NC			15		26
A0					25
				16
A1			17		24
A2					23
				18
A3			19		22
VDD				20	21

		Vss			VDD		1	40
		DQ15			DQ0		2	39
		DQ14			DQ1		3	38
		DQ13			DQ2		4	37
					DQ3			36
		DQ12					5
					VDD			35
		Vss					6
		DQ11			DQ4		7	34
		DQ10			DQ5			33
					DQ6		8
		DQ9						32
					DQ7		9
		DQ8						31
		NC					10
		LCAS			NC		11	30
		UCAS
					NC		12	29
		OE
		A8			WE		13	28
					RAS		14	27
		A7
		A6			NC		15	26
					A0		16	25
		A5
		A4			A1		17	24
					A2			23
		Vss					18
					A3		19	22
					VDD			21
							20

Vss

DQ15

DQ14

DQ13

DQ12

Vss

DQ11

DQ10

DQ9

DQ8

NC LCAS UCAS OE A8 A7 A6 A5 A4 Vss

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

2

UTRON									UT51C164
Rev 1.4				256K X 16 BIT EDO DRAM
FUNCTION BLOCK DIAGRAM									V	V
		WE		UCAS		LCAS		RAS
A0 A1 . . A7 A8	OE								SS	DD
. .

Address Buffers

& Predecoders

Y8 – Y0

Decoder Column	CS X512

9	Refresh Counter	Control Circuit
	X0
	–
	X8

Row Control Circuit

Row Decoder

Array Cell 16 x 512 x 512 Amp Sense

x16

FSA & Write in Circuit

x16

Input & Output Buffer

x16 DQ[0,15]

BBV

GENERATOR

BBV

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

3

	UTRON			UT51C164
	Rev 1.4		256K X 16 BIT EDO DRAM
	ABSOLUTE MAXIMUM RATINGS
	PARAMETER	SYMBOL	VALUE	UNIT
	Voltage on any pin relative to Vss	VT	-1.0 to +7	V
	Supply voltage relative to VSS	VDD	-1.0 to +7	V
	Short circuit output current	IOUT	50	mA
	Power dissipation	PD	1.0	W
	Operating temperature	TA	0 to + 70	ºC
	Storage temperature	TSTG	-55 to +125	ºC

Notes: Permanent device damage may occur if absolute maximum ratings are exceed.

RECOMMENDED DC OPERATING CONDITIONS (TA = 0 to 70ºC)

PARAMETER	SYMBOL		5.0V		UNIT	NOTES
		MIN		MAX
Supply voltage	VDD	4.5		5.5	V	1
	Vss	0		0	V	-
Input high voltage	VIH	2.4		VDD +1V	V	1
Input low voltage	VIL	-0.3		0.8	V	1

Notes: 1. All Voltage referred to Vss

CAPACITANCE (TA = 25ºC, VDD= 5V±0.5V f=1MHz)

PARAMETER

SYMBOL

TYP

MAX

UNIT

Input capacitance (A0-A8)

CIN1

3

4

pF

Input Capacitance

CIN2

4

5

pF

(

RAS

,

UCAS

,

LCAS

,

WE

,

OE

)

Output capacitance(DQ0-DQ15)

CDQ

5

7

pF

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

4

			UTRON									UT51C164
	Rev 1.4								256K X 16 BIT EDO DRAM
	DC CHARACTERISTICS (TA = 0 to 70ºC, VDD = 5.0 V ± 0.5 V, Vss = 0 V)
	SYMBOL	PARAMETER					SPEED	UT51C164		UNIT	TEST CONDITION
							(tRAC)	Min	Max
		Operating Current,					-35	-	190
	IDD1						-40	-	180	mA	tRC = tRC (min.)
		VDD Supply					-50	-	170
							-60	-	160
		Standby Current											=				=
	IDD2						-	-	3	mA		RAS			UCAS			LCAS
			(TTL Input)								=VIH
					Only	Refresh	-35	-	190
	IDD3		RAS				-40	-	180	mA	tRC = tRC (min.)
		Current					-50	-	170
							-60	-	160
		EDO			Page	Mode	-35	-	220
	IDD4						-40	-	200	mA	tPC = tPC (min.)
		Current					-50	-	190
							-60	-	180
							-35	-	190
	IDD5	CBR Refresh Current					-40	-	180	mA	tRC = tRC (min.)
							-50	-	170
							-60	-	160
														VDD-0.2V
	IDD6	Standby Current					-	-	2	mA		RAS
											CAS VDD-0.2V
		(CMOS Input)
											All other inputs VSS
	VDD	Power Supply					-	4.5	5.5	V
	ILI	Input Leakage Current					-	-10	10	uA	VSS VIN VDD
	ILO	Output				Leakage	-	-10	10	uA	VSS VOUT VDD
		Current
											RAS = CAS = VIH
	VIL	Input Low Voltage					-	-1	0.8	V
	VIH	Input High Voltage					-	2.4	VDD +1	V
	VOL	Output Low Voltage					-	-	0.4	V	IOI = 2mA
	VOH	Output High Voltage					-	2.4	-	V	IOH = 2mA

Notes: IDD1, IDD3, IDD4, IDD5 are dependent on output loading and cycle rates. Specified values are obtained with the output open. IDD is specified as an average current. In IDD1, IDD3, and IDD5 address can be changed maximum once while

RAS =VIL. In IDD4, address can be changed maximum once within one EDO page cycle time, tPC.

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

5

		UTRON																																					UT51C164
Rev 1.4																																				256K X 16 BIT EDO DRAM

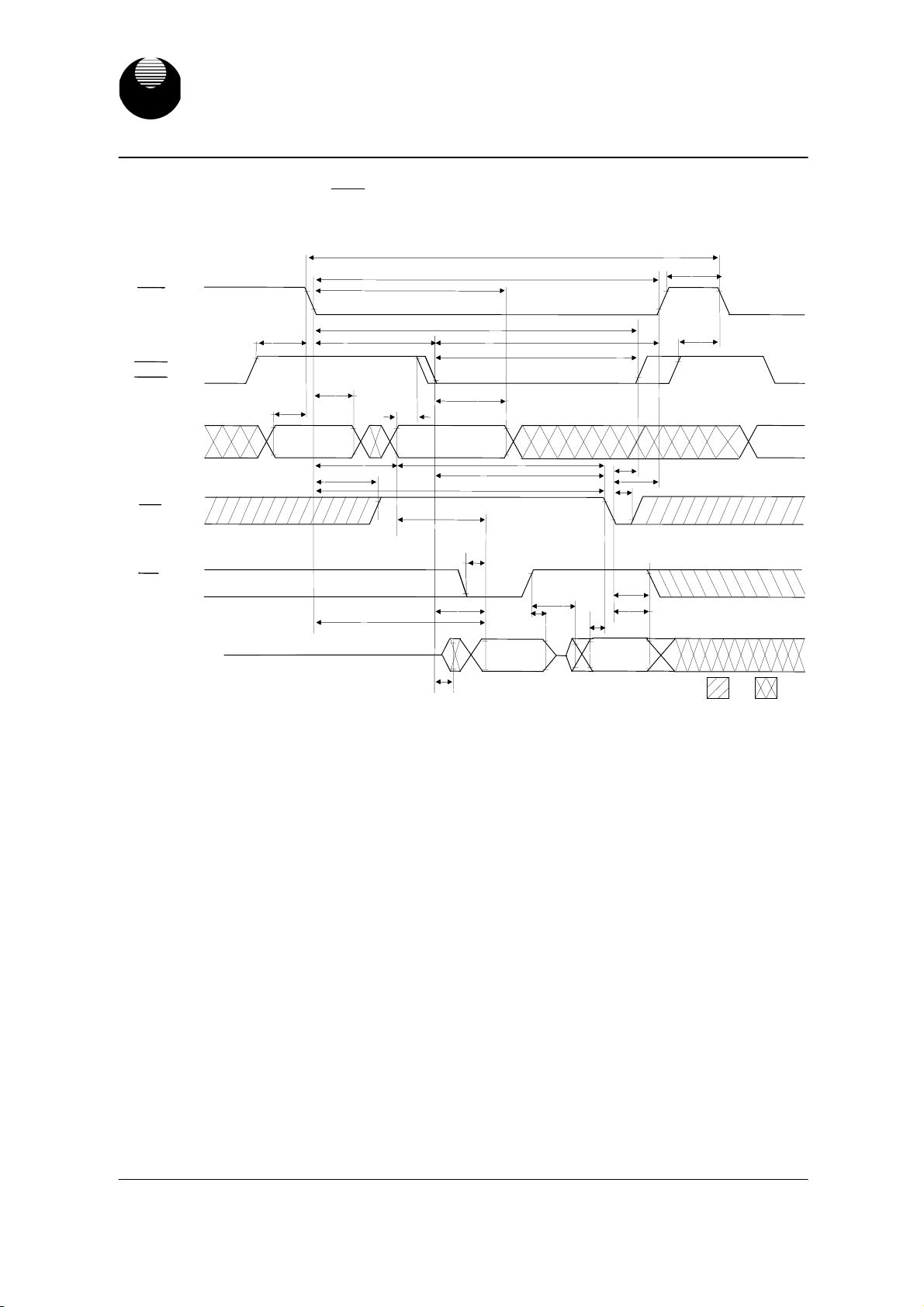

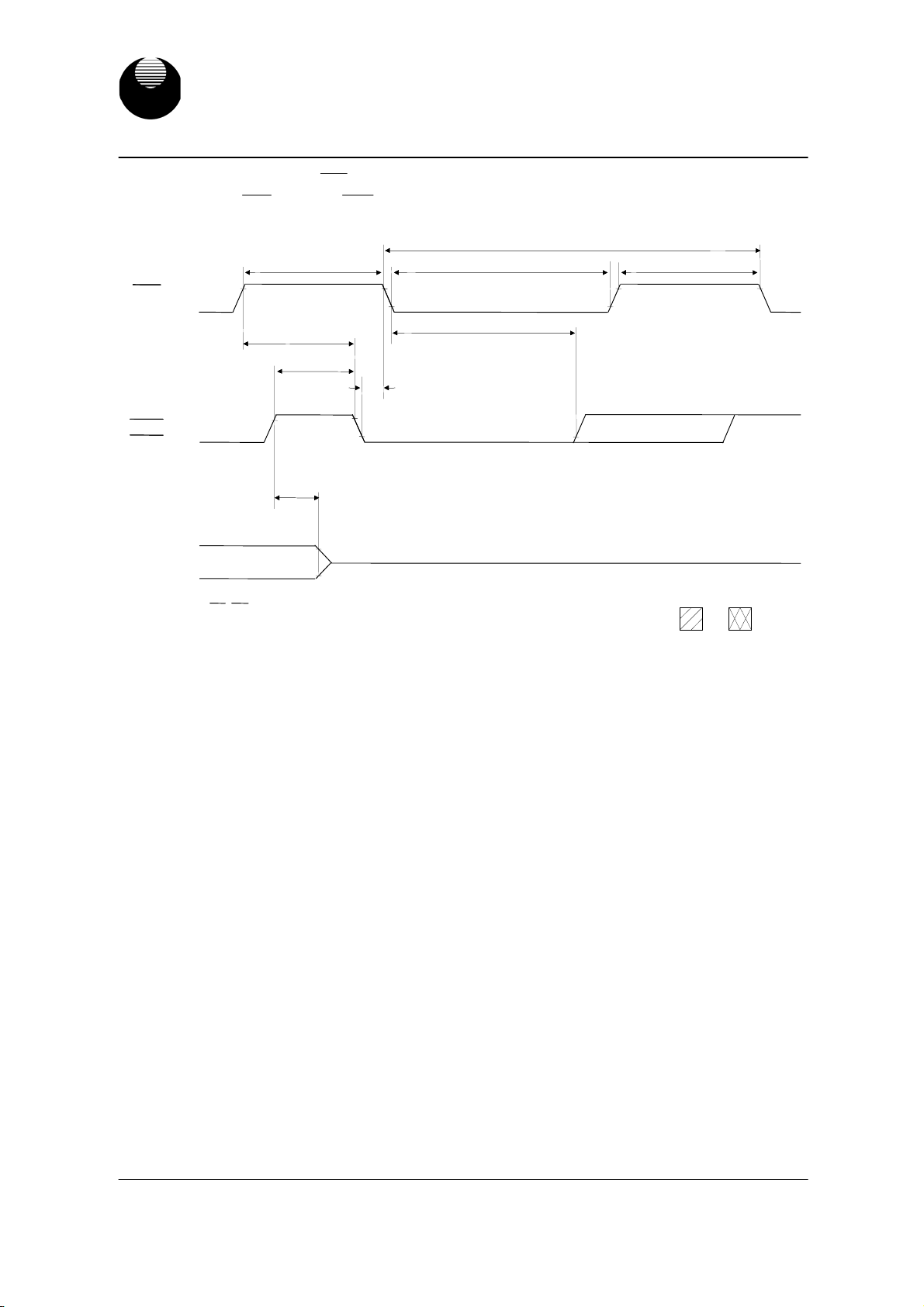

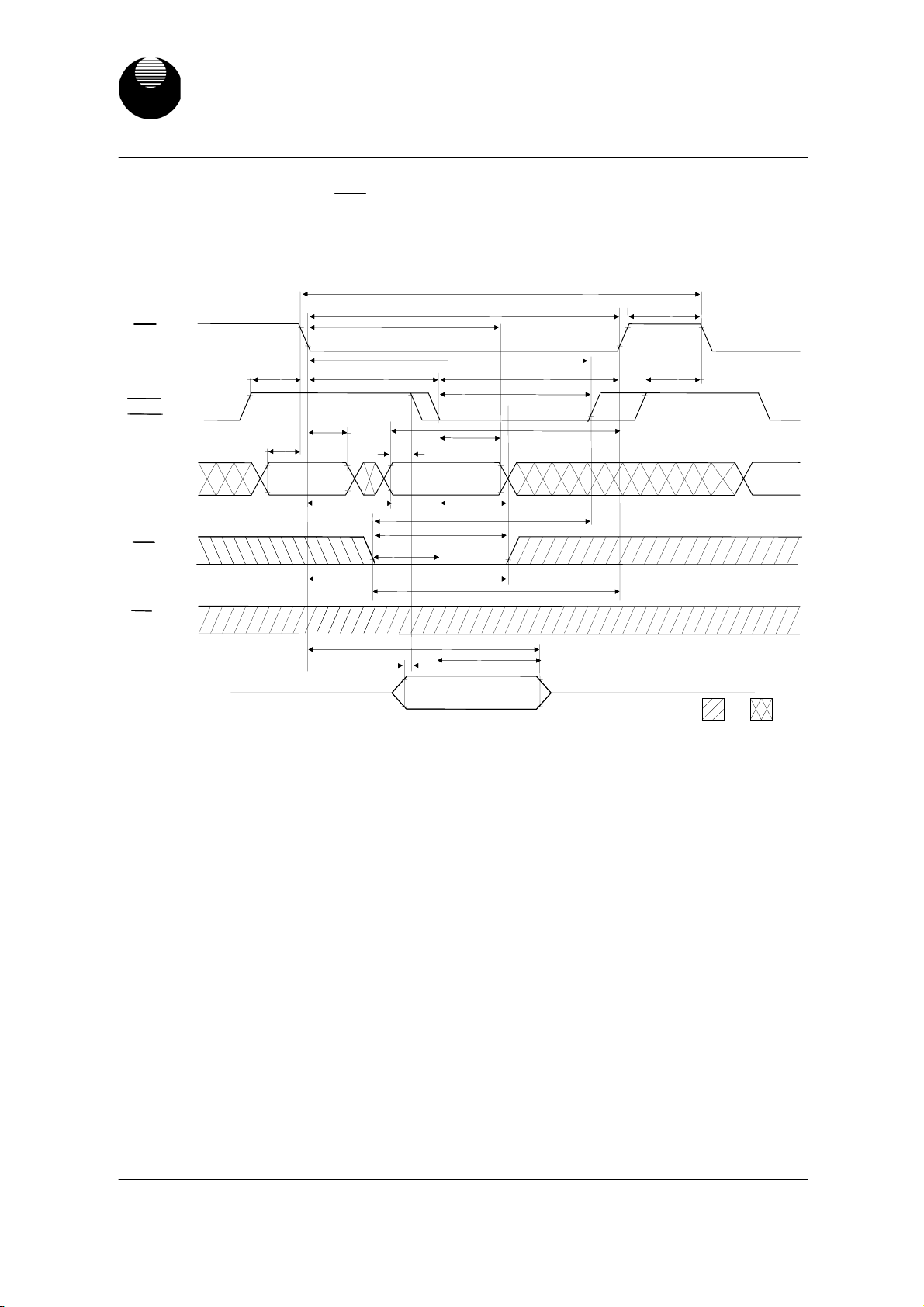

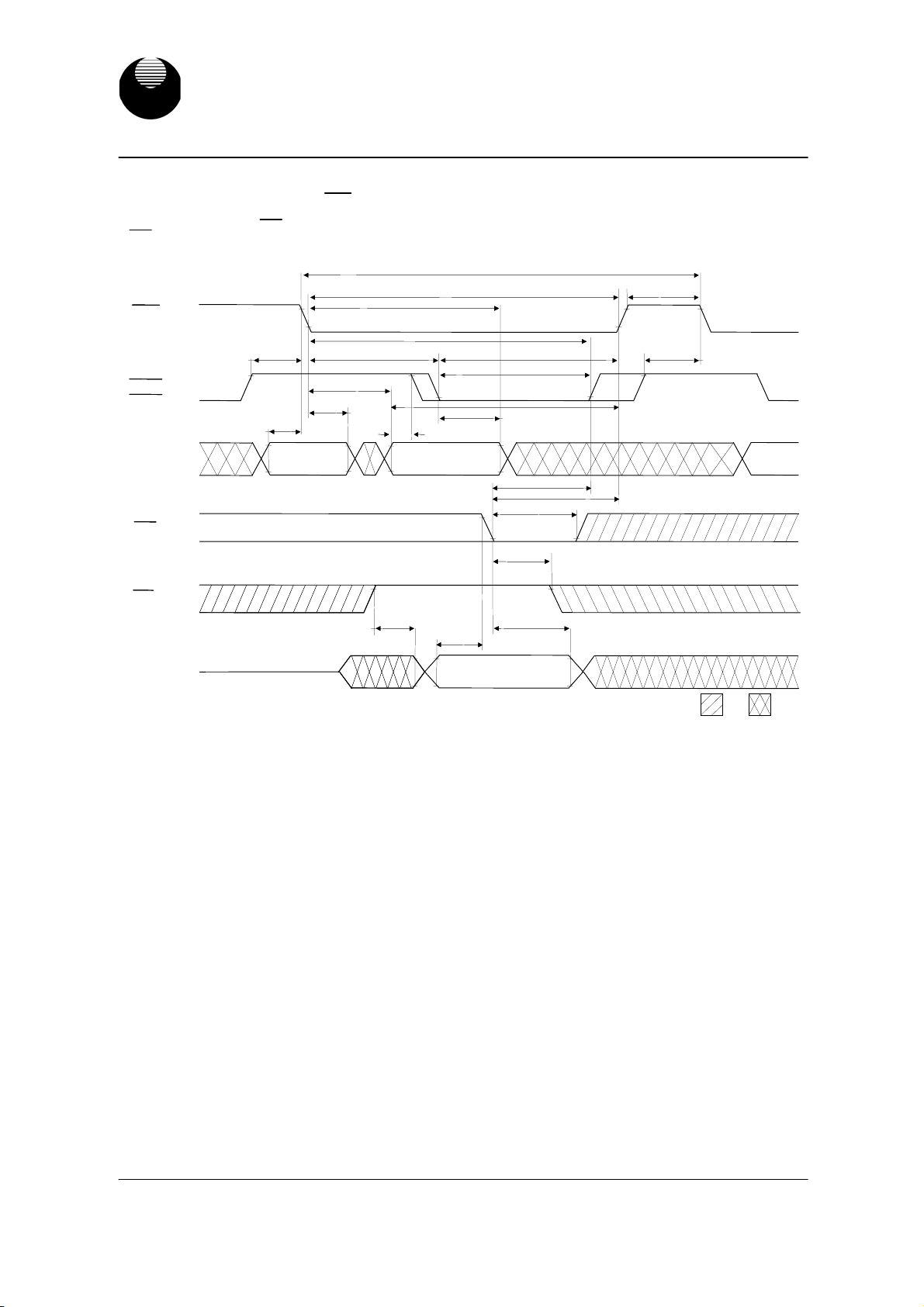

AC CHARACTERISTICS (TA = 0 to 70°C)
Test condition: VDD = 5.0V±0.5V, VIH / VIL=3V / 0V, VOH / VOL=2.0 / 0.8)
	SYMBOL		PARAMETER																												35			40			50			60		UNIT	NOTE
																														Min.		Max.	Min.		Max.	Min.		Max.	Min.		Max.
1	tRAS											Pulse Width																		35		75K	40		75K	50		75K	60		75K	ns
						RAS
2	tRC		Read or Write Cycle Time																											70			75			90			110			ns
3	tRP											Precharge Time																		25			25			30			40			ns
				RAS
4	tCSH											Hold Time																		35			40			50			60			ns
					CAS
5	tCAS											Pulse Width																		8			8			10			10			ns
					CAS
6	tRCD											to								Delay										13		24	17		28	19		36	20		45	ns
					RAS									CAS
7	tRCS		Read Command Setup Time																											0			0			0			0			ns	*1
8	tASR		Row Address Setup Time																											0			0			0			0			ns
9	tRAH		Row Address Hold Time																											6			7			9			10			ns
10	tASC		Column Address Setup Time																											0			0			0			0			ns
11	tCAH		Column Address Hold Time																											6			7			9			10			ns
12	tRSH											to									Hold Time									10			12			14			15			ns
				RAS											CAS
												to								Precharge
13	tCRP				CAS										RAS															5			5			5			5			ns
			Time
14	tRCH		Read Command Hold Time																											0			0			0			0			ns	*2
			Reference CAS
15	tRRH		Read Command Hold Time																											0			0			0			0			ns	*2
			Reference RAS
												Hold Time Referenced
16	tROH			RAS																										7			8			10			10			ns
			to OE
17	tOAC		Access Time from																													11			12			14			15	ns	*9
																								OE
18	tCAC		Access Time from																													11			12			14			15	ns	*3,4,11
																							CAS
19	tRAC		Access Time from																													35			40			50			60	ns	*3,5,6
																							RAS
20	tCAA		Access Time From Column																													18			20			24			30	ns	*3,4,7
			Address
21	tLZ							or										to Low-Z Output												0			0			0			0			ns	*13
					OE								CAS
								or										to High-Z
22	tHZ				OE								CAS																	0		5	0		6	0		8	0		10	ns	*13
			Output
23	tAR		Column Address Hold Time																											25			30			40			50			ns
			from RAS
									to Column Address
24	tRAD			RAS																										10		17	12		20	14		26	15		30	ns	*8
			Delay Time
25	tT		Transition Time																											1.5		50	1.5		50	1.5		50	1.5		50	ns	*12
			Write Command to
26	tCWL																								CAS					8			10			10			10			ns
			Lead Time
27	tWCS		Write Command Setup Time																											0			0			0			0			ns	*9,10
28	tWCH		Write Command Hold time																											5			6			7			10			ns
29	tWP		Write Pulse Width																											5			6			7			10			ns

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

6

		UTRON																																		UT51C164
Rev 1.4																																	256K X 16 BIT EDO DRAM
AC CHARACTERISTICS ( continued )
	SYMBOL		PARAMETER																										35		40			50		60		UNIT	NOTE
																													Min.	Max.	Min.	Max.		Min.	Max.	Min.	Max.
30	tWCR		Write Command Hold Time																										25		30			40		50		ns
			from RAS
			Write Command to
31	tRWL																					RAS							11		12			14		15		ns
			Lead Time
32	tDS		Data in Setup Time																										0		0			0		0		ns	*11
33	tDH		Data in Hold Time																										5		6			7		10		ns	*11
34	tWOH		Write to														Hold time												5		6			8		10		ns	*11
													OE
35	tOED							to Data Delay Time																					5		6			8		10		ns	*11
					OE
36	tRWC		Read-Modify-Write Cycle Time																										105		110			130		170		ns
37	tRRW		Read-Modify-Write Cycle Time																										70		75			85		105		ns
				RAS Pulse Width
											to								Delay in Read-
38	tCWD			CAS										WE															28		30			34		40		ns	*9
			Modify-Write Cycle
											to								Delay in Read-
39	tRWD			RAS										WE															54		58			68		85		ns	*9
			Modify-Write Cycle
40	tCRW										pulse Width in RMW																		46		48			52		65		ns
				CAS
			Column Address to																							Delay
41	tAWD																						WE						35		38			42		58		ns	*9
			Time
42	tPC		EDO Page Mode Read or																										14		15			19		27		ns
			Write Cycle Time
43	tCP								Precharge Time																				4		5			7		10		ns
				CAS
44	tCAR		Column Address to																										18		20			24		30		ns
				RAS Setup Time
45	tCAP		Access Time from Column																											20		23			27		34	ns	*4
			Precharge
46	tDHR		Data in Hold Time Referenced																										25		30			40		50		ns
			to RAS
											Setup Time in CBR
47	tCSR			CAS																									8		10			10		10		ns
			Refresh
										to									Precharge
48	tRPC			RAS										CAS															0		0			0		0		ns
			Time
									Hold Time in CBR
49	tCHR			CAS																									8		9			12		15		ns
			Refresh
50	tPCM		EDO Page Mode Cycle Time																										55		60			70		85		ns
			in RMW
51	tCOH		Output Hold After																						Low				3		3			3		3		ns
																					CAS
								Low to												High Setup
52	tOES				OE												CAS												3		4			6		8		ns
			Time
								Hold Time from																				in
53	tOEH			OE																				WE					5		6			8		10		ns
			RMW Cycle
54	tOEP							Pulse Width																					8		10			14		18		ns
				OE
55	tREF		Refresh Interval (512 Cycles)																											8		8			8		8	ms	*14

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

7

UTRON	UT51C164
Rev 1.4	256K X 16 BIT EDO DRAM

Notes:

1. tRCD (Max.) is specified for reference only. Operation within tRCD (Max.) limits insures that tRAC (Max.) and tCAA (Max.) can be met. If tRCD is greater than the specified tRCD (Max.), the access time is controlled by tCAA and tCAC.

2.Either tRRH or tRCH must be satisfied for Read Cycle to occur.

3.Measured with a load equivalent to one TTL input and 50pF.

4.Access time is determined by the longest of tCAA , tCAC and tCAP .

5.Assumes that tRAD tRAD (Max.). If tRCD is greater than tRCD (Max.), tRAC will increase by the amount that tRCD exceeds tRCD (Max.)

6.Assumes that tRCD tRCD (Max.). If tRCD is greater than tRCD (Max.), tRAC will increase by the amount that tRAD exceeds tRAD (Max.)

7.Assumes that tRAD tRAD (Max.).

8.Operation within the tRAD (Max.) limits ensures that tRA can be met. tRAD (Max.) is specified as a reference point only. If tRAD is greater than the specified tRAD (Max.), the access time is controlled

by tCAA and tCAC.

9.tWCS , tRWD , tAWD and tCWD are not restrictive operating parameters.

10.tWCS (min.) must be satisfied in an Early Write Cycle.

11.tDS and tDH are referenced to the latter occurrence of CAS or WE .

12.tT is measured between VIH (min.) and VIL (max.). AC-measurements assume tT = 3ns.

13.Assumes a tri-state test load (5pF and a 500Ohm Thevenin equivalent).

14.An initial pause of 200us is required after power-up followed by any 8 CBR or ROR cycles before device operation is achieved.

UTRON TECHNOLOGY INC.

P90005

1F, No. 11, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R. O. C. TEL: [phone] FAX: [phone]

8
