USER MANUAL

Line Interactive 1000VA/1400VA/2000VA

Image may vary depending on model..

Uninterruptible Power System

USER MANUAL .............................................................................

0

Line Interactive.....................................................................................

0

1000VA/1400VA/2000VA ....................................................................

0

Uninterruptible Power System .....................................................

0

1000 ....................................................................................................

14

1400 ....................................................................................................

14

2000 ....................................................................................................

14

INPUT ........................................................................................

14

OUTPUT ....................................................................................

14

BATTERY ..................................................................................

14

INDICATOR...............................................................................

14

PROTECTION ...........................................................................

14

PHYSICAL.................................................................................

14

ENVIRONMENT.......................................................................

14

INTERFACE ..............................................................................

14

MANUEL D’UTILISATION.......................................................

16

Line-interactive...................................................................................

16

1000 VA/1400 VA/2000 VA ...............................................................

16

Système d’alimentation sans coupure ........................................

16

1000 ...................................................................................................

28

1400 ...................................................................................................

28

2000 ...................................................................................................

28

ENTRÉE ......................................................................................

28

SORTIE.......................................................................................

28

BATTERIE...................................................................................

28

INDICATEUR .............................................................................

28

PROTECTION ............................................................................

28

PHYSIQUE .................................................................................

28

1

ENVIRONNEMENT ....................................................................

28

INTERFACE ................................................................................

28

MANUAL DEL USUARIO.........................................................

30

Línea Interactiva.................................................................................

30

1000 VA/1400 VA/2000 VA ...............................................................

30

Sistema de alimentación ininterrumpida ....................................

30

1000 ....................................................................................................

42

1400 ....................................................................................................

42

2000 ....................................................................................................

42

ENTRADA .................................................................................

42

SALIDA .....................................................................................

42

BATERÍA ...................................................................................

42

INDICADOR..............................................................................

42

PROTECCIÓN ...........................................................................

42

DATOS FÍSICOS .......................................................................

42

ENTORNO .................................................................................

42

INTERFAZ .................................................................................

42

2

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS –This manual contains important instructions for Line Interactive 1000VA /1400VA /2000VA that shall be followed during installation and maintenance for the UPS and batteries.

Safety – Cautions & Warnings!

This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs.

Internal battery voltage is 12Vdc for 1000VA and 24Vdc for 1400 and 2000VA. Sealed, lead-acid, 6 cells battery.

Connection to any other type of receptacle other than a two-pole, three-wire grounding receptacle may result in shock hazard as well as violate local electrical codes.

In the event of an emergency, turn the power switch to the “off” position and disconnect the power cord form the AC power supply to properly disable the UPS

Do not allow any liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.

This unit intended for installation in a controlled environment (temperature controlled, indoor area free of conductive contaminants). Avoid installing the UPS in locations where there is standing or running water, or excessive humidity.

Do not plug the UPS input into its own output.

Do not attach a power strip or surge suppressor to the UPS.

Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to UPS

Regularly remove dust or dirt with a dry, soft cloth from the vents of the unit to avoid the unit from overheating.

To reduce the risk of overheating the UPS, do not cover the UPS’ cooling vents. Avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.

3

Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

A battery can present a risk of electrical shock and high short circuit current. BATTERY IS NOT USER REPLACEABLE.

There are no user-serviceable parts inside the UPS.

During the installation of this equipment it should be assured that the sum of the leakage currents of the UPS and the connected loads does not exceed 3.5mA.

The main socket outlet that supplies the UPS shall be installed near the UPS and shall be easily accessible.

CAUTION - To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70.

4

System Description

1. Front Panel—

1. LCD Back-Light

2. Power “ON/OFF” Switch

2. Back Panel—























































1.

USB Port

4.



Circuit Breaker

2.

Cooling Fan

5.



AC Output

3.

Modem/Phone Line Surge Protection

6.



AC Input









































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































1000VA

1400-2000VA

5

Installation and Operation

Installing the UPS is as easy as following the steps shown below. Be aware that the Power Switch must be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure.

1.Inspection

Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase.

2.Placement

Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your UPS in an environment where the ambient temperature is above 40°C or 104°F, or where humidity is high. Place the UPS unit away from monitor at least 20cm to avoid interference.

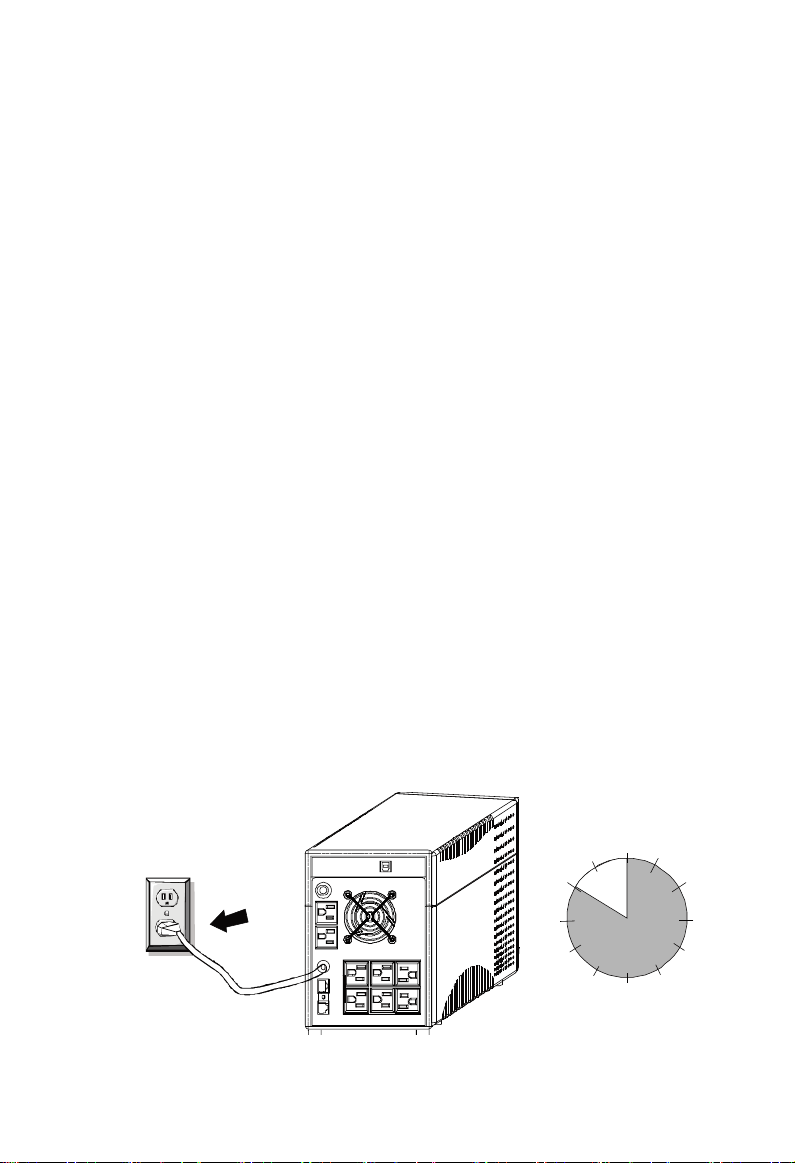

3.Charging

This unit is shipped from the factory with its internal battery fully charged. However, some energy may be lost during shipping so the battery should be recharged before use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged in for 10 hours.

6

4.Computer Connection

Connect one computer-related device into each of the power receptacles supplied on the back of the UPS (maximum of three devices).

5.Modem/Phone line Connection

Plug incoming internet line into the “In” socket located at the back of the

UPS. Use one more Internet line cable and plug one end of the Internet line cable to the “Out” socket located at the back of the UPS. Plug the other end to the modem input socket as shown immediately below.

7

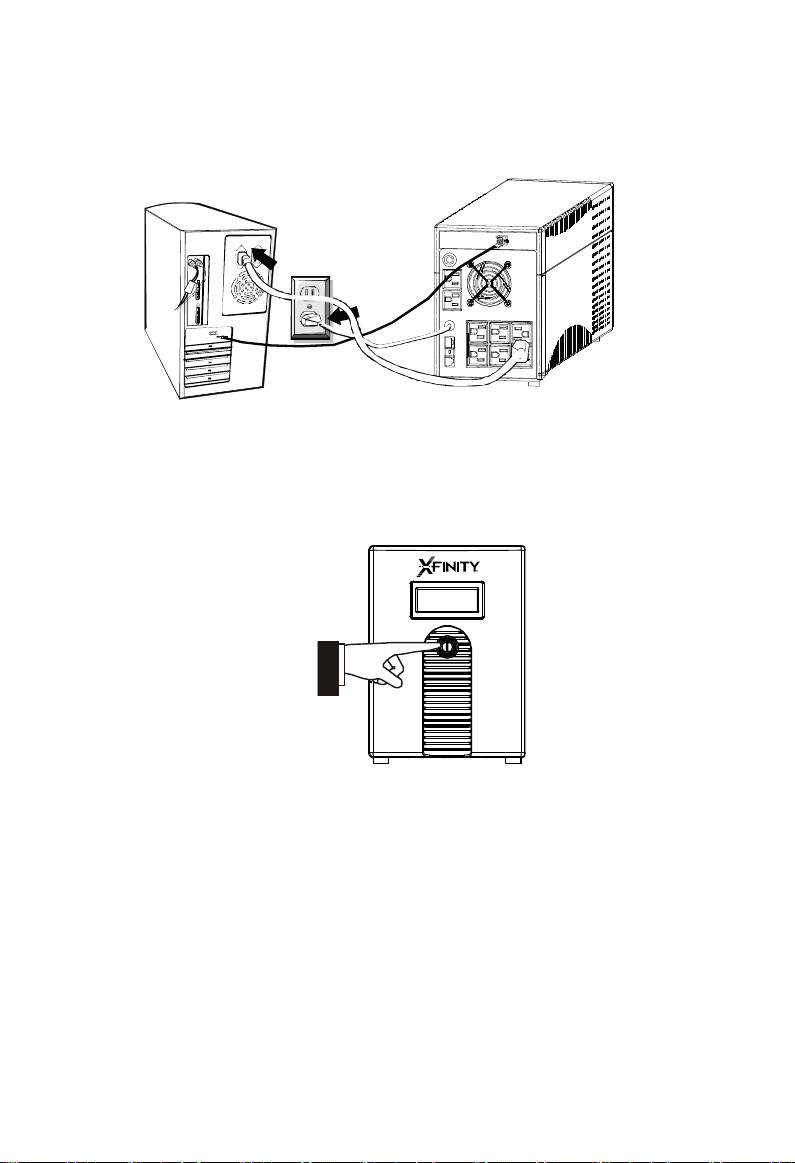

6.Serial Cable Connection

To allow for unattended system shutdown for your operating system, connect the serial cable as per diagram below.

7.Turn On/Off

To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again (When Switch ON The LED is illuminated.).

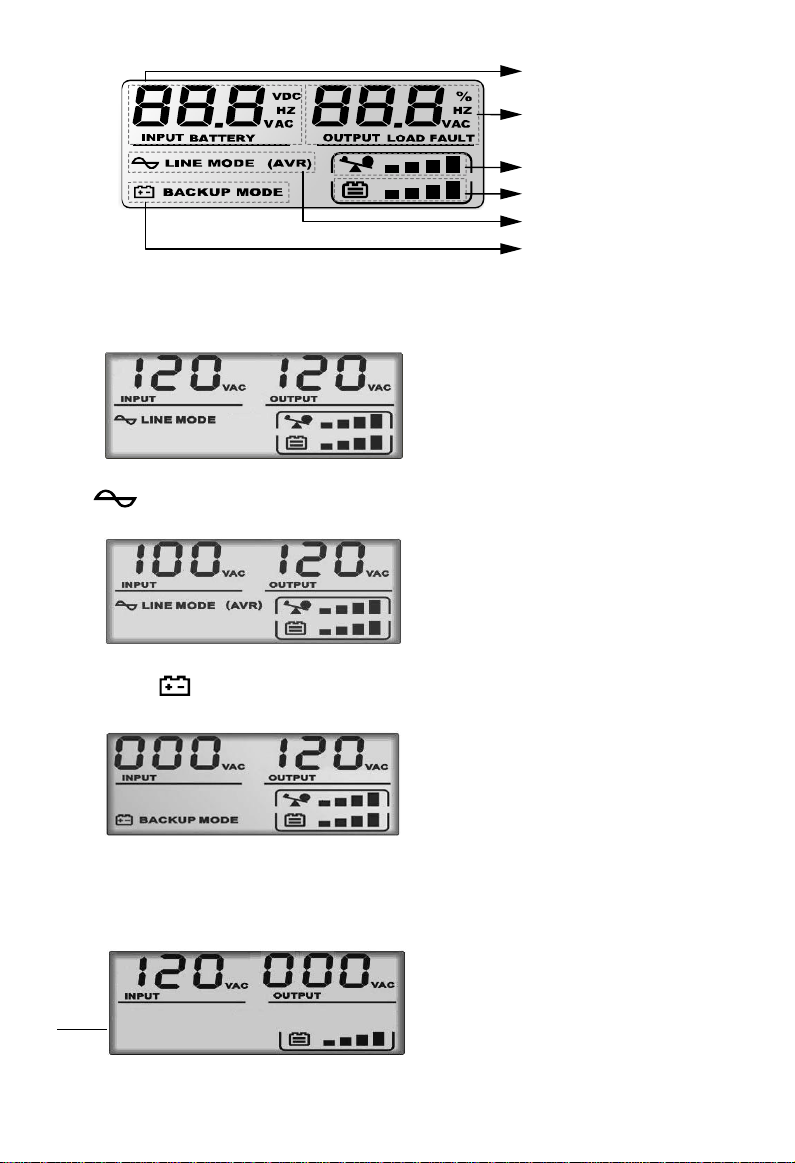

8.LCD Display Specification

The LED should always turn on when UPS is properly functioning, including when the UPS is in the "off charging mode" and "fault mode."

When the LCD functions, it will display the following information (see page 9).

8

Ultra Products U1242368 User Manual

1) When in normal mode, LED panel1 will display as shown below.

Low Voltage Version

2) When in AVR mode, LED panel will display as shown below. And the icon will flicker every 1 second.

Low Voltage Version

3) When in battery mode, LED panel will display as shown below. And the icon will flicker every 1 second.

Low Voltage Version

Note: If I/P-V<40V input voltage will display “000”

4) When in off charging mode, LED panel will display as shown below.

Low Voltage Version

1

9

Note: the output voltage always is displayed as “000” in off charging mode.

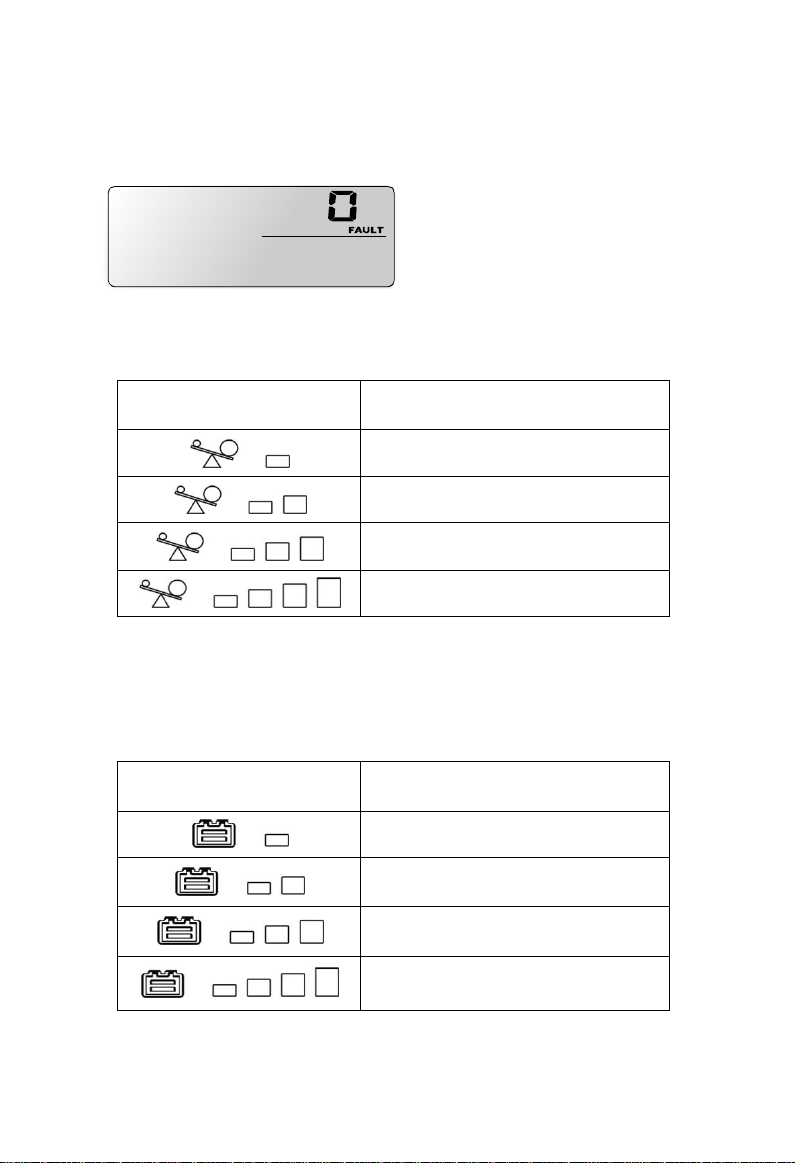

5) When in fault mode, LED panel will display as shown below. “FAULT” character and the corresponding code for the reason of fault only.

Note: the fault code will be showed in fault mode.

6) Load level definition:

Load LEVEL

Load Bar Indication



0%~25%







25%~50%







50%~75%







75%~100%





7) For 12V (1000VA) battery capacity definition:

Battery Mode:

Battery LEVEL

Battery Bar Indication



Battery voltage<11V







11V≤Battery voltage<11.5V







11.5V≤Battery



voltage<12.5V



Battery voltage≥12.5V





10

Line Mode:



Battery LEVEL

Battery Bar Indication





Battery voltage<12.7V











12.7V≤Battery





voltage<13.2V





13.2≤Battery





voltage<13.5V





Battery voltage≥13.5V







For 24V (1400VA/2000VA) battery capacity definition:



Battery Mode:











Battery LEVEL

Battery Bar Indication





Battery voltage<22.0V











22V≤Battery voltage<23.0V











23V≤Battery voltage<25V











Battery voltage≥25V









Line Mode:











Battery LEVEL

Battery Bar Indication





Battery voltage<25.4V











25.4V≤Battery





voltage<26.4V





26.4V≤Battery





voltage<27.0V





Battery voltage≥27.0V







8) When experiencing over load, the icon will flicker every 1 second.

11

9) When battery low, the icon will flicker every 1 second.

Software Installation – WinPower Monitoring Software

WinPower is a UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software safely provides auto shutdown for multi-computer systems when there is a power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPS

Installation procedure:

1.Go to the website:

http://www.ups-software-download.com/index.htm

2.Choose the operating system you need and follow the instruction described on the website to download the software.

3.When downloading all required files from the internet, enter the serial No: 511C1-01220-0100-478DF2A to install the software.

When your computer restarts, the WinPower software will appear as a green plug icon located in the system tray, near the clock icon.

12

Troubleshooting

Refer to the table below for solving minor installation and operation issues. If any abnormal situations occur that are not listed in table below, please call technical support at 1-888-222-5487 for further assistance.

Symptom

Possible Cause

Remedy







No LED display on

Missing battery

Charge battery up to 12 hours

the front panel





Battery defect

Call technical support for







service



The power cord is

Ensure that power cord is



disconnected

plugged in to outlet







Alarm buzzer

Overload of the UPS

Call technical support for

beeps



service

continuously











During a loss of

Overload of the UPS

Call technical support for

power, the backup



service

time is reduced.

Battery voltage is too low

Charge battery up to 12 hours









Improper operation of

Call technical support for



battery

service







Communication

Software is not installed

Check the software settings

lost between UPS

properly



and computer

Cable is not properly

Check that USB cable is firmly



connected

connected to the computer







* The internal batteries are not user-replaceable. Call technical support at 1-888-222-5487 for servicing information.

13
