U-Line CLRCO2175, CLR2160 User Manual

Use and Care Guide

Clear Ice Maker Model:

CLR2160

Clear Combo® Ice Maker/Refrigerator

Model:

CLRCO2175

CLR2160

CLRCO2175

1 Introduction

Congratulations on your purchase of a U-Line refrigeration product. A pioneer in the field for more than 40 years, U-Line Corporation is the world’s number one manufacturer of built-in, under-counter, specialty refrigeration and ice making products. U-Line dedicates 100% of its research and development to these products. The result: U-Line technology consistently leads the market with innovation, design, depth of product line and performance.

U-Line products are making life more convenient in homes, businesses, and hotels around the world. U-Line supports its products with a strong dealer network, and its commitment to quality even extends to environmentally safe packaging.

IMPORTANT

READ all of the instructions in this guide completely before operating the unit for the first time.

For future reference, keep this guide in a safe, accessible location. If you need additional information or assistance, please contact U-Line Corporation directly. Contact information appears on the rear cover of this guide.

If you have a problem with the operation of this product, the SERVICE section of this guide will assist you in quickly identifying common problems and provide information on possible causes and remedies. If your product needs service, contact U-Line directly.

Warranty Registration

Your U-Line Corporation Limited Warranty is located on the inside rear cover of this guide. To validate your warranty, the product and its original purchase date must be registered. A Warranty Registration Card has been included for this purpose in the package containing this manual. Complete and mail the Warranty Registration Card, or register your product online at www.U-LineService.com as soon as possible after purchase.

If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product.

Please Record Your Model Information

When you request additional information or service, you will be asked for your products model and serial numbers. You can find this information on the serial plate located on the upper right or rear wall in the interior of your unit. This information also appears on the warranty registration card.

1

2



ULIN_0023_A

Figure 1

Please record the model number (Figure 1, 1), serial number (Figure 1, 2), date of purchase, and dealer contact information for your U-Line product below:

Model Number:

Dealer Name:

_____________________________________________________ _____________________________________________________

Serial Number:

Dealer Address:

_____________________________________________________ _____________________________________________________

Purchase Date:

Dealer Telephone:

_____________________________________________________ _____________________________________________________

2

CLR2160, CLRCO2175

2 Table of Contents

Introduction ...............................................................................................................................

2

Warranty Registration .......................................................................................................

2

Please Record Your Model Information ...........................................................................

2

Table of Contents .......................................................................................................................

3

Safety Precautions ......................................................................................................................

5

Safety Alert Definitions .....................................................................................................

5

General Precautions ...........................................................................................................

5

Product Features ........................................................................................................................

6

Échelon Model CLR2160 Clear Ice Maker, Model CLRCO2175 Clear Ice Maker/



Refrigerator ........................................................................................................................

6

Operation ...................................................................................................................................

7

Initial Startup .....................................................................................................................

7

Other Site Requirements ...................................................................................................

7

Temperature Control .........................................................................................................

8

Interior Lighting .................................................................................................................

8

Electronic Control Panel ....................................................................................................

8

Normal Operating Sounds .................................................................................................

9

Outdoor Usage ...................................................................................................................

9

Storage, Vacation, Moving ..............................................................................................

10

Product Disposal ...............................................................................................................

10

Cleaning and Maintenance .....................................................................................................

11

General Cleaning .............................................................................................................

11

Maintenance ....................................................................................................................

11

Prepare Plumbing ....................................................................................................................

19

Drain Connection .............................................................................................................

19

Water Supply Connection ................................................................................................

22

Prepare Power Supply ..............................................................................................................

23

Electrical Specifications ....................................................................................................

23

Service .......................................................................................................................................

23

Before Calling for Service ................................................................................................

23

If Service is Required ........................................................................................................

23

Replacement Parts ...........................................................................................................

23

Troubleshooting Guide ....................................................................................................

24

Electronic Control Quick Guide .......................................................................................

26

U-Line Corporation Limited Warranty ....................................................................................

27

CLR2160, CLRCO2175

3

This page intentionally left blank

4

CLR2160, CLRCO2175

3 Safety Precautions

IMPORTANT

PLEASE READ all instructions completely before attempting to install, operate, or service your unit.

Proper installation procedures must be followed if this unit is being initially installed, or is moved to a new location after being in service. An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide.

This unit requires connection to a grounded (three-prong), polarized receptacle that has been placed by a qualified electrician in accordance with applicable electrical codes.

Safety Alert Definitions

Safety items throughout this guide are labeled with a Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety statement will result in severe personal injury or death.

WARNING

Warning means that failure to follow this safety statement could result in serious personal injury or death.

CAUTION

Caution means that failure to follow this safety statement may result in minor or moderate personal injury, property or equipment damage.

General Precautions

Use this appliance for its intended purpose only and follow these general precautions along with those listed throughout this guide:

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so that children may not easily climb inside.

WARNING

SHOCK HAZARD - Electrical Grounding Required.

Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.

Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.

Altering, cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire and/or loss of property and/or life, and will void the warranty.

Never use an extension cord to connect power to the unit.

Always keep your working area dry.

CAUTION

Use care when moving and handling the unit. Use gloves to prevent personal injury from sharp edges.

If your model requires defrosting, DO NOT use any type of heater to defrost. Using a heater to speed up defrosting can cause personal injury and damage to the inner lining.

IMPORTANT

Do not lift unit by door handle.

Never install or operate the unit behind closed doors. Be sure front grille is free of obstruction. Obstructing free air flow can cause the unit to malfunction and may void the warranty.

Failure to clean the condenser every three months can cause the unit to malfunction. This could void the warranty.

Allow unit temperature to stabilize for 24 hours before use.

If your model requires defrosting, never use an ice pick or other sharp instrument to help speed up defrosting. These instruments can puncture the inner lining or damage the cooling unit.

Use only genuine U-Line replacement parts. Imitation parts can damage the unit, affect its operation or performance and may void the warranty.

CLR2160, CLRCO2175

5

4 Product Features

Échelon Model CLR2160 Clear Ice Maker, Model CLRCO2175 Clear Ice Maker/Refrigerator

CLR2160

This model produces up to 60 lbs (27.2 kg) of ice per day, will store 30 lbs (13.6 kg).

Stainless steel model is deemed suitable for outdoor use by UL.

An electronic control panel with digital display allows you to control all operating functions.

CLRCO2175

This model produces up to 40 lbs (18.1 kg) of ice per day, will store 15 lbs (6.8 kg), and provides 2.5 cu ft (71 L) of refrigeration capacity.

An electronic control panel with digital display allows you to display the interior refrigerator temperature and adjust the setting to your preference.

Automatic (cycle) defrost eliminates the need for manual defrosting.

Three fully encapsulated, contoured shelves contain spills and are easy to clean.

Recessed shelf channels, supporting the encapsulated shelves, provide a sleek, clean appearance to the interior of the cabinet by eliminating protruding shelf supports.

Two contoured, inner door “pick-off” shelves are adjustable for storage of a variety of different bottle, can, and container sizes and shapes.

An interior light will illuminate automatically as the cabinet door is opened. However, you can easily select another mode of operation. A blackout/Sabbath mode (not Star K certified) allows you to darken both interior light and the LED display, while maintaining complete temperature control in the unit.

Exclusive Features of Échelon

An easy, self-cleaning process for the clear ice maker eliminates complicated procedures.

Black and white models feature a slightly contoured, across the top, integrated door handle design that permits the door to be easily reversed. The door comes standard with a factory-installed flush panel. These models can accommodate a 1/4 in. (0.64 cm) thick custom panel to achieve a custom, built-in look by matching surrounding cabinets.

An optional full overlay door panel kit for black and white units, using a customer provided 3/4" (1.9 cm) thick panel, is available that provides a fully integrated appearance with surrounding cabinets. The overlay panel is easily attached to the door.

Stainless steel model doors are not field-reversible.

All stainless steel models have a stainless steel full wrap cabinet, door and sculpted handle that distinguishes the Echelon™ stainless steel units from other heavier “commercial” looks.

Black and white models have vinyl clad steel cabinets that feature a rich textured look, and resist scratching, peeling, or flaking.

Self-closing door hinges engage when the door is open approximately 8-10 in. (20-25 cm), ensuring a positive door seal and preventing door bounce back.

Features and specifications are subject to change without notice.

6

CLR2160, CLRCO2175

5 Operation

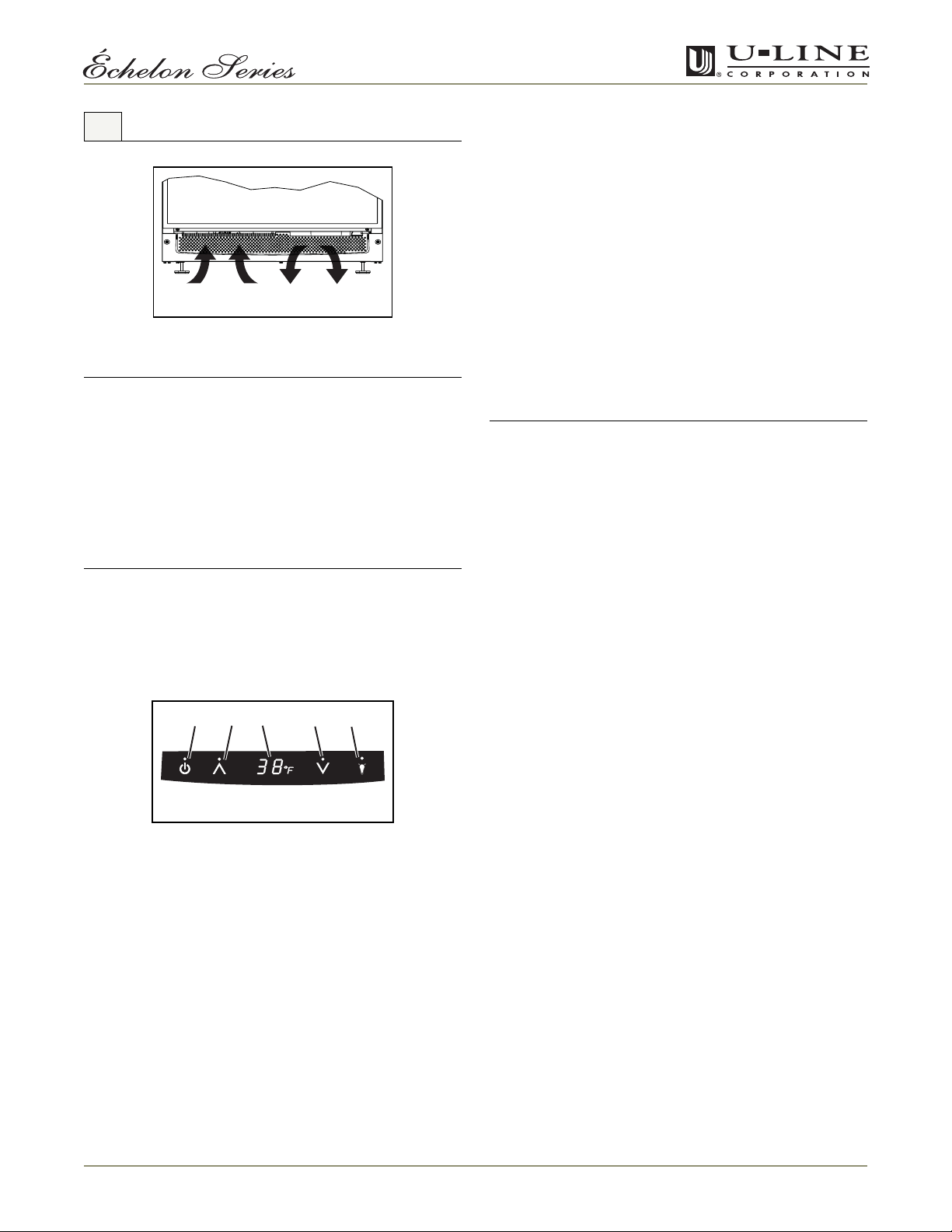

ULIN_0080_A

Figure 2

IMPORTANT

Proper air flow (Figure 2) is required for your unit to operate at its highest efficiently. A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected.

Initial Startup

All U-Line units are shipped with controls that are preset. No initial adjustments are required.

IMPORTANT

U-Line recommends the unit be allowed to run overnight prior to loading the Model CLRCO2175 refrigerator with product.

On ice maker equipped units, it is possible that dirt or scale will dislodge in the water line. Always throw away all ice cubes made during the first two to three hours of operation.

1

2

3

4

5

ULIN_0058_A

Figure 3

To turn the unit on or off, touch and hold the POWER icon (Figure 3, 1) on the display panel for approximately five seconds until the °F symbol flashes and release.

A small LED above the icon will illuminate to confirm the touch of any controller icon.

The CLRCO2175 display (Figure 3, 3) will show the unit set-point temperature (38°F) when the unit is on and will show OFF when the unit is off. The CLR2160 display (Figure 3, 3) will show ICE when the unit is on and will show OFF when the unit is off.

Turning the unit off will override any other control function.

Other Site Requirements

Power Supply

The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A circuit (normal household current). See

Electrical Specifications on Page 23.

Water Supply

The unit requires a 1/4-inch OD water supply line and a shut-off valve. For more information see Page 22.

Drain

The unit’s generous 7-inch drain connection height extends the distance the unit can be located from a gravity drain. For more information see Page 19.

IMPORTANT

Drain can NOT be located directly below unit. Unit has a solid base that will not allow unit to drain below itself.

Environmental Requirements

Many U-Line models are designed to operate in harsh outdoor/marine environments. Special considerations include the following:

The units are designed to operate between 50°F (10°C) and 110°F (40°C). High ambient temperatures (110°F [40°C] or higher) may reduce the unit’s ability to reach low temperatures and may also reduce the ice production rate for those models with icemakers.

If the ambient temperature is expected to drop below 45°F (7°C), drain all water from the unit to prevent freezing damage not covered by the warranty.

For best performance, keep the unit out of direct sunlight and away from heat generating equipment.

For best performance and life outdoors, place under a counter or provide shelter of some kind.

In climates where high humidity and dew points are present, condensation may appear on outside surfaces. This is considered normal. The condensation will disappear when the humidity drops.

CLR2160, CLRCO2175

7

Temperature Control

Checking Product Temperature

ULIN_0093_A

Figure 4

To check the actual product temperature, in refrigerator section only, insert an accurate thermometer into a plastic (non-breakable) bottle that is partially filled with water.

Tighten the bottle cap securely (Figure 4).

Place the bottle in the refrigerator area for 24 hours. Refrain from opening the unit during the testing period. After 24 hours, check the temperature of the water. If required, adjust the temperature control in a small increment (See ADJUSTING TEMPERATURE).

Factors which affect the internal temperatures of the cabinet include:

Temperature setting.

Ambient temperature where installed.

Number of times and length of time the door is opened and closed.

Installation in direct sunlight or near a heat source.

Interior Lighting

The interior of Model CLR2160 is not illuminated. The refrigerator section of Model CLRCO2175 is illuminated whenever the door is opened.

The LIGHT icon (Figure 3, 5) on the control panel is used to control an additional Model CLRCO2175 lighting function. The blackout/Sabbath mode (not Star K certified) will turn the interior light and display (Figure 3, 3) off.

To access the blackout/Sabbath mode (not Star K certified):

1.Touch and hold the LIGHT icon (Figure 3, 5) for ten seconds and release (the °F symbol will flash briefly at the end of the five second period).

2.The interior light and control display (Figure 3, 3) will go dark for 36 hours.

NOTE: Although the display will not be visible, the temperature controls in the unit remain active, and the interior temperature will be maintained.

3.To exit the blackout/Sabbath mode (not Star K certified) before the 36-hour period, repeat Step 1.

Electronic Control Panel

1

2

3

4

5

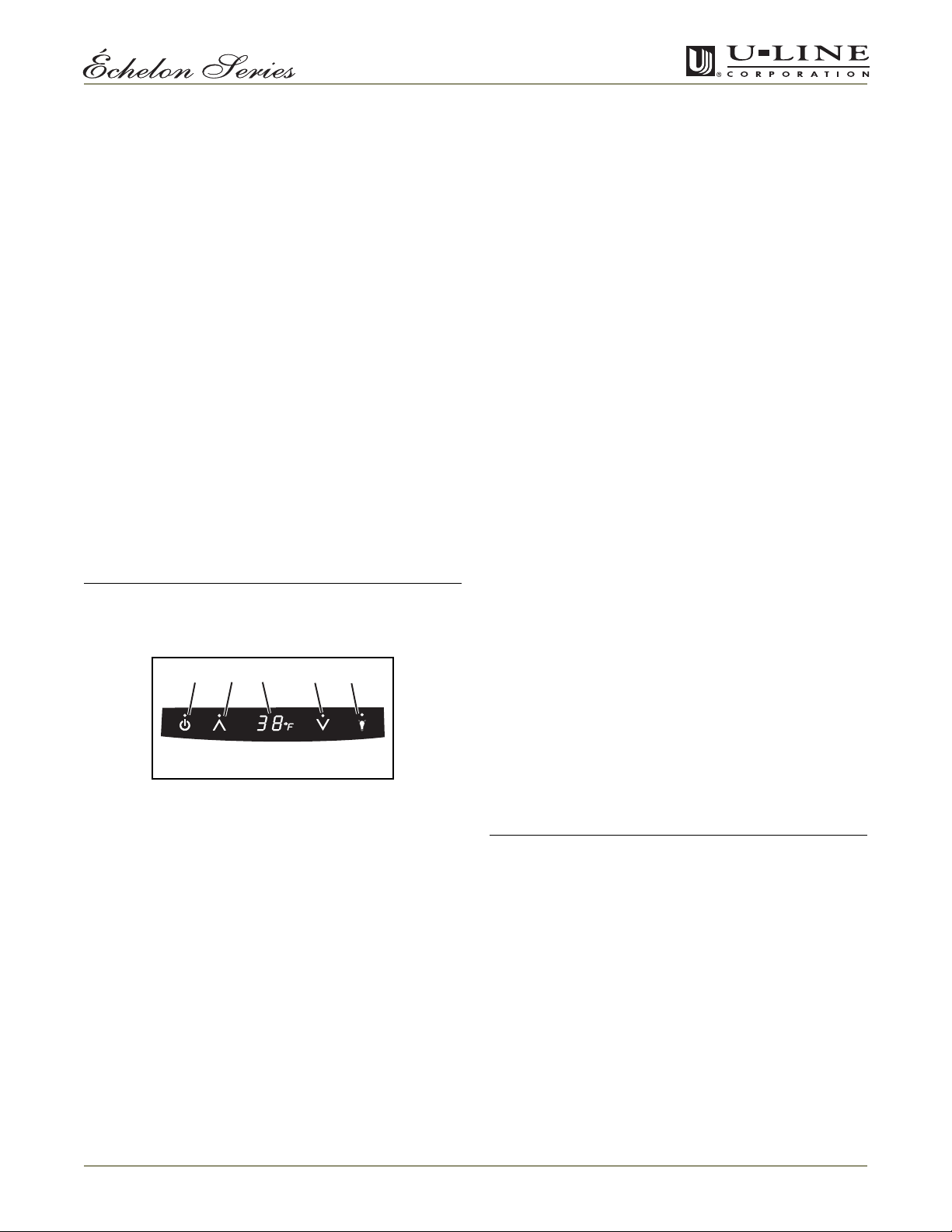

ULIN_0058_A

Figure 5

The electronic control with digital display (Figure 5) is configured to show a single temperature continuously. This set-point temperature is a base number used by the controller to maintain the temperature zone in your unit. The factory default set-point is 38°F. This set-point temperature is used as a gauge if further temperature adjustments are required.

Temperature Display Selection

U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 5, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.

The display can easily be adjusted for either type of temperature display. Press and hold the LIGHT icon (Figure 5, 5) and within five seconds press the COOLER icon (Figure 5, 4) three times to change the display as desired.

8

CLR2160, CLRCO2175

Temperature Display

To display the Model CLRCO2175 interior temperature:

1.Touch and hold the WARMER icon (Figure 5, 2) for approximately five seconds and release when the °F symbol in the display (Figure 5, 3) begins to flash.

2.The display (Figure 5, 3) will indicate the actual refrigerator temperature.

3.After approximately 10 seconds, the set-point temperature will return to the display.

Factors which affect the internal temperatures of the cabinet include:

Temperature setting.

Ambient temperature where installed.

Number of times and length of time the door is opened and closed.

Installation in direct sunlight or near a heat source.

Adjusting Temperature

NOTE: The CLRCO2175 refrigerator section temperature is adjustable. The storage bin temperatures in Model CLRCO2175 and CLR2160 are not adjustable.

IMPORTANT

Adjust the set-point temperature in single increments, and wait 24 hours for the temperature to stabilize before rechecking.

1

2

3

4

5

ULIN_0058_A

Figure 6

To adjust the set-point temperature:

1.Press and release either the WARMER (Figure 6, 2) or COOLER (Figure 6, 4) icon to put the controller in the SET TEMPERATURE mode. The °F symbol (Figure 6, 3) will begin to flash.

NOTE: If no further action is taken, this mode will self cancel in five seconds, and the original set-point temperature will be displayed.

2.While the °F symbol is flashing, press the WARMER or COOLER icon as required to adjust the set-point temperature.

3.The change will be set five seconds after adjusting the temperature, and the new set-point temperature will be displayed.

Normal Operating Sounds

All models incorporate rigid foam insulated cabinets to provide high thermal efficiency and maximum sound reduction for its internal working components. In spite of this technology, your model may make sounds that are unfamiliar.

Normal operating sounds may be more noticeable because of the unit’s environment. Hard surfaces such as cabinets, wood/vinyl/tiled floors and paneled walls have a tendency to reflect normal appliance operating noises.

Common refrigeration components, and a brief description of the normal operating sounds they make, are listed below. NOTE: Your product may not contain all of the components listed.

Compressor: The compressor makes a hum or pulsing sound that may be heard when it operates.

Evaporator: Refrigerant flowing through an evaporator may sound like boiling liquid.

Condenser Fan: Air moving through a condenser may be heard.

Automatic Defrost/Drain Pan: Water may be heard dripping or running into the drain pan when the unit is in the defrost cycle.

Automatic Ice Maker: You will hear ice as it drops from the mold into the ice bin/tray.

Water Valve: The water valve will make an occasional buzzing sound and running water will be heard.

Outdoor Usage

Some U-Line models are designed to operate in outdoor environments. For best performance, keep the unit out of direct sunlight.

If the unit will be shut off for five days or more, prop door open to allow for air circulation and prevent mold and mildew.

IMPORTANT

If the ambient temperature is expected to drop below 45°F, turn off and unplug unit, and drain all water from the unit to prevent freezing damage not covered by the warranty.

High ambient temperatures (110°F or higher) may reduce the unit’s ability to reach low temperatures.

CLR2160, CLRCO2175

9

+ 19 hidden pages
