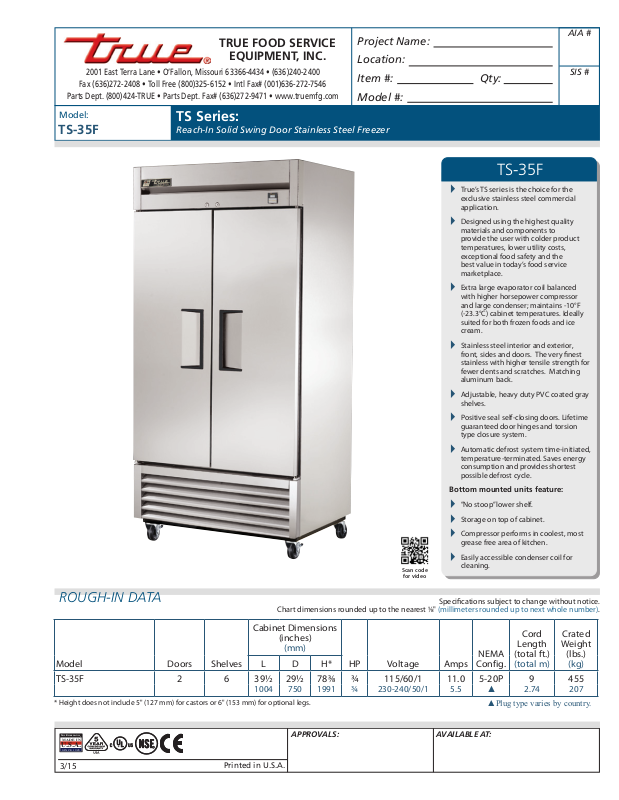

Model:

TS-35F

TS Series:

Reach-In Solid Swing Door Stainless Steel Freezer

Scan cod e

for vide o

TS-35F

True’s TS series is the choice for the



exclusive stainless steel commercial
application.

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.

Extra large evaporator coil balanced



with higher horsepower compressor
and large condenser; maintains -10°F
(-23.3°C) cabinet temperatures. Ideally
suited for both frozen foods and ice
cream.

Stainless steel interior and exterior,



front, sides and doors. The very nest
stainless with higher tensile strength for
fewer dents and scratches. Matching
aluminum back.

Adjustable, heavy duty PVC coated gray



shelves.

Positive seal self-closing doors. Lifetime



guaranteed door hinges and torsion
type closure system.

Automatic defrost system time-initiated,



temperature-terminated. Saves energy
consumption and provides shortest
possible defrost cycle.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressor performs in coolest, most



grease free area of kitchen.

Easily accessible condenser coil for



cleaning.

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TS-35F 2 6 39½ 29½ 78⁄ ¾ 115/60/1 11.0 5-20P 9 455

1004 750 1991 ¾ 230-240/50/1 5.5 ▲ 2.74 207

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

T

RUE

R

EFRIGERATION

®

MADE IN

MADE IN

U.S.A.

U.S.A.

SINCE 1945

SINCE 1945

3/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TS-35F

TS Series:

Reach-In Solid Swing Door Stainless Steel Freezer

STANDARD FEATURES

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value in
today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) R404A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C). Ideal for
both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient, low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.
Bottom mounted condensing unit positioned

•

for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of unit.
Automatic defrost system time-initiated,

•

temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.

CABINET CONSTRUCTION

Exterior - Stainless steel doors, front and

•

sides. Matching aluminum back.
Interior - Stainless steel liner and oor.

•

Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate.
A high density, polyurethane insulation that
has zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter

•

stem castors - locks provided on front set.

DOORS

Stainless steel exterior and liners. Doors

•

extend full width of cabinet shell. Door locks
standard.
Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated

•

gray wire shelves 17½"L x 22 ⁄ "D (445 mm
x 569 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

Interior lighting -safety shielded. Lights

•

activated by rocker switch mounted above
doors.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Exterior solar, digital temperature display.

•

Rear airow guards prevent product from

•

blocking optimal airow.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 20 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ Additional shelves.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TS-35F TFEY04E TFEY04S TFEY04P TFEY043
