INTRODUCTION
Copy the serial number
here:
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-tounderstand operating instructions. Read the whole
manual and follow all the instructions to keep your new
outdoor power tool in top operating condition.
PRODUCT REFERENCES, ILLUSTRATIONS
AND SPECIFICATIONS
All information, illustrations, and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right to
make changes at any time without notice.
Copyright© 2004 MTD SOUTHWEST INC, All Rights
Reserved.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
For service call 1-800-520-5520 to obtain a list of
authorized service dealers near you. For more details
about your unit, visit our website at www.troybilt.com.
DO NOT RETURN THE UNIT TO THE RETAILER.
PROOF OF PURCHASE WILL BE REQUIRED FOR
WARRANTY SERVICE.
Before beginning, locate the unit’s model plate. It lists
the model and serial numbers of your unit. Refer to the
sample plate below and copy the information for future
reference.
Make sure you carefully read and understand this manual
before starting or operating this equipment.
THIS PRODUCT IS COVERED BY ONE OR MORE U.S.
PATENTS. OTHER PATENTS PENDING.
TABLE OF CONTENTS
Service Information . . . . . . . . . . . . . . . . . . . . . . . . .2
Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . .3
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . .8
Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . .11
Starting/Stopping Instructions . . . . . . . . . . . . . . . .12
Operating Instructions . . . . . . . . . . . . . . . . . . . . . .13
Maintenance and Repair Instructions . . . . . . . . . . .15
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . .18
Accessories and Replacement Parts . . . . . . . . . . .18
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . .19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Warranty Information . . . . . . . . . . . . . . . . . . . . . . .22
Parts List . . . . . . . . . . . . . . . . . . . .Inside Back Cover
Copy the model and parent
part number here:
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the
states of California, Maine, Oregon and Washington.
All U.S. Forest Land and the state of California (Public
Resources Codes 4442 and 4443), Oregon and
Washington require, by law that certain internal
combustion engines operated on forest brush and/or
grass-covered areas be equipped with a spark arrestor,
maintained in effective working order, or the engine be
constructed, equipped and maintained for the prevention
of fire. Check with your state or local authorities for
regulations pertaining to these requirements. Failure to
follow these requirements could subject you to liability or
a fine. This unit is factory equipped with a spark
arrestor. If it requires replacement, ask your LOCAL
SERVICE DEALER to install the Accessory Part
#753-04689 Spark Arrestor Kit.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
THE ENGINE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
MODEL :
S/N :
ITEM :
3
READ ALL INSTRUCTIONS
BEFORE OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• All guards and safety attachments must be installed
properly before operating the unit.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace parts that are cracked,
chipped, or damaged in any way. Do not operate the
unit with loose or damaged parts.
• Carefully inspect the area before starting the unit.
Remove all debris and hard or sharp objects such as
glass, wire, etc.
• Clear the area of children, bystanders, and pets. At a
minimum, keep all children, bystanders, and pets
outside a 50 feet (15 m.) radius; there still may be a
risk to bystanders from thrown objects. Bystanders
should be encouraged to wear eye protection. If you
are approached, stop the unit immediately.
SAFETY WARNINGS FOR GAS UNITS
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Always stop the engine and allow it to cool before filling
the fuel tank. Never remove the cap of the fuel tank, or
add fuel, when the engine is hot. Never operate the unit
without the fuel cap securely in place. Loosen the fuel
tank cap slowly to relieve any pressure in the tank.
• Mix and add fuel in a clean, well-ventilated outdoor area
where there are no sparks or flames. Slowly remove the
fuel cap only after stopping engine. Do not smoke while
fueling or mixing fuel. Wipe up any spilled fuel from the
unit immediately. Always wipe unit dry before using.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke or allow sparks and open flames near the area
while adding fuel or operating the unit.
RULES FOR SAFE OPERATION
SYMBOL MEANING
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper
accident prevention measures.
NOTE: Advises you of information or instructions vital to
the operation or maintenance of the equipment.
SYMBOL MEANING
When using the unit,
you must follow the
safety rules. Please read these instructions
before operating the unit in order to ensure
the safety of the operator and any bystanders.
Please keep these instructions for later use.
WARNING:
• IMPORTANT SAFETY INSTRUCTIONS •
Failure to obey a
safety warning can
result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock and
personal injury.
WARNING:
Failure to obey a
safety warning will
result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of fire, electric shock and
personal injury.
DANGER:
Failure to obey a
safety warning may
result in property damage or personal injury
to yourself or to others. Always follow the
safety precautions to reduce the risk of fire,
electric shock and personal injury.
CAUTION:
Indicates
danger,
warning or caution. Attention is required in
order to avoid serious personal injury. May
be used in conjunction with other symbols
or pictographs.
SAFETY ALERT:
Gasoline is highly
flammable, and its
vapors can explode if ignited. Take the
following precautions:
WARNING:
Read the Operator’s Manual(s) and follow all
warnings and safety instructions.
Failure to do so can result in serious injury to the
operator and/or bystanders.
FOR QUESTIONS, CALL 1-800-520-5520
4
RULES FOR SAFE OPERATION
WHILE OPERATING
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate this
unit only in a well-ventilated outdoor area.
• To reduce the risk of injury associated with thrown
objects, wear safety glasses or goggles that are
marked as meeting ANSI Z87. standards.
• Never run the unit without the the proper equipment
attached. When using this unit, always install the
blower/vacuum tubes and vacuum bag depending on
model. Make sure the vacuum bag is completely
zipped closed.
• To reduce the risk of hearing loss associated with
sound level(s), always wear ear/hearing protection
when operating this unit.
• Wear heavy, long pants, boots, and gloves. Do not
wear short pants, sandals, or go barefoot.
• To avoid static electricity shock, do not wear rubber
gloves or any other insulated gloves while operating
this unit.
• To reduce the risk of injury associated with objects
being drawn into rotating parts, do not wear loose
clothing, jewelry, scarves, and the like. Secure hair
above shoulder level.
• Wear a face or dust mask if the operation is dusty.
Long sleeve shirts are recommended.
• Use the unit only in daylight or good artificial light.
• Keep outside surfaces free from oil and fuel.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and
unit must be in a stable position while starting. Refer to
Starting/Stopping Instructions.
• Do not set unit on any surface except a clean, hard
area while engine is running. Debris such as gravel,
sand, dust, grass, etc. could be picked up by the air
intake and thrown out by the discharge opening,
damaging unit, property, or causing serious injury to
bystanders or operator.
• Use the right tool. Only use this tool for the purpose
intended.
• Do not force unit. It will do the job better and with less
likelihood of injury at a rate for which it was designed.
• Do not overreach or use from unstable surfaces such
as ladders, trees, steep slopes, rooftops, etc. Always
keep proper footing and balance.
• Always hold the unit with a firm grip when operating.
• Keep hands, face, and feet at a distance from all moving
parts. Do not touch or try to stop the impeller when it is
rotating. Do not operate without guards in place.
• Do not put any object into openings. Do not use with
any opening blocked; keep free of dirt, debris, and
anything that may reduce the air flow.
• Do not touch the engine or muffler. These parts get
extremely hot from operation. When turned off they
remain hot for a short time.
• Do not operate the engine faster than the speed
needed to do the job. Do not run the engine at high
speed when not in use.
• Always stop the engine when operation is delayed or
when walking from one location to another.
• Stop the engine for maintenance, repair, to install or
remove the blower tubes or vacuum attachments. The
unit must be stopped and the impeller no longer
turning to avoid contact with the rotating blades.
• Use only original equipment manufacturer replacement
parts when servicing this unit. These parts are available
from your authorized service dealer. Do not use
unauthorized parts, accessories, or attachments for
this unit. Doing so could lead to serious injury to the
user, or damage to the unit, and void your warranty.
• Never use this unit for spreading chemicals, fertilizers or
other substances which may contain toxic materials.
• To reduce fire hazard, replace faulty muffler and spark
arrestor, keep the engine and muffler free from grass,
leaves, excessive grease or carbon build up.
WHILE OPERATING UNIT AS A BLOWER
• Never point the blower in the direction of people or
pets, or in the direction of windows. Always direct the
blowing debris away from people, animals, and
windows. Use extra caution when blowing debris near
solid objects such as trees, automobiles, walls, etc.
WHILE OPERATING UNIT AS A VACUUM
• Avoid situations that could catch the vacuum bag on
fire. Do not operate near an open flame. Do not
vacuum warm ash from fireplaces, barbecue pits,
brush piles, etc. Do not vacuum discarded cigars or
cigarettes unless the cinders are completely cool.
5
• The unit is designed to pickup dry material such as
leaves, grass, small twigs, and bits of paper. Do not
attempt to vacuum wet debris and/or standing water
as this may result in damage to the blower/ vacuum.
To avoid severe damage to the impeller, do not
vacuum metal, broken glass, etc.
OTHER SAFETY WARNINGS
• Always disconnect the spark plug before performing
maintenance or accessing movable parts.
• Never store the unit, with fuel in the tank, inside a
building where fumes may reach an open flame (pilot
lights, etc.) or sparks (switches, electrical motors, etc.).
• Allow the engine to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit in a dry place, either locked up or up
high to prevent unauthorized use or damage. Keep out
of the reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean, and free from debris.
Clean after each use, see Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan this unit to
others, also loan these instructions to them.
SPECIAL NOTE: Exposure to vibrations through
prolonged use of gasoline powered hand tools could
cause blood vessel or nerve damage in the fingers,
hands, and joints of people prone to circulation disorders
or abnormal swelling. Prolonged use in cold weather has
been linked to blood vessel damage in otherwise healthy
people. If symptoms occur such as numbness, pain, loss
of strength, change in skin color or texture, or loss of
feeling in the fingers, hands or joints, discontinue use of
this tool and seek medical attention. An anti-vibration
system does not guarantee avoidance of these
problems. Users who operate power tools on a regular
basis must closely monitor their physical condition and
the condition of this tool.
SAVE THESE INSTRUCTIONS
RULES FOR SAFE OPERATION
6
RULES FOR SAFE OPERATION
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or
caution. May be used in conjunction
with other symbols or pictographs.
• WARNING - READ OPERATOR'S
MANUAL
Read the Operator’s Manual(s) and
follow all warnings and safety
instructions. Failure to do so can
result in serious injury to the
operator and/or bystanders.
• WEAR EYE AND HEARING
PROTECTION
WARNING: Thrown objects and
loud noise can cause severe eye
injury and hearing loss. Wear eye
protection meeting ANSI Z87.1-1989
standards and ear protection when
operating this unit.
Use a full face
shield when needed.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator's manual for the
proper type of oil.
• THROWN OBJECTS AND
ROTATING CUTTER CAN CAUSE
SEVERE INJURY
WARNING: Keep clear of blower
outlet. Never point the blower at
yourself or others. Objects can be
thrown from blower. Do not operate
unit without proper attachments and
guards in place.
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
• ON/OFF STOP CONTROL
ON / START / RUN
• ON/OFF STOP CONTROL
OFF OR STOP
• HOT SURFACE WARNING
Do not touch a hot muffler or
cylinder. You may get burned. These
parts get extremely hot from
operation. When turned off they
remain hot for a short time.
• BLOWERS – ROTATING
IMPELLER BLADES CAN
CAUSE SEVERE INJURY
WARNING: Stop the engine and
allow the impeller to stop before
opening the vacuum door, installing
or changing tubes or bag, or before
cleaning or performing any
maintenance.
• THROTTLE CONTROL
Indicates “HIGH” or “FASTEST” speed.
• THROTTLE CONTROL
Indicates “IDLE,” “LOW” or
“SLOWEST” speed.
• KEEP BYSTANDERS AWAY
WARNING: Keep all bystanders,
especially children and pets, at least
50 feet (15 m.) from the operating area.
7
RULES FOR SAFE OPERATION
APPLICATION
As a blower:
• Cleaning yards, garages, driveways, porches,
patios, around walls, fences and more
As a vacuum:
• Picking up leaves and other light debris
Blower Tube
Vacuum Bag
Blower
Outlet
Vacuum Bag
Zipper
Fuel Cap
Throttle Control
Primer
Bulb
Blue EZ-Start™ Lever
Air filter/muffler cover
Spark Plug
Starter Rope
Grip
On/Off Stop
Control
KNOW YOUR UNIT
Muffler
Assembled as a Blower
Assembled as a Vacuum
Vacuum
Door
Front Handle
Vacuum Inlet
Vacuum
Tube
Rear Handle
Vacuum
Bag Hook
8
ASSEMBLY INSTRUCTIONS
ASSEMBLING UNIT AS A BLOWER
Blower Tube Assembly
NOTE: If the unit was assembled as a vacuum unit,
remove all vacuum parts and store away in a
secure place for later use.
Installing
• Install the blower tube over the blower outlet and push
it on until both tabs snap into place (Fig. 1).
Removing
• Remove the blower tube by pressing both tabs at the
same time and pulling off the blower (Fig. 1).
ASSEMBLING UNIT AS A VACUUM
To assemble the unit as a vacuum, begin by removing
the blower tube. Refer to the previous section.
Vacuum Tube Assembly
NOTE: If the unit was assembled as a blower unit,
remove the blower tube and store away in a
secure place for later use.
Installation
1. Align the small arrow on the lower vacuum tube with
the arrow on the upper vacuum tube (Fig. 2).
2. Grasp the lower and upper vacuum tubes firmly with
both hands, and push the lower vacuum tube into
the upper vacuum tube. Turn the lower vacuum tube
clockwise until it snaps into detente and locks. When
properly assembled, the dot on the lower tube aligns
with the dot on the upper tube.
3. Flip the unit so it is standing straight up on the
muffler cover. The front of the unit and the vacuum
door should face you (Fig. 3).
Fig. 1
Fig. 2
Fig. 3
Tabs
Vacuum
Door
Blower
Outlet
Upper Vac Tube
Lower Vac Tube
To prevent serious
personal injury, stop
the engine and allow the impeller to stop
before attaching or removing tubes.
WARNING:
To prevent serious
personal injury or
damage to the unit, the blower tube must
be installed while operating this unit as a
blower.
WARNING:
To prevent serious
personal injury, stop
the engine and allow the impeller to stop
before attaching or removing tubes.
WARNING:
To prevent serious
personal injury or
damage to the unit, always install vacuum
tubes and the vacuum bag, and make sure
the vacuum bag is completely zipped closed
when operating this unit as a vacuum.
WARNING:
9
ASSEMBLY INSTRUCTIONS
4. Insert a flat head screwdriver into the slot at the
lower end of the vacuum door. Make contact with
the vacuum door locking clip and push inward and
upwards (Fig. 4). Then pull the vacuum door and
hold it open.
5. While holding the vacuum door open, locate the
assembled vacuum tube (put together in Step 2).
Arrange the tube so the flat area faces the vacuum
door. The grooves on the side of the tube will line up
with the small tabs in the impeller intake (Fig. 5).
From the exterior, align the small arrow on the
vacuum tube with the arrow on the impeller intake.
6. Push the vacuum tube in firmly and grip it with both
hands. Turn the tube clockwise as far as possible
until it snaps into the detente and locks. When
properly assembled, the dot on the vacuum tube will
align with the dot on the impeller intake.
Removing the Vacuum Bag
1. Unhook the bag.
2. Remove the vacuum bag by pressing both tabs on
the vacuum bag elbow at the same time and pulling
the bag off the blower (Fig. 6).
3. Install the blower tube in order to assemble the unit
as a blower.
4. Make sure the vacuum door is securely latched shut.
Elbow
Tabs
Locking
Clip
Fig. 4
Installing the Vacuum Bag
7. Install the vacuum bag tube over the blower outlet
and push it on until both tabs snap into place (Fig. 6).
Position the bag so its interior elbow slants
downward.
8. Attach the vacuum bag to the vacuum bag hook
located at the underside of the unit.
9. Keep the bag zipped and shut.
Fig. 6
Vacuum
Door Slot
Flat
Area
Tabs
Impeller Intake
Vacuum Tube
Groove
Fig. 5
Vacuum Bag Hook
Never operate the
unit in the blower
configuration without the vacuum door
secured and latched shut.
WARNING:
10
Fig. 9
3. Snap the clip on to the support fittings on the front
or back of the handle. Clip to the front portion of the
handle when using the unit as a blower, and clip to
the back portion of the handle when using the unit as
a vacuum (Fig. 8).
4. While standing in the operating position, adjust the
length to fit the operator’s size. Pull the tab to
lengthen, pull the strap to shorten (Fig 9).
INSTALLING THE SHOULDER HARNESS (Optional)
The shoulder strap is an optional accessory.
1. Push the strap through the center of the buckle.
2. Pull the strap over the cross bar and down through
the slot in the buckle (Fig. 7).
Fig. 7
Clip
ASSEMBLY INSTRUCTIONS
To avoid serious
personal injury,
never attempt to start the unit when
standing with the unit clipped to the
shoulder strap. Always follow the starting
procedures as described in the Starting/
Stopping Instructions section.
WARNING:
Attach Here for
Blowing
Attach Here for
Vacuuming
Fig. 8
11
OIL AND FUEL INFORMATION
NOTE: Dispose of the old fuel/oil mix in accordance to
Federal, State and Local regulations.
OIL AND FUEL MIXING INSTRUCTIONS
Old and/or improperly mixed fuel are the main reasons
for the unit not running properly. Be sure to use fresh,
clean unleaded fuel. Follow the instructions carefully for
the proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol, or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel and oil separate. It forms
acids when stored. When using alcohol-blended fuel,
use fresh fuel (less than 60 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is
unavoidable, follow recommended precautions:
• Always use the fresh fuel mix explained in your
operator's manual
• Always agitate the fuel mix before fueling the unit
• Drain the tank and run the engine dry before storing
the unit
Using Fuel Additives
The bottle of 2-cycle oil that came with your unit
contains a fuel additive which will help inhibit corrosion
and minimize the formation of gum deposits. It is
recommended that you use our 2-cycle oil with this unit.
If unavailable, use a good 2-cycle oil designed for
air-cooled engines along with a fuel additive, such as
STA-BIL®Gas Stabilizer or an equivalent. Add 0.8 oz.
(23 ml.) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's fuel tank.
Thoroughly mix the proper ratio of 2-cycle engine oil
with unleaded gasoline in a separate fuel can. Use a 40:1
fuel/oil ratio. Do not mix them directly in the engine fuel
tank. See the table below for specific gas and oil mixing
ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed
with one 3.2 oz. (95 ml.) bottle of
2-cycle oil makes a 40:1 fuel/oil ratio.
UNLEADED GAS 2 CYCLE OIL
1 GALLON US
(3.8 LITERS)
3.2 FL. OZ.
(95 ml)
1 LITER 25 ml
+
MIXING RATIO - 40:1
Add fuel in a clean,
well ventilated
outdoor area. Wipe up any spilled fuel
immediately. Avoid creating a source of
ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
WARNING:
Gasoline is
extremely
flammable. Ignited Vapors may explode.
Always stop the engine and allow it to cool
before filling the fuel tank. Do not smoke
while filling the tank. Keep sparks and open
flames at a distance from the area.
WARNING:
Remove fuel cap
slowly to avoid injury
from fuel spray. Never operate the unit
without the fuel cap securely in place
.
WARNING:
For proper engine
operation and
maximum reliability, pay strict attention to
the oil and fuel mixing instructions on the
2-cycle oil container. Using improperly mixed
fuel can severely damage the engine.
CAUTION:
12
STARTING/STOPPING INSTRUCTIONS
On/Off Stop Control
Throttle Control
Idle
Fast
STARTING INSTRUCTIONS
Fig. 10
Fig. 11
STOPPING INSTRUCTIONS
1. Move the throttle control to the idle position ( ). Allow the
engine to cool down by idling.
2. Press and hold On/Off Stop Control in the OFF (O) position
until engine comes to a complete stop.
NOTE: There is no need to turn the unit on. The On/Off
Stop Control is in the ON (I) position at all times.
2. Fully press and release the primer bulb 10 times,
slowly. Some amount of fuel should be visible in the
primer bulb and fuel lines (Fig. 11). If you can’t see
fuel in the bulb, press and release the bulb as many
times as it takes before you can see fuel in it.
3. Place the unit in the starting position (Fig. 12 as a
blower, Fig. 13 as a vacuum). Move the throttle control
to the idle position ( ) (Fig. 10). This is especially
important during cold starting.
4. Push the blue EZ-Start™ Lever towards the primer
bulb until it clicks and locks into place (Fig. 11).
5. Pull the starter rope out with a controlled and steady
motion until the engine attempts to start. Repeat until
the engine starts.
NOTE: The unit uses Spring Assist Starting™, which
significantly reduces the effort required to start the
engine. You must pull the starter rope out far enough
to hear the engine attempt to start. There is no need
to pull the rope briskly-- there is no harsh resistance
when pulling. Be aware that this starting method is
vastly different from (and much easier than) what you
may be used to.
6. When the engine starts, move the throttle control to the
fast position ( ) and let the engine warm up for 15 to
30 seconds. The blue EZ-Start™ Lever will click off
automatically when you move the throttle control to
the fast position.
IF... The engine does not start, go back to step 2.
NOTE: If you are having trouble starting the unit or are
operating in extreme temperatures (below 40º F,
above 90º F), refer to the Troubleshooting section.
Vacuum
Starting
Position
Starter
Rope
Starter
Rope
Blower
Starting
Position
Fig. 12
Fig. 13
Operate this unit only in a
well- ventilated outdoor
area. Carbon monoxide exhaust fumes can be
lethal in a confined area.
WARNING:
Avoid accidental starting.
Make sure you are in the
starting position when pulling the starter rope (Fig.
12 and 13).
To avoid serious injury, the operator and
unit must be in a stable position while starting.
Do not set unit on any surface except a clean, hard
area while starting. Debris such as gravel, sand,
dust and grass could be picked up by the air
intake and thrown out by the discharge opening.
This could damage the unit, property, or cause
serious injury to bystanders or the operator.
WARNING:
To avoid serious
personal injury,
always remove the vacuum bag prior to
refueling the unit. The bag may become a
fire hazard when saturated with fuel.
WARNING:
Primer
Bulb
Blue EZ-Start™
Lever
1. Mix gas with oil. Fill fuel tank with fuel/oil mixture.
See Oil and Fuel Mixing Instructions.
13
OPERATING INSTRUCTIONS
HOLDING THE BLOWER/VACUUM
Before operating the unit, stand in the operating position.
Check for the following:
• Operator is wearing proper clothing, such as boots,
safety glasses or goggles, ear/hearing protection,
gloves, long pants and long sleeve shirt
• If the conditions are dusty, the operator is wearing a
dust mask or face mask
• The unit is in good working condition
• The tubes and guards are in place and secure
OPERATING TIPS
• Be sure the vacuum bag is zipped closed before
operating the unit.
• Assure the unit is not directed at anybody or any loose
debris before starting the unit.
• Verify that the unit is in good working condition. Make
sure the tubes and guards are in place and secure.
• Always hold the unit securely when operating. Keep a
firm grip on both the front and rear handles.
• To reduce the risk of hearing loss associated with sound
level(s), hearing protection is required.
• Operate power equipment only at reasonable hours—
not early in the morning or late at night when people
might be disturbed. Comply with times listed in local
ordinances. Usual recommendations are 9:00 am to
5:00 pm, Monday through Saturday.
• To reduce noise levels, limit the number of pieces of
equipment used at any one time.
• To reduce noise levels, operate power blowers at the
lowest possible speed to do the job.
• Check your equipment before operation, especially the
muffler, air intakes and air filters.
• Use rakes and brooms to loosen debris before blowing.
• In dusty conditions, slightly dampen surfaces or use a
mister attachment when water is available.
• Conserve water by using power blowers instead of
hoses for many lawn and garden applications,
including areas such as screens, patios, grills, porches,
and gardens.
• Watch out for children, pets, open windows or freshly
washed cars, and blow debris safely away.
• Use the full blower nozzle extension so the air stream
can work close to the ground.
• Clean up after using blowers and other equipment.
Dispose of debris appropriately.
OPERATING AS A BLOWER
1 Use the blower for trees, shrubs, flower beds and
hard-to-clean areas (Fig. 14).
2. Use the unit around buildings and for other normal
cleaning procedures (Fig. 14).
3. Use the blower around walls, overhangs, fences and
screens (Fig. 15).
Fig. 14
Fig. 15
To prevent serious
personal injury or
damage to the unit, make sure blower tubes
or vacuum tubes and the vacuum bag are in
place before you operate the unit.
WARNING:
To avoid serious
personal injury,
wear goggles or safety glasses at all times
when operating this unit. Wear a face mask
or dust mask in dusty locations.
WARNING:
14
OPERATING INSTRUCTIONS

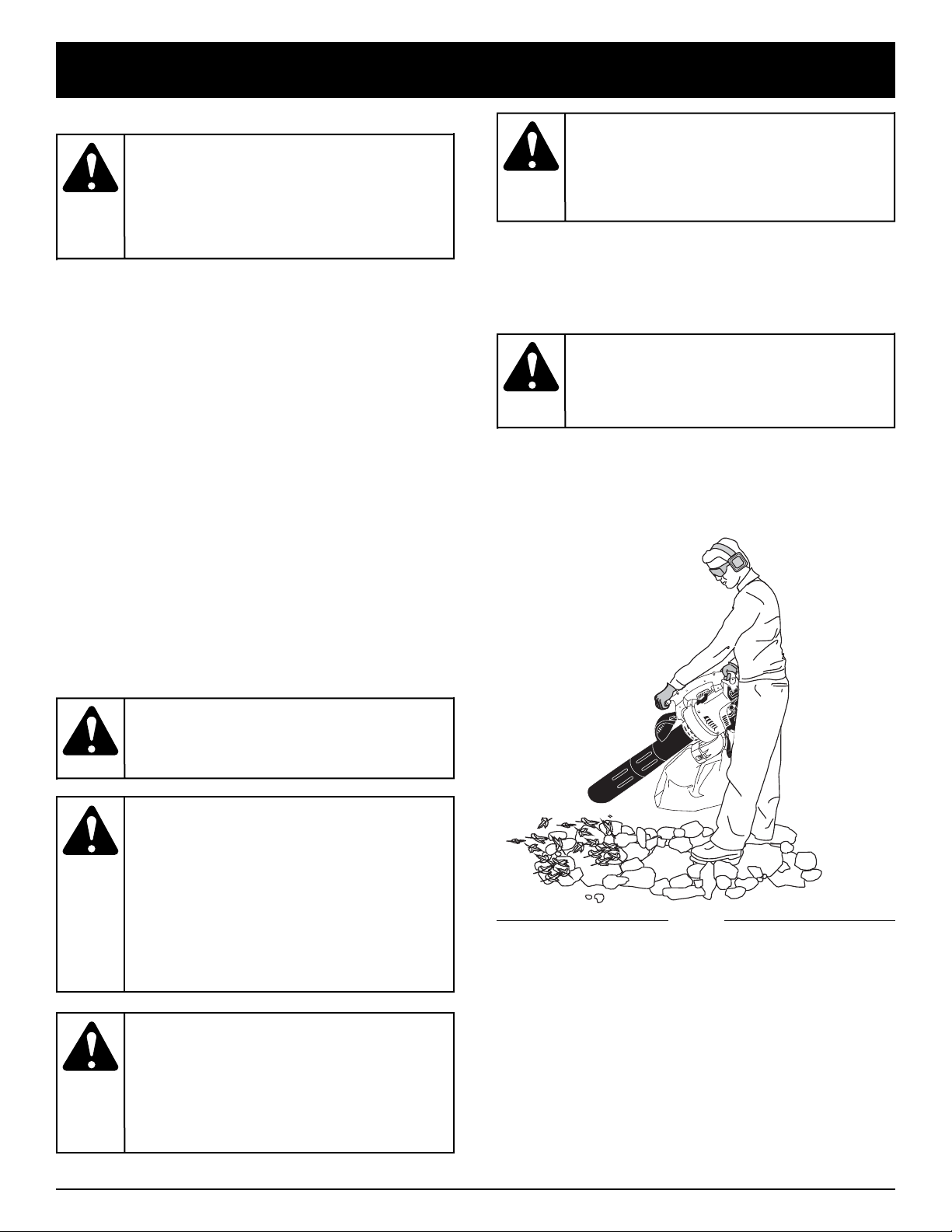

Fig. 16
OPERATING AS A VACUUM
Check for the following before operating the unit:
• Operator is wearing proper clothing, such as boots,
safety glasses or goggles, ear/hearing protection,
gloves, long pants and long sleeve shirt
• If the conditions are dusty, operator is equipped with a
dust mask or face mask
• The unit is in good working condition-- the vacuum
tubes and vacuum bag are in place and secure.
• The vacuum bag harness is in place and correctly
adjusted
Operation Procedure
Use the unit for vacuuming up light debris like leaves
and paper.
Hold the vacuum, tilting the suction tube slightly (2-4 in
or 50-100 mm above the ground), and use a sweeping
action to collect light debris (Fig. 16). The debris will flow
into the vacuum bag. Items such as small leaves and
small twigs will be mulched as they pass through the fan
housing, allowing the vacuum bag to hold more debris.
When the bag is full, suction will noticeably decrease.
Turn off the unit and allow the impeller to stop before
you unzip the bag. Unzip the bag and empty the
contents before continuing. Refer to Emptying the
Vacuum Bag.
Emptying the Vacuum Bag
1. Remove the bag from the vacuum bag hook.
2. While wearing eye protection and a dust mask, unzip
the vacuum bag and empty the contents into a
garbage bag or container.
3. Turn the bag inside out after initial emptying and
vigorously shake out dust and debris.
4. Zip close and reinstall the vacuum bag.
To avoid serious
personal injury, turn
off the unit and allow the impeller to stop
before opening vacuum door or installing or
removing vacuum bag.
WARNING:
When the upper and
lower vacuum tubes
are removed, make sure the vacuum door is
snapped closed and secured before using
the unit, to avoid injury from the impeller.
WARNING:
Avoid situations that
could catch the
vacuum bag on fire. Do not operate near an
open flame. Do not vacuum warm ash from
fireplaces, barbecue pits, brush piles, etc. Do
not vacuum discarded cigars or cigarettes
unless the cinders are completely cool.
WARNING:
As a vacuum, the
unit is designed to
pick up dry material such as leaves, grass,
small twigs and bits of paper. To avoid serious
personal injury, do not attempt to vacuum wet
debris and/or standing water as this may
result in damage to the blower/ vacuum. To
avoid severe damage to the impeller, do not
vacuum metal, broken glass or similar items.
WARNING:
To avoid serious
personal injury,
never unzip the vacuum bag without
stopping the unit first
WARNING:
To prevent serious
personal injury or
damage to the unit, always install vacuum
tubes, vacuum bag and make sure the
vacuum bag is completely zipped closed
when operating this unit as a vacuum.
WARNING:
15
MAINTENANCE AND REPAIR INSTRUCTIONS
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the
frequency stated in the table. These procedures should
also be a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to any non-road
engine repair establishment, individual or
authorized service dealer. Call 1-800-520-5520
for more information.
NOTE: Maintenance, replacement, or repair of the
emission control devices and system may be
performed by any non-road engine repair
establishment, individual or authorized service
dealer.
In order to assure peak performance of your engine,
inspection of the engine exhaust port may be necessary
after 50 hours of operation. If you notice lost RPM, poor
performance or general lack of acceleration, this service
may be required. If you feel your engine is in need of this
inspection, refer service to any non-road engine repair
establishment, individual or authorized service dealer for
repair. DO NOT attempt to perform this process yourself
as engine damage may result from contaminants
involved in the cleaning process for the port.
FREQUENCY MAINTENANCE REQUIRED REFER TO
Before starting engine Fill fuel tank with fresh fuel Page 11
Every 10 hours Clean and re-oil air filter Page 15
Every 25 hours
Check and clean spark arrestor
Check spark plug condition and gap
Page 16
Page 17
Every 50 hours
Inspect exhaust port and spark arrestor screen for clogging or
obstruction to assure maximum performance levels
Page 16
AIR FILTER MAINTENANCE
Removing the Air Filter/Muffler Cover
1. Remove the four (4) screws securing the air
filter/muffler cover (Fig. 17). Use a T20 Torx bit
screwdriver.
2. Pull the cover from the engine. Do not force.
Cleaning the Air Filter
Clean and re-oil the air filter every 10 hours of operation.
It is an important item to maintain. Failure to maintain
your air filter properly can result in poor performance or
can cause permanent damage to your engine.
1. Remove air filter/muffler cover. Refer to Removing
the Air Filter/Muffler Cover.
2. Turn cover over and look inside to locate the air filter.
Remove the air filter from inside the air filter/muffler
cover (Fig. 18).
3. Wash the filter in detergent and water (Fig. 19). Rinse
the filter thoroughly. Squeeze out excess water. Allow
it to dry completely.
Fig. 17
Fig. 18
Fig. 19
Air Filter
Inside Muffler
Cover
To avoid serious
personal injury,
always turn your unit off and allow it to cool
before you clean or service it.
WARNING:
To prevent serious
injury, never perform
maintenance or repairs with unit running.
Always service and repair a cool unit.
Disconnect the spark plug wire to ensure that
the unit cannot start.
WARNING:
Screws
Screws
Blue EZ-Start™
Lever
16
MAINTENANCE AND REPAIR INSTRUCTIONS

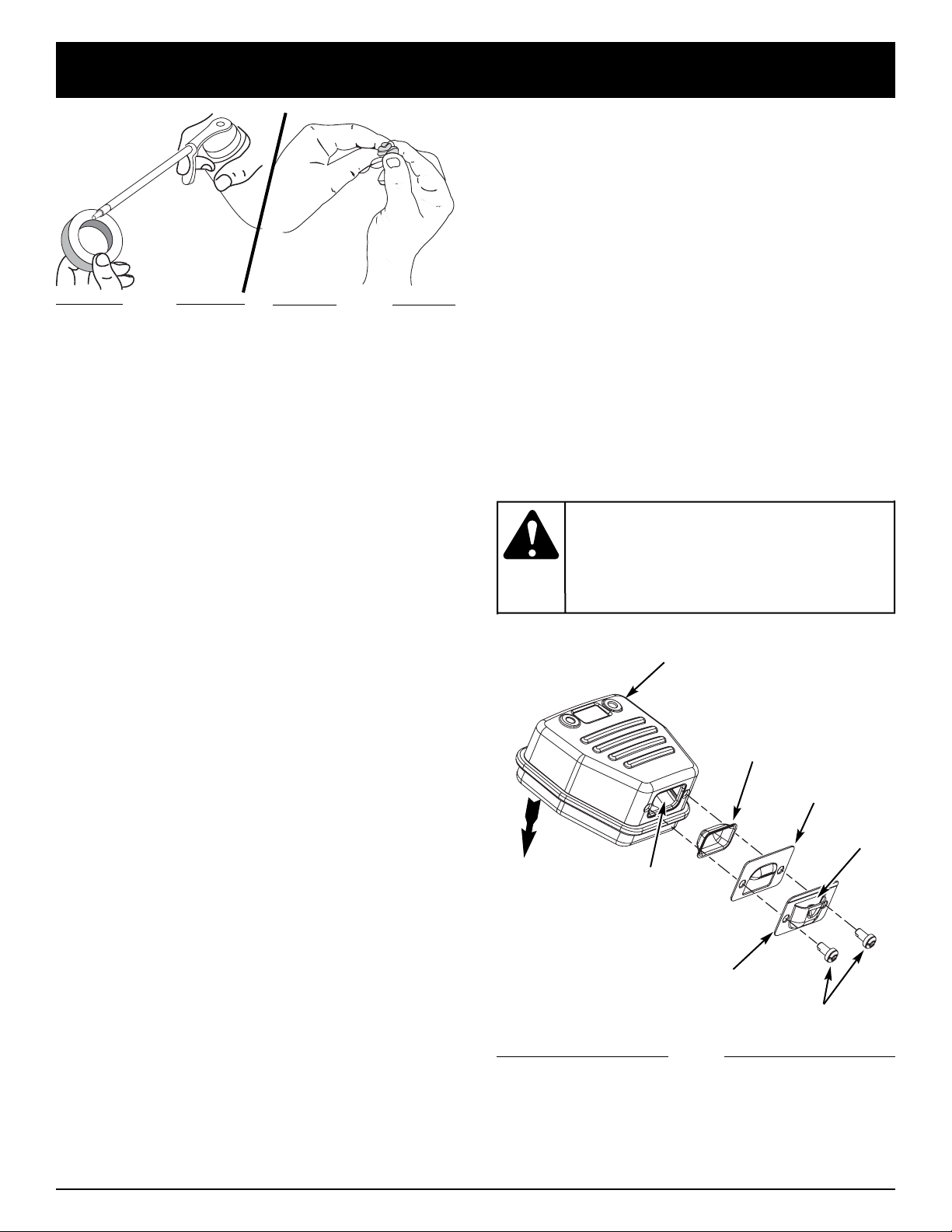

Fig. 20
Fig. 21
4. Apply enough clean SAE 30 oil to lightly coat the
filter (Fig. 20).
5. Squeeze the filter to spread and remove excess oil
(Fig. 21).
6. Replace the air filter inside the air filter/muffler cover
(Fig. 18).
NOTE: Operating the unit without the air filter and air
filter/muffler cover assembly will VOID the
warranty.
Reinstalling the Air Filter/Muffler Cover
1. Place the air filter/muffler cover over the back of the
carburetor and muffler. Align the screw holes.
2. Insert the four (4) screws into the holes in the air
filter/muffler cover (Fig. 17) and tighten.
Do not over tighten.
If the exhaust
deflector assembly is
not tightened securely, it could fall off causing
damage to the unit and possible serious
personal injury.
WARNING:
SPARK ARRESTOR MAINTENANCE
NOTE: The exhaust can only flow in one direction: AWAY
from the engine. Pay close attention when
disassembling the muffler so you can put it back
together correctly. Failure to do so will damage
the unit and may cause serious personal injury.
1. Remove air filter/muffler cover. Refer to Removing
the Air Filter/Muffler Cover.
2. Locate the muffler, but do not remove it. Find the two
(2) screws on the bottom of the muffler (Fig. 22).
These two screws hold the Spark Arrestor Hood
Assembly and the spark arrestor screen to the
bottom of the muffler. Remove the two (2) screws
using either a torx #20 or flat blade screwdriver.
3. Using a small flat blade screwdriver, carefully pry up
the spark arrestor screen from the recessed hole,
taking care to notice that the “raised” part of the
spark arrestor screen is inside the recessed hole.
Remove the spark arrestor screen from the muffler.
Spark Arrestor
Screen
Spark Arrestor
Plate
Spark Arrestor
Hood
Screws
Muffler
Recessed Hole
Engine
Spark Arrestor Hood
Assembly Includes:
Spark Arrestor Plate
Spark Arrestor Hood
and Screws
Opening
Fig. 22
4. Clean the spark arrestor screen with a wire brush.
Replace it if it is damaged, or if you are unable to
clean it thoroughly.
5. Reinstall the spark arrestor screen by putting the
“raised” portion of the screen inside the recessed
hole of the muffler. Make sure that the spark arrestor
screen fits flat against the muffler.
6. Place the spark arrestor plate on top of the spark
arrestor with the “raised” side up and the opening
facing towards the engine (Fig. 22).
7. Place the spark arrestor hood on top of the spark
arrestor plate with the “raised” side up and the
opening facing AWAY from the engine (Fig. 22). Verify
that the exhaust will be directed AWAY from the
engine.
8. Replace the two screws you removed in Step 2 and
tighten them securely.
9. Reinstall the air filter/muffler cover.
17
MAINTENANCE AND REPAIR INSTRUCTIONS
Check Fuel Mixture
Old and/or improperly mixed fuel is usually the reason
for improper unit performance. Drain and refill the tank
with fresh, properly-mixed fuel prior to making any
adjustments. Refer to Oil and Fuel Information.
Clean Air Filter
The condition of the air filter is important to the operation
of the unit. A dirty air filter will restrict air flow and
change the air/fuel mixture. This is often mistaken for an
out of adjustment carburetor. Check the condition of the
air filter before adjusting the idle speed screw. Refer to
Air Filter Maintenance.
Adjust Idle Speed Screw
CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable through the air
filter/muffler cover (Fig. 23).
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Checking the fuel mixture, cleaning the air filter, and
adjusting the idle speed should solve most engine
problems. If not and all of the following are true:
• the engine will not idle
• the engine hesitates or stalls on acceleration
• there is a loss of engine power
Have the carburetor adjusted by an authorized service
dealer.
Call 1-800-520-5520 for more information.
REPLACING THE SPARK PLUG
Use a Champion RDJ7Y spark plug, or equivalent. The
correct air gap is 0.020 inch (0.5 mm). Remove the plug
after every 25 hours of operation and check its condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug
from the cylinder head by turning a 5/8-inch socket
counterclockwise.
3. Replace a cracked, fouled or dirty spark plug. Set
the air gap at 0.020 in. (0.5 mm) using a feeler gauge
(Fig. 24).
4. Install a correctly-gapped spark plug in the cylinder
head. Tighten by turning the 5/8-inch socket
clockwise until snug.
If using a torque wrench torque to:
110-120 in.•lb. (12.3-13.5 N•m)
Do not over tighten.
0.020 in.
(0.5 mm)
Fig. 24
Idle Speed
Screw
Fig. 23
If after checking the fuel mixture and cleaning the air
filter the engine still will not idle, adjust the idle speed
adjuster as follows.
1. Start the engine and let it run at the fast position for a
minute to warm up.
2. Move the throttle control to the idle position and let
the engine idle. If the engine stops, insert a small
phillips screwdriver into the hole in the air
filter/muffler cover (Fig. 23). Turn the idle speed
adjuster in, clockwise, 1/8 of a turn at a time (as
needed) until the engine idles smoothly.
3. If the unit appears to be idling too fast, turn the idle
speed adjuster counterclockwise 1/8 of a turn at a
time (as needed), to reduce idle speed.
Do not sand blast,
scrape or clean
electrodes. Grit in the engine could damage
the cylinder.
WARNING:
This unit will need
to be running during
idle speed adjustment. Wear protective
clothing and observe all safety instructions
to prevent serious personal injury.
Also, DO NOT set unit on any surface
except a clean, hard area while starting or
performing any adjustments. Debris such
as gravel, sand, dust, grass, etc. could be
picked up by the air intake and thrown out
by the discharge opening, damaging unit,
property, or causing serious injury to
bystanders or operator.
WARNING:
18
MAINTENANCE AND REPAIR INSTRUCTIONS
CLEANING THE UNIT
Use a small brush to clean off the outside of the unit.
Do not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and
solvents such as kerosene, can damage plastic housing
or handle. Wipe off any moisture with a soft cloth.
CLEANING THE VACUUM BAG
1. Empty the bag after each use to avoid deterioration
and obstructing air flow, which will reduce the
performance of the vacuum.
2. Wearing eye protection and a dust mask, clean the
bag as needed. Turn the bag inside out after initial
emptying and vigorously shake out dust and debris.
3. Wash the bag once a year or more often if needed:
a. Remove the vacuum bag.
b. Turn bag inside out.
c. Hang it up.
d. Hose it down thoroughly.
e. Hang to dry.
f. Turn bag right-side out and reinstall.
STORAGE
• Never store a fueled unit where fumes may reach an
open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use
or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
LONG TERM STORAGE
If you plan on storing the unit for an extended time, use
the following storage procedure:
1. Drain all fuel from the fuel tank into a container with
the same 2-cycle fuel mixture. Do not use fuel that
has been stored for more than 60 days. Dispose of
the old fuel/oil mix in accordance to Federal, State
and Local regulations.
2. Start the engine and allow it to run until it stalls. This
ensures that all fuel has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug and
put 1 oz. (30 ml) of any high quality motor oil or
2-cycle oil into the cylinder. Pull the starter rope
slowly to distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
unit after storage.
4. Thoroughly clean the unit and inspect it for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts. The unit is
ready for storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Drain fuel from unit.
• Tighten fuel cap before transporting.
• Secure the unit while transporting.
To avoid serious
personal injury,
always turn your unit off and allow it to cool
before you clean or service it.
WARNING:
CLEARING A BLOCKED TUBE / IMPELLER
1. Press the On/Off Stop control down in the STOP (O)
position until the engine comes to a complete stop
(Fig. 10).
2. Disconnect the spark plug wire to prevent the unit
from starting.
To avoid serious
personal injury,
always wear gloves to protect yourself from
the impeller blades or other sharp objects.
WARNING:
To avoid serious
personal injury, be
sure the unit is off before cleaning or
performing any maintenance on it.
WARNING:
3. Remove the blower/vacuum tube and the vacuum bag.
4. Carefully remove material blocking the tube or
impeller. Inspect the blades to assure no damage has
occurred. Rotate the impeller blades by hand to
assure the blockage is completely cleared.
5. Reinstall the vacuum bag and blower/vacuum tube.
6. Reconnect the spark plug wire.
19
TROUBLESHOOTING
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Air filter is plugged Replace or clean the air filter
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
Fouled spark plug Replace or clean the spark plug
Plugged spark arrestor Clean or replace spark arrestor
CAUSE ACTION
Blue EZ-Start lever wasn’t flipped/set Move lever to the starting position
Throttle lever is in the incorrect position Refer to the Starting/Stopping instructions
Empty fuel tank Fill fuel tank with properly mixed fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times
Engine flooded Flip throttle lever to FAST and pull starter rope
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Fouled spark plug Replace or clean the spark plug
Plugged spark arrestor Clean or replace spark arrestor
The outside temperature is below 40º F Pull the starter rope up to 10-15 times
The outside temperature is above 90º F Squeeze the throttle control and pull the starter rope
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS
CAUSE ACTION
Air filter is plugged Replace or clean the air filter
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Adjust according to the Carburetor Adjustments section
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
Dirty air filter Clean or replace the air filter
Plugged spark arrestor Clean or replace spark arrestor
If further assistance is required, contact your authorized service dealer.
Call 1-800-520-5520 for more information.
CAUSE ACTION
Bag full Empty bag, as described in Empty the Vacuum Bag
Blocked tube Clear the blockage as described in Clearing a Blocked
Tube/ Impeller
Blocked impeller Clear the blockage as described in Clearing a Blocked
Tube/ Impeller
Damaged impeller Take the unit to an authorized service dealer
UNIT WILL NOT BLOW OR VACUUM
20
SPECIFICATIONS
ENGINE*
Engine Type.......................................................................................................................................... Air-Cooled, 2-Cycle
Displacement............................................................................................................................................. 31 cc (1.9 cu. in)
Vacuum Operating RPM................................................................................................................................... 6,800+ rpm
Blower Operating RPM..................................................................................................................................... 7,200+ rpm
Idle Speed RPM ...................................................................................................................................... 3,200 - 4,400 rpm
Ignition Type.......................................................................................................................................................... Electronic
On/Off Stop Control....................................................................................................................................... Rocker Switch
Spark Plug Gap .................................................................................................................................... 0.020 inch (0.5 mm)
Lubrication................................................................................................................................................... Fuel/Oil Mixture
Fuel/Oil Ratio................................................................................................................................................................. 40:1
Carburetor....................................................................................................................................... Diaphragm, All-Position
Starter............................................................................................................................................................... Auto Rewind
Muffler ..................................................................................................................................................... Baffled with Guard
Fuel Tank Capacity................................................................................................................................. 13 ounces (384 ml)
BLOWER / VACUUM*
Throttle Control........................................................................................................................................... Finger-Tip Lever
Blower Velocity ............................................................................................................................. up to 205 mph (330 kmh)
Blower Air Output ........................................................................................................................ up to 425 cfm (12.1 cmm)
Mulching Ratio...................................................................................................................................................... up to 10:1
Vacuum Bag Capacity ................................................................................................................... 1.5 bushels (52.8 Liters)
Shoulder Harness ................................................................................................................................... Single Quick-Snap
Approximate Unit Weight (no fuel, with blower tube) ...................................................................................11.4 lb. (5.2 kg)
*All specifications are based on the latest product information available at the time of printing. We reserve the right to
make changes at any time without notice.
21
California / EPA Emission Control Warranty Statement
Your Warranty Rights and Obligations
The California Air Resources Board, the Environmental Protection Agency and MTD LLC (MTD) are pleased to explain
the emission control system warranty on your 2000 and later small off-road engine. New small off-road engines must be
designed, built and equipped to meet stringent anti-smog standards. MTD must warrant the emission control system on
your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper
maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and
catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, Troy-Bilt will repair your small off-road engine at no cost to you including
diagnosis, parts and labor.
The 2000 and later small off-road engines are warranted for two years. If any emission-related part on your engine is
defective, the part will be repaired or replaced by Troy-Bilt.
Owners Warranty Responsibilities
• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your
operator’s manual. Troy-Bilt recommends that you retain all receipts covering maintenance on your small off-road
engine, but Troy-Bilt cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of
all scheduled maintenance.
• As the small off-road engine owner, you however should be aware that Troy-Bilt may deny you warranty coverage if
your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.
• You are responsible for presenting your small off-road engine to a Troy-Bilt Authorized Service Center as soon as a
problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-520-5520.
Manufacturer’s Warranty Coverage
• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in
material and workmanship which cause the failure of a warranted part for a period of two years.
• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Troy-Bilt Service
Center. For the nearest location please contact Troy-Bilt at: 1-800-520-5520.
• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only
for regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any
warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up
to the first scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective,
if the diagnostic work is performed at an Authorized Troy-Bilt Service Center.
• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still
under warranty.
• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to
cover failures of warranted parts caused by the use of add-on or modified parts.
• In order to file a claim, go to your nearest Authorized Troy-Bilt Service Center. Warranty services or repairs will be
provided at all Authorized Troy-Bilt Service Centers.
• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair
of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in
performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty
obligations of the manufacturer
• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel
lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.
MANUFACTURER’S LIMITED WARRANTY FOR:
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any
product shall bind Troy-Bilt LLC During the period of
the Warranty, the exclusive remedy is repair or
replacement of the product as set forth above. (Some
states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to
you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. TroyBilt LLC shall not be liable for incidental or
consequential loss or damages including, without
limitation, expenses incurred for substitute or
replacement lawn care services, for transportation or
for related expenses, or for rental expenses to
temporarily replace a warranted product. (Some states
do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold.
Alteration of the safety features of the product shall void
this Warranty. You assume the risk and liability for loss,
damage, or injury to you and your property and/or to
others and their property arising out of the use or misuse
or inability to use the product.
This limited warranty shall not extend to anyone other than
the original purchaser, original lessee or the person for
whom it was purchased as a gift.
How State Law Relates to this Warranty: This warranty
gives you specific legal rights, and you may also have
other rights which vary from state to state.
To locate your nearest service dealer dial
1-800-520-5520.
Troy-Bilt LLC
P.O. Box 361131
Cleveland, OH 44136-0019
The limited warranty set forth below is given by Troy-Bilt
LLC with respect to new merchandise purchased and used
in the United States, its possessions and territories.
Troy-Bilt LLC warrants this product against defects in
material and workmanship for a period of two (2) years
commencing on the date of original purchase and will, at its
option, repair or replace, free of charge, any part found to
be defective in material or workmanship. This limited
warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to
misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by Troy-Bilt LLC for
use with the product(s) covered by this manual will void
your warranty as to any resulting damage. This warranty is
limited to ninety (90) days from the date of original retail
purchase for any Troy-Bilt product that is used for rental or
commercial purposes, or any other income-producing
purpose.
HOW TO OBTAIN SERVICE: Warranty service is
available, WITH PROOF OF PURCHASE THROUGH
YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate
the dealer in your area, visit our website at www.troybilt.com,
check for a listing in the Yellow Pages, call 1-800-520-
5520 or write to
P.O. Box 361131, Cleveland, OH 44136-
0019
.
This limited warranty does not provide coverage in
the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting
Line, Inner Reels, Starter Pulley, Starter Ropes, Drive
Belts
C. Troy-Bilt LLC does not extend any warranty for
products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through Troy-Bilt’s authorized
channels of export distribution.
Troy-Bilt LLC reserves the right to change or improve the
design of any Troy-Bilt Product without assuming any
obligation to modify any product previously manufactured.
Loading...
