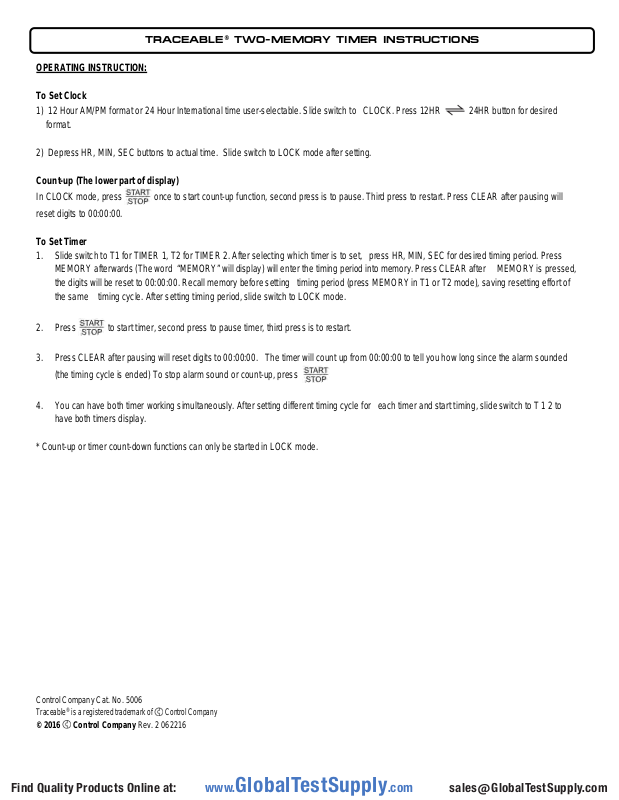

TRACEABLE® TWO-MEMORY TIMER INSTRUCTIONS
OPERATING INSTRUCTION:
To Set Clock
1) 12 Hour AM/PM format or 24 Hour International time user-selectable. Slide switch to CLOCK. Press 12HR
24HR button for desired
format.
2) Depress HR, MIN, SEC buttons to actual time. Slide switch to LOCK mode after setting.
Count-up (The lower part of display)
In CLOCK mode, press
once to start count-up function, second press is to pause. Third press to restart. Press CLEAR after pausing will
reset digits to 00:00:00.
To Set Timer
1. Slide switch to T1 for TIMER 1, T2 for TIMER 2. After selecting which timer is to set, press HR, MIN, SEC for desired timing period. Press
MEMORY afterwards (The word “MEMORY” will display) will enter the timing period into memory. Press CLEAR after MEMORY is pressed,
the digits will be reset to 00:00:00. Recall memory before setting timing period (press MEMORY in T1 or T2 mode), saving resetting effort of
the same timing cycle. After setting timing period, slide switch to LOCK mode.
2. Press
to start timer, second press to pause timer, third press is to restart.
3. Press CLEAR after pausing will reset digits to 00:00:00. The timer will count up from 00:00:00 to tell you how long since the alarm sounded
(the timing cycle is ended) To stop alarm sound or count-up, press
4. You can have both timer working simultaneously. After setting different timing cycle for each timer and start timing, slide switch to T 1 2 to
have both timers display.
* Count-up or timer count-down functions can only be started in LOCK mode.
Control Company Cat. No. 5006
Traceable® is a registered trademark of Control Company
© 2016 Control Company Rev. 2 062216
