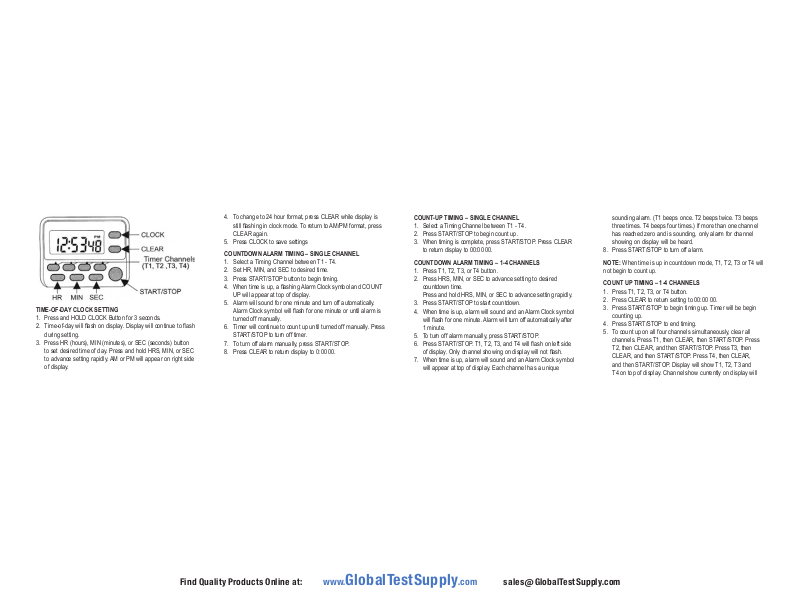

TIME-OF-DAY CLOCK SETTING
1. Press and HOLD CLOCK Button for 3 seconds.
2. Time-of-day will ash on display. Display will continue to ash
during setting.
3. Press HR (hours), MIN (minutes), or SEC (seconds) button
to set desired time of day. Press and hold HRS, MIN, or SEC
to advance setting rapidly. AM or PM will appear on right side
of display.
4. To change to 24 hour format, press CLEAR while display is
still ashing in clock mode. To return to AM/PM format, press
CLEAR again.
5. Press CLOCK to save settings
COUNTDOWN ALARM TIMING – SINGLE CHANNEL
1. Select a Timing Channel between T1 - T4.
2. Set HR, MIN, and SEC to desired time.
3. Press START/STOP button to begin timing.
4. When time is up, a ashing Alarm Clock symbol and COUNT
UP will appear at top of display.
5. Alarm will sound for one minute and turn off automatically.
Alarm Clock symbol will ash for one minute or until alarm is
turned off manually.
6. Timer will continue to count up until turned off manually. Press
START/STOP to turn off timer.
7. To turn off alarm manually, press START/STOP.
8. Press CLEAR to return display to 0:00 00.
COUNT-UP TIMING – SINGLE CHANNEL
1. Select a Timing Channel between T1 - T4.
2. Press START/STOP to begin count up.
3. When timing is complete, press START/STOP. Press CLEAR
to return display to 00:00 00.
COUNTDOWN ALARM TIMING – 1-4 CHANNELS
1. Press T1, T2, T3, or T4 button.
2. Press HRS, MIN, or SEC to advance setting to desired
countdown time.
Press and hold HRS, MIN, or SEC to advance setting rapidly.
3. Press START/STOP to start countdown.
4. When time is up, alarm will sound and an Alarm Clock symbol
will ash for one minute. Alarm will turn off automatically after
1 minute.
5. To turn off alarm manually, press START/STOP.
6. Press START/STOP. T1, T2, T3, and T4 will ash on left side
of display. Only channel showing on display will not ash.
7. When time is up, alarm will sound and an Alarm Clock symbol
will appear at top of display. Each channel has a unique
sounding alarm. (T1 beeps once. T2 beeps twice. T3 beeps
three times. T4 beeps four times.) If more than one channel
has reached zero and is sounding, only alarm for channel
showing on display will be heard.
8. Press START/STOP to turn off alarm.
NOTE: When time is up in countdown mode, T1, T2, T3 or T4 will
not begin to count up.
COUNT UP TIMING – 1-4 CHANNELS
1. Press T1, T2, T3, or T4 button.
2. Press CLEAR to return setting to 00:00 00.
3. Press START/STOP to begin timing up. Timer will be begin
counting up.
4. Press START/STOP to end timing.
5. To count up on all four channels simultaneously, clear all
channels. Press T1, then CLEAR, then START/STOP. Press
T2, then CLEAR, and then START/STOP. Press T3, then
CLEAR, and then START/STOP. Press T4, then CLEAR,
and then START/STOP. Display will show T1, T2, T3 and
T4 on top of display. Channel show currently on display will
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
not ash.
6. To stop timing for T1, T2, T3, and T4, desired channel and
then press START/STOP.
ALL OPERATIONAL DIFFICULTIES
If timer does not function properly, please replace battery with a new,
battery (see “Battery Replacement” section). Low battery power can
occasionally cause any number of “apparent” operational difculties.
Replacing battery with a fresh new battery will solve most difculties.
BATTERY REPLACEMENT
An incorrect display, no display or operational difculties indicate that
the batteries should be replaced. Slide open the battery cover on the
back of the timer. Insert two (2) new AAA batteries. Make certain to
note the proper polarity as indicated by the diagram in the battery
compartment. Replace the battery cover.
Battery Cover
MagnetsHanging Tab
TRACEABLE
®
100-HOUR
TIMER
Cat. No. 5001
Traceable® is a registered trademark of Cole-Parmer.
©2018 Traceable® Products. 92-5001-00 Rev. 2 082919
INSTRUCTIONS
