Tp-link NC260 User Manual

User Guide

HD Day/Night Wi-Fi Camera

NC260

1910012295

REV2.1.0

CONTENTS

Chapter 1 About This Guide...................................................................................			1
1.1	Conventions...................................................................................................................		1
1.2	Overview of This Guide .................................................................................................		1
1.3	More Info .......................................................................................................................		2
Chapter 2 Get to Know Your Camera.....................................................................			3
2.1	Product Overview ..........................................................................................................		3
2.2	Panel Appearance .........................................................................................................		3
	2.2.1	Front Panel .........................................................................................................	3
	2.2.2	Rear Panel .........................................................................................................	4
Chapter 3 Set Up Your Camera ..............................................................................			6
3.1	Set up the Camera with the tpCamera App ..................................................................		6
3.2	Position Your Camera....................................................................................................		8
Chapter 4 Configure Your Camera .........................................................................			9
4.1	Log in to Your Camera...................................................................................................		9
4.2	Live View ......................................................................................................................		11
4.3	Basic	............................................................................................................................	12
	4.3.1 ..................................................................................................	Basic > Status	12
	4.3.2 ...............................................................................................	Basic > Network	13
	4.3.3 ...........................................................................	Basic > Wireless Connection	14
	4.3.4 ......................................................................................	Basic > Cloud Setting	17
	4.3.5 .....................................................................................................	Basic > LED	18
4.4	Advanced.....................................................................................................................		19
	4.4.1 ...........................................................................................	Advanced > Status	19
	4.4.2 ........................................................................................	Advanced > Network	19
	4.4.3 ....................................................................	Advanced > Wireless Connection	23
	4.4.4 ...............................................................................	Advanced > Cloud Setting	24
	4.4.5 ............................................................................................	Advanced > Video	24
	4.4.6 ..........................................................................	Advanced > Sound Detection	26
	4.4.7 ..........................................................................	Advanced > Motion Detection	27
	4.4.8 .......................................................................................	Advanced > SD Card	28
	4.4.9 .....................................................................	Advanced > Notification Delivery	30
	4.4.10 ..............................................................................................	Advanced > LED	33
4.5	System.........................................................................................................................		34
	4.5.1 ............................................................................................................	Account	34
	4.5.2 .........................................................................................................	Date/Time	36
	4.5.3 ....................................................................................................	Management	38
	4.5.4 ......................................................................................................	System Log	40

NC260

Chapter 1 About This Guide

This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs.

When using this guide, please notice that features of the TP-Link Camera may vary slightly depending on the model and software version you have, and on your location, and language. All images, parameters and descriptions documented in this guide are used for demonstration only.

1.1 Conventions

In this Guide, the following conventions are used:

	Convention	Description
	Teal Underlined	Hyperlinks are teal underlined. You can click to redirect to a website or a
		specific section.
	Teal	Contents to be emphasized and texts on the web page are in teal,
		including the menus, items, buttons, etc.
	Note	Ignoring this type of note might result in a malfunction or damage to the
		device.

1.2 Overview of This Guide

	Chapter	Introduction
	Chapter 1 About This Guide	Introduces the guide structure and conventions.
	Chapter 2 Get to Know Your	Introduces the features, application and appearance of the
	Camera	camera.
	Chapter 3 Set Up Your	Introduces how to quickly set up the camera using the
	Camera	tpCamera app and how to position your camera.
	Chapter 4 Configure Your	Introduces how to configure the camera using the built-in
	Camera	web management page.

1

NC260

1.3 More Info

Specifications can be found on the product page at http://www.tp-link.com.

Our Technical Support contact information can be found at the Contact Technical Support page at http://www.tp-link.com/support.

The latest software, management app and utility can be found at Download Center at http://www.tp-link.com/support.

A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.

2

NC260

Chapter 2 Get to Know Your Camera

2.1 Product Overview

TP-Link NC260 HD Day/Night Wi-Fi Camera is a Wi-Fi video monitoring device with live streaming and remote viewing, which makes it easy to stay connected with what you care most.

Easy to install with tpCamera app

Remote monitoring via TP-Link Cloud website or tpCamera app

Get notifications when motion or sound is detected, and view alerts history

View clearer images with HD resolution

View clearly in the dark with night vision

Stay in touch with 2-way audio

Save the image and video in the Micro SD card

2.2Panel Appearance

2.2.1 Front Panel

Front Panel

3

NC260

 System LED:

	Status	Indication
	Flashing Red	The camera starts booting up.
	Solid Red	The camera has boot up, but is not connected to any
		network.
	Flashing Green	The camera is in firmware upgrade procedure.
		The camera is connecting to a network.
	Solid Green	The camera is connected to a network.
		The camera is transferring data.

Microphone: The camera has a built-in internal microphone. This microphone is hidden in the pinhole located on the front panel.

Micro SD Card Slot: For holding the micro SD card.

2.2.2 Rear Panel

Rear Panel

Power Jack: For connecting the camera to a power socket via the provided power adapter.

Internet Port: For connecting the camera to your router via an Ethernet cable.

Speaker: For audio output.

4

NC260

WPS/RESET Button: The switch for the WPS and Reset function. To use the WPS function, press it for about 2 seconds. To use the Reset function, press and hold for more than 5 seconds.

•Used as the WPS button:

If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect the camera to your Wi-Fi network using WPS. Press the WPS or QSS button on your router. Within 2 minutes, press the WPS/RESET button on the camera for about 2 seconds, then the LED above this button will start flashing quickly. When this LED becomes solid on, the WPS is successful.

•Used as the RESET button:

With the camera powered on, press and hold the WPS/ RESET button (for more than 5 seconds) until the System LED turns off. Then release the button and wait the camera to reset to its factory default settings.

 WPS LED:

	Status	Indication
	Flashing Green	The camera starts booting up.
		The camera is connecting to a network by WPS function.
	Off	The camera has boot up.
		The camera failed to be added to a network by WPS function.
	Solid Green	The camera has been successfully added to a network by WPS
		function. This process will last in the first two minutes.

5

NC260

Chapter 3 Set Up Your Camera

3.1 Set up the Camera with the tpCamera App

Step 1. Connect the camera to the network your smartphone is on.

1)Power on the camera using the provided power adapter as shown.

2)Connect a smartphone to the router as shown.

3)Connect the camera to the router via wired or wireless connection, and then wait till the camera’s system LED become solid green.

Wired: Connect the camera to the router’s LAN port via an Ethernet cable.

Wireless:

Via web management page

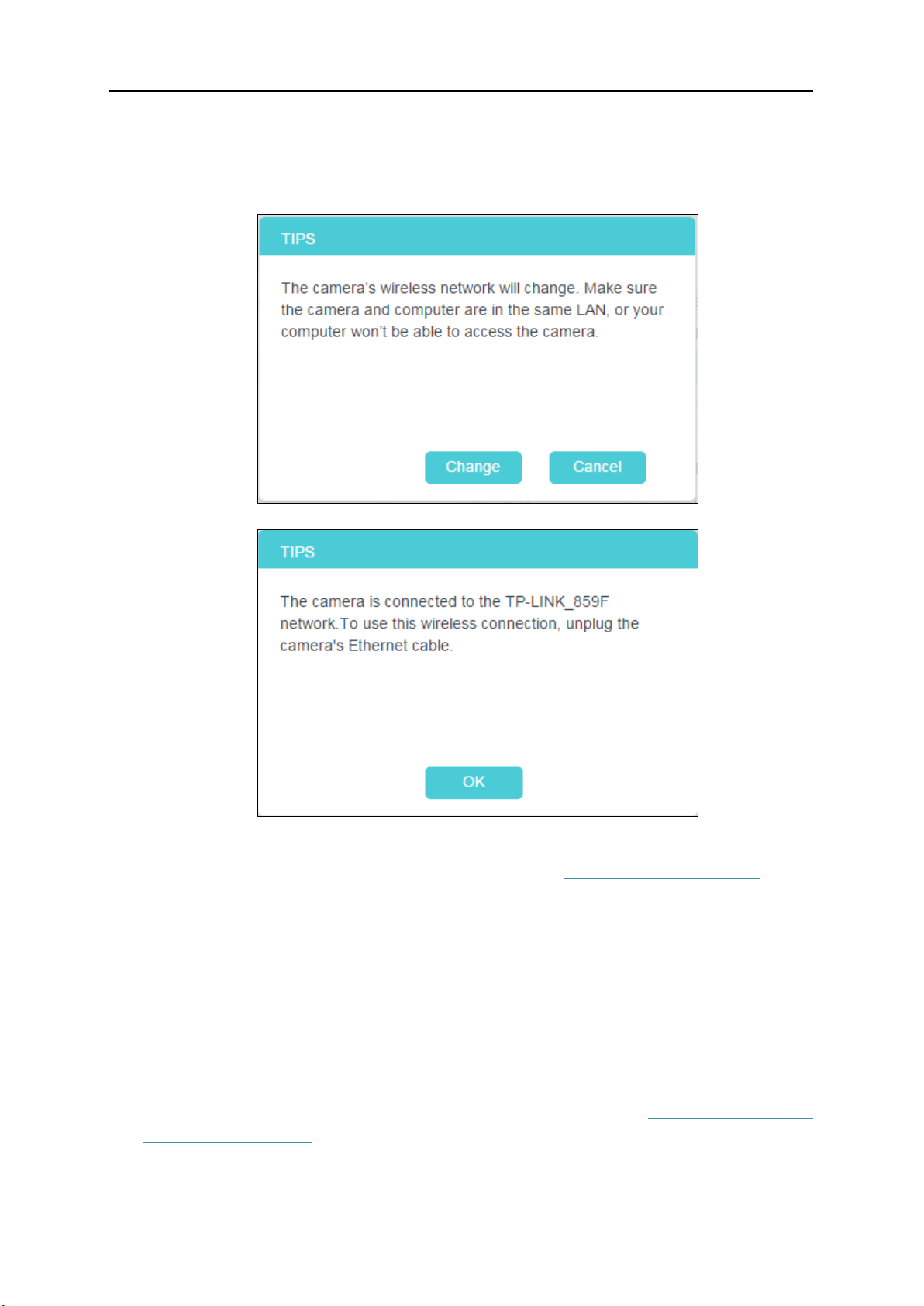

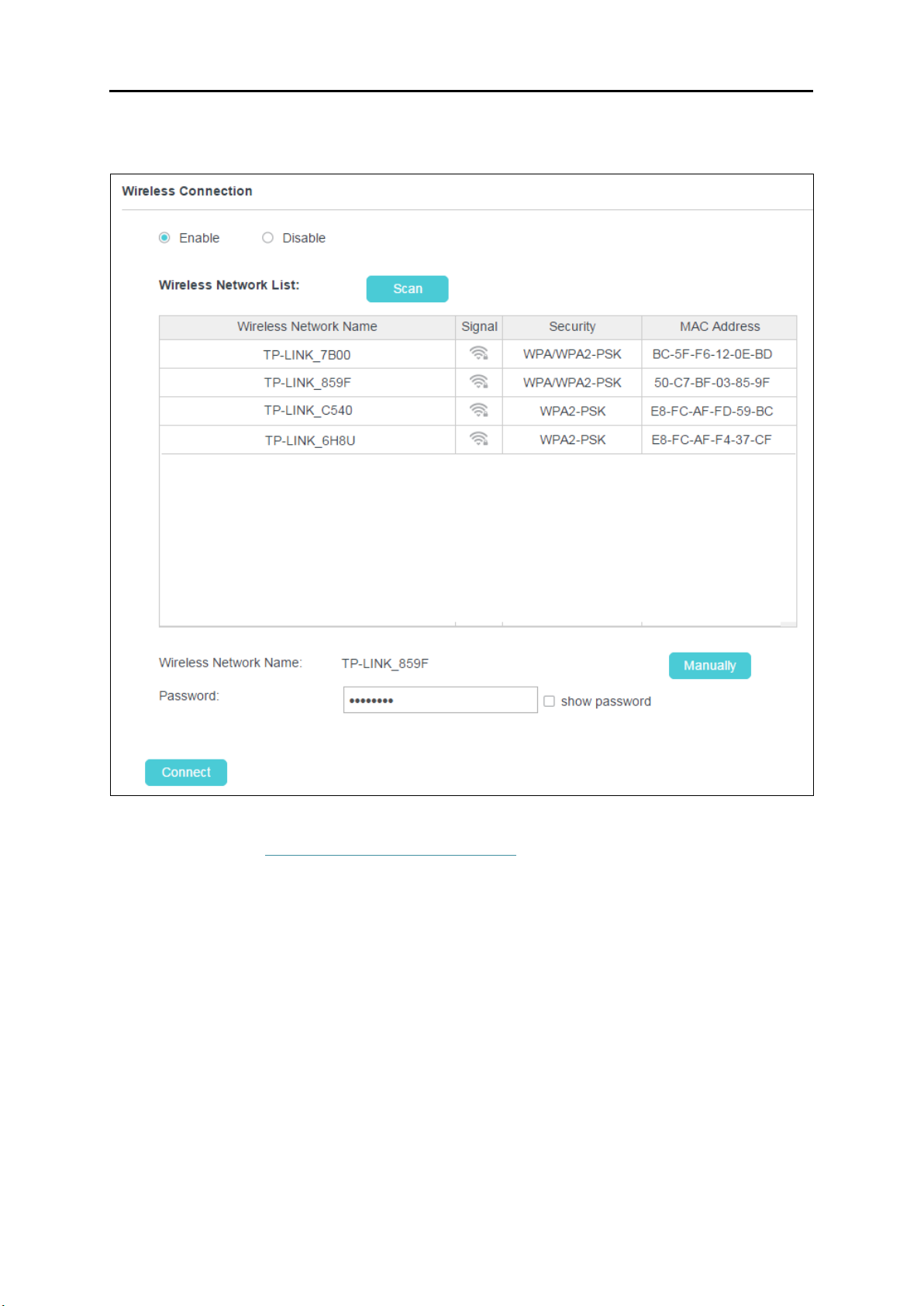

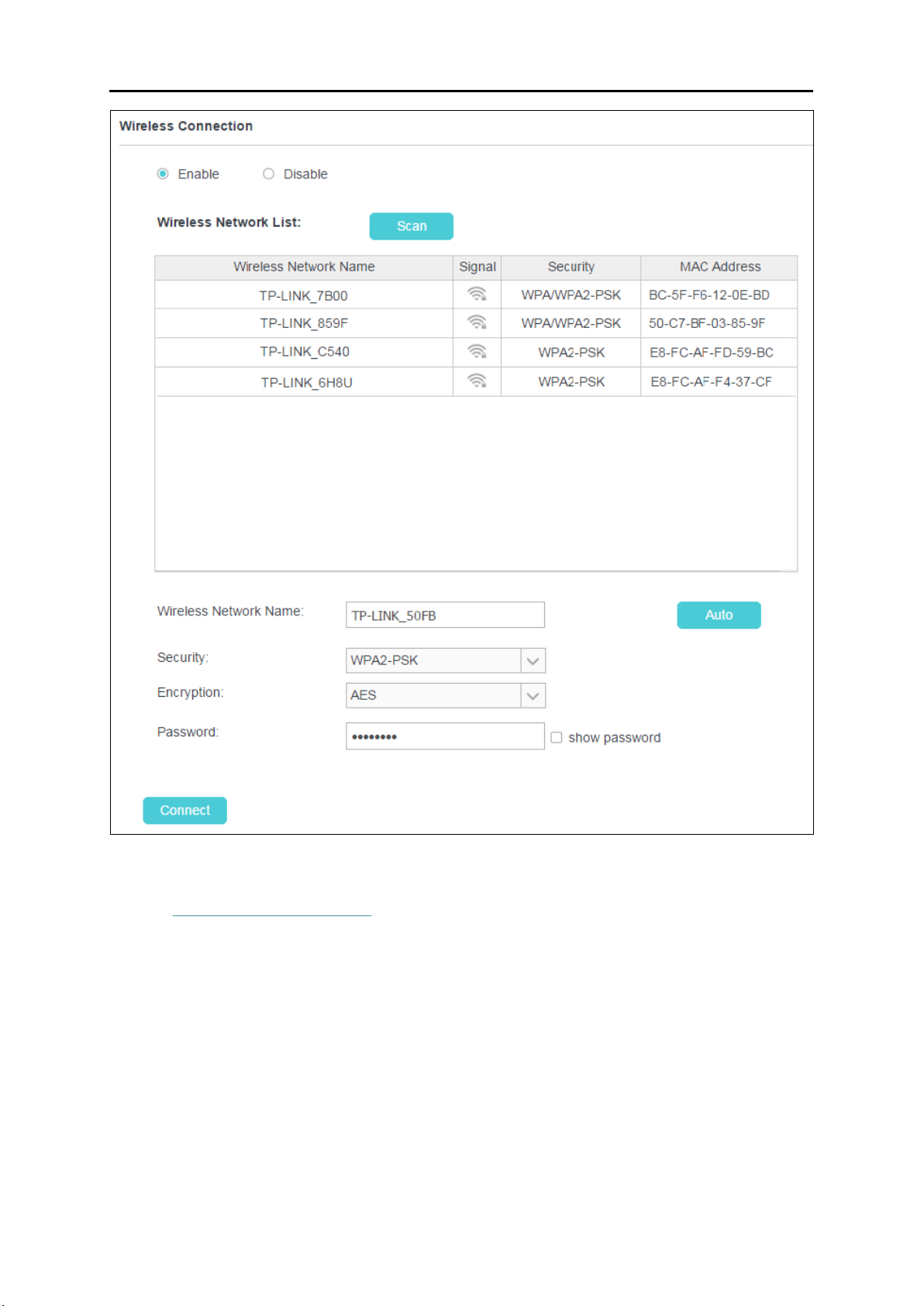

You can set the wireless connection using the basic settings on the web management page. (Refer to 4.3.3 Basic > Wireless Connection).

6

NC260

Via WPS/QSS button

If your wireless router supports WPS, you can connect the camera to your Wi-Fi network using WPS. Press the WPS or QSS button on your router. Within 2 minutes, press the WPS/RESET button on the back of the camera for about 2 seconds, then the LED above this button will start flashing quickly. When this LED becomes solid on, the WPS is successful and the camera is connected to the router wirelessly.

Step 2. Download and install the tpCamera app.

You can download the free tpCamera app from the App Store or Google play. You can also scan the QR code below to download the tpCamera app.

Step 3. Add the camera to your TP-Link ID.

Launch the tpCamera app, log in with your TP-Link ID or create one if you do not have a TP-Link ID. Then follow the app instructions to add your new camera to your TP-Link ID.

When you reach the My Cam screen, you have successfully added your camera and can start to use your camera.

Note:

You can enable Email and App notification in the app, which will inform you immediately of any detected movement or sound by sending the snapshots. The time interval between each Email notification alert is 10 minutes while the time interval for App notification is 3 minutes.

7

NC260

3.2 Position Your Camera

Before positioning your camera, please keep these safety guidelines in mind:

Keep your camera out of reach of children and pets.

Use your camera only indoors, and keep it out of direct sunlight. Make sure its operating temperature is in the range of 0-40°C (32-104°F).

Pick a location which is close enough to a wall outlet.

Use only the power adapter that comes with this camera in the package.

You can place your camera to your desired location. Just unplug and replug it without having to go through the app’s setup again. Place the camera within the coverage of your wireless network. You can place the camera in various ways:

Place it on a flat surface

Mount it on the wall or ceiling

Detailed instructions on mounting your camera to a wall or ceiling are shown as follows.

When you finish positioning your camera, use the tpCamera app to check that your camera can see what you want to keep an eye on. Adjust its position if needed.

8

NC260

Chapter 4 Configure Your Camera

This chapter shows how to use the camera’s web management page to configure the camera locally. In addition to the web management page, you can use the tpCamera app and TP-Link Cloud (http://www.tplinkcloud.com) to view and manage your camera remotely.

4.1 Log in to Your Camera

1.Connect a computer to the router that your camera is connected to. You can connect the computer to the router using an Ethernet cable or via the wireless connection.

2.Find the management IP address of the camera from the web management page of the connected router. Here we use the web management page of TP-Link router for demonstration.

3.On a computer that connects to the same router as the camera does, open a web browser, type in the camera’s IP address in the address field, and press Enter. Here we use http://192.168.1.101 for demonstration.

9

NC260

4.Enter the default username and password (admin/admin). Click Login.

5.Create a new password for your camera to enhance security. Click OK.

Note:

For the administrator, the default password is admin. For subsequent logins, use your password you have created.

If you log in to the camera as an administrator, you can perform all the settings provided by the camera. After logging as administrator, you can add up to five user accounts in the Account menu (Go to System > Account).

If you log in to the camera as a common user, you can only view the Live View.

10

NC260

4.2 Live View

The Live View screen shows you the live video feed from your camera. On this screen, you can capture a picture.

Symbols	Meaning		Note
	Click to capture a		The image file will be automatically saved to
	still image shot by
			your computer.
	the camera.
	Click to record a		The video file will be automatically saved to
	video by the
			your computer.
	camera.
			If the view of the camera is upside down,
			Rotate settings should be checked.
	Click to rotate the
	current image.
		11

NC260

Click to select the Auto/Day/Night mode.

Auto: This mode will automatically

switch between Day and Night modes based on the amount of available lighting.

Day: This sets the camera to always be in the Day mode.

Night: This sets the camera to always be in the Night mode.

Brightness: Drag the slider to adjust the brightness level of camera. Large value will brighten the current displayed screen.

Contrast: Drag the slider to adjust the contrast level of the camera. Large value will contrast the current displayed screen heavily.

Saturation: Drag the slider to adjust the saturation level of the camera. Large value will saturate the current displayed screen to be more colorful.

Preset: Click the Preset button to restore to factory image settings.

4.3 Basic

Click the Basic menu to display the submenus including Status, Network, Wireless Connection, Cloud Setting, and LED.

4.3.1 Basic > Status

The Status page displays the current configuration information of the camera. All the information is read-only.

12

NC260

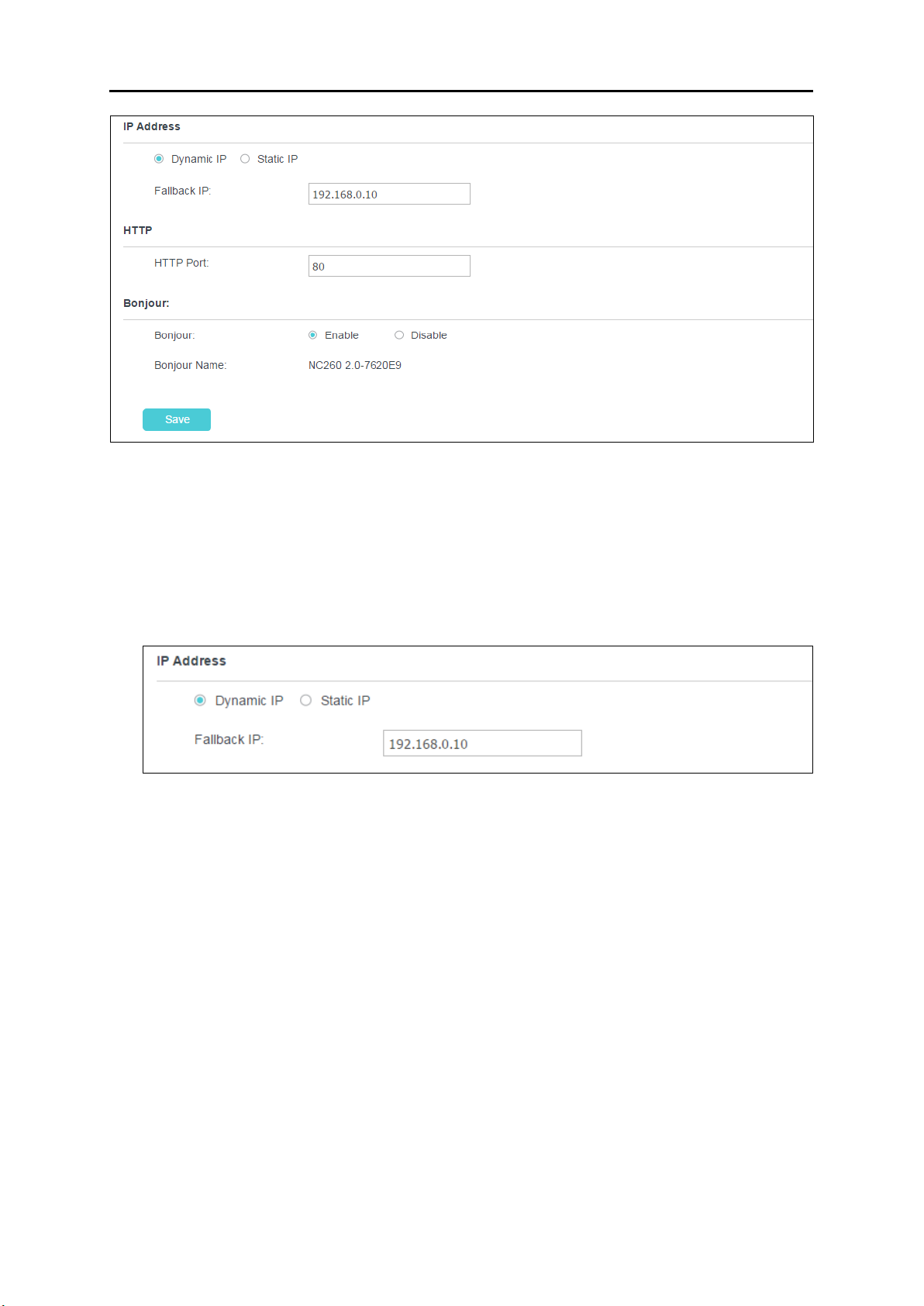

4.3.2 Basic > Network

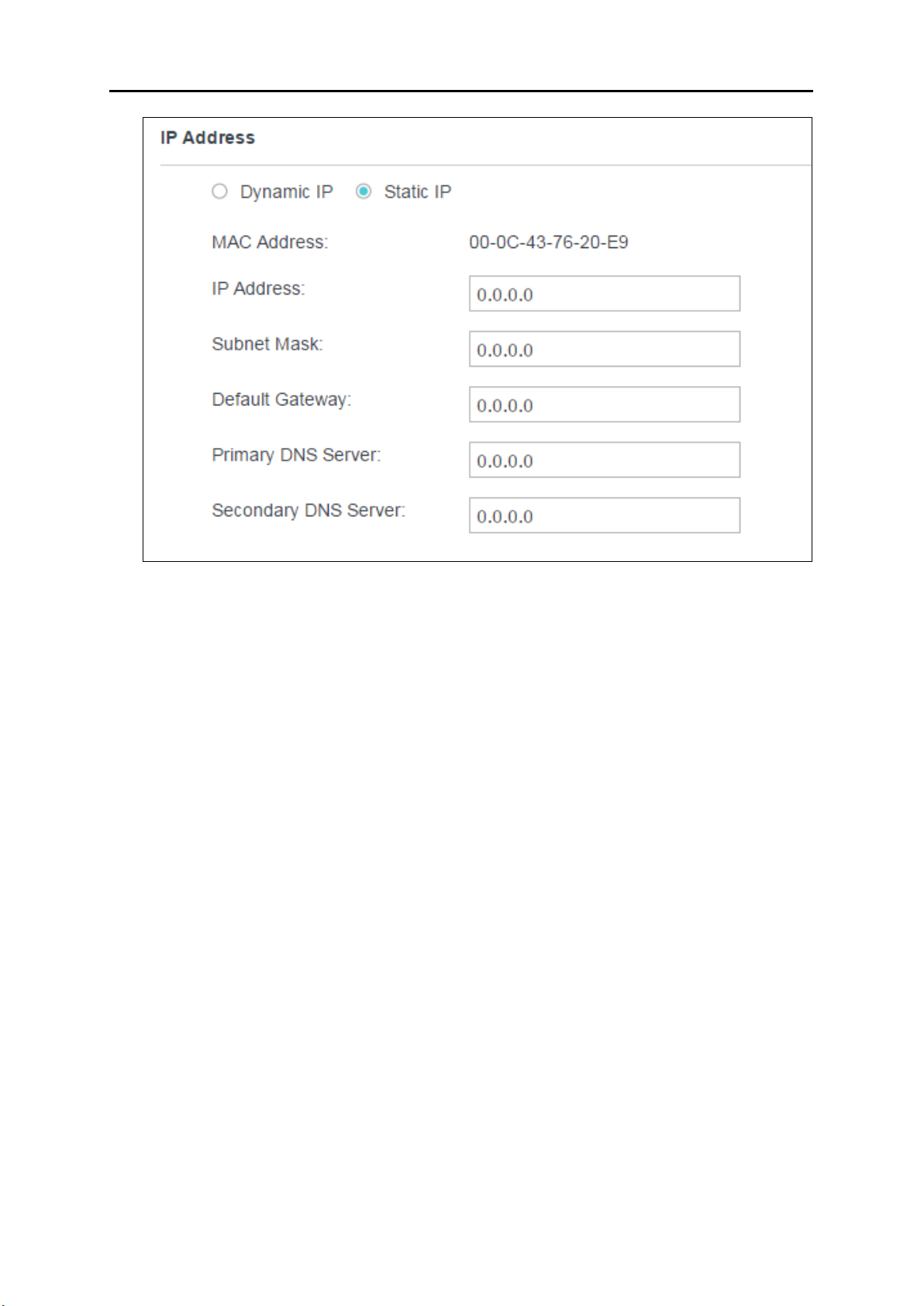

On this page, you can configure your camera’s IP address which is used to access and configure the camera.

Dynamic IP: Select this option when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address of the camera is assigned automatically.

13
